201977 - Juicer PRINCESS - Free user manual and instructions

Brand	Princess
Model	201977
Appliance Type	Juice extractor (citrus press)
Power Supply	220-240 V ~ 50/60 Hz
Power	30 W (estimated)
Capacity	Up to 10 oranges per cycle
Anti-drip Function	Yes, spout can be turned upward to stop dripping
Overheat Protection	Yes, automatic shut-off in case of excessive temperature
Cone Material	Stainless steel
Reservoir Material	Plastic
Dishwasher-safe Parts	Yes (handle, cone, strainer, reservoir)
Cable Length	Approximately 0.8 m
Dimensions (W x D x H)	20 x 15 x 12 cm (approx.)
Weight	0.8 kg (approx.)
Color	White and silver
Usage	Household use only
Warranty	2 years
Included Accessories	Pressing handle, press cone, strainer, reservoir, pouring spout
Automatic Start	Yes, as soon as the citrus fruit is pressed onto the cone
Recommended Maintenance	Clean after each use, detachable parts dishwasher-safe
Recycling	Recyclable appliance, do not dispose of with household waste

Frequently Asked Questions - 201977 PRINCESS

How to start the Princess 201977 juice extractor?

Place a glass under the spout of the reservoir. Cut a citrus fruit in half and press it onto the press cone. The motor starts automatically as soon as you apply pressure.

What to do if the appliance suddenly stops during use?

The stop may be due to overheat protection. Unplug the appliance and let it cool for at least 10 minutes. The thermostat resets automatically and the appliance can be used again.

Can I wash the parts of the extractor in the dishwasher?

Yes, the pressing handle, press cone, strainer, and reservoir can be washed in the dishwasher. It is recommended to place them on the top rack.

How many oranges can I press in a row without a break?

It is advised not to press more than 10 oranges continuously. After that, allow a 10-minute pause to avoid motor overheating.

How to clean the Princess 201977 juice extractor?

Unplug the appliance. Wipe the exterior surfaces with a slightly damp soft cloth. The removable parts (cone, strainer, reservoir, handle) can be washed with soapy water or in the dishwasher. Do not use abrasive products.

What to do if the motor slows down significantly during pressing?

This means you are applying excessive pressure. Release pressure on the handle. The motor should return to normal speed. If the noise becomes abnormal, stop immediately and let it cool.

How to use the anti-drip function?

After pressing, turn the reservoir spout upward to stop the flow of juice. This allows you to remove the glass without drips. Turn it downward to let the juice flow.

Can I use the extractor for fruits other than citrus?

This appliance is specially designed for citrus fruits (oranges, lemons, grapefruits). Do not use it for other hard fruits like apples or carrots, as this could damage the motor.

What to do if the power cord is damaged?

To avoid any risk, the cord must be replaced by the manufacturer, its after-sales service, or a qualified person. Do not use the appliance with a damaged cord.

How to recycle the extractor at the end of its life?

Do not dispose of the appliance with household waste. Take it to a recycling center for electrical and electronic appliances. Contact your local city hall for the nearest collection point.

USER MANUAL 201977 PRINCESS

Electric juice organizer with orange juice being placed on top, accompanied by a glass of orange juice (no text or symbols visible)

Citrus juicer

01.201977.01.750

PRINCESS

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES / TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRIÇÃO DOS COMPONENTES / DESCRIZIONE DELLE PARTI / BESKRIVNING AV DELAR / OPIS CZĘŚCI / POPIS SOUĆÁSTÍ / POPIS SÚĆASTÍ / ОПИСАНИЕ ЗАПЧАСТИ

Labeled diagram of a coffee maker with numbered parts for identification

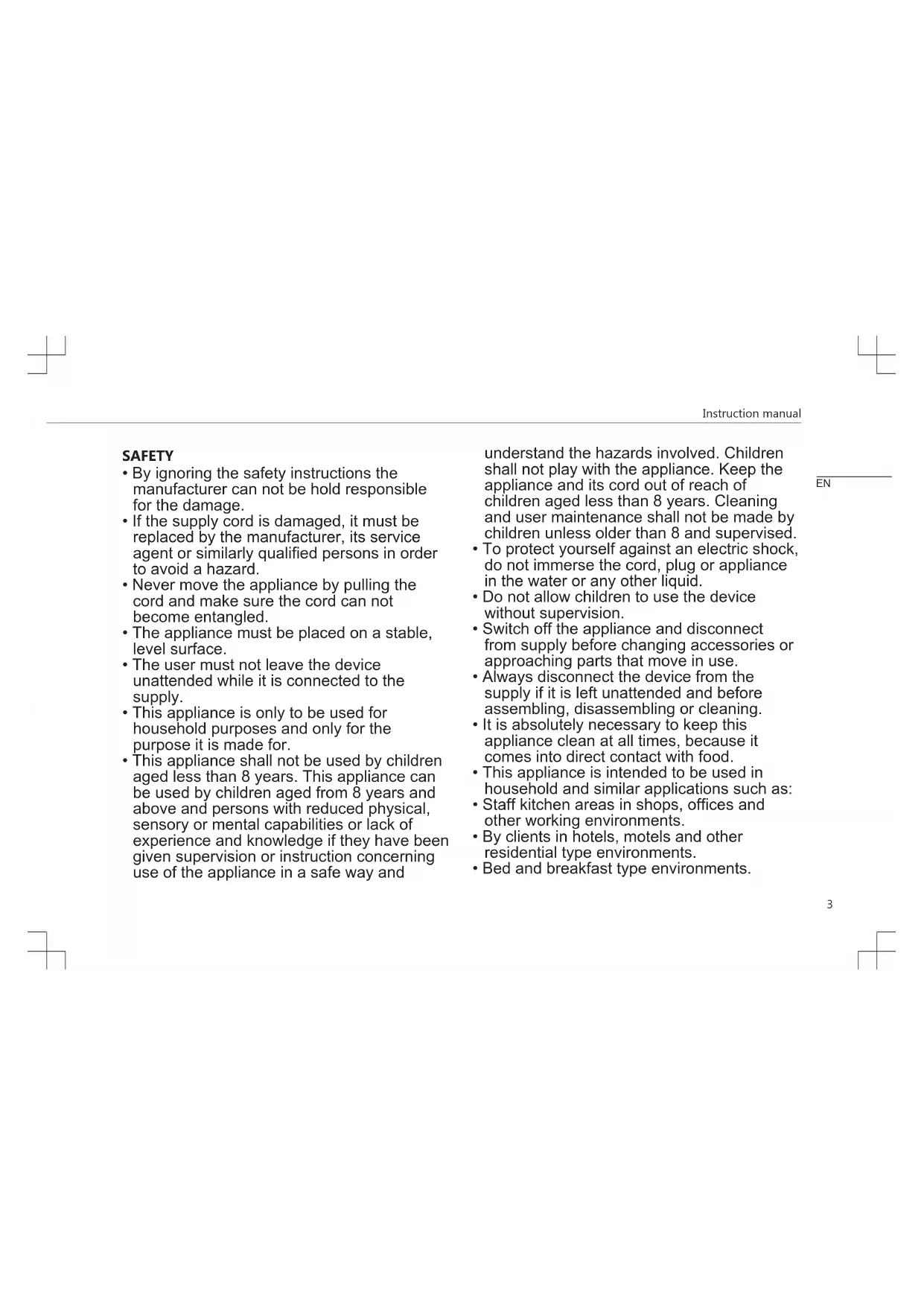

SAFETY

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
  • The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Do not allow children to use the device without supervision.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always disconnect the device from the supply if it is left unattended and before assembling, disassembling or cleaning.
- It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments.
- By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.

Instruction manual

- Farm houses.

PARTS DESCRIPTION

1. Press handle
2. Fruit dome
3. Press cone
4. Pulp sieve
5. Reservoir
6. Juice spout
7. Motor Axis

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
- Connect the power cable to the socket. (Note: Make sure the indicated voltage on the device matches the local voltage before connecting the device. Voltage 220V-240V 50-60Hz.

USE

• As soon as the half citrus fruit is pressed onto the juice cone, the motor will be activated.
• Place a suitable glass under the spout of the reservoir. The spout can be pushed down to the juice to anticipate, and be folded up for the anti-drip feature. Do not exert too much pressure on the

juice cone. If the sound of the motor increases significantly or the motor itself slows down dramatically, this means too much pressure has been exerted.

• Please do not run the juicer for longer than 15 seconds without interruption, please take a break for 10 minutes after pressing 10 pieces of oranges.
• Note that this appliance is equipped with an overheat protection which will turn of the device when the temperature gets too high. Once the appliance is cooled down, the thermostat will automatically be reset

CLEANING AND MAINTENANCE

• Unplug the appliance. Use a soft, slightly damp cloth to wipe appliance surfaces. Do not allow water or any other liquid to get into the unit.
• Components that have come into contact with food can be cleaned in soapy water.
• Do not use any abrasive detergent or steel wool to clean the appliance, as it may scratch the surfaces.
• The components are suitable for cleaning in a dishwasher.
• The pressure section of the handle can be easily assembled for cleaning.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol

Instruction manual

on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!
