SHX16HL2000 - Heating SHX - Free user manual and instructions

Product type	Warm air heater (convector)
Brand	SHX
Model	SHX16HL2000
Power	2000 W (adjustable 1000 / 2000 W)
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	24.5 x 12 x 25 cm
Weight	1.1 kg
Protection class	Class II
Protection rating	IPX0
Settings	Off, cool air, 1000 W, 2000 W
Thermostat	Yes, mechanical
Heating type	Forced convection (fan)
Oscillation	No
Overheat protection	Yes
Safety distance	1 m minimum from flammable objects
Warranty	2 years
Recommended use	Well-insulated rooms, occasional use
Estimated heating area	Up to 20 m² (estimate)
Delivery contents	Appliance, instruction manual
Maintenance	Clean with a dry cloth, do not immerse

Frequently Asked Questions - SHX16HL2000 SHX

How to adjust the temperature?

Set the thermostat knob to the highest level. Once the desired temperature is reached, slowly turn the knob back until the appliance turns off. The appliance then automatically maintains the temperature.

What to do if the appliance turns off automatically?

This is likely the overheat protection. Set the switch to '0', unplug the appliance and let it cool for 10 minutes before using again. If the problem persists, contact customer service.

Can I use an extension cord?

Avoid using an extension cord as it could overheat. If necessary, use an extension cord with a wire cross-section of at least 1.5 mm². Do not use multiple sockets.

How to clean the appliance?

Unplug the appliance and wait for it to cool completely. Wipe it with a dry cloth. For stains, use a slightly damp cloth (not wet). Never immerse the appliance in water and do not use abrasive products.

Where to place the appliance?

Place the appliance on a stable horizontal surface, at least 1 meter from flammable objects (furniture, curtains, etc.). Do not place it directly under a wall socket. Ensure free air circulation.

Can the appliance be used in a bathroom?

No, the appliance is intended for dry indoor use. It must not be used near water or in damp rooms (pools, bathtubs, showers). It is rated IPX0, not protected against moisture.

What is the power consumption?

The maximum power is 2000 W (2 kW). When operating at 1000 W, consumption is 1 kWh. Use a suitable power outlet with a 16 A circuit breaker.

Does the appliance have an oscillation function?

No, the appliance does not have an oscillation function. It heats in a fixed direction.

How to use the cool air function?

Set the function switch to the fan symbol (♣) and turn the temperature adjustment knob to the highest position. The appliance will then function as a fan.

What is the warranty period?

The warranty is 2 years from the date of purchase, valid in Austria and Germany. It covers manufacturing defects but not damage due to improper use. Keep the receipt and warranty certificate.

USER MANUAL SHX16HL2000 SHX

White electric heater with heat sink and perforated panel (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

VIELEN DANK, DASS SIE SICH FÜR DIESES PRODUKT VON SHX ENTSCHIEDEN HABEN.

(1) Ansauggitter
(2) Ausblasgitter
(3) Bedienungsregler
(4) Thermostatregler

Anwendungshinweis

Auspacken

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR OPTÉ EN FAVEUR DE CE PRODUIT DE SHX.

Attention : Surcharge

I = air chaud (1000 W)

II = air chaud (2000 W)

Remarque

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER DECISO DI ACQUISTARE QUESTO PRODOTTO DI SHX.

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

HARTELIJK GEFELICITEERD!

HARTELIJK BEDANKT DAT U VOOR DIT PRODUCT VAN SHX HEBT GEKOZEN.

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

GRATTIS!

TACK FÖR ATT DU HAR BESTÄMT DIG FÖR DEN HÄR PRODUKTEN FRÅN SHX.

INNEHÅLLSFÖRTECKNING

SE

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

SRDEČNĚ BLAHOPŘEJEME!

DĚKUJEME, ŽE JSTE SE ROZHODLI PRO TENTO PRODUKT SPOLEČNOSTI SHX.

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

SRDEČNE BLAHOŽELÁME!

ĎAKUJEME, ŽE STE SA ROZHODLI PRE TENTO VÝROBOK OD SHX.

(1) Mriežka nasávania
(2) Mriežka vyfukovania
(3) Obslužný ovládač
(4) Termostatový ovládač

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI DECIS SĂ ACHIZIȚIONAȚI ACEST PRODUSUL DE LA SHX.

(1) Grilaj de aspirare
(2) Grilaj de evacuare
(3) Selector de operare
(4) Termostat

Indicatie de utilizare

Despachetare

White electric heating fan with heat sink and ventilation grille (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR PURCHASING THIS SHX PRODUCT.

This product is intended for use in well-insulated areas and for occasional use only.

TABLE OF CONTENTS

EN

Important information on safety, place of use and electrical connections

Recycling, disposal and Declaration of Conformity

Scope of delivery

Description of the appliance

Place of use and connection to power supply

Starting up and functions

Safety features

Cleaning and maintenance

Technical information

Required data for single-room electrical heating devices

PLEASE READ THE OPERATING MANUAL CAREFULLY BEFORE BEGINNING ASSEMBLY,, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF CLAIMS UNDER WARRANTY.

Intended Use

This appliance is intended exclusively for the heating of domestic living spaces and may not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARDS AND ELECTRICAL CONNECTIONS

1. Use this appliance only in accordance with the guidelines in this operating manual. Any other use not recommended by the manufacturer may result in fire, electrical shock or personal injury.

2. This appliance is intended exclusively for the heating of domestic living spaces and may not be used for any other purpose.

3. Remove the packaging and check that the appliance is not damaged. If you are in doubt, do not use the appliance and contact your dealer.

4. Before connecting to the mains power supply, check that the mains voltage and type matches the information provided on the type plate of the appliance.

5. The electrical socket to which you connect the appliance must not be defective or loose, must be suitable for the current load required, and above all must be reliably earthed.

1. Avoid using an extension cable, because this could overheat and cause a fire.

2. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks. Do not twist, kink or sharply bend the power supply cable.

3. Do not situate the appliance directly beneath a wall socket. In case of doubt, have your electrical installation checked by a qualified electrician.

4. It is forbidden to adapt or modify the properties of this appliance in any way. Use only replacement parts and accessories recommended by the manufacturer (failure to do so may result in loss of warranty cover).

5. Do not use this heater if it shows visible signs of damage.

6. For any repairs to the appliance, the power plug or the cable, always contact the customer services authorised by the manufacturer.

7. This appliance is for use by adults only.

1. Children over 3 and under 8 years may only switch the appliance on or off under supervision or if they have been instructed in its safe use and understand the resultant dangers, on the condition that the appliance is positioned or installed in its normal place of use. Children over 3 and under 8 years must not be allowed to insert the plug into the socket, alter the settings, clean the appliance or perform user maintenance on the appliance.

2. Do not operate the appliance unattended. Whenever you leave the room, always switch off the appliance.

3. Do not use the appliance in small rooms where people are present who are unable to leave the room by themselves, unless they are under constant supervision.

4. Do not allow children to play with the appliance. Keep children under 3 years away from the appliance unless they are under constant supervision.

5. Keep the packaging materials away from children. If swallowed, these pose a risk of suffocation.

6. This appliance is not equipped with a thermostat for controlling the room temperature.

7. The appliance is not suitable for continuous or high-precision operation.

8. This appliance is for use in dry indoor spaces only.

9. Do not use this heater if it has previously been dropped.

1. Do not use the appliance near water or high humidity, e.g. in damp cellars, or hear swimming pools, baths or showers. Make sure that water cannot get into the appliance.

2. Do not use the appliance in close proximity to petrol, gas, oil, alcohol or other explosive or flammable liquids or gases.

3. To minimise the risk of fire, ensure a distance of at least one metre between the air outlet of the appliance and any flammable materials such as:

a. Pressurised containers (e.g. spray cans)
b. Furniture
c. Textiles of any kind

1. This heater should only be operated on a level, stable surface.

2. Never cover the appliance while it is in operation or while cooling down after use.

3. Ensure that no objects come between the appliance and the mounting wall that could touch the heating surface.

4. Always switch the appliance off before unplugging it.

5. Caution: certain parts of this appliance may become very hot and cause burns. Take particular care if children or vulnerable persons are present. Always allow the appliance to cool down before cleaning it or removing it from its mounting.

1. Unplug the appliance when you are not using it and before cleaning it or performing any maintenance.

Do not allow children to clean or perform user maintenance on the appliance without supervision.

1. To avoid electric shocks, do not touch the plug with wet hands.

ATTENTION	RISK OF INJURYThis appliance becomes hot during use.Never touch the appliance while it is in use → this may result in severe BURNS.
ATTENTION	RISK OF FIREDo not cover the appliance while it is in use.
ATTENTION	SAFE DISTANCEMaintain a safe distance of at least one metre from flammable items such as furniture, curtains, paper and similar.PLACE OF USEPosition the appliance in such a way that air can flow in and out without hindrance.RISK OF BURNSThis appliance becomes very hot during use and can cause burns. Take particular care if children or vulnerable persons are present.RISK OF OVERHEATINGDo not use the appliance in rooms with a volume less than 4m3.

Symbol markings on the appliance

Symbol:

Meaning:

Attention: Do not cover

The symbol on the device indicates that it is not permitted to suspend any item (e.g. towels, clothing etc.) above the appliance or directly in front of it. To prevent overheating and the risk of fire, the heater must not be covered!

Symbol:

Meaning:

Protection class 2

This symbol indicates that the appliance is classified as protection class 2 (double insulated).

Class 2 appliances are not connected to the earth of the electricity supply. Instead, they feature an enhanced or doubled insulation up to the rated insulation voltage between the live parts and the parts that can be touched. Accordingly, electrically conductive surfaces or other parts that can be touched are isolated by an enhanced or doubled insulation from live parts.

Recycling, disposal and Declaration of Conformity

	RECYCLINGThe packaging materials can be recycled. It is recommended that you dispose of them in separated waste.
	DISPOSALThe pictogram with the crossed out dustbin indicates that electrical and electronic appliances must be disposed of separately from household waste (WEEE). Electrical and electronic appliances can contain harmful and environmentally hazardous materials. Do not dispose of them in unsorted residual waste, but at a registered collection centre for waste electrical and electronic equipment. By doing so, you will help to conserve resources and protect the environment. For further information please consult your dealer or your local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU. The detailed declaration of conformity can be viewed at any time via following link:https://www.schuss-home.at/downloads

Errata and technical changes reserved.

Scope of delivery

• Fan heater
• Operating manual

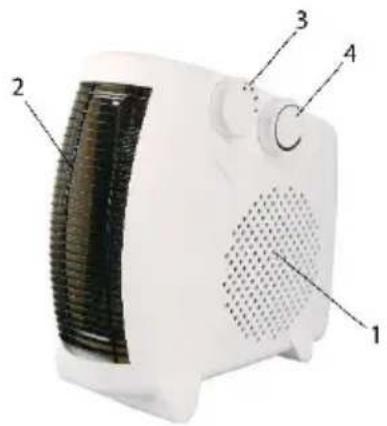

Description of the appliance

(1) Intake grille
(2) Outlet grille
(3) Operating control
(4) Thermostat adjustment

Instructions for use

Unpacking the appliance

• Remove any protective film on the appliance or transport packaging from the appliance.
  • Completely unwind the cable.

Electrical connection

• Check that the power supply voltage matches the operating voltage of the appliance (see type plate).
• Set the switch to 0 or the lowest level.
• Only plug the power plug into a 230V\~50Hz earthed contact socket that has been properly installed in accordance with regulations.

Connected wattage

The appliance has a total maximum wattage of 2000 W: With this connected wattage, a separate supply line protected by a 16 A household circuit breaker is recommended.

Attention: Overloading ⚠️

• If you use extension cables, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this appliance is too powerful.

Function switches

0 = OFF

♣ = cool air

I = warm air (1000 W)

II = warm air (2000 W)

Note

Select a low power level, for example, for a small room. If this is not enough, switch to a high level.

Setting the temperature

By regularly switching the fan heater on and off, the thermostat ensures that the desired temperature is maintained.

Please proceed as follows to find the ideal thermostat setting:

• Set the thermostat adjustment to the highest level.
• Once the desired temperature is reached, slowly turn the thermostat adjustment down until the heater switches off. The control lamp on the switch goes out.
  • The fan heater will now automatically stay at the desired temperature level.

Attention:

When the appliance is no longer being used, always unplug it from the power socket.

Cold air operation

If you would like to use the appliance as a fan, move the function switch to the fan symbol and turn the temperature control to the highest position.

Switching the appliance off

If you would like to switch the appliance off, turn the switch to the lowest level or 0 and then unplug the appliance from the power socket. The control lamp goes off.

Overheating protection

- The appliance is equipped with overheating protection that automatically switches the appliance off in case of overheating. Shift the function switch to the '0' position and unplug the appliance from the power socket. Let the appliance cool down for approx. 10 minutes before using it again.

- Should the overheating protection shut the appliance off again after a short period, there is probably a defect. Switch off the appliance again and unplug from the power supply.

- Have the appliance checked by the dealer or by our service.

Warning:

- Always unplug the appliance before cleaning! - Wait until the appliance has cooled down completely! - Under no circumstances should you immerse the appliance in water for cleaning purposes. This might result in an electric shock or fire.

- Do not use a wire brush or any other abrasive items.

- Do not use any acidic or abrasive cleaning agents.

Note:

• Wipe off the heater with a dry cloth in order to remove dust.
• A damp cloth (not wet) can be used to remove stains.

TECHNICAL INFORMATION

Article number:	SHX16HL2000
Input voltage:	220-240 V
Protection class:	CLASS II
Frequency:	50-60 Hz
Power range:	2000 W
Controllable parameters:	0 – 1000 – 2000 W
Oscillating:	No
Weight:	1.1 kg
Dimensions:	24.5 × 12 × 25 cm
Protection class:	IPX0
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 Vienna, AustriaServiceline: [phone]www.schuss-home.atFB no.: 236974 t / FB court: Vienna

Required data for single-room electrical heating devices

Article number SHX37PTC2000LD
Information	Symbol	Value	Unit		Information	Unit
Heat output					Single-room electric storage heaters only:Method of heat transfer control
Nominal heat output	P_nom	2.0	kW		Manual control of heat transfer with integrated thermostat	No
Minimum heat output (guideline)	P_min	1.0	kW		Manual control of heat transfer with feedback of room and/or outside temperature	No
Maximum continuous heat output	P_max,c	2.0	kW		Electronic control of heat transfer with feedback of room and/or outside temperature	No
Auxiliary current consumption					Fan-assisted heat outlet	No
At Nominal heat output	el_max	0.000	kW		Type of heat output/room temperature control
At Minimum heat output	el_min	0.000	kW		Single heat output level, no room temperature control	No
In standby mode	el_sB	0.000	kW		Two or more manually settable output levels, no room temperature control	No
					Room temperature control with mechanical thermostat	Yes
					With electronic room temperature control	No
					Electronic room temperature control and timed control through the day	No
					Electronic room temperature control and timed control through the week	No
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with detection of open windows	No
					With remote control option (WiFi)	No
					With adaptive start-up control	No
					With operating time limiter	No
					With ball-type sensor	No
Contact information:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Vienna - Austriahttps://www.schuss-home.at/

WARRANTY

By purchasing this SHX quality product, it means you have decided to place trust in durability, reliability and innovation.

For this SHX appliance, we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany!

If, contrary to expectations, service work on your appliance is still necessary during this period, we hereby guarantee either free repairs (spare parts and working time) or (at the discretion of Schuss) that we will replace the product. If it is not possible to either repair or exchange the product for economic reasons, we reserve the right to create a time value credit.

In any case, please contact the customer hotline as a first step (see the operating manual – 'contact addresses for further information and service line').

We would like to point out that repair work that has not been performed by authorised contract workshops will immediately terminate the validity of this warranty.

This warranty does not cover:

• Damage due to non-adherence to the operating manual
  • Repair or replacement of parts due to normal wear and tear
• Appliances that are used commercially, even in part
• Appliances mechanically damaged due to external influence (any fall(s), impact(s), breakage(s), improper use, etc.) as well as signs of wear and tear of an aesthetic nature
  • Appliances that have been improperly treated
• Appliances that have not been opened by our authorised service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning and overvoltage
• Appliances that have had their type designation and/or serial number on the appliance changed, deleted, made illegible or removed

• Defects due to extreme contamination

- Services outside our contract workshops, the transport costs to either an authorised workshop or to us and back, and the associated risks

We would like to expressly point out that a fixed amount of €60 (indexed basis CPI 2015, June 2020) will be charged within the warranty period in the event of operating errors or if no error has been detected.

The provision of a warranty service (repairs or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (name and address of the dealer as well as the complete appliance designation must be included) and the corresponding warranty certificate, on which the appliance type and the serial number (on the box and on both the back and underside of the appliance) are to be noted! Without presenting the warranty certificate, only the legal warranty applies! We would like to expressly point out that the statutory warranty rights are unaffected by this warranty and continue unabated.

A liability for damage on the part of Schuss Home Electronic GmbH and its vicarious agents only exists in the event of gross negligence or intent. In any event, liability for lost profits, expected but not occurred savings, consequential damage and damage arising from claims of third parties is excluded.

The contact address of the respective service workshop is available on our homepage www.schuss-home.at.

Congratulations on making your choice. We wish you a lot of pleasure with the SHX appliance!

ADDRESS

SHX Vertrieb

Schuss Home Electronic GmbH

A-1140 Vienna (Austria), Scheringgasse 3

Type designation:

Serial number:

Tel.: [phone]
