USER MANUAL Macho Nacho FST1MN Hatco

Register Online! (see page 2)

FDWD-1-MN and FST-1-MN Series/Série

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Safety Information. 3

Model Description. 4

Model Designation. 4

Specifications. 5

Plug Configurations. 5

Electrical Rating Chart 5

Dimensions 6

Installation 7

General 7

Operation. 8

General 8

Maintenance 9

General 9

Daily Cleaning 9

Removing the Glass Side Panels. 9

Replacing a Display Light Bulbs. 9

Troubleshooting Guide 10

Options and Accessories 11

Limited Warranty. 11

Authorized Parts Distributors Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the operator side of the unit). Please have this information available when calling Hatco for service assistance.

Model No.

Serial No.

Voltage

Date of Purchase

Register your unit!

• Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at: www.hatcocorp.com, select the Parts & Service pull-down menu, and click on "Warranty Registration".

Business

Hours: 8:00 AM to 5:00 PM Central Standard Time (CST)

(Summer Hours: June to September

8:00 AM to 5:00 PM CST Monday-Thursday

8:00 AM to 2:30 PM CST Friday)

Telephone: [phone]

e-mail: [e-mail]

Fax: [phone] (Parts and Service)

414-671-3976 (International)

24 Hour 7 Day Parts and Service

Assistance available in the United States

and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

The Hatco Macho Nacho * Chip Warmer is designed to hold nacho chips for prolonged periods of time while maintaining that "just-made" quality. Hatco Chip Warmers provide the best environment for food products by regulating the air temperature. Macho Nacho models use hot air only (no moisture) that is circulated through distribution panels at the base. This prevents the loss of natural oils, eliminating the need to frequently replace stale chips.

Hatco Macho Nacho Chip Warmers are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides installation, safety, and operating instructions for Macho Nacho Chip Warmers. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
  DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ (21^) .
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not pull unit by power cord.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair or replace a damaged power cord. The cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

FIRE HAZARD: Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

WARNING

Use only light bulbs that meet or exceed National Sanitation Foundation (NSF) standards and are specifically designed for food holding areas. Breakage of light bulbs not specially-coated could result in personal injury and/or food contamination.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

Hatco Corporation is not responsible for actual food product serving temperature. It is the responsibility of the user to ensure that food product is held and served at a safe temperature.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

CAUTION

BURN HAZARD: Some exterior surfaces on the unit will get hot. Use caution when touching these areas.

Locate unit at the proper counter height in an area that is convenient for use. The location should be level to prevent the unit or its contents from falling accidentally and strong enough to support the weight of the unit and contents.

Transport unit in upright position only. Before moving or tipping unit, secure all glass surfaces, doors, pan rails, and/or skirts with tape. Failure to do so may result in damage.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation. Use of abrasive materials will void warranty.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

All models

Hatco Macho Nacho Chip Warmers are high-visibility merchandisers for warming and displaying nacho chips. The unique air flow forces warm air to the bottom and is distributed into the cabinet through holes in the floor panels directing maximum heat to the chips being served. Air is circulated to prevent the loss of natural oils, eliminating the need to frequently replace stale chips.

Macho Nacho's unique two-door design allows for first-in, first-out chip delivery and permits easy loading and serving. Chips flow to the customer side of the cabinet when loading through the upper door, and slanted floor panels slide the heated chips back to the lower door for serving.

User-friendly controls make the Macho Nacho units easy to operate. Common controls include a POWER ON/OFF (I/O) switch and a TEMPERATURE control. Units are equipped with a 6^ (1829 mm) power cord with plug. Only minimal maintenance is required.

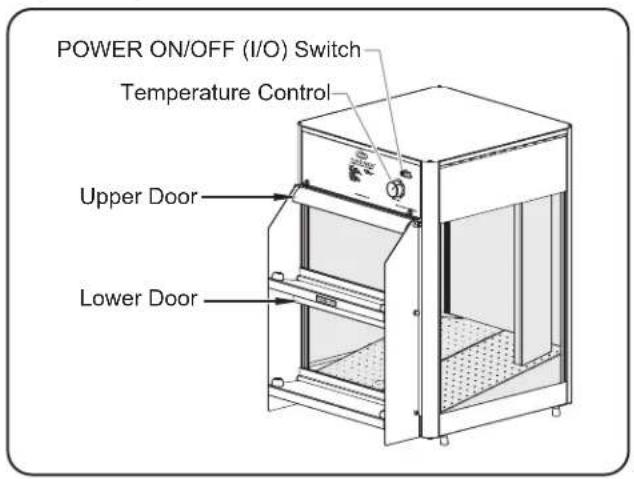

FDWD-1-mN model

The FDWD-1-MN Model is built of stainless steel with tempered glass sides and doors. The unit holds up to 25 lbs. (11 kg) of chips. The glass side panels and floor panels are removable for easy cleaning.

FDWD-1-MN

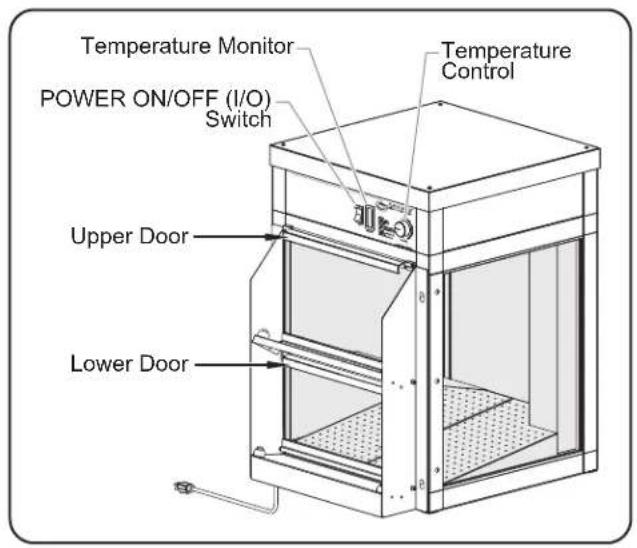

FST-1-mN model

The FST-1-MN Model is built of stainless steel and aluminum with tempered glass sides and doors. In addition to the controls listed above, this model includes a CABINET TEMP monitor that displays the internal temperature of the cabinet. An anodized bronze exterior is standard. The unit holds up to 40 lbs. (18 kg) of chips.

FST-1-MN

NOTE: Refer to the OPTIONS AND ACCESSORIES section for additional options available for the above models.

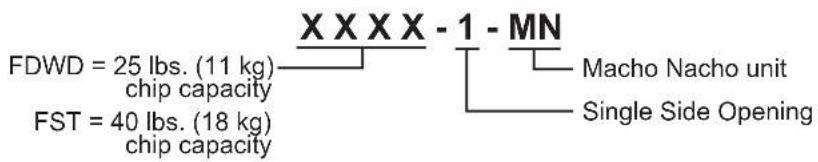

mODEL DESIGNATION

Plug Configurations

Units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the applications.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

NOTE: Specification label is located on the operator side of the unit. See label for serial number and verification of unit electrical information.

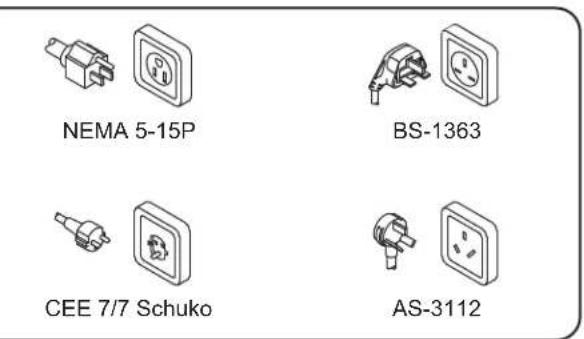

Plug Configurations

NOTE: Receptacle not supplied by Hatco.

Electrical Rating Chart

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
FDWD-1-MN 100 60 1106 11.1 NEMA 5-15P 101 lbs. (46 kg)
120 60 1080	9.0		NEMA 5-15P 101 lbs. (46 kg)
220	50/60	950	4.3	CEE 7/7 Schuko	101 lbs. (46 kg)
240	50/60	1129	4.7	BS-1363 or AS-3112	101 lbs. (46 kg)
220-230 (CE)	50/60	950-1036	4.3-4.5	CEE 7/7 Schuko	101 lbs. (46 kg)
230-240 (CE)	50/60	1036-1129	4.5-4.7	BS-1363	101 lbs. (46 kg)
FST-1-MN 120 60 1245 10.4	NEMA 5-15P 132 lbs. (60 kg)
220	50/60	1219	5.6	CEE 7/7 Schuko	132 lbs. (60 kg)
240	50/60	1252	5.2	BS-1363	132 lbs. (60 kg)
220-230 (CE)	50/60	1219-1332	5.6-5.8	CEE 7/7 Schuko	132 lbs. (60 kg)
230-240 (CE)	50/60	1150-1252	5.0-5.2	BS-1363	132 lbs. (60 kg)

The shaded areas contain electrical information for International models only.

Dimensions

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)
FDWD-1-MN 19-3/8"	(492 mm)	24"	28-3/4" *	19-1/16"	15-3/8"
		(608 mm)	(729 mm)	(485 mm)	(390 mm)
FST-1-MN 22-7/8"	(579 mm)	27"	32-3/4"	19"	18-11/16"
		(686 mm)	(831 mm)	(483 mm)	(475 mm)

• Add 3" (76 mm) to the height of the unit if the 4" leg option is installed.

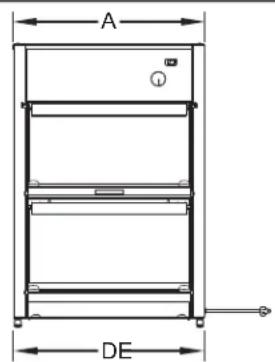

Front View Side View

Dimensions

Door Opening Dimensions

Model	Cabinet Opening Width	Upper Door Opening Height	Lower Door Opening Height
FDWD-1-MN 16-3/8"	(416 mm)	9-1/8"	9-1/16"
		(233 mm)	(230 mm)
FST-1-MN 18-5/8"	(474 mm)	11-3/16"	9-7/8"
		(285 mm)	(251 mm)

General

Hatco Macho Nacho Chip Warmers are shipped with most components installed and ready for operation. The following installation instructions must be performed before plugging in and operating the cabinet.

WARNING

ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate unit indoors where the ambient air temperature is a minimum of 70^ (21^) .

FIRE HAZARD: Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

CAUTION

Locate unit at the proper counter height in an area that is convenient for use. The location should be level to prevent the unit or its contents from falling accidentally and strong enough to support the weight of the unit and contents.

Transport unit in upright position only. Before moving or tipping unit, secure all glass surfaces, doors, pan rails, and/or skirts with tape. Failure to do so may result in damage.

1. Remove the unit from the carton. Two people are required for this step.
2. Remove the information packet.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit, shelves, and any accessories.

2. Legs — The cabinets are shipped with four rubber feet attached to the bottom of the unit. For cabinets with the accessory 4'' (102 mm) adjustable legs, see the OPTIONS AND ACCESSORIES section for installation instructions.

3. Install the chip deflector behind the upper door.

4. FDWD-1-MN Models—Two holes on the chip deflector flange slide over two pins at the bottom of the upper door frame.
   FST-1-MN Models—The chip deflector flange slides behind the flange at the bottom of the upper door frame.

5. Install the decals on the three side panels above the glass side panels.

a. Clean the side panels with a non-oily cleaner, such as rubbing alcohol.
b. When the side panels have dried, remove the protective backing from the decal and apply it to the panel.
c. Remove any air pockets or bubbles behind the decal by rubbing gently with a soft cloth, working from the center of the decal towards the outer edges.

1. Place the unit in the desired location. Two people are required for this step.

2. Locate the unit in an area where the ambient air temperature is constant and a minimum of 70^ F (21^ C). Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/woods and air conditioning ducts).
   Make sure the unit is at the proper counter height in an area convenient for use.
   Make sure the countertop is level and strong enough to support the weight of the unit and food product.

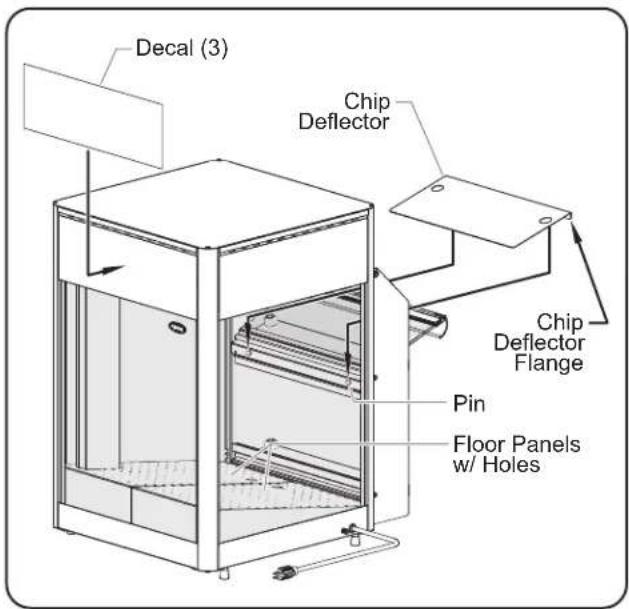

Assembling a FDWD-1-MN Model

General

Use the following procedures to operate a Macho Nacho Chip Warmer.

WARNING

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

Startup

1. Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.
2. Move the Power ON/OFF (I/O) switch to the ON (I) position.
3. Set the TEMPERATURE Control to the desired temperature setting.
4. Allow 20 minutes to heat the cabinet to operating temperature.
5. Open the upper door and fill the unit with chips.

WARNING

BURN HAZARD: Some exterior surfaces on the unit will get hot. Use caution when touching these areas.

Shutdown

1. Move the Power ON/OFF (I/O) switch to the OFF (O) position.
2. Allow the unit to cool, and perform the "Cleaning" procedure in the MAINTENANCE section of this manual.

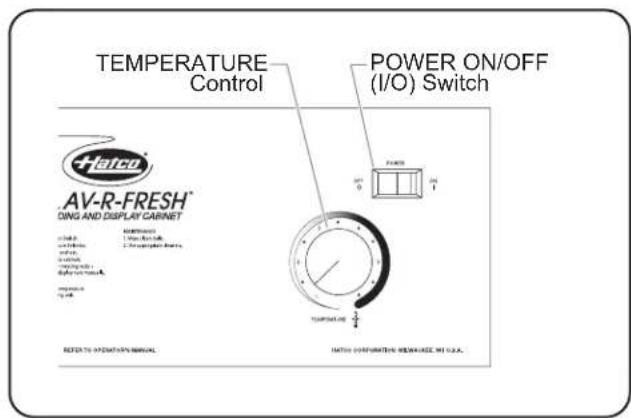

FDWD-1-MN Controls

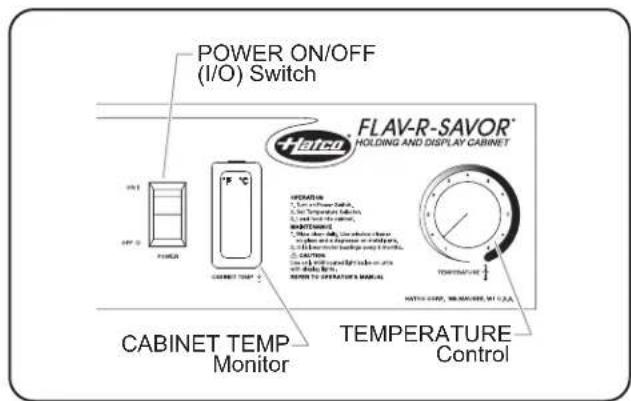

FST-1-MN Controls

General

Hatco Macho Nacho Chip Warmers are designed for maximum durability and performance, with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax [phone]; or International fax [phone].

Daily Cleaning

To preserve the finish of the unit, perform the following cleaning procedure daily.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation. Use of abrasive materials will void warranty.

1. Turn off the unit, unplug the power cord, and allow the unit to cool.

2. Remove the door panel assembly for better access to the inside of the unit.

3. FDWD-1-MN Models—Pull out and rotate the locking pins in the upper mounting brackets at the top of each side of the door panel assembly. Pull the door panel assembly up and away from unit.
   FST-1-MN Models—Lift up the door panel assembly and pull off of the four mounting pins (two on each side of the assembly).

4. Empty all remaining food product from unit.

5. Wipe down all interior and exterior metal surfaces with a damp cloth. Stubborn stains may be removed with a good non-abrasive cleaner. Clean hard to reach areas using a small brush and mild soap.

NOTE: The floor panels are removable for ease of cleaning. The cabinet floor is accessible for cleaning when the floor panels are removed.

1. Clean the glass side panels and door panels using ordinary glass cleaner and a damp, soft cloth or paper towel.

2. FDWD-1-MN models—The side panels are removable for detailed cleaning, if necessary. Refer to the "Removing the Glass Side Panels" procedure in this section for removal.

3. Secure the door panel assembly to the unit.

4. FDWD-1-MN Models—Set the door panel assembly on the bottom bracket. Align the mounting holes at the top of the door panel assembly with the locking pins in the two upper mounting brackets. Release the locking pins by rotating slightly, and make sure they lock into the door panel assembly.

5. On FST-1-MN Models—Align the four holes on the door panel assembly with the four mounting pins on the unit, and guide the door panel assembly down into position.

Removing the Glass Side Panels (FDWD-1-MN)

Use the following procedures for FDWD-1-MN models only. Glass is non-removable on FST-1-MN models.

1. Lift the glass panel out of the bottom channel of the cabinet.
2. Pull the lower edge away from the cabinet.
3. Carefully lower the glass until the top clears the cabinet.

Replacing the Glass Panel (FDWD-1-MN)

1. Position the glass panel with the top edge under the top cabinet lip, and raise the glass until it clears the bottom channel of the cabinet.
2. Move the bottom of the glass towards the cabinet until the glass rests against the cabinet frame.
3. Carefully lower the glass until it rests in the bottom channel of the cabinet.

Replacing Display Light Bulbs

WARNING

Use only light bulbs that meet or exceed National Sanitation Foundation (NSF) standards and are specifically designed for food holding areas. Breakage of light bulbs not specially coated could result in personal injury and/or food contamination.

The display lights are incandescent light bulbs that illuminate the warming area. Each bulb has a special coating to guard against injury and food contamination in the event of breakage.

1. Turn off the unit, unplug the power cord, and allow the unit to cool.
2. Unscrew the light bulb from the unit and replace it with a new, specially-coated incandescent light bulb.

NOTE: Hatco shatter-resistant light bulbs meet NSF standards for food holding and display areas. For 100 and 120 volt applications, use Hatco P/N 02.30.043.00. For 220, 240, 220-230, and 230-240 volt applications, use Hatco P/N 02.30.058.00.

WARNING

This unit must be serviced by trained and qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

Symptom Probable	Cause Corrective Action
Display light(s) not working. Light bulb(s) loose or defective. Re-install or replace light bulb(s).
Unit operates, but is not circulating air inside cabinet.	Blower motor is defective. Contact Authorized Service Agent or Hatco for assistance.
	The correct voltage may not be supplied to blower.	Contact Authorized Service Agent or Hatco for assistance.
Unit is plugged in, but nothing works.	No power to unit. Check electrical receptacle and verify that power supply matches specifications on unit. If receptacle is not working, check circuit breaker and reset, or plug unit into a different known working receptacle.
	Power cord connections are loose or disconnected.	Contact Authorized Service Agent or Hatco for assistance.
	Power cord is damaged. Contact Authorized Service Agent or Hatco for assistance.
	Defective POWER ON/OFF (I/O) switch.	Contact Authorized Service Agent or Hatco for assistance.
Unit is not producing any "hot air" inside cabinet.	Safety high-limit is tripped or open.	Contact Authorized Service Agent or Hatco for assistance.
	Incorrect voltage supplied to heating element.	Contact Authorized Service Agent or Hatco for assistance.
	Blower motor is not working.	Check blower motor — refer to Symptom "Unit operates, but is not circulating air inside cabinet."
	Air heating element is defective.	Contact Authorized Service Agent or Hatco for assistance.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com and click on Find Service Agent, or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

Fax: [phone] or 414-671-3976

4^ (102 mm) Adjustable Legs

The 4^ (102 mm) adjustable legs are used to add additional height to the unit.

1. Remove the chip deflector and the floor panels and secure the doors with tape.
2. Carefully lay the unit on its side. Two people are required for this step.
3. Remove the four rubber feet.
4. Screw the 4^ (102 mm) legs into the holes in the bottom cover. After all the legs are tightened, return the unit to its upright position. If the unit is not level or rocks, turn the adjustable tip of the appropriate leg to level the unit.

Halogen Display Light Bulbs

Shatter-resistant halogen display light bulbs can be ordered in place of the standard incandescent display light bulbs. The bulbs have a special coating to guard against injury and food contamination in the event of breakage. For 100 and 120 volt applications, use Hatco P/N 02.30.081.00. For 220, 240, 220-230, and 230-240 volt applications, use Hatco P/N 02.30.082.00.

LIMITED WARRANTY

1.PRODUCT WARRANTY

Hatco warrants the products that it manufactures (the "Products") to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco's written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product's purchase date by registering the Product with Hatco or by other means satisfactory to Hatco in its sole discretion.

Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:

a) One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Roller and Slides

Strip Heater Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements - HW and HWB Series (metal sheathed)

b) One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

c) One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty on:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

d) Ninety (90) Day Parts-Only Warranty:

Replacement Parts

THE FOREGOING WARRANTY ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing; or Product misuse, tampering or misapplication, improper installation, or application of improper voltage.

2. LIMITATION OF REMEDIES AND DAMAGES

Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely, at Hatco's option, to repair or replacement using new or refurbished parts or Product by Hatco or a Hatcoauthorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom, or Australia, in which case Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. In the context of this Limited Warranty, "refurbished" means a part or Product that has been returned to its original specifications by Hatco or a Hatco-authorized service agency. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer's sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.

1. GARANTIE DU PRODUIT

Eléments des compartments chauffants —

Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100

Chapman Appl. Service San Diego 619-298-7106

P & D Appliance Commercial Parts & Service, Inc. S.San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance
Enalewood 303-781-5548

FLORIDA

Whaley Foodservice Repair Jacksonville 904-725-7800

3Wire Nass Service Co., Inc
Orlando 407-425-2681

B.G.S.I.
Pompamo Beach 954-971-0456

Comm. Appliance Service Tampa 813-663-0313

GEORGIA

TWC Services Mableton

770-438-9797

Heritage Service Group Norcross 866-388-9837

Southeastern Rest. SVC. Norcross 770-446-6177

HAWAII

Burney's Comm. Service, Inc. Honolulu 808-848-1466

Food Equip Parts & Service Honorlulu 808-847-4871

ILLINOIS

Parts Town

Eichenauer Elec. Service

Decatur 217-429-4229

Midwest Elec. Appl. Service Elmhurst, 630-279-8000

Cone's Repair Service

Moline 309-797-5323

INDIANA

GCS Service

Indianapolis 317-545-9655

IOWA

Electric Motor Service Co.
Davenport 319-323-1823

Goodwin Tucker Group
Des Moines 515-262-9308

KENTUCKY

Service Solutions Group Lexington 859-254-8854

Service Solutions Group
Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service
Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service
Baltimore 410-467-8080

GCS Service Silver Spring 301-585-7550

MASSACHUSETTS

Ace Service Co., Inc. Needham 781-449-4220

MICHIGAN

Bildons Appliance Service
Detroit 248-478-3320
Commercial Kitchen Service
Bay City 517-893-4561

Midwest Food Equip. Service Grandville 616-261-2000

MINNESOTA

GCS Service Plymouth 800-345-4221

MISSOURI

General Parts
Kansas City 816-421-5400

Commercial Kitchen Services St. Louis 314-890-0700

Kaemmerlen Parts & Service St. Louis 314-535-2222

NEBRASKA

Anderson Electric Omaha 402-341-1414

NEVADA

Burney's Commercial Las Vegas 702-736-0006

Hi.TechCommercialService N.LasVegas 702-649-4616

NEW JERSEY

Jay Hill Repair

Fairfield 973-575-9145

Service Plus Flanders 973-691-6300

NEW YORK

Acme American Repairs, Inc. Brooklyn 718-456-6544 Alpro Service Co. Brooklyn 718-386-2515

Buffalo 716-884-7425

Duffy's Equipment Services, Inc. Buffalo 800-836-1014

3Wire Northern Plattsburgh 800-634-5005

Duffy's Equipment Services, Inc.
Sauquoit 800-836-1014

J.B. Brady, Inc.
Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance Charlotte 704-377-4501

OHIO

Akron/Canton Comm. SVC. Inc. Akron 330-753-6635

Service Solutions Group
Cincinnati 513-772-6600

Commercial Parts and Service Columbus 614-221-0057

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E.A.Wichman Co. Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc. Oklahoma City 405-235-2184

Krueger, Inc. Oklahoma City 405-528-8883

OREGON

Ron's Service, Inc.
Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services Philadelphia 215-627-5401

FAST Comm. Appl. Service Philadelphia 215-288-4800

Appliance Installation & Service
Pittsburgh 412-809-0244

K & D Service Co.
Harrisburg 717-236-9039

Electric Repair Co. Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co. Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair
W. Columbia 803-791-4420

TENNESSEE

Camp Electric Memphis 901-527-7543

TEXAS

GCS Service Fort Worth 800-433-1804

Armstrong Repair Service
Houston 713-666-7100

Cooking Equipment Specialist Mesquite 888-866-9276

Refrigerated Specialist, Inc.

Mesquite 888-866-9276

Commercial Kitchen Repair Co. San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service Murray 801-263-3221

VIRGINIA

Daubers Norfolk 757-855-4097

Daubers
Springfield 703-866-3600

WASHINGTON

3Wire Restaurant Appliance Seattle 800-207-3146

WISCONSIN

A.S.C., Inc. Madison 608-246-3160

A.S.C., Inc.
Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service

Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

Key Food Equipment Service

Victoria 250-920-4888

MANITOBA

Air Rite, Inc.
Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd.
Moncton 506-855-4228

ONTARIO

R.G.Henderson Ltd. Toronto 416-422-5580

Choquette-CKS,Inc. Ottawa 613-739-8458

QUEBEC

Choquette - CKS, Inc. Montreal 514-722-2000

Choquette-CKS,Inc.
Quebec City 418-681-3944

UNITED KINGDOM

Marren Group

Northants

[phone]

HATCO CORPORATION

P.O.Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

Parts and Service Fax [phone]

International Fax [phone]

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION

section for details.
