Product Type	Wall-mounted air conditioner
Brand	LG
Model	DC18RK
Installation Type	Wall-mounted
Cooling Capacity	Approximately 5.3 kW (18,000 BTU/h)
Heating Capacity	Approximately 5.3 kW
Power Supply	230 V / 50 Hz
Indoor unit dimensions (W×H×D)	998 × 345 × 210 mm
Indoor unit weight	11 kg
Outdoor unit dimensions (W×H×D)	870 × 650 × 330 mm
Outdoor unit weight	32 kg
Airflow (indoor unit)	600 m³/h
Noise level indoor unit (max)	44 dB(A)
Noise level outdoor unit (max)	55 dB(A)
Refrigerant	R32
Air filter	Washable, clean every 2 weeks
Remote control	Yes, wireless
Operating modes	Cooling, Heating, Ventilation, Dehumidification, Auto
Special functions	Jet Mode, Swing, Timer, Energy control
Safety	Freeze protection

Frequently Asked Questions - DC18RK LG

How to clean the air filter of the LG DC18RK air conditioner?

The air filter must be cleaned every 2 weeks. Open the front cover, remove the filter, wash it with warm water, dry it, then put it back.

How to use the wireless remote control?

Insert two AAA (1.5 V) batteries into the remote control. Point it at the signal receiver on the indoor unit and press the desired buttons. Make sure to replace the batteries when the display becomes dim.

What to do if the remote control does not work?

First check the batteries. Make sure the remote control is pointed at the signal receiver and there is no obstacle. If the problem persists, use the ON/OFF button on the indoor unit for emergency operation.

How to set the on/off timer?

Press the Timer button on the remote control. Use the buttons to select the desired time, then press Set/Cancel to confirm. The current time must be set beforehand.

What is Jet Mode?

The Jet Mode allows rapid cooling or heating by operating the air conditioner at full power for a short period to quickly reach the desired temperature.

How to save energy with this air conditioner?

Avoid overcooling, close windows and curtains, use energy-saving mode, clean the filter regularly, and adjust the fan speed appropriately.

Can I use the air conditioner without the remote?

Yes, open the front cover of the indoor unit and press the ON/OFF button. The temperature will then be set between 22°C and 24°C depending on the model.

What to do if the indoor unit displays an error?

Consult the manual to identify the error code. You can use the Smart Diagnosis function (if supported) by pressing and holding the Diagnosis button on the remote control for 5 seconds.

Can the air conditioner heat?

Yes, the DC18RK model is reversible. It can provide heating in Heat mode.

How to install the remote control holder?

Choose a safe and easily accessible location away from direct sunlight. Fix the holder using the two screws provided with a screwdriver. Then insert the remote control.

USER MANUAL DC18RK LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

This manual is the simplified version of original manual. You can obtain the original manual from www.lg.com.

TYPE: WALL MOUNTED

Original instruction

EN ENGLISH

IT ITALIANO

ES ESPAÑOL

FR FRANÇAIS

DE DEUTSCH

EL EΛΛΗΝΙΚΑ

PT PORTUGUÊS

NL NEDERLANDS

PL POLSKI

RO ROMÂNĂ

LG Electronics Inc. Single Point of Contact (EU/UK) & EU Importer:

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

5401521249 Rev.: a

※ When installed, enter the model name and send it to the customer.

Model Name

:

1. Read the QR Code.
2. Enter the model name.
3. Select the manual that you want to see.

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

OPERATION 3

Notes for Operation .... 3

Parts and Functions....3

Wireless Remote Control....4

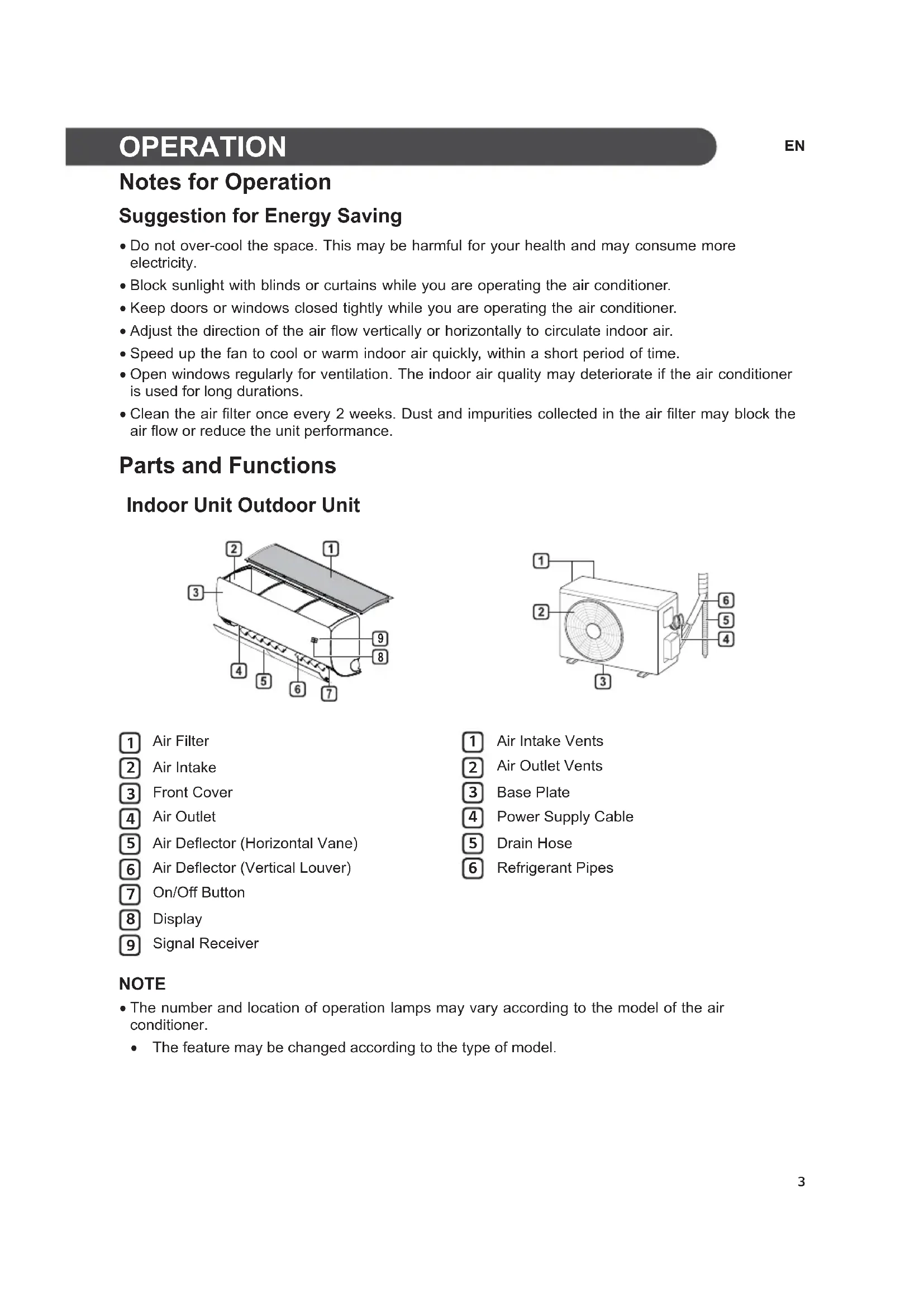

OPERATION

EN

Notes for Operation

Suggestion for Energy Saving

• Do not over-cool the space. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, within a short period of time.
• Open windows regularly for ventilation. The indoor air quality may deteriorate if the air conditioner is used for long durations.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or reduce the unit performance.

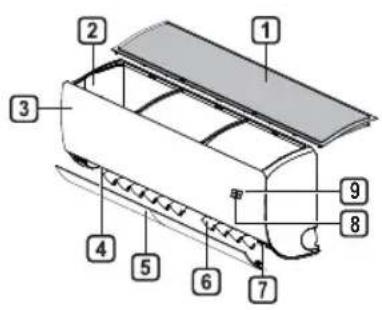

Parts and Functions

Indoor Unit Outdoor Unit

1 Air Filter
2 Air Intake
3 Front Cover
4 Air Outlet
5 Air Deflector (Horizontal Vane)
6 Air Deflector (Vertical Louver)
7 On/Off Button
8 Display
9 Signal Receiver

1 Air Intake Vents
2 Air Outlet Vents
3 Base Plate
4 Power Supply Cable
5 Drain Hose
6 Refrigerant Pipes

NOTE

• The number and location of operation lamps may vary according to the model of the air conditioner.
• The feature may be changed according to the type of model.

Wireless Remote Control

Inserting Batteries

If the display screen of the remote control begins to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control.

1 Remove the battery cover.

2 Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly.

Installing the Remote Control Holder

To protect the remote control, install the holder where there is no direct sunlight.

1 Choose a safe and easily accessible location.

2 Fix the holder by fastening 2 screws firmly with a screwdriver.

Operating Method

Point the remote control towards the signal receiver at the right side of the air conditioner to operate it.

Line drawing of a rectangular air conditioner with a remote control unit emitting signal waves (no text or symbols)

NOTE

- The remote control may operate other electronic devices if it is directed towards them. Make sure to point the remote control towards the air conditioner signal receiver. - For proper operation, use a soft cloth to clean the signal transmitter and receiver.

- In case of a function not provided in the product, no buzzer sound occurs from the product when a button for such function on the remote control is pressed except for Air Flow Direction (Swing), Energy Display (Air Purification function).

Setting the Current Time

1 Insert batteries.

- The icon below blinks at the bottom of the display screen.

2 Press or button to select the minutes.

3 Press Set/Cancel button to finish.

NOTE

- The On/Off Timer is available after setting the current time.

Using the °C/°F Conversion Function (Optional)

This function changes unit between ^ C and ^ F

- Press and holding button about 5 seconds.

Operating the Air Conditioner without the Remote Control

You can use the ON/OFF button of the indoor unit to operate the air conditioner when the remote control is unavailable.

1 Open the front cover (Type2) or horizontal vane (Type1).

2 Press the ON/OFF button.

Type1

Type2

NOTE

- The stepping motor may be broken, if the horizontal vane opens rapidly.

• The fan speed is set to high.

- The feature may be changed according to the type of model.

- The temperature cannot be altered when using this emergency ON/OFF button.

- For cooling & heating models, the temperature is set from 22 °C to 24 °C

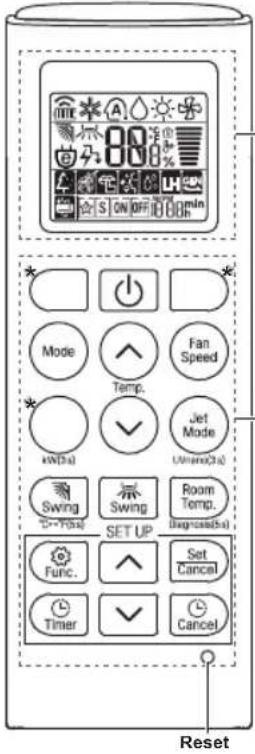

Using Wireless Remote Control

You can operate the air conditioner more conveniently with the remote control.

	2
	1

NOTE

• * buttons may be changed according to the type of model.
• When connected to the Multi Outdoor unit, the Energy Display, Energy Control, Silent and Smart Diagnosis function may not be supported.

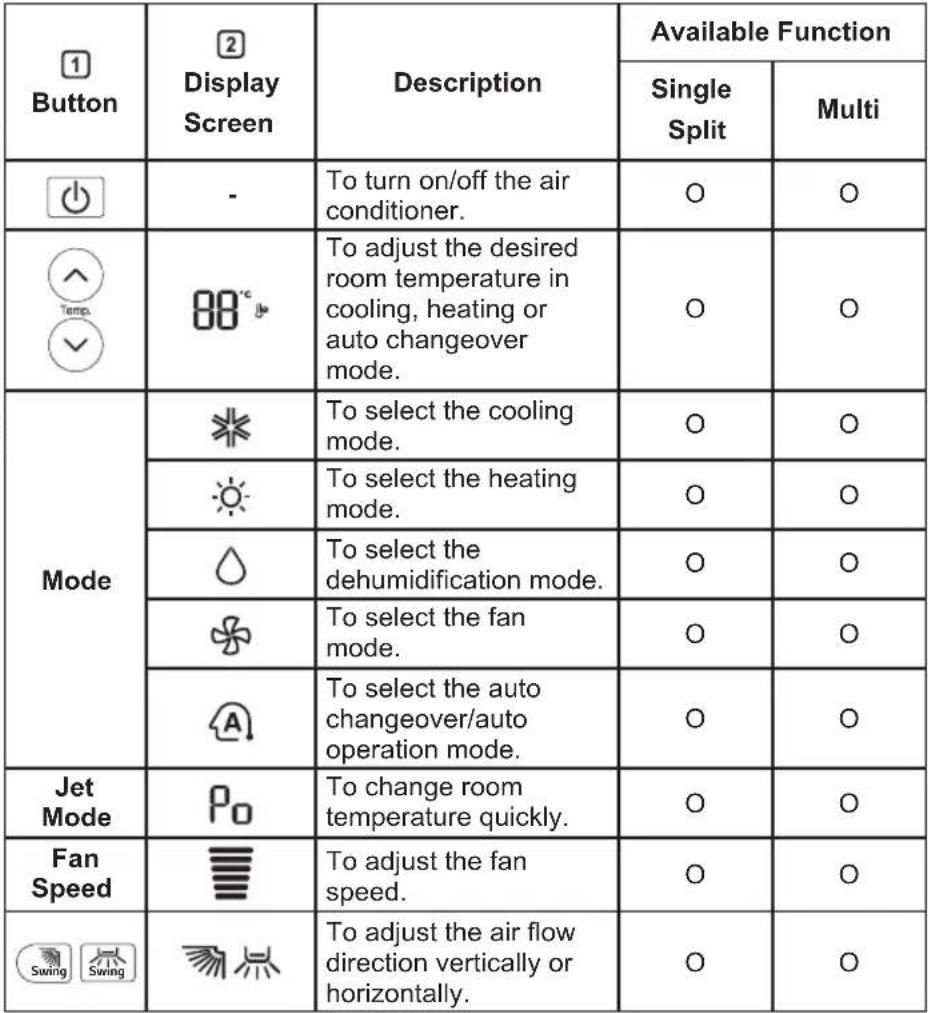

	1Button	2DisplayScreen	Description	Available Function
				Single Split	Multi
			To turn on/off air conditioner automatically at desired time.	O	O
	Set/ Cancel	-	To set/cancel the special functions and timer.	O	O
		-	To cancel the timer settings.	O	O
		- To adjust time. O O
	*Light Off	-	To set the brightness of the display on the indoor unit.	O	O
	Room Temp.		To display the room temperature.	O	O
	°C←°F (5 s)		To change unit between °C and °F	O	O
	*Comfort Air		To adjust the air flow to deflect wind.	O	O
	kW(3 s) -		To set whether or not to display information regarding energy.	O	X
	*Energy Ctrl.		To bring the effect of the power saving.	O	X
	Diagnosis (5 s)	-	To conveniently check maintenance information of a product.	O	X
	UVnano (3 s)	- To keep the fan clean.		O(Optional)	O(Optional)
1 Button	2 Display Screen		Description	Available Function
				Single Split	Multi
Func.		The lon generator uses millions of ions to help improve indoor air quality.	O (Optional)	O (Optional)
		To reduce noise from outdoor units.	O	X
		To remove moisture generated inside the indoor unit.	O	O
Reset -		To initialize the remote control settings.	O	O
