HZ7304U - Electric heater HONEYWELL - Free user manual and instructions

Product Type	Electric Fan Heater
Brand	Honeywell
Model	HZ7304U
Series	HZ-7300 EnergySmart™ Deluxe
Dimensions (L × D × H)	26,4 × 17,8 × 29,7 cm (10,4 × 7 × 11,7 in)
Power Supply	120 V, 60 Hz, 12,5 A, 1500 W max
Heating Modes	Constant Heat (Low 900 W, High 1500 W) and EnergySmart™ mode (intelligent thermostat 4 levels: 18 °C, 21 °C, 24 °C, 27 °C)
Main Features	EnergySmart™ thermostat, oscillation, digital display of current temperature and energy usage, carrying handle
Exterior Material	Safety plastic "cool to touch"
Safety	Tip-over protection, overheat protection (high temperature limiter), thermal fuse, polarized plug
Maintenance and Cleaning	Dust with a dry cloth once a month. Do not use water, wax, polish, or chemical products.
Off-Season Storage	Clean, wrap the cord around the cord wrap under the base, store in the original box in a cool, dry place.
Warranty	3-year limited warranty (defects in materials or workmanship)
Spare Parts and Repairability	No user-serviceable parts. Do not open. Contact customer service if there is a problem.

Frequently Asked Questions - HZ7304U HONEYWELL

How to turn on and turn off the HZ7304U heater?

Press the power button (☑ symbol) to turn the unit on or off. The indicator light turns on when the heater is running. Unplug it after use.

What are the different heating modes available?

The heater offers two modes: Constant Heat mode with two settings (Low 900 W and High 1500 W) and EnergySmart™ mode which automatically adjusts the power to maintain a comfort temperature among 18, 21, 24, or 27 °C.

How to use the EnergySmart™ thermostat?

Press the SET button to select the desired temperature (18, 21, 24, or 27 °C). The thermostat automatically adjusts the power to achieve and maintain this temperature efficiently.

How to activate the oscillation function?

Press the oscillation button (⏻ symbol) once to activate, a second time to deactivate. The oscillation stops automatically when the heater is in standby (temperature reached) and resumes with the warm air output.

What to do if the heater suddenly turns off?

Check that the outlet works and that the heater is not obstructed. If the overheat protection has been triggered, turn off the unit, unplug it, let it cool for 10 minutes, remove any obstruction, then plug it back in.

How to clean the heater?

Turn off and unplug the unit, let it cool. Dust the exterior surfaces with a dry cloth. Never use water, wax, polish, or chemical products.

Can I use an extension cord or power strip?

No, always plug the heater directly into a wall outlet. Using an extension cord or power strip may cause overheating and fire.

What are the important safety precautions?

Place the heater on a flat, solid surface, at least 0.9 m from combustible materials. Do not use it outdoors, in a bathroom, or near water sources. Keep children and pets away.

How to store the heater at the end of the season?

Clean it, let it cool, wrap the cord around the cord wrap under the base, then place it in its original box and store it in a cool, dry place.

What to do in case of malfunction?

Consult the troubleshooting guide in the manual. If the problem persists, contact customer service at 1-800-477-0457 or by email at [e-mail]. Do not return the appliance to the store and do not attempt to open it.

USER MANUAL HZ7304U HONEYWELL

Four different electric heating devices, including a Freebox and a standard Honeysell tower, shown against a plain background (no text or symbols visible on the devices themselves).

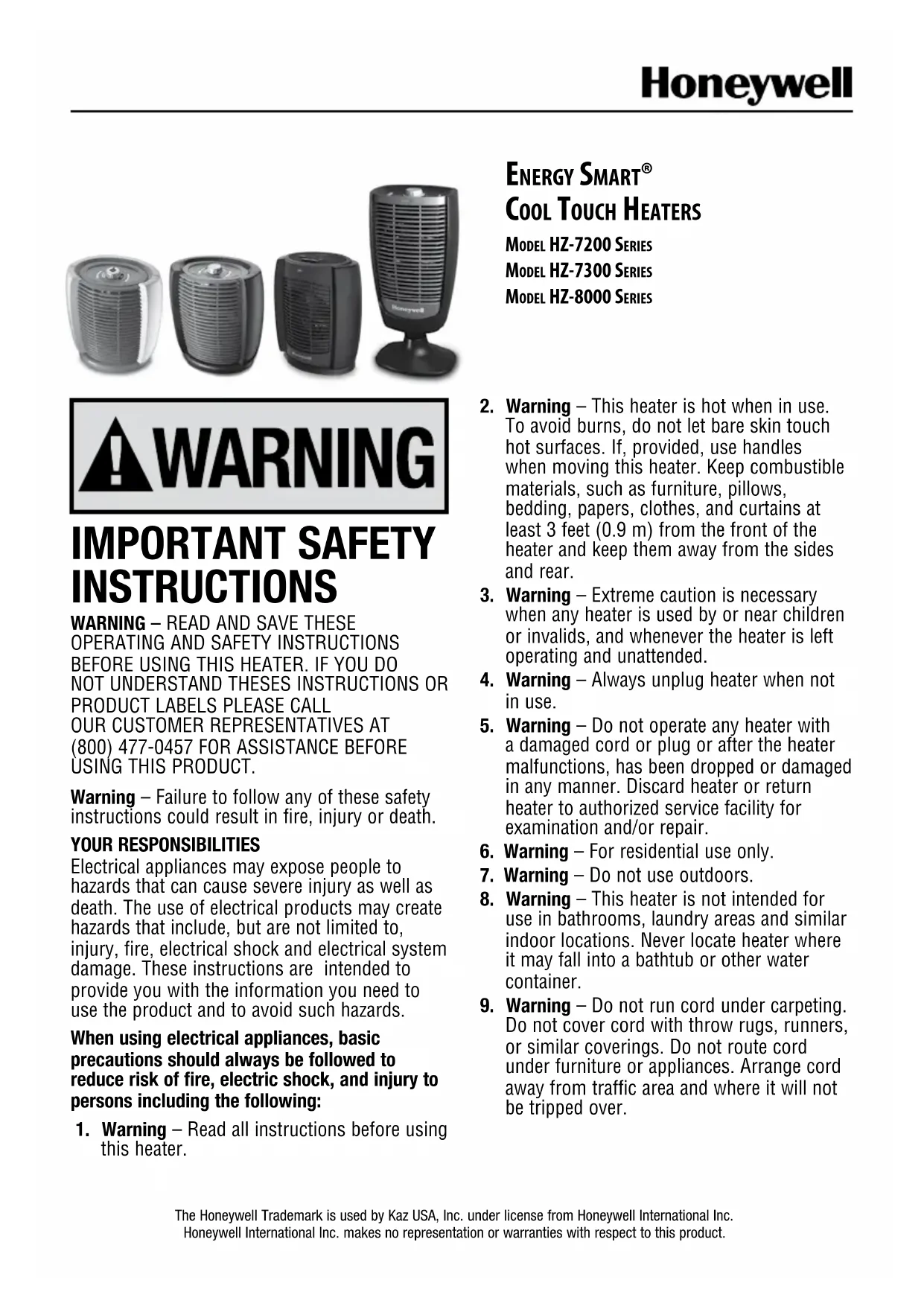

WARNING

IMPORTANT SAFETY INSTRUCTIONS

WARNING – READ AND SAVE THESE OPERATING AND SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESES INSTRUCTIONS OR PRODUCT LABELS PLEASE CALL OUR CUSTOMER REPRESENTATIVES AT [phone] FOR ASSISTANCE BEFORE USING THIS PRODUCT.

Warning – Failure to follow any of these safety instructions could result in fire, injury or death.

YOUR RESPONSIBILITIES

Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electrical shock and electrical system damage. These instructions are intended to provide you with the information you need to use the product and to avoid such hazards.

When using electrical appliances, basic precautions should always be followed to reduce risk of fire, electric shock, and injury to persons including the following:

1. Warning – Read all instructions before using this heater.

ENERGY SMART®

COOL TOUCH HEATERS

MODEL HZ-7200 SERIES

MODEL HZ-7300 SERIES

MODEL HZ-8000 SERIES

1. Warning – This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If, provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.

2. Warning – Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.

3. Warning – Always unplug heater when not in use.

4. Warning – Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater or return heater to authorized service facility for examination and/or repair.

5. Warning – For residential use only.

6. Warning – Do not use outdoors.

7. Warning – This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.

8. Warning – Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

9. CAUTION – THIS APPLIANCE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER). TO REDUCE THE RISK OF SHOCK, THIS PLUG IS INTENDED TO FIT ONLY ONE WAY IN A POLARIZED OUTLET. IF THE PLUG DOES NOT FIT SECURELY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

10. Warning – This heater draws 12.5 amps during operation. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
11. Warning – It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
12. Warning – To disconnect the heater, first turn off the product, then grip the plug body and pull it from the wall outlet. Never pull by the cord.
13. Warning – Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
14. Warning – To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, or where openings may become blocked.
15. Warning – A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored.
16. Warning – Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any wall or combustible material.

DO NOT use on an unstable surface such as bedding or deep carpeting.

BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.

1. Warning – Always plug heater directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
2. Warning – Never tamper with this product or attempt to fix it. Any tampering with, or modification of this product can result in serious injury, death, or fire. Risk of electric shock. Do not open. No user serviceable parts inside.
3. Warning – Do not remove product labels that contain warnings or safety instruction.
4. Caution – The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
5. Caution – Before cleaning, or storage, or when not in use, turn the product's controls to the OFF position and unplug the heater from the electrical outlet and allow to cool.
6. Caution – Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9 m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets. The heater's rubber feet will hold it firmly in position.
7. Caution – If your home has aluminum wiring have a licensed electrician check your receptacle's connections. When using a 1500 watt heater, aluminum wire connections can cause a safety issue.
8. SAVE THESE INSTRUCTIONS

MOVING THE HEATERSET-UP

Turn off the heater.

Allow it to cool for ten minutes.

Unplug heater and move. This heater is equipped with a convenient carrying handle for your convenience.

OPERATION

EnergySmart® Cool Touch Heaters require no assembly. Never leave an operating unit unattended. Plug the heater into an electrical wall outlet.

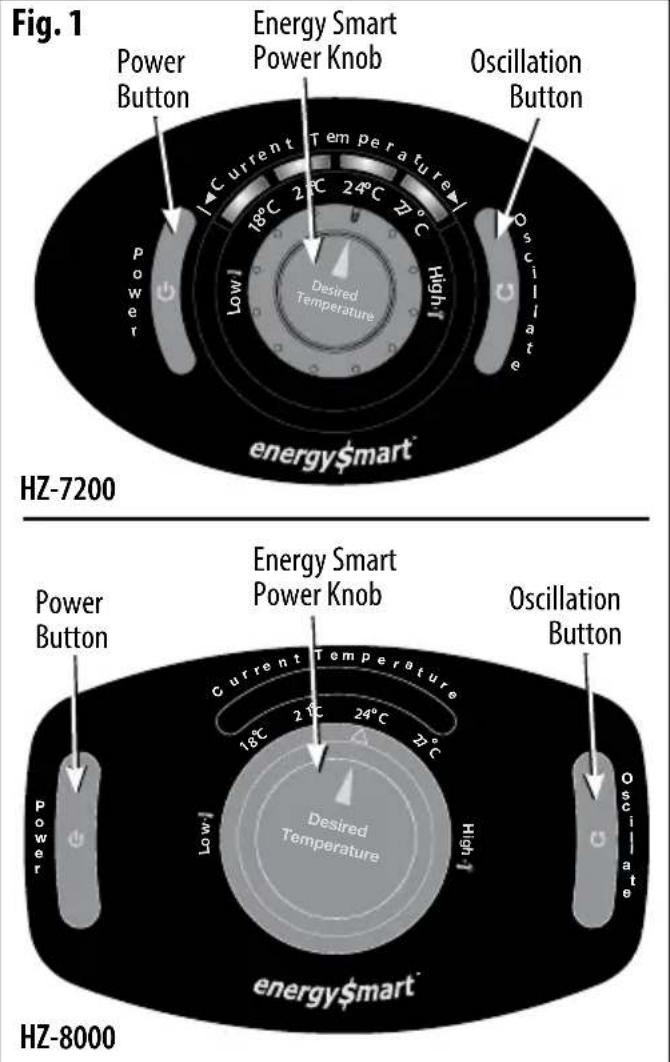

Models HZ-7200 & HZ-8000 Series – EnergySmart® Cool Touch Heater Operation

Turn the heater on by pressing the Power Button (U). The Power Indicator Light will illuminate. Fig. 1

To save up to 35% in energy bills, turn the Power Knob to your Desired Temperature. There are four (4) comfort settings of 65°F (18°C), 70°F (21°C), 75°F (24°C) and 80°F (27°C). The EnergySmart® thermostat will automatically select the appropriate power level to best accommodate your Desired Temperature. As the air temperature (Current Temperature) in the room approaches the Desired Temperature, the heater will automatically lower the power consumption and provide consistent warmth without wasting energy. Illuminated LED lights will indicate the Current Room Temperature.

NOTE: The LOW setting is designed to operate only if the temperature is below 55^ F ( 12^ C). If the room temperature is above 55^ F ( 12^ C), the heater will remain OFF until the temperature drops below this level. If you want the heater to operate when the room temperature is above 55^ F ( 12^ C), move the Power Knob to a higher setting.

To override the EnergySmart® feature and produce maximum heat, turn the Power Knob clockwise to HIGH. The will run the heater at constant 1500 watts.

To turn on the oscillation feature, press the ⏻ button once. To turn it off, press the ⏻ button once more. Please note, the oscillation function will stop when the Energy Smart™ mode has reached the desired temperature and the heater is no longer blowing warm air. It will start back up when the heater starts blowing warm air again.

Press the Power Button (☐) and unplug the heater when you are finished using it and the Power Indicator Light will go out.

Model HZ-7300 Series – Deluxe EnergySmart® Cool Touch Heater Operation

Turn heater on by pressing Power Button (☐) button. The heater will default to the Constant HI mode and the Current Temp Indicator will display the current room temperature. Fig 2.

The Energy Usage Indicator will display the power consumption used by the heater.

• If HIGH, the heater is drawing 1500 watts to quickly warm the room
• If LOW, the heater is drawing 900 watts to slowly warm the room or maintain the temperature
• If STAND BY, the heater is drawing no power as the room has reached the Desired Temperature. At this point, the heater is most efficient and is drawing only a few watts of energy while in STAND BY mode.

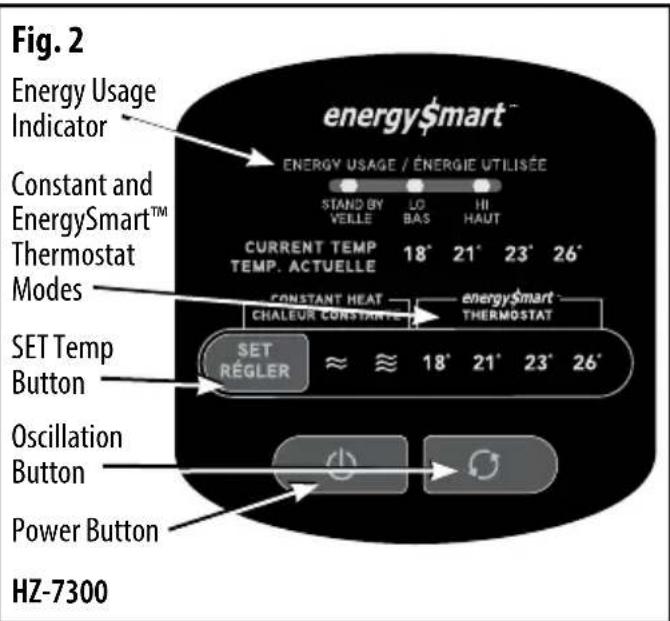

Fig. 2 Energy Usage Indicator Constant and EnergySmart™ Thermostat Modes SET Temp Button Oscillation Button Power Button HZ-7300 ENERGY$smart™ ENERGY USAGE / ÉNERGIE UTILISÉE STAND BY VELLE LO BAS HI HAUT CURRENT TEMP TEMP. ACTUELLE 18° 21° 23° 26° CONSTANT HEAT CHALEUR CONSTANTÉ ENERGY$mart® THERMOSTAT SET RÉGLER ≈ ≈ 18° 21° 23° 26°

OPERATION (continued)

To set the heater, the digital control is equipped with two (2) modes: (See Fig. 2)

Constant Heat Mode - Choose from two (2) heat settings:

1. Constant Low, press SET to LO ( ≈ ); this setting uses 900 watts of power
2. Constant High, press SET to HI ( ≈ ); this setting uses 1500 watts of power

NOTE: Because the Low setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about saving energy.

EnergySmart™ Mode - A smart thermostat that helps you save energy. Press SET to choose four (4) comfort settings of 65°F (18°C), 70°F (21°C), 75°F (24°C), 80°F (27°C). This is

your desired room temperature. The EnergySmart ^® thermostat will automatically select the appropriate power level to best accommodate your Desired Temperature. As the air temperature (Current Temp) in the room approaches the Desired Temperature, the heater will automatically lower the power consumption to provide consistent warmth without wasting energy.

The Current Temp Indicator will display the current room temperature.

In the EnergySmart® mode, the Energy Usage Indicator will display what power consumption the heater has automatically selected to efficiently meet your Desired Temperature.

To override the EnergySmart ^® function, turn the heater OFF (⏻) or press SET to choose a Constant Heat mode.

SAFETY FEATURES

This EnergySmart® Cool Touch Heater is equipped with several devices and features for added protection:

• This heater was crafted using a high quality safety plastic which allows for the "Cool Touch" exterior. If the heater grille is touched briefly, it will not cause a burn. For safe operation, do not continuously hold bare skin against the grille..
• Tip over protection – a tip-over switch that disables the heater if it is accidentally tipped over.
  • A high temperature safety control prevents overheating.
  • Thermal cut-off fuse that will permanently shut down the heater should it operate at a higher than normal temperature.

CLEANING AND STORAGE

It is recommended that the heater be cleaned at least once a month and before off-season storage. Save the carton for off-season storage.

• Turn the heater OFF() and unplug it. Allow it to cool.
• Use a dry cloth to clean only the external surfaces of the heater. DO NOT USEWATER, WAX, POLISH OR ANY CHEMICAL SOLUTION.
• Before storing, clean the EnergySmart® Cool Touch Heater using the above-mentioned steps. Wrap the cord around its cord wrap underneath the heater base. Pack the heater in its original carton and store it in a cool, dry place.

TROUBLESHOOTING

If your heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.

• Be sure it is plugged in and that the electrical outlet is working.
• Check your EnergySmart® Thermostat setting. The unit may simply be off because you have reached your desired heat setting.
• Check for any obstructions. If you find an obstruction, turn the heater OFF and unplug it. Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then re-plug the heater in and follow the OPERATION instructions.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz USA, Inc.

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

PRODUCT SPECIFICATIONS

Models HZ-7200/7300 Series HZ-8000 Series

Unit dims 10.4" L x 7" W x 11.7" H 8.7" L x 6.3" W x 18.1" H

Amps 12.5

Unit Voltage 120V, 60Hz

Max Watts 1500

Max BTUs 5118

Operation Cost* To estimate the cost to operate this heater, multiple the watts used times .001 to convert into a kilowatts measure and multiple by your local kilowatt electric rate for however long you run the heater.

For example, if your electric rate is \.1196** per kilowatt hour and you ran this heater in constant high mode (1500 watts) for 4 hours, it would cost you \.71 cents to run the heater (1500 watts x 4 hours x.001) x .1196kwp = .71 cents)

Note: Because the Low Settings do not require as much electricity to operate, they are more energy efficient and may be better options if you are concerned about the amperage draw on a circuit when the heater is on the High (HI) setting.

*Calculation (Total Wattage x .001) x Cost per Kilowatt Hour = Cost to operate

**Average Retail Price of Electricity to Ultimate Customer by End-Use, US Energy Information Administration, August 11, 2010

3 YEAR LIMITED WARRANTY

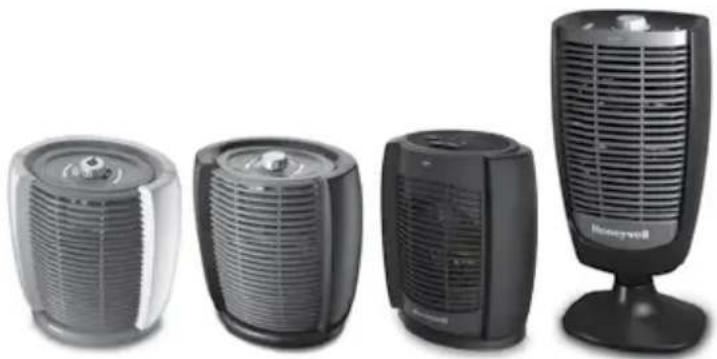

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ USA, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz USA, Inc. will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz USA, Inc. with a brief description of the problem. Include proof of purchase and a \10 US/\15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges. We suggest having tracking or delivery confirmation.

Send to:

In U.S.:

Kaz USA, Inc.

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118 USA

In Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6 Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.

Four different electric heating devices, including a Freehold and a standard model, displayed against a plain background (no text or symbols visible)
