Product type	Stick vacuum cleaner
Brand	Beko
Model	VCS 50700 CW
Rated power	800 W
Supply voltage	220-240 V~, 50/60 Hz
Dust container capacity	1 L
Power cord length	6 m
Insulation class	II
Energy class	C
Sound level	80 dB(A)
Filter type	Washable HEPA filter
Hand vacuum function	Yes (removable handle)
Floor brush	Included
Annual energy consumption	36 kWh/year
Intended use	Domestic
Safety	Do not use for water, do not vacuum flammable materials
Maintenance	Cleaning of dust container and HEPA filter
Included accessories	Brush, HEPA filter

Frequently Asked Questions - VCS 50700 CW BEKO

How to turn on the Beko VCS 50700 CW vacuum cleaner?

Press the On/Off button located on the handle.

How to remove the dust container?

Press the dust container release button and remove the container.

How to clean the HEPA filter?

Remove the HEPA filter from the container, shake it then wash it with water. Let it dry completely before reinserting.

Can I use the vacuum cleaner to vacuum water?

No, do not use the vacuum for water or any other liquid.

What to do if the vacuum does not turn on?

Check that the appliance is plugged in and that the On/Off button is pressed. If the problem persists, contact authorized service.

How to detach the handle for hand vacuum mode?

Press the handle release button and pull the handle.

Where can I find spare parts for my Beko vacuum?

Use only original parts or those recommended by the manufacturer. Contact authorized service.

What is the power of the vacuum?

The rated power is 800 W.

How to store the vacuum after use?

Unplug the appliance, make sure it is cool and dry, and store it out of reach of children.

Is the vacuum suitable for carpets?

Yes, it is suitable. Its carpet cleaning performance class is E.

USER MANUAL VCS 50700 CW BEKO

Stick Vacuum Cleaner

User Manual

EN DE FR ES PL

SR \$Q MK IT

VCS 50700 CW

01M-8811533200-0319-03

beko

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This appliance has been manufactured in environmentally friendly modern plants without causing any harm to nature.

CONTENTS

ENGLISH 4-9

GERMAN 10-17

FRENCH 18-24

SPANISH 25-33

POLISH 34-44

SERBIAN 45-51

ALBANIAN 52-58

MACEDONIAN 59-65

ITALIAN 66-73

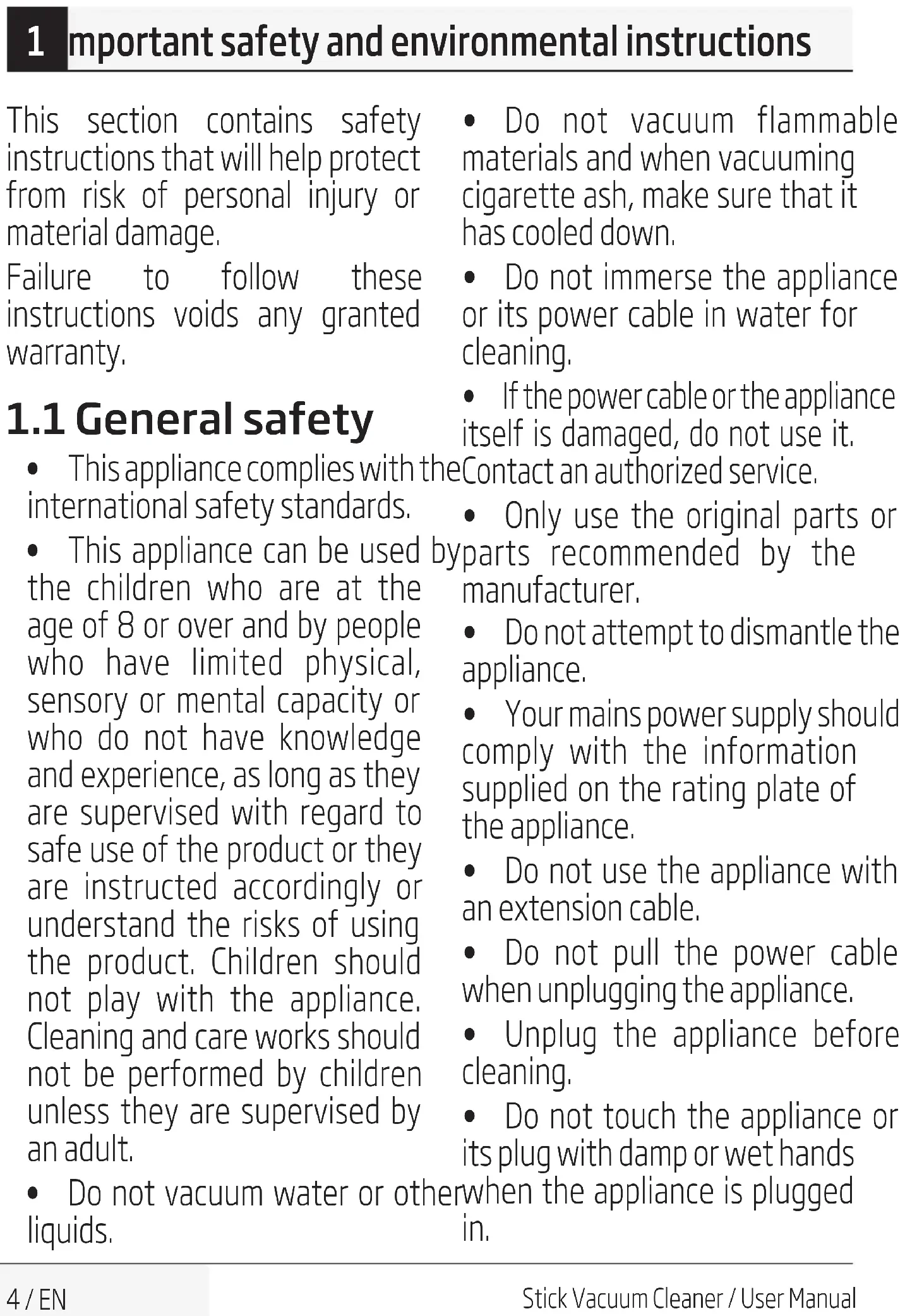

1 Important safety and environmental instructions

This section contains safety instructions that will help protect you from the risk of personal injury or material damage.

Failure to follow these instructions voids any granted warranty.

1.1 General safety

This appliance complies with international safety standards.

This appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not vacuum water or other liquids when the appliance is plugged in.

• Do not vacuum flammable materials, and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not immerse the appliance or its power cable in water for cleaning.
• If the power cable or the appliance itself is damaged, do not use it.

Contact an authorized service.

Only use original parts or parts recommended by the manufacturer.

• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning.
• Do not touch the appliance or its plug with damp or wet hands.

1 Important safety and environmental instructions

• Do not clean particles such as cement, plaster, and compressed paper to prevent the filter from clogging and the motor from being damaged.
• Protect the appliance from rain, humidity, and heat sources.
• Never use the appliance in places where combustible or flammable atmospheres or locations are present.
• Keep packaging materials in a safe place out of reach of children.

2.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high-quality parts and materials that can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your stick vacuum cleaner

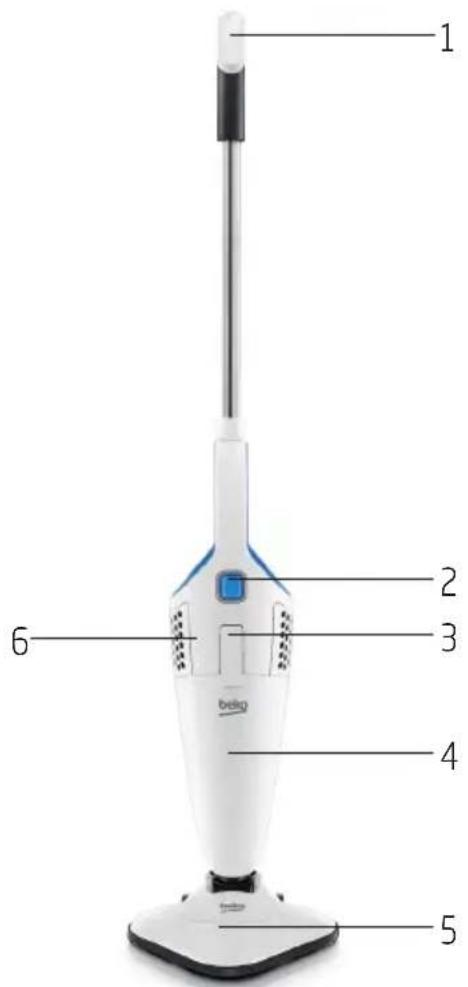

2.1 Overview

1. Handle
2. On/Off button
3. Dust container removal button
4. Dust container
5. Brush
6. Main body

2.2 Technical data

Rated power: 800W

Supply voltage: 220-240 V~, 50/60 Hz

Dust volume: 1L

Power cord length: 6 m

Insulation class: II

Energy class: C

Technical and design modification rights are reserved.

The values declared on the markings affixed to your product or in other printed documents supplied with it represent the values obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Operation

3.1 Intended use

This appliance is intended for domestic use. It is not suitable for industrial use.

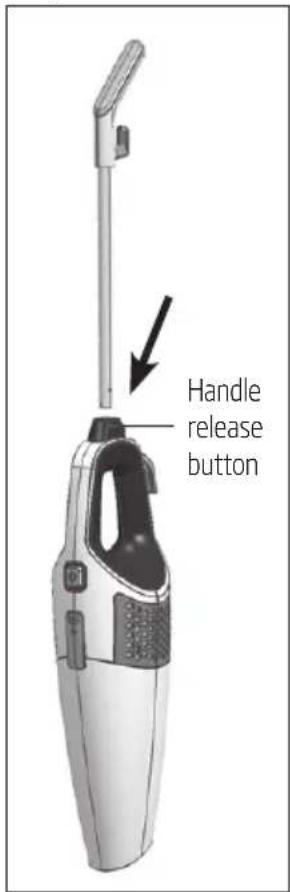

3.2 Attaching/removing the pipe

You can use the product as a handheld sweeper when the handle (1) and the brush are not attached. After attaching the handle and brush (5), the product will become suitable for vacuuming the floor.

1. Attach the handle (1) to the main body (6) (you will hear a click).

1. To remove the handle (1), press the release button (3) and pull the handle.

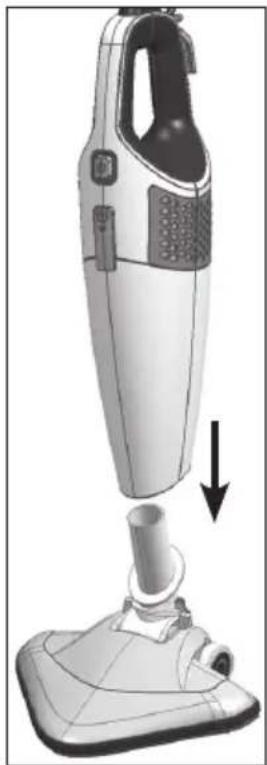

3.3 Attaching/removing the brush

You can attach/remove the brush to/from the suction nozzle.

3.4 Accessories

Crevice tool

When used as a hand held sweeper, the product is suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under sofas and furniture.

3.5 Operation

1. Plug in the appliance after pulling out the power plug located at the back of the appliance.
2. Press the on/off button (2) to switch on your appliance.

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

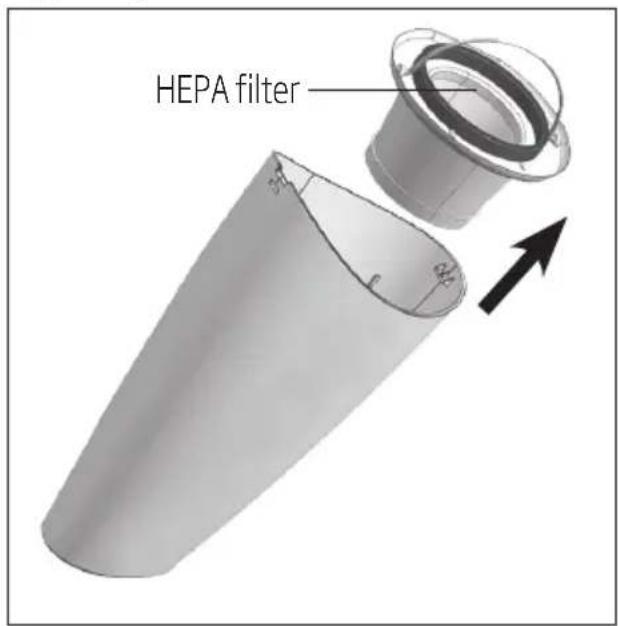

4.1 Cleaning the dust container

1. Press the dust container removal button (3) and remove the dust container (4).
2. Remove the HEPA filter in the dust container (4) by pulling its handle.

1. Empty the dust container into a bin.

4.2 Cleaning the filters

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

4.2.1 HEPA filter

1. Shake off the HEPA filter by tapping it on the topside on a hard floor and then wash it.
2. Leave the HEPA filter to dry after washing it.

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Please make sure that the appliance is unplugged, cooled and totally dry.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Pursuant to the EU Directives No EU/665/2013 and EU/666/2013 Regarding the Energy Labelling of Vacuum Cleaners

Name or trademark of the supplier: Arçelik A.Ş.

A	Model VCS 50700 CW
B	Energy efficiency class C
C	Annual energy consumption in kWh/year calculated on the basis of 50 test cycles. Actual energy consumption may vary based on how the appliance is being used.	36
D	Carpet cleaning performance class E
E	Hard floor cleaning performance class D
F	Dust emission class E
G	Noise level (dBA): 80 dB(A) re 1pW
H	Rated input power (W) 800

Measurements have been performed in line with the standards No EN 60312-1 and EN 60704.

3.4 Accessories

Crevice nozzle

3.4 Accessories

Flat nozzle

3.4 Accessories

3.4 Accessories

Crevice nozzle

3.4 Accessories

When used with the hand brush, the product is suitable for cleaning surfaces that are difficult to clean, such as areas under sofas and furniture.

3.5 Operation

1. Connect the appliance plug after pulling out the power cord located at the rear of the appliance.
2. Press the on/off button (2) to turn on your appliance.

1. Empty the dust container into a waste bin.

4.2 Cleaning the filters

WARNING: Do not use devices that produce warm air, such as a hair dryer or heater, to dry the filters.

WARNING: Do not install the filters if they have not been completely dried beforehand; otherwise, a musty odor may occur during use, water may leak from the rear of the appliance, or the filters may be damaged.

WARNING: Place the filters in their positions after they have dried.

4.2.1 HEPA filter

1. Shake the HEPA filter by tapping it on top while it is on a hard surface, then wash it.
2. Let the HEPA filter dry before washing it.

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Make sure the appliance is unplugged, cooled down, and completely dry.
• Keep the appliance out of reach of children.

4.4 Transfer and transport

• During transfer and transport, carry the device in its original packaging. The packaging protects it from physical damage.
• Do not place heavy objects on the device or its packaging. The device may be damaged.
• If the device is dropped, it may cause permanent damage, or the device may become non-functional.

In accordance with EU directives EU/665/2013 and EU/666/2013 regarding the labeling of energy consumption of vacuum cleaners

3.4 Accessories

Tools and nozzles

3.4 Accessories

3.4 Accessories
