USER MANUAL BEHPH 090 BEKO

CONTENTS V2110002 AB UMPlease read this user manual first! Dear Customer, Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Meanings of the symbols Following symbols are used in the various section of this manual: This product has been manufactured at modern facilities respectful to the environment without harming nature. Complies with the WEEE Regulation. Does not contain PCB.

Warning for hazardous situations with regard to life and property. Warning to actions that must never perform.

Warning for electric shock. This symbol shows that information is available such as the operating manual or installation manual. Do not cover it. This symbol shows that the operation manual should be read carefully. This symbol shows that a service personnel should be handling this equipment with reference to the installation manual. (For R32/R290 gas type) This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.4 / 172 EN Split Type Air Conditioner / User Manual CONTENTS 1 Safety Precautions 5 2 Overview 12

3 Unit specifications and features 15

4.2.3 Before performing any electrical work, read these

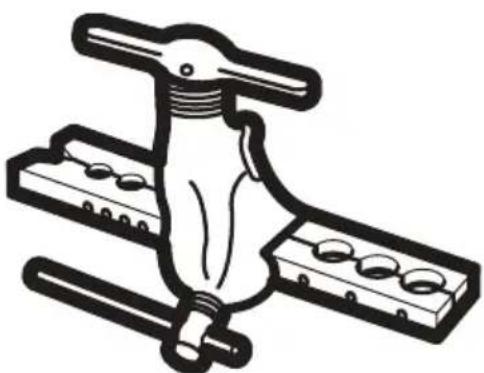

5 Refrigerant piping connection 35

5.1 Connection Instructions – Refrigerant Piping ............... 36

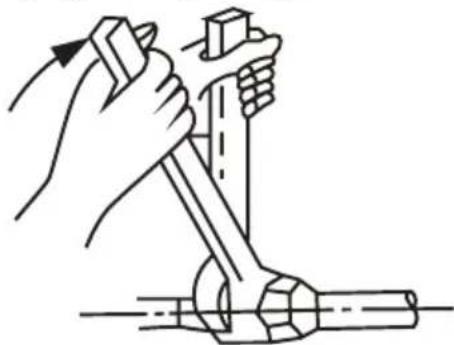

5.2 Instructions for connecting piping to indoor unit .......... 37

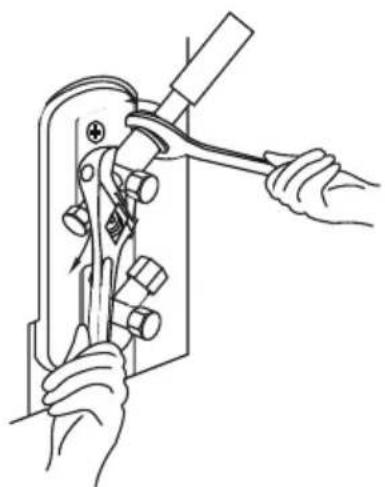

5.3 Instructions for connecting piping to outdoor unit ........ 38

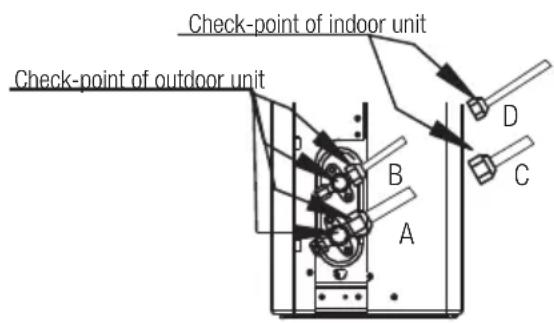

7 Electrical and gas leak checks 41

9 Care and maintenance 43

9.4 Maintenance – Pre-Season Inspection ....................... 45

13 Specifications 535 / 172 EN Split Type Air Conditioner / User Manual Warning This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision (European Union countries). This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Warnings for product use

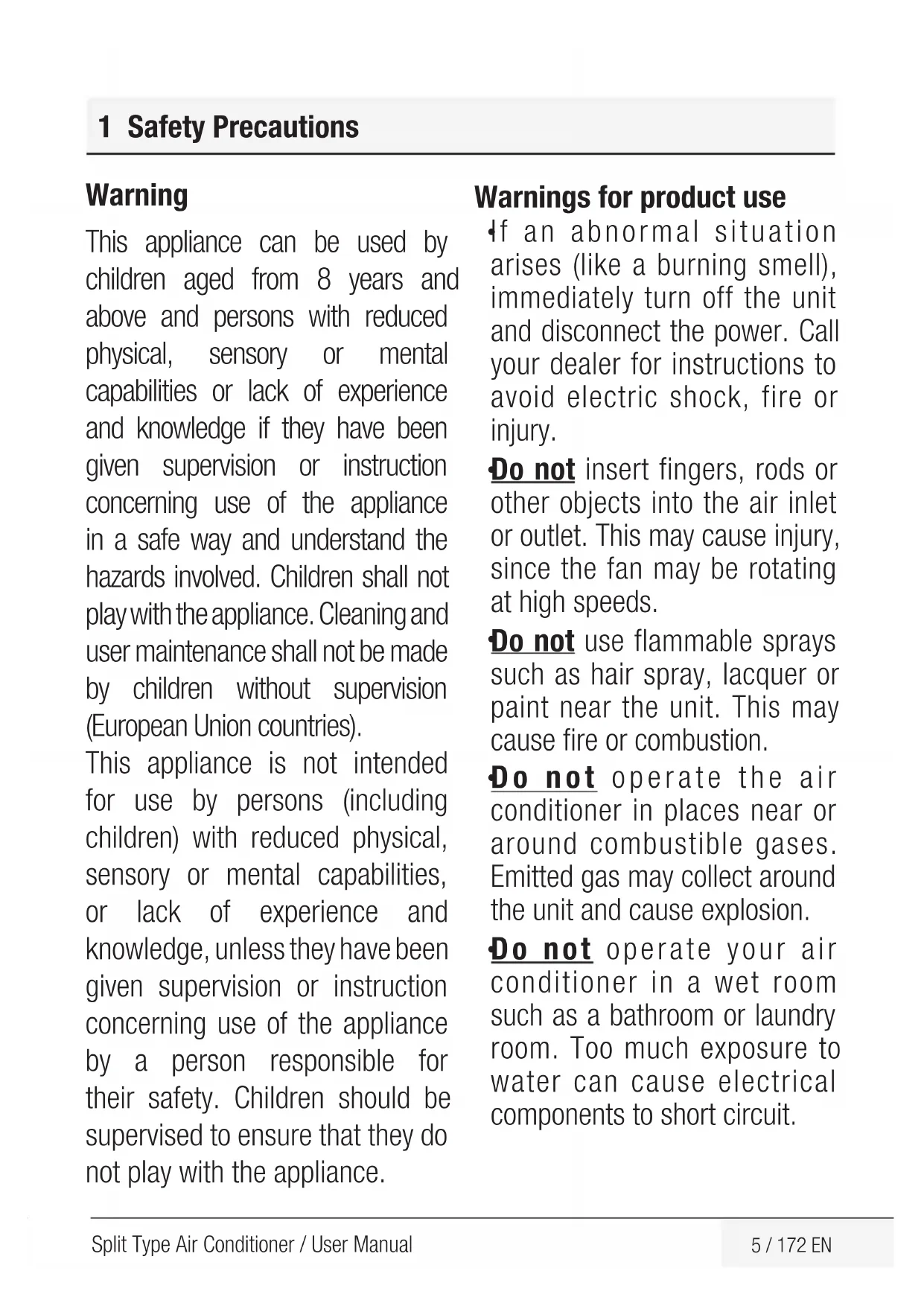

If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the power. Call your dealer for instructions to avoid electric shock, fire or injury.

Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotating at high speeds.

Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.

Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the unit and cause explosion.

Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit. 1 Safety Precautions6 / 172 EN Split Type Air Conditioner / User Manual

Do not expose your body directly to cool air for a prolonged period of time.

Do not allow children to play with the air conditioner. Children must be supervised around the unit at all times.

If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid oxygen deficiency.

In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed air-conditioning units is highly recommended. Cleaning and maintenance warnings

Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical shock.

Do not clean the air conditioner with excessive amounts of water.

Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or deformation. Caution

Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.

Turn off and unplug the unit during storms.

Make sure that water condensation can drain unhindered from the unit.

Do not operate the air conditioner with wet hands. This may cause electric shock.

Do not use device for any other purpose than its intended use.

Do not climb onto or place objects on top of the outdoor unit.

Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high. 1 Safety Precautions7 / 172 EN Split Type Air Conditioner / User Manual Electrical warnings

Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire or electric shock.

Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly on the cord can damage it, which can lead to fire or electric shock.

Do not modify the length of the power supply cord or use an extension cord to power the unit.

Do not share the electrical outlet with other appliances. Improper or insufficient power supply can cause fire or electrical shock.

The product must be properly grounded at the time of installation, or electrical shock may occur.

For all electrical work, follow all local and national wiring standards, regulations, and the Installation Manual. Connect cables tightly, and clamp them securely to prevent external forces from damaging the terminal. Improper electrical connections can overheat and cause fire, and may also cause shock. All electrical connections must be made according to the Electrical connection diagram located on the panels of the indoor and outdoor units.

All wiring must be properly arranged to ensure that the control board cover can close properly. If the control board cover is not closed properly, it can lead to corrosion and cause the connection points on the terminal to heat up, catch fire, or cause electrical shock. 1 Safety Precautions8 / 172 EN Split Type Air Conditioner / User Manual

If connecting power to fixed wiring, an all-pole disconnection device which has at least 3mm clearances in all poles, and have a leakage current that may exceed 10mA, the residual current device (RCD) having a rated residual operating current not exceeding 30mA, and disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. Take note of fuse specifications The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T3.15AL/250VAC, T5AL/250VAC, T3.15A/250VAC, T5A/250VAC, T20A/250VAC, T30A/250VAC, etc.

Note: For the units using R32 or R290 refrigerant, only the blast-proof ceramic fuse can be used. Warnings for product installation

1. Installation must be

performed by an authorized dealer or specialist. Defective installation can cause water leakage, electrical shock, or fire.

2. Installation must be performed

according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.

3. Contact an authorized service

technician for repair or maintenance of this unit. This appliance shall be installed in accordance with national wiring regulations.

4. Only use the included

accessories, parts, and specified parts for installation. Using non-standard parts can cause water leakage, electrical shock, fire, and can cause the unit to fail. 1 Safety Precautions9 / 172 EN Split Type Air Conditioner / User Manual

5. Install the unit in a firm location

that can support the unit’s weight. If the chosen location cannot support the unit’s weight, or the installation is not done properly, the unit may drop and cause serious injury and damage.

6. Install drainage piping

according to the instructions in this manual. Improper drainage may cause water damage to your home and property.

7. For units that have an auxiliary

electric heater, do not install the unit within 1 meter (3 feet) of any combustible materials.

8. Do not install the unit in a

location that may be exposed to combustible gas leaks. If combustible gas accumulates around the unit, it may cause fire.

9. Do not turn on the power until

all work has been completed.

10. When moving or relocating

the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit.

11. How to install the appliance

to its support, please read the information for details in “indoor unit installation” and “outdoor unit installation” sections. Note about fluorinated gasses (Not applicable to the unit using R290 Refrigerant)

1. This air-conditioning

unit contains fluorinated greenhouse gasses. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself or the “User Manual - Product Fiche“ in the packaging of the outdoor unit. (European Union products only).

2. Installation, service,

maintenance and repair of this unit must be performed by a certified technician.

3. Product uninstallation and

recycling must be performed by a certified technician. 1 Safety Precautions10 / 172 EN Split Type Air Conditioner / User Manual

4. For equipment that contains

fluorinated greenhouse gases in quantities of 5 tonnes of CO2 equivalent or more, but of less than 50 tonnes of CO2 equivalent, If the system has a leak-detection system installed, it must be checked for leaks at least every 24 months.

5. When the unit is checked for

leaks, proper record-keeping of all checks is strongly recommended. Warning for Using R32/R290 Refrigerant

When flammable refrigerant are employed, appliance shall be stored in a well -ventilated area where the room size corresponds to the room area as specific for operation. For R32 frigerant models: Appliance shall be installed, operated and stored in a room with a floor area larger than

1 Safety Precautions For R290 refrigerant models, appliance shall be installed, operated and stored in a room with a floor area larger than: <=9000Btu/h units: 13m

Reusable mechanical connectors and flared joints are not allowed indoors. (EN Standard Requirements).

Mechanical connectors used indoors shall have a rate of not more than 3g/year at 25% of the maximum allowable pressure. When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated. (UL Standard Requirements)11 / 172 EN Split Type Air Conditioner / User Manual

When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated. (IEC Standard Requirements)

Mechanical connectors used indoors shall comply with ISO 14903. European disposal guidelines This marking shown on the product or its literature, indicates that waste electrical and eletrical equipment should not be mixed with general household waste. Correct disposal of this product (Waste electrical & Electronic equipment) This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. 1 Safety Precautions When disposing of this appliance, you have the following options:

Dispose of the appliance at designated municipal electronic waste collection facility.

When buying a new appliance, the retailer will take back the old appliance free of charge.

The manufacturer will take back the old appliance free of charge. (for some countries)

Sell the appliance to certified scrap metal dealers. (for some countries)

Special notice: Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.12 / 172 EN Split Type Air Conditioner / User Manual 2 Overview The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately. Name of Accessories Q’ty(pc) Shape Name of Accessories Q’ty(pc) Shape Manual 2-3 Remote controller

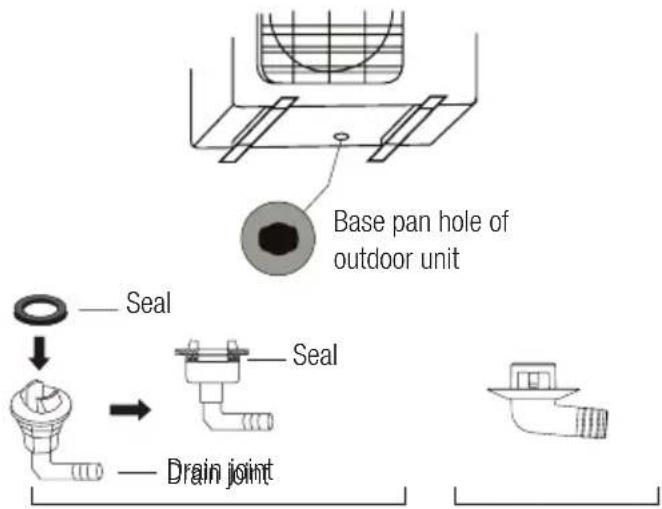

Drain joint (for cooling & heating models) 1 Battery 2 Seal (for cooling & heating models)

Mounting plate 1 Fixing screw for remote controller holder (optional)

Anchor 5~8 (depending on models) Small Filter (Need to be installed on the back of main air filter by the authorized technician while installing the machine) 1~2 (depending on models) Mounting plate fixing screw 5~8 (depending on models) Wireless USB kit 1 (For Wifi models only)13 / 172 EN Split Type Air Conditioner / User Manual 2 Overview Name Shape Quantity(PC)Connecting pipe assemblyLiquid side 6.35 (1/4 in) Parts you must purchase separately. Consult the dealer about the proper pipe size of the unit you purchased. 9.52 (3/8in)Gas side 9.52 (3/8in) 12.7 (1/2in) 16 (5/8in) 19 (3/4in)Magnetic ring and belt (if supplied, please refer to the wiring diagram to install it on the connective cable)1 2 3 Pass the belt through the hole of the Magnetic ring to fix it on the cable Pass the belt through the hole of the Magnetic ring to fix it on the cableVaries by model

The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas.14 / 172 EN Split Type Air Conditioner / User Manual 2 Overview （1）（2）

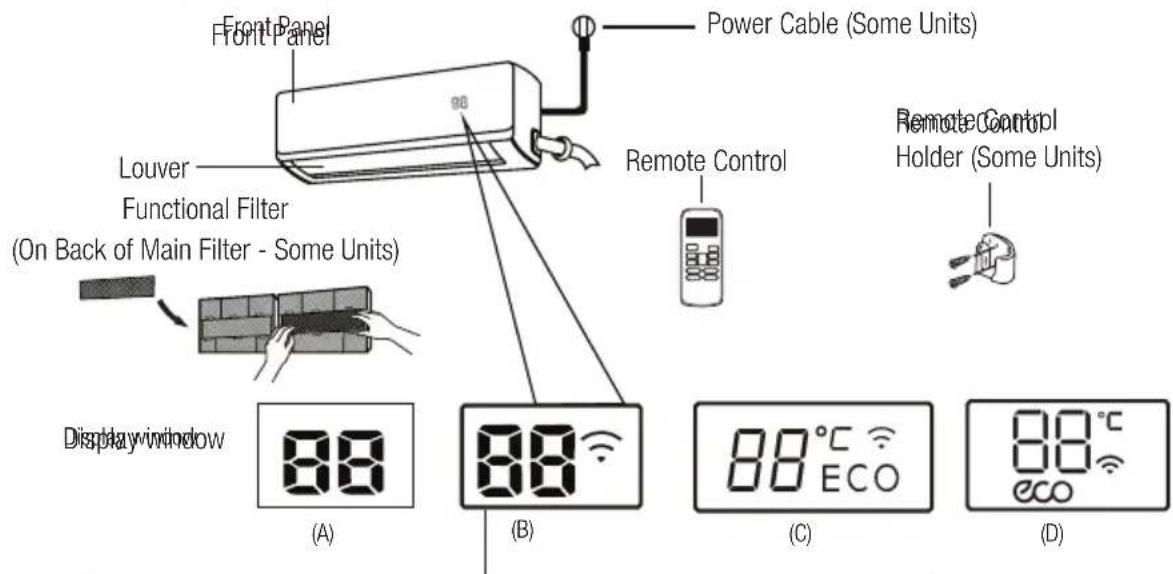

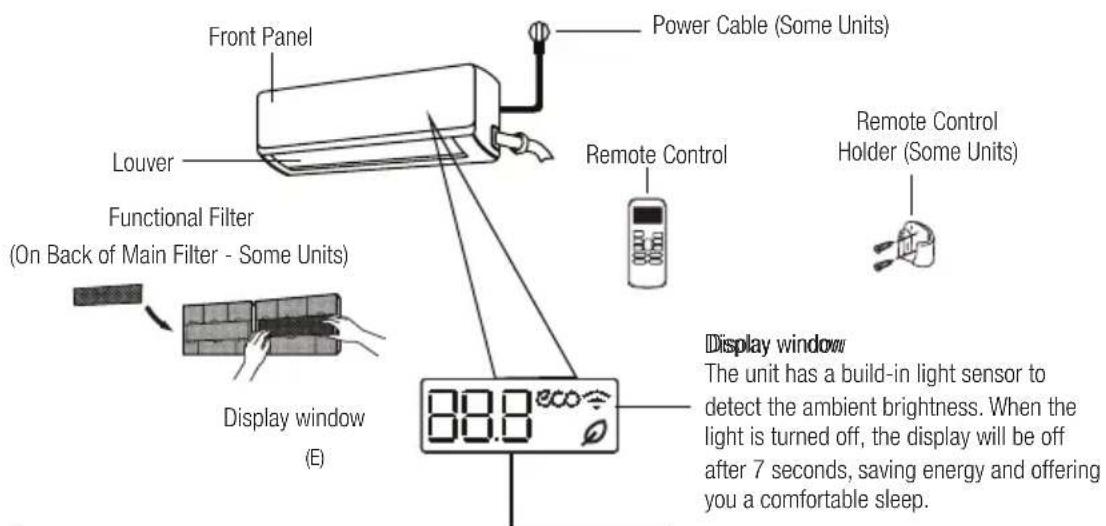

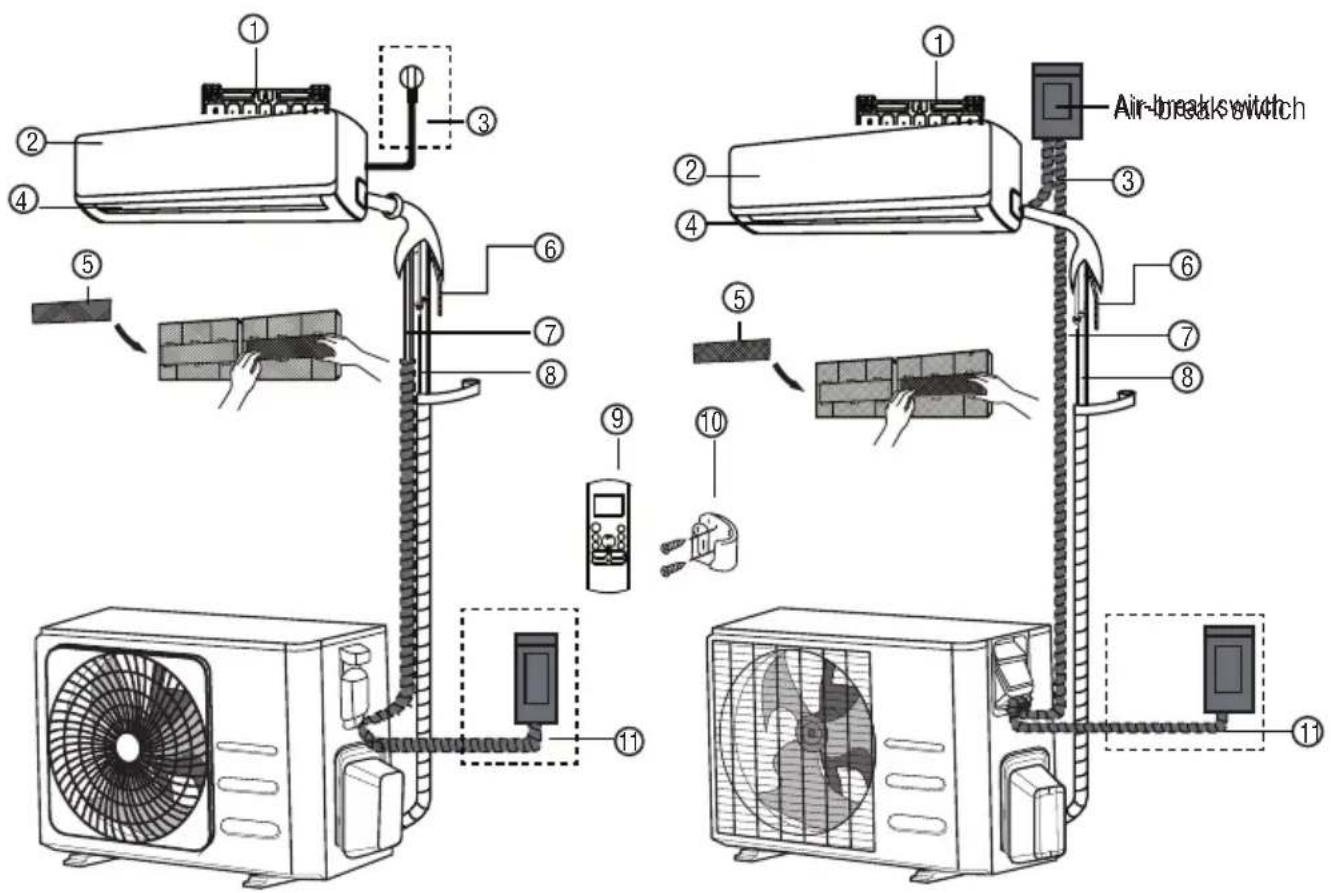

2.2 Controls and parts

1. Wall mounting plate

5. Functional Filter (On Back of Main Filter -

10. Remote controller holder (some units)

11. Outdoor unit power cable (some units)

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.15 / 172 EN Split Type Air Conditioner / User Manual

Different models have different front panel and display window. Not all the indicators describing below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased.

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail. Display Code Meanings Power Cable (Some Units) Remote ControlRemote Control Holder (Some Units)Functional Filter (On Back of Main Filter - Some Units)Louver Front Panel Display window (A) (B) (C) (D) “ ” “ ” when ECO function is activated(some units) Lights up in different colour according to the operation mode(some units):Under COOL and DRY mode, it displays as cool colour.Under HEAT mode, it displays as warm colour.“ ” when Wireless Control feature is activated(some units)“ ” for 3 seconds when:• TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: Display window Power Cable (Some Units) Front Panel Louver Functional Filter (On Back of Main Filter - Some Units) Remote Control Remote Control Holder (Some Units) Display Code Meanings Displays temperature, operation feature and Error codes: when ECO function is activated (some units) Lights up in different colour according to the operation mode (some units): Under COOL and DRY mode, it displays as cool colour. Under HEAT mode, it displays as warm colour. when Wireless Control feature is activated (some units)

TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” for 3 seconds when:

TIMER ON is set (if the unit is OFF, “ Display Code Meanings Power Cable (Some Units) Remote ControlRemote Control Holder (Some Units)Functional Filter (On Back of Main Filter - Some Units)LouverFront PanelDisplay window(A)(B)(C)(D)“ ” “ ” when ECO function is activated(some units) Lights up in different colour according to the operation mode(some units):Under COOL and DRY mode, it displays as cool colour.Under HEAT mode, it displays as warm colour.“ ” when Wireless Control feature is activated(some units) “ ” for 3 seconds when:
TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” remains on when TIMER ON is set)

FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned on “ Display Code Meanings Power Cable (Some Units) Remote ControlRemote Control Holder (Some Units)Functional Filter (On Back of Main Filter - Some Units)LouverFront PanelDisplay window(A)(B)(C)(D)“ ” “ ” when ECO function is activated(some units) Lights up in different colour according to the operation mode(some units):Under COOL and DRY mode, it displays as cool colour.Under HEAT mode, it displays as warm colour.“ ” when Wireless Control feature is activated(some units)“ ” for 3 seconds when:• TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” for 3 seconds when:

FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned off

Display Code Meanings Power Cable (Some Units) Remote ControlRemote Control Holder (Some Units)Functional Filter (On Back of Main Filter - Some Units)LouverFront PanelDisplay window(A)(B)(C)(D)“ ” “ ” when ECO function is activated(some units) Lights up in different colour according to the operation mode(some units):Under COOL and DRY mode, it displays as cool colour.Under HEAT mode, it displays as warm colour.“ ” when Wireless Control feature is activated(some units)“ ” for 3 seconds when:• TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” when anti-cold air feature is turned on

Power Cable (Some Units

Remote Control Remote Control Holder (Some Units) Functional Filter (On Back of Main Filter - Some Units) Louver Front Panel Display window Display window The unit has a build-in light sensor to detect the ambient brightness. When the light is turned off, the display will be off after 7 seconds, saving energy and offering you a comfortable sleep. “ ” for 3 seconds when:• TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) Display Code Meanings Front Panel Power Cable (Some Units) Louver Functional Filter (On Back of Main Filter - Some Units) Remote Control Remote Control Holder (Some Units) Display window Display window The unit has a build-in light sensor to detect the ambient brightness. When the light is turned off, the display will be off after 7 seconds, saving energy and offering you a comfortable sleep.

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting. “ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” Displays temperature, operation feature and Error codes:

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” for 3 seconds when:

TIMER ON is set (if the unit is OFF, “ Display Code Meanings (E)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” remains on when TIMER ON is set)

FRESH, SWING, TURBO, or SILENCE features is turned on

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” for 3 seconds when:

FRESH, SWING, TURBO, or SILENCE features is turned off

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off “ ” when defrosting(for cooling & heating units) “ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” when defrosting (for cooling & heating units)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” when unit is self-cleaning (some units)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” when 8°C (46°F) or 12°C (54°F) heating mode is turned on (some units)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” when fresh feature is turned on (some units)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” when ECO feature is activated (some units)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units) “ ” when wireless control feature is activated(some units) In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” when wireless control feature is activated (some units) In Fan mode, the unit will display the room temperature. In other modes, the unit will display your temperature setting. Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after 15 seconds, it will turn on the display screen.

3.2 Operating temperature

When your air conditioner is used outside of the following temperature ranges, certain safety protection features may activate and cause the unit to disable. 3 Unit specifications and features17 / 172 EN Split Type Air Conditioner / User Manual 3 Unit specifications and features

For outdoor units with auxiliary electric heater. When outside temperature is below 0°C (32°F), we strongly recommend keeping the unit plugged in at all time to ensure smooth ongoing performance.

Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. Please sets the vertical air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode. To further optimize the performance of your unit, do the following

Keep doors and windows closed.

Limit energy usage by using TIMER ON and TIMER OFF functions.

Do not block air inlets or outlets.

Regularly inspect and clean air filters. A guide on using the infrared remote is not included in this literature package. Not all the functions are available for the air conditioner, please check the indoor display and remote control of the unit you purchased.

Auto-Restart (some units) If the unit loses power, it will automatically restart with the prior settings once power has been restored.

Anti-mildew (some units) When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue operate at very low power to dry up condensed water and prevent mildew growth.

Wireless Control (some units) Wireless control allows you to control your air conditioner using your mobile phone and a wireless connection. For the USB device access, replacement, maintenance operations must be carried out by professional staff.

Louver Angle Memory (some units) When turning on your unit, the louver will automatically resume its former angle.

Refrigerant Leakage Detection (some units) The indoor unit will automatically display “EC” or “EL0C”or flash LEDS (some units) when it detects refrigerant leakage.

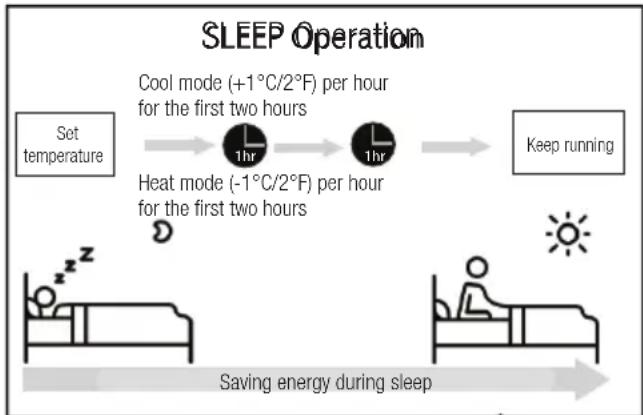

Sleep Operation The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. And the Sleep function is not available in FAN or DRY mode. Press the SLEEP button when you are ready to go to sleep. When in COOL mode, the unit will increase the temperature by 1°C (2°F) after 1 hour, and will increase an additional 1°C (2°F) after another hour. When in HEAT mode, the unit will decrease the temperature by 1°C (2°F) after 1 hour, and will decrease an additional 1°C (2°F) after another hour. The sleep feature will stop after 8 hours and the system will keep running with final situation. Set temperature 1hr 1hr Keeprunning SLEEP Operation Saving energy during sleepHeat mode( -1 C/2 F) per hourfor the first two hoursCool mode(+1 C/2 F) per hourfor the first two hours SLEEP Operation Cool mode (+1°C/2°F) per hour for the first two hours Heat mode (-1°C/2°F) per hour for the first two hours Saving energy during sleep Set temperature Keep running 3 Unit specifications and features19 / 172 ENSplit Type Air Conditioner / User Manual

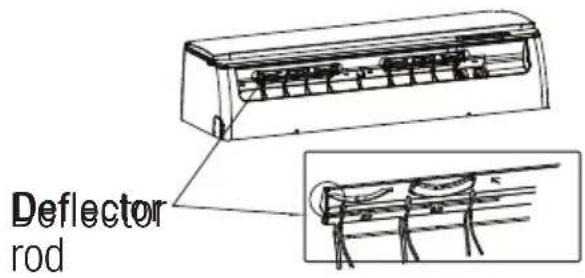

3.6 Setting angle of air flow

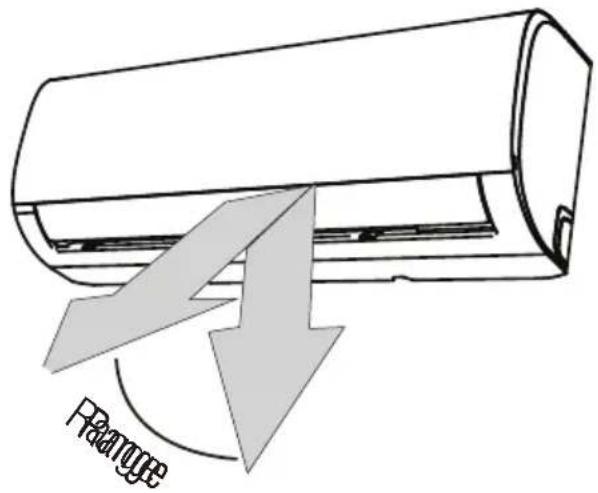

3.6.1 Setting vertical angle of air flowWhile the unit is on, use the SWING/DIRECT button on remote control to set the direction (vertical angle) of airflow. Please refer to the Remote Control Manual for details. When using COOL or DRY mode, do not set louver at too vertical an angle for long periods of time. This can cause water to condense on the louver blade, which will drop on your floor or furnishings.When using COOL or HEAT mode, setting the louver at too vertical an angle can reduce the performance of the unit due to restricted air flow.3.6.2 Setting horizontal angle of air flowThe horizontal angle of the airflow must be set manually. Grip the deflector rod (See Fig.B) and manually adjust it to your preferred direction. For some units, the horizontal angle of the airflow can be set by remote control. please refer to the Remote Control Manual.

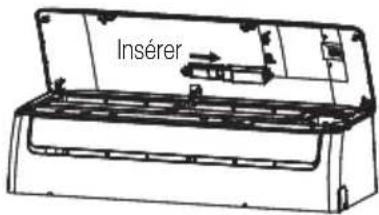

3.7 Install the HomeWhiz kit

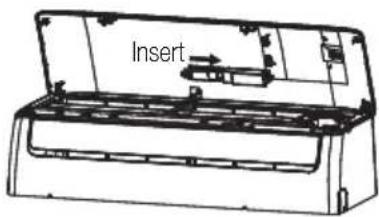

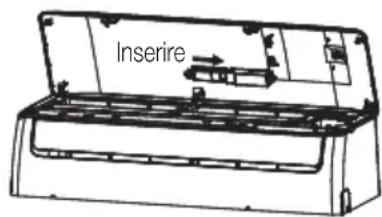

(wireless module) 1. Remove the protective cap of the HomeWhiz kit (wireless module)2. Open the front panel and insert the HomeWhiz kit (wireless module) into the reserved interface. 3 Unit specifications and features Insert

This interface is only compatible with HomeWhiz kit (wireless module) provided by the manufacturer.

3.8 Manual operation (without

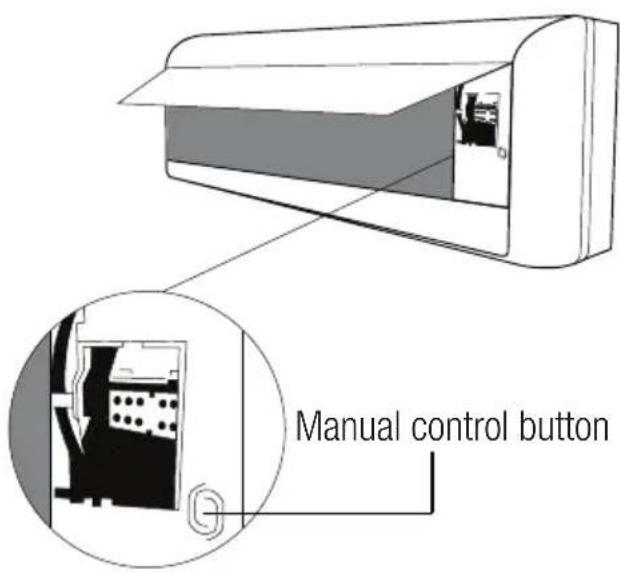

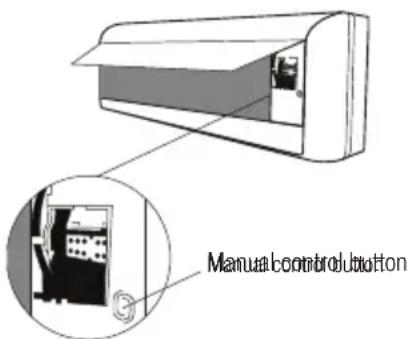

CAUTION! The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote control is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit. Unit must be turned off before manual operation.To operate your unit manually:1. Open the front panel of the indoor unit.2. Locate the manual control button on the right-hand side of the unit.3. Press the manual control button one time to activate forced auto mode.4. Press the manual control button again to activate forced coolıng mode.20 / 172 ENSplit Type Air Conditioner / User Manual 3 Unit specifications and features

5. Press the manual control button a third time to turn the unit off.6. Close the front panel.

Do not move louver by hand. This will cause the louver to become out of sync. If this occurs, turn off the unit and unplug it for a few seconds, then restart the unit. This will reset the louver. CAUTION! Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury.Manual control buttonFig. BDeflector rod Deflector rod Manual control button Fig.B21 / 172 EN Split Type Air Conditioner / User Manual

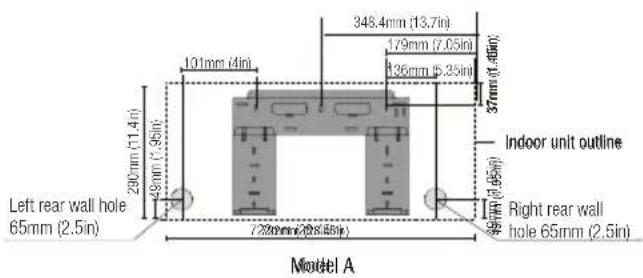

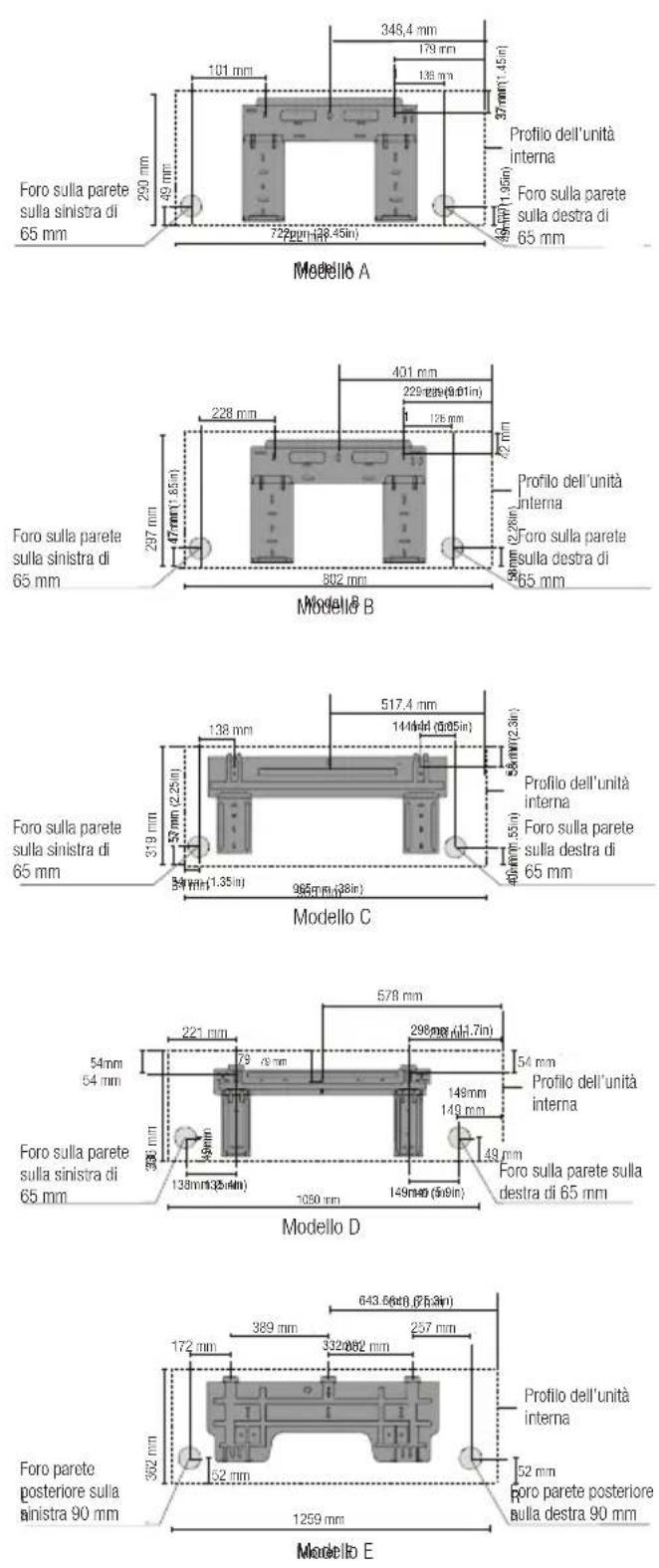

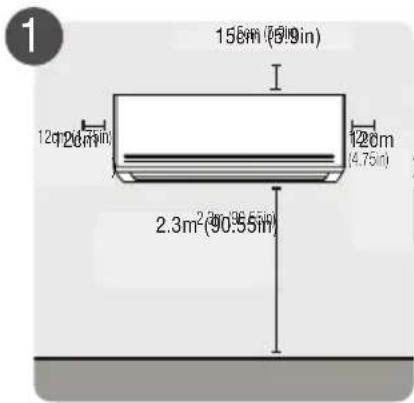

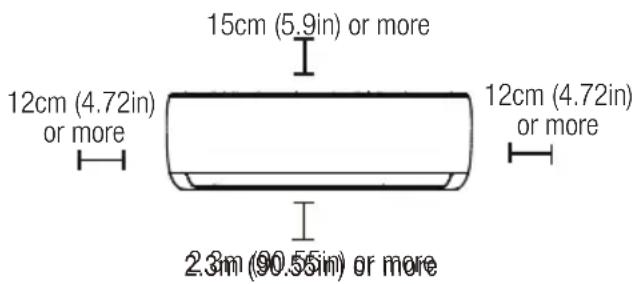

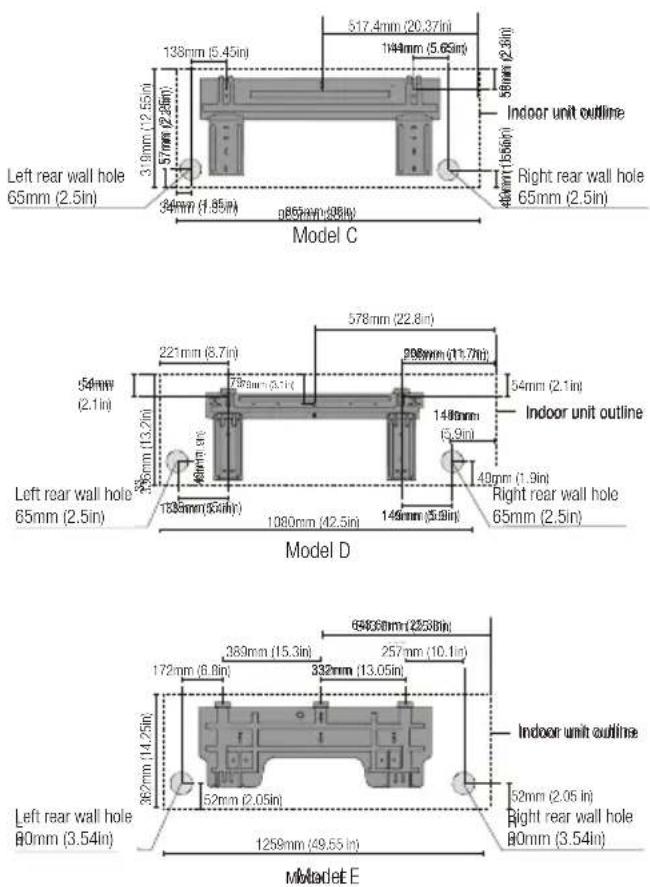

Drill Wall Hole 12cm (4.75in)2.3m (90.55in) 12cm (4.75in)15cm (5.9in) Mount Indoor Unit STEP 8 Wrap Piping and Cable (not applicable for some locations in North America) Connect Piping Prepare Drain Hose Connect Wiring (not applicable for some locations in North America )

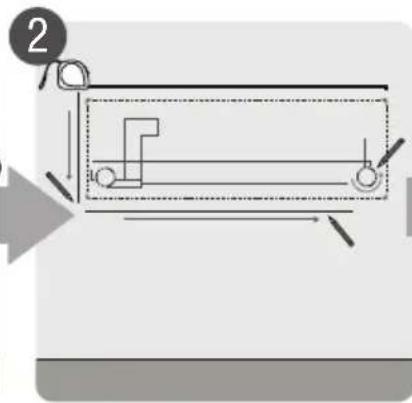

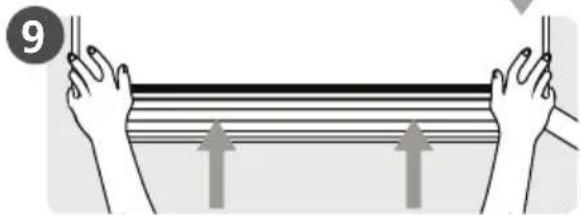

Select Installation Location Drill Wall Hole Prepare Drain Hose Determine Wall Hole Position Connect Piping Wrap Piping and Cable (not applicable for some locations in North America) Attach Mounting Plate Connect Wiring (not applicable for some locations in North America) Mount Indoor Unit 15cm (5.9in) 2.3m (90.55in) 12cm (4.75in) 12cm (4.75in) 4 Installation22 / 172 EN Split Type Air Conditioner / User Manual 4 Installation

4.2 Installation Instructions –

4.2.1 Prior to installation

Before installing the indoor unit, refer to the label on the product box to make sure that the model number of the indoor unit matches the model number of the outdoor unit. Step 1: Select installation location Before installing the indoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit. Proper installation locations meet the following standards:

Noise from the unit will not disturb other people

Firm and solid—the location will not vibrate

Strong enough to support the weight of the unit

A location at least one meter from all other electrical devices (e.g., TV, radio, computer) DO NOT install unit in the following locations:

Near any source of heat, steam, or combustible gas

Near flammable items such as curtains or clothing

Near any obstacle that might block air circulation

In a location subject to direct sunlight

If there is no fixed refrigerant piping: While choosing a location, be aware that you should leave ample room for a wall hole (see Drill wall hole for connective piping step) for the signal cable and refrigerant piping that connect the indoor and outdoor units. The default position for all piping is the right side of the indoor unit (while facing the unit). However, the unit can accommodate piping to both the left and right. Refer to the following diagram to ensure proper distance from walls and ceiling: 12cm (4.72in)or more2.3m (90.55in) or more12cm (4.72in)or more15cm (5.9in) or more15cm (5.9in) or more2.3m (90.55in) or more12cm (4.72in) or more12cm (4.72in) or more Step 2: Attach mounting plate to wall The mounting plate is the device on which you will mount the indoor unit.

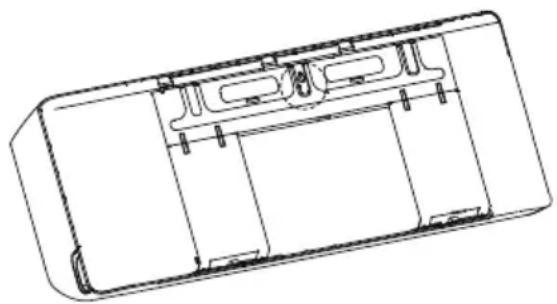

Remove the screw that attaches the mounting plate to the back of the indoor unit.

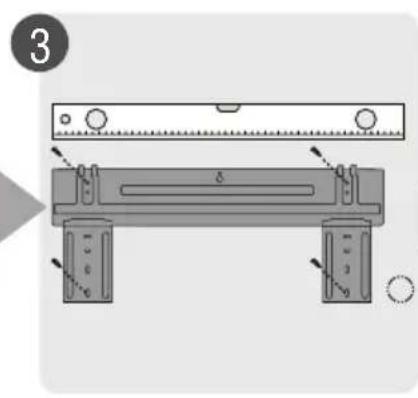

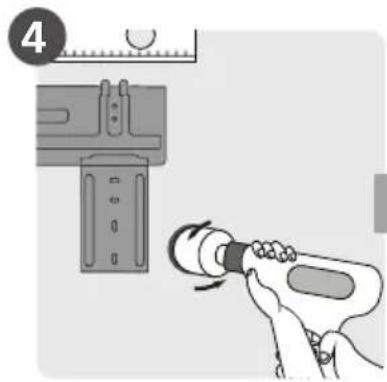

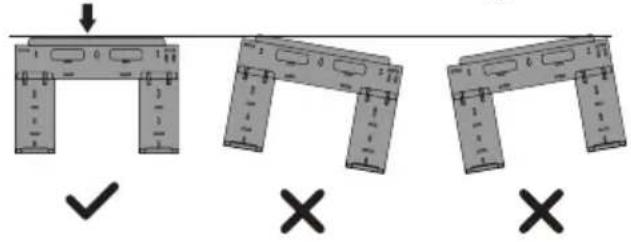

Secure the mounting plate to the wall with the screws provided. Make sure that mounting plate is flat against the wall.23 / 172 ENSplit Type Air Conditioner / User Manual 4 Installation

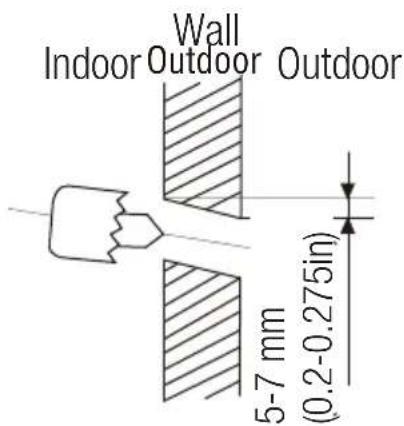

If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by tightening the screws directly into the clip anchors.Step 3: Drill wall hole for connective piping1. Determine the location of the wall hole based on the position of the mounting plate. Refer to Mounting Plate Dimensions.2. Using a 65mm (2.5in) or 90mm (3.54in) (depending on models) core drill, drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 5mm to 7mm (0.2-0.275in). This will ensure proper water drainage.3. Place the protective wall cuff in the hole. This protects the edges of the hole and will help seal it when you finish the installation process. CAUTION! When drilling the wall hole, make sure to avoid wires, plumbing, and other sensitive components.WallIndoor Outdoor 5-7 mm(0.2-0.275in) Indoor Wall Outdoor 5-7 mm (0.2-0.275in)4.2.2 Mounting plate dimensionsDifferent models have different mounting plates. For the different customization requirements, the shape of the mounting plate may be slightly different. But the installation dimensions are the same for the same size of indoor unit. See Type A and Type B for example: Correct orientation of Mounting Plate Correct orientation of Mounting Plate Type AType B Type A Type B 101mm (4in)179mm (7.05in) 136mm (5.35in) 37mm (1.45in)290mm (11.4in) 49mm (1.95in) Right rear wall hole 65mm (2.5in) Indoor unit outline 722mm (28.45in)49mm (1.95in) Left rear wall hole 65mm (2.5in) Model A 348.4mm (13.7in) Left rear wall hole 65mm (2.5in) Right rear wall hole 65mm (2.5in) Indoor unit outline 101mm (4in)348.4mm (13.7in)179mm (7.05in)136mm (5.35in)722mm (28.45in)Model A49mm (1.95in)37mm (1.45in)49mm (1.95in)290mm (11.4in)228mm (8.98in)229mm (9.01in)401mm (15.78in)126mm (4.96in)42mm (1.65in) 297mm (11.7in) Left rear wall hole 65mm (2.5in)Right rear wall hole 65mm (2.5in)Indoor unit outline802mm (31.6in) 58mm (2.28in) 47mm (1.85in)Model B Left rear wall hole 65mm (2.5in) Right rear wall hole 65mm (2.5in) Indoor unit outline 228mm (8.98in)401mm (15.78in)229mm (9.01in)126mm (4.96in)802mm (31.6in)Model B58mm (2.28in)42mm (1.65in)47mm (1.85in)297mm (11.7in)24 / 172 EN Split Type Air Conditioner / User Manual Left rear wall hole 65mm (2.5in)144mm (5.65in)58mm (2.3in) 319mm (12.55in) 57mm (2.25in) 40mm (1.55in) Right rear wall hole 65mm (2.5in) Model C 965mm (38in)138mm (5.45in)34mm (1.35in)Indoor unit outline517.4mm (20.37in) Left rear wall hole 65mm (2.5in) Right rear wall hole 65mm (2.5in) Indoor unit outline 138mm (5.45in)517.4mm (20.37in)144mm (5.65in)965mm (38in)34mm (1.35in) Model C 40mm (1.55in)58mm (2.3in)57mm (2.25in)319mm (12.55in)221mm (8.7in)578mm (22.8in)298mm (11.7in) 336mm (13.2in) Left rear wall hole 65mm (2.5in) Right rear wall hole 65mm (2.5in) Model D 1080mm (42.5in) 54mm (2.1in)49mm (1.9in)79mm(3.1in)54mm (2.1in)49mm (1.9in)149mm(5.9in)149mm (5.9in)138mm (5.4in) Indoor unit outline Left rear wall hole 65mm (2.5in) Right rear wall hole 65mm (2.5in) Indoor unit outline 221mm (8.7in) 79mm (3.1in) 54mm (2.1in)578mm (22.8in)54mm (2.1in)298mm (11.7in)149mm (5.9in)149mm (5.9in)1080mm (42.5in)138mm (5.4in)49mm (1.9in) Model D 49mm (1.9in) 336mm (13.2in) 172mm (6.8in) 362mm (14.25in) Left rear wall hole 90mm (3.54in) Right rear wall hole 90mm (3.54in) Model E 1259mm (49.55in) Indoor unit outline 52mm (2.05in) 389mm (15.3in) 332mm (13.05in) 257mm (10.1in) 643.6mm (25.3in) 52mm (2.05in) Left rear wall hole 90mm (3.54in) Right rear wall hole 90mm (3.54in) Indoor unit outline 52mm (2.05 in)1259mm (49.55 in)389mm (15.3in)643.6mm (25.3in)257mm (10.1in)332mm (13.05in)172mm (6.8in)52mm (2.05in) Model E 362mm (14.25in)

When the gas side connective pipe is 16mm(5/8in) or more, the wall hole should be 90mm (3.54in). Step 4: Prepare refrigerant piping The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare the piping before passing it through the hole in the wall.

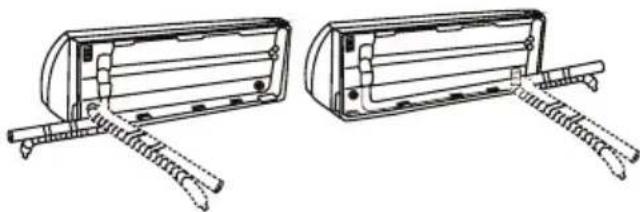

1. Based on the position of the wall hole relative to

the mounting plate, choose the side from which the piping will exit the unit.

2. If the wall hole is behind the unit, keep the

knock-out panel in place. If the wall hole is to the side of the indoor unit, remove the plastic knock-out panel from that side of the unit. This will create a slot through which your piping can exit the unit. Use needle nose pliers if the plastic panel is too difficult to remove by hand.

3. Groove has been made in the knock-out panel

in order to cut it conveniently. The size of the slot is determined by the diameter of piping. Knock-out Panel Knock-out Pancel

4. If existing connective piping is already

embedded in the wall, proceed directly to the Connect Drain Hose step. If there is no embedded piping, connect the indoor unit’s refrigerant piping to the connective piping that will join the indoor and outdoor units. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions.

CAUTION! Be extremely careful not to dent or damage the piping while bending them away from the unit. Any dents in the piping will affect the unit’s performance. Step 5: Connect drain hose By default, the drain hose is attached to the lefthand side of unit (when you’re facing the back of the unit). However, it can also be attached to the right-hand side. To ensure proper drainage, attach the drain hose on the same side that your refrigerant piping exits the unit. Attach drain hose extension (purchased separately) to the end of drain hose.

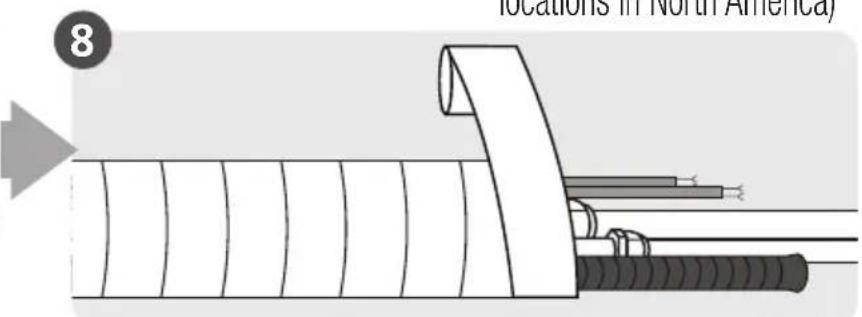

Wrap the connection point firmly with Teflon tape to ensure a good seal and to prevent leaks.

For the portion of the drain hose that will remain indoors, wrap it with foam pipe insulation to prevent condensation.

Remove the air filter and pour a small amount of water into the drain pan to make sure that water flows from the unit smoothly.

Make sure to arrange the drain hose according to the follo.wing figures. CORRECT Make sure there are no kinks or dent in drain hose to ensure proper drainage. NOT CORRECTKinks in the drain hose will create water traps.NOT CORRECTDo not place the end of the drain hose in water or in containers that collect water. This will prevent proper drainage. NOT CORRECTKinks in the drain hose will create water traps.NOT CORRECTKinks in the drain hose will create water traps.CORRECTMake sure there are no kinks or dent in drain hose to ensure proper drainage.NOT CORRECTDo not place the end of the drain hose in water or in containers that collect water. This will prevent proper drainage.NOT CORRECTKinks in the drain hose will create water traps. Plug the unused drain hole. To prevent unwanted leaks you must plug the unused drain hole with the rubber plug provided.

4.2.3 Before performing any electrical

work, read these regulations

1. All wiring must comply with local and national

electrical codes, regulations and must be installed by a licensed electrician.

2. All electrical connections must be made

according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.

3. If there is a serious safety issue with the power

supply, stop work immediately. Explain your reasoning to the client, and refuse to install the unit until the safety issue is properly resolved. 4 Installation26 / 172 EN Split Type Air Conditioner / User Manual

4. Power voltage should be within 90-110% of

rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.

5. If connecting power to fixed wiring, a surge

protector and main power switch should be installed.

6. If connecting power to fixed wiring, a switch

or circuit breaker that disconnects all poles and has a contact separation of at least 1/8in (3mm) must be incorporated in the fixed wiring. The qualified technician must use an approved circuit breaker or switch.

7. Only connect the unit to an individual branch

circuit outlet. Do not connect another appliance to that outlet.

8. Make sure to properly ground the air conditioner.

9. Every wire must be firmly connected. Loose

wiring can cause the terminal to overheat, resulting in product malfunction and possible fire.

10. Do not let wires touch or rest against refrigerant

tubing, the compressor, or any moving parts within the unit.

11. If the unit has an auxiliary electric heater, it

must be installed at least 1 meter (40in) away from any combustible materials.

12. To avoid getting an electric shock, never touch

the electrical components soon after the power supply has been turned off. After turning off the power, always wait 10 minutes or more before you touch the electrical components.

WARNING! Before performing any electrical Or wiring work, turn off the Main power to the system. Step 6: Connect signal and power cables The signal cable enables communication between the indoor and outdoor units. You must first choose the right cable size before preparing it for connection. Cable Types

Signal Cable: H07RN-F

In North America, choose the cable type according to the local electrical codes and regulations. Minimum Cross-Sectional Area of Power and Signal Cables (For reference) (Not applicable for North America) Rated Current of Appliance (A) Nominal Cross- Sectional Area (mm²) > 3 and ≤ 6

The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit. Refer to this nameplate to choose the right cable, fuse, or switch. 4 Installation27 / 172 EN Split Type Air Conditioner / User Manual

In North America, please choose the right cable size according to the Minimum Circuit Ampacity indicated on the nameplate of the unit.

1. Open front panel of the indoor unit.

2. Using a screwdriver, open the wire box cover

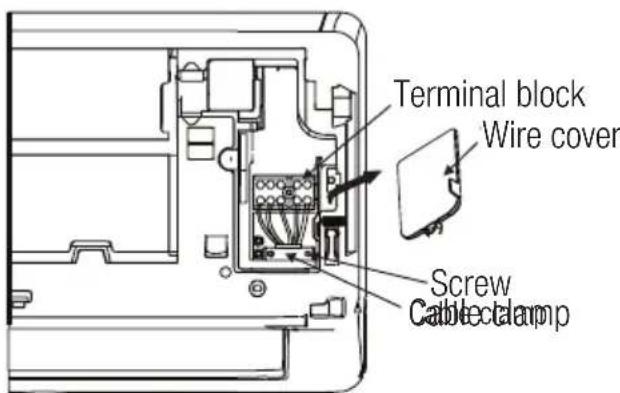

on the right side of the unit. This will reveal the terminal block. Terminal blockWire coverScrewCable clamp Terminal block Wire cover Screw Cable clamp

WARNING! All wiring must be performed strictly in accordance with the wiring diagram located on the back of the indoor units front panel.

3. Unscrew the cable clamp below the terminal

block and place it to the side.

4. Facing the back of the unit, remove the plastic

panel on the bottom left-hand side.

5. Feed the signal wire through this slot, from the

back of the unit to the front.

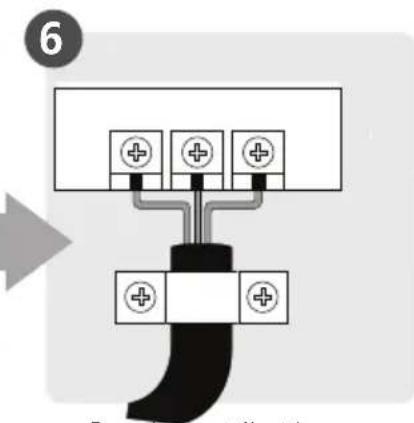

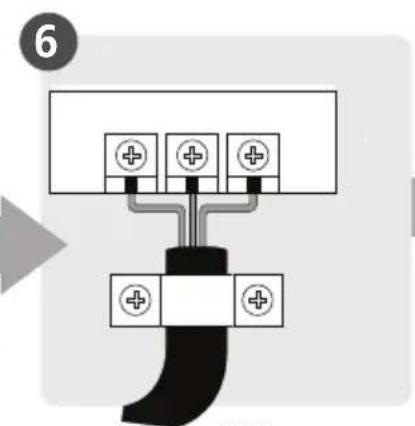

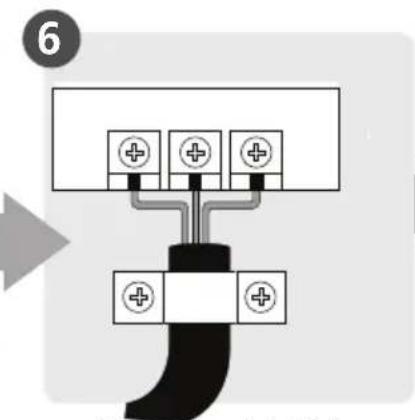

6. Facing the front of the unit, connect the wire

according to the indoor unit’s wiring diagram, connect the u-lug and firmly screw each wire to its corresponding terminal.

CAUTION! Do not mix up live and null wires. This is dangerous, and can cause the air conditioning unit to malfunction.

7. After checking to make sure every connection is

secure, use the cable clamp to fasten the signal cable to the unit. Screw the cable clamp down tightly.

8. Replace the wire cover on the front of the unit,

and the plastic panel on the back.

The wiring connection process may differ slightly between units and regions. Step 7: Wrappiping and cables Before passing the piping, drain hose, and the signal cable through the wall hole, you must bundle them together to save space, protect them, and insulate them (Not applicable in North America).

1. Bundle the drain hose, refrigerant pipes, and

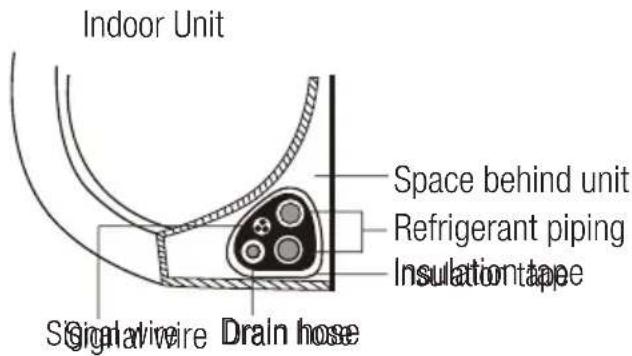

signal cable as shown below: Indoor UnitSpace behind unitRefrigerant pipingDrain hoseSignal wireInsulation tape Indoor Unit Space behind unit Refrigerant piping Insulation tape Drain hose Signal wire 4 Installation28 / 172 EN Split Type Air Conditioner / User Manual

Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle can cause the drain pan to overflow, which can lead to fire or water damage.

CAUTION! While bundling these items together, do not intertwine or cross the signal cable with any other wiring.

2. Using adhesive vinyl tape, attach the drain hose

to the underside of the refrigerant pipes.

3. Using insulation tape, wrap the signal wire,

refrigerant pipes, and drain hose tightly together. Double-check that all items are bundled.

CAUTION! When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for leaks at the end of the installation process (refer to Electrical Checks and Leak Checks section of this manual). Step 8: Mount indoor unit If you installed new connective piping to the outdoor unit, do the following:

1. If you have already passed the refrigerant piping

through the hole in the wall, proceed to Step 4.

2. Otherwise, double-check that the ends of the

refrigerant pipes are sealed to prevent dirt or foreign materials from entering the pipes.

3. Slowly pass the wrapped bundle of refrigerant

pipes, drain hose, and signal wire through the hole in the wall.

4. Hook the top of the indoor unit on the upper

hook of the mounting plate.

5. Check that unit is hooked firmly on mounting

by applying slight pressure to the left and right- hand sides of the unit. The unit should not jiggle or shift.

6. Using even pressure, push down on the bottom

half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.

7. Again, check that the unit is firmly mounted by

applying slight pressure to the left and the right- hand sides of the unit. If refrigerant piping is already embedded in the wall, do the following:

1. Hook the top of the indoor unit on the upper

hook of the mounting plate.

2. Use a bracket or wedge to prop up the unit,

giving you enough room to connect the refrigerant piping, signal cable, and drain hose. Wedge

3. Connect drain hose and refrigerant piping (refer

to Refrigerant Piping Connection section of this manual for instructions).

4. Keep pipe connection point exposed to perform

the leak test (refer to Electrical Checks and Leak Checks section of this manual).

5. After the leak test, wrap the connection point

with insulation tape.

6. Remove the bracket or wedge that is propping

up the unit. 4 Installation29 / 172 EN Split Type Air Conditioner / User Manual

7. Using even pressure, push down on the bottom

half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.

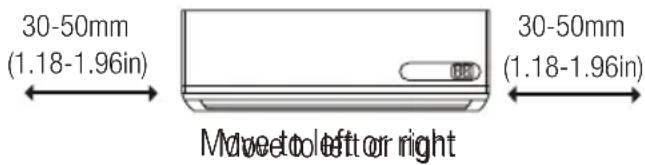

Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. If you find that you don’t have ample room to connect embedded pipes to the indoor unit, the unit can be adjusted left or right by about 30-50 mm (1.18-1.95in), depending on the model. Move to left or right30-50mm(1.18-1.96in)30-50mm(1.18-1.96in) Move to left or right 30-50mm (1.18-1.96in)30-50mm (1.18-1.96in)

4.3 Outdoor Unit Installation

Install the unit by following local codes and regulations, there may be differ slightly between different regions. evoba )ni42( mc06 60cm (24in) on right30cm (12in) on left 200cm (79in) in fron

unit Step 1: Select installation location Before installing the outdoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit. Proper installation locations meet the following standards:

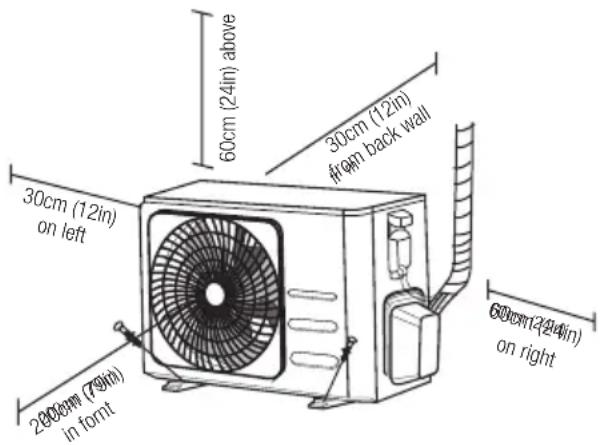

Meets all spatial requirements shown in Installation Space Requirements above.

Good air circulation and ventilation

Firm and solid—the location can support the unit and will not vibrate

Noise from the unit will not disturb others

Protected from prolonged periods of direct sunlight or rain

Where snowfall is anticipated, raise the unit above the base pad to prevent ice buildup and coil damage. Mount the unit high enough to be above the average accumulated area snowfall. The minimum height must be 18 inches. DO NOT install unit in the following locations:

Near an obstacle that will block air inlets and outlets

Near a public street, crowded areas, or where noise from the unit will disturb others

Near animals or plants that will be harmed by hot air discharge

Near any source of combustible gas

In a location that is exposed to large amounts of dust.

In a location exposed to a excessive amounts of salty air. 4 Installation30 / 172 EN Split Type Air Conditioner / User Manual

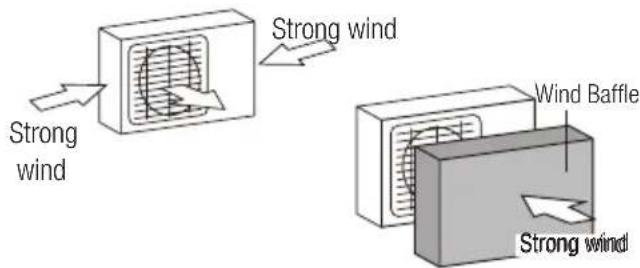

If the unit is exposed to heavy wind: Install unit so that air outlet fan is at a 90° angle to the direction of the wind. If needed, build a barrier in front of the unit to protect it from extremely heavy winds. See Figures below. Strong windStrong windStrong windWind BaffleStrong wind Strong windWind BaffleStrong wind

If the unit is frequently exposed to heavy rain or snow: Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow around the unit. If the unit is frequently exposed to salty air (seaside): Use outdoor unit that is specially designed to resist corrosion. 4 Installation Step 2: Install drain joint (Heat pump unit only) Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit. Note that there are two different types of drain joints depending on the type of outdoor unit. If the drain joint comes with a rubber seal (see Fig. A), do the following:

1. Fit the rubber seal on the end of the drain joint

that will connect to the outdoor unit.

2. Insert the drain joint into the hole in the base

3. Rotate the drain joint 90° until it clicks in place

facing the front of the unit.

4. Connect a drain hose extension (not included)

to the drain joint to redirect water from the unit during heating mode. If the drain joint doesn’t come with a rubber seal (see Fig. B), do the following:

1. Insert the drain joint into the hole in the base

pan of the unit. The drain joint will click in place.

2. Connect a drain hose extension (not included)

to the drain joint to redirect water from the unit during heating mode. Seal Drain joint(A) (B) Base pan hole of outdoor unit Seal Base pan hole of outdoor unit Seal Seal Drain joint31 / 172 EN Split Type Air Conditioner / User Manual 4 Installation

CAUTION! In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and flood the unit. Step 3: Anchor outdoor unit The outdoor unit can be anchored to the ground or to a wall-mounted bracket with bolt(M10). Prepare the installation base of the unit according to the dimensions below.

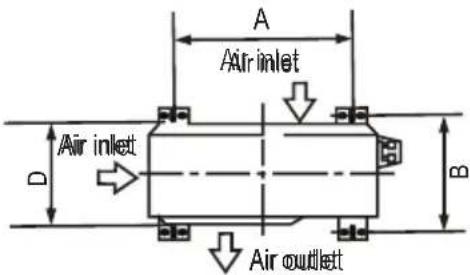

The following is a list of different outdoor unit sizes and the distance between their mounting feet. Prepare the installation base of the unit according to the dimensions below.

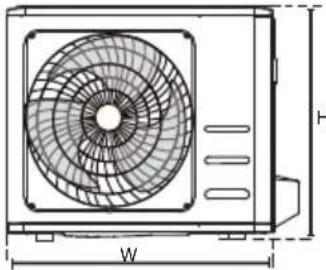

1. Mark the positions for four expansion bolts

based on dimensions chart.

2. Pre-drill holes for expansion bolts.

3. Place a nut on the end of each expansion bolt.

4. Hammer expansion bolts into the pre-drilled

5. Remove the nuts from expansion bolts, and

place outdoor unit on bolts.

6. Put washer on each expansion bolt, then

7. Using a wrench, tighten each nut until snug.

WARNING! When drilling into concrete, eye protection is recommended at all times. If you will install the unit on a wall-mounted bracket, do the following:

CAUTION! Make sure that the wall is made of solid brick, concrete, or of similarly strong material. The wall must be able to support at least four times the weight of the unit.

1. Mark the position of bracket holes based on

2. Pre-drill the holes for the expansion bolts.

3. Place a washer and nut on the end of each

4. Thread expansion bolts through holes in

mounting brackets, put mounting brackets in position, and hammer expansion bolts into the wall.

5. Check that the mounting brackets are level.

6. Carefully lift unit and place its mounting feet on

7. Bolt the unit firmly to the brackets.

8. If allowed, install the unit with rubber gaskets to

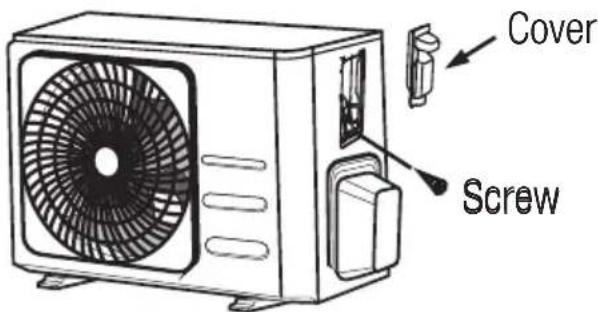

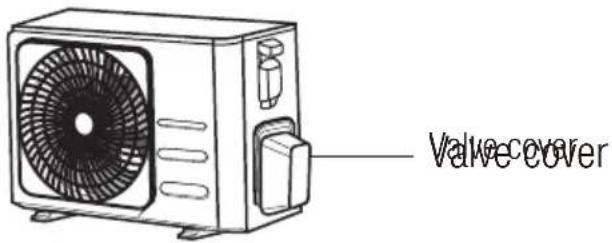

reduce vibrations and noise. Step 4: Connect signal and power cables The outside unit’s terminal block is protected by an electrical wiring cover on the side of the unit. A comprehensive wiring diagram is printed on the inside of the wiring cover.

WARNING! Before performing any electrical or wiring work, turn off the main power to the system.

1. Prepare the cable for connection: Please

choose the right cable refer to “Cable types” in page 24.

In North America, please choose the right cable size according to the minimum circuit ampacity indicated on the nameplate of the unit.

Using wire strippers, strip the rubber jacket from both ends of cable to reveal about 40mm (1.57in) of the wires inside.

Strip the insulation from the ends of the wires.

Using a wire crimper, crimp u-lugs on the ends of the wires. 4 Installation33 / 172 ENSplit Type Air Conditioner / User Manual While crimping wires, make sure you clearly distinguish the Live (“L”) Wire from other wires.

WARNING! All wiring work must be performed strictly in accordance with the wiring diagram located inside of wire cover of the outdoor unit.2. Unscrew the electrical wiring cover and remove it. 3. Unscrew the cable clamp below the terminal block and place it to the side.4. Connect the wire according to the wiring diagram, and firmly screw the u-lug of each wire to its corresponding terminal.5. After checking to make sure every connection is secure, loop the wires around to prevent rain water from flowing into the terminal.6. Using the cable clamp, fasten the cable to the unit. Screw the cable clamp down tightly.7. Insulate unused wires with PVC electrical tape. Arrange them so that they do not touch any electrical or metal parts.8. Replace the wire cover on the side of the unit, and screw it in place. Cover Screw Cover Screw

If the cable clamp looks like the following, please select the appropriate through-hole according to the diameter of the wire.Three size hole: Small, Large, MediumWhen the calbe is not fasten enough, use thebuckle to prop it up , so it can be clamped tightly. Buckle When the calbe is not fasten enough, use the buckle to prop it up, so it can be clamped tightly. Buckle Three size hole: Small, Large, Medium In North America1. Remove the wire cover from the unit by loosening the 3 screws.2. Dismount caps on the conduit panel.3. Temperarily mount the conduit tubes (not included) on the conduit panel.4. Properly connect both the power supply and low voltage lines to the corresponding terminals on the terminal block.5. Ground the unit in accordance with local codes.6. Be sure to size each wire allowing several inches longer than the required length for wiring.7. Use lock nuts to secure the conduit tubes. 4 Installation34 / 172 EN Split Type Air Conditioner / User Manual GWire Cover Over 1.57in.(40mm) Terminal blockConduit panelConnecting cable Power supply cord Please select the appropriate through-hole according to the diameter of the wire. Please select the appropriate through-hole according to the diameter of the wire. Terminal blockOver 1.57in. (40mm)Connecting cable Power supply cordConduit panelWire Cover 4 Installation35 / 172 EN Split Type Air Conditioner / User Manual 5 Refrigerant piping connection When connecting refrigerant piping, do not let substances or gases other than the specified refrigerant enter the unit. The presence of other gases or substances will lower the unit’s capacity, and can cause abnormally high pressure in the refrigeration cycle. This can cause explosion and injury.

The length of refrigerant piping will affect the performance and energy efficiency of the unit. Nominal efficiency is tested on units with a pipe length of 5 meters (16.5ft) (In North America, the standard pipe length is 7.5m (25’). A minimum pipe run of 3 metres is required to minimise vibration & excessive noise. In special tropical area, for the R290 refrigerant models, no refrigerant can be added and the maximum length of refrigerant pipe should not exceed 10 meters (32.8ft). Refer to the table below for specifications on the maximum length and drop height of piping. Maximum Length and Drop Height of Refrigerant Piping per Unit Model Model Capacity (BTU/h) Max. Length (m) Max. Drop Height (m) R410A,R32 Inverter Split Air Conditioner < 15,000 25 (82ft) 10 (33ft) ≥ 15,000 and < 24,000 30 (98.5ft) 20 (66ft) ≥ 24,000 and < 36,000 50 (164ft) 25 (82ft) R22 Fixed-speed Split Air Conditioner < 18,000 10 (33ft) 5 (16ft) ≥ 18,000 and < 21,000 15 (49ft) 8 (26ft) ≥ 21,000 and < 35,000 20 (66ft) 10 (33ft) R410A, R32 Fixed-speed Split Air Conditioner < 18,000 20 (66ft) 8 (26ft) ≥ 18,000 and < 36,000 25 (82ft) 10 (33ft)36 / 172 ENSplit Type Air Conditioner / User Manual 5 Refrigerant piping connection

5.1 Connection Instructions –

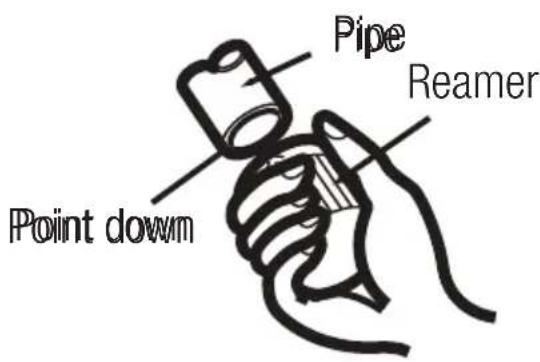

Refrigerant Piping Step 1: Cut pipesWhen preparing refrigerant pipes, take extra care to cut and flare them properly. This will ensure efficient operation and minimize the need for future maintenance.1. Measure the distance between the indoor and outdoor units.2. Using a pipe cutter, cut the pipe a little longer than the measured distance.3. Make sure that the pipe is cut at a perfect 90° angle. Oblique Rough Warped 90° Oblique Rough Warped WARNING! Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce the heating efficiency of the unit.Step 2: Remove burrsBurrs can affect the air-tight seal of refrigerant piping connection. They must be completely removed.1. Hold the pipe at a downward angle to prevent burrs from falling into the pipe.2. Using a reamer or deburring tool, remove all burrs from the cut section of the pipe. Pipe Reamer Point down Pipe Reamer Point down Step 3: Flare pipe endsProper flaring is essential to achieve an airtight seal.1. After removing burrs from cut pipe, seal the ends with PVC tape to prevent foreign materials from entering the pipe.2. Sheath the pipe with insulating material.3. Place flare nuts on both ends of pipe. Make sure they are facing in the right direction, because you can’t put them on or change their direction after flaring. Flare nut Copper pipe Flare nut Copper pipe 4. Remove PVC tape from ends of pipe when ready to perform flaring work.5. Clamp flare form on the end of the pipe. The end of the pipe must extend beyond the edge of the flare form in accordance with the dimensions shown in the table below.37 / 172 EN Split Type Air Conditioner / User Manual Piping extension beyond flare formOuter Diameter of Pipe (mm)A (mm)Min. Max.Ø 6.35 (Ø 0.25”) 0.7 (0.0275”) 1.3 (0.05”)Ø 9.52 (Ø 0.375”) 1.0 (0.04”) 1.6 (0.063”)Ø12.7 (Ø 0.5”) 1.0 (0.04”) 1.8 (0.07”)Ø 16 (Ø 0.63”) 2.0 (0.078”) 2.2 (0.086”)Ø 19 (Ø 0.75”) 2.0 (0.078”) 2.4 (0.094”) Flare form Pipe

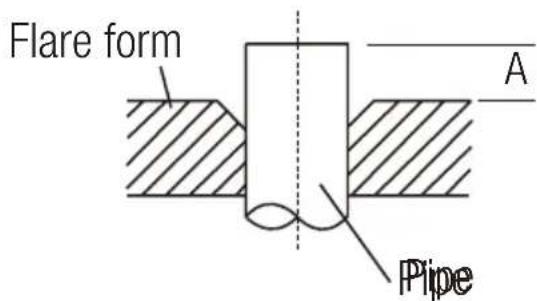

Flare form Pipe 6. Place flaring tool onto the form.7. Turn the handle of the flaring tool clockwise until the pipe is fully flared.8. Remove the flaring tool and flare form, then inspect the end of the pipe for cracks and even flaring.Step 4: Connect pipesWhen connecting refrigerant pipes, be careful not to use excessive torque or to deform the piping in any way. You should first connect the low-pressure pipe, then the high-pressure pipe. 5 Refrigerant piping connection

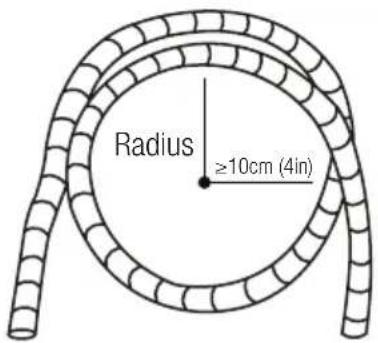

When bending connective refrigerant piping, the minimum bending radius is 10cm.≥10cm (4in)RadiusRadius≥10cm (4in)

5.2 Instructions for connecting

piping to indoor unit

1. Align the center of the two pipes that you will connect.Indoor unit tubing Flare nut PipeIndoor unit tubingFlare nut

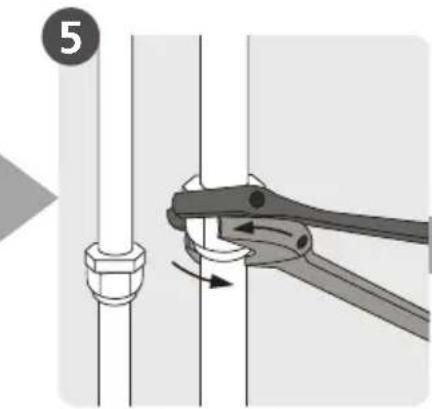

Pipe 2. Tighten the flare nut as tightly as possible by hand.3. Using a spanner, grip the nut on the unit tubing.4. While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the torque values in the Torque Requirements table below. Loosen the flaring nut slightly, then tighten again.38 / 172 EN Split Type Air Conditioner / User Manual 5 Refrigerant piping connection Torque requirementsOuter Diameter of Pipe (mm)Tightening Torque (N•m) Flare dimension(B) (mm)Flare shapeØ 6.35 (Ø 0.25”) 18~20 (180~200kgf.cm) 8.4~8.7 (0.33~0.34”)Ø 9.52 (Ø 0.375”) 32~39 (320~390kgf.cm) 13.2~13.5 (0.52~0.53”)Ø 12.7 (Ø 0.5”) 49~59 (490~590kgf.cm) 16.2~16.5 (0.64~0.65”)Ø 16 (Ø 0.63”) 57~71 (570~710kgf.cm) 19.2~19.7 (0.76~0.78”)Ø 19 (Ø 0.75”) 67~101 (670~1010kgf.cm) 23.2~23.7 (0.91~0.93”)WARNING! Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque requirements shown in the table above.

5.3 Instructions for connecting

piping to outdoor unit 1. Unscrew the cover from the packed valve on the side of the outdoor unit.2. Remove protective caps from ends of valves.3. Align flared pipe end with each valve, and tighten the flare nut as tightly as possible by hand.4. Using a spanner, grip the body of the valve. Do not grip the nut that seals the service valve. Valve cover Valve cover5. While firmly gripping the body of the valve, use a torque wrench to tighten the flare nut according to the correct torque values.6. Loosen the flaring nut slightly, then tighten again.7. Repeat Steps 3 to 6 for the remaining pipe. CAUTION! Torque from tightening the flare nut can snap off other parts of valve.39 / 172 EN Split Type Air Conditioner / User Manual 6 Air evacuation

6.1 Preparations and precautions

Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can damage the air conditioner, reduce its efficiency, and cause injury. Use a vacuum pump and manifold gauge to evacuate the refrigerant circuit, removing any non-condensable gas and moisture from the system. Evacuation should be performed upon initial installation and when unit is relocated.

6.1.1 Before performing evacuation

Check to make sure the connective pipes between the indoor and outdoor units are connected properly.

Check to make sure all wiring is connected properly.

6.1.2 Evacuation instructions

1. connect the charge hose of the manifold

gauge to service port on the outdoor unit’s low pressure valve.

2. Connect another charge hose from the manifold

gauge to the vacuum pump.

3. Open the Low Pressure side of the manifold

gauge. Keep the High Pressure side closed.

4. Turn on the vacuum pump to evacuate the

5. Run the vacuum for at least 15 minutes, or until

the Compound Meter reads -76cmHG (-10

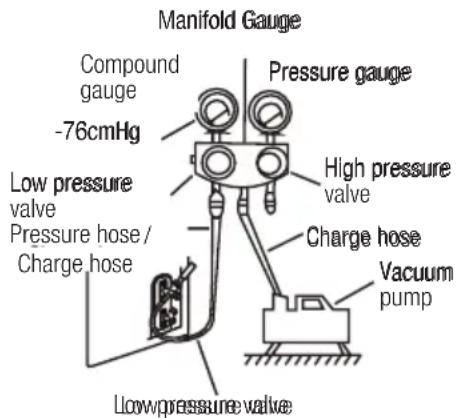

Pa). Manifold GaugeCompound gauge-76cmHgLow pressure valveHigh pressurevalvePressure hose / Charge hoseCharge hose acuumpumpPressure gaugeLow pressure valveLow pressure valveCompound gaugeManifold GaugePressure gauge-76cmHgLow pressure valveHigh pressure valvePressure hose Charge hoseCharge hoseVacuum pump

6. Close the Low Pressure side of the manifold

gauge, and turn off the vacuum pump.

7. Wait for 5 minutes, then check that there has

been no change in system pressure.

8. If there is a change in system pressure, refer

to Gas Leak Check section for information on how to check for leaks. If there is no change in system pressure, unscrew the cap from the packed valve (high pressure valve).

9. Insert hexagonal wrench into the packed valve

(high pressure valve) and open the valve by turning the wrench in a 1/4 counterclockwise turn. Listen for gas to exit the system, then close the valve after 5 seconds.

10. Watch the Pressure Gauge for one minute

to make sure that there is no change in pressure. The Pressure Gauge should read slightly higher than atmospheric pressure.

11. Remove the charge hose from the service port.

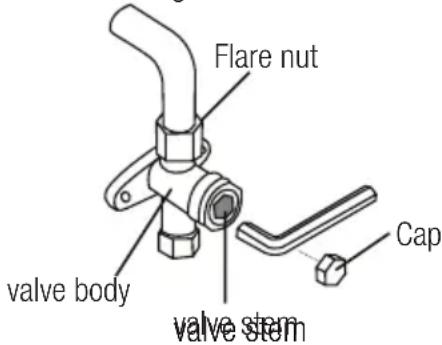

Flare nut Cap valve body valve stem Flare nut Cap valve stem valve body

12. Using hexagonal wrench, fully open both the

high pressure and low pressure valves.

13. Tighten valve caps on all three valves (service

port, high pressure, low pressure) by hand. You may tighten it further using a torque wrench if needed.

CAUTION! When opening valve stems, turn the hexagonal wrench until it hits against the stopper. Do not try to force the valve to open further.40 / 172 EN Split Type Air Conditioner / User Manual 6 Air evacuation

6.1.3 Note on adding refrigerant

Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. For example, in North America, the standard pipe length is 7.5m (25’). In other areas, the standard pipe length is 5m (16‘). The refrigerant should be charged from the service port on the outdoor unit’s low pressure valve. The additional refrigerant to be charged can be calculated using the following formula: Additional refrigerant per pipe length Connective Pipe Length (m) Air Purging Method Additional Refrigerant

Standard pipe length Vacuum Pump N/A

Only perform test run after you have completed the following steps:

Electrical Safety Checks – Confirm that the unit’s electrical system is safe and operating properly

Gas Leak Checks – Check all flare nut connections and confirm that the system is not leaking

Confirm that gas and liquid (high and low pressure) valves are fully open

7.2 Electrical safety checks

After installation, confirm that all electrical wiring is installed in accordance with local and national regulations, and according to the Installation Manual. Before test run Check Grounding Work Measure grounding resistance by visual detection and with grounding resistance tester. Grounding resistance must be less than 0.1. Note: This may not be required for some locations in North America. During test run Check for Electrical Leakage During the Test Run, use an electroprobe and multimeter to perform a comprehensive electrical leakage test. If electrical leakage is detected, turn off the unit immediately and call a licensed electrician to find and resolve the cause of the leakage.

This may not be required for some locations in North America. All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician.

There are two different methods to check for gasleaks. Soap and Water Method Using a soft brush, apply soapy water or liquid detergent to all pipe connection points on the indoor unit and outdoor unit. The presence of bubbles indicates a leak. Leak Detector Method If using leak detector, refer to the device’s operation manual for proper usage instructions.

After confirming that the all pipe connection points do not leak, replace the valve cover on the outside unit. A: Low pressure stop valve B: High pressure stop valve C& D: Indoor unit flare nuts Check-point of indoor unitCheck-point of outdoor unit

A: Low pressure stop valve B: High pressure stop valve C&D: Indoor unit flare nutsCheck-point of outdoor unitCheck-point of indoor unit42 / 172 EN Split Type Air Conditioner / User Manual 8 Test run

8.1 Test run instructions

You should perform the Test Run for at least 30 minutes.

1. Connect power to the unit.

2. Press the ON/OFF button on the remote

controller to turn it on.

3. Press the MODE button to scroll through the

following functions, one at a time:

COOL – Select lowest possible temperature

HEAT – Select highest possible temperature

4. Let each function run for 5 minutes, and

perform the following checks: List of Checks to Perform PASS/FAILNo electrical leakageUnit is properly groundedAll electrical terminals properly coveredIndoor and outdoor units are solidly installedAll pipe connection points do not leak Outdoor (2): Indoor (2): Water drains properly from drain hose All piping is properly insulatedUnit performs COOL function properlyUnit performs HEAT function properlyIndoor unit louvers rotate properlyIndoor unit responds to remote controller

During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that were not present during your initial leak check. Take time during the Test Run to double- check that all refrigerant pipe connection points do not have leaks. Refer to Gas Leak Check section for instructions.

5. After the Test Run is successfully completed,

and you confirm that all checks points in List of Checks to Perform have PASSED, do the following: – Using remote control, return unit to normal operating temperature. – Using insulation tape, wrap the indoor refrigerant pipe connections that you left uncovered during the indoor unit installation process. If ambient temperature is below 17°c (62°f) You can’t use the remote controller to turn on the cool function when the ambient temperature is below 17°c. In this instance, you can use the manual control button to test the cool function.

1. lift the front panel of the indoor unit, and raise it

until it clicks in place.

2. The MANUAL CONTROL button is located on

the right-hand side of the unit. Press it 2 times to select the COOL function.

3. Perform Test Run as normal.

Manual control buttonManual control button43 / 172 EN Split Type Air Conditioner / User Manual 9 Care and maintenance

9.1 Cleaning your indoor unit

CAUTION! Always turn off your air conditioner system and disconnect its power supply before cleaning or maintenance. Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean. CAUTION! Do not use chemicals or chemically treated cloths to clean the unit. CAUTION! Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They can cause the plastic surface to crack or deform. CAUTION! Do not use water hotter than 40°C (104°F) to clean the front panel. This can cause the panel to deform or become discolored.

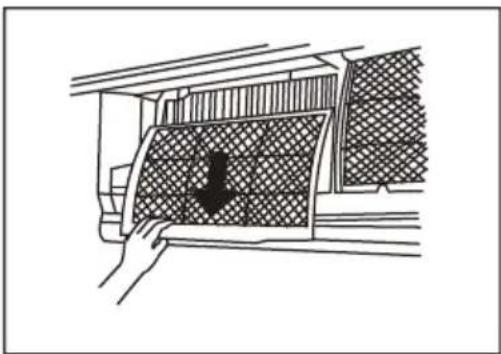

9.2 Cleaning your air filter

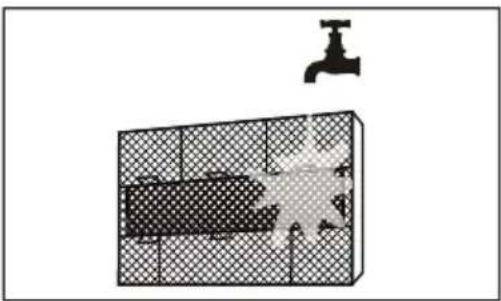

A clogged air conditioner can reduce the cooling efficiency of your unit, and can also be bad for your health. Make sure to clean the filter once every two weeks.1. Lift the front panel of the indoor unit.2. Grip the tab on the end of the filter, lift it up,then pull it towards yourself.3. Now pull the filter out.4. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening filter with a hand-held vacuum.5. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.6. Rinse the filter with fresh water, then shake off excess water.7. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.8. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit.9. Close the front panel of the indoor unit.44 / 172 EN Split Type Air Conditioner / User Manual 9 Care and maintenance Filter TabsRemove air freshening filter from back oflarger filter (some units) Remove air freshening filter from back of larger filter (some units) Filter Tabs

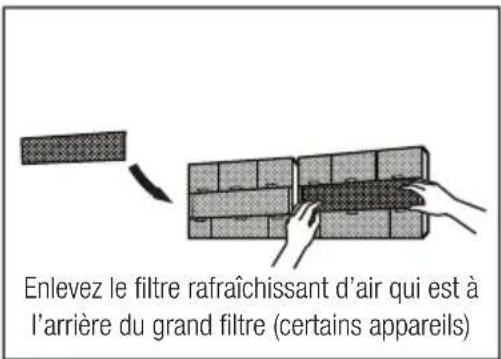

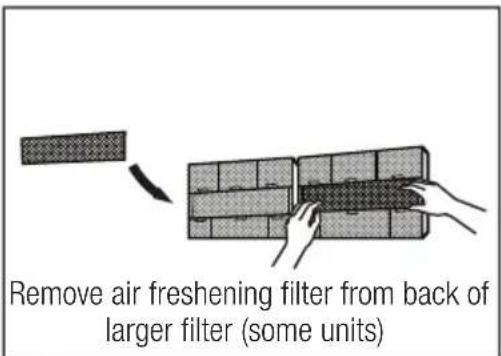

CAUTION! Do not touch air freshening (Plasma) filter for at least 10 minutes after turning off the unit.

Before changing the filter or cleaning, turn off the unit and disconnect its power supply.

When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.

Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.

Do not expose filter to direct sunlight when drying. This can shrink the filter.45 / 172 EN Split Type Air Conditioner / User Manual

9.3 Maintenance – long periods of

non-use If you plan not to use your air conditioner for an extended period of time, do the following: Clean all filtersTurn on FAN function until unit dries out completelyTurn off the unit anddisconnect the power Remove batteries from remote control Turn on FAN function until unit dries out completely Clean all filters Turn off the unit and disconnect the power Remove batteries from remote control

9.4 Maintenance – Pre-Season

Inspection After long periods of non-use, or before periods of frequent use, do the following: Check for damaged wires Clean all filters Check for leaks Replace batteriesMake sure nothing is blocking all air inlets and outlets Make sure nothing is blocking all air inlets and outlets Check for damaged wires Clean all filters Check for leaks Replace batteries 9 Care and maintenance46 / 172 EN Split Type Air Conditioner / User Manual 10 Troubleshooting

CAUTION! If any of the following conditions occurs, turn off your unit immediately!

The power cord is damaged or abnormally warm.

You smell a burning odor.

The unit emits loud or abnormal sounds.

A power fuse blows or the circuit breaker frequently trips.

Water or other objects fall into or out of the unit.

Do not attempt to fix these yourself! Contact an authorized Service provider immediately!

The following problems are not a malfunction and in most situations will not require repairs. Issue Possible CausesUnit does not turn on when pressing ON/OFF buttonThe Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off.The unit changes from COOL/HEAT mode to FAN modeThe unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start operating in the previously selected mode again.The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating when the temperature fluctuates again. The indoor unit emits white mist In humid regions, a large temperature difference between the room’s air and the conditioned air can cause white mist.Both the indoor and outdoor units emit white mistWhen the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the defrosting process.The indoor unit makes noises A rushing air sound may occur when the louver resets its position.A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts.Both the indoor unit and outdoor unit make noisesLow hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units.Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by the refrigerant gas stopping or changing direction.Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during operation can cause squeaking noises.47 / 172 EN Split Type Air Conditioner / User Manual Issue Possible Causes The outdoor unit makes noises The unit will make different sounds based on its current operating mode. Dust is emitted from either the indoor or outdoor unit The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity. The unit emits a bad odor The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during operations. The unit’s filters have become moldy and should be cleaned. The fan of the outdoor unit does not operate During operation, the fan speed is controlled to optimize product operation. Operation is erratic, unpredictable, or unit is unresponsive Interference from cell phone towers and remote boosters may cause the unit to malfunction. In this case, try the following:

Disconnect the power, then reconnect.

Press ON/OFF button on remote control to restart operation.

If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number. 10 Troubleshooting48 / 172 EN Split Type Air Conditioner / User Manual

10.2 Troubleshooting

When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Poor Cooling Performance Temperature setting may be higher than ambient room temperature Lower the temperature setting The heat exchanger on the indoor or outdoor unit is dirty Clean the affected heat exchanger The air filter is dirty Remove the filter and clean it according to instructions The air inlet or outlet of either unit is blocked Turn the unit off, remove the obstruction and turn it back on Doors and windows are open Make sure that all doors and windows are closed while operating the unit Excessive heat is generated by sunlight Close windows and curtains during periods of high heat or bright sunshine Too many sources of heat in the room (people, computers, electronics, etc.) Reduce amount of heat sources Low refrigerant due to leak or long- term use Check for leaks, re-seal if necessary and top off refrigerant SILENCE function is activated (optional function) SILENCE function can lower product performance by reducing operating frequency. Turn off SILENCE function. 10 Troubleshooting49 / 172 EN Split Type Air Conditioner / User Manual Problem Possible Causes Solution The unit is not working Power failure Wait for the power to be restored The power is turned off Turn on the power The fuse is burned out Replace the fuse Remote control batteries are dead Replace batteries The Unit’s 3-minute protection has been activated Wait three minutes after restarting the unit Timer is activated Turn timer off The unit starts and stops frequently There’s too much or too little refrigerant in the system Check for leaks and recharge the system with refrigerant. Incompressible gas or moisture has entered the system. Evacuate and recharge the system with refrigerant The compressor is broken Replace the compressor The voltage is too high or too low Install a manostat to regulate the voltage Poor heating performance The outdoor temperature is extremely low Use auxiliary heating device Cold air is entering through doors and windows Make sure that all doors and windows are closed during use Low refrigerant due to leak or long- term use Check for leaks, re-seal if necessary and top off refrigerant Indicator lamps continue flashing The unit may stop operation or continue to run safely. If the indicator lamps continue to flash or error codes appear, wait for about 10 minutes. The problem may resolve itself. If not, disconnect the power, then connect it again. Turn the unit on. If the problem persists, disconnect the power and contact your nearest customer service center. Error code appears and begins with the letters as the following in the window display of indoor unit: E(x), P(x), F(x) EH(xx), EL(xx), EC(xx) PH(xx), PL(xx), PC(xx) 10 Troubleshooting50 / 172 EN Split Type Air Conditioner / User Manual

If your problem persists after performing the checks and diagnostics above, turn off your unit immediately and contact an authorized service center. 10 Troubleshooting51 / 172 EN Split Type Air Conditioner / User Manual This appliance contains refrigerant and other potentially hazardous materials, When disposing of this appliance, the law requires special collection and treatment, Do not dispose of this product as household waste or unsorted municipal waste, When disposing of this appliance, you have the following options:

Dispose of the appliance at designated municipal electronic waste collection facility.

When buying a new appliance, the retailer will take back the old appliance free of charge.

The manufacturer will take back the old appliance free of charge.

Sell the appliance to certified scrap metal dealers.

Special notice Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain. 11 European disposal guideline This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.52 / 172 EN Split Type Air Conditioner / User Manual

12.1 F-Gas instruction

This product contains fluorinated greenhouse gases. The fluorinated greehouse gases are contained in hermetically sealed equipment. Installs, services, maintains, repairs, checks for leaks or decommissions equipment and product recycling should be carried out by natural persons that hold relevant certificates. If the system has a leakage detection system installed, leakage checks should be performed at least every 12 months, make sure system operate properly. If product must be performed leakage checks, it should specify Inspection cycle, establish and save records of leakage checks.

equivalent of fluorinated greenhouse gases is less than 10 tonnes, it should not perform leakage checks. 12 Installation instructions53 / 172 EN Split Type Air Conditioner / User Manual 13 Specifications BEHPH Model name Indoor unit BEHPH 090 BEHPH 120 BEHPH 180 BEHPH 240 Outdoor unit BEHPH 091 BEHPH 121 BEHPH 181 BEHPH 241 Refrigerant R32 R32 R32 R32 Total Refrigerant Amount (g)

CO2 equivalent (tonnes) Anti-Electric Class I Class I Class I Class I Climate Class T1 T1 T1 T1 Heating Type Heat Pump Heat Pump Heat Pump Heat Pump Power Supply Connection Outdoor Outdoor Outdoor Outdoor Pdesign C (kW)

6.9 (SEER, EU) 7.0 (SEER, EU) 7.0 (SEER, EU) 6.5 (SEER, EU)

Annual Energy Consumption-Heating (kWh)

The declared capacity for calculation of SCOP at reference design condition (kW) The back up heating capacity assumed for calculation of SCOP at reference design condition (kW) Power of Electric Heater (W)

Noise Pressure Level - Outdoor Unit (dBA)

Indoor unit Resistance Class

Outdoor unit Resistance Class IP24 IP24 IP24 IP24 High Pressure Pipe Diameter (mm) 6.35mm (1/4in) 6.35mm (1/4in) 6.35mm (1/4in) 9.52mm (3/8in) Low Pressure Pipe Diameter (mm) 9.52mm (3/8in) 9.52mm (3/8in) 12.7mm (1/2in) 15.9mm (5/8in) Power Supply Cord specification (mm

1.5x3 1.5x3 1.5x3 2.5x3 Indoor & Outdoor Connection Cord (mm

Additional Gas Quantity (g/m)

Outdoor Unit Net Weight (kg)

1. Specifications are standard values calculated based on rated operating conditions, They will vary in

difference work condition.

2. Our company has quick technical imporvments. There will be prior notice for any change of technical

data. Please read nameplate on the air-conditioner. Please refer to detail product information required in Regulation No 206/2012 from leaflet of Product Fiche. 13 Specifications55 / 172 EN Split Type Air Conditioner / User Manual BEVPI Model name Indoor unit BEVPI 090 BEVPI 120 BEVPI 180 BEVPI 240 Outdoor unit BEVPI 091 BEVPI 121 BEVPI 181 BEVPI 241 Refrigerant R32 R32 R32 R32 Total Refrigerant Amount (g)

6.9 (SEER, EU) 7.0 (SEER, EU) 7.0 (SEER, EU) 6.5 (SEER, EU)

Annual Energy Consumption-Heating (kWh)

Heating Running Current (A)

Noise Pressure Level - Outdoor Unit (dBA)

Indoor unit Resistance Class

1.5x3 1.5x3 1.5x3 2.5x3 Indoor & Outdoor Connection Cord (mm

Additional Gas Quantity (g/m)

Outdoor Unit Net Weight (kg)

1. Specifications are standard values calculated based on rated operating conditions, They will vary in

difference work condition.

2. Our company has quick technical imporvments. There will be prior notice for any change of technical

TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” per 3 secondi quando:

TIMER ON (TIMER ATTIVO) è impostato (se l’unità è spenta, “ Display Code Meanings Power Cable (Some Units) Remote ControlRemote Control Holder (Some Units)Functional Filter (On Back of Main Filter - Some Units)LouverFront PanelDisplay window(A)(B)(C)(D)“ ” “ ” when ECO function is activated(some units) Lights up in different colour according to the operation mode(some units):Under COOL and DRY mode, it displays as cool colour.Under HEAT mode, it displays as warm colour.“ ” when Wireless Control feature is activated(some units) “ ” for 3 seconds when:
TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” resta sul display quando la funzione TIMER ON (TIMER ATTIVO) viene impostata)

Le funzioni FRESH (FRESCO), SWING (OSCILLAZIONE), TURBO, SILENCE (SILENZIOSO) o SOLAR PV ECO sono attive “ Display Code Meanings Power Cable (Some Units) Remote ControlRemote Control Holder (Some Units)Functional Filter (On Back of Main Filter - Some Units)LouverFront PanelDisplay window(A)(B)(C)(D)“ ” “ ” when ECO function is activated(some units) Lights up in different colour according to the operation mode(some units):Under COOL and DRY mode, it displays as cool colour.Under HEAT mode, it displays as warm colour.“ ” when Wireless Control feature is activated(some units)“ ” for 3 seconds when:• TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: ” per 3 secondi quando:

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting. “ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” Visualizza la temperatura, la funzione in uso e i codici di errore:

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” per 3 secondi quando:

TIMER ON (TIMER ATTIVO) è impostato (se l’unità è spenta, “ Display Code Meanings (E)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” resta sul display quando la funzione TIMER ON (TIMER ATTIVO) viene impostata)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” per 3 secondi quando:

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” quando l'unità esegue l'autopulitura(solo alcuni modelli)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” quando la funzione Fresco è attiva (solo alcune unità)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) ” quando la funzione ECO è attiva (solo alcune unità)

Power Cable (Some Units

TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set )• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned on“ ” “ ” for 3 seconds when:• TIMER OFF is set• FRESH , SWING, TURBO , SILENCE or SOLAR PV ECO feature is turned off“ ” when defrosting(cooling & heating units)“ ” when anti-cold air feature is turned on“ ” when unit is self-cleaning“ ” when 8 C heating feature is turned on Displays temperature, operation feature and Error codes: » pendant 3 s lorsque :

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) » pendant 3 s lorsque :

TIMER ON (Minuterie activée) est réglée (si l’appareil est OFF (Éteint), « Display Code Meanings (E)

Power Cable (Some Units

FRESH, SWING, TURBO, or SILENCE features is turned on“ ” for 3 seconds when:• TIMER OFF is set• FRESH, SWING, TURBO, or SILENCE features is turned off“ ” when defrosting(for cooling & heating units)“ ” when unit is self-cleaning(some units)“ ” when fresh feature is turned on(some units)“ ” when ECO feature is activated(some units)“ ” when wireless control feature is activated(some units)In Fan mode, the unit will display the room temperature.In other modes, the unit will display your temperature setting.“ ” Displays temperature, operation feature and Error codes: Press the LED button on the remote control will turn off the display screen, press the LED button again during 15 seconds will display the room temperature, if press it again after15 seconds, it will turn on the display screen. “ ” when 8°C(46°F) or 12°C(54°F) heating mode is turned on(some units) » pendant 3 s lorsque :

Power Cable (Some Units
