Product type	Evolutive high chair
Brand	Maxi-Cosi
Model	Nesta
Recommended age	From 6 months to adult (up to 14 years for child seat, then adult)
Maximum child weight (high chair mode)	15 kg (from 6 months to 3 years)
Maximum child weight (child seat mode)	60 kg (from 3 to 14 years)
Maximum adult weight	110 kg (from 14 years)
Maximum weight for newborn recliner (optional)	9 kg
Safety standards	EN14988:2017+A1:2020 (high chair), EN17191:2021 (child seat), EN12520:2016 (adult chair)
Main materials	Plastic, metal, fabric
Restraint system	5-point harness
Folding	Yes (folding and unfolding possible)
Adjustments	Adjustable height and recline
Optional accessories	Newborn accessory kit (recliner) sold separately
Care	Clean with sponge and mild soap; do not use detergent
Textile washing	Follow the instructions on the care label
Warranty	24 months
Spare parts and repairability	Use only manufacturer-approved spare parts; contact the authorized dealer

Frequently Asked Questions - Nesta MAXI-COSI

What is the maximum weight for a child in the high chair?

The maximum weight is 15 kg for a child from 6 months to 3 years. Beyond that, the seat can be used up to 60 kg (3-14 years) and then as an adult chair up to 110 kg.

Can I use the high chair from birth?

No, the high chair is designed for children able to sit unaided (from 6 months). However, a newborn accessory kit (recliner) is sold separately and supports a maximum weight of 9 kg.

How to clean the high chair?

Use a sponge and mild soap. Do not use detergent. For textile parts, follow the instructions on the care label.

Is the high chair foldable?

Yes, the high chair can be folded and unfolded. Keep the child away during these operations to avoid any risk of injury.

What adjustments are available?

The high chair has height and recline adjustments to adapt to the child's growth. Make sure all elements are correctly adjusted before use.

Is the harness mandatory?

Yes, it is imperative to use the 5-point harness at all times to ensure the child's safety, in accordance with the warnings in the instructions.

What is the warranty period?

The warranty is 24 months from the date of purchase, covering defects in materials and workmanship. It does not cover normal wear or damage due to misuse.

Can I buy spare parts?

Yes, but use only manufacturer-approved spare parts. Contact your authorized dealer to obtain spare parts.

Where is the high chair manufactured?

The manufacturer is Dorel Netherlands, located in Helmond. The product is designed and tested according to European safety standards.

Can the high chair be used as an adult seat?

Yes, from 14 years and for a maximum weight of 110 kg, the chair can be used as an adult seat. Please remove or hide the harness in this case.

USER MANUAL Nesta MAXI-COSI

Line drawing of a baby seat with open lid and side armrest (no text or symbols)

MAXI·COSI®

We carry the future

EN - IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

FR - IMPORTANT ! LIRE ATTENTIVEMENT LA NOTICE ET LA CONSERVER POUR CONSULTATION ULTÉRIEURE.

DE - WICHTIG - BITTE SORGFALTIG LESEN UND FUR SPATERES NACHLESEN UNBEDINGT AUFBEWAHREN.

NL - BELANGRIJK - LEES ZORGVULDIG EN BEWAAR ALS REFERENTIE VOOR EEN LATER GEBRUIK.

ES - IMPORTANTE - LEER DETENIDAMENTE Y CONSERVAR PARA FUTURA REFERENCIA.

Simple line drawing of a U-shaped pipe or handle (no text or symbols)

1x

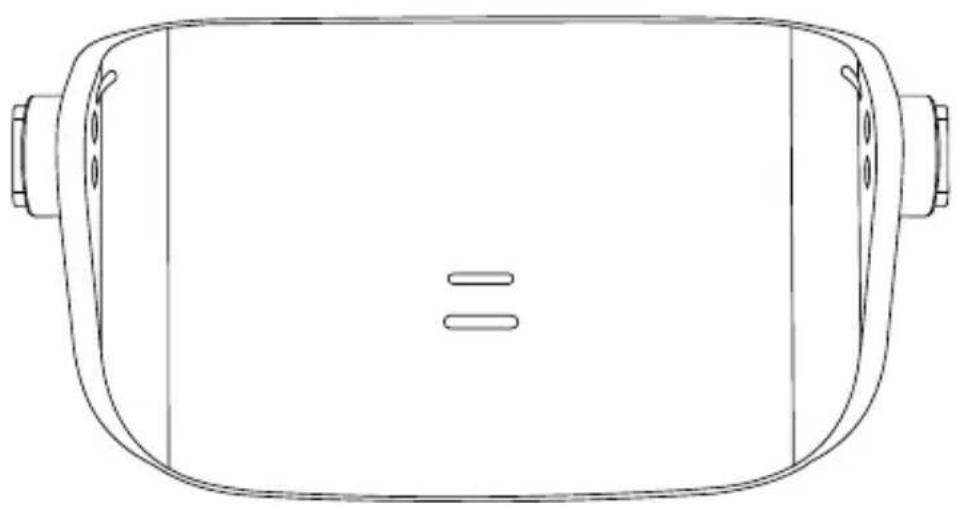

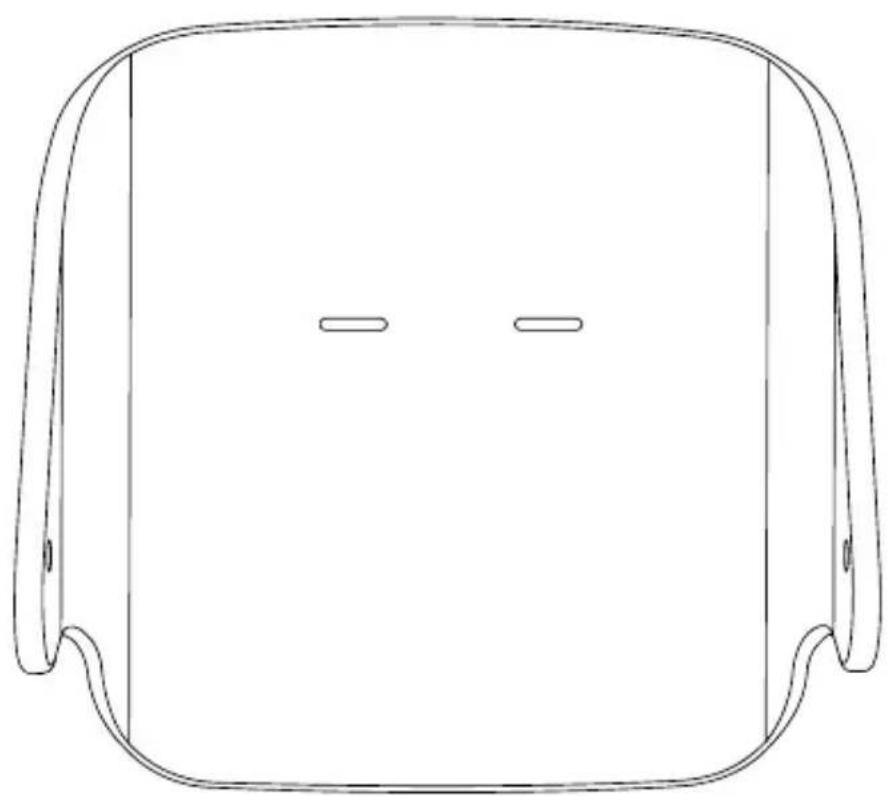

Simple line drawing of a rounded rectangular frame with two horizontal oval cutouts at the bottom (no text or symbols)

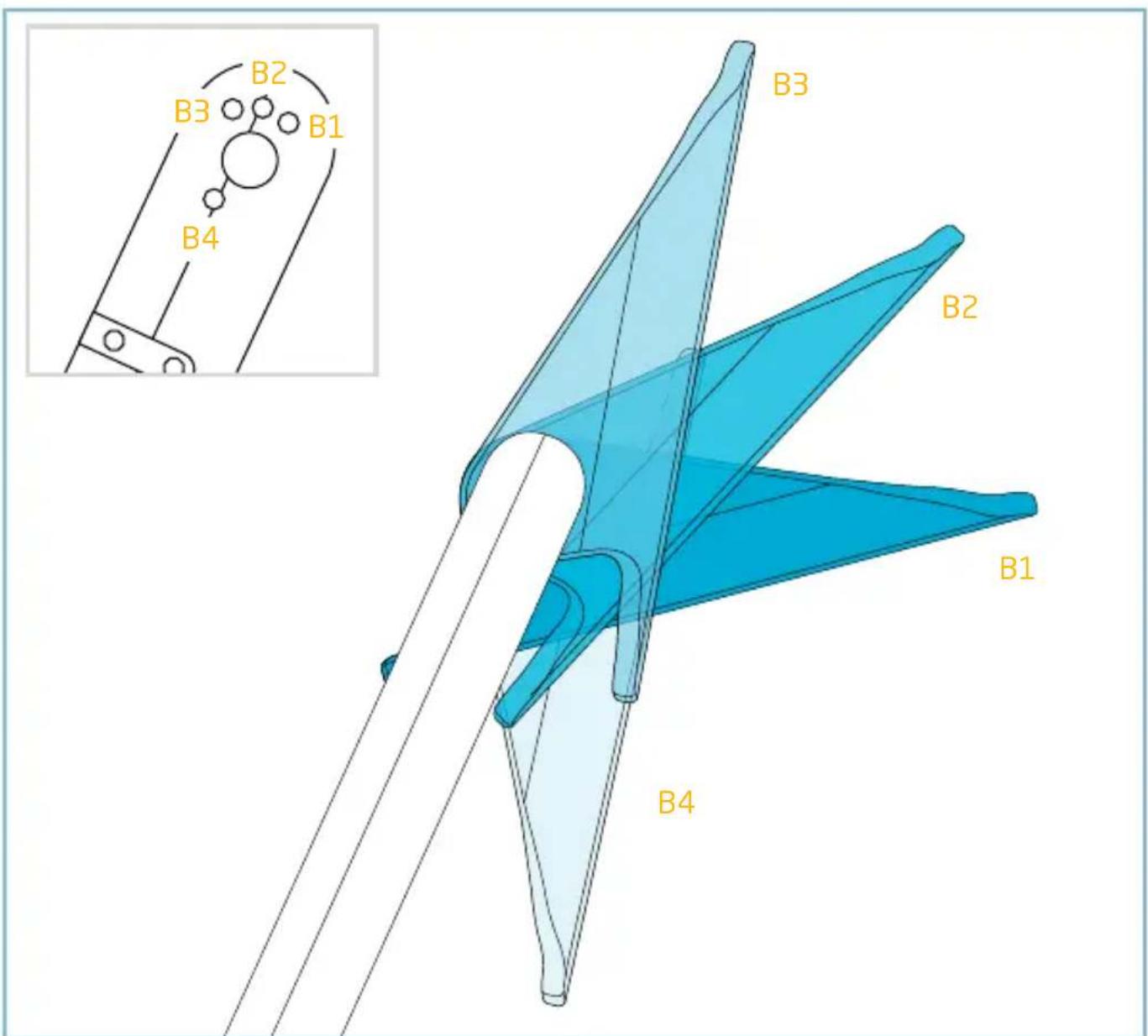

B1 B2 B3 B4 B3 B2 B1 B4

Line drawing of a VR headset with two side brackets and a central slot (no text or symbols)

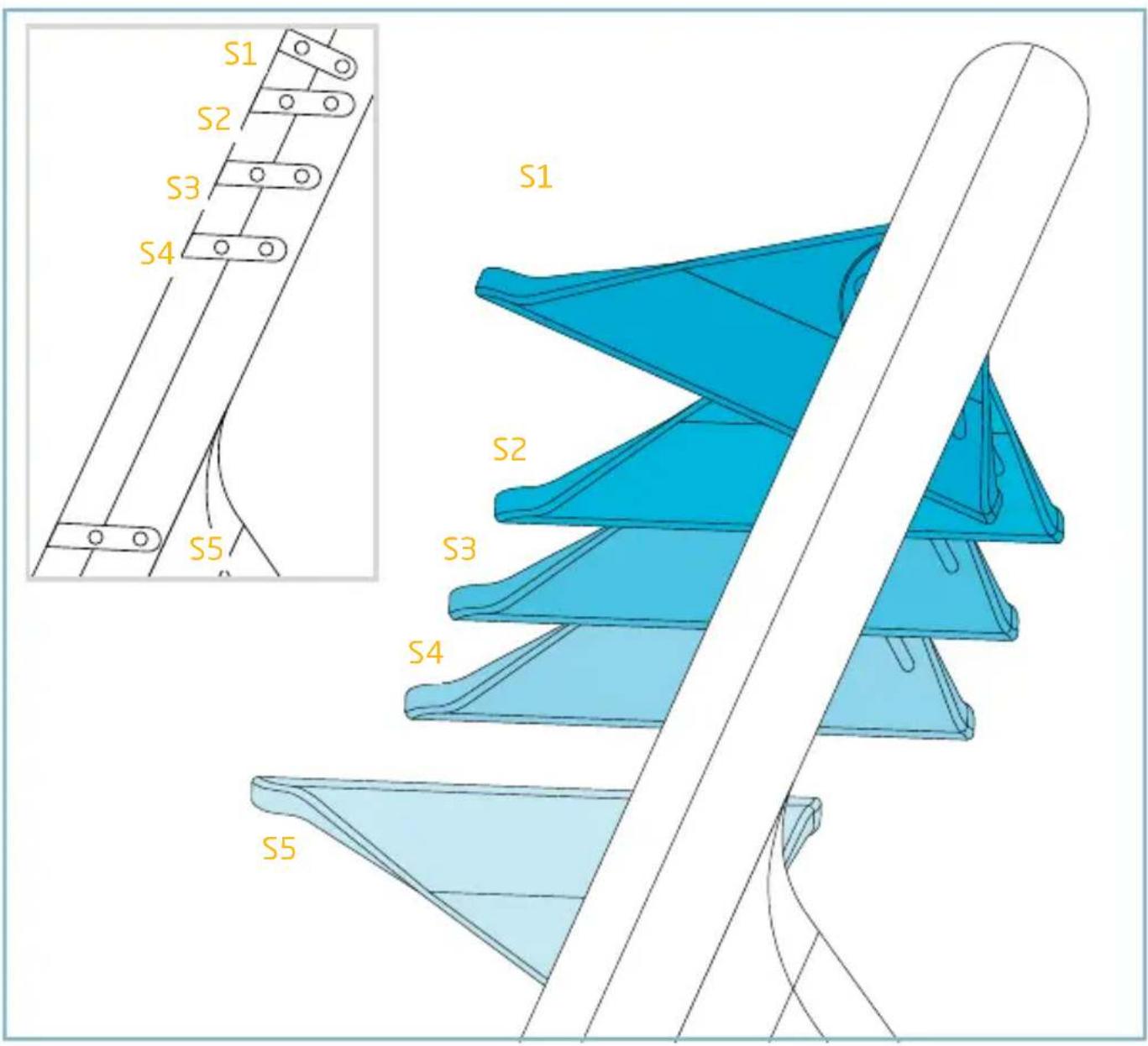

S1 S2 S3 S4 S5 S1 S2 S3 S4 S5

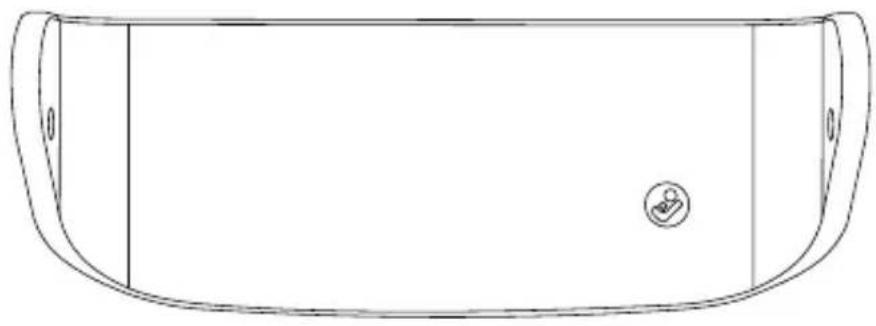

Line drawing of a rounded rectangular object with a small circular symbol on the side (no text or labels)

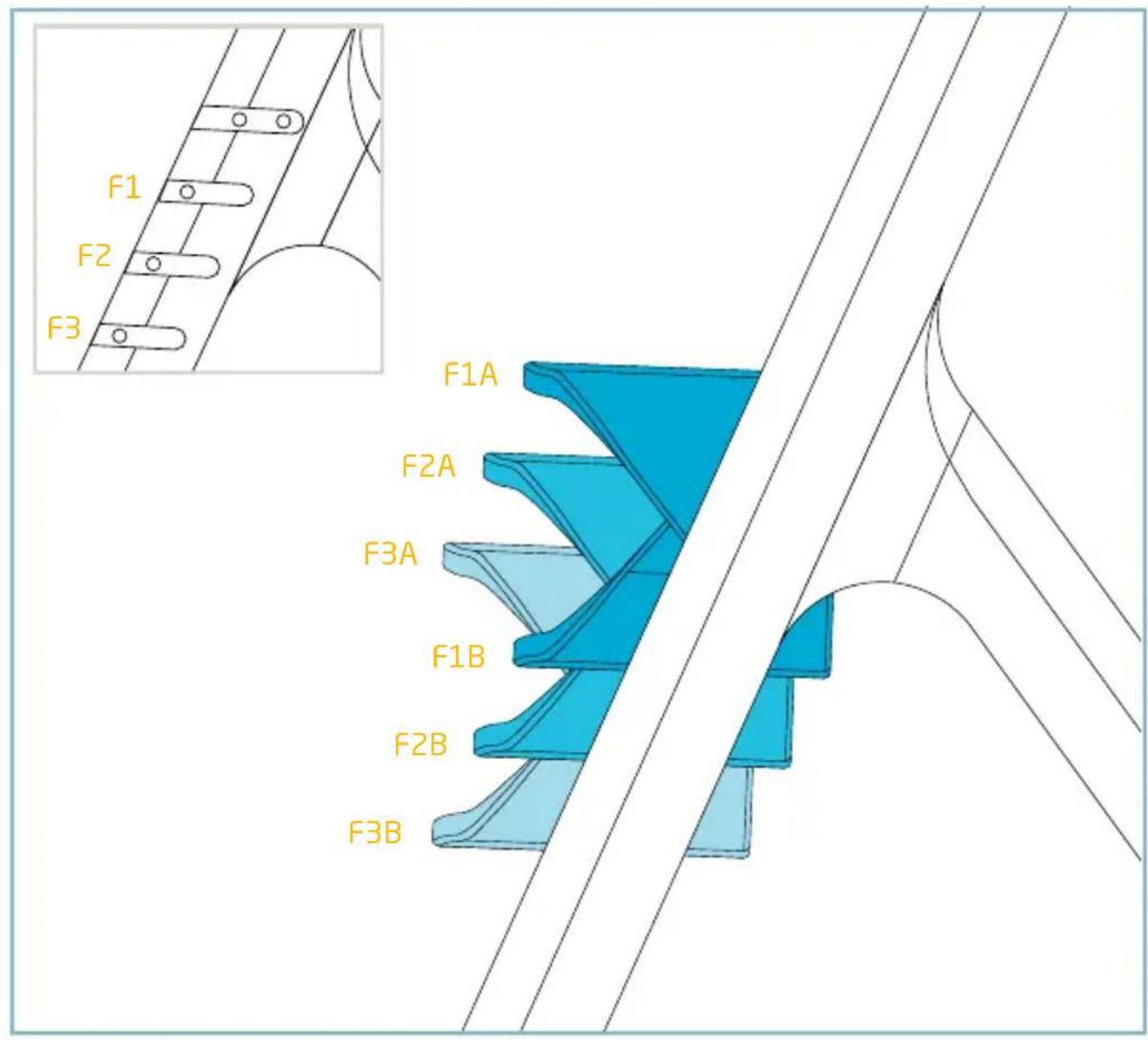

F1 F2 F3 F1A F2A F3A F1B F2B F3B

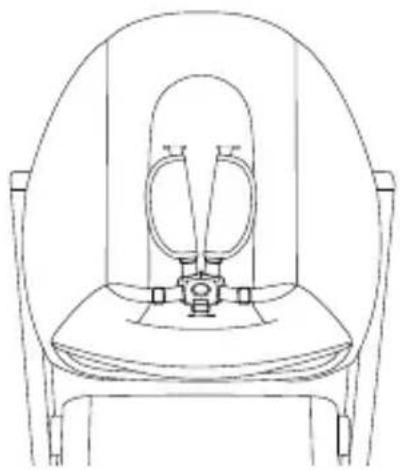

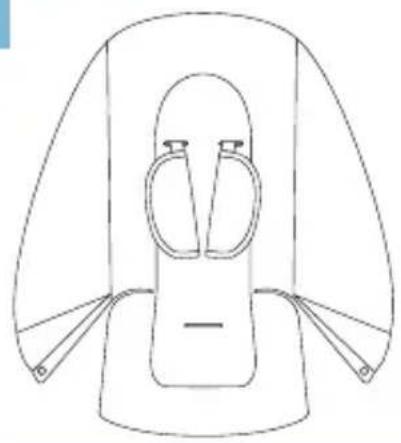

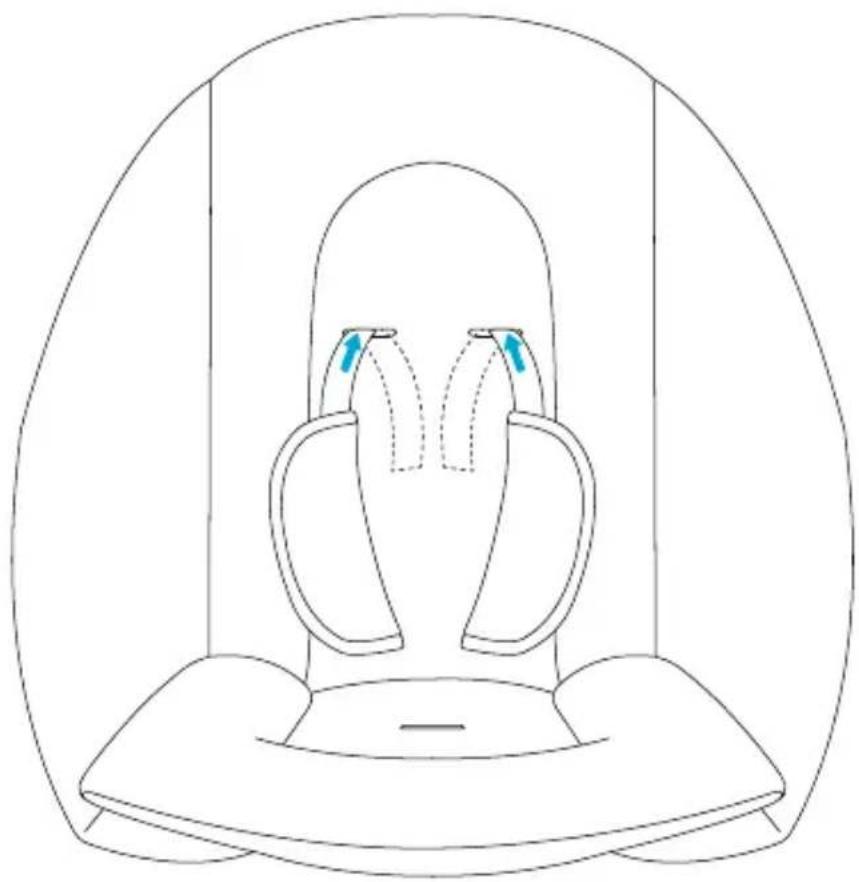

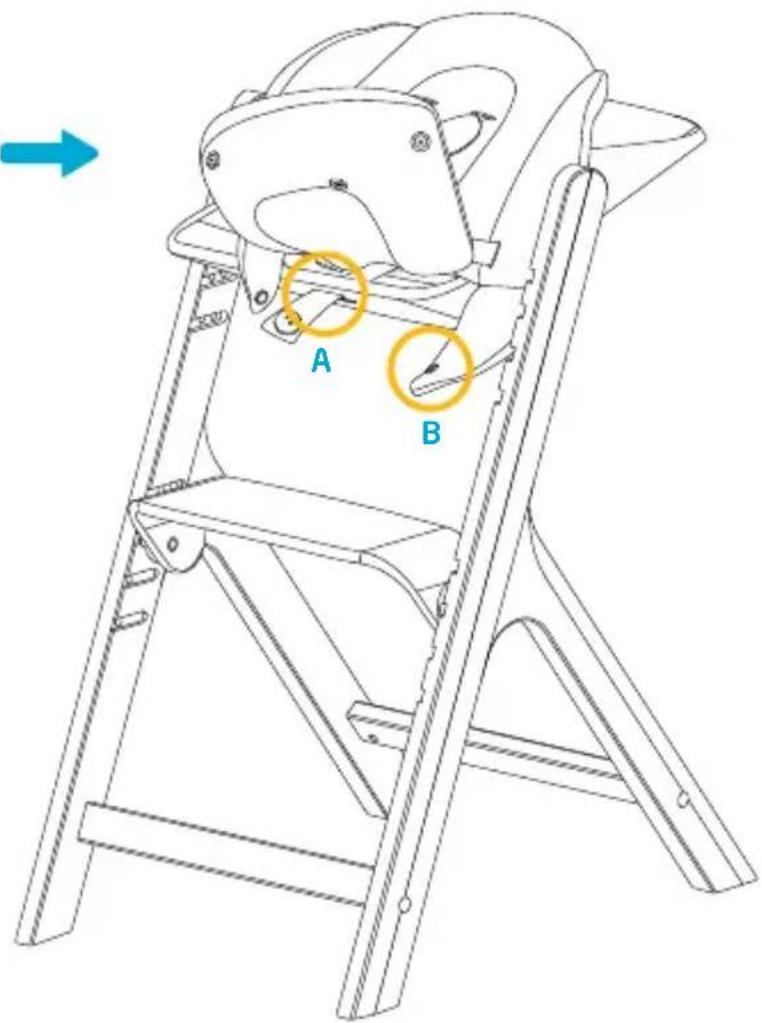

0M - 6M/9kg

EN Newborn Kit sold separately

Two circular icons: a baby wrapped in a blanket and a wrench, both without any text or symbols.

Line drawing of a baby seat with ladder and seatbelt, no text or symbols present

* Newborn Kit sold separately

Line drawing of a symmetrical mechanical or architectural component with curved and flat surfaces (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1

Technical diagram showing three labeled mechanical components (A, B, C) with annotations and directional arrows indicating assembly or assembly steps.

Technical line drawing of a mechanical structure with supports and a spring (no text or symbols)

Technical line drawing of a mechanical component with two views labeled '4x' (no text or symbols beyond label)

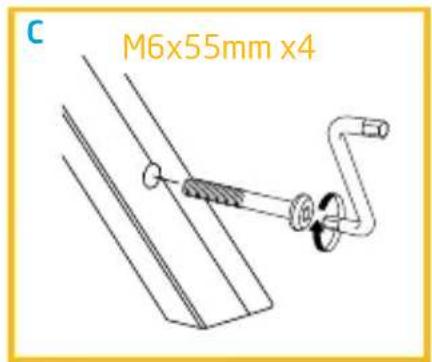

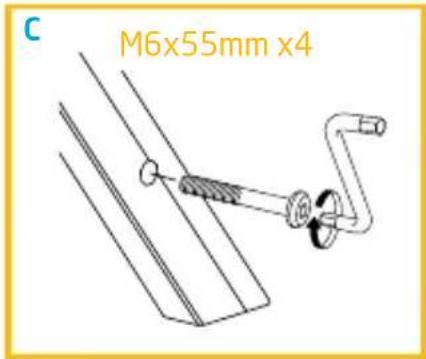

C M6x55mm x4

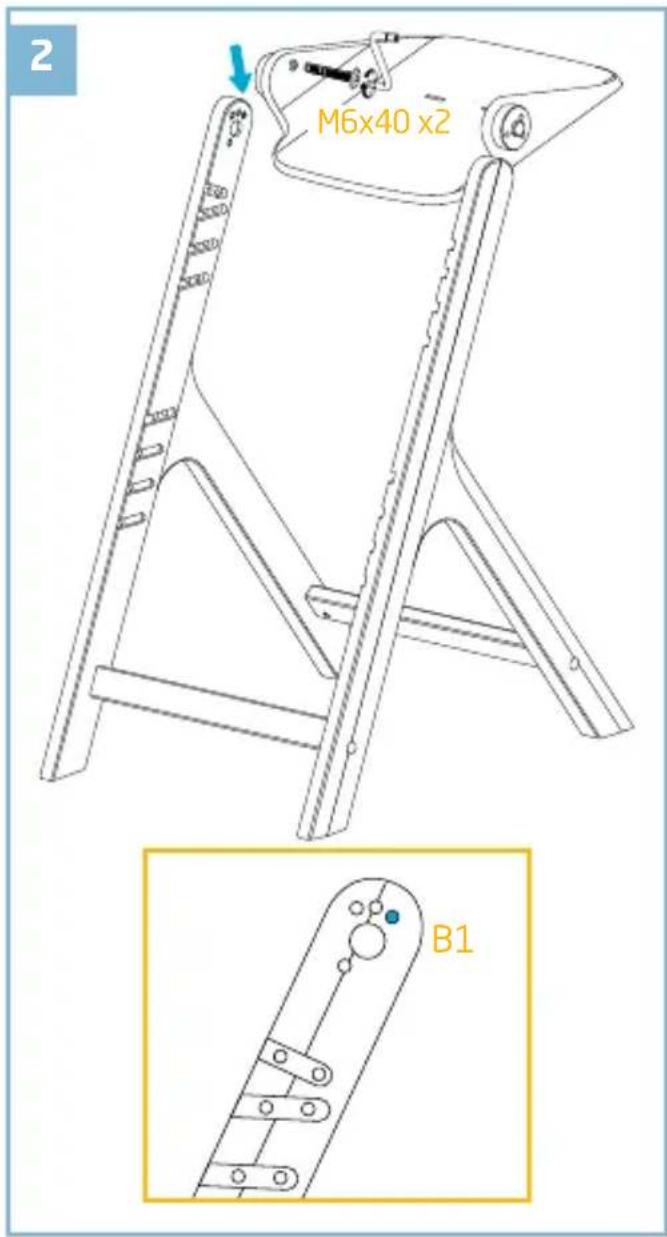

M6x40 x2 B1

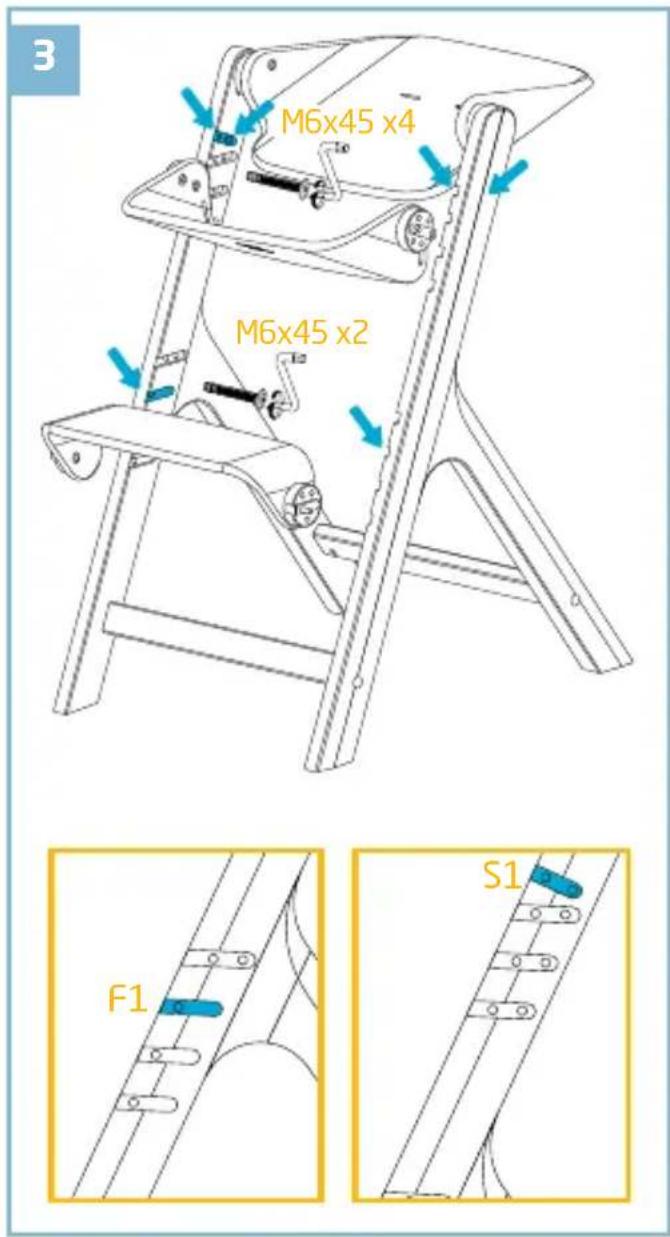

M6x45 x4 M6x45 x2 F1 S1

Two blue circular icons: a baby wrapped in a blanket and a wrench, both without any text or symbols.

3

Line drawing of a car seat with blue accents, no text or symbols present

4

Line drawing of a stylized human head with arms and legs, no text or symbols present

Simple line drawing of a rectangular container with a blue upward arrow and two horizontal lines inside, labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a curved object with a small rectangular object on the base (no text or symbols)

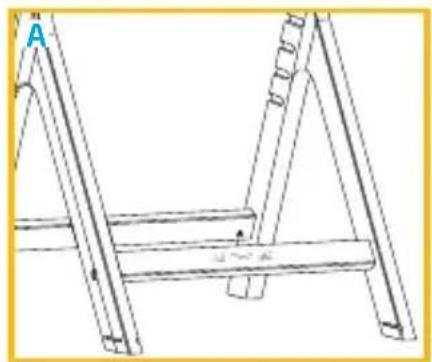

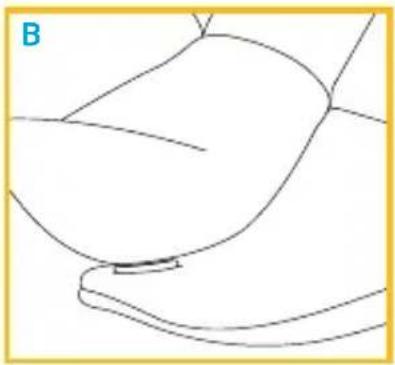

A B

Two blue circular icons: a baby with a blanket and a wrench, both without any text or symbols.

5

Diagram of a car seat with two highlighted components, no text or symbols present

Line drawing of a chair with a curved seat and two rings, no text or symbols present

Technical diagram of a mechanical component with three yellow circles highlighting specific parts (no text or symbols present)

Line drawing of a baby seat with adjustable arms and seatbelt (no text or symbols)

6

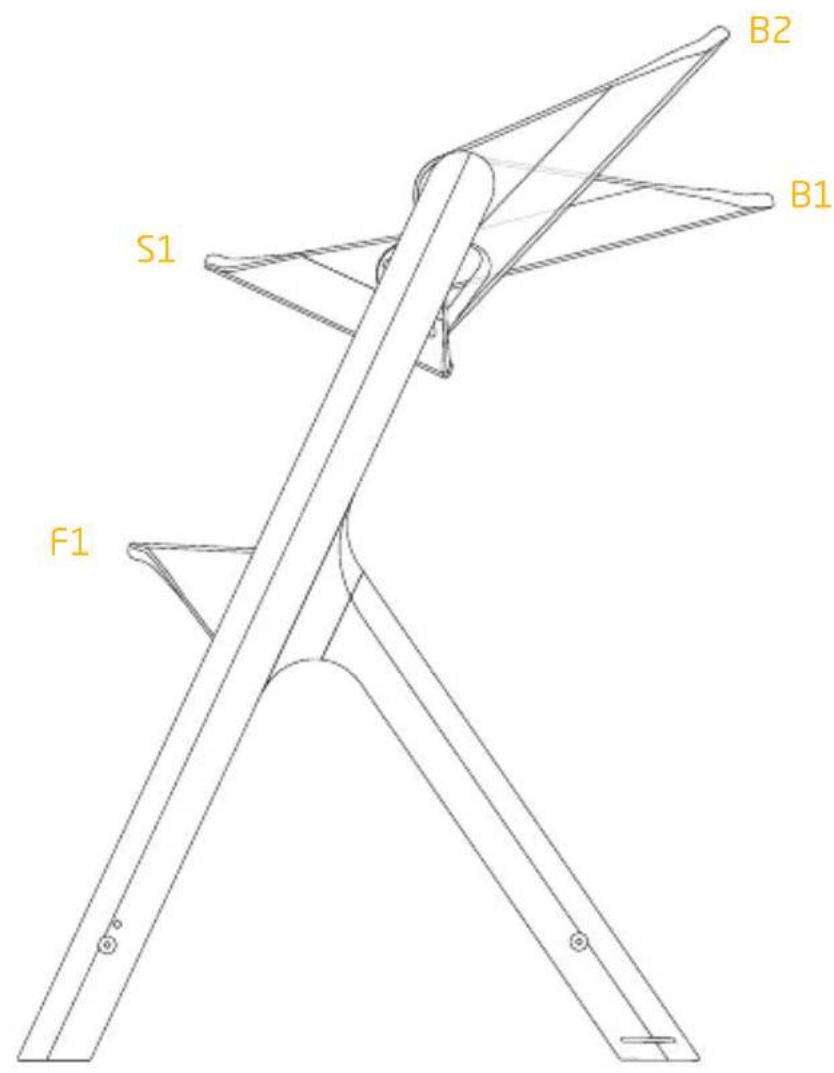

S1 F1 B1 B2

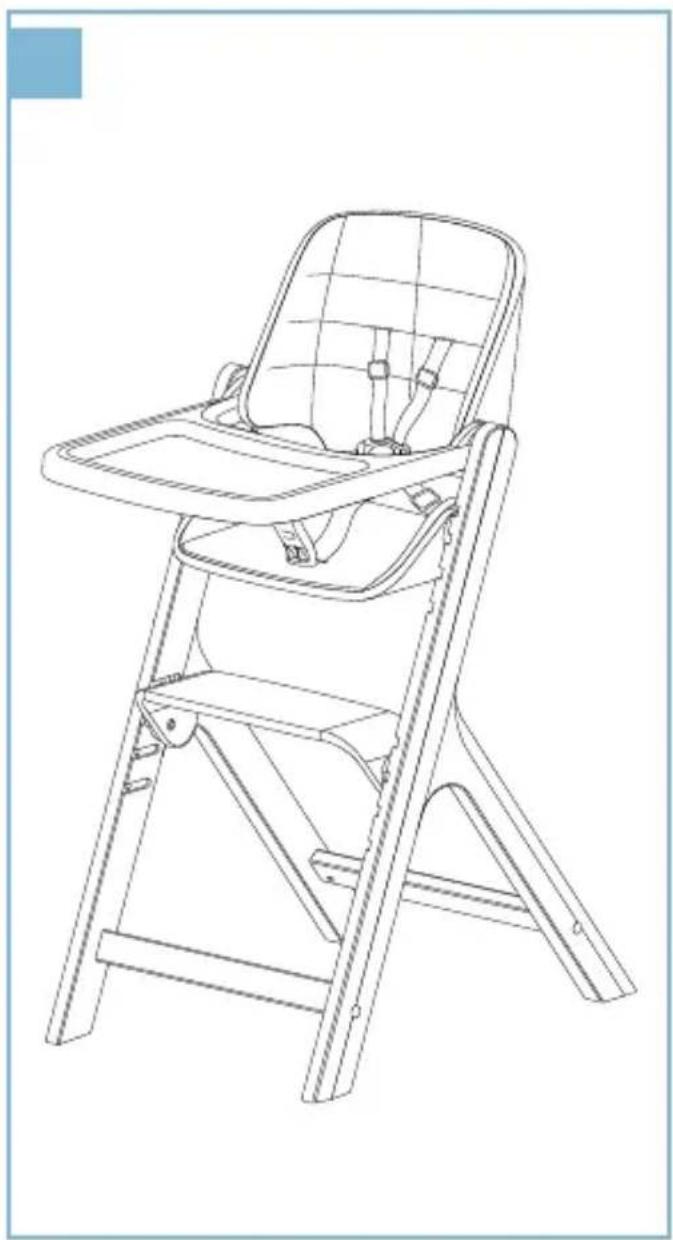

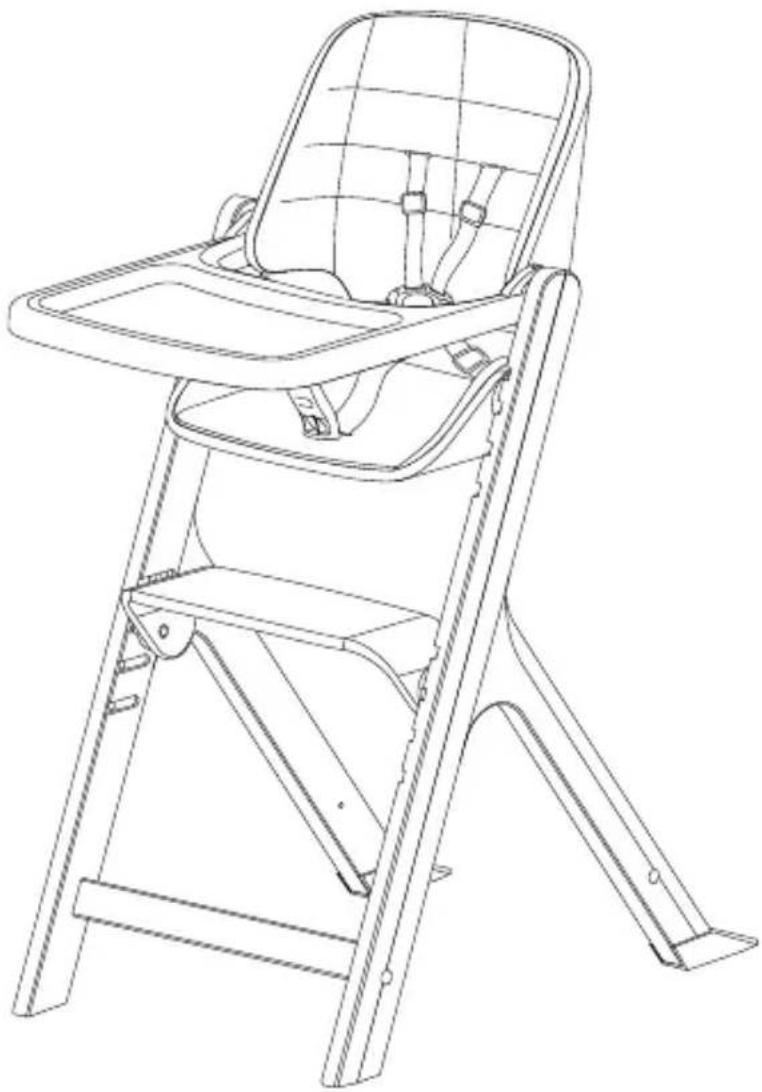

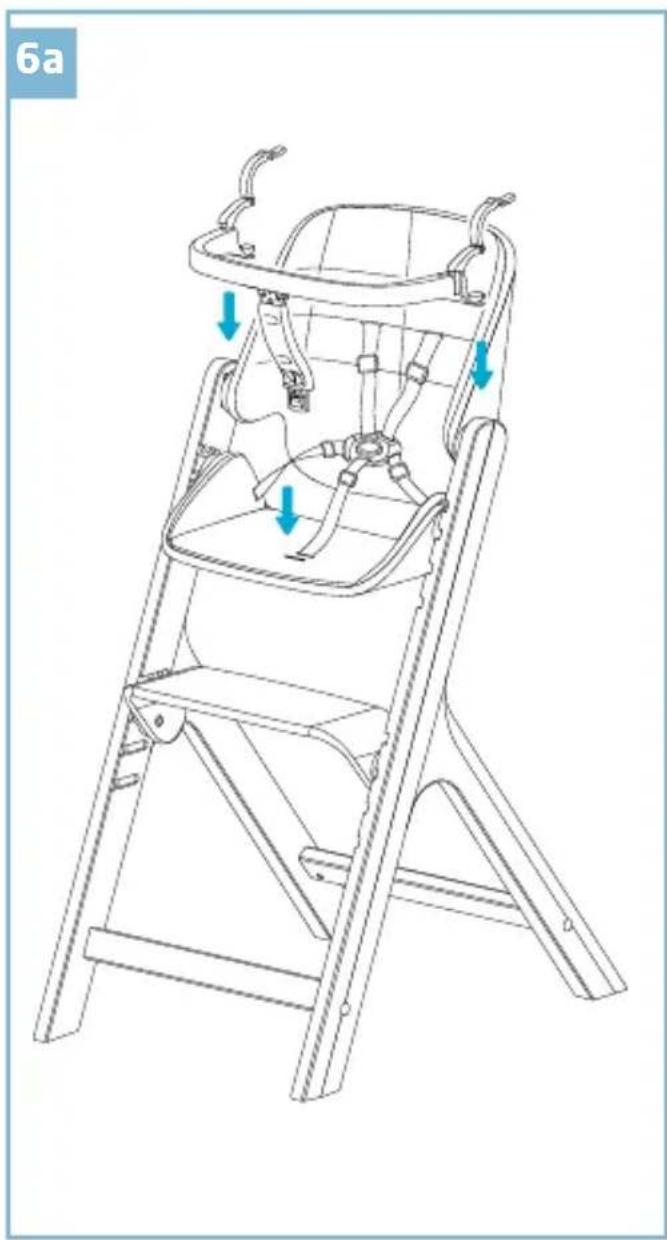

6M - 36M/15kg

Two white circular icons: a baby with a tool and a wrench, both on a blue background (no text or symbols)

EN Baby&Toddler Kit sold separately

Two blue circular icons: a wrench and a baby wearing a hat, both without any text or symbols.

Line drawing of a baby boom chair with seat, legs, and armrest (no text or symbols)

Two blue circular icons: a baby wearing a helmet and a wrench, both without any text or symbols.

* Accessory sold separately

Technical line drawing of a three-blade fan or propeller assembly with mounting bracket (no text or symbols)

Three technical line drawings of a car interior frame, showing front, side, and top views with no text or symbols.

Two blue circular icons: a wrench and a tool, both without any text or symbols.

1

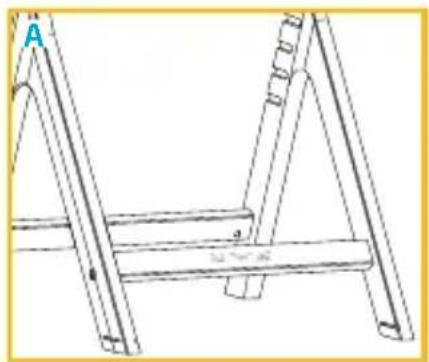

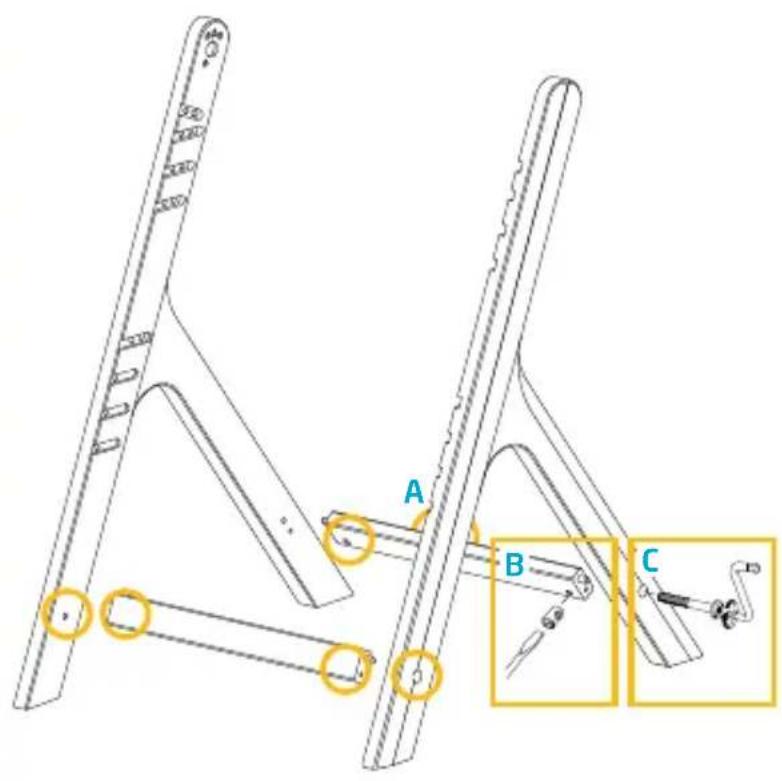

Technical diagram showing three labeled mechanical components (A, B, C) with arrows indicating motion or assembly steps.

Technical line drawing of a mechanical structure with supports and a central plate (no text or symbols)

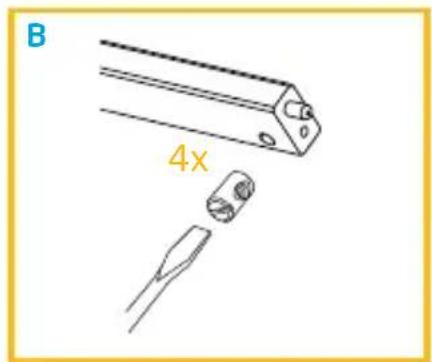

B

Technical line drawing of a mechanical component with a 4x scaling indicator (no text or symbols present)

C

M6x55mm x4

Two blue circular icons: a baby wearing a hairdryer and a wrench, both without any text or symbols.

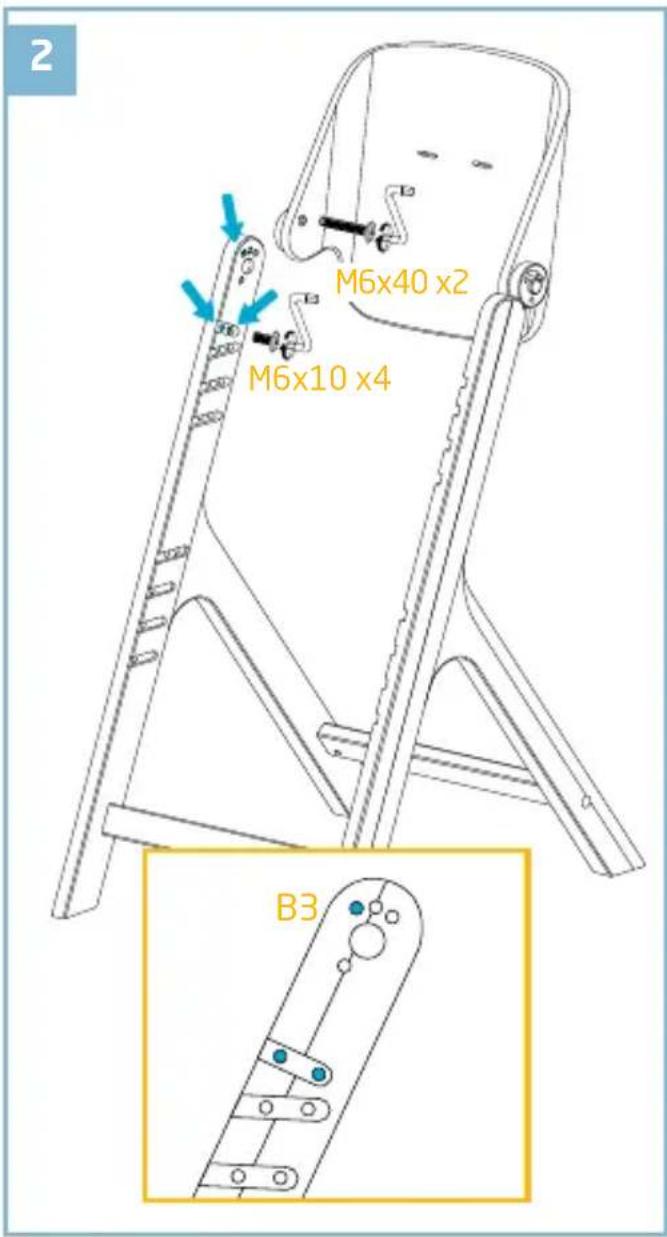

M6x40 x2 M6x10 x4 B3

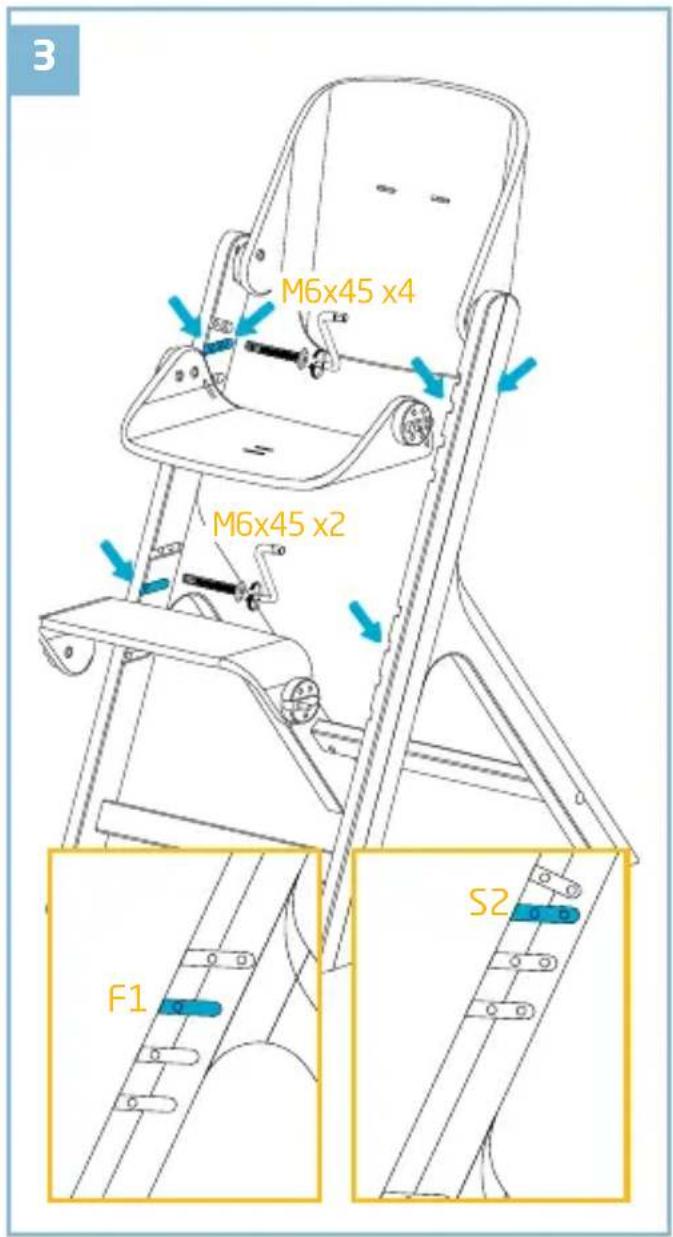

M6x45 x4 M6x45 x2 F1 S2

Two blue circular icons: a wrench and a helmet, both without any text or symbols.

4

Line drawing of a person using a device to adjust or install a seatbelt, with no text or symbols present.

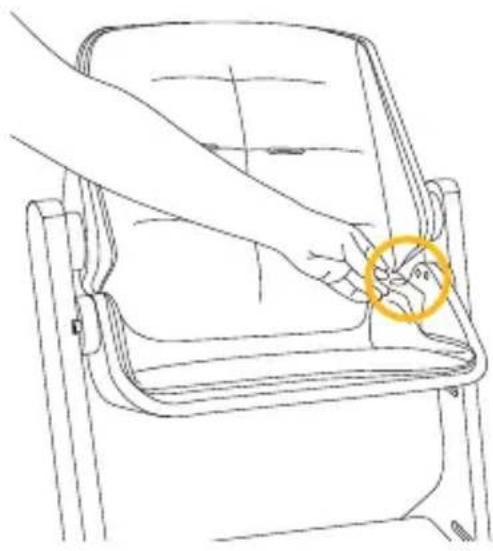

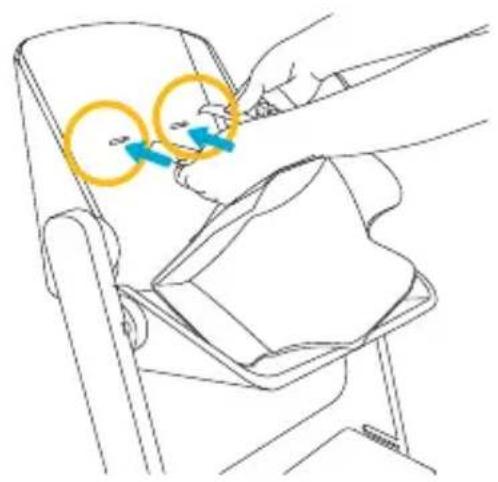

Line drawing of a hand holding a circular object on a chair, no text or symbols present

Line drawing of a hand pressing down on a chair seat, with a yellow circle highlighting the seat area (no text or symbols)

Two blue circular icons: one with a helmet and wrench, the other with a wrench (no text or symbols)

5

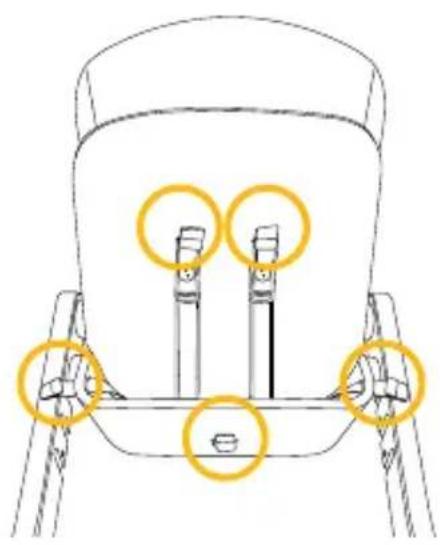

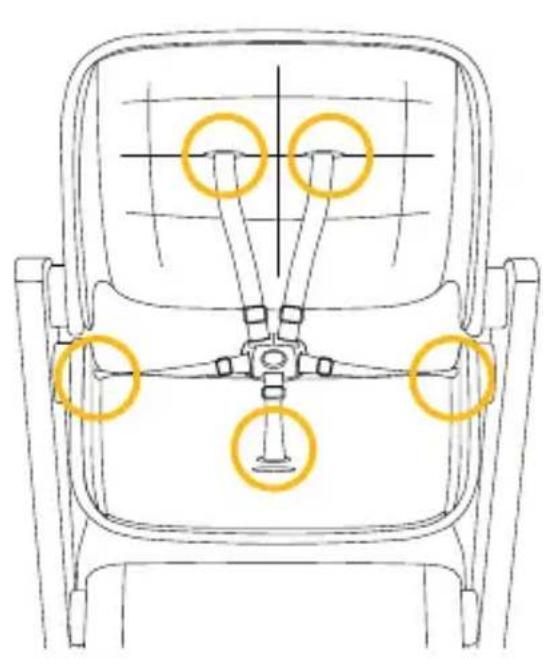

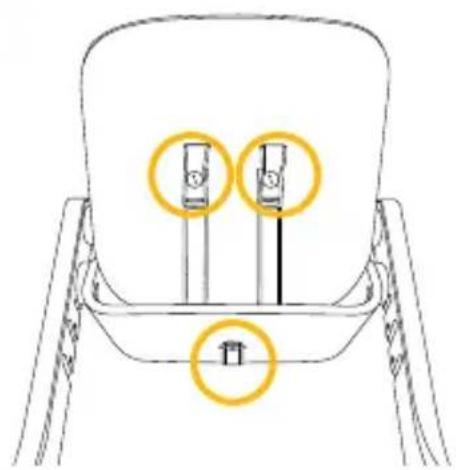

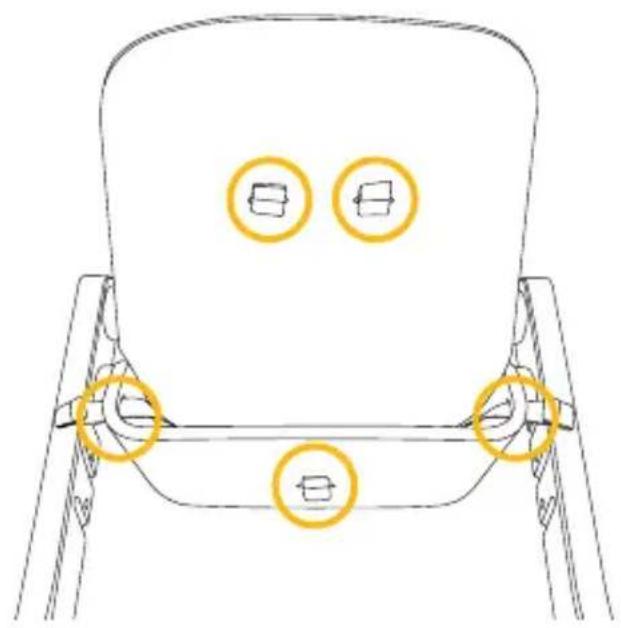

Top-down line drawing of a car seat with four yellow circular annotations indicating specific positions (no text or symbols present)

Line drawing of a chair with two circular annotations highlighting specific seat positions (no text or symbols present)

Two blue circular icons: a wrench and a baby wearing a hat, both without any text or symbols.

Line drawing of a baby boom lift with blue arrows indicating seat positions and safety features (no text or symbols)

Line drawing of a baby boom chair with seat, legs, and armrest (no text or symbols)

Two blue circular icons: a baby wearing a hat and a wrench, both without any text or symbols.

Line drawing of a baby boom chair with blue arrows indicating force or movement (no text or symbols)

Line drawing of a baby boom chair with seat, legs, and frame (no text or symbols)

8

Technical diagram showing a mechanical assembly with labeled parts and directional arrows, including a magnified inset of the device.

Two blue circular icons: a cartoon character holding a tool and a wrench, both on white background (no text or symbols)

9

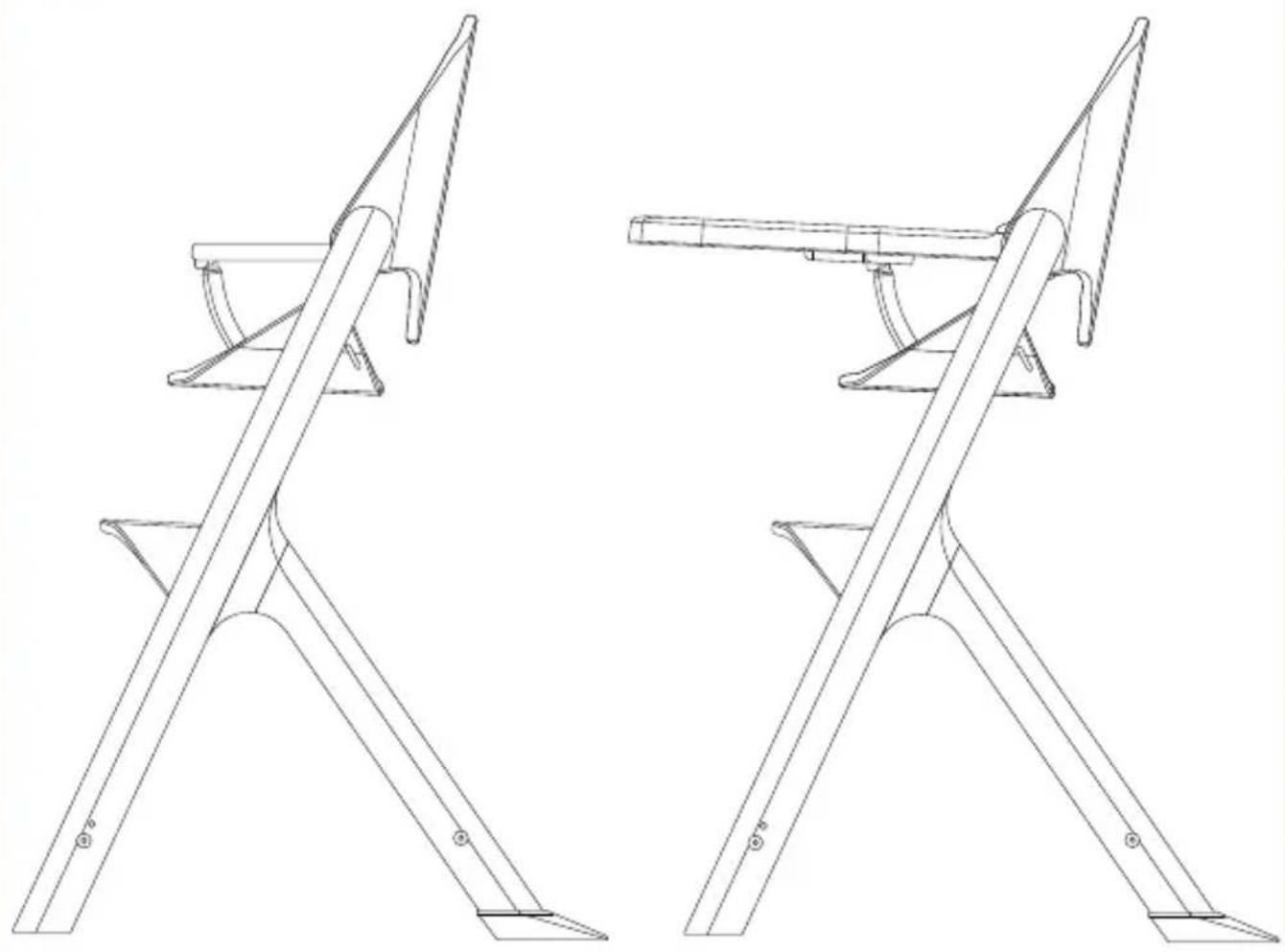

Line drawing of two identical chair designs with triangular supports and seat covers (no text or symbols)

EN Child installation

DA Barneinstallation

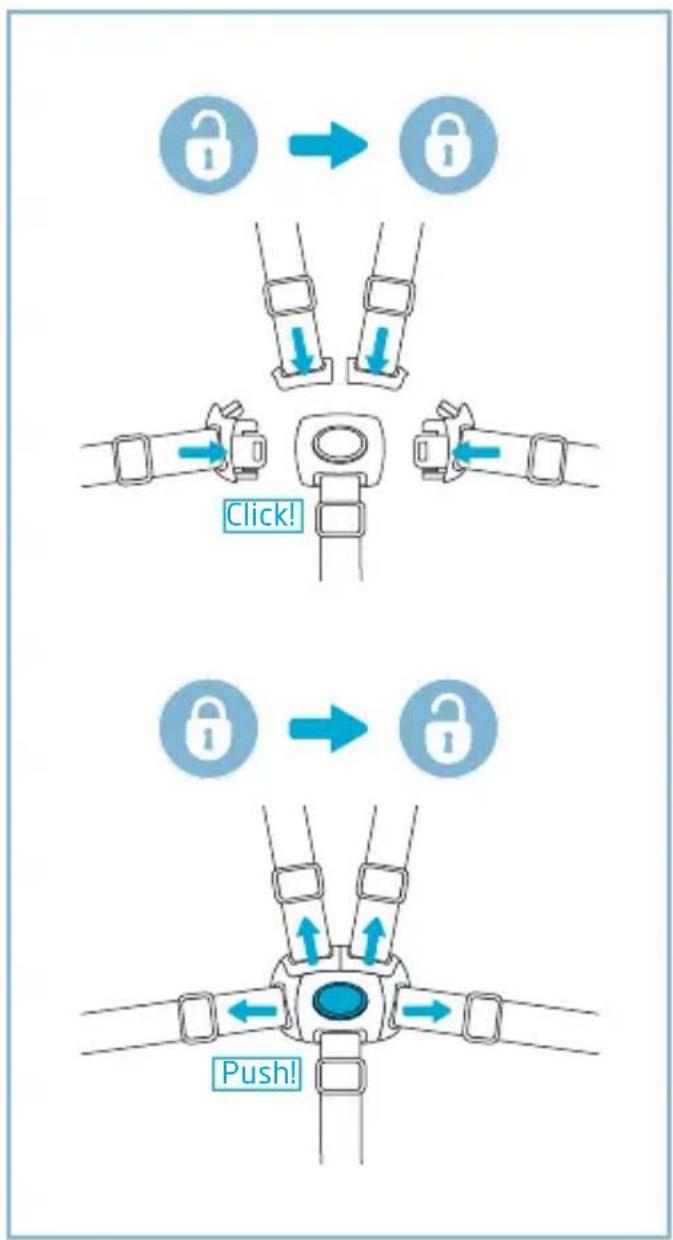

Diagram of three types of seatbelt buckle clips with blue directional arrows indicating movement (no text or symbols)


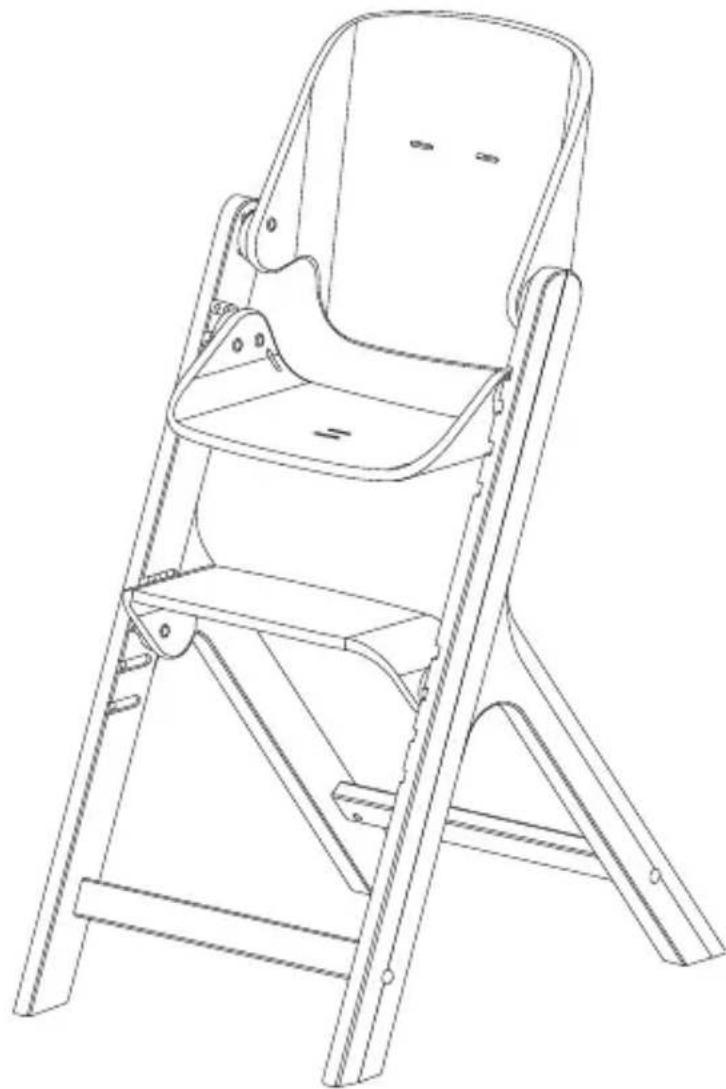

3Y - 14Y/60kg

EN Child chair

Two blue circular icons: a child with a head and a wrench, both without any text or symbols.

Line drawing of a children's high chair with ladder and seat (no text or symbols)

1

Technical diagram showing three labeled mechanical components (A, B, C) with arrows indicating motion or assembly steps.

Technical line drawing of a mechanical structure with supports and a labeled section (no readable text or symbols)

B

Technical line drawing of a mechanical component with a 4x scaling indicator (no text or symbols present)

C

M6x55mm x4

Two blue circular icons: a child with a head and a wrench, no text or symbols present.

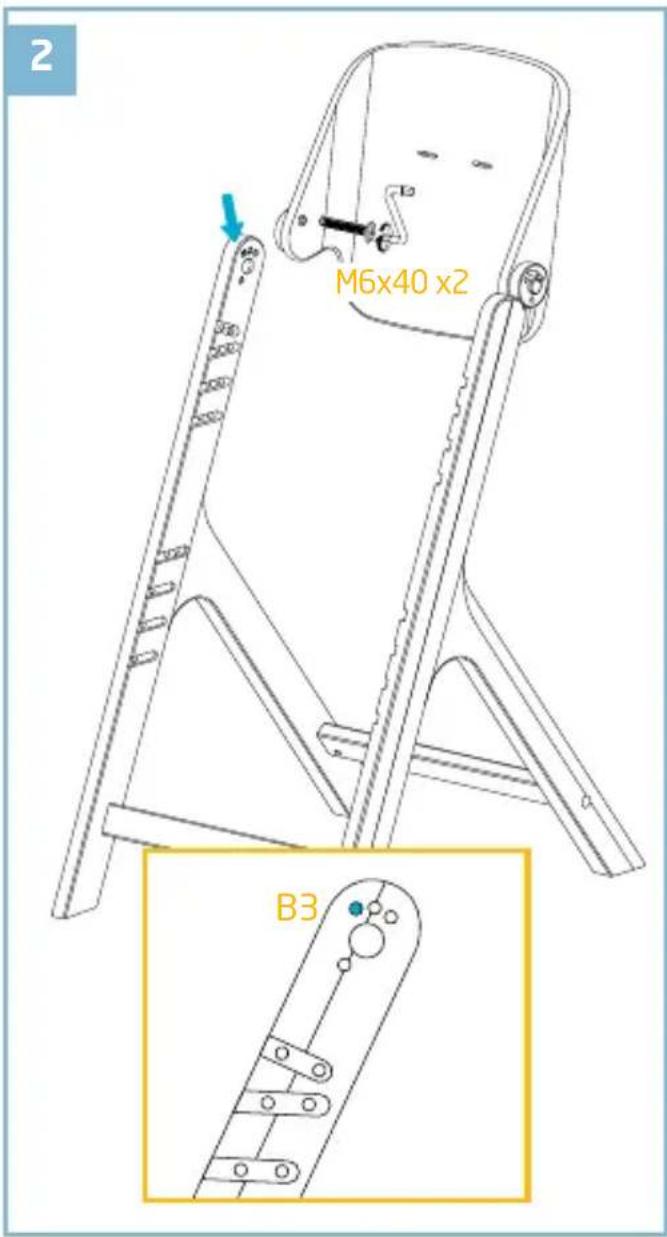

M6x40 x2 B3

M6x45 x4 M6x45 x2 F1 S2

4

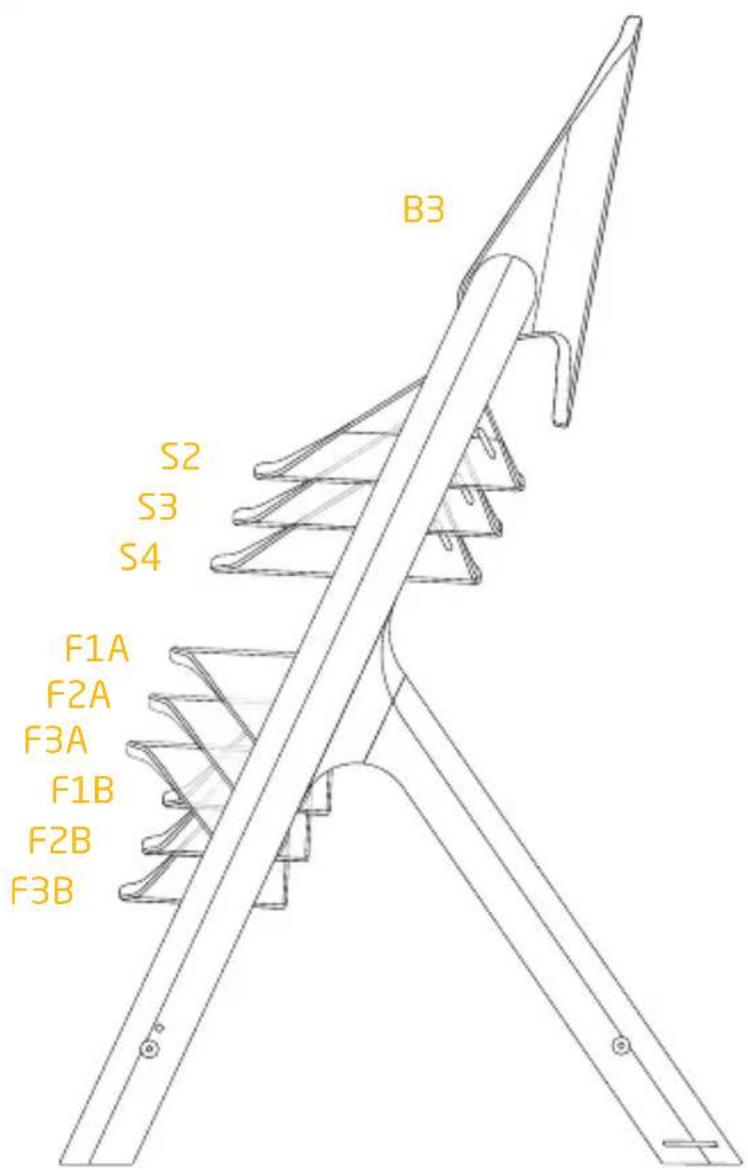

B3 S2 S3 S4 F1A F2A F3A F1B F2B F3B

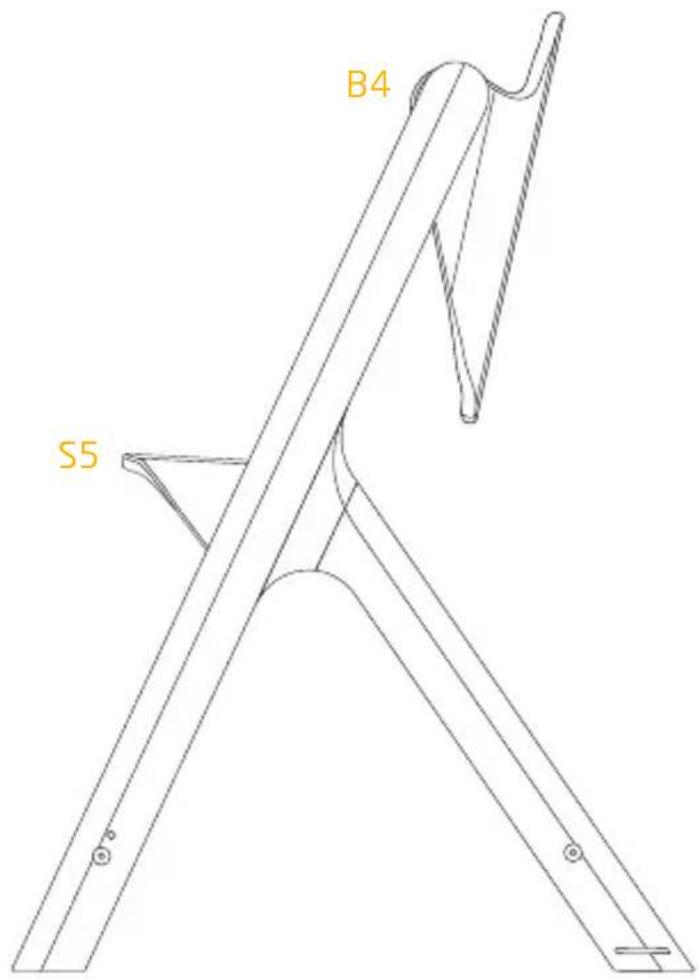

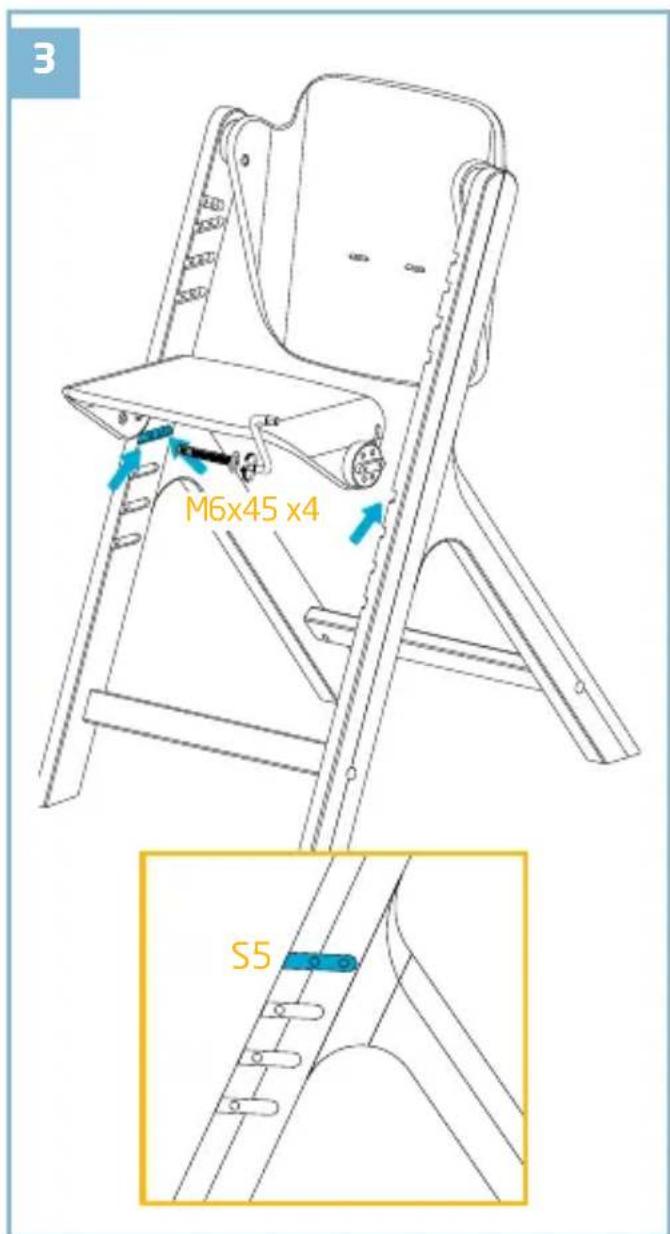

14Y+ / 110kg

EN Adult chair

FR Chaise adulte

Line drawing of a wooden chair with ladder and seat, no text or symbols present

1

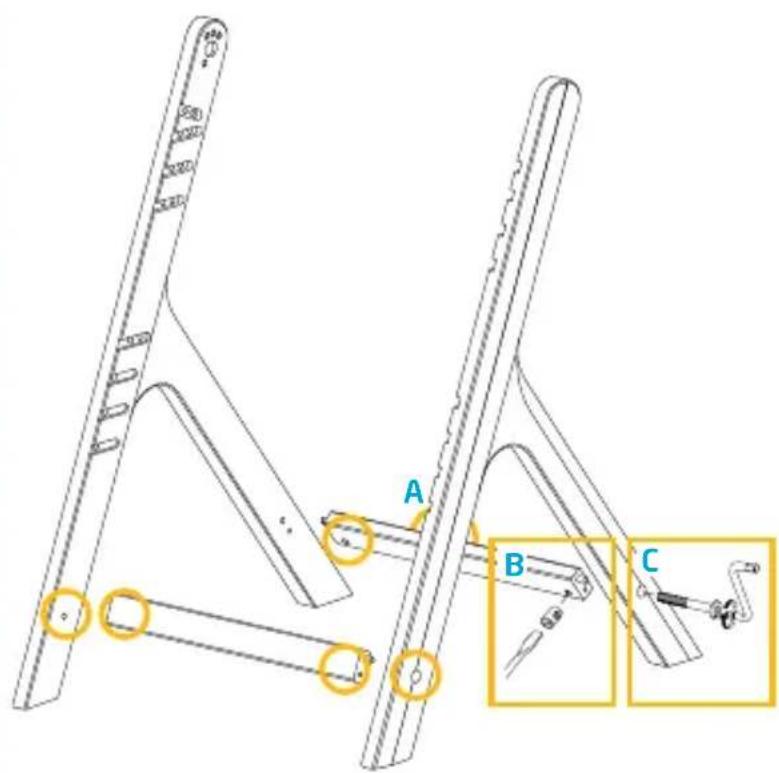

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including dimension annotations like 5.00mm and 2.00mm.

Technical line drawing of a mechanical structure with supports and a spring (no text or symbols)

Technical line drawing of a mechanical component with a 4x scaling indicator (no text or symbols present)

C M6x55mm x4

Two blue circular icons: a wrench and a person silhouette (no text or symbols)

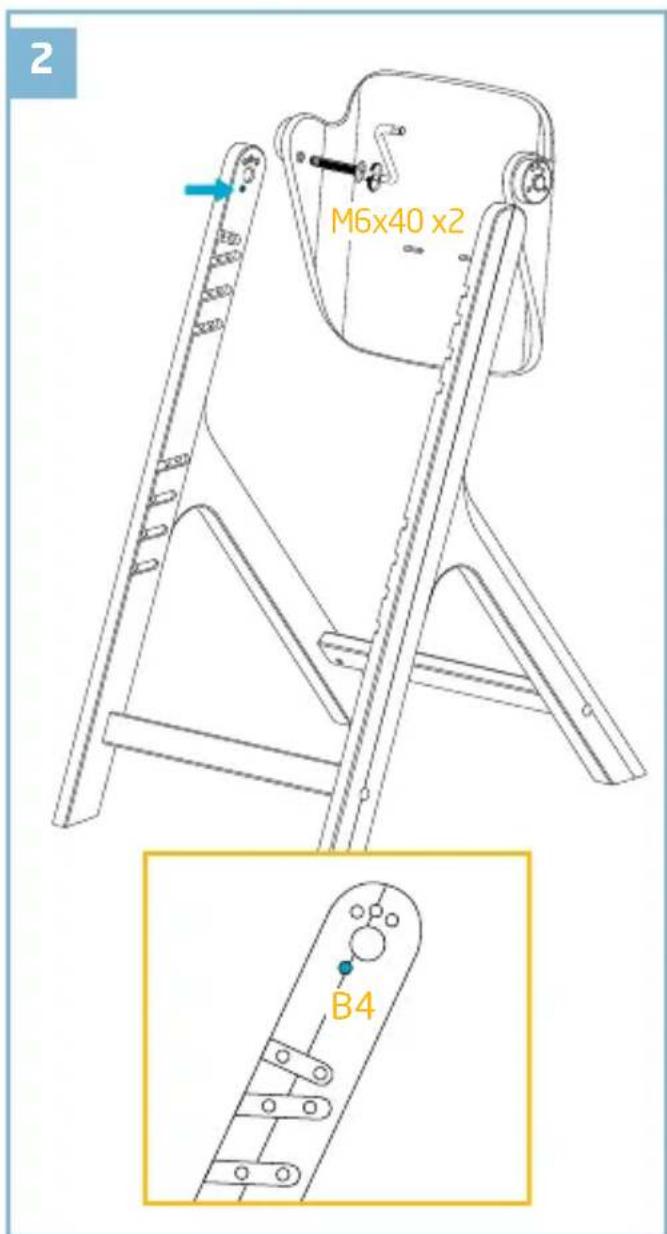

M6x40 x2 B4

3 M6x45 x4 S5

4

B4 S5

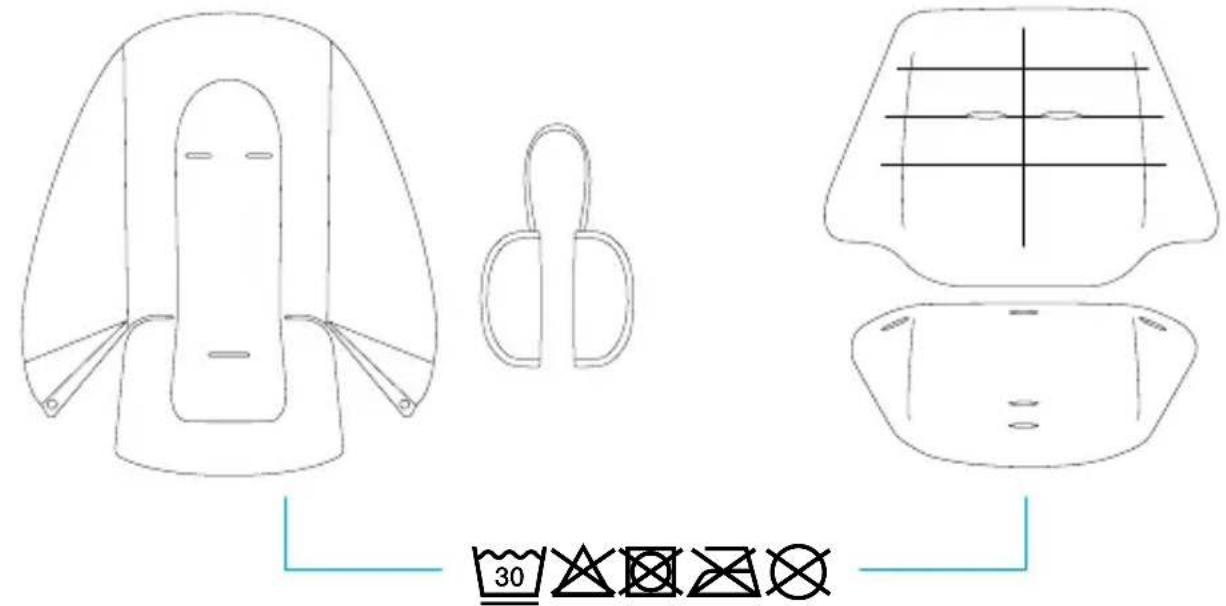

EN	Washing	PL	Czyszczenie
FR	Lavage	RU	Чистка
DE	Reinigung	UK	Прання
NL	Reinigen	HR	Pranje
ES	Lavado	SK	Pranie
IT	Lavaggio	BG	Почистване
PT	Lavagem	HU	Mosás
SV	Tvättråd	SL	Pranje
DA	Vask	ET	Pesemine
FI	Pesu	CS	Praní
NO	Rengjøring	RO	Spălare
EL	Πλύσιμο	HE	הכלה
TR	Yıkama	AR	غسل

Line drawing of a U-shaped mechanical component with a central shaft and flange (no text or symbols)

Simple line drawing of a U-shaped object with two rounded corners and a central rectangular cavity (no text or symbols)

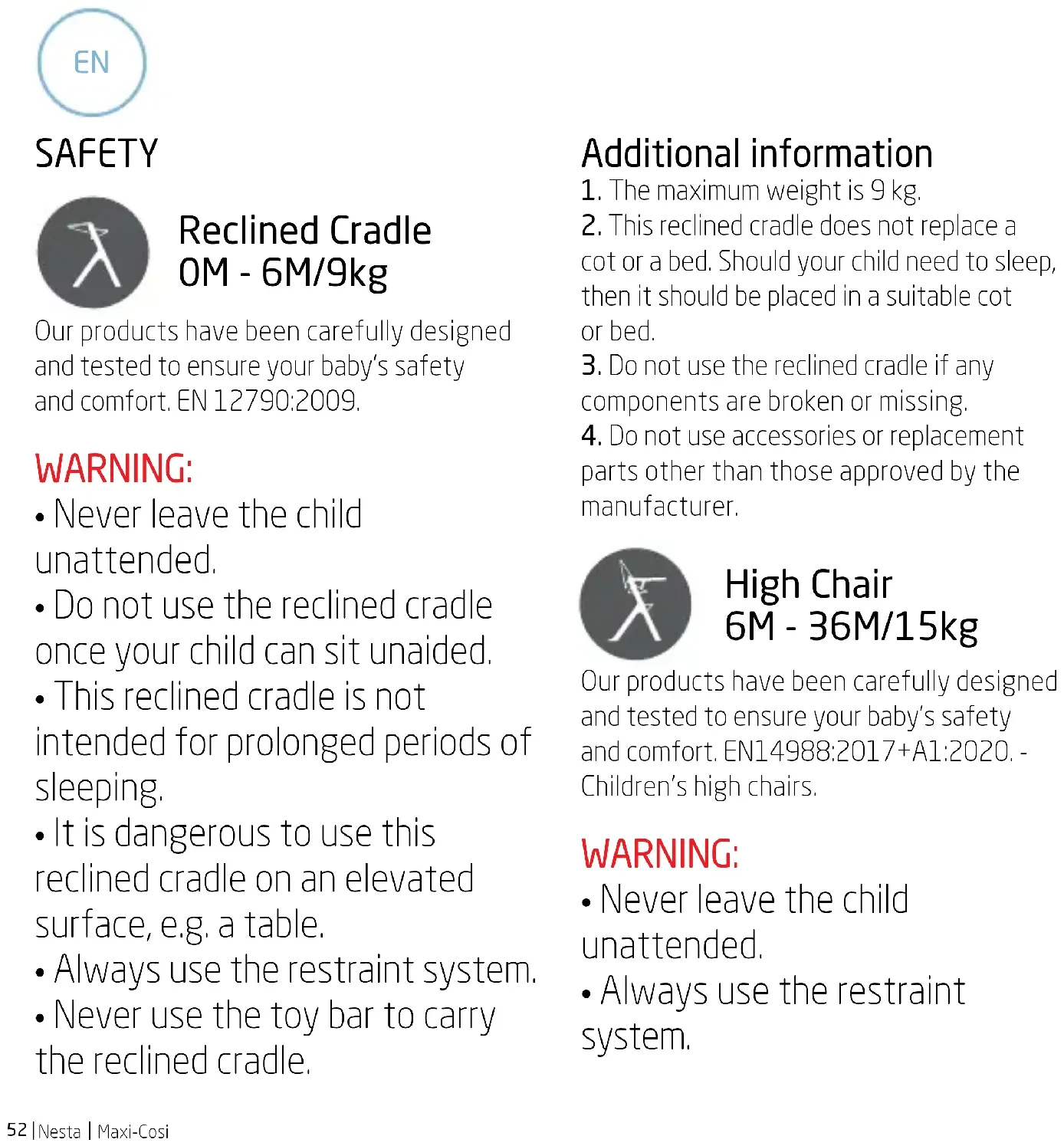

SAFETY

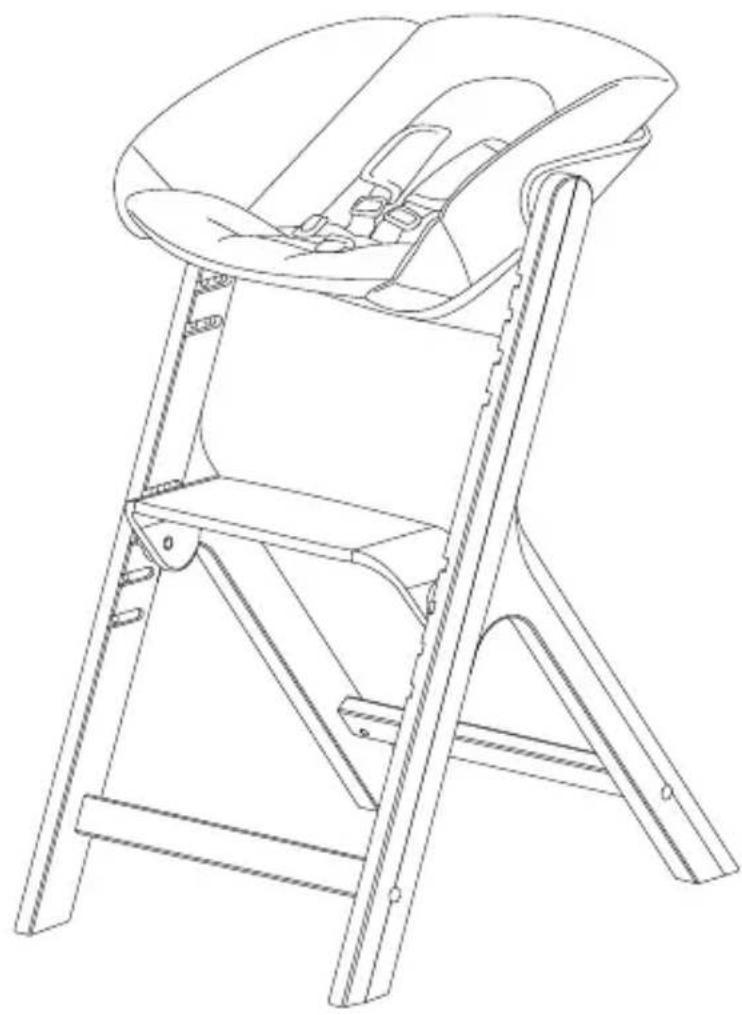

Reclined Cradle 0M - 6M/9kg

Our products have been carefully designed and tested to ensure your baby's safety and comfort. EN 12790:2009.

WARNING:

• Never leave the child unattended.
• Do not use the reclined cradle once your child can sit unaided.
  • This reclined cradle is not intended for prolonged periods of sleeping.
• It is dangerous to use this reclined cradle on an elevated surface, e.g. a table.
  • Always use the restraint system.
• Never use the toy bar to carry the reclined cradle.

Additional information

1. The maximum weight is 9 kg.
2. This reclined cradle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
3. Do not use the reclined cradle if any components are broken or missing.
4. Do not use accessories or replacement parts other than those approved by the manufacturer.

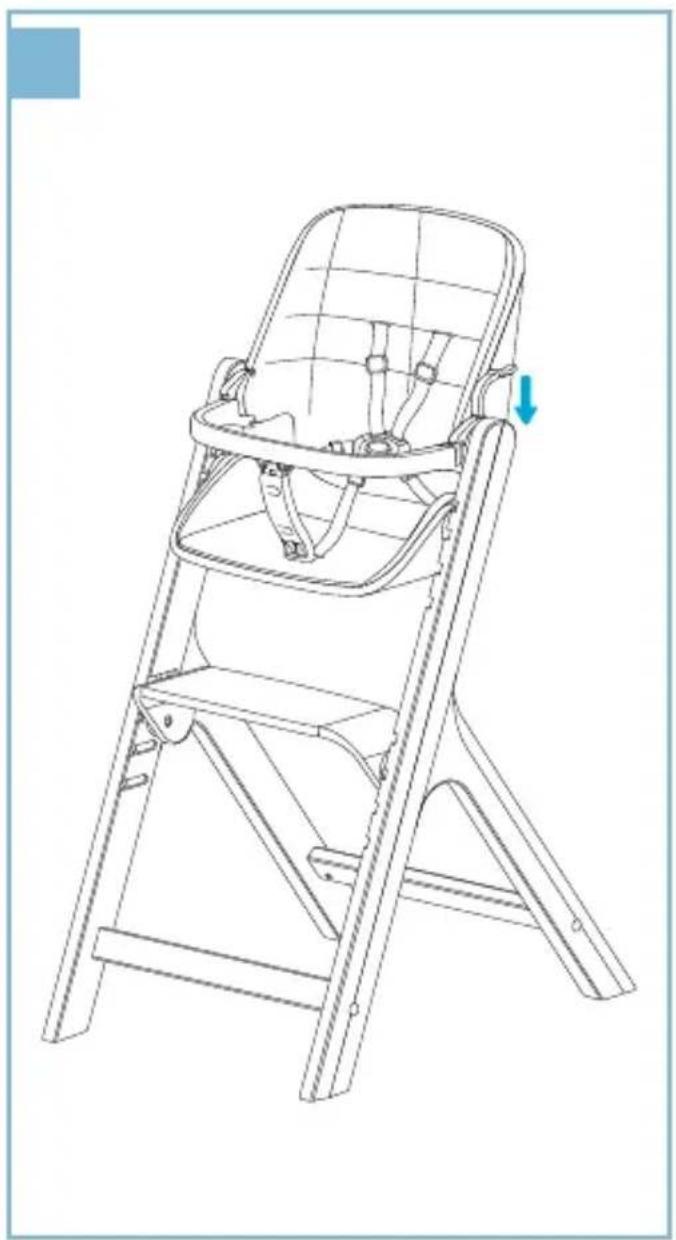

High Chair 6M - 36M/15kg

Our products have been carefully designed and tested to ensure your baby's safety and comfort. EN14988:2017+A1:2020. - Children's high chairs.

WARNING:

• Never leave the child unattended.
  • Always use the restraint system.

• Falling hazard: Prevent your child from climbing on the product.

• Do not use the product unless all components are correctly fitted and adjusted.
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.

Additional information

1. Do not use the product until the child can sit up unaided;
2. Do not use the product if any part is broken, torn or missing;
3. Please keep children away when unfolding and folding the product to avoid injury;
4. This High Chair is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg.

Child chair 3Y - 14Y/60kg

Our products have been carefully designed and tested to ensure your baby's safety and comfort. EN 17191: 2021 Seating for children.

WARNING:

• Never leave the child unattended.
• DO NOT place this product near a window as it can be used as a step by the child and cause the child to fall out of the window.
- Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• DO NOT place this product near a window where cords from blinds or curtains could strangle a child.

Additional information

1. This seating is intended for children

capable to walk and sit unaided under 14 years old.

1. All assembly fittings should always be tightened properly
2. Do not to use the seating if any part is broken, torn or missing and use only spare parts approved by the manufacturer
3. Restraint system shall be removed/hidden/covered (as applicable) when the product is used as a seating.

Adult chair 14Y+ / 110kg

Our products have been carefully designed and tested to ensure safety and comfort. EN12520:2016.

Product care advice

- The product must be maintained regularly to provide full satisfaction. We advise you to check and if necessary

clean mechanical parts every fortnight.

• Do not force it if it becomes difficult to fold it up or unfold it. Clean the product. If difficulties persist, contact your supplier.
• Caring: Use a sponge and mild soap. Do not use detergent.
• For washing the garment, please consult the instruction label.

Environment

For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

Please contact your local distributor or visit our website. When doing so please have the following information to hand:

• Serial number
• Age (height) and weight of your child.

Warranty

Our 24 months warranty reflects our confidence in the high quality of our design, engineering, production and product performance. We confirm that this product was

manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects on materials and workmanship at the time of purchase. Under the conditions mentioned herein, this warranty may be invoked by consumers in the countries where this product has been sold by a subsidiary of the Dorel Group or by an authorized dealer or retailer.

Our 24 months warranty covers all manufacturing defects in materials and workmanship when used in normal conditions and in accordance with our user manual for a period of 24 months from the date of the original retail purchase by the first end-user customer. To request repairs or spare parts under our warranty for defects in materials and workmanship you must present your proof of purchase, made within the 24 months preceding the service request.

Our 24 months warranty does not apply to defects caused by normal wear and tear, damage caused by accidents, abusive use, negligence, fire, liquid contact or other external cause, damage which is the consequence of failing to comply with the user manual, damage caused by use with another product, damage caused by service by anyone who is not authorized by us, or if the product is stolen or if any label or identification number has been removed from the product or has been changed. Examples of normal wear and tear include wheels and fabric worn down by regular use and the natural breakdown of colors and materials due to normal aging of the product.

What to do in case of defects:

Should problems or defects arise, your first point of contact is the authorized dealer or retailer recognized by us. Our 24 months warranty is recognized by them (1). You must present your proof of purchase, made within the 24 months preceding the service request. It is easiest if you get your service request pre-approved by us. If you submit a valid claim under this warranty, we may request that you return your product to the authorized dealer or retailer recognized by us or that you ship the product to us in accordance with our instructions. We will pay for shipment and for return freight if

all instructions are followed. Damage and/ or defects neither covered by our warranty nor by the legal rights of the consumer and/ or damage and/or defects with respect to products that are not covered by our warranty can be handled at a reasonable fee.

Rights of the consumer:

A consumer has legal rights pursuant to applicable consumer legislation, which may vary from country to country. The rights of the consumer under applicable national legislation are not affected by this warranty.

This warranty is provided by Dorel Netherlands. We are registered in The Netherlands under company number 17060920. Our trading address is Korendijk 5, 5704 RD Helmond, The Netherlands, and our postal address is P.O. Box 6071, 5700 ET Helmond, The Netherlands.

The names and address details of othersubsidiaries of the Dorel group can befound on the last page of this manual andon our website for the brand concerned.

Products purchased from retailers or dealers that remove or change labels or identification numbers are considered unauthorized. Products purchased from unauthorized retailers are also considered unauthorized. No warranty applies to these products since the authenticity of these products cannot be ascertained.

SÉCURITÉ

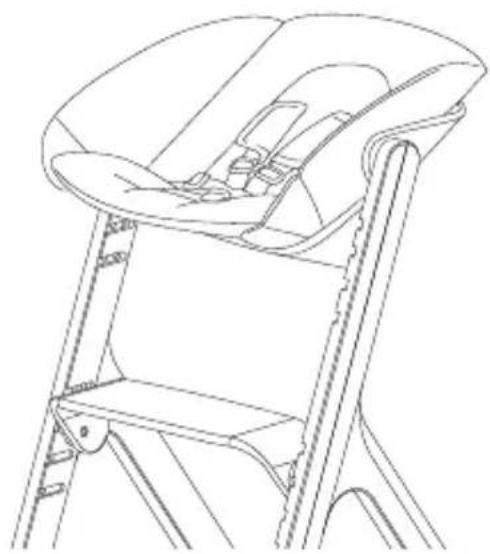

Transat 0M - 6M/9kg

Additional information

Four identical circular icons showing a stylized human figure in motion, no text or symbols present.

Four identical circular icons showing a stylized human figure in motion, no text or symbols present.

Four identical icon set of a stylized human figure in motion, no text or symbols present

Four identical circular icons showing a stylized human figure in motion, no text or symbols present.

Toote hooldamine

Four identical circular icons showing a stylized human figure, no text or symbols present.

The word SAFETY was missing in previous versions. Please verify this translation.

أمان

Please indicate how to correctly delete the date (June 2009)

تحذير:

2nd Floor, Building 4

Imperial Place

Maxwell Road

Borehamwood, Herts

WD61|N

UNITED KINGDOM

DOREL GERMANY GMBH

DOREL POLSKA Sp. z o.o.

ul. Inwestycyjna 14

41-208 Sosnowiec

POLAND
