Brand	Beko
Model	VCC34802 AB
Product type	Vacuum cleaner with bag
Power	800 W
Supply voltage	220-240 V ~ 50-60 Hz
Noise level	80 dB(A)
Dust bag capacity	3.5 L (estimated)
Filter type	HEPA filter and motor protection filter
Power cord length	6 m (estimated)
Weight	5.0 kg (estimated)
Dimensions (L x D x H)	40 x 25 x 30 cm (estimated)
Telescopic tube	Yes
Hard floor brush	Yes, special brush for parquet/hard floors
Carpet brush	Yes, adjustable brush parquet/carpet
Power adjustment	Manual (button on the appliance and control on the handle)
Cable rewinder	Yes, rewind button
Bag fill indicator	Yes, fill indicator light
Included accessories	Suction nozzle, furniture brush, dusting brush, flat crevice tool
Intended use	Household
Maintenance	Dust bag replacement, filter washing (drying at least 24 hours)
Safety	Do not vacuum liquids, unplug before maintenance, use original parts

Frequently Asked Questions - VCC34802 AB BEKO

How to change the dust bag?

Press the compartment opening lock (8) to open the top cover. Remove the full bag by sliding it upward. Insert a new bag following the arrow direction. Close the cover without forcing.

How to clean the HEPA filter?

Open the filter cap by lifting in the direction of the arrow. Remove the HEPA filter by its handle. Shake it to remove dust, then wash it under cold water on the clean side. Let it dry at room temperature for at least 24 hours before replacing it.

How often should the filters be cleaned?

The filters should be cleaned after approximately 5 dust bag changes. This frequency may vary depending on usage.

How to adjust the suction power?

You can use the adjustment button (13) on the appliance: turn clockwise to increase power. On the handle, push the adjustment control (2) forward to temporarily reduce power.

How to use the parquet brush?

The parquet brush (16) is designed for hard floors (tile, parquet). It has special fibers to prevent scratches. Attach it to the telescopic tube and set the lock to the hard floor position.

What to do if the fill indicator turns red?

If the fill indicator (11) shows a red area of more than 50%, replace the dust bag. A full bag reduces performance.

How to store the vacuum cleaner?

Turn off the appliance and unplug it. Rewind the cable by pressing the rewind button (12). Use the storage hook on the back of the appliance to secure the brush. Store it in a dry place out of reach of children.

Can you vacuum liquids with this vacuum cleaner?

No, never vacuum liquids or damp substances. This could damage the appliance and pose an electrical risk.

How to assemble the telescopic tube?

Attach the telescopic tube (4) to the handle (1). To adjust the length, push the adjustment lock (5) in the direction of the arrow and slide the tube.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its authorized service or a qualified person to avoid any danger.

USER MANUAL VCC34802 AB BEKO

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-12
DEUTSCH	13-23
FRANÇAIS	24-33
ESPAÑOL	34-45
ROMANIAN	46-57
ITALIANO	58-68
POLSKI	69-79
SLOVENŠČINA	80-89
ČESKY	90-99
BULGARIAN	100-109
MAGYAR	110-119
NEDERLANDS	120-129

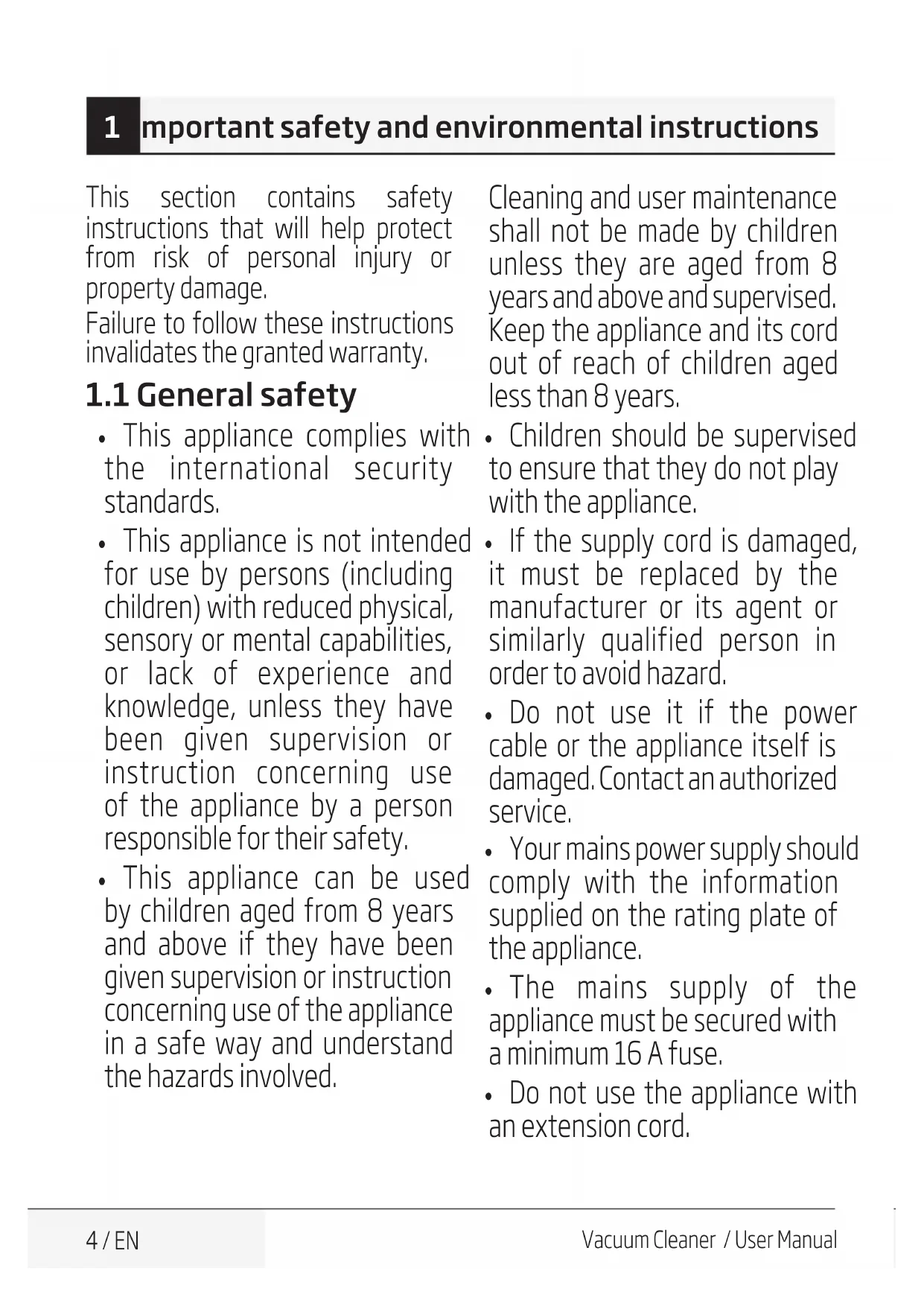

1 important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

- This appliance complies with the international security standards.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children should be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

- Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

- The mains supply of the appliance must be secured with a minimum 16 A fuse.

- Do not use the appliance with an extension cord.

1 Important safety and environmental instructions

• In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.
• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.
• Do not use the appliance without filters; otherwise it can get damaged.
• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.
• When vacuuming the stairs, the appliance should be located below the user.

1 Important safety and environmental instructions

- If your store the package1.4 Package information

material, keep it out of the reach of children.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

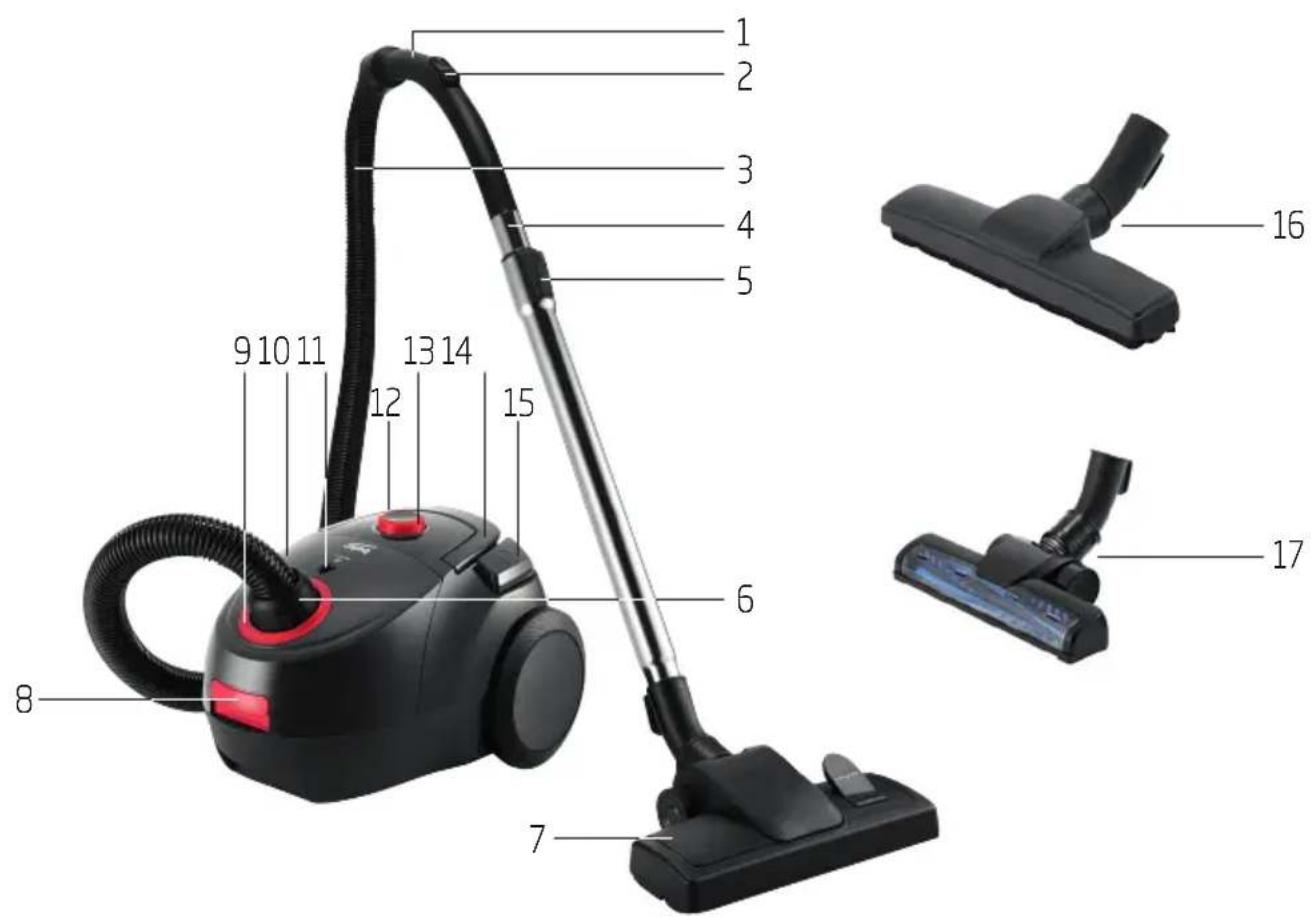

2.1 Overview

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

1. Handle
2. Vacuum adjustment control
3. Hose
4. Telescopic tube
5. Telescopic tube adjustment latch
6. Suction nozzle
7. Parquet/carpet brush
8. Dust container opening latch
9. Hose cap
10. Top lid
11. Dust indicator
12. Power cable winding button
13. Suction power adjustment knob
14. Carriage handle
15. On/Off button
16. Parquet/hard floor brush (VCC34802AB)
17. Turbo brush (VCC34803AD)

2.2 Technical data

Power : 800W

Supply voltage : 220-240V\~, 50-60Hz

Sound level : 80 dbA

Dust capacity : 2.1L

Operating radius : 7.5 m

Dust collecting

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Attaching/removing the hose

1. Insert the hose in the coupling on the appliance and press as far as it will go.
2. To remove the hose press the buttons on the sides of the hose.

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (4) to the handle (1).
2. Pull the telescopic tube (4) from the handle (1) to remove it.
3. Push the telescopic adjustment latch (5) in the arrow direction and pull the telescopic tube (4) to adjust its length.

Close-up of a cylindrical mechanical component with a small protrusion and an arrow indicating direction (no text or symbols)

3.4 Attaching/removing the parquet/carpet brush

You can install/remove the narrow end of the telescopic tube (4) from/to the parquet/carpet brush (7).

3.5 Adjusting the parquet/ carpet brush

Perform the following actions on the adjustment latch located on the parquet/carpet brush (7);

• Use "position for hard floors and parquet.

- Use "" position for rugs and carpets.

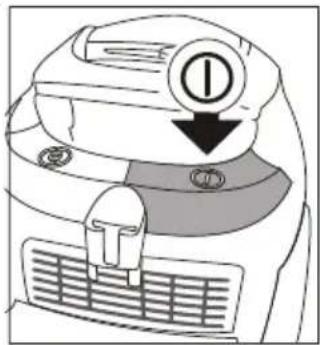

3.6 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.
2. Press the on/off button (15) to switch on your appliance.

Diagram of a car interior with labeled parts and directional arrow, likely indicating vehicle positioning or movement.

3 Usage

3.6.1 Adjusting the suction power

1. You can adjust the suction power using the suction power adjustment knob (13) found on the appliance. Rotating in the clockwise direction will increase the suction power and in counterclockwise direction will decrease the suction power.
2. You can lower the suction power of the parquet carpet brush by pulling backward the vacuum adjustment control (2) located on the handle (1) without the need to use the suction power adjustment knob (13) found on the appliance.

3.6.2 Dust indicator

Dust indicator (11) indicates the fullness of the dust bag. When the indicator displays red zone more than 50%, replace the dust bag. (see 4.1).

3.7 Accessories

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Dust brush

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Suitable for cleaning the curtains, and sensitive and fragile objects.

Crevice tool

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

WARNING: Do not perform cleaning tasks using the end part of the handle (1).

3.8 Additional brushes

3.8.1 Parquet/Hard floor brush (VCC34802AB)

The hard floor brush (16) was developed for use on hard floors such as tile, ceramic, parquet, wooden floors etc.

It prevents potential scratches while cleaning hard floors thanks to its specially-developed soft hair.

3.8.2 Turbo brush (VCC34803AD)

The turbo brush (17) allows you to clear the hair on carpets in a faster and more efficient way. Thus you can even remove the hair -which is hard to remove such as dog hair or cat hair- easily.

3 Usage

3.9 Switching off and parking the appliance

1. Switch off the appliance with the on/off button (15) and unplug it.
2. Wind the power cable by pressing the power cable winding button (12).

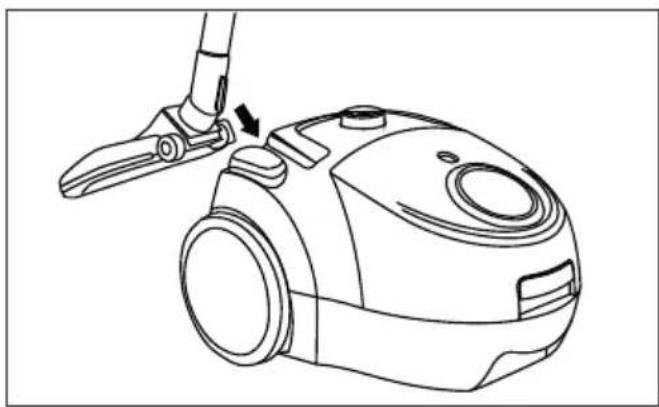

Vertical parking feature

Insert the parking hook of the parquet/carpet brush into the parking groove located at the bottom section of the appliance.

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

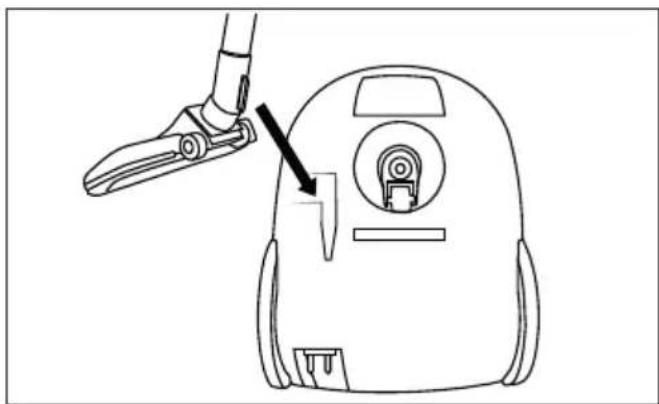

Horizontal parking feature

Insert the parking hook of the parquet/carpet brush into the parking groove located at the rear section of the appliance.

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

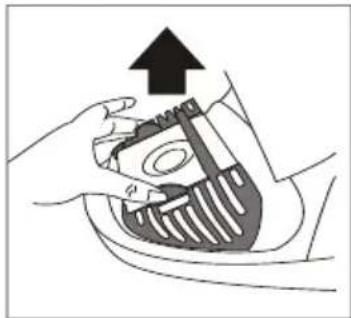

4.1 Replacing the dust bag

1. Open the top lid by pressing the dust container opening latch (8).
2. Remove the full dust bag from its guide, sliding it in upwards direction.

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

1. Dispose the full dust bag.

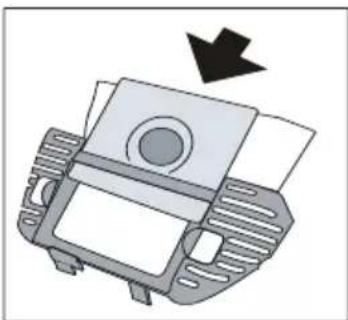

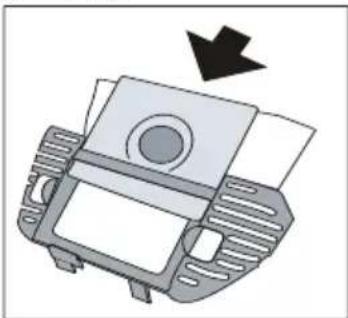

2. Insert the new dust bag holding it in the arrow direction indicated on it. Ensure that it is fully seated.

Diagram of a car interior showing a vehicle with a circular component and directional arrow (no text or symbols)

1. Close the appliance's top lid (10).

WARNING: Do not force the top lid (10) to close it, otherwise the plastic sections can be damaged.

WARNING: Dust bags purchased from locations other than the authorized dealers and services are not original. Unoriginal dust bags have a lesser quality and they become torn in a shorter period and render your appliance nonoperational. Faults caused due to using unauthentic dust bags are not covered within the warranty.

WARNING: Do not wash the dust bag.

4.2 Cleaning the filters

Simple geometric shape with a vertical line and a rounded corner (no text or symbols)

Motor Protection Filter

HEPA filter

After each 5 dust bag replacement (may vary depending on the frequency and area of usage), clean the filters.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

4 Cleaning and care

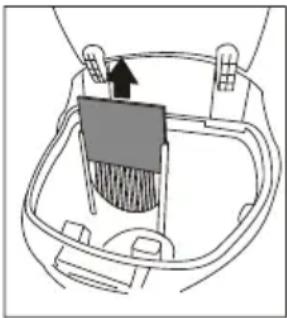

4.2.1 Motor protection filter

1. Open the top lid by pressing the dust container opening latch (8).
2. Press down on the latch of the filter cassette to remove the cassette.
3. Remove the motor protection filter from the cassette inside.

Diagram of a hand holding a container with a brush and arrow indicating direction (no text or symbols)

1. After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.2.2 HEPA filter

1. Raise the filter cap in the arrow direction to open it.
2. Remove the HEPA filter by pulling it from its handle.
3. Shake off the HEPA filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
4. If you wash the HEPÄ filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with a small protrusion and an arrow indicating direction (no text or symbols)

Diagram of a car interior with labeled parts and directional arrow, likely indicating vehicle positioning or movement.

3 Nutzung

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Line drawing of a robotic arm gripping a small device (no text or symbols)

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Simple geometric shape with a vertical line and rounded corners (no text or symbols)

Motorschutzfilter

HEPA-Filter

Diagram of a hand holding a container with a brush inside, showing internal structure and arrows indicating movement (no text or symbols)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car hood with labeled parts and a numbered circle indicating a specific component or location.

3 Utilisation

Technical line drawing of a mechanical component with threaded end (no text or symbols)

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Accessoire de rangement horizontal

Line drawing of a robotic arm gripping a small device (no text or symbols present)

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

Diagram of a car front panel with a black arrow indicating direction (no text or symbols)

Simple geometric shape with a vertical line across its center (no text or symbols)

Diagram of a hand holding a container with a lid and an arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

3.3 Acoplamiento/retirada del tubo telescópico

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car hood with labeled parts and a numbered circle indicating a specific component or location.

3 Uso

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Illustration of a hand holding an electric heart device with an upward arrow indicating pressure or force (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Simple geometric shape with a vertical line across its base (no text or symbols)

Diagram of a hand holding a plastic bag with an arrow indicating force or movement (no text or symbols present)

Line drawing of a vacuum cleaner with a black arrow pointing to the handle (no text or symbols)

3.3 Ataşarea/detaşarea tubului telescopic

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car interior with labeled parts and directional arrow, likely indicating vehicle positioning or movement.

3 Utilizare

3.6.1 Reglarea puterii de aspirare

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Illustration of a hand holding a heart-shaped device with an upward arrow, no text or symbols present

Diagram of a car interior showing a vehicle with a circular component and directional arrow (no text or symbols)

Simple geometric shape with a vertical line across its base (no text or symbols)

Filtrul de protectie al motorului

Filtru HEPA

Diagram of a hand holding a container with a brush and arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car interior with a numbered circular component and directional arrow (no text or symbols)

3 Uso

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Illustration of a hand holding a heart-shaped device with an upward arrow indicating pressure or force (no text or symbols present)

Mechanical component diagram showing a housing with a downward arrow indicating force or direction (no text or symbols present)

Simple geometric shape with a vertical line and a rounded rectangle, no text or symbols present.

Diagram of a hand cleaning a car interior with a brush and handle (no text or symbols)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car interior with labeled parts and directional arrow, showing numbered items and a valve symbol.

3 Użytkowanie

Technical line drawing of a mechanical component with threaded end (no text or symbols)

Pure geometric line drawing of a symmetrical shape with no text or symbols

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

Mechanical component diagram showing a housing with a downward arrow indicating force or direction (no text or symbols present)

Simple geometric shape with a vertical line and rounded corners, no text or symbols present.

Diagram of a hand holding a container with a brush and arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no text or symbols visible)

Diagram of a car interior with labeled parts and directional arrow, likely indicating vehicle positioning or movement.

3 Uporaba

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

1. Polno vrečko za prah vrzite v smeti.
2. Vstavite novo vrečko za prah v označeni smeri puščice. Prepričajte se, da je popolnoma pritrijena na mestu.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

1. Zaprite zgornji pokrov naprave (10).

Simple geometric shape with a vertical line and a flat top (no text or symbols)

Diagram of a hand holding a container with a griddle and an arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a car interior with labeled parts and directional arrow, showing a vehicle's front panel and door.

3 Použití

Technical line drawing of a mechanical component with threaded end (no text or symbols)

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand operating the blade (no text or symbols)

4 Čištění a péče

Illustration of a hand holding a medical device with an upward arrow indicating force or pressure (no text or symbols present)

Diagram of a car interior showing a vehicle with a circular component and directional arrow (no text or symbols)

Simple geometric shape with a vertical line and rounded corners (no text or symbols)

Filtr na ochranu motoru

HEPA filtr

Diagram of a hand holding a cleaning board inside a car trunk, with an arrow indicating the handle (no text or symbols present)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car interior with labeled parts and directional arrow (no readable text or symbols)

3 Употреба

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a curved top and internal lines, no text or symbols present.

Line drawing of a vacuum cleaner with a handle and valve, showing mechanical components (no text or symbols)

Line drawing of a small vacuum cleaner with a handle and control panel, showing no text or symbols

Illustration of a hand holding a heart-shaped device with an upward arrow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Simple geometric shape with a vertical line and rounded corner (no text or symbols)

Diagram of a hand holding a brush inside a container with a brush inside (no text or symbols)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Illustration of a car front bumper with a numbered circular badge and warning symbol (no text or labels)

3 Felhasználás

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Illustration of a hand holding a medical device with an upward arrow indicating force or pressure (no text or symbols present)

Diagram of a car interior showing a vehicle with a circular component and a downward arrow indicating motion (no text or symbols)

Diagram of a hand holding a container with a brush and arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car hood with labeled parts and a numbered circle indicating a specific component or feature.

3 Gebruik

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Line drawing of a small vacuum cleaner with a handle and control panel, showing no text or symbols

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Diagram of a hand holding a cleaning brush inside a container, with an arrow indicating the brush's direction (no text or symbols present)

Abstract geometric design with blue triangular shapes on white background (no text or symbols)
