USER MANUAL BFBF3018SSIML BEKO

Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references. This manual t8JMMIFMQZPVVTFZPVSBQQMJBODFJOBGBTUBOETBGFXBZ t3FBEUIFNBOVBMCFGPSFJOTUBMMJOHBOEPQFSBUJOHZPVSQSPEVDU t'PMMPXUIFJOTUSVDUJPOTFTQFDJBMMZUIPTFGPSTBGFUZ t,FFQUIFNBOVBMJOBOFBTJMZBDDFTTJCMFQMBDFBTZPVNBZOFFEJUMBUFS t#FTJEFTSFBEBMTPUIFPUIFSEPDVNFOUTQSPWJEFEXJUIZPVSQSPEVDU Please note that this manual may be valid for other models as well. Symbols and their descriptions This instruction manual contains the following symbols: C Important information or useful tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage.EN

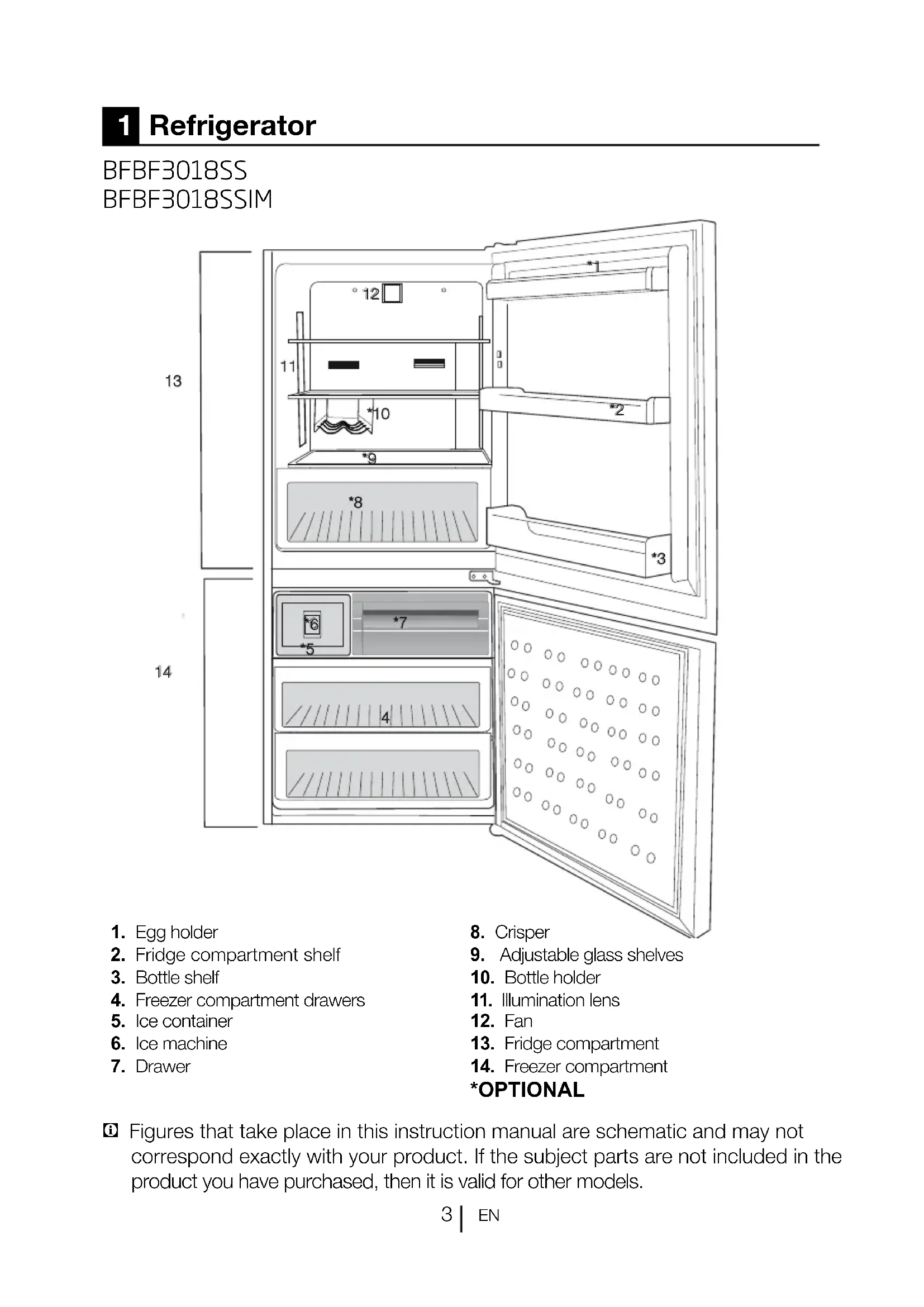

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. 1 Refrigerator

2. Fridge compartment shelf

4. Freezer compartment drawers

9. Adjustable glass shelves

13. Fridge compartment

14. Freezer compartment

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2. Fridge compartment shelf

4. Freezer compartment drawers

9. Adjustable glass shelves

13. Fridge compartment

14. Freezer compartment

2 Important Instructions Regarding Safety and Environment This chapter contains safety information that will help you avoid the risk personal injury or property damage. Failure to follow these instructions shall render any product warranty void. Intended use

,FFQWFOUJMBUJPOPQFOJOHT in the appliance enclosure or in the built-instructure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. General Safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Failure to follow the instructions and uncontrolled use of the product lead to dangerous results!

• Unplug the product if you encounter a failure during use.

• If the product malfunctions, it must not be operated until repaired by the authorised service provider. Risk of electric shock!

• Plug the product into a grounded socket protected by a fuse that corresponds to the value on its nameplate. Have a qualified electrician ground the product. Our company cannot be held responsible for damages resulting from the failure to use the product with a grounded socket pursuant to local regulations.

• Unplug the product when not in use.

• Never wash the product by spreading or pouring water onto it! Risk of electric shock!

• Never touch the plug with wet hands!EN

• Never unplug the product by pulling the cable. Always pull the plug by holding the socket.

• Do not plug the refrigerator if the wall socket is loose.

• Never connect your refrigerator to energy saving devices. Such systems are harmful to your product.

• Unplug the product during installation, care, cleaning and repairing procedures.

• Always have the Authorised Service Provider install the product and establish its electrical connections. The manufacturer cannot be held responsible for damages caused by procedures performed by unauthorised persons.

• Do not eat cone ice cream or ice cubes immediately after you take them out of the freezer compartment! This may cause frostbite in your mouth!

• Do not touch frozen food with wet hands! They may stick to your hand!

• Do not put bottled or canned liquid beverages in the freezer compartment. They may burst!

• Never use steam or steam cleaners to clean or defrost the refrigerator. Steam gets into contact with the live parts in your refrigerator, causing short circuit or electric shock! t WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. t WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.

• Never use the parts in your refrigerator such as the door and drawer as a means of support or step. This may cause the product to tip over or damage the parts of it.

• Do not damage the parts where the refrigerant is circulating with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation holes in your refrigerator with any object.

• Place the beverage with higher proofs tightly closed and vertically.

• Do not use gaseous sprays near the product since there is the risk or fire or explosion!

• Flammable items or products that contain flammable gases (e.g. spray) as well as explosive materials should never be kept in the appliance.EN

• Do not place vessels filled with liquid onto the product. Splashing water on an electrical part may cause electric chock or the risk of fire.

• Do not store items that need precise temperature adjustment (such as vaccines, heat-sensitive medication, science materials etc.) in the refrigerator.

• If you are not going to use the product for a long time, unplug it and remove the food in it.

• If there is a blue light on the refrigerator, do not look at this light with optical tools.

• Exposing the product to rain, snow, sun or wind is dangerous in terms of electrical safety.

• In products with mechanical control (thermostat), wait for 5 minutes to plug in the product again after unplugging.

• Do not overload the refrigerator. Objects in the refrigerator may fall down when the door is opened, causing injury or damage. Similar problems may arise if any object is placed onto the product.

• If the product has a door handle, do not pull the handle when re-locating the product. The handle might be loose.

• Be careful not to jam your hand or any other body part in the moving parts of the refrigerator.

• Do not put your hand or any other foreign materials into the ice machine while it is operating. Hydrocarbon (HC) Warning

• If your product’s cooling system contains R600a: This gas is flammable. Therefore, pay attention not to damage the cooling system or the piping during use and transportation. If damaged, keep the product away from potential fire sources that may cause it to catch fire and ventilate the room where the product is placed.

If the product is damaged and if you see gas leak, please keep away from the gas. It may cause frostbite when it gets into contact with the skin. (including R134)

Ignore this warning if the cooling system of your product contains R134a.

Type of gas used in the product is stated on the type plate which is on the left wall inside the refrigerator.

Never throw the product into fire for disposal. For Products with a Water Dispenser/Ice Machine

• Pressure for cold water inlet shall be maximum 90 psi (620 kPa). If your water pressure exceeds 80 psi (550 kPa), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.

• If there is a risk of water impact in your installation, always use aEN

water impact protection equipment in that installation. Please consult professional plumbers if you are not sure if there is water impact in your installation.

• Do not make installation on the hot water inlet.

• Use drinking water only.

• Take the necessary measures against the freezing risk of the hoses. The water temperature operating range must be 0.6°C (33°F) minimum and 38°C (100°F) maximum.

Never connect the product to a cold water mains with a pressure of 550 kPa (80 psi) or above. Intended Use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.

• It must be used only for storing food.

• The manufacturer will not take any responsibility for damages resulting from improper use or transport.

• Original spare parts will be available for 10 years after the purchase date of the product. Children’s Safety

• If there is a lock on the door of the product, the key should be kept out of the reach of children.

• Do not let children play with the product.

• Children may get locked inside.

• Leave the shelves to prevent children from getting inside the product easily. Compliance with the WEEE Directive and Disposing the Waste Product: This product conforms to the EU WEE Directive (2012/19 EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured from high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste or other waste at the end of its service life. Take it to a collection centre for recycling electrical and electronic equipment. Please consult local authorities to learn about the locations of such collection centres.EN

Compliance with the RoHS Directive: The unit you have purchased conforms to the EU RoHS Directive (2011/65/EU). It does not contain harmful or prohibited materials specified in the Directive. Packaging Information

• Packaging materials of the product have been manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose the packaging materials with normal domestic waste or other types of waste. Take these materials to a recycling point designated by local authorities. Recommendations for the fresh food compartment *May not be available in all models Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food. Do not place hot foods in the product.

Risk of Fire or Explosion:

• This product uses flammable refrigerant.

• Do not use mechanical devices to defrost the refrigerator.

• Do not use chemicals for cleaning.

• Do not pierce the refrigerant pipe.

• If the refrigerant pipe is pierced, it must be repaired only by licensed service personnel.

• Please consult the repair/user manual before cleaning the product. All safety instructions must be followed.

• Dispose the product according to federal or local regulations.EN

Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Environmental instructions Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.EN

3 Installation B Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed. Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be

emptied and cleaned prior to any transportation.

2. Shelves, accessories, crisper and etc.

in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the rules of transportation printed on the package must be followed. Please do not forget… Every recycled material is an indispensable source for the nature and for our national resources. If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities. Before operating your refrigerator #FGPSFTUBSUJOHUPVTFZPVSSFGSJHFSBUPS check the following:

1. Is the interior of the refrigerator dry

and can the air circulate freely in the rear of it?

2. Please keep 50 mm distance

between the backside of the refrigerator and the wall”

3. Clean the interior of the refrigerator as

recommended in the “Maintenance and cleaning” section.

4. Plug the refrigerator into the wall

outlet. When the fridge door is open, the fridge compartment interior light will come on.

5. You will hear a noise as the

compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6. Front edges of the refrigerator may

feel warm. This is normal. These areas are designed to be warm to avoid condensation. Electric connection Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important: t 5IFDPOOFDUJPONVTUCFJO compliance with national regulations. t 5IFQPXFSDBCMFQMVHNVTUCFFBTJMZ accessible after installation. t 5IFTQFDJGJFEWPMUBHFNVTUCFFRVBM to your mains voltage. t &YUFOTJPODBCMFTBOENVMUJXBZQMVHT must not be used for connection. B A damaged power cable must be replaced by a qualified electrician. B Product must not be operated before it is repaired! There is danger of electric shock!EN

Disposing of the packaging The packing materials may be EBOHFSPVTGPSDIJMESFO,FFQUIF packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not dispose of them along with the normal household waste. The packing of your refrigerator is produced from recyclable materials. Disposing of your old refrigerator Dispose of your old refrigerator without giving any harm to the environment. t You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator. #FGPSFEJTQPTJOHPGZPVSSFGSJHFSBUPS cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger. Placing and Installation A If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that

2. ,FFQZPVSSFGSJHFSBUPSBXBZGSPNIFBU

sources, humid places and direct sunlight.

3. Place your refrigerator on an even

floor surface to prevent jolts.

4. Your product requires adequate air

circulation to function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls.

5. If the product will be placed in an

alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls. Check if the rear wall clearance protection component is present at its location (if provided with the product). If the component is not available, or if it is lost or fallen, position the product so that at least 5 cm clearance shall be left between the rear surface of the product and the wall of the room. The clearance at the rear is important for efficient operation of the product.

6. If the floor is covered with a carpet,

your product must be elevated 25 mm from the floor.EN

Connecting the water hose to the refrigerator

1. Slip the union (b) onto the water

2. Push the water hose downwards

firmly to slip it onto the water inlet valve (c).

3. Tighten the union (c) by hand to

secure it onto the water inlet valve. C Normally, you are not required to tighten the union with a tool. However, you can use a spanner or pliers to tighten the union if there is a leakage Connecting the water line to the water supply Connect the water line to a water sup- ply valve. If a valve is not present or you are not sure, consult a qualified plumber. Adjusting the legs If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process. Changing the illumination lamp

5PDIBOHFUIF#VMC-&%VTFEGPS

illumination of your refrigerator, call your Authorized Service. Changing the door opening direction A This product's doors could not be reversible.EN

4 Preparation C Your refrigerator should be installed at least 300 mm away from heat sources such as hobs, ovens, central heater and stoves and at least 50 mm away from electrical ovens and should not be located under direct sunlight. C The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency. C Please make sure that the interior of your refrigerator is cleaned thoroughly. C If two refrigerators are to be installed side by side, there should be at least 20 mm distance between them. C When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours. - The door should not be opened frequently. - It must be operated empty without any food in it. - Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section. C Original packaging and foam materials should be kept for future transportations or moving. CSince hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.EN 15EN

5 Using your refrigerator Indicator panel Indicator panels may vary according to the product model. Audio – visual functions on the indicator panel helps you in using your product.

1. Fridge Compartment Indicator

6. Compartment selection button

7. Freezer compartment indicator

indicator *optional C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.EN

1. Fridge compartment indicator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -8 °F… 5 °F(-22°C... -15°C) and 46 °F… 33 °F (8°C...1°C)

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18°C / 0°F.

9. Vacation function indicator

Indicates that vacation is activated.

10. *Automatic Ice Machine Off/On

indicator This symbol appears on the display when Ice Off function is activated.

Sabbath Mode: *OPTIONAL Press Select and Set buttons simultaneously for 3 seconds. PS and 0 alternates on the display. Press the “Set” button nine times to select “9” and Press “Select” to confirm “9”. Than, the display shows SA. Sabbath mode is activated. The display does not work in Sabbath mode, no door open alarm is given, lightings will not work. The cooling algorithm specific to the Sabbath is activated. In sabbath mode, User must press the select and set keys simultaneously for 3 sec to deactivate the Sabbath mode. After 72 hours, the Sabbath Mode ends automatically unless the user deactivate itself.! both at the same time 3 sec. PressEN

Freezer Compartment Adjustment Fridge Compartment Adjustment Explanations -18°C/0°F 4°C/39ºF. This is the normal recommended setting. -20°C/-4°F 3°C/37°F. These settings are recommended when the ambient temperature exceeds 86°F/30°C. Quick Freeze 4°C/39°F. Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over. -18°C/0°F or colder 3°C/37°F. If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door. -18°C/0°F or colder Quick Fridge You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food. -15°C/5°F 4°C/39°F Use this freezer setting if you are using freezer compartment mainly ice-cream storage. Recommended Using Temparature: FF: 4°C /40 °F Frz : -18°C/0 °F Door Open Warning *May not be available in all models An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.EN

Freezing fresh food t It must be preferred to wrap or cover the food before placing them in the refrigerator. t Hot food must cool down to the room temperature before putting them in the refrigerator. t The foodstuff that you want to freeze must be fresh and in good quality. t Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs. t The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time. t Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy- to-use materials that are suitable for deep freeze usage. t Frozen food must be used immediately after they are thawed and they should never be re-frozen. t Please observe the following instructions to obtain the best results.

1. Do not freeze too large quantities

of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling system to operate continuously until the food is frozen solid.EN

1. Take special care not to mix already

frozen food and fresh food. Recommendations for preservation of frozen food t Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ( 4 star) frozen food storage compartment. t To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packages in the freezer as quickly

as possible after purchase.

2. Ensure that contents are labeled and

#FGPSFEBUFTPOUIFQBDLBHJOH Defrosting The freezer compartment defrosts automatically. Placing the food Freezer compartment shelves Various frozen food such as meat, fish, ice cream, vegetables and etc. Egg tray Egg Fridge compartment shelves Food in pans, covered plates and closed containers Fridge compartment door shelves Small and packaged food or drinks (such as milk, fruit juice and beer) Crisper Vegetables and fruits Freshzone compartment Delicatessen products (cheese, butter, salami and etc.) WARNING!

t Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs. t Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time. t Materials necessary for packaging: t Cold resistant adhesive tape t Self adhesive label t Rubber rings t Pen Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids. Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing. Frozen food must be used immediately after they are thawed and they should never be re-frozen.EN

Egg section You can place the egg section in any of the door shelves. If it is going to be placed in the body, the lower shelves are recommended due them being cooler. Never store eggs in the freezer compartment. Avoid direct contact between eggs and other foods. Blue light *May not be available in all models Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content. Ice Machine (in some models) Auto Ice machine system allows you to obtain ice from the refrigerator easily. After the water system pipe connection will be done, the ice can be taken from the ice drawer. First ice cubes will be ready in approximately 2 hours in the Ice machine drawer located in the freezer compartment. Do not put water in it to make ice as it may break. The ice container is not used for storing foods.EN

Description and cleaning of odor filter *May not be available in all models Odor filter prevents unpleasant odor build-up in your refrigerator. Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated. -FBWFUIFGJMUFSVOEFSTVOMJHIUGPSPOF day. Filter will be cleaned during this time. Install the filter back to its place. Odor filter must be cleaned once in a year. Humidity Controlled Crisper (EverFresh+) *optional Humidity controlled crisper feature keeps the humidity of vegetables and fruits under control and allows keeping the food fresh for a much longer time. We recommend you to place vegetables with leaves such as lettuce, spinach and vegetables vulnerable to humidity loss not vertical on their roots but horizontal in the crispers. While placing the vegetables consider their weight and place the heavy and solid vegetable to the bottom, light and soft vegetables to the top. Do not leave vegetables within QMBTUJDCBHTJOUIFDSJTQFST-FBWJOH vegetables in plastic bags will make them spoil in a very short time. If it is required to separate vegetables for hygienic purposes, then use porous paper packing materials instead of plastic bags. Do not place fruits, mainly apple and also pear, apricot, peach etc. which produce ethylene gas together with other vegetables-fruits in the same crisper. The ethylene produced by these fruits will cause other vegetables-fruits to mature rapidly and then cause them to spoil in a shorter time.EN

6 Maintenance and cleaning ANever use gasoline, benzene or similar substances for cleaning purposes. BWe recommend that you unplug the appliance before cleaning. BNever use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. CUse lukewarm water to clean the cabinet of your refrigerator and wipe it dry. CUse a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. BMake sure that no water enters the lamp housing and other electrical items. BIf your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. CCheck door seals regularly to ensure they are clean and free from food particles. ATo remove door racks, remove all the contents and then simply push the door rack upwards from the base. ANever use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces. ADo not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry. Protection of plastic surfaces C Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.EN

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.

• The fuse connected to the socket po- wering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product’s door too frequently.

• The environment is too humid. >>> Do not install the product in humid envi- ronments.

• Foods containing liquids are kept in un- sealed holders. >>> Keep the foods containing liquids in sealed holders.

• The product’s door is left open. >>> Do not keep the product’s door open for long periods.

• The thermostat is set to too low tempe- rature. >>> Set the thermostat to app- ropriate temperature. Compressor is not working.

• In case of sudden power failure or pul- ling the power plug off and putting back on, the gas pressure in the product’s co- oling system is not balanced, which trig- gers the compressor thermic safegu- ard. The product will restart after appro- ximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.

• The product is not plugged in. >>> Make sure the power cord is plugged in.

• The temperature setting is incorrect. >>> Select the appropriate temperatu- re setting.

• The power is out. >>> The product will continue to operate normally once the power is restored. The refrigerator’s operating noise is increasing while in use.

• The product’s operating performan- ce may vary depending on the ambient temperature variations. This is normal and not a malfunction. The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.

• The room temperature may be high. >>> The product will normally run for long periods in higher room tempera- ture.

• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when re- cently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.EN

• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.

• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the was- her. Damaged / torn door washer will ca- use the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate.

• The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The cooler temperature is very low, but the freezer temperature is adequate.

• The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The food items kept in cooler compartment drawers are frozen.

• The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The temperature in the cooler or the freezer is too high.

• The cooler compartment temperatu- re is set to a very high degree. >>> Temperature setting of the cooler com- partment has an effect on the tempe- rature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer com- partments.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.

• The door may be ajar. >>> Fully close the door.

• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set tem- perature when recently plugged in or a new food item is placed inside.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

• Any items placed on the product may cause noise. >>> Remove any items placed on the product. The product is making noise of liquid flowing, spraying etc.

• The product’s operating principles in- volve liquid and gas flows. >>> This is normal and not a malfunction. There is sound of wind blowing coming from the product.

• The product uses a fan for the cooling process. This is normal and not a mal- function. There is condensation on the product’s internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.EN

• The door may be ajar. >>> Fully close the door. There is condensation on the product’s exterior or between the doors.

• The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced. The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.

• Certain holders and packaging materi- als may cause odour. >>> Use holders and packaging materials without free of odour.

• The foods were placed in unsealed hol- ders. >>> Keep the foods in sealed hol- ders. Micro-organisms may spread out of unsealed food items and cause malo- dour. Remove any expired or spoilt foods from the product. The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.

• The product is not standing in full up- right position on the ground. >>> Adjust the stands to balance the product.

• The ground is not level or durable. >>> Make sure the ground is level and suffi- ciently durable to bear the product. The vegetable bin is jammed.

• The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer. If The Surface Of The Product Is Hot.

• High temperatures may be observed between the two doors, on the side pa- nels and at the rear grill while the pro- duct is operating. This is normal and does not require service maintenance!Be careful when touching these areas. A WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product. A WARNING: t5IJTQSPEVDUDBOFYQPTFZPVUPDIFNJDBMT including Nickel (Metallic) which is known to the State of California to cause cancer. t'PSNPSFJOGPSNBUJPOHPUPXXX P65Warnings.ca.gov t/PUF/JDLFMJTBDPNQPOFOUJOBMMTUBJOMFTT steel and some other metal components.The warranties provided by Beko in these statements only apply to Beko appliance sold to the original purchaser or homeowner in the US (Including Alaska, Hawaii, Puerto Rico and the US Virgin Islands) and The Cayman Islands The factory warranty applies only to products purchased through an authorized dealer or authorized reseller. Go to www.bekoappliances.com/where-to-buy for a list of authorized dealers. Products purchased through non-authorized dealers and wholesalers will not be covered under the manufactures warranty The warranty is not transferable. To obtain warranty service, please contact your dealer or contact us at https://www.bekoappliances.com/support/beforecallcenter/ You will need your product model number, serial number, retailer name and address, where purchased and purchase date / installation date. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Also, please make sure you register your product for warranty at: https://www.bekoappliances.com/product-registration/ 2 year (*) full warranty from date of first Installation (All Beko Products) Beko will repair or replace at no cost to the consumer any defective parts if used under normal household conditions (Warranty is void if the product is used commercially e.g., bed + breakfast, nursing home etc.). Service must also be performed by an authorized Beko service agency. (Cosmetic defects must be reported within 10 business days from installation). 1 year warranty on the accessories is for the parts only and does not include labor.

year (*, **) Sealed System Warranty on refrigerators - Parts Only Beko will provide (No Charge) any compressor, evaporator, condenser and filter Dryer to the consumer if material defects or workmanship have caused the damage or failure of these components. (Trip and Labor charges are the responsibility of the consumer)

year (*, **) ProSmart™ Inverter Motor on Dishwashers - Part Only Beko will provide (No Charge) a ProSmart Inverter Main Wash Motor if material defects or workmanship have caused the damage or failure of this component. (Trip and Labor charges are the responsibility of the consumer) Disclaimers of warranties and exclusions: Warranty does not cover service costs by an authorized service agent to correct installation, electrical problems or educational instruction on the use of the electric and gas ranges. The warranty also does not cover defects or damage caused by an act of God (such as storms, floods, fires, mudslides, etc.), damage cause by use of the electric and gas ranges for purposes other than those for which it was designed, misuse, abuse, accident, alteration, improper installation, maintenance, travel fees, service calls outside normal service hours, pick up and delivery, any food loss due to product failure, unauthorized service work or work. This product is fully tested and went through official quality assurance inspections before leaving the original manufacturing site. Warranty terms for this Beko household appliance is not valid if the product is altered, tampered, modified, additional parts assembled, fixed and re-packed by an authorized distributor, servicer, a third party retailer, reseller or by any other unauthorized person(s). TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. BEKO UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THIS PRODUCT EXCEPT AS OTHERWISE PROVIDED IN THIS WARRANTY STATEMENT. BEKO ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE FOR WHICH YOU MAY BE BUYING THIS PRODUCT, EXCEPT AS OTHERWISE PROVIDED IN THIS WARRANTY STATEMENT. Beko does not assume any responsibility for incidental or consequential damages. Such damages include, but are not limited to, loss of profits, loss of savings or revenue, loss of use of the electric and gas ranges or any associated equipment, cost of capital, cost of any substitute equipment, facilities or services, downtime, the claims of third parties, and injury to property. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you. (*) Installation date shall refer to either purchase date or 5 business days after delivery of the product to the home, whichever is later. (**) Parts replaced will assume the identity of the original parts + their original warranty. No Other Warranties. This Warranty Statement is the complete and exclusive warranty from the manufacturer. No employee of Beko or any other party is authorized to make any warranty statements in addition to those made in this Warranty Statement. Please keep this warranty card, user manual and your sales slip for future reference.

Please contact Beko US at 1 [phone] and select option 2 for customer service

Please contact you authorized Beko dealer or visit www.bekoappliances.com to locate and get information for the closest authorized Beko service center. Beko Warranty Information - Version 2-2-2019
