Brand	Hatco
Model	Toast King TK155B
Product Type	Conveyor bun toaster (commercial use)
Capacity	Up to 25 bun thirds per minute (1500 per hour)
Dimensions (W x D x H)	578 x 448 x 844 mm (without legs); +102 mm with adjustable legs
Weight	40 kg (88 lb)
Power Supply	208-240 V, 50/60 Hz, 5018 W (depending on model); NEMA 6-30P plug
Rated Current	24.1 A (at 208 V); 20.9 A (at 240 V)
Heating Elements	Metal tubular, 2-year warranty
Speed Adjustment	7 positions, from light (1) to dark (7); rotary knob control
Thermostat	Adjustable by screw (preset at factory); 1/8 turn max per adjustment
Manual Advance	Knob on right side for manual rotation of baskets
Mode Selector	Positions OFF, TOAST, BUNS
Collection Tray	Removable crumb tray, must be in place during operation
Baskets	3 bun baskets (third configuration); quick loading access
Minimum Ambient Temperature	21°C for proper operation
Safety Clearances	Minimum 25 mm from walls and combustible materials; 305 mm from ceiling
Cleaning	Daily: damp cloth on exterior surfaces; wash crumb tray with hot water and mild detergent; clean baskets with damp cloth or soaking
Gearmotor Maintenance	Self-lubricating, requires no maintenance
Warranty	1 year parts and labor + 1 additional year parts only on heating elements (total 2 years)
Optional Accessories	102 mm adjustable legs, large bun baskets, safety control cover, mounting brackets
Usage	Commercial only (not for home use)

Frequently Asked Questions - Toast King TK155B Hatco

How to adjust the toasting level of the bread?

Turn the speed adjustment knob: number 1 is the lightest toasting, 7 is the darkest. The conveyor speed determines the color, not the temperature.

Can I toast garlic bread or buttered products?

No, it is not recommended to toast glazed or buttered products such as garlic bread or glazed pastries. Residue reduces performance and may ignite, voiding the warranty.

What is the maximum capacity of the TK155B?

The TK155B can toast up to 25 bun thirds per minute, approximately 1500 buns per hour.

How to clean the toaster?

Turn the switch to OFF, unplug and let cool. Remove the crumb tray, wash it with hot water and mild detergent, rinse and dry. Wipe the exterior with a non-abrasive damp cloth. Baskets can be cleaned with a damp cloth or soaked in soapy water.

What to do if the bread is not toasted enough?

Check that the speed knob is set to a darker position (higher number). If the problem persists, the thermostat may be too low (see Thermostat Adjustment) or the supply voltage may be insufficient. Contact an authorized service agent if necessary.

Can I use this appliance at home?

No, this toaster is designed exclusively for commercial use. It must not be used in a domestic environment.

How to install the optional adjustable legs?

Gently lay the appliance on its side (never on the control panel side). Screw the 102 mm legs into the provided holes. Carefully right the appliance with two people, then adjust each leg with a 16 mm wrench to level.

What is the warranty on the heating elements?

Metal tubular heating elements have a 2-year warranty: 1 year parts and labor + 1 additional year parts only.

Why does the toaster trip the circuit breaker?

Check that the breaker rating matches the appliance's electrical specifications (see nameplate). If wiring is correct, contact a Hatco authorized service agent for inspection.

Can I toast bagels with this model?

Yes, place the cut side outward and set the selector to the BUNS position. The TK155B toasts buns on one side (crowns on one side, the middle bun on both sides).

USER MANUAL Toast King TK155B Hatco

Register Online! (see page 2)

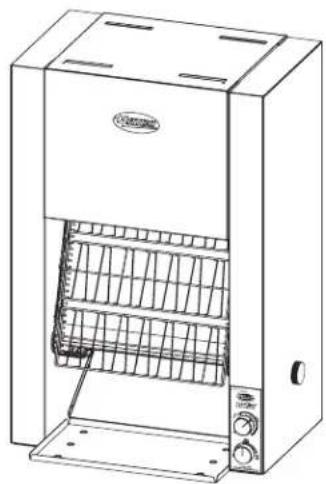

Line drawing of a portable oven with internal grating and control knobs (no text or symbols)

Line drawing of a stainless steel oven with internal grating and control knobs (no text or symbols)

WARNING

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information....2

Introduction......2

Important Safety Information....3

Model Description 4

Model Designation 4

Specifications ....5

Plug Configurations 5

Electrical Rating Chart....6

Dimensions....7

Installation....8

General....8

Operation....9

General 9

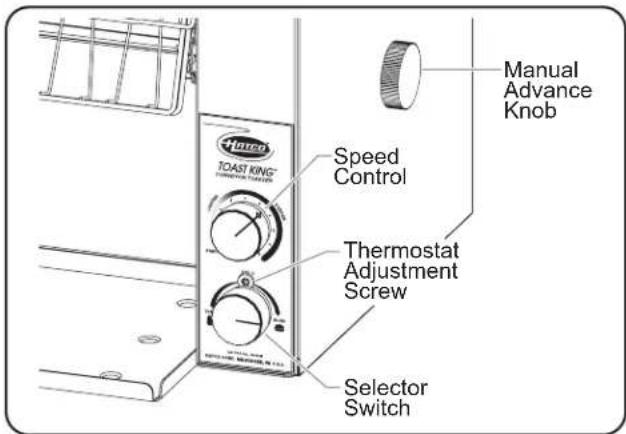

Thermostat Adjustment....9

Maintenance....10

General....10

Daily Cleaning 10

Cleaning the Toasting Baskets....10

Troubleshooting Guide....11

Options and Accessories 12

Limited Warranty 13

Authorized Parts Distributors ....Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the back of the unit). Please have this information available when calling Hatco® for service assistance.

Model No. ____

Serial No.

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Warranty".

Business

Hours: 7:00 AM to 5:00 PM Monday–Friday,

Central Time (CT)

(Summer Hours — June to September:

7:00 AM to 5:00 PM Monday–Thursday

7:00 AM to 4:00 PM Friday)

Telephone: [phone]

E-mail: [e-mail]

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 414-671-6350.

Additional information can be found by visiting our web site at www.hatcocorp.com

INTRODUCTION

Hatco Toast King® Conveyor Toasters are specially designed to speed the toasting operation. Products pass through a heating chamber for rapid and thorough toasting. Dryness, moisture, sugar content, and thickness of bread product affect the ability to achieve the perfect toasted product. Conveyor speed, not temperature, determines the toasting color.

Hatco toasters are quality built to meet the demands of foodservice operations and provide years of trouble-free performance. The metal-sheathed tubular heating elements are guaranteed against breakage and burnout for two years. (If failure of one element should occur, your Hatco toaster will continue to operate – the production may be slightly lower.)

Hatco Conveyor Toasters are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating instructions for Hatco Conveyor Toasters. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate unit indoors where the ambient air temperature is a minimum of 70^ (21°C).
• Do not pull unit by power cord.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair or replace a damaged power cord. Cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean unit.
• Do not clean unit when it is energized or hot.
• Do not allow liquids to spill into unit.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

FIRE HAZARD:

• Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.
• Do not locate toaster under shelving or closer than 12" (305 mm) from the ceiling.
• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to toaster.

EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

In case of fire, disconnect toaster from power source immediately. This allows unit to cool, making it easier and safer to put out the fire.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from unit.

WARNING

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350.

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.
• Do not remove toast collector pan or baskets for cleaning until toaster is cool.

Locate unit at proper counter height in an area that is convenient for use. Location should be level to prevent unit or its contents from falling accidentally and strong enough to support weight of unit and contents.

Products thicker than 1-1/4" (32 mm) will cause conveyor system to jam, which could ignite product inside toaster.

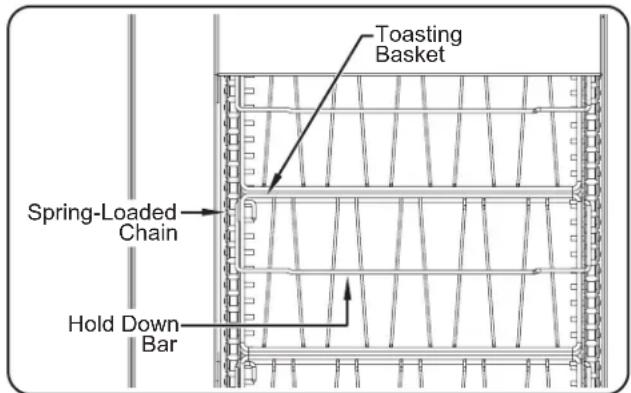

Misalignment of toasting baskets will cause conveyor to jam. Hold down bars should be facing out and lying flat on baskets. Incorrectly positioned bars will cause conveyor to stop.

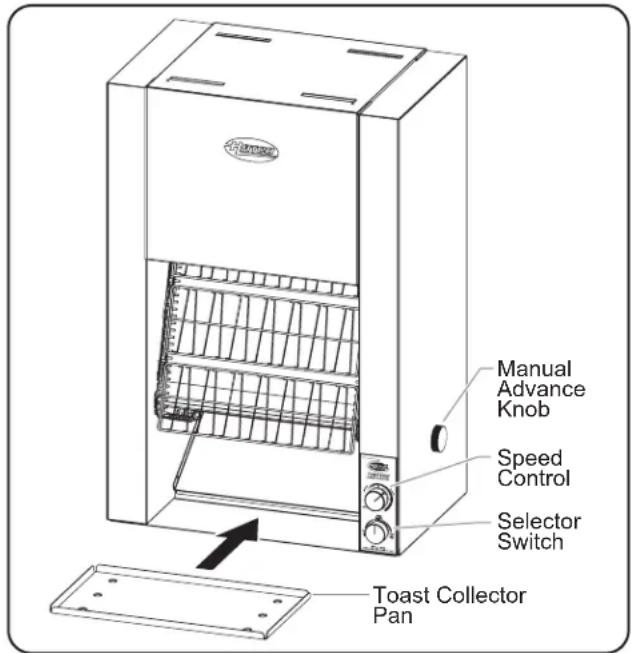

Always operate toaster with toast collector pan installed.

Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty.

NOTICE

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit.

Do not locate toaster in an area that restricts air flow around front or rear of unit.

Do not locate unit in area with excessive air movement around unit. Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors).

Do not lay unit on the side with control panel or manual advance knob. Damage to unit could occur.

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

This unit is intended for commercial use only—NOT for household use.

All Models

Toast King® Conveyor Toasters are fast, dependable, and versatile. They are designed for constant, high volume applications featuring three-basket access for fast loading to toast between 720–1500 slices of bread per hour, depending on the model. Multiple, fast heat-up heating elements ensure continuous toasting.

Every unit includes a toast collector pan, heated toast storage area, power saving thermostat, speed control, manual advance, and factory attached 4' (1219 mm) cord and plug.

TK-72 Model

The TK-72 model toasts up to 12 bread or bun slices per minute (720 per hour) and features toasting baskets two-slices wide.

TK-100 Model

The TK-100 model toasts up to 16 bread or bun slices per minute (960 per hour) and features toasting baskets three-slices wide.

TK-135B Model

The TK-135B model is a buns only toaster that toasts up to 22 bun slices per minute (1320 per hour) and features toasting baskets three-slices wide.

TK-155B Model

The TK-155B model is a 3-part hamburger bun toaster that toasts up to 25 3-part bun slices per minute (1500 per hour) and features toasting baskets three-slices wide. The outside buns are toasted on one side, the middle bun is toasted on both sides.

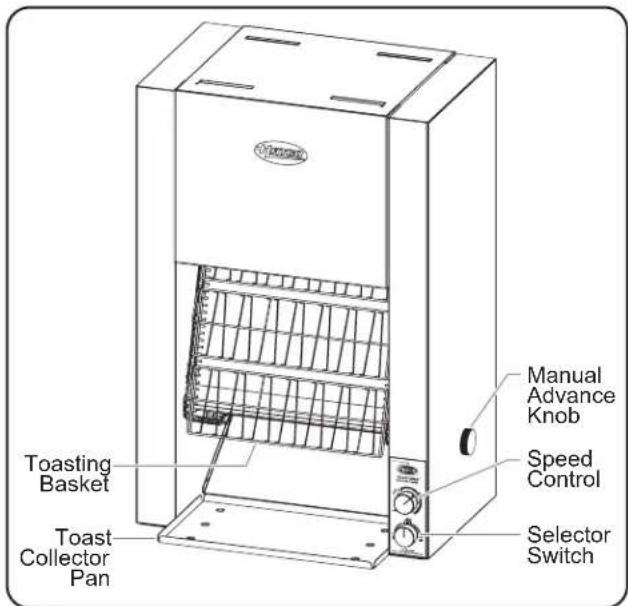

Toasting Basket Toast Collector Pan Manual Advance Knob Speed Control Selector Switch

TK-100 Model

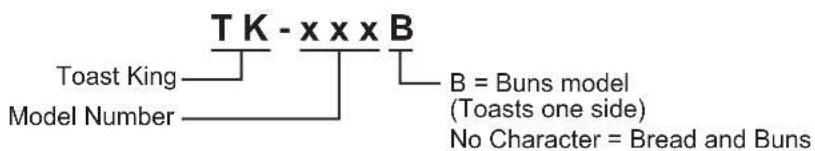

MODEL DESIGNATION

TK - xxx B Toast King Model Number B = Buns model (Toasts one side) No Character = Bread and Buns

Plug Configurations

Units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the applications.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

NOTE: Specification label located on the back of the unit. See label for serial number and verification of unit electrical information.

NEMA 6-20P

NEMA 6-30P
Plug Configurations

NOTE: Receptacles are not supplied by Hatco, but some are available as accessories.

Connecting Supply Wires

If local codes require Greenfield or conduit hook-up, consult a licensed electrical contractor to perform supply wire connection. Access to the unit wiring is through the rear lower access panel.

To connect supply wires to the toaster:

1. Remove the screws securing the side panels, and remove the side panels.
2. Remove the screws securing the rear lower access panel, and remove the panel.
3. Insert the Greenfield or conduit through the opening in the rear access panel and attach to the power supply bracket. Connect the wires.
4. Attach the ground wire to the power supply bracket at the threaded hole marked "G".
5. Reinstall access panel and side panels.

Electrical Rating Chart

Model Voltage Hertz Watts		Amps	Plug Configuration	Shipping Weight
TK-72 208	V	60 Hz	38 W	19.4 A	NEMA 6-20P* 73 lbs. (33 kg)
	240 V 16.8	A
	200 V	50 Hz	3733 W 18.7	A NEMA 6-20P	73 lbs. (33 kg)
	220 V		4038 W 18.4	A	No Cap
	220 V 60 Hz
	220/230 V	50 Hz	4038/4414 W	18.4/19.2 A
	230/240 V		3708/4038 W	16.1/16.8 A
	240 V		4038 W 16.8	A
TK-75 220	230 V	50 Hz	5238/5725 W	23.8/24.9 A	No Cap
	230/240 V		4811/5238 W	21.0/21.8 A
TK-100	208 V	60 Hz	38 W	24.0 A	NEMA 6-30P
	240 V 21.0
	200 V 50 Hz	4657 W	23.3 A NEMA 6-30P		88 lbs. (40 kg)
	220 V 60 Hz		5038 W 22.9	A	No Cap
	220 V 50 Hz
	220/230 V	50 Hz	5038/5507 W	22.9/23.9 A
	230/240 V		4626/5038 W	20.1/21.0 A
	240 V		5038 W 21.0	A
TK-105	220 V	50 Hz	7438 W 33.8	A	No Cord
	240 V		5678 W 23.7	A	No Cap
	220/230 V		7438/8129 W	33.8/35.3 A	No Cord
	230/240 V		6830/7438 W	30.0/31.0 A
TK-135B 208 V		60 Hz	38 W	20.9 A NEMA 6-30P	88 lbs. (40 kg)
			NEMA 6-20P*
TK-155B 208 V		60 Hz	18 W	24.1 A	NEMA 6-30P

The shaded areas contain electrical information for International models only.
* NEMA 6-30P for Canada.
NOTE: Units with "No Cap" plug configuration come with a power cord only (no plug).

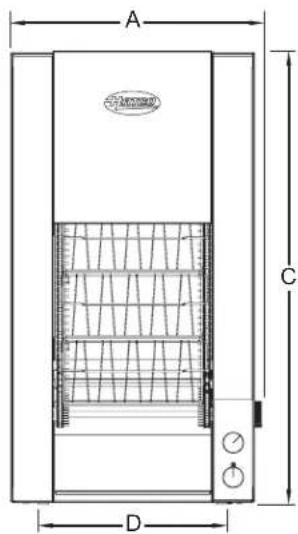

Dimensions

Model	Width (A)	Depth (B)	Height (C)*	Footprint Width (D)	Footprint Depth (E)
TK-72 18-1/4"	(464 mm)	17-5/8" (448 mm)	33-1/4" (844 mm)	13-3/4" (349 mm)	11-1/4" (287 mm)
TK-75 18-1/4"	(464 mm)	17-5/8" (448 mm)	33-1/4" (844 mm)	13-3/4" (349 mm)	11-1/4" (287 mm)
TK-100 22-3/4"	(578 mm)	17-5/8" (448 mm)	33-1/4" (844 mm)	18-1/4" (464 mm)	11-1/4" (287 mm)
TK-105 22-3/4"	(578 mm)	17-5/8" (448 mm)	33-1/4" (844 mm)	18-1/4" (464 mm)	11-1/4" (287 mm)
TK-135B 22-3/4"	(578 mm)	17-5/8" (448 mm)	33-1/4" (844 mm)	18-1/4" (464 mm)	11-1/4" (287 mm)
TK-155B 22-3/4"	(578 mm)	17-5/8" (448 mm)	33-1/4" (844 mm)	18-1/4" (464 mm)	11-1/4" (287 mm)

* Add 4" (102 mm) to the height of the unit if the 4" (102 mm) leg accessory is installed.

A C D

Front View

B E

Side View

General

Hatco® Toast King® Conveyor Toasters are shipped with all components pre-assembled. Care should be taken when unpacking the shipping carton to avoid damage to the unit and the components enclosed.

WARNING

ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ F ( 21^ C).

EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

FIRE HAZARD:

- Locate unit a minimum of 1" (25 mm) from combustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.

- Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to toaster.

1. Remove the unit from the carton.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit.
2. Place the unit in the desired location. This may require two people.

- Locate the unit in an area where the ambient air temperature is constant and a minimum of 70^ (21^) . Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, exterior doors).

• Make sure the unit is at the proper counter height in an area convenient for use.
• Make sure the countertop is level and strong enough to support the weight of the unit and food product.
• Make sure all the feet on the bottom of the unit are positioned securely on the countertop.

NOTICE

Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit.

Do not locate toaster in an area that restricts air flow around front or rear of unit.

Do not locate unit in area with excessive air movement around unit. Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors).

1. Install the toast collector pan.
2. If the unit does not have a plug installed on the power cord, contact a qualified electrician to determine and install the proper voltage and size electrical plug. See the SPECIFICATIONS section for details.

NOTE: Hatco tests each toaster with bread product prior to shipping.

Manual Advance Knob Speed Control Selector Switch Toast Collector Pan

TK-100 Model

General

Hatco Toasters are designed for ease of operation. Perform the following procedure to operate the toaster.

WARNING

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

1. Plug the unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.
2. Turn the Selector Switch from the OFF (O) position to the TOAST or BUNS position.

NOTE: When toasting buns or bagels, place cut side facing out and set the Selector Switch to the BUNS position.

1. Turn the Speed Control counter-clockwise to the lightest/fastest position while the unit heats up.

NOTE: Allow approximately 20–30 minutes for a warm-up period.

CAUTION

Always operate toaster with toast collector pan installed.

BURN HAZARD: Some exterior surfaces on unit will get hot. Use caution when touching these areas.

1. After warm-up period, set the Speed Control to the desired toast darkness setting. The "1" setting on the Speed Control knobs represents the lightest toast setting and the "7" setting represents the darkest.

NOTE: To toast moist products such as English muffins, rye bread, or whole wheat, slow the conveyor by turning the Speed Control knob to a DARKER setting (clockwise).

CAUTION

Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty.

Products thicker than 1-1/4" (32 mm) will cause conveyor system to jam, which could ignite product inside toaster.

Hausen TOAST KING Speed Control Thermostat Adjustment Screw Selector Switch Manual Advance Knob

Control Panel (TK-100 shown)

Manual Advance

The manual advance knob is located on the right side panel of the toaster. This knob permits manual advancement of the toasting baskets and allows rapid discharge of toast.

Thermostat Adjustment

The thermostat adjustment screw is located on the control panel. The thermostat controls the toasting chamber temperature and is preset at the factory.

If adjustment is needed, use the following procedure.

1. Turn the Selector Switch to the TOAST or BUNS position and allow approximately 20–30 minutes for a warm-up period.

2. The thermostat should be adjusted when the toaster is at the operation temperature.

3. Turn the adjustment screw using a small screwdriver.

- Turn the screw clockwise to increase temperature or counterclockwise to decrease the temperature.

NOTE: Do not turn the screw more than 1/8 turn at a time. Allow at least five minutes for temperature to stabilize.

General

Hatco® Conveyor Toasters are designed for maximum durability and performance, with minimum maintenance.

NOTE: The conveyor chain gear motor is permanently lubricated and requires no maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not clean unit when it is energized or hot.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350.

Daily Cleaning

To preserve the finish of the toaster, it is recommended that the metal surfaces be wiped daily with a non-abrasive, damp cloth.

WARNING

Submerging or saturating unit with water will damage the unit and void unit warranty.

CAUTION

Do not remove toast collector pan or baskets for cleaning until toaster is cool.

1. Turn the Selector Switch to the OFF (O) position, unplug power cord/turn off power at circuit breaker, and allow the unit to cool.
2. Remove and empty the toast collector pan.
3. Wash the toast collector pan with warm water and a mild detergent. Rinse with water.
4. Allow the toast collector pan to air dry before placing back into the toaster.
5. Wipe the exterior surface of the toaster with a damp cloth. NOTICE: Use non-abrasive cleaners and cloths only.
6. Wipe dry the entire unit using a dry, non-abrasive cloth.

Cleaning the Toasting Baskets

The toasting baskets need to be removed from the toaster periodically in order to be cleaned properly.

1. Use the manual advance knob on the right side of the unit to advance the baskets without energizing the unit.
2. Remove the baskets by pushing the spring-loaded chain away from the basket while pulling the basket away from the chain and outward.
3. The chain link pins must be pulled out of the toasting basket holes on the top of each side of the baskets.

Toasting Basket Spring-Loaded Chain Hold Down Bar

Removing Toasting Baskets

NOTE: Do not detach the hold down bars when cleaning toasting baskets.

1. Wipe clean with a soft, damp cloth or soak the baskets in a mild solution of soap and water.
2. Re-install a basket by aligning a pin on each chain with the holes in each side of the toasting basket. The pin on the right-hand chain must be exactly opposite the pin on the left-hand chain.
3. To attach the remaining baskets, advance the conveyor and repeat the previous step. Each basket must be hung immediately below the preceding basket for all baskets to fit properly.

CAUTION

Misalignment of toasting baskets will cause conveyor to jam. Hold down bars should be facing out and lying flat on baskets. Incorrectly positioned bars will cause conveyor to stop.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

Symptom Probable	Cause Corrective Action
Toast too light. Speed Control set on a	light setting. Turn Speed Control to a darker setting.
	Thermostat is set to low. Refer to “Thermostat Adjustment” in the OPERATION section for information.
	Supply voltage to unit is low. Verify the supply voltage to the toaster matches the unit specifications.
	Heating element defective. Contact Authorized Service Agent or Hatco for assistance.
Toast too dark. Speed Control set on a	dark setting. Turn Speed Control to a lighter setting.
	Thermostat is set to high. Refer to “Thermostat Adjustment” in the OPERATION section for information.
	Supply voltage to unit is high. Verify the supply voltage to the toaster matches the unit specifications.
Unit takes too long to toast. The first few batches can take longer because the toaster needs time to heat up when initially turned on.		Wait until the toaster is at full operation temperature before inserting bread.
Unit toasts on one side only.(TK-135B and TK-155B models are designed to toast one side of buns/ bagels only.)	The selector switch is in the BUNS position.	Move the selector switch to the BREAD position.
	Heating element defective. Contact Authorized Service Agent or Hatco for assistance.
Toaster trips the circuit breaker or GFCI.	Circuit breaker is not sized properly for the toaster.	Check circuit breaker for proper sizing.
	Wiring fault inside toaster.	Contact Authorized Service Agent or Hatco for assistance.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Find A Service Agent"; or contact the Hatco Parts and Service Team at:

Telephone: [phone]

e-mail: [e-mail]

4" (102 mm) Adjustable Legs

4" (102 mm) adjustable legs are available as accessories for all models. Use the following procedure to install the legs.

NOTICE

Do not lay unit on the side with control panel or manual advance knob. Damage to unit could occur.

1. Carefully place unit on its side.
2. Thread the 4" (102 mm) adjustable legs into the existing leg holes on the bottom of the unit.

3. After all legs are secure, return the unit to the upright position. This may require two people.

4. Level the unit by turning the adjustable tip on each leg. Use a 5/8" (16mm) open-end wrench to make leveling adjustments.

Shorten Lengthen Adjustable Tip

Baskets for Jumbo Buns

Baskets for Jumbo Buns are available as accessories for TK-100, TK-135B, and TK-155B Models only. These baskets accommodate large buns up to 5-1/2" (140 mm) in diameter.

Security Control Cover

An optional security control cover is available for all models (not for field retrofit). A security control cover includes the control cover, bracket, fuse cover, and mounting hardware.

Receptacles

Receptacles are available as accessories for units using NEMA 6-20P or NEMA 6-30P plugs.

Mounting Brackets

Mounting brackets are available as accessories to securely and permanently mount a toaster. The brackets are installed in the leg mounting holes. Fasteners not supplied.

WARRANTY, EXCLUSIVE REMEDY:

Hatco® Corporation (Seller) warrants that the products it manufactures (Products) will be free from defects in materials and workmanship under normal use and service and when stored, maintained, and installed in strict accordance with factory recommendations. Seller's sole obligation to the person or entity buying the Products directly from Seller (Customer) under this warranty is the repair or replacement by Seller or a Seller-authorized service agency, at Seller's option, of any Product or any part thereof deemed defective upon Seller's examination, for a period of: (i) the Warranty Duration from the date of shipment by Seller or (ii) the Warranty Duration from the date of Product registration in accordance with Seller's written instructions, whichever is later. The "Warranty Duration" shall mean the specific periods set forth below for specific Product components, or, to the extent not listed below, eighteen (18) months. Credit for Products or parts returned with the prior written permission of Seller will be subject to the terms shown on Seller's material return authorization form. PRODUCTS OR PARTS RETURNED WITHOUT PRIOR WRITTEN PERMISSION OF SELLER WILL NOT BE ACCEPTED FOR CREDIT. Expenses incurred by Customer in returning, replacing, or removing the Products will not be reimbursed by Seller. If the defect comes under the terms of the limited warranty, the Products will be repaired or replaced and returned to the Customer and the cost of return freight will be paid by Seller. The remedy of repair or replacement provided for herein is Customer's exclusive remedy. Any improper use, alteration, repairs, tampering, misapplication, improper installation, application of improper voltage, or any other action or inaction by Customer or others (including the use of any unauthorized service agency) that in Seller's sole judgment adversely affects the Product shall void this warranty. The warranty expressly provided herein may only be asserted by Customer and may not be asserted by Customer's customers or other users of the Products; provided, however, that if Customer is an authorized equipment dealer of Seller, Customer may assign the warranty herein to Customer's customers, subject to all of the limitations of these Terms, and in such case, the warranty shall be exclusively controlled by Seller in accordance with these Terms. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED.

One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Drawer Rollers and Slides

Food Warmer Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements — HW, HWB, and HWBI Series (metal sheathed)

Two (2) Year Parts and Labor Warranty:

Induction Ranges

Induction Warmers

One (1) Year Replacement Warranty:

TPT Pop-Up Toasters

One (1) Year Parts and Labor PLUS Four (4) Years

Parts-Only Warranty:

3CS and FR Tanks

One (1) Year Parts and Labor PLUS Nine (9) Years

Parts-Only Warranty:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

Ninety (90) Day Parts-Only Warranty:

Replacement Parts

Notwithstanding anything herein to the contrary, the limited warranty herein will not cover components in Seller's sole discretion such as, but not limited to, the following: coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing.

WARRANTY REGISTRATION INSTRUCTIONS:

Product registration must be submitted within 90 days from the date of shipment from our factory to qualify for additional coverage. Registration may be submitted through the form on Seller's website, through the form accessible through the QR code on the Product (where available), or by calling Customer Service with the required information at: 414-671-6350.

LIMITATION OF LIABILITY:

SELLER WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LOST PROFITS, COSTS OF SUBSTITUTE PRODUCTS, OR LABOR COSTS ARISING FROM THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, FROM THE PRODUCTS BEING INCORPORATED INTO OR BECOMING A COMPONENT OF ANOTHER PRODUCT, OR FROM ANY OTHER CAUSE WHATSOEVER, WHETHER BASED ON WARRANTY (EXPRESSED OR IMPLIED) OR OTHERWISE BASED ON CONTRACT, TORT, OR ANY OTHER THEORY OF LIABILITY, AND REGARDLESS OF ANY ADVICE OR REPRESENTATIONS THAT MAY HAVE BEEN RENDERED BY SELLER CONCERNING THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, EVEN IF SELLER IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SELLER'S AGGREGATE LIABILITY ARISING OUT OF OR RELATED TO THIS AGREEMENT EXCEED THE TOTAL AMOUNTS PAID TO SELLER BY CUSTOMER FOR THE PRODUCTS WITHIN THE THREE (3) MONTH PERIOD IMMEDIATELY PRECEDING THE EVENT GIVING RISE TO CUSTOMER'S CLAIM. THE LIMITATIONS SET FORTH HEREIN REGARDING SELLER'S LIABILITY SHALL BE VALID AND ENFORCEABLE NOTWITHSTANDING A FAILURE OF ESSENTIAL PURPOSE OF THE LIMITED REMEDY SPECIFIED IN THESE TERMS.

Seller reserves the right to update these Terms at any time, at its sole discretion, which become binding upon the date of publishing. For the most current version of our full Terms of Sale, see our website at: https://www.hatcocorp.com/terms-of-sale

Byassee Equipment Co. Phoenix 602-252-0402

CALIFORNIA

Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100

Chapman Appl. Service San Diego 619-298-7106 P & D Appliance Commercial Parts & Service, Inc. S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair Jacksonville 904-725-7800

Whaley Foodservice Repair Orlando 407-757-0851

B.G.S.I./Heritage Pompano Beach 954-971-0456

Comm. Appliance Service Tampa 813-663-0313

GEORGIA

Heritage Service Group Norcross 866-388-9837

HAWAJ

Burney's Comm. Service, Inc. Honolulu 808-848-1466 Food Equip Parts & Service Honolulu 808-847-4871

ILLINOIS

Parts Town Addison 708-865-7278

Eichenauer Elec. Service Decatur 217-429-4229

Midwest Elec. Appl. Service Elmhurst 630-279-8000 Cone's Repair Service Moline 309-797-5323

IOWA

Goodwin Tucker Group Des Moines 515-262-9308

KENTUCKY

Tech 24 Lexington 859-254-8854 Tech 24 Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service Baltimore 410-467-8080

MASSACHUSETTS

Ace Service Co., Inc. Needham 781-449-4220

MICHIGAN

Bildons Appliance Service Detroit 248-478-3320

Commercial Kitchen Service Bay City 989-893-4561

Midwest Food Equip. Service Grandville 616-261-2000

MISSOURI

General Parts Kansas City 816-421-5400

Commercial Kitchen Services St. Louis 314-890-0700

Kaemmerlen Parts & Service St. Louis 314-535-2222

NEBRASKA

Anderson Electric Omaha 402-341-1414

NEVADA

Burney's Commercial Las Vegas 702-736-0006

Hi. Tech Commercial Service N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair Fairfield 973-575-9145 Service Plus Flanders 973-691-6300

NEW YORK

Alpro Service Co. Maspeth 718-386-2515 Duffy's - AIS Buffalo 716-884-7425

3Wire Plattsburgh 800-634-5005 Duffy's - AIS Sauquoit 800-836-1014

J.B. Brady, Inc. Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc. Akron 330-753-6634

Tech 24 Cincinnati 513-772-6600

Commercial Parts and Service Columbus 614-221-0057

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E. A. Wichman Co. Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc. Oklahoma City 405-235-2184

OREGON

General Parts Group Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services Philadelphia 215-627-5401

FAST Comm. Appl. Service Philadelphia 215-288-4800

AIS Commercial Parts and Service Pittsburgh 412-809-0244

K & D Service Co. Harrisburg 717-236-9039

Electric Repair Co. Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co. Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair Lexington 803-996-9900

TENNESSEE

Camp Electric Memphis 901-527-7543

TEXAS

Armstrong Repair Service Houston 713-666-7100

Cooking Equipment Specialist Mesquite 972-686-6666

Commercial Kitchen Repair Co. San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service Murray 801-263-3221

VIRGINIA

Daubers Norfolk 757-855-4097

Daubers Springfield 703-866-3600

WASHINGTON

3Wire Seattle 800-207-3146

WISCONSIN

A.S.C., Inc. Madison 608-246-3160

A.S.C., Inc. Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service Vancouver 604-433-4484

Key Food Equipment Service Victoria 250-920-4888

MANITOBA

Air Rite, Inc. Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd. Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd. Toronto 416-422-5580

Choquette - CKS, Inc. Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc. Montreal 514-722-2000

Choquette - CKS, Inc. Québec City 418-681-3944

UNITED KINGDOM

Marren Group Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

414-671-6350

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION section for details.
