USER MANUAL Renegade HURTSGR Hurtle

Adjustable Scooter for Teens and Adult, Alloy Deck with High Impact Wheels Lightweight and Foldable Kick Scooter

HURTSGR - HURTSPK - HURTSCA

HURTSWH - HURTSBU - HURTSRD

SAFETY WARNINGS AN IMPORTANT MESSAGE TO PARENTS: This manual contains important information. For your child’s safety, it is your responsibility to review this information with your child and make sure that your child understands all warnings, cautions, instructions and safety topics. We recommend that you periodically review and reinforce the information in this manual with younger riders and that you inspect and maintain your child’s scooter to insure their safety.

12GENERAL WARNING Scooter riding can be a hazardous activity. Scooters can and are intended to move and it is therefore possible to get into dangerous situations and/or lose control and/or fall. If such things occur you can be seriously injured or die. Like any other moving product, using a scooter can be a dangerous activity and may result in injury or death even when used with proper safety precautions. Use at your own risk and use common sense.

• Always wear safety equipment such as a helmet, knee pads and elbow pads. Always wear a helmet when riding your scooter and keep the chinstrap securely buckled.

• Ride on smooth, paved surfaces away from motor vehicles.

• Avoid sharp bumps, drainage grates and sudden surface changes. Scooter may suddenly stop.

• Avoid street and surfaces with water, sand, gravel, dirt, leaves and other debris. Wet weather impairs traction and visibility.

• Do not ride at night.

• Avoid excessive speed associated with downhill rides.

• Adults must assist children in the initial adjustment procedures to unfold scooter, adjust handlebar and steering to height, and nally to fold scooter.

• Obey all local trac and scootering laws and regulations.

• Watch out for pedestrians.

• Do not allow children under 8 to use the scooter. Children under 9 should ride with adult supervision at all times. All children and preteens should ride with adult guidance at all times.

• Rider weight doesn’t necessarily mean a child’s size is appropriate to t or maintain control of scooter.

• Aparent’s decision to allow his or her child to ride this product should be based on the child’s maturity, skill and ability.

• Refer to the section on safety for additional warnings.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

Direct parental supervision is required. Scooters are meant to be used only in a controlled environment free of potential trac hazards and not on public streets. Do not allow your child to ride a scooter in any areas where vehicle trac is present. Child must maintain a hold on the handlebars at all times. Never allow more than one child at a time to ride a scooter. Never use near steps, sloped driveways, hills, roadways, alleyways or swimming pool areas, keep ngers and other body parts away from the product when folding or unfolding. Adults must not allow children to assist in folding or unfolding the scooter. Do not ride a scooter in wet weather. Scooters are intended for use on solid, at, clean and dry surfaces such as pavement or level grounds without loose debris such as rocks or gravel. Wet, slick or uneven and rough surfaces may impair traction and contribute to possible accidents. Do not ride a scooter in mud, ice, puddles or water. Avoid excessive speeds that can be associated with downhill rides. Never risk damaging surfaces such as carpet or ooring by use of scooter indoors. Do not ride at night or when visibility is impaired.PROPER RIDING ATTIRE Always ensure child is wearing proper protective equipment such as an approved safety helmet. A helmet may be legally required by local law or regulation in your area. A child should always wear shoes, never ride barefooted or in sandals, and keep shoelaces ties and out of the way of the wheels. FAILURE TO USE COMMON SENSE AND HEED ABOVE WARNINGS FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION. WARNINGS ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Properly inspecting and maintaining your scooter can reduce the risk of injury. Always inspect your scooter before riding and regularly maintain it. CHECK LOCAL LAWS REGRADING SCOOTER USE. Check local laws and regulations to see where and how Ayou may use your street surng scooter legally. in many states and local areas, scooter riders are required BY LAW to wear a helmet. Check local laws and regulations regarding laws governing helmet use and scooter operation in your area. Brake may get hot from continuous use. Do not touch after braking.

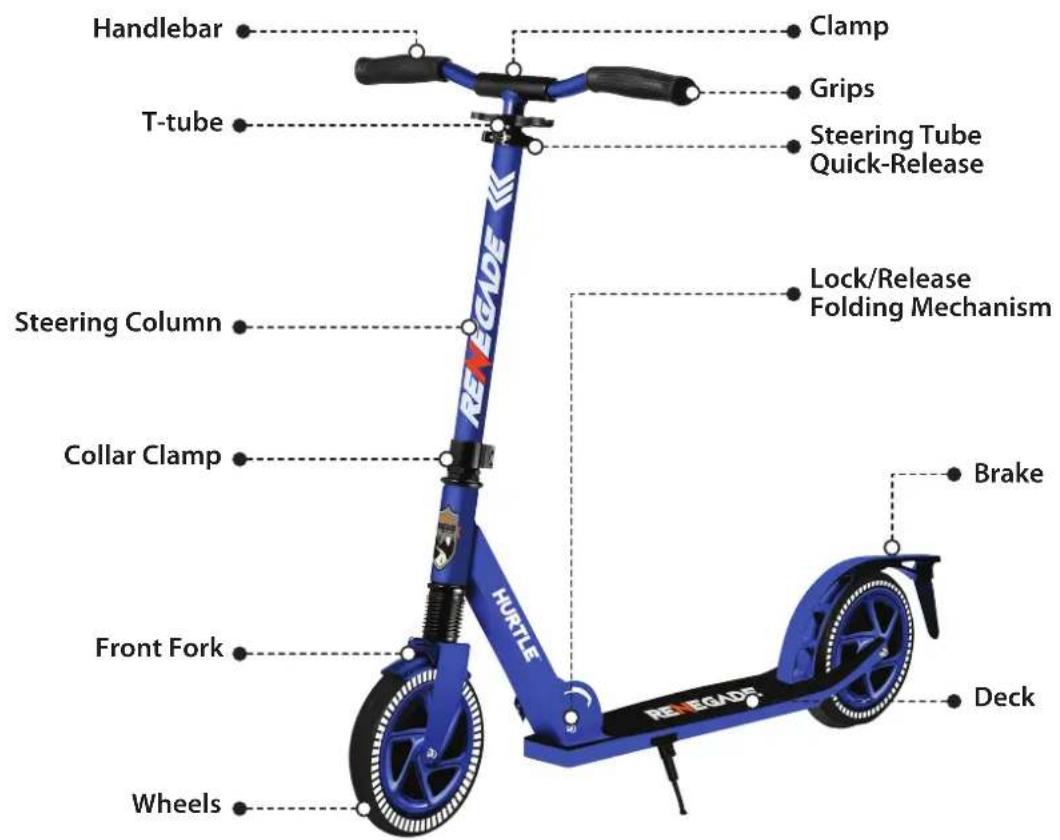

Remove contents from box. Remove the separators that protect the components during shipping. You will need to install the handlebars. locate and unpack the handlebars. Check to ensure that the upper clamp and screws are included. Required Tools (included): 3mm, 5mm & 6mm Allen Wrench (if using your own tools, we recommend the use of mechanic grade tools) www.PyleUSA.com 5www.PyleUSA.com

To adjust the height of the handlebars, unlock the steering tube by pulling outward on the quick-release lever. Slide the T-tube to the desired position and secure bypushing inward on the quickrelease lever.

The tension of the quick release clamping mechanism can be adjusted by tightening or loosening the Allen bolt. Be careful not to over tighten. You should always be able to open and close the quick-release lever by hand and the T-tube should telescope freely with the quickrelease open. 2www.PyleUSA.com

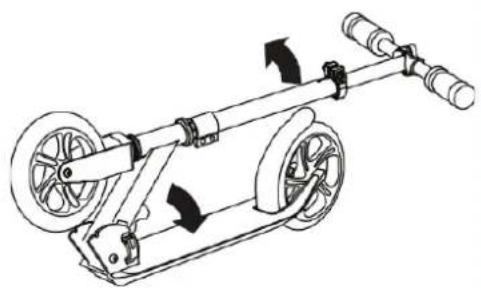

To unfold the scooter, pull the release lever downwards toward the deck while pulling upwards on the steering column.

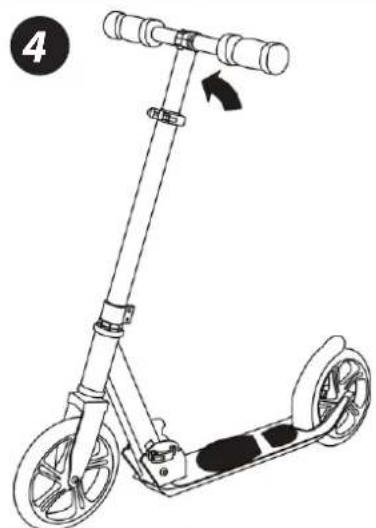

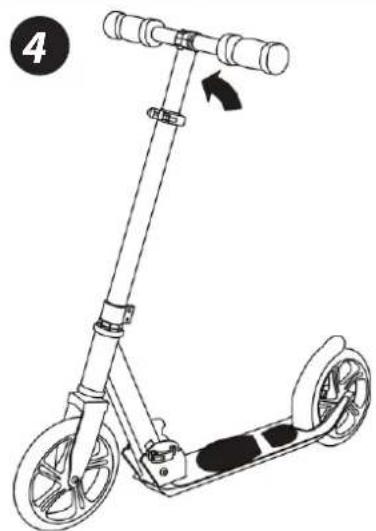

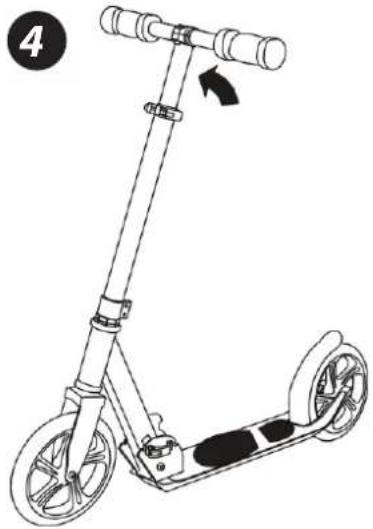

Release the lever and continue to unfold the steering column upward. grip the handlebars and place one foot on the deck. Pull the handlebars up until the latch engages. Make sure the locking mechanism is secure in the open position before riding.

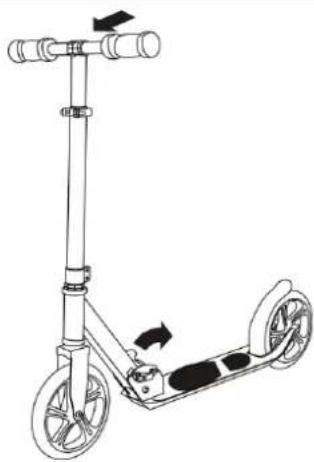

To fold the scooter push the handlebars forward lightly while pulling back on the release lever. if may help if you place one foot on the deck. When the release lever unlatches, pull back on the handlebars and continue folding your scooter until it latches.WARNINGS DO NOT USE NON-HURTLE RENEGADE PRODUCTS WITH YOUR SCOOTER. HURTLE RENEGADE scooters have been built to certain design specications. The original equipment supplied at the time of sale was selected on the basis of its compatibility with the frame, fork and all other parts. Certain after market products may or may not be compatible. Failure to properly engage the quick-release clamps may cause the T-Bar to telescope up or down while riding, which may cause youto lose control and fall. With the quick-release properly adjusted and engaged the T-Bar will not move up or down in normal use. Keep your ngers clear of the folding mechanism when folding or unfolding the scooter make sure others are standing clear. Failure to properly install and tighten the handlebar t-tube steering tube clamp may cause the rider to lose control and fall. Assembly must be performed by an adult with mechanical experience. If you do not understand these instructions or the concept of “tightening securely”, seek the assistance of a qualied mechanic.

COLLAR CLAMP Check that the collar clamp bolt is tightened securely. This item is tightened and quality inspected at the factory, after use, periodically check the tightness before riding. www.PyleUSA.com 9www.PyleUSA.com

Under normal circumstances and conditions, street surng wheels and wheel bearings are maintenance free. nonetheless, it is the responsibility of the owner or guardian to periodically inspect the wheel for wear and tear, the axle for proper tightness, and bearing for side-to-side play and loose parts. When a wheel or wheel bearing develops play, this is an indication of excess wear and replacement is necessary. Replace immediately with only genuine street surng wheels. Worn tires/wheels/bearings are considered normal wear and tear and are not covered by the street surng Warranty. Wheels other than genuine street surng wheels may not be compatible with your street surng scooter. The use of anything other than genuine street surng replacement parts may aect your safety. LOOSE PARTS Check and secure all fasteners before every ride. Make sure that the steering tube clamps and handlebars spring buttons are locked properly in place before riding. SAFETY GEAR Always wear proper protective equipment such as an approved safety helmet, elbow pads and kneepads. Always wear shoes (lace-up shoes with rubber soles), never ride barefooted or in sandals, and keep shoelaces tied and out of the way of the wheels. SAFETY REMINDERS

CLEANING YOUR SCOOTER

Wipe with a damp cloth to remove dirt and dust. Do not use industrial cleaners or solvents as they may damage the surfaces. Do not use alcohol, alcohol-based or ammonia based cleaners as they may damage or dissolve the plastic components or soften the decals or decal adhesive.HOW TO RIDE Place one foot on the deck, push forward with the other foot. steer. For enhanced cornering, lean slightly into the direction of the turn. For controlled stops, apply the brake by stepping on the rear fender/brake. Practice applying the brake at various speeds and in an open area free from obstructions before riding around others. BE CAREFUL! You will see people on TV and maybe even people you know doing tricks and stunts. These are people who have been practicing on scooters for a very long time. Don’t try something until you are ready. Avoid steep inclines and don’t ride too fast—you can lose control and fall. skateboard parks are not designed for scooters. never ride in trac or on the street and watch your surroundings for pedestrians, bikers, boarders and skaters.

Wheelies and other stunt-type riding reduces your ability to maneuver and control your scooter. Take the necessary precautions, such as wearing appropriate protective gear and practice in an area safe for stunt riding and free from obstructions. Maintain a hold on the handlebars at all times. Failure to follow these instructions may damage your vehicle and void your warranty. LIMITED WARRANTY If you ride your scooter in a manner that places large forces and stresses on the product, the scooter will not be covered under warranty. The scooter is designed to meet and exceed applicable safety standards, however the forces exerted through extreme riding will cause premature wear to all parts. www.PyleUSA.com 11www.PyleUSA.com

The manufacturer warranties this product to be free of manufacturing defects for a period of 6 months from date of purchase. This limited Warranty does not cover normal wear and tear, tires, tubes or cables, or any damage, failure or loss caused by improper assembly, maintenance, or storage. This limited Warranty will be void if product is ever:

• Used in a manner other than for recreation.

• Rented. The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product. HURTLE does not oer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which it was purchased. For your records, save your original sales receipt with this manual.

• Lightweight Alloy Deck

• Smooth Riding Wheels

• Comfortable T-Bar Handlebar

• Durable ABEC-7 Bearings

• T-bar Anodized Clamp Collar

• Includes Extended Standing Area for Pro-style Scooter Performance

• Stand Kick Scooter Design

• Adjustable T-Bar Handlebar Height What's in the Box:

• (1) Simple Tools for Assembly

• (1) Carry Strap• Long-Lasting, Super Smooth Gliding Wheels

• Easy Maneuvering Lean-to-Steer Technology

• Lab Tested & Safety Certied

• Suitable for Teenagers and Adult, Beginner and Intermediate Riders

• Long Guard Rail to Stop Easily

• Mud Guard Front Wheel

• Extended up to 3 Heights

• Easy Folding Technology

• Front Suspension Technical Specs:

• Weight Capacity: Up to 220 lbs. / 99.7 kg

• Deck Size: 21.46'' x 4.41'' -inches
