Product Type	Compact Cordless Router
Brand	Craftsman
Model	CMCW400
Power Source	20 V max (18 V nominal) Lithium-Ion Battery Pack
Base Type	Fixed Base
Variable Speed	Yes, 7 Speeds
Speed Range	16,000 - 30,000 RPM
Collet Capacity (Bit Shank Diameter)	6.4 mm (1/4 in)
Max Cutting Capacity	34.9 mm (1-3/8 in) diameter
Depth of Cut	Adjustable with knob, 0.4 mm per graduation
Weight (without battery)	Approx. 1.8 kg (4 lb)
Dimensions (Height x Width)	Approx. 21.5 cm x 12 cm
Lighting	LED Work Light with 20s Time Delay
Protection System	Electronic overload, overheat, and deep discharge protection
Soft Start	Yes
Additional Features	Shaft lock button, depth adjustment knob, optional edge guide
Maintenance	Blow vents with dry air; clean with a damp cloth (water and mild soap)
Safety	Motor stops before removal; wear safety glasses; do not cut metal
Warranty	3 years (tool), 2 years (battery)

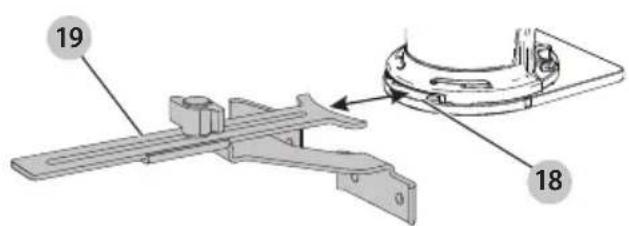

Included Accessories	Wrench, edge guide, dust extraction attachment

Frequently Asked Questions - CMCW400 Craftsman

How do I change the bit on the Craftsman CMCW400 router?

First, remove the motor unit from the base. Press the spindle lock button with one hand and use the provided wrench to loosen the collet adapter nut counterclockwise. Clean and insert the new bit, then tighten the nut clockwise. Never tighten without a bit inserted.

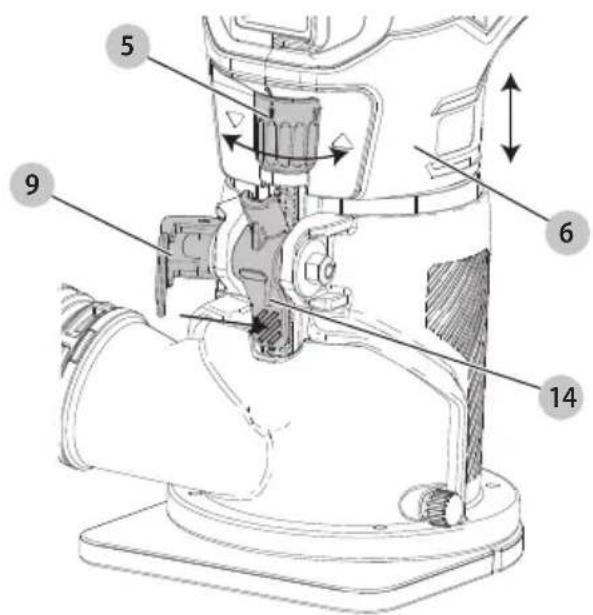

How do I adjust the cutting depth on the CMCW400 model?

Open the locking lever on the base, then press the motor release lever to slide it. Adjust the height until the bit touches the workpiece. Use the depth adjustment knob for fine adjustments: turn right to raise the motor, left to lower it. Each graduation corresponds to 0.4 mm. Close the lever once the desired depth is reached.

How do I choose the router speed?

Turn the variable speed dial located on the motor. It offers 7 positions from 16,000 to 30,000 RPM. Use low speeds (1-3) for large diameter bits and high speeds (5-7) for small bits and soft woods. Refer to the speed selection chart in the manual for specific recommendations.

What type of battery pack should I use with the CMCW400?

Use only compatible Craftsman battery packs, such as the CMCB101. The 18 V nominal (20 V max) battery pack is recommended. Do not use other brands, as this could damage the tool or cause injury.

How do I maintain the Craftsman CMCW400 router?

Always disconnect the battery pack before maintenance. Blow dust from vents with dry air at least once a week. For external cleaning, use a damp cloth with water and mild soap. Never use solvents. Keep handles clean and dry.

What are the essential safety instructions?

Always wear safety glasses and a dust mask. Hold the tool firmly with both hands. Never cut metal. Make sure the bit is clear of the workpiece before starting. Never touch the bit after use (burn risk). Disconnect the battery pack before any adjustments.

Can the CMCW400 router be used on a router table?

No, it is not recommended for use on a router table. The manual advises against this use as the motor could separate from the base. Use it only in handheld mode with the fixed base.

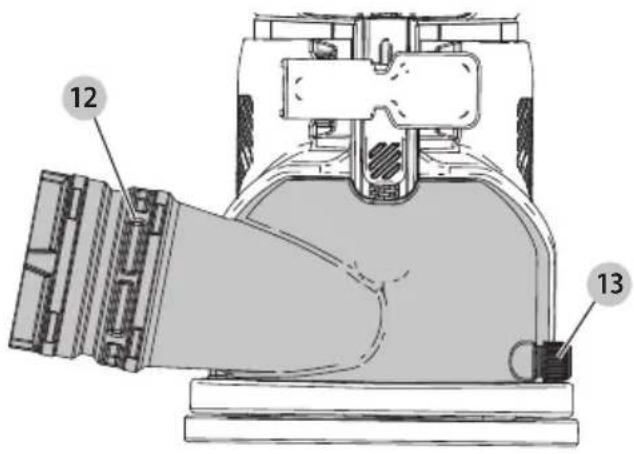

How do I install the dust extraction attachment?

First, remove the motor unit from the base. Attach the dust extraction attachment to the base using the provided thumbscrew, then connect a vacuum or dust collection system. Ensure the hose does not obstruct work.

What should I do if the work light is flashing?

If the light flashes while the battery pack is charged, it may indicate a problem. First check the battery pack charge. If the battery pack is fully charged and the flashing persists, take the tool to an authorized Craftsman service center for evaluation.

Where can I find replacement parts for the CMCW400?

Replacement parts are available from authorized Craftsman service centers. Contact customer service at 1-888-331-4569 or visit www.craftsman.com. Use only identical parts to ensure safety.

USER MANUAL CMCW400 Craftsman

English (original instructions) 5

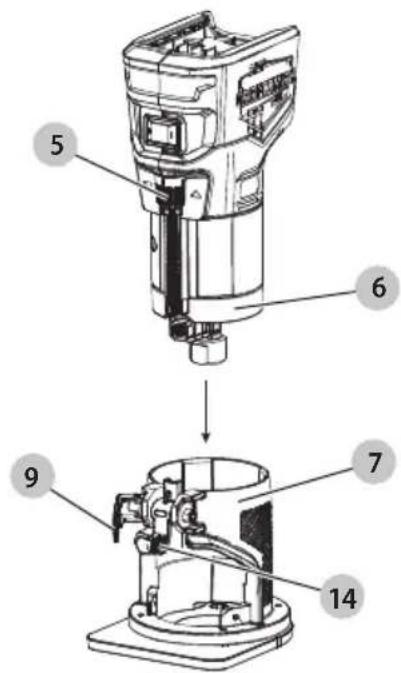

Components

1 Battery pack
2 Battery release button
3 On/Off switch
4 Variable speed dial
5 Depth adjustment knob
6 Motor
7 Base unit
8 Spindle lock button
9 Locking lever
10 Locking lever adjustment nut
11 D-shaped subbase
12 Dust extraction system attachment accessory
13 Thumb screw
14 Motor release lever

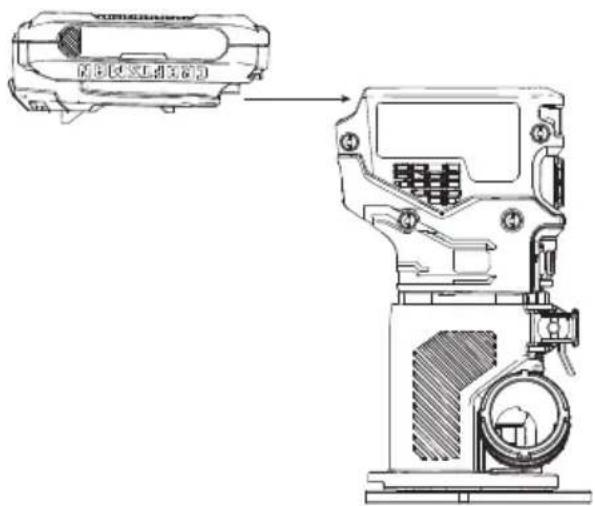

Composants

Only CMCB101 Charger Indicators

Fig. H Fig. I

Fig. J Fig. K

Fig. L Fig. M

Line drawing of a hand operating a sewing machine with a clamped tool (no text or symbols)

Fig. N

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

Intended Use

This tool is designed for residential medium-duty routing applications.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, indications and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

ENgliSh

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Additional Safety Rules for Routers

- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

- Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

• DO NOT cut metal.

- Keep handles and gripping surfaces dry, clean, and free from oil and grease. This will enable better control of the tool.

- Maintain firm grip with both hands on the tool to resist starting torque. Maintain a firm grip on the tool at all times while operating.

- Always follow the bit manufacturer's speed recommendations as some bit designs require specific speeds for safety or performance. If you are unsure of the proper speed or are experiencing any type of problem, contact the bit manufacturer.

- Keep hands away from cutting area above and below the base. Never reach under the workpiece for any reason. Keep the router base firmly in contact with the workpiece when cutting.

• Never run the motor unit when it is not inserted in one of the router bases. The motor is not designed to be handheld.
• Keep cutting pressure constant. Do not overload motor.
• Use sharp bits. Dull bits may cause the router to swerve or stall under pressure.
• Be sure that the motor has stopped completely before you lay the router down. If the cutter head is still spinning when the tool is laid down, it could cause injury or damage.
• Be sure that the router bit is clear of the workpiece before starting the motor. If the bit is in contact with the workpiece when the motor starts, it could make the router jump, causing damage or injury.
• ALWAYS disconnect tool from power source before making adjustments or changing bits.
• Keep hands clear of bit when motor is running to prevent personal injury.
• NEVER touch the bit immediately after use. It may be extremely hot.
• Provide clearance under workpiece for router bit when through-cutting.
• Tighten collet nut securely to prevent the bit from slipping.
• Never tighten collet nut without a bit.
• Do not use router bits with a cutting diameter in excess of 1-3/8" (34.9 mm) in this tool.
• Always use cutters with a shank diameter of 1/4" (6.4 mm) which corresponds to the size of the collet in your tool.
• Not recommended for use in a router table.

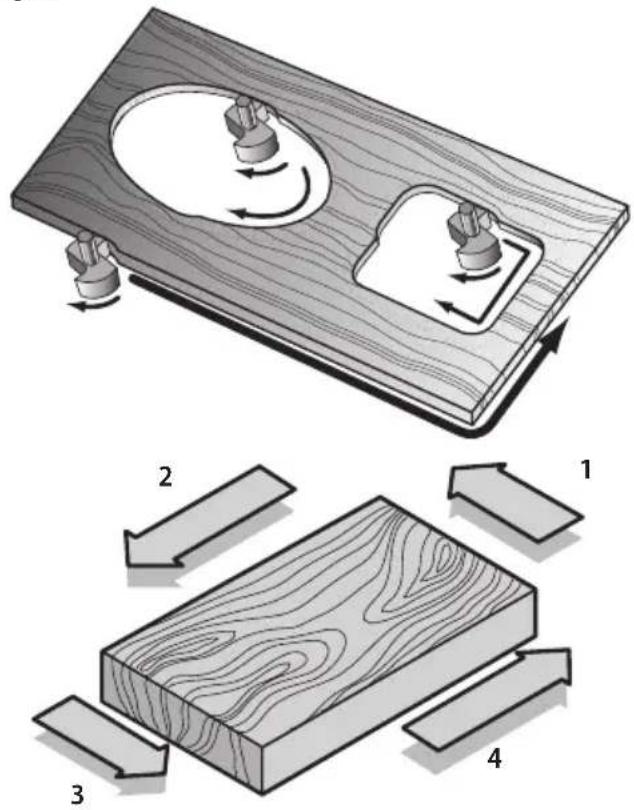

• Avoid climb-cutting (cutting in the opposite direction of that shown in Figure N). Climb-cutting increases the chance for loss of control resulting in possible injury. When climb-cutting is required (backing around a corner), exercise extreme caution to maintain control of router. Make smaller cuts and remove minimal material with each pass.
• Do not hand-hold the router in an upside-down or horizontal position. The motor can separate from the base if not properly attached according to the instructions.
• Before starting the motor clear the work area of all foreign objects.
• Do not use in a router table.
• Always keep the chip shield (if included) clean and in place.
• Do not press spindle lock button while the motor is running. Doing so can damage the spindle lock.
• Always make sure the work surface is free from nails and other foreign objects. Cutting into a nail can cause the bit and the tool to jump.

Additional Safety Information

WARNING: Never modify the power tool or any part of damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to grease tube cavity out microscopic particles.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmful chemicals. Direct particles away from face and body.
• Use the appropriate dust extractor vacuum to remove the vast majority of static and airborne dust. Failure to remove static and airborne dust could contaminate the working environment or pose an increased health risk to the operator and those in close proximity.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control and injury.
• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

CANTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.....volts IPM.....impacts per minute

Hz....hertz OPM....oscillationsper

min......minutes minute

or DC.....direct current RPM....revolutionsper

Class I Construction minute

(grounded)

.../min.....per minute minute

BPM.....beats per minute SPM.....strokes per minute

ENgliSh

A.....amperes

W.....watts

Wh.....watt hours

Ah.....amp hours

\~ or AC......alternating current

or AC/DC.... alternating or direct current

☐...... Class II Construction (double insulated)

n_0 ......no load speed

n......rated speed

PSI..... pounds per square inch

earthing terminal

⚠️ ......safety alert symbol

▲......visible radiation—do not stare into the light

......wearrespiratory protection

wear eye protection

O....wearhearing protection

read all documentation

do not expose to rain

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

- NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

- Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or other liquids.

• DO NOT allow water or any liquid to enter battery pack.

- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life, store battery packs in a cool, dry location.

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
• Battery liquid may be flammable if exposed to spark or flame.
• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of the charger.

Battery Pack Cleaning Instructions

Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Fuel Gauge Battery Packs (Fig. B)

Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.

Transportation

WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact exposed battery terminals. For

example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li-ion battery packs should not be put in checked baggage on airplanes and must

be properly protected from short circuits if they are in carry-on baggage.

The RBRC® Seal

Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org or call the toll-free number in the RBRC® Seal.

RBRC® is a registered trademark of Call 2 Recycle, Inc.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger.
  CRAFTSMAN chargers and battery packs are specifically designed to work together.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock or electrocution.

- Do not expose the charger to rain or snow.

- Do not allow water or any liquid to enter charger.

- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

- Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.

- When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heavier gauge.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120V 25 (7.6)		50 (15.2) 100	(30.5) 150 (45.7)
Ampere Rating		American Wire Gauge
More Than Not More
	Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat.
  Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

- Do not operate the charger with a damaged cord or plug. Have them replaced immediately.

- Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.

- Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

- The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

- Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in the cavity.

Charging a Battery (Fig. C, D)

1. Plug the charger into an appropriate outlet.
2. Insert and fully seat battery pack 1. Green charging light(s) will continuously blink while charging.
3. Charging is complete when the green charging light(s) remain(s) continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature over 40^ F ( 4.5^ C) and below 104^ F (+ 40^ C).

1. Charger will not charge a faulty battery pack, which may be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s) OFF.

NOTE: Refer to label near charging light(s) on charger for blink patterns.

NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay,

ENGLISH

suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the charging procedure.

Electronic Protection System

Li-lon tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to be recharged.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65 ^ - 75 ^ ( 18 ^ - 24 ^ ). DO NOT charge when the battery pack is below +40 ^ (+4.5 ^ ), or above +104 ^ (+40 ^ ). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AS outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Bit Installation and Removal (Fig. E)

WARNING: Projectile hazard. Only use bits with shanks that match the installed collet. Smaller shank bits will not be secure and could become loose during operation.

CAUTION: Never tighten the collet without first filling a router bit in it. Tightening an empty collet, even by hand, can damage the collet.

NOTICE: Do not use router bits with a cutting diameter in excess of 1-3/8" (34.9 mm) in this tool.

To Install the Bit

1. Remove the motor unit from the base unit. Refer to Removing the Motor from the Fixed Base (if needed).
2. Clean and insert the round shank of the desired router bit into the loosened collet as far as it will go and then pull it out about 1/16" (1.6 mm).
3. Depress the spindle lock button 8 to hold the spindle. shaft in place while turning the collet nut 16 clockwise with the wrench provided.

NOTE: The unit is equipped with two spindle lock detents.

NOTE: Tighten collet nut securely to prevent the bit from slipping.

To Remove the Bit

1. Remove the motor unit from the base unit (refer to Removing the Motor from the Fixed Base/Removing the Motor from the Plunge Base).
2. Depress the spindle lock button 8 to hold the spindle shaft in place while turning the collet nut 16 counterclockwise with the wrench provided.

Collets

NOTE: Never tighten the collet without first installing a router bit in it. Tightening an empty collet, even by hand, can damage the collet.

To change collet sizes, unscrew the collet assembly as described above. Install the desired collet by reversing the procedure. The collet and the collet nut are connected. Do not attempt to remove the collet from the collet nut.

Locking Lever Adjustment (Fig. F)

Excessive force should not be used to clamp the locking lever. Using excessive force may damage the base.

When the locking lever is clamped, the motor should not move in the base.

Adjustment is needed if the locking lever will not clamp without excessive force or if the motor moves in the base after clamping.

To adjust the locking lever's clamping force:

1. Open the locking lever 9 (base unit).
2. Using the hex wrench provided, turn locking lever adjustment nut 10 in small increments Turning the nut clockwise tightens the lever, while turning the nut anticlockwise loosens the lever.

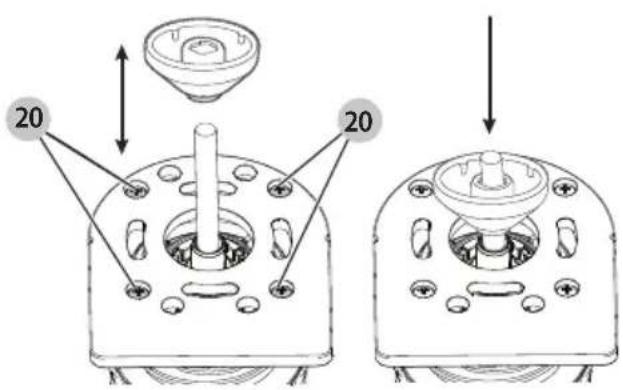

Centering the Subbase (Fig. G)

If you need to adjust, change, or replace a subbase, a centreing tool is recommended. The centering tool consists of a cone and a pin.

1. Loosen but do not remove the subbase screws 20 so the subbase moves freely.
2. Insert the pin into the collet and tighten the collet nut.
3. Insert the motor into the base unit and clamp the locking lever 9 on the base.
4. Place the cone on the pin and lightly press down on the cone until it stops. This will center the subbase.
5. While holding down on the cone, tighten the subbase screws.

Installing a Fixed Base Edge Guide (Fig. H)

Remove the motor unit from the base unit. Refer to Removing the Motor from the Fixed Base.

1. Remove flat head screws from storage holes on edge guide.
2. Slide edge guide 19 into edge guide slot 18 on side of base unit. Insert the two flat head screws through the appropriate holes in the subbase to secure the edge guide. Tighten hardware.
3. Follow all instructions included with the edge guide.

NOTE: To remove the edge guide, reverse the above procedure. After removing edge guide, always replace the two flat head screws into the storage holes on the edge guide to prevent loss.

Attaching a Dust Extraction System to the Fixed Base (Fig. I)

To connect the router to a dust extraction system for dust collection, follow these steps:

1. Remove the motor unit 6 from the base unit. Refer to Removing the Motor from the Fixed Base.
2. Attach dust extraction system attachment accessory 12 to the base unit as shown. Tighten thumb screw 13 securely by hand.
3. Attach hose adapter to dust extraction system attachment accessory.
4. When using dust extraction system attachment, be aware of the placement of the dust extraction system. Be sure that the dust extraction system is stable and that its hose will not interfere with the work.

Set-Up: Fixed Base

Inserting the Motor into the Fixed Base (FIG. J)

1. Open the locking lever 9 on the base unit.
2. Depress the motor release lever 14. While depressing motor release lever, lower motor unit 6 into the base unit 7 with depth adjust rod aligned to opening in the base unit.
3. Adjust the depth of cut by rotating the depth adjustment knob 5. Refer to Adjusting the Depth of Cut.
4. Close the locking lever when the desired depth is achieved.

Adjusting the Depth of Cut (Fig. K)

1. Open the locking lever 9
2. Depress motor release lever 14 to freely slide the motor unit 6 up and down. Adjust the motor unit until the bit just touches the workpiece.
3. Turn the depth adjustment knob 5 for small adjustments to ensure the bit touches the workpiece.
   NOTE: Turning the knob right raises the motor unit. Turning the knob left lowers the motor unit.

NOTE: Each mark on the adjustment scale represents a depth change of 1/64" or .015" (0.4 mm) and one full (360°) turn of the ring changes the depth 1/16" or 0.0625" (1.6 mm).

1. Close the locking lever to lock the base.

Removing the Motor from the Fixed Base (Fig. K)

1. Remove the battery pack from the motor unit. Refer to Installing and Removing the Battery Pack.
2. Open the locking lever 9 on the base.
3. Depress the motor release lever 14.
4. With the other hand, grasp the base unit 7 and pull the motor unit 6 from the base unit.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. L)

WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.

NOTE: For best results, make sure your battery pack is fully charged.

1. To install the battery pack 1 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.
2. To remove the battery pack from the tool, press the battery release button 2 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

Proper Hand Position (Fig. M)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

When using the fixed base, one hand should be on top of the battery and the other hand around the fixed base.

Starting and Stopping the Motor

CAUTION: Before starting the tool, clear the work area of foreign objects. Also keep firm grip on tool to resist starting torque.

CANTION: To avoid personal injury and/or damage to finished work, always allow the power unit to come to a COMPLETE STOP before putting the tool down.

To turn the unit on, depress the side of the dust-protected switch 3 that has the symbol "I." To turn the unit off, depress the side of the switch that has the symbol "O."

Cutting with the Fixed Base

Set up the router to use the fixed base by following the instructions in the Assembly and Adjustments section.

After the router is set-up, install the battery pack as shown in Fig. C, then set your router speed (refer to Choosing Router Speed).

NOTE: Always feed the router opposite to the direction in which the cutter is rotating.

Direction of Feed (Fig. N)

The direction of feed is very important when routing and can make the difference between a successful job and a ruined project. The figures show the proper direction of feed for some typical cuts. A general rule to follow is to move the router in a counterclockwise direction on an outside cut and a clockwise direction on an inside cut.

Shape the outside edge of a piece of stock by following these steps:

1. Shape the end grain, left to right
2. Shape the straight grain side moving left to right
3. Cut the other end grain side
4. Finish the remaining straight grain edge

Choosing Router Speed (Fig. A)

Refer to the Speed Selection Chart to choose a router speed. Turn the variable speed dial 4 to control router speed.

Soft Start Feature

The compact routers are equipped with electronics to provide a soft start feature that minimizes the start up torque of the motor.

Variable Speed Control (Fig. A)

WARNING: If the speed control ceases to operate, or is intermittent, stop using the tool immediately. Take it to a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center for repair.

WARNING: Always follow the bit manufacturer's special recommendations as some bit designs require specific speeds for safety or performance. If you are unsure of the proper speed or are experiencing any type of problem, contact the bit manufacturer.

This router is equipped with a variable speed dial 4 with 7 speeds between 16000 and 30000 RPM. Adjust the speed by turning the variable speed dial.

NOTICE: The router is equipped with electronics to monitor and maintain the speed of the tool while cutting. In low and medium speed operation, the speed control prevents the motor speed from decreasing. If you expect to hear a speed change and continue to load the motor, you could damage the motor by overheating. Reduce the depth of cut and/or slow the feed rate to prevent tool damage.

SPEED SELECTION CHART*

DIAL SETTING APPROX. RPM APPLICATION
1 16000
3 20600
4 22900
5 25200
6 27500
7 30000

*The speeds in this chart are approximate and are for reference only. Your router may not exactly produce the speed listed for the dial setting.

NOTE: Make several light passes instead of one heavy pass for better quality work.

Worklight (Fig. A)

The worklight 17 is located at the front of the motor unit 6. To turn on the worklight, switch on the on/off switch 3. Worklight will remain on 20 seconds after the on/off switch is moved to the off position.

NOTE: The worklight is for lighting the immediate work surface and are not intended to be used as a flashlight.

NOTE: If worklight flashes, check the charge on the battery; it could be low. If it still flashes with a charged battery, the unit should be taken to a service centre for evaluation.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection and an approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those covered by CRAFTSMAN, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, reports, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERShiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB201, CMCB2011, CMCB2015

3 YEARS FREE SERVICE ON CRAFTSMAN

BATTERY PACKS

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MONEY BACK gUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

IATiN AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNiNg IABEI REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

portezdes protections auditives

CMCB201, CMCB2011, CMCB2015

CONTRAT D'ENTRETIEN gRATUiT DE TROiS ANS SUR IES BIOC-PiIES CRAFTSMAN

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

IING: Use of any other battery packs may create a risk of injury and fire.
