Product type	Cordless grinder
Brand	Metabo
Model	W 18 7125
Battery voltage	18 V
Compatible battery type	Li-Ion (14.4 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells) and NiCd (12 V, 1.7 Ah, 10 cells) depending on charger
Compatible chargers	ASC ultra, ASC 145, ASC 145 SE, ASC 30-36, ASC 55, ASC 55 SE, SC 60 Plus, SC 30
Charging current	Variable depending on charger and battery (e.g., 4 A to 8 A)
Charging time	From 30 min to 400 min depending on battery and charger (see table)
Recommended charging temperature	0 °C to 40 °C
Protection class	II (double insulation)
Power supply	Alternating current (mains) for charger
Intended use	Recharge Metabo and CAS batteries
Main charger functions	Automatic recharge, maintenance mode, self-test
Safety	Overload protection, excessive temperature, defective battery
Indicators	Control light (charging) and warning light (error)
Maintenance	Clean ventilation slots, check power cord
Repairs	Reserved for a specialist; replace cord if damaged by manufacturer
Environmental protection	Do not dispose of with household waste; recycle via WEEE
Provided documents	User manual, safety instructions
Country of origin	Germany (subject to change)

Frequently Asked Questions - W 18 7125 METABO

What types of batteries can I recharge with the Metabo charger?

Metabo chargers are compatible with Li-Ion batteries (14.4 V - 36 V, 1.3 Ah - 10 Ah) and NiCd (12 V, 1.7 Ah) depending on model. Check compatibility in the manual.

What to do if the warning light flashes?

A flash indicates a defective battery or incorrect insertion. Immediately remove the battery and check its condition.

Can I leave the battery on the charger after charging?

Yes, the charger automatically switches to maintenance mode, the battery remains ready for use.

What is the recommended ambient temperature for charging?

Charging is optimal between 0 °C and 40 °C. Outside this range, the charger may not start.

How to clean the charger?

Unplug the device and clean the ventilation slots with a dry cloth. Do not use liquids.

Is the charger suitable for outdoor use?

No, the charger is for indoor use only. Protect it from moisture.

What does the warning light permanently on mean?

This indicates a battery temperature too high or too low. Wait until the battery reaches 0 °C to 50 °C.

Can I recharge non-rechargeable batteries?

No, this presents an explosion risk. Only use compatible rechargeable batteries.

How to repair a Metabo charger?

Repairs must be carried out by a specialist. Contact your Metabo representative for any intervention.

Where can I find the complete user manual?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL W 18 7125 METABO

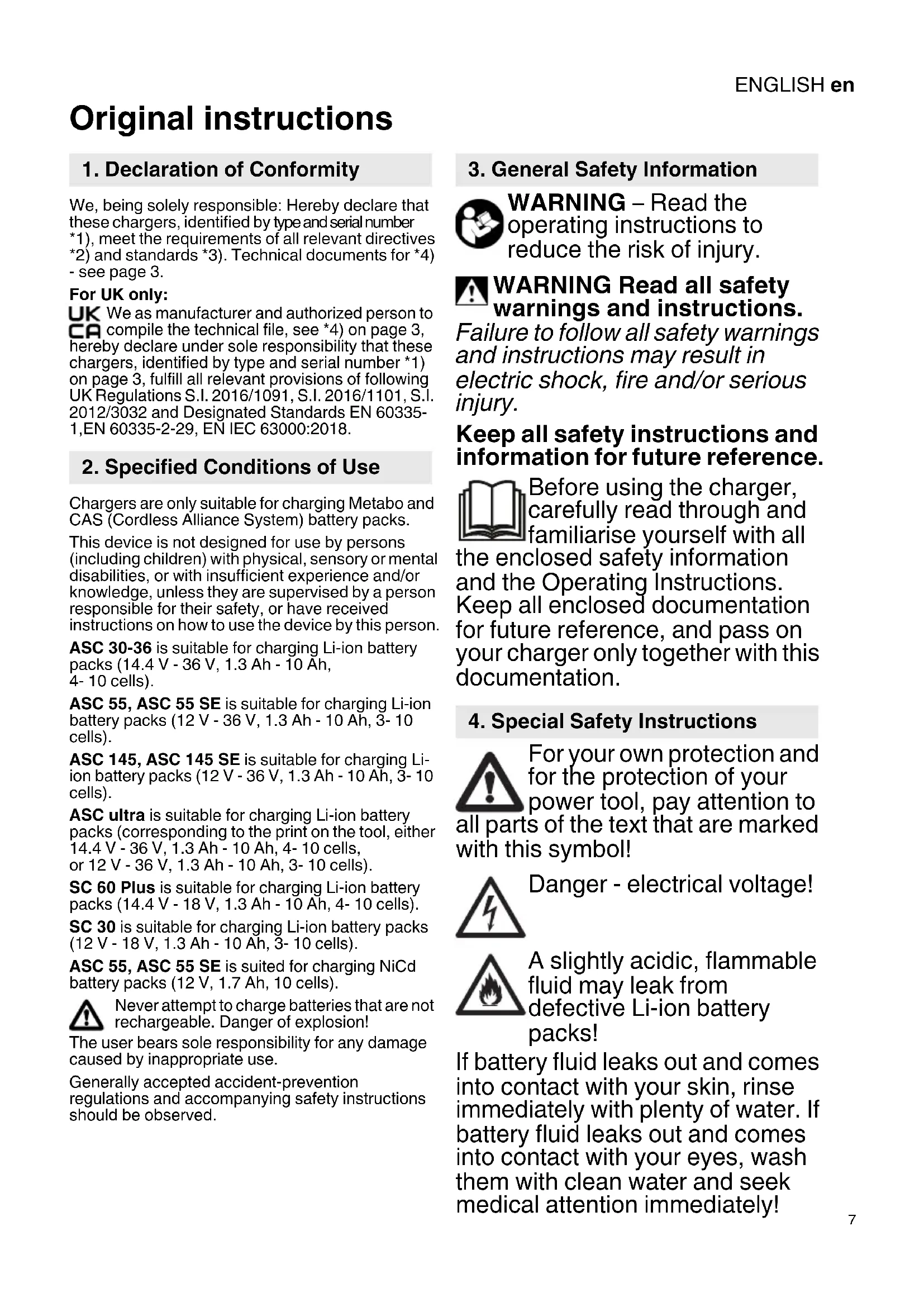

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information e Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C, the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs
C = battery pack capacity
l_C = charging current
t = charging time

¹⁾ Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Device of protection class II

\~ AC Power

FRANÇAISfr

Notice originale

C = accupack-capaciteit

I_C = laadstroom

t = laadtijd

Uju wtuwlyh wupftpp, npn6f qt6tpwg6m1d t6 hwnwnwnm6 hwnw6f, lwpnn t6 mqnltL yhibptptgghwL mwqwhnl1s ufwwnhyskph dpu: Yhpwnl5 F wkwnlp, lquw wnwnlljwqnj6p 30 dJU, wfwwnndwl hwnwlfnl wejwnwnn daqtkp:

¹ npdwnphnufgh wwng hwnqultf, np onwnphnufng mfgftpupgmfumd st6: Nmhqnukl wnfu[mq6 5 nd hlwni]npapjni6 wjl wnwnphwukph ghwundwdp:

6.1 Ummiqnli

kynngmhlq shmgfkl hnumfgh ympnmlhfi:

UqqnW6cmWjHf (4) h wcJwnW6fH hNghWwnP6tph Lmjutpp (3) ywnJmU t6 hnQnpWpWp dwnWlpWmWtu 1 yPh. empnGmH, gtpwptFmd hnlmgDmH hndWlpWpP mcpWnnMd t dnn. 5 yPh. empnGmH:

7. Чршннід

C = Uwpunlqngh hqnpncpjnufp

IC = lhglwl|npdufihnuufif

t = 1,hgfu|npduw|duufulw|

1) qubqud hghduwupuuhg le yapuwuhfuuh wujuwukphg hghwunpufu hpulwduwuhp lwpn k uwpptpkl fclud duwuhwhwniuwdutphg:

Ighfuwapufu duwufuw ouunfuw ykpudwnuhfu°C hg uhyu 40 °C:

Bcpwqk T ynhnfowg wkjgghwqg pwpkwnfwd Gquwwwnql:

□ II ηωυρ υωσωωω6m pγm6

\~ Φnμnμmμg hnuugf

№ ЕАЭС RU C-DE.ГБ09.B.00131/20, qnpδnul t, ulquw 10.02.2020 άh624 09.02.2025 pp., mpjbl t, «'Ukqwllhuftuwm έfwnlρωnhq» UΩC' wpnnwnpwflh hwilwnwnuqpndwi δmpd6h lqn6hg, hwugl (hpwnlwpwnwlquf l qnpδnkl(###pjw6) ' 115280, θnclwnwnu6, fwnwif U'nuljlu, φnngg lθghfuhwjw U1npnnu, ct6f 19, 2-pn hwph, ut6jmw6tp ' 21w8, 21w9, 21w10, 21w11: Ztnwnpu ' [phone]; ηL. φnwnuh hwugt' [e-mail]: Znwllwnwnuqpndwi άhμwqhp No POCC RU.0001.11ГБ09 wn 09.09.2014 p.:

Zwduuununluwufprjwh hwnunupwquhp ' No EA3C N RU Д-DE.ГБ09.B.00348/20, qnpdnif k uluwd 04.03.2020 üh6b 26.02.2025 pp., qpwfgylt k «Ükqwlluhwjw fwntpwnhqw» UФ' wpmwnpw6f hwnwnwnqpw6 dmp6h hnp6g, hmugt (hpwnlpw6mhw6 h qnpdnftm pwr6f)' 115280, fncuwwnui, fuqw f Unalju, qhnng l,ghfuhwjw Ulnpnnw, ct6f 19, 2-pn hwpl, utgjwl6tp '21w8, 21w9, 21w10, 21w11: Ztnwnlnn' [phone]; ξL. qwnuh hmugt' [e-mail]: Zwnwnwnmqrwn6 ylmwjwhp No POCC RU.0001.11ГБ09 mm 09.09.2014 p.:

Upumnprufng kphhp' Qfghwnwnfg, qjkwngm Upumnprunq "Metabowerke GmbH", Utkwnpnwnlbjk 1, D-72622 Ujnpuhfiqfg, qkpufmfgm Ukpufmdnq fncnuunnwnfgmud "Utkwnpn bilpuuIm" UfC Pncnuunnwug, 127273, Unuqlqu Φ. fKpnqnqnwju wltw, umt6 5 a, chg.-6 7, qpwnutgjwlq 106 htn.' [phone]

Upwnnpudw wduwpplp gcalmd k Lhgfwlpudw uwpfh qpm Tnpdft h dwnwnmpjw6 dmuhtpw 7 uwpfh k: hnphmprn sh wpfnd wnuhfg hwiofwqm hiuniqdwh oqwnqnptk l qnpdftp wpwnnpudw wduwpllg uhumd '5 mmph cmpnfdmh wjh wpnhntwnmqlaplng hlaan (wpwnnpudw wduwphlp ndu whunwl h ipw):

Shukhupjuli qianpnh huiup.

ZwduwwuunwulwGnlpjw6 hwylwwwnwqhp.
