Product Type	Professional Conveyor Toaster
Brand	Hatco
Model	ToastQwik TQ800H
Supply Voltage	208 V / 240 V
Frequency	60 Hz
Power	3330 W
Current	16.0 A (208 V) / 13.9 A (240 V)
Shipping Weight	28 kg (62 lbs)
Dimensions (W × D × H)	368 mm × 578 mm × 422 mm
Toasting Capacity	Up to 800 slices per hour (estimated)
Energy Saving Mode	Yes, 50% power reduction, recovery in 10 min
ColorGuard System	Yes, automatic conveyor speed adjustment for uniform color
Discharge Type	Front or rear (configurable)
Top/Bottom Temperature Control	Independent, adjustable
Color Control (conveyor speed)	Yes, continuous adjustment (light to dark)
Conveyor	Belt, lifetime lubricated
Infeed Ramp	Adjustable: automatic or manual position
Removable Crumb Tray	Yes, removable for cleaning
Materials	Stainless steel (finish)
Warranty	Parts and labor: 1 year, heating elements: 2 years
Maintenance	Daily cleaning, do not immerse, do not pressure wash
Safety	High temperature thermal shutdown, optional safety guard
Usage	Professional use only (food service)
Replacement Parts	Use only genuine Hatco parts

Frequently Asked Questions - ToastQwik TQ800H Hatco

How to clean the ToastQwik TQ800H toaster?

Turn off the appliance, unplug it and let it cool down. Remove the crumb tray and drip tray, clean them with hot water and a mild detergent. Wipe exterior surfaces with a non-abrasive damp cloth. Never use a steam cleaner or water jet. For stubborn stains, use a stainless steel cleaner.

What is the ColorGuard system?

The ColorGuard system is a patented device that automatically monitors and adjusts the conveyor speed during high-demand periods to ensure uniform toast color. It is inoperative for about 10 minutes after a thermal adjustment.

How to adjust the toast color?

Use the color control knob (also called speed control). Turn clockwise for darker color, counterclockwise for lighter. Preheat the appliance for 15 to 20 minutes before toasting.

Can I toast buttered or garlic bread?

It is not recommended to toast coated or buttered products (garlic bread, cheese toast, etc.). Residues reduce performance and may cause a fire. This voids the warranty.

What to do if the warning light comes on?

The light indicates probable overheating due to a fan failure. Turn off the appliance, unplug it and let it cool. Check and clean the fan openings under the control panel. If the problem persists, contact a Hatco authorized repairer.

How to change the discharge direction (front/rear)?

Unplug the appliance and let it cool. Remove the discharge slide and drip tray. For front discharge, install the slide from the front by engaging the pins. For rear discharge, install the tray directly onto the rear pins without the slide. Refer to the manual for detailed diagrams.

What are the electrical supply requirements?

The TQ800H model operates on 208 V or 240 V, 60 Hz, with a power of 3330 W. Current is 16 A (208 V) or 13.9 A (240 V). The plug is NEMA 6-15P (6-20P in Canada). Always plug into a grounded outlet.

How to install the toaster?

Place the appliance on a flat, solid surface indoors, away from drafts, with an ambient temperature between 21°C and 29°C. Observe minimum clearance distances (sides: 25 mm, front: 305 mm for front discharge, rear: 305 mm for rear discharge). Level by turning the feet. Install the crumb tray and discharge slide according to the desired configuration.

What is the warranty for the ToastQwik TQ800H?

Hatco offers a limited warranty of 1 year parts and labor, plus an additional 2 years on tubular heating elements (parts only). Online registration within 90 days is recommended to receive full coverage.

How to register my appliance?

Go to www.hatcocorp.com, select the Support menu then Warranty. Fill in the form with the model number, serial number and purchase date. You can also call 800-558-0607 or 414-671-6350.

USER MANUAL ToastQwik TQ800H Hatco

Register Online! (see page 2)

Line drawing of a four-legged toaster oven with control panel and side legs (no text or symbols)

Line drawing of a portable toaster with control panel and fan (no text or symbols)

Line drawing of a portable electronic device with control panel and ventilation slots (no text or symbols)

Line drawing of a portable toaster with cooling unit and front panel (no text or symbols)

WARNING

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information....2

Introduction....2

Important Safety Information....3

Model Descriptions ....4

Model Designation 5

Specifications....6

Plug Configurations 6

Electrical Rating Charts....6

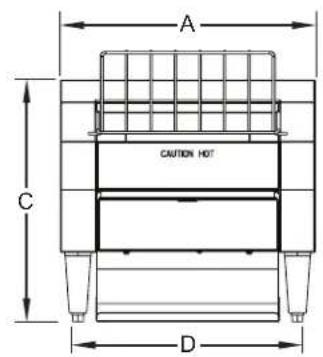

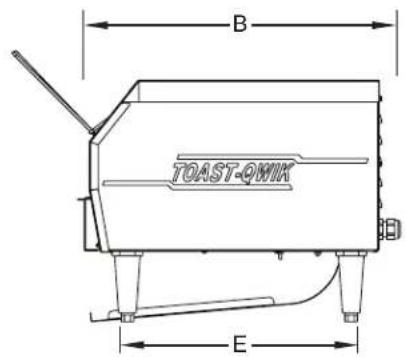

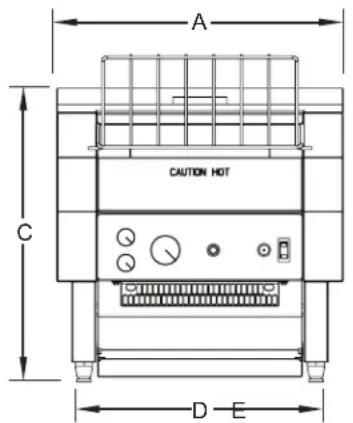

Dimensions....8

Installation....10

General....10

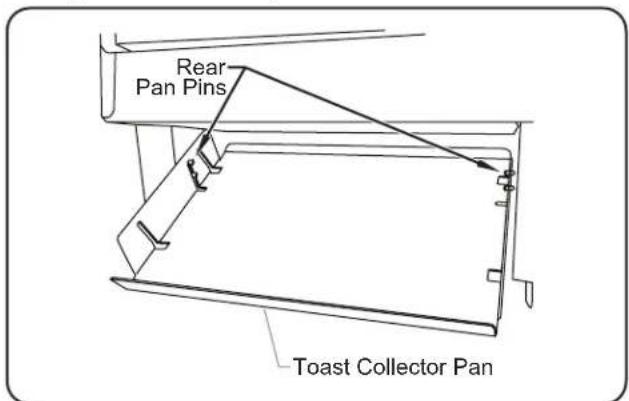

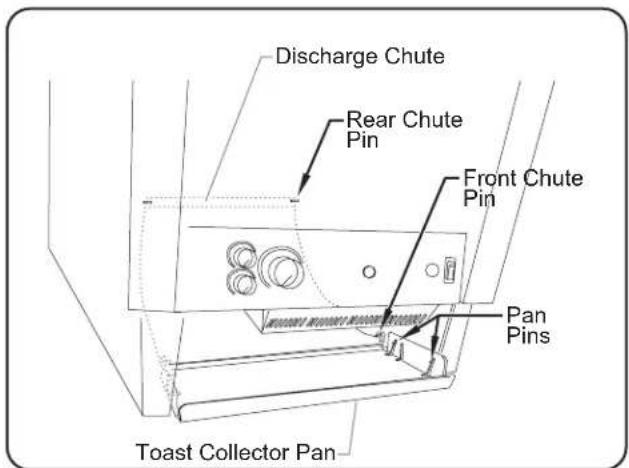

Front or Rear Discharge Installation 11

Operation....12

General....12

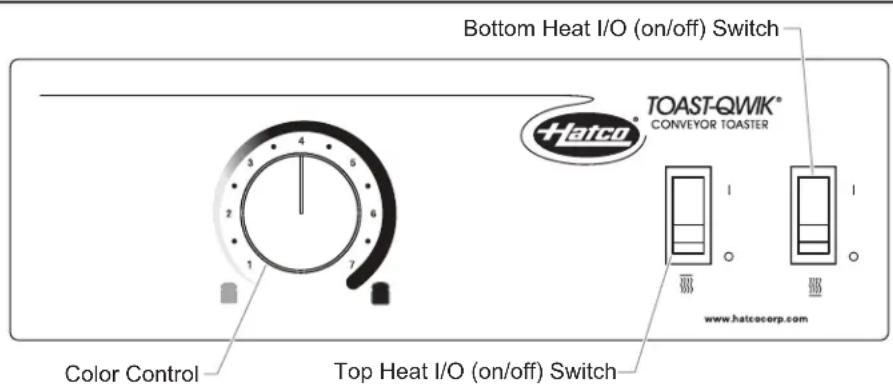

Operating Model TQ-10....12

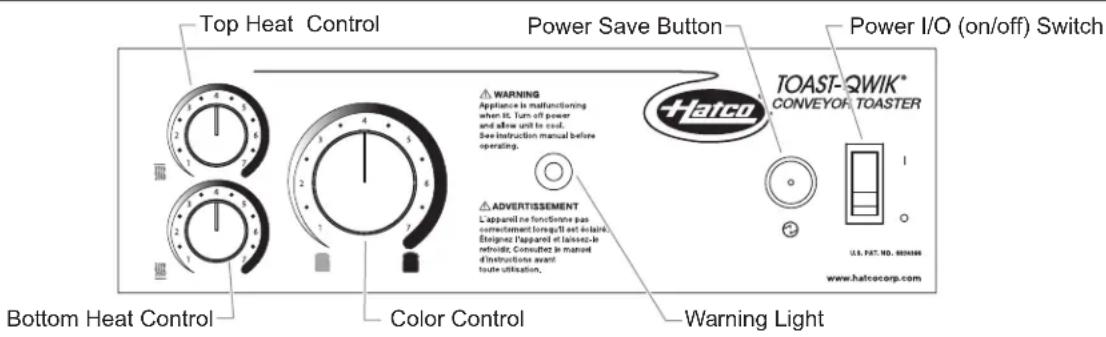

Operating TQ-400, -800, -1200, and -1800 Series ..... 13

Power Save Mode with Indicator Light....14

ColorGuard System....14

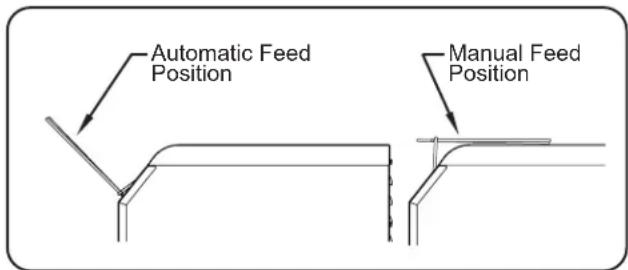

Adjusting the Toast Feed Ramp 14

Maintenance....15

General....15

Daily Cleaning 15

Cleaning the Toast Feed Ramp....15

Cleaning the Bottom Element Reflector....15

Troubleshooting Guide....16

Options and Accessories 17

Limited Warranty 18

Authorized Parts Distributors ....Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the lower left hand side of the unit). Please have this information available when calling Hatco for service assistance.

Model No. ____

Serial No.

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Warranty".

Business

Hours: 7:00 AM to 5:00 PM Monday–Friday, Central Time (CT)

(Summer Hours — June to September:

7:00 AM to 5:00 PM Monday–Thursday

7:00 AM to 4:00 PM Friday)

Telephone: [phone]

E-mail: [e-mail]

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Hatco Toast-Qwik ^® Conveyor Toasters are specially designed to accelerate the toasting operation. Products for toasting pass through a heating chamber for rapid and thorough toasting. Moisture, sugar content, and thickness of bread product effect the ability to achieve the perfect toasted product. Conveyor speed and temperature determine the toasting color.

Hatco toasters are built with quality to meet the demands of foodservice operations and provide years of trouble-free performance. The metal-sheathed tubular heating elements are guaranteed against breakage and burnout for two years.

Hatco Toast-Qwik Conveyor Toasters are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance and optimum performance. Every unit is thoroughly inspected and tested prior to shipment.

This manual provides the installation, safety, and operating instructions for Toast-Qwik Conveyor Toasters. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Turn OFF power switch, unplug power cord, and allow unit to cool before performing maintenance, cleaning, setup, or attempting to clear a jam.
• Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70°F (21°C) and a maximum of 85°F (29°C).
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not clean unit when it is energized or hot.
• Do not allow liquids to spill into unit.
• Do not pull unit by power cord.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair or replace a damaged power cord. Cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.
• NEVER insert a knife, fork, or similar object into toasting chamber.
• Do not pick up the toaster by inserting fingers into the toaster feed opening.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

If toaster overheats or cooling fan inside unit stops working, the safety high-limit switch will shut off toaster. Contact Authorized Service Agent or Hatco for assistance.

WARNING

FIRE HAZARD:

• For front discharge operation: Allow a minimum clearance of 1" (25 mm) along the sides and rear of unit. Allow a minimum clearance of 12" (305 mm) in the front. If safe distances are not maintained, discoloration or combustion could occur.
• For rear discharge operation: Allow a minimum clearance of 1" (25 mm) along the sides of unit. Allow a minimum clearance of 12" (305 mm) in the front and rear. If safe distances are not maintained, discoloration or combustion could occur.
• Do not locate toaster under shelving or closer than 12" (305 mm) from the ceiling.
• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to the toaster.
• In case of fire, disconnect toaster from power source immediately. This allows unit to cool, making it easier and safer to put out fire.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350.

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.

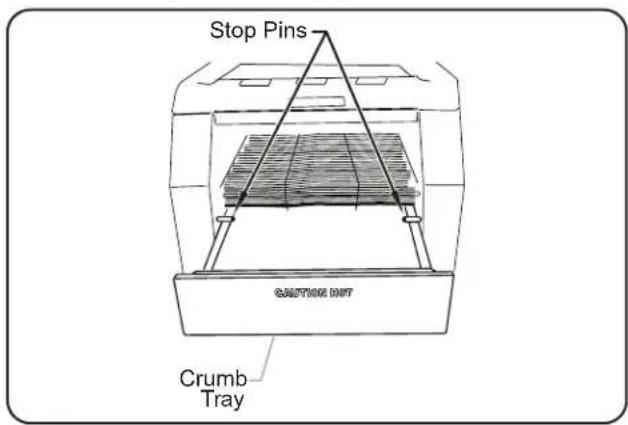

• Do not remove crumb tray for cleaning until toaster is cool.

Locate unit at the proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

Always operate toaster with crumb tray installed.

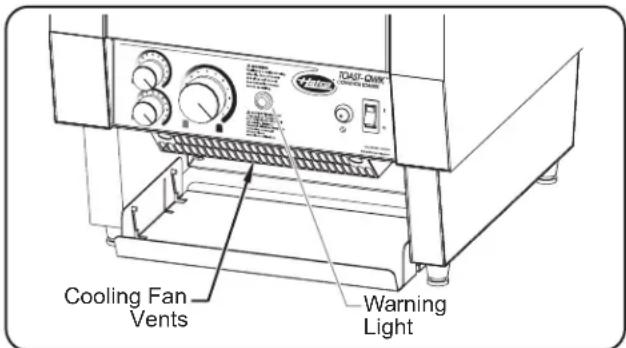

If warning light comes on, unit is malfunctioning due to fan failure. Turn off unit, disconnect from power supply, and have unit serviced by a qualified technician.

Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty.

NOTICE

Do not locate unit in an area subject to temperatures above 85^ F ( 29^ C) or grease from grills, fryers, etc. Excessive temperatures and grease could cause damage to unit.

Do not locate toaster in an area that restricts air flow around front or rear of unit. Do not locate toaster in direct discharge path of air conditioning vent or makeup air vent.

Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

This unit is intended for commercial use only—NOT for household use.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

MODEL DESCRIPTIONS

All Models

All Toast-Qwik ^8 Conveyor Toasters are fast, reliable, and versatile, toasting 300 to 1800 slices of bread product per hour depending on the specific model. The front or rear discharge lets the operator place a Toast-Qwik toaster where it is most convenient. Every Toast-Qwik toaster includes a toast collector pan, toast feed ramp, removable crumb tray, and a factory attached 6' (1829 mm) cord and plug.

Power Save Mode with Indicator Light

All TQ-400, TQ-800, TQ-1200, and TQ-1800 series toasters have a Power Save mode. During Power Save mode, the indicator light on the Power Save button (②) will flash. While the light is flashing, the toaster is operating at 50% power. Full power can be restored within 10 minutes by pushing any button or adjusting any control knob.

ColorGuard System

All TQ-400, TQ-800, TQ-1200, and TQ-1800 series toasters use a patented ColorGuard Sensing System that monitors and automatically adjusts conveyor speed during high usage periods to assure toast color uniformity.

TQ-10 Model

The TQ-10 model allows for toasting of bread products up to 1-1/2" (38 mm) thick and 9-5/8" (244 mm) wide. The TQ-10 comes equipped with 4" (102 mm) adjustable legs.

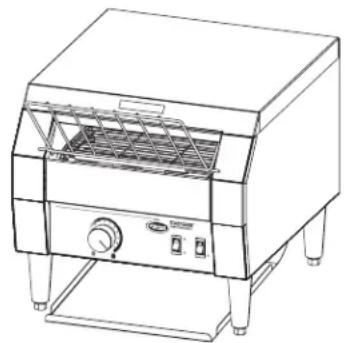

Line drawing of a portable toaster with control panel and side legs (no text or symbols)

TQ-10 Model

TQ-400 Model

The TQ-400 model allows for toasting of bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide.

TQ-405 Model

The TQ-405 model allows for toasting of moist or dense bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide.

TQ-400H Model

The TQ-400H model has a 3" (76 mm) wide opening allowing for toasting of bread products up to 2-3/4" (70 mm) thick and 9-5/8" (244 mm) wide.

TQ-400BA Model

The TQ-400BA model allows for quick single-sided toasting of sliced bagels or bun products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide. Most products can be toasted in as little as 45 seconds. Toasts cut side facing up.

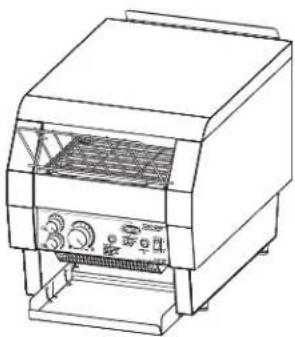

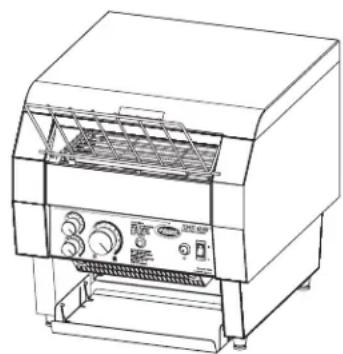

Line drawing of a portable kitchen or toaster with control panel and fan (no text or symbols)

TQ-400 Series (TQ-400 shown)

TQ-800 Model

The TQ-800 model allows for toasting of bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide.

TQ-805 Model

The TQ-805 model allows for toasting of moist or dense bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide.

TQ-800H Model

The TQ-800H model has a 3" (76 mm) wide opening allowing for toasting of bread products up to 2-3/4" (70 mm) thick and 9-5/8" (244 mm) wide.

TQ-800BA Model

The TQ-800BA model allows for quick single-sided toasting of sliced bagels or bun products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide. Most products can be toasted in as little as 30 seconds. Toasts cut side facing up.

TQ-800HBA Model

The TQ-800HBA model is designed to provide the flexibility and performance to toast one side of sliced bagels or bun products in as little as 30 seconds. Toasts cut side facing up. Maximum product size allowed is 2-3/4" (70 mm) thick and 9-5/8" (244 mm) wide.

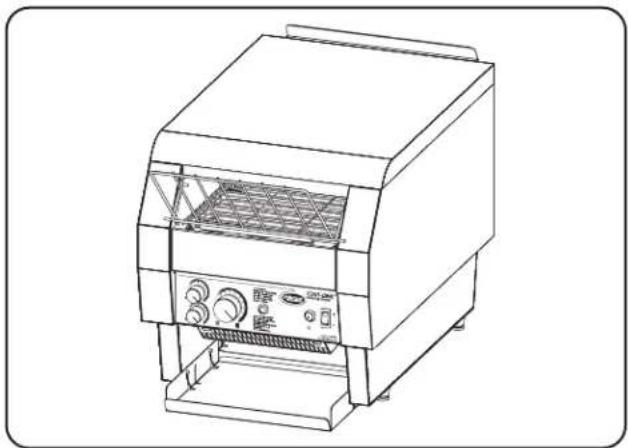

Line drawing of a portable kitchen or oven device with control panel and fan (no text or symbols)

TQ-800 Series (TQ-800H shown)

TQ-1200 Model

The TQ-1200 is a high speed toaster which has an accelerated conveyor system allowing faster toasting during periods of high demand. Two slices of bread products can be toasted in as little as 15 seconds. This model is capable of toasting bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide.

TQ-1800 Model

The TQ-1800 model allows for toasting of bread products up to 1-3/4" (44 mm) thick and 13-5/8" (346 mm) wide.

TQ-1800H Model

The TQ-1800H model has a 3" (76 mm) wide opening allowing for toasting of bread products up to 2-3/4" (70 mm) thick and 13-5/8" (346 mm) wide.

TQT-1800BA Model

The TQ-1800BA model allows for quick single-sided toasting of sliced bagels or bun products up to 1-3/4" (44 mm) thick and 13-5/8" (346 mm) wide. Most products can be toasted in as little as 15 seconds. Toasts cut side facing up.

TQ-1800HBA Model

The TQ-1800HBA model is designed to provide the flexibility and performance to toast one side of sliced bagels or bun products in as little as 15 seconds. Toasts cut side facing up. Maximum product size allowed is 2-3/4" (70 mm) thick and 13-5/8" (346 mm) wide.

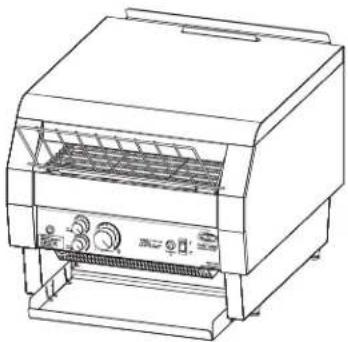

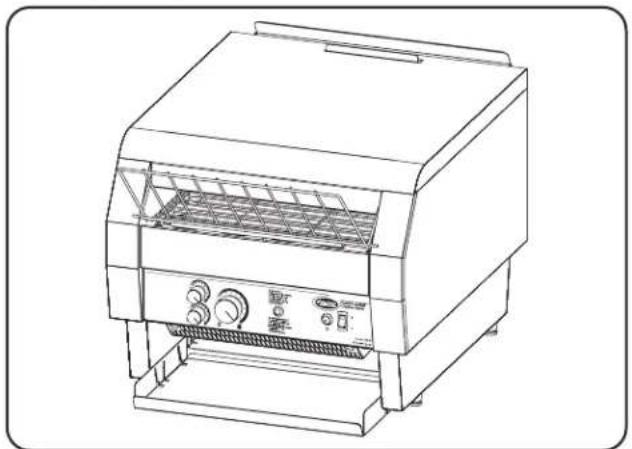

Line drawing of a standard 3D toaster oven with control panel and fan (no text or symbols)

TQ-1800 Series (TQ-1800 shown)

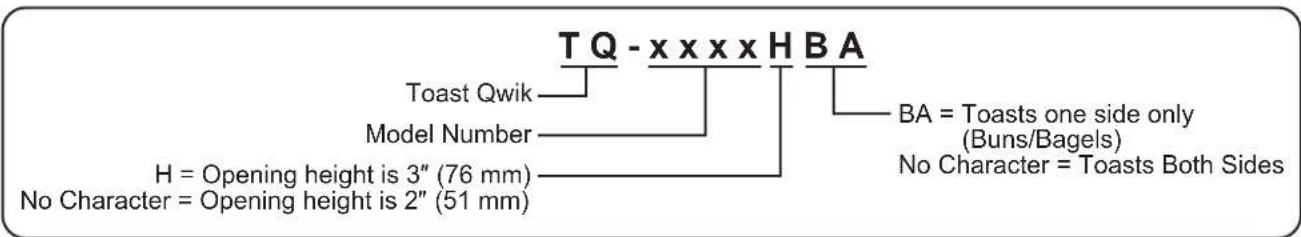

MODEL DESIGNATION

T Q - x x x x H B A Toast Qwik Model Number H = Opening height is 3" (76 mm) No Character = Opening height is 2" (51 mm) BA = Toasts one side only (Buns/Bagels) No Character = Toasts Both Sides

Plug Configurations

Units are supplied from the factory with an electrical cord and plug. Plugs are supplied according to the application.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

NOTE: Receptacles are not supplied by Hatco, but are available as accessories.

NOTE: Specification label located on the side of the unit. See label for serial number and verification of unit electrical information.

NEMA 5-15P

NEMA 5-20P

NEMA 6-15P

NEMA 6-20P

NEMA 6-30P
Plug Configurations

Electrical Rating Chart — Model TQ-10

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TQ-10 120		60	1800	15.0 NEMA 5-15P *		42 lbs. (19 kg)
	208		1830	8.8	NEMA 6-15P
	240 7.6

Electrical Rating Chart — TQ-400 Series

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TQ-400 120		60	1790	14.9	NEMA 5-15P *	46 lbs. (21 kg)
	208		2230	10.7	NEMA 6-15P
	240 9.3
TQ-400H 208		60 2230		10.7	NEMA 6-15P 46 lbs. (21 kg)
	240 9.3
TQ-400BA 120		60	1780	14.8	NEMA 5-15P*	46 lbs. (21 kg)
	208		1880	9.0	NEMA 6-15P
	240 7.8

* NEMA 5-20P for Canada.

Electrical Rating Chart — TQ-800 Series

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TQ-800 208	60 3330NEMA 6-15P		16.0 NEMA 6-20P		64 lbs. (29 kg)
	240 13.9 N
TQ-800H 208	60 3330NEMA 6-15P		16.0 NEMA 6-20P		62 lbs. (28 kg)
	240 13.9 N
TQ-800BA 208	60 3280NEMA 6-15P		15.8 NEMA 6-20P		62 lbs. (28 kg)
	240 13.7 N
TQ-800HBA 208	60 3280NEMA 6-15P		15.8 NEMA 6-20P		65 lbs. (29 kg)
	240 13.7 N

Electrical Rating Chart — Model TQ-1200

Model	Voltage	Hertz	Watts	Amps	Plug Configuration	Shipping Weight
TQ-1200	208	60 4030		19.4	NEMA 6-30P 65 lbs. (30 kg)
	240			16.8

Electrical Rating Chart — TQ-1800 Models

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TQ-1800	208	60 4440		21.4	NEMA 6-30P 73 lbs. (33 kg)
	240 18.5
TQ-1800H	208	60 4650		22.4	NEMA 6-30P 76 lbs. (34 kg)
	240 19.4
TQ-1800BA	208	60 4580		22.0	NEMA 6-30P 75 lbs. (34 kg)
	240 19.1
TQ-1800HBA	208	60 4580		22.0	NEMA 6-30P 74 lbs. (34 kg)
	240 19.1

* NEMA 5-20P for Canada
† Available with optional 6-30P cord
‡ NEMA 6-20P cord for Canada

Dimensions — Model TQ-10

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)
TQ-10 14-1"	/2" (368 mm)	17-3/4" (451 mm)	13-3/4" (349 mm)	13-1/8" (333 mm)	13-3/8" (340 mm)

A CAUTION HOT C D

Front View Side View

Dimensions — TQ-400, -405, -400H, -800, -805, -1200, and -1800 Models

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)
TQ-400 14-1	1/2" (368 mm)	17-3/4" (451 mm)	14-7/8" (378 mm)	12-3/8" (314 mm)	11-5/8" (295 mm)
TQ-405 14-1	1/2" (368 mm)	17-3/4" (451 mm)	14-7/8" (378 mm)	12-3/8" (314 mm)	11-5/8" (295 mm)
TQ-400H 14-1	1/2" (368 mm)	17-3/4" (451 mm)	15-7/8" (403 mm)	12-3/8" (314 mm)	11-5/8" (295 mm)
TQ-400BA 14-1	1/2" (368 mm)	17-3/4" (451 mm)	14-7/8" (378 mm)	12-3/8" (314 mm)	11-5/8" (295 mm)
TQ-800 14-1	1/2" (368 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	12-3/8" (314 mm)	13-1/2" (344 mm)
TQ-805 14-1	1/2" (368 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	12-3/8" (314 mm)	13-1/2" (344 mm)
TQ-800H 14-1	1/2" (368 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	12-3/8" (314 mm)	13-1/2" (344 mm)
TQ-800BA 14-1	1/2" (368 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	12-3/8" (314 mm)	13-1/2" (344 mm)
TQ-800HBA 14-1	1/2" (368 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	12-3/8" (314 mm)	13-1/2" (344 mm)
TQ-1200 14-1	1/2" (368 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	12-3/8" (314 mm)	13-1/2" (344 mm)
TQ-1800 18-1	1/2" (470 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	16-3/8" (416 mm)	13-1/2" (344 mm)
TQ-1800H 18-1	1/2" (470 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	16-3/8" (416 mm)	13-1/2" (344 mm)
TQ-1800BA 18-1	1/2" (470 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	16-3/8" (416 mm)	13-1/2" (344 mm)
TQ-1800HBA 18-1	1/2" (470 mm)	22-3/4" (578 mm)	16-5/8" (422 mm)	16-3/8" (416 mm)	13-1/2" (344 mm)

A CAUTION HOT C D E

Front View Side View

B

General

Hatco Toast-Qwik ^® Conveyor Toasters are shipped with most components pre-assembled. Care should be taken when unpacking the shipping carton to avoid damage to the unit and the components enclosed.

WARNING

ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ F ( 21^ C) and a maximum of 85^ F ( 29^ C).

EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

FIRE HAZARD:

• Do not locate toaster under shelving or closer than 12" (305 mm) from the ceiling.

• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to the toaster.

• Remove the unit from the carton.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit.

CAUTION

Locate unit at the proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

NOTICE

Do not locate unit in an area subject to temperatures above 85^ F ( 29^ C) or grease from grills, fryers, etc. Excessive temperatures and grease could cause damage to unit.

1. Place the unit in the desired location.

2. Locate the unit in an area where the ambient air temperature is constant and between 70^ (21°C) and 85^ (29°C). Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/ hoods, air conditioning ducts, and exterior doors).

3. Make sure the unit is at the proper counter height in an area convenient for use.
   • Make sure the countertop is level and strong enough to support the weight of the unit and food product.
   • Make sure all the feet on the bottom of the unit are positioned securely on the countertop.

4. Level the unit by turning the leveling feet on each leg, if necessary.

5. Install the front or rear discharge chutes. Refer to the "Front or Rear Discharge Installation" procedure in this section.

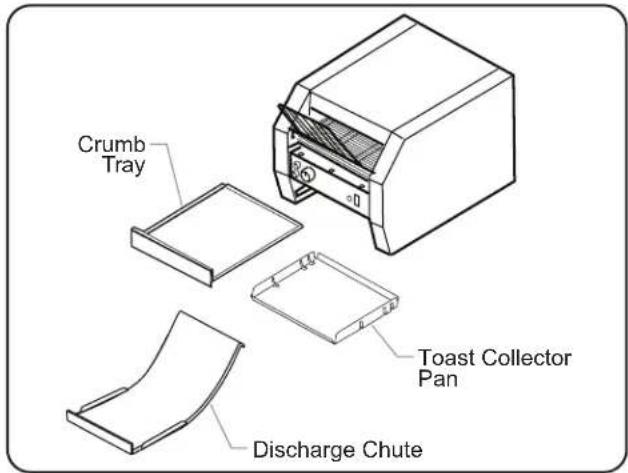

Crumb Tray Toast Collector Pan Discharge Chute

Components

CAUTION

Always operate toaster with crumb tray installed.

1. Install the crumb tray.
   a. Position the crumb tray directly below the stop pins under the conveyor belt at the front of the toaster.
   b. Slide the crumb tray into the toaster until the front of the crumb tray meets the stop pins.

Stop Pins EASTING VENT Crumb Tray

Installing the Crumb Tray

Front or Rear Discharge Installation

Toast-Qwik units can be set up so toasted product discharges at either the front or the rear of the unit.

WARNING

FIRE HAZARD:

• For front discharge operation: Allow a minimum clearance of 1" (25 mm) along the sides and rear of unit. Allow a minimum clearance of 12" (305 mm) in the front. If safe distances are not maintained, discoloration or combustion could occur.
• For rear discharge operation: Allow a minimum clearance of 1" (25 mm) along the sides of unit. Allow a minimum clearance of 12" (305 mm) in the front and rear. If safe distances are not maintained, discoloration or combustion could occur.

Model TQ-10

Model TQ-10 uses a one piece discharge chute/collector pan. The installation location determines the discharge area.

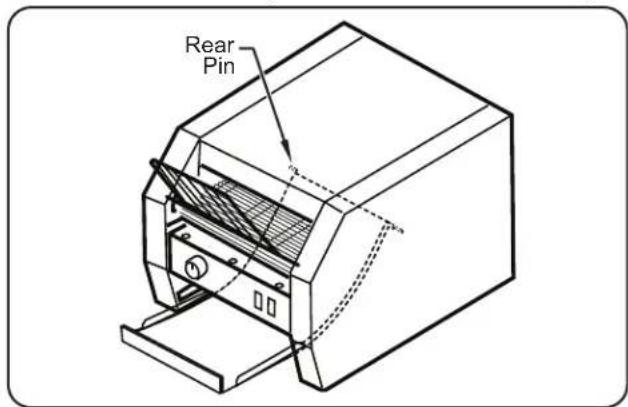

For front discharge:

- Slide the toaster chute into the toaster from the front of the toaster with the rear lip of the chute on the rear most pins.

Rear Pin

TQ-10 Front Discharge

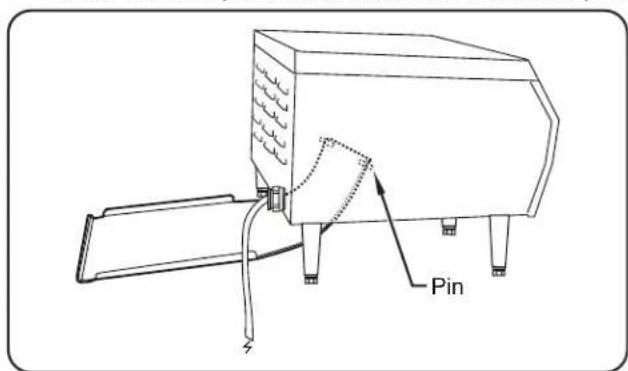

For rear discharge:

- Slide the toaster chute into the toaster from the rear of the toaster with the lip of the chute over the inside set of pins.

Pin

TQ-10 Rear Discharge

TQ-400, -800, -1200, and -1800 Series

TQ-400, -800, -1200, and -1800 series toasters use a separate discharge chute and toast collector pan. The installation location determines the discharge area.

For front discharge:

1. Install the discharge chute.
2. Place the curved end inward until the rear lip of the chute is on the rear chute pins.
3. Lower the front slots of the chute onto the front chute pins.
4. Position the toast collector pan, with the open end in first, over the pan pins.
5. Align the slanted notches over the pan pins and lower into place.

Discharge Chute Rear Chute Pin Front Chute Pin Pan Pins Toast Collector Pan

TQ-400, -800, -1200, and -1800 Series Front Discharge

For rear discharge:

1. Remove the discharge chute if it is installed. It is not used for rear discharge.
2. Slide the toast collector pan, with the open end first, over the set of pan pins at the rear of the unit.
3. Align the slanted notches over the two sets of rear pan pins and lower into place.

Rear Pan Pins Toast Collector Pan

TQ-400, -800, -1200, and -1800 Series Rear Discharge

General

The Toast-Qwik ^® Conveyor Toaster is designed for ease of operation. To operate the toaster perform the appropriate procedure in this section.

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.
• Do not remove crumb tray for cleaning until toaster is cool.

If warning light comes on, unit is malfunctioning due to fan failure. Turn off unit, disconnect from power supply, and have unit serviced by a qualified technician.

Always operate toaster with crumb tray installed.

The toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside the toaster. Using the toaster with the food products listed above will void the unit warranty.

TQ-10 Models

Control Panel

The following are descriptions of the controls used to operate the unit. All controls are located on the control panel on the front of the unit.

The Top Heat (☐) I/O Switch controls power to the top heating element. The icon indicates that the heat will radiate down from above.

The Bottom Heat (☐) I/O Switch controls power to the bottom heating element. The icon indicates that the heat will be rise up from below.

Color Control

The Color Control adjusts the toasting color using the speed of the conveyor. Turning the Color Control clockwise will toast products to a darker color (☐). Turning the Color Control counterclockwise will toast products to a lighter color (☐).

Operating TQ-10 Models

1. Plug toaster into a properly grounded electrical outlet of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.
2. Move the and/or I/O switches to the I position.

- To toast the top and bottom sides of the bread, move the and I/O switches to the I (on) position.

- To toast on the top side only, move the I/O switch in the I position and the I/O switch to the O position.

- To toast on the bottom side only, move the I/O switch in the O position and the I/O switch to the I position.

1. Turn the Color Control to the lightest position while the unit heats up.

NOTE: Allow approximately 15 to 20 minutes for a warm-up period.

1. After warm-up period, set the Color Control to the medium position and toast two slices of bread product then readjust the Color Control to the desired setting.

NOTE: To toast moist products such as English Muffins, rye bread or whole wheat, slow the conveyor by turning the Color Control knob to a darker setting (clockwise).

Bottom Heat I/O (on/off) Switch TOAST-QWIK® CONVEYOR TOASTER Color Control Top Heat I/O (on/off) Switch www.hatcocorp.com

Control Panel — TQ-10 Series

TQ-400, -800, -1200, and -1800 Series

Control Panel

The following are descriptions of the controls used to operate the unit. All controls are located on the control panel on the front of the unit.

Top Heat Control

The Top Heat ( )Control adjusts the amount of heat to the top heating element. The icon indicates that the heat will radiate down from above.

Bottom Heat Control

The Bottom Heat ( )Control adjusts the amount of heat to the bottom heating element. The icon indicates that the heat will be rise up from below.

Color Control

The Color Control adjusts the toasting color using the speed of the conveyor. Turning the Color Control clockwise will toast products to a darker color (■) Turning the Color Control counterclockwise will toast products to a lighter color ( )

Power I/O (On/Off) Switch

The Power I/O (on/off) Switch controls power to the entire unit.

Operating TQ-400, -800, -1200, and -1800 Series

NOTE: TQ-400BA, -800BA, -800HBA, -1800BA, and -1800HBA toasters are designed specifically for toasting one side of a bread product, such as a bun or bagel. These models toast with the cut side facing up.

1. Plug the unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.
2. Move the Power I/O (on/off) switch in the I (on) position.
3. Adjust the and/or Controls.

- For two sided toasting, turn the Control and Control clockwise to the highest setting.

- For one sided toasting, turn the Control clockwise to the highest setting and turn the Control counterclockwise to the lowest setting.

NOTE: When toasting a single-sided product such as a bun or bagel, place the product with the cut side facing up. Adjust the Control to a light setting, toast two slices of bread product and adjust the and/or Controls as needed.

1. Turn the Color Control fully counterclockwise ( ) while the toaster heats up.

NOTE: Allow approximately 15 to 20 minutes for a warm-up period.

1. After warm-up period, toast two slices of bread product. Adjust the Color Control if needed.

- If toasted bread product is too dark with the Color Control set on the lightest setting, adjust the 📄 and/or 🌐 controls as needed. (Allow 15 to 20 minutes for toaster to re-adjust to new setting before resuming operation.)

- If toasted bread product is too light with the Color Control set on the lightest setting, adjust the Color Control as needed. (Allow 15 to 20 minutes for toaster to re-adjust to new setting before resuming operation.)

NOTE: To toast moist products such as English Muffins, rye bread or whole wheat, slow the conveyor by turning the Color Control knob to a darker setting (clockwise).

IMPORTANT NOTE

If the warning light comes on, the unit may be overheating. Turn off and unplug the unit. Refer to the "Daily Cleaning" procedure to clean the cooling fan vents. If the unit does not function properly after cleaning the cooling fan vents, contact an Authorized Service Agent or Hatco for assistance.

Top Heat Control Power Save Button Power I/O (on/off) Switch WARNING Appliance is malfunctioning when 10. Turn off power and allow unit to cut. See instruction manual before operating. Haitco TOAST-QWIK® CONVEYOR TOASTER ADVERTISSEMENT L'appareil ne fontine pas surrenatement (longa'il est isolaire). Étignez d'appareil et l'assoc-le refroidic. Consultez le manad d'instructions avant toute utilisation. Bottom Heat Control Color Control Warning Light U.S. FAT. NO. 8826366 www.hatcocorp.com

Control Panel — TQ-400, -800, -1200, and -1800 Series, Single-Sided Toaster

Power Save Mode

All TQ-400, -800, -1200, and -1800 series toasters have a built-in Power Save mode with an indicator light feature. This feature allows the toaster to go into a stand-by mode and reduces power to the heating elements by 50 percent. During Power Save mode, the Power Save button will flash.

To activate Power Save mode:

1. Press the Power Save button (The Power Save button will flash.

To deactivate Power Save mode:

1. Press the Power Save button (①) or turn any knob. The Power Save button will illuminate and no longer flash.

NOTE: Allow a minimum of 2–3 minutes before toasting. Unit is back up to full power within 10 minutes.

ColorGuard System

All TQ-400, -800, -1200, and -1800 series toasters use a patented ColorGuard sensing system that monitors and automatically adjust conveyor speed during high usage periods to assure toast color uniformity.

NOTE: The ColorGuard sensing system is inoperable for approximately ten minutes after any heat adjustments are made.

Adjusting the Toast Feed Ramp

The toast feed ramp is installed at the factory and can be used in two positions.

Automatic Feed Position

For automatic feed, the toast feed ramp should be in an upright position. Bread products enter the toaster by placing them on the feed ramp and releasing.

Manual Feed Position

For manual feed, the toast feed ramp should be in a horizontal position on top of the toaster. Bread products are manually loaded by placing directly on the conveyor belt.

Automatic Feed Position Manual Feed Position

Toast Feed Ramp

General

Hatco Toast-Qwik® Conveyor Toasters are designed for maximum durability and performance with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn OFF power switch, unplug power cord, and allow unit to cool before performing maintenance, cleaning, setup, or attempting to clear a jam.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not clean unit when it is energized or hot.
• Do not allow liquids to spill into unit.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350.

Daily Cleaning

To preserve the finish of the unit, it is recommended that the metal surfaces be wiped daily with a damp cloth.

WARNING

Submerging or saturating unit with water will damage the unit and void unit warranty.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

1. Turn off the unit, unplug the power cord, and allow the unit to cool.
2. Remove and empty the crumb tray and the toast collector pan.
   a. Wash the crumb tray and the toast collector pan with warm water and a mild detergent. Rinse with water.
   b. Allow the crumb tray and toast collector pan to air dry, or dry with a soft cloth.

CAUTION

BURN HAZARD: Do not remove crumb tray for cleaning until toaster is cool.

1. Wipe the exterior surfaces of the toaster with a non-abrasive, damp cloth.
2. Stubborn stains may be removed with a good stainless steel cleaner or a non-abrasive cleaner. Hard to reach areas should be cleaned with a small brush and mild soap.

NOTE: The conveyor gear motor and conveyor system are permanently lubricated and require no lubrication.

1. Check the cooling fan vents and clean any debris

NOTE: TQ-400, -800, -1200, and -1800 series toasters are equipped with a cooling fan directly below the control panel area. Check/clean the cooling fan vents monthly or anytime the warning light illuminates. For excessive buildup, use a vacuum cleaner to clear the vents. Clogged vents will cause the toaster to overheat and shut down.

TOAST-DMX Cooling Fan Vents Warning Light

Cooling Fan Vents (TQ-400 shown)

1. Reinstall the crumb tray and toast collector pan. Refer to the INSTALLATION section for instructions.

Cleaning the Toast Feed Ramp

1. Remove the toast feed ramp by pressing in the two wire spokes and lifting.
2. Wipe clean with a non-abrasive, damp cloth or soak the ramp in a mild solution of 1 cup (227 mL) ammonia and 1 gallon (3.785 L) of water.
3. Reinstall the toast feed ramp by aligning the wire spokes with the holes in the toaster.

Cleaning the Bottom Element Reflector

The bottom heating element reflector inside the toasting chamber has slots that allow bread crumbs to drop through to the crumb tray. Over an extended period of use, bread crumbs may build up on the reflector and not drop through onto the tray.

1. Turn off the unit, unplug the power cord, and allow the unit to cool.
2. Wipe the crumbs onto the crumb tray using a bristle brush.
3. To wipe the reflector, place the bristle brush through the conveyor belt and wipe to each side.
4. Perform the "Daily Cleaning" procedure in this section.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, setup, or maintenance.

Symptom Probable	Cause Corrective Action
Toast too light. Color Control knob	ob set on a light setting. Turn Color Control knob	to a darker setting.
	Supply voltage to unit is low. Verify the supply	voltage to the toaster matches the unit specifications.
Toast too dark. Color Control knob	ob set on a dark setting. Turn Color Control knob	to a lighter setting.
	Supply voltage to unit is high. Verify the supply	voltage to the toaster matches the unit specifications.
Unit takes too long to toast. The	first few batches can take longer because the toaster needs time to heat up when initially turned on.	Allow toaster to heat up to full operating temperature before inserting bread product (approximately 15–20 minutes).
	Supply voltage to unit is low. Verify the supply	voltage to the toaster matches the unit specifications.
Unit toasts on one side only. Toaster is a “buns” only model. (Model contains BA in model name.)		Unit is designed to perform in this way.
		Bottom Heat (or Top Heat ( ) control set too low or in the O position.
		Heating element defective. Visually check the heating element. With the unit turned on, the heating element should glow red. If the element does not glow, Contact Authorized Service Agent or Hatco for assistance.
Toaster trips the circuit breaker or GFCI.	Circuit breaker is not sized properly for the toaster.	Check circuit breaker for proper sizing.
	Wiring fault inside toaster. Contact Authorized Service Agent or Hatco for assistance.
Toaster conveyor doesn’t move.	Bread slices or buns jammed in conveyor track.	Turn off unit, wait for unit to cool, and remove bread product jamming the conveyor.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Find A Service Agent"; or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

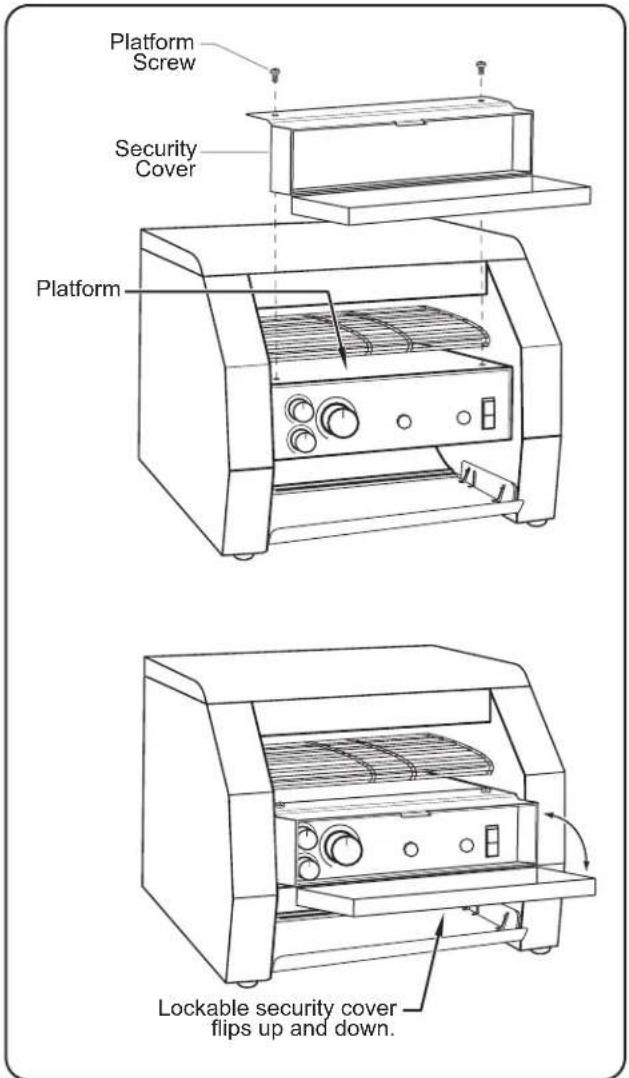

Security Cover

The lockable security cover flips up and down to limit access to the control panel.

1. Remove the crumb tray.
2. Remove the two front screws on the platform above the controls.
3. Position the security cover over the control panel, aligning the mounting holes on the security cover with the screw holes on the platform.
4. Reinstall the two screws through the security cover and into the platform. Tighten securely.
5. Reinstall the crumb tray.

Extended Feed Guide

The extended feed guide accessory adds 3" (76 mm) to the feed ramp (not available for TQ-1800 models).

Automatic Power Save Mode

The optional automatic Power Save mode feature switches to power save mode after 30 minutes of inactivity (not available for TQ-10 models).

30 Amp Cord (TQ-800 Models)

An optional 30 Amp cord (NEMA 6-30P plug) is available for 208 volt TQ-800 models only.

Receptacles

Receptacles are available as accessories for units using NEMA 5-20P, NEMA 6-20P, or NEMA 6-30P plugs.

Platform Screw Security Cover Platform Lockable security cover flips up and down.

Security Cover

WARRANTY, EXCLUSIVE REMEDY:

Hatco Corporation (Seller) warrants that the products it manufactures (Products) will be free from defects in materials and workmanship under normal use and service and when stored, maintained, and installed in strict accordance with factory recommendations. Seller's sole obligation to the person or entity buying the Products directly from Seller (Customer) under this warranty is the repair or replacement by Seller or a Seller-authorized service agency, at Seller's option, of any Product or any part thereof deemed defective upon Seller's examination, for a period of: (i) the Warranty Duration from the date of shipment by Seller or (ii) the Warranty Duration from the date of Product registration in accordance with Seller's written instructions, whichever is later. The "Warranty Duration" shall mean the specific periods set forth below for specific Product components, or, to the extent not listed below, eighteen (18) months. Credit for Products or parts returned with the prior written permission of Seller will be subject to the terms shown on Seller's material return authorization form. PRODUCTS OR PARTS RETURNED WITHOUT PRIOR WRITTEN PERMISSION OF SELLER WILL NOT BE ACCEPTED FOR CREDIT. Expenses incurred by Customer in returning, replacing, or removing the Products will not be reimbursed by Seller. If the defect comes under the terms of the limited warranty, the Products will be repaired or replaced and returned to the Customer and the cost of return freight will be paid by Seller. The remedy of repair or replacement provided for herein is Customer's exclusive remedy. Any improper use, alteration, repairs, tampering, misapplication, improper installation, application of improper voltage, or any other action or inaction by Customer or others (including the use of any unauthorized service agency) that in Seller's sole judgment adversely affects the Product shall void this warranty. The warranty expressly provided herein may only be asserted by Customer and may not be asserted by Customer's customers or other users of the Products; provided, however, that if Customer is an authorized equipment dealer of Seller, Customer may assign the warranty herein to Customer's customers, subject to all of the limitations of these Terms, and in such case, the warranty shall be exclusively controlled by Seller in accordance with these Terms. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED.

One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed) Drawer Warmer Elements (metal sheathed) Drawer Warmer Drawer Rollers and Slides Food Warmer Elements (metal sheathed) Display Warmer Elements (metal sheathed air heating) Holding Cabinet Elements (metal sheathed air heating) Heated Well Elements — HW, HWB, and HWBI Series (metal sheathed)

Two (2) Year Parts and Labor Warranty:

Induction Ranges Induction Warmers

One (1) Year Replacement Warranty:

TPT Pop-Up Toasters

One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty:

Electric Booster Heater Tanks Gas Booster Heater Tanks

Ninety (90) Day Parts-Only Warranty:

Replacement Parts

Notwithstanding anything herein to the contrary, the limited warranty herein will not cover components in Seller's sole discretion such as, but not limited to, the following: coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing.

WARRANTY REGISTRATION INSTRUCTIONS:

Product registration must be submitted within 90 days from the date of shipment from our factory to qualify for additional coverage. Registration may be submitted through the form on Seller's website, through the form accessible through the QR code on the Product (where available), or by calling Customer Service with the required information at: 800-558-0607 or 414-671-6350.

LIMITATION OF LIABILITY:

SELLER WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LOST PROFITS, COSTS OF SUBSTITUTE PRODUCTS, OR LABOR COSTS ARISING FROM THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, FROM THE PRODUCTS BEING INCORPORATED INTO OR BECOMING A COMPONENT OF ANOTHER PRODUCT, OR FROM ANY OTHER CAUSE WHATSOEVER, WHETHER BASED ON WARRANTY (EXPRESSED OR IMPLIED) OR OTHERWISE BASED ON CONTRACT, TORT, OR ANY OTHER THEORY OF LIABILITY, AND REGARDLESS OF ANY ADVICE OR REPRESENTATIONS THAT MAY HAVE BEEN RENDERED BY SELLER CONCERNING THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, EVEN IF SELLER IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SELLER'S AGGREGATE LIABILITY ARISING OUT OF OR RELATED TO THIS AGREEMENT EXCEED THE TOTAL AMOUNTS PAID TO SELLER BY CUSTOMER FOR THE PRODUCTS WITHIN THE THREE (3) MONTH PERIOD IMMEDIATELY PRECEDING THE EVENT GIVING RISE TO CUSTOMER'S CLAIM. THE LIMITATIONS SET FORTH HEREIN REGARDING SELLER'S LIABILITY SHALL BE VALID AND ENFORCEABLE NOTWITHSTANDING A FAILURE OF ESSENTIAL PURPOSE OF THE LIMITED REMEDY SPECIFIED IN THESE TERMS.

Seller reserves the right to update these Terms at any time, at its sole discretion, which become binding upon the date of publishing. For the most current version of our full Terms of Sale, see our website at: https://www.hatcocorp.com/terms-of-sale

Line drawing of a portable toaster with control panel and side legs (no text or symbols)

Modèle TQ-10

Modèle TQ-400

Line drawing of a portable toaster with control panel and fan (no text or symbols)

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Line drawing of a standard 3D toaster with front panel and control buttons (no text or symbols)

NEMA 5-15P NEMA 5-20P NEMA 6-15P NEMA 6-20P NEMA 6-30P

A CAUTION HOT C D E

Séries TQ-400, -800, -1200, and -1800

Byassee Equipment Co.

Phoenix 602-252-0402

CALIFORNIA

Industrial Electric

Commercial Parts & Service, Inc.

Huntington Beach 714-379-7100

Chapman Appl. Service

San Diego 619-298-7106

P & D Appliance

Commercial Parts & Service, Inc.

S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance

Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair

Jacksonville 904-725-7800

Whaley Foodservice Repair

Orlando 407-757-0851

B.G.S.I./Heritage

Pompano Beach 954-971-0456

Comm. Appliance Service

Tampa 813-663-0313

GEORGIA

Heritage Service Group

Norcross 866-388-9837

HAWAU

Burney's Comm. Service, Inc.

Honolulu 808-848-1466

Food Equip Parts & Service

Honolulu 808-847-4871

ILLINOIS

Parts Town

Addison 708-865-7278

Eichenauer Elec. Service

Decatur 217-429-4229

Midwest Elec. Appl. Service

Elmhurst 630-279-8000

Cone's Repair Service

Moline 309-797-5323

IOWA

Goodwin Tucker Group

Des Moines 515-262-9308

KENTUCKY

Tech 24

Lexington 859-254-8854

Tech 24

Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service

Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service

Baltimore 410-467-8080

MASSACHUSETTS

Ace Service Co., Inc.

Needham 781-449-4220

MICHIGAN

Bildons Appliance Service

Detroit 248-478-3320

Commercial Kitchen Service

Bay City 989-893-4561

Midwest Food Equip. Service

Grandville 616-261-2000

MISSOURI

General Parts

Kansas City 816-421-5400

Commercial Kitchen Services

St. Louis 314-890-0700

Kaemmerlen Parts & Service

St. Louis 314-535-2222

NEBRASKA

Anderson Electric

Omaha 402-341-1414

NEVADA

Burney's Commercial

Las Vegas 702-736-0006

Hi. Tech Commercial Service

N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair

Fairfield 973-575-9145

Service Plus

Flanders 973-691-6300

NEW YORK

Alpro Service Co.

Maspeth 718-386-2515

Duffy's - AIS

Buffalo 716-884-7425

3Wire

Plattsburgh 800-634-5005

Duffy's - AIS

Sauquoit 800-836-1014

J.B. Brady, Inc.

Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance

Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc.

Akron 330-753-6634

Tech 24

Cincinnati 513-772-6600

Commercial Parts and Service

Columbus 614-221-0057

Electrical Appl. Repair Service

Brooklyn Heights 216-459-8700

E. A. Wichman Co.

Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc.

Oklahoma City 405-235-2184

OREGON

General Parts Group

Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services

Philadelphia 215-627-5401

FAST Comm. Appl. Service

Philadelphia 215-288-4800

AIS Commercial Parts and Service

Pittsburgh 412-809-0244

K & D Service Co.

Harrisburg 717-236-9039

Electric Repair Co.

Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co.

Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair

Lexington 803-996-9900

TENNESSEE

Camp Electric

Memphis 901-527-7543

TEXAS

Armstrong Repair Service

Houston 713-666-7100

Cooking Equipment Specialist

Mesquite 972-686-6666

Commercial Kitchen Repair Co.

San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service

Murray 801-263-3221

VIRGINIA

Daubers

Norfolk 757-855-4097

Daubers

Springfield 703-866-3600

WASHINGTON

3Wire

Seattle 800-207-3146

WISCONSIN

A.S.C., Inc.

Madison 608-246-3160

A.S.C., Inc.

Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service

Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

Key Food Equipment Service

Victoria 250-920-4888

MANITOBA

Air Rite, Inc.

Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd.

Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd.

Toronto 416-422-5580

Choquette - CKS, Inc.

Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc.

Montreal 514-722-2000

Choquette - CKS, Inc.

Québec City 418-681-3944

UNITED KINGDOM

Marren Group

Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION section for details.
