Product type	Drip coffee maker
Brand	Tefal
Model	CM1608
Capacity	2 cups (max), 1 cup (min)
Power supply	220-240 V ~ 50/60 Hz
Power	650 W
Dimensions (approx.)	25 x 15 x 30 cm
Weight (approx.)	1.5 kg
Coffee type	Ground (no pods)
Filter	Permanent filter (reusable)
Functions	On/off switch with indicator light, automatic shutdown at end of cycle, double spout for 2 cups
Materials	Plastic, stainless steel (heating element), ceramic (cups)
Maintenance	Clean with damp cloth, filter and cups dishwasher safe, descale every 40 uses
Safety	Automatic shut-off, do not immerse, power cord to be replaced by a professional, hot surfaces
Included accessories	2 ceramic cups, filter holder, permanent filter
Country of manufacture	France (estimated)
Warranty	Manufacturer's warranty (not specified, estimated 2 years)
Energy class	Not specified

Frequently Asked Questions - CM1608 TEFAL

What type of coffee to use with the Tefal CM1608 coffee maker?

Use only ground coffee. Pods or capsules are not compatible. Do not exceed the MAX level indicated in the permanent filter.

How many cups can the Tefal CM1608 coffee maker brew?

The coffee maker can brew up to 1 to 2 cups. The MIN and MAX water levels in the tank correspond to 1 and 2 cups respectively.

How to descale the Tefal CM1608 coffee maker?

Descale every 40 uses with a descaling product or diluted white vinegar. Pour into the tank, run one cup, let sit for 1 hour, then complete the cycle. Rinse with 2 to 3 cycles of fresh water.

Why is there coffee grounds in my cup?

This is normal with a permanent filter. Make sure the ground coffee does not exceed the MAX level and that the filter is properly seated. A small amount of sediment is inevitable.

Can I wash the coffee maker parts in the dishwasher?

Yes, the permanent filter and ceramic cups are dishwasher safe. The filter holder and the appliance body should be cleaned with a damp cloth.

What to do if my coffee maker does not turn on?

Check that the plug is properly inserted and that the outlet works. If the cord is damaged, do not use and contact an authorized service center.

The appliance turns off automatically. Is this normal?

Yes, the coffee maker turns off automatically at the end of the brewing cycle, when the tank is empty. You can also turn it off manually using the switch.

How to get a stronger coffee?

Use a finer ground coffee or increase the amount of coffee in the filter (without exceeding the MAX level). You can also reduce the amount of water.

What to do if water overflows from the filter?

Make sure you do not exceed the MAX water level in the tank and do not use too much coffee. Use appropriate ground coffee and wait for cooling between cycles.

Are the included cups mandatory?

No, you can use other cups suitable for the double spout. The provided cups are ceramic and recommended for optimal results.

USER MANUAL CM1608 TEFAL

Line drawing of a portable kitchen appliance with two mugs and a side panel (no text or symbols)

MAX MIN a b d c f e

1

Simple line drawing of a 3D object with an upward arrow, placed on a table (no text or symbols)

Illustration of hands lifting a mug into an open box, with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand cleaning a mug inside a blender jar (no text or symbols)

OK

fig.1

2

×1 MIN ×2 MAX

fig.2a
fig.2b

3

2 1 MIN = MAX =

fig.3afig.3bfig.3c

4

Diagram showing two views of a kitchen appliance with water pump and cups, no text or symbols present

fig.4afig.4b

5

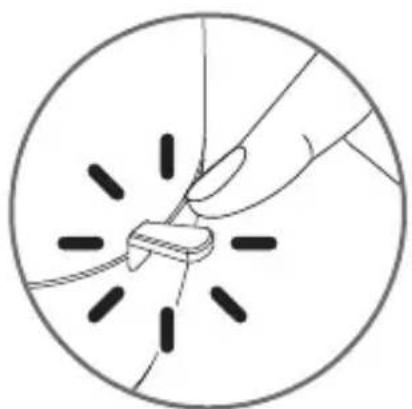

Simple line drawing of a hand holding a small object inside a circle, with no text or symbols present.

fig.5

Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: The manufacturer cannot accept any liability for non compliant appliance use.

SAFETY INSTRUCTIONS

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

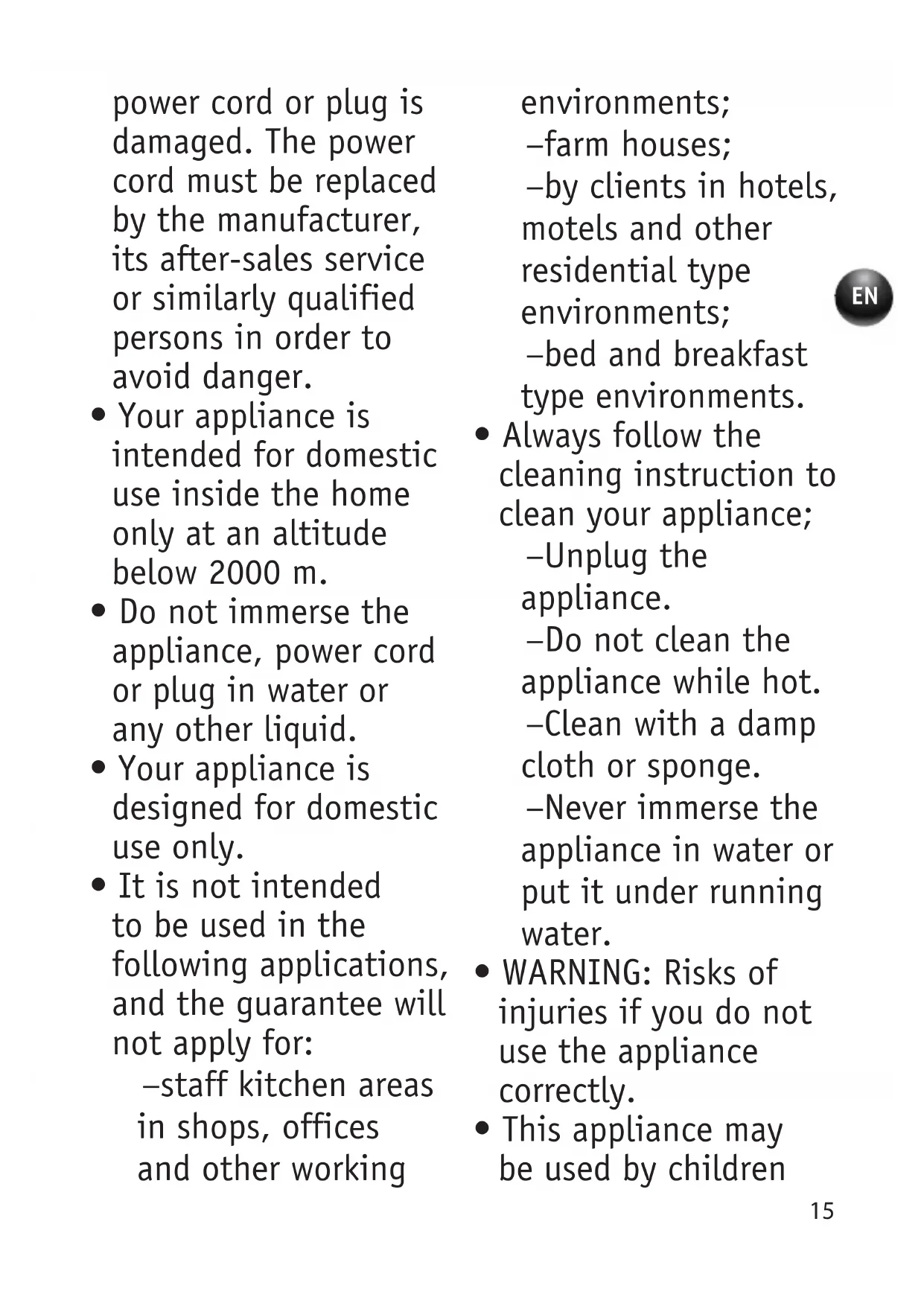

- Do not use the appliance if the

power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

- Your appliance is intended for domestic use inside the home only at an altitude below 2000 m.

- Do not immerse the appliance, power cord or plug in water or any other liquid.

- Your appliance is designed for domestic use only.

- It is not intended to be used in the following applications, and the guarantee will not apply for:

–staff kitchen areas in shops, offices and other working

environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- Always follow the cleaning instruction to clean your appliance; - Unplug the appliance. - Do not clean the appliance while hot. - Clean with a damp cloth or sponge. - Never immerse the appliance in water or put it under running water.

- WARNING: Risks of injuries if you do not use the appliance correctly.

• This appliance may be used by children

of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.

- Keep the appliance and its cord out of reach of children under 8 years of age.

- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided

they are supervised or have received instruction to use the appliance safely and understand the dangers.

- Children should not use the appliance as a toy.

- Before plugging the appliance in, make sure that the power it uses corresponds to your electrical supply system and that the outlet is earthed.

- Any error in the electrical connection will negate your guarantee.

- Unplug the appliance when you have finished using it and when you clean it.

- Do not use the appliance if it is not working properly or if it has been damaged. If this occurs, contact an authorised service centre.

- All interventions other than cleaning and everyday maintenance by the customer must be performed by an authorised service centre.

- The power cord must never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge.

• For your safety, only use the manufacturer's accessories and spare parts designed for your appliance.
• Do not pull on the cord to unplug the appliance.
• Do not fill the appliance with water if it is still hot.
• All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.
  • Always close the lid when running the coffee maker.
• Do not pour hot water into the tank.

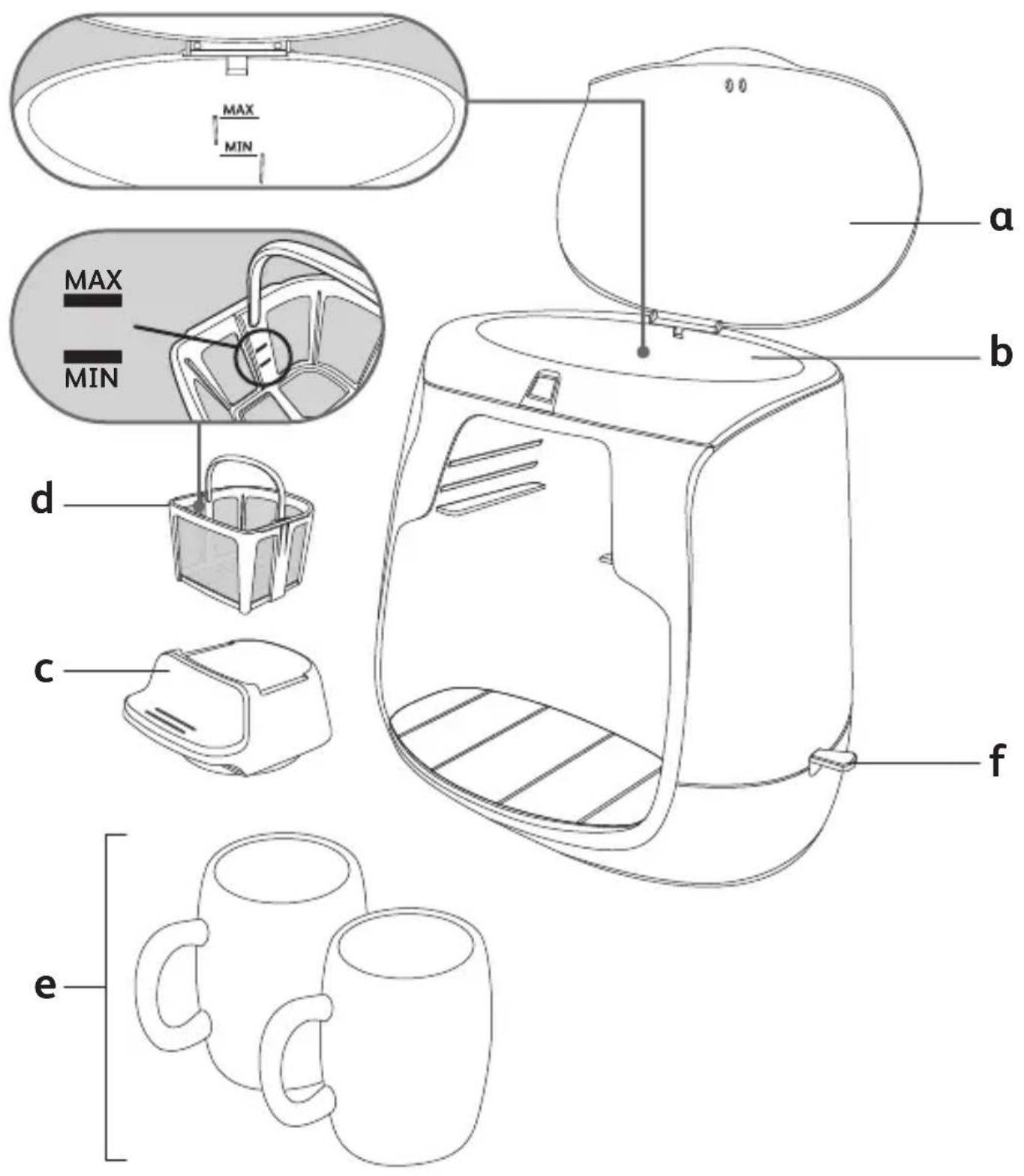

DESCRIPTION

a. Lid
b. Water Tank
c. Filter holder
d. Permanent filter
e. Ceramic cups
f. ON/OFF switch with light

USING THE MACHINE FOR THE FIRST TIME

(Follow figures 1 to 5)

1. Before making coffee you should use the coffee maker once with water only (without coffee).

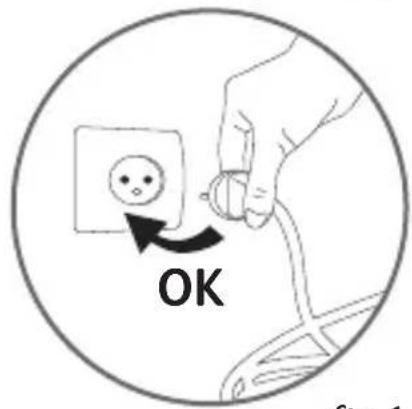

2. Insert the plug into the socket.
3. Lift up the cover, fill the tank

with cold water but do not exceed the MAX level mark inside the tank.

1. Close the cover.
2. Position the cups below the 2 points of coffee spouts.
3. Start the brewing process by pressing the ON button.

PREPARING THE COFFEE

(Follow figures 1 to 5)

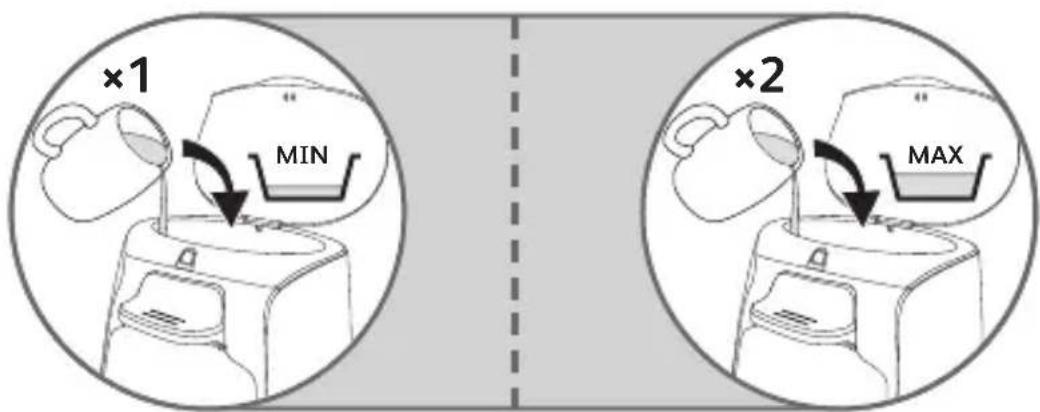

1. Lift up the cover and fill the tank with water: MIN in the water tank is to prepare 1 cup of coffee. MAX is to prepare 2 cups of coffee.
2. Ensure the water level does not exceed the MAX level mark inside the tank.

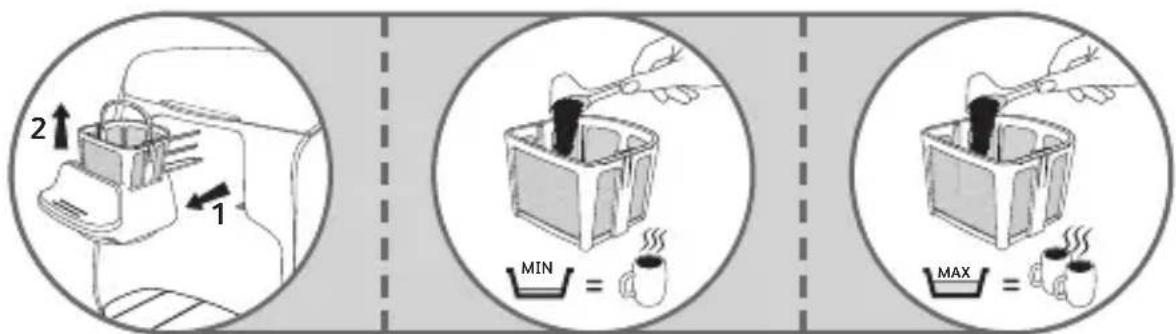

3. Remove the filter holder and the permanent filter.
4. Put ground coffee into the permanent filter: the level MIN is to prepare 1 cup of coffee. The level MAX is to prepare 2 cups of coffee.

WARNING: Use only ground coffee (pods are not compatible) and never exceed the MAX level in the permanent filter.

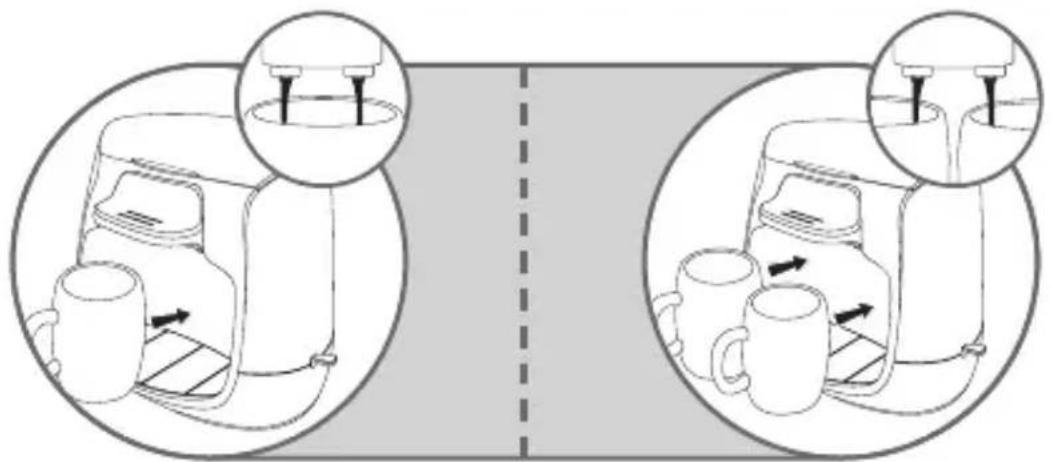

1. For 1 cup of coffee: Ensure that the cup is placed properly in its position: below the 2 points of coffee spout.

For 2 cups of coffee: Ensure that the 2 cups are place properly in

their position: 1 cup below each point of coffee spout.

1. Press the ON button and the pilot lamp illuminates, to indicate the unit is on.
2. Switch off the appliance if you want to stop the brewing.

Your appliance will turn off automatically after the end of the coffee cycle (when there is no more water in the water tank).

Wait for 1 minute after the button is off (water must flow from the end of the filter holder) then take off your cup(s).

INGENIOUSNESS: For breakfast, you can position a bowl instead of 2 cups!

IMPORTANT

• Use on a flat surface so that the distribution of coffee is done properly in 2 cups.
• There is no drip stop: before enjoying your coffee, wait a few minutes after the end of the cycle so that the water in the filter holder is well past.
• It is normal to have a small difference in the volume of coffee in the 2 cups.

• It is normal to have some coffee deposits. This is due to the use of a permanent filter.

• Use only ground coffee (pods are not compatible) and never exceed the MAX level in the permanent filter in order to avoid overflow.

• The filter holder and permanent filter should be rinsed in water and thoroughly dried after each use.
• The water level MIN and MAX is indicated inside the tank. Always respect those markings.
• It is normal to have noise steam and steam release.
• It is important to wait for the complete cooling unit between two uses.
• It is important to wait for the complete cooling unit before cleaning the appliance, before moving the appliance or before remove the filter holder: risk of burns.

CLEANING AND MAINTENANCE

• Disconnect the appliance and let the coffee maker cool down.
• To dispose of the used coffee grounds, remove the filter holder and the permanent filter.

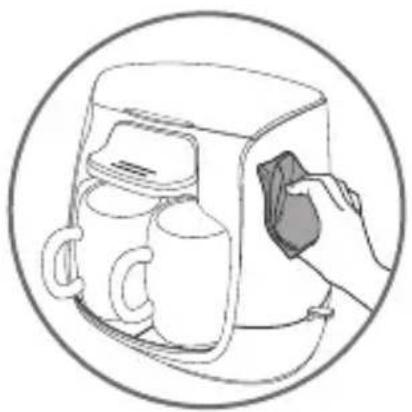

• Clean with a cloth or damp cloth.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance,

the power cord of plug in water or any other liquid.

DISHWASHER

- The permanent filter and the cups are dishwasher safe.

DESCALING

To make sure that your coffee maker goes on producing great coffee you will need, from time to time, to descale it. The frequency will depend on how hard the water is in your area, and how often you use the coffee maker.

- Descale your coffee maker every 40 uses.

You can use:

-A sachet or descaling agent diluted in 2 cups of water; -Or 2 cups of commercially available white vinegar.

In all cases, you can use the ceramic cups supplied with Duo Cups as a measure.

• Pour into the water tank and turn on the appliance (without coffee).
• Allow the equivalent of 1 cup flow, then stop your coffee maker with the ON/OFF button.
• Empty the water flowed into the cup.
• Allow to act for one hour.
• Restart the coffee maker and flush the equivalent of the

second cup until the machine turns off automatically.

• Run the coffee maker two or three times with the equivalent of 2 cups of water to rinse.
• Allow the appliance to cool down completely between uses.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

Think of the environment!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances are not thrown into the normal flow of municipal waste. Old appliances must be collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment.
