Product type	Infrared food warmer (heating strip)
Brand	Hatco
Model	GloRay GRBW60
Width	1524 mm (60 inches)
Depth (without TCBI housing)	381 mm (15 inches)
Depth (with TCBI housing)	457 mm (18 inches)
Height	66 mm (2-5/8 inches)
Weight (shipping)	18 kg (39 lb)
Available voltages	120 V, 208 V, 240 V, 50/60 Hz
Power (standard model)	2800 W (at 120 V)
Heating element type	Metallic sheathed Infra-Black emitter
Main function	Keep food warm by infrared radiation
Mounting options	Tubular stand, mounting brackets, chain suspension
Daily maintenance	Wipe with a soft damp cloth and non-abrasive cleaner
Electrical safety	Disconnect power before any intervention; do not immerse
Light bulbs (option)	Incandescent or halogen coated bulbs, NSF compliant
Warranty	1 year parts and labor + 1 additional year on heating elements
Spare parts	Use exclusively original Hatco parts
Minimum ambient temperature	21 °C (70 °F)
Usage	Indoor, professional

Frequently Asked Questions - GloRay GRBW60 Hatco

What is the power supply voltage of the GloRay GRBW60?

The GRBW60 model is available in multiple voltages: 120 V, 208 V, 240 V, 50/60 Hz. Check the label on your unit for the exact voltage.

How to install the heating strip under a shelf?

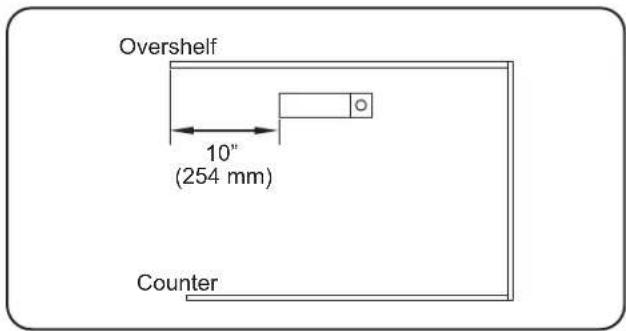

Use the adjustable mounting brackets provided. Ensure a gap of at least 25 mm (1 inch) between the unit and the underside of the shelf, especially if the edge is turned up.

What is the daily cleaning procedure?

Turn off the unit and let it cool. Wipe all metal surfaces with a soft damp cloth and a non-abrasive cleaner. Never use abrasive cleaners or water jets.

What to do if the unit does not heat?

First check the circuit breaker. If power is normal, the switch or heating element may be defective. Contact a Hatco authorized technician.

What type of bulb to use for optional lighting?

Use specially coated incandescent or halogen bulbs, compliant with NSF standards. For 120 V models, use Hatco part number 02.30.043.00; for 220-240 V, use 02.30.058.00.

Can I mount the unit above a combustible surface?

No, this presents a fire hazard. The unit must be installed only on non-combustible surfaces and respect the minimum clearance distances specified in the manual.

How to replace a defective heating element?

Heating elements are warranted for two years. Replacement must be done by a Hatco authorized repairer. Contact customer service at 800-558-0607.

What is the recommended mounting height for the GRBW60?

For double models, the recommended height between the emitter and the work surface is 203 to 356 mm (8 to 14 inches). For a 76 mm spacer, the total height can reach 559 mm.

Is the unit waterproof?

No, the unit is not waterproof. Do not immerse it and do not clean with steam or pressurized spray. Use indoors only, at an ambient temperature of at least 21 °C.

Where to find the serial number and purchase date?

The model number, serial number, and voltage are indicated on the rating label, located on the side of the unit. Note them for any warranty claims.

USER MANUAL GloRay GRBW60 Hatco

Register Online! (see page 2)

Four technical line drawings of rectangular electronic components with mounting brackets and internal channels (no text or symbols)

WARNING

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information ....2

Introduction....2

Important Safety Information....3

Model Description....4

Model Designation....4

Specifications....5

Electrical Rating Chart....5

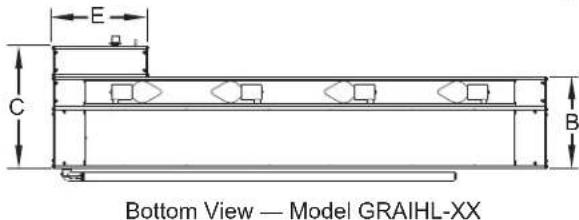

Dimensions 9

Installation 10

General 10

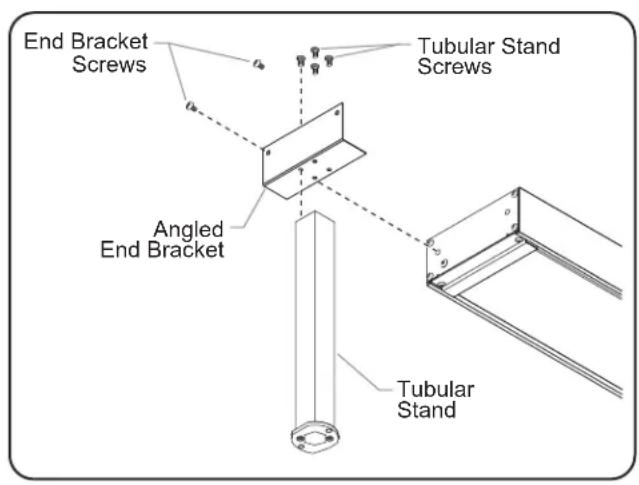

Tubular Stand Mounting....12

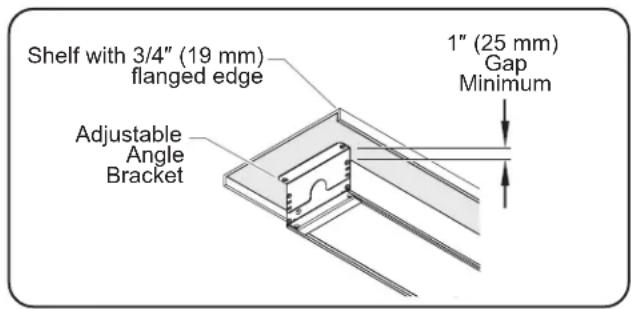

Angle Bracket Mounting....12

Chain Suspension Mounting....13

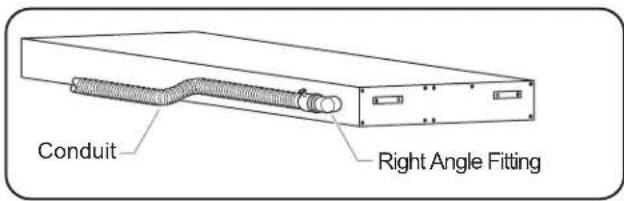

Electrical Wiring Information....13

Operation....15

General 15

Maintenance ....16

General 16

Daily Cleaning....16

Replacing Display Light Bulbs 16

Troubleshooting Guide ....17

Options and Accessories....18

Limited Warranty....19

Authorized Parts Distributors......Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the side of the unit). Please have this information available when calling Hatco for service assistance.

Model No. ____

Serial No. ____

Voltage ____

Date of Purchase ____

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Parts & Service pull-down menu, and click on "Warranty Registration".

Business

Hours: 7:00 AM to 5:00 PM Central Standard Time (CST)

(Summer Hours: June to September—

7:00 AM to 5:00 PM CST Monday–Thursday

7:00 AM to 4:00 PM CST Friday)

Telephone: [phone]

e-mail: [e-mail]

Fax: [phone] (Parts and Service)

414-671-3976 (International)

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Glo-Ray ^® Infra-Black ^® Strip Heaters ensure maximum food holding time and minimize the risk of food-borne illness. Optimum safety and quality is the result of food held at the proper serving temperatures using Glo-Ray's pre-focused heat patterns. Glo-Ray Infra-Black emitters provide a solid panel of uniform heat distribution that is ideal for limited space operations.

The metal sheathed heating elements housed in the Infra-Black emitters are guaranteed against burnout for two years.

Glo-Ray Infra-Black Strip Heaters are a product of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating instructions for Glo-Ray Infra-Black Strip Heaters. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Units supplied without an electrical cord and plug require a hardwired connection to the on-site electrical system. Connection must be properly grounded and of the correct voltage, size, and configuration for the electrical specifications of the unit. Contact a qualified electrician to determine and install the proper electrical connection.
• Turn power OFF at fused disconnect switch/circuit breaker and allow unit to cool before performing any maintenance, adjustments, or cleaning.
• For hardwired units, all electrical connections must be in accordance with local electrical codes and any other applicable codes. Connections should be made by a qualified, licensed electrician.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate unit indoors where the ambient air temperature is a minimum of 70^ (21°C).
• Do not steam clean or use excessive water on the unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not clean unit when it is energized or hot.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

FIRE HAZARD:

• Do not install unit above or around combustible surfaces. Discoloration or combustion could occur. Unit must be installed in non-combustible surroundings only.
• Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350; fax [phone].

WARNING

Use only light bulbs that meet or exceed National Sanitation Foundation (NSF) standards and are specifically designed for food holding areas. Breakage of light bulbs not specially coated could result in personal injury and/or food contamination.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

Make sure all operators have been instructed on the safe and proper use of the unit.

For installation with chains, make sure the chains have sufficient strength and are securely fastened to both the strip heater and the mounting location. Poorly installed chains may cause the heater to loosen and fall. Do not place anything on top of heaters installed with chains.

CAUTION

BURN HAZARD: Some exterior surfaces on unit will get hot. Avoid unnecessary contact with unit.

Standard and approved manufacturing oils may smoke up to 30 minutes during initial startup. This is a temporary condition. Operate unit without food product until smoke dissipates.

Light-equipped strip heaters that require a circuit breaker 20 amps or larger must be installed with a remote control enclosure containing a fuse rated at 20 amps or less for the light circuit.

Ensure safe and proper operation. Refer to the "Minimum Clearance Requirements" listed in the Installation section of this manual.

NOTICE

Damage to countertop material such as Corian and similar products caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact the manufacturer of the countertop material for application information.

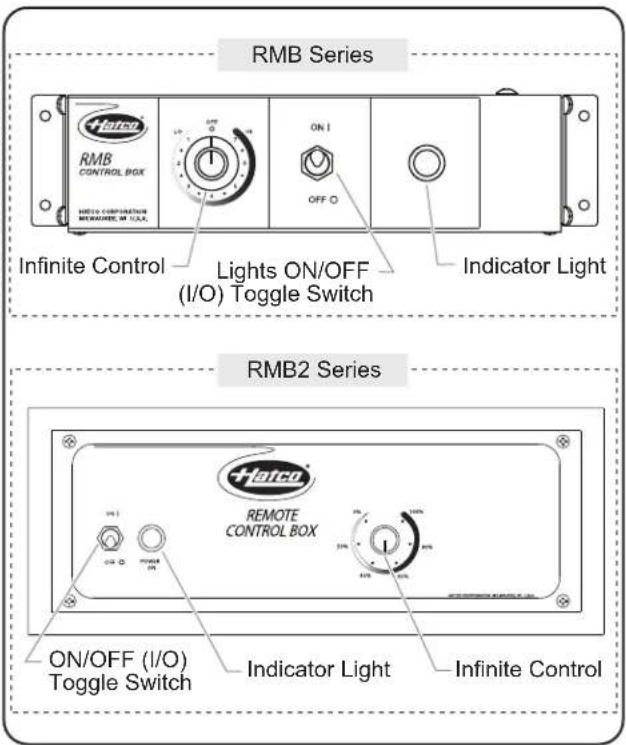

Remote mounted control boxes must be installed outside strip heater heat zone to prevent premature failure of components due to excessive heat.

Installation of two or more separate units with less than 3" (76 mm) between housings may result in premature failure of component parts. Failure to provide proper spacing may result in heat damage to electrical components and are not covered by warranty.

Use non-abrasive cleaners only. Abrasive cleaners could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

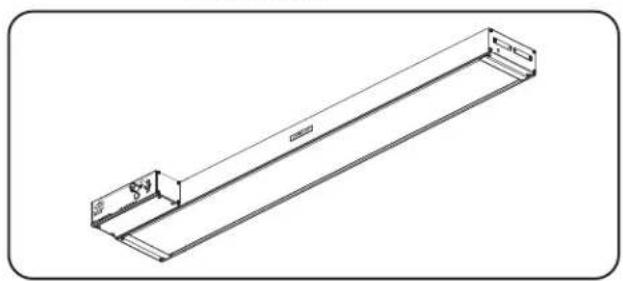

All Models

Glo-Ray® Infra-Black® Strip Heaters are perfect for foodwarming at a close range to food product. Heat from a metal sheathed heating element housed inside an Infra-Black emitter is distributed evenly throughout the entire surface area of the emitter. The emitter gives off a solid panel of heat downward onto the food product.

Glo-Ray Infra-Black Strip Heaters are constructed with aluminum housings in lengths of 18" (457 mm) to 72" (1829 mm).

Dual models allow for side-by-side mounting of two heating elements to provide a wider holding area. Dual models are constructed with a standard 3" (76 mm) or optional 6" (152 mm) spacer between heating elements.

Glo-Ray Infra-Black Strip Heaters have several mounting options and switch locations. A thermostatic control box with indicator lights (TCBI) can be mounted on the unit with a thermostatic control, ON/OFF (I/O) toggle switch, and an indicator light. Remote control enclosure(s) (RMBs) can be configured with infinite control(s), ON/OFF (I/O) toggle switch(es), and/or indicator light(s). Units are available in several optional Designer colors and gloss finishes.

GRAIH-XX: Aluminum housing, single element

GRAIHL-XX: Aluminum housing, incandescent lights, single element

GRAIH-XXD: Aluminum housing, dual element

GRAIHL-XXD: Aluminum housing, incandescent lights, dual elements

Technical line drawing of a rectangular metal frame with internal cutouts and mounting holes (no text or symbols)

GRAIH-XX Model with TCBI

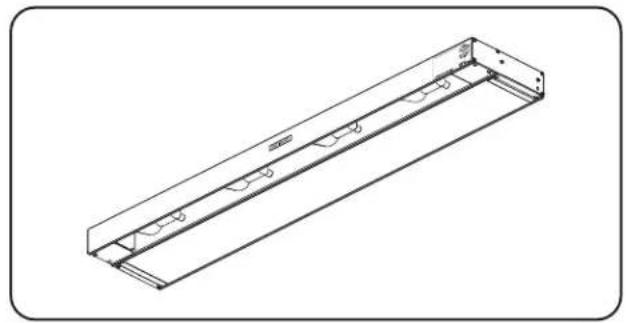

Technical line drawing of a rectangular electronic component with internal slots and mounting holes (no text or symbols)

GRAIHL-XX Model

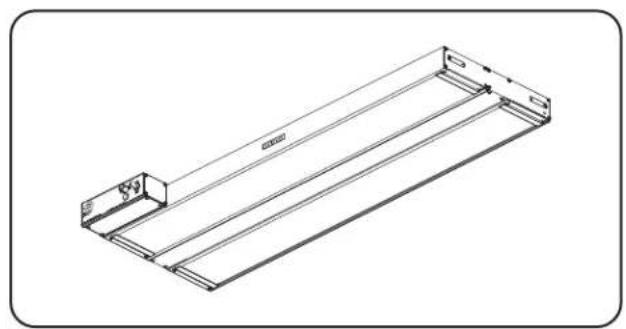

Technical line drawing of a rectangular metal enclosure or enclosure with mounting flanges (no text or symbols)

GRAIH-XXD Model with TCBI

Technical line drawing of a rectangular electronic device with internal channels and mounting brackets (no text or symbols)

GRAIHL-XXD Model

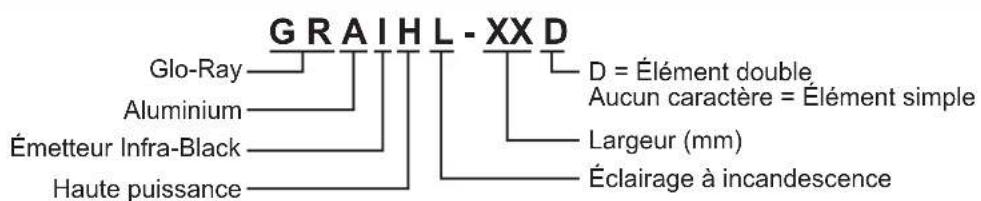

MODEL DESIGNATION

Electrical Rating Chart — GRAIH-XX Models

Model Voltage Watts Amps Shipping Weight
GRAIH-18 120	350	2.9	6 lbs. (3 kg)
	208	350	1.7	6 lbs. (3 kg)
	240	350	1.5	6 lbs. (3 kg)
	220	350	1.6	6 lbs. (3 kg)
	240	350	1.5	6 lbs. (3 kg)
	220–230 (CE)	350–383	1.6–1.7	6 lbs. (3 kg)
	230–240 (CE)	321–350	1.4–1.5	6 lbs. (3 kg)
GRAIH-24	120	500	4.2	11 lbs. (5 kg)
	208	500	2.4	11 lbs. (5 kg)
	240	500	2.1	11 lbs. (5 kg)
	220	500	2.3	11 lbs. (5 kg)
	240	500	2.1	11 lbs. (5 kg)
	220–230 (CE)	500–546	2.3–2.4	11 lbs. (5 kg)
	230–240 (CE)	459–500	2.0–2.1	11 lbs. (5 kg)
GRAIH-30 120	660	5.5	13 lbs. (6 kg)
	208	660	3.2	13 lbs. (6 kg)
	240	660	2.8	13 lbs. (6 kg)
	220	660	3.0	13 lbs. (6 kg)
	240	660	2.8	13 lbs. (6 kg)
	220–230 (CE)	660–721	3.0–3.1	13 lbs. (6 kg)
	230–240 (CE)	606–660	2.6–2.8	13 lbs. (6 kg)
GRAIH-36 120	800	6.7	15 lbs. (7 kg)
	208	800	3.8	15 lbs. (7 kg)
	240	800	3.3	15 lbs. (7 kg)
	220	800	3.6	15 lbs. (7 kg)
	240	800	3.3	15 lbs. (7 kg)
	220–230 (CE)	800–874	3.6–3.8	15 lbs. (7 kg)
	230–240 (CE)	734–800	3.2–3.3	15 lbs. (7 kg)
GRAIH-42 120	950	7.9	17 lbs. (8 kg)
	208	950	4.6	17 lbs. (8 kg)
	240	950	4.0	17 lbs. (8 kg)
	220	950	4.3	17 lbs. (8 kg)
	240	950	4.0	17 lbs. (8 kg)
	220–230 (CE)	950–1038	4.3–4.5	17 lbs. (8 kg)
	230–240 (CE)	872–950	3.8–4.0	17 lbs. (8 kg)

The shaded areas contain electrical information for International models only.

NOTE: Shipping weight does not include remote control enclosure. Add 2–8 lbs. (1–3 kg) to shipping weight depending on size of remote control enclosure.

Model Voltage Watts Amps Shipping Weight
GRAIH-48 120 1100 9.2 21 lbs. (10 kg)
	208	1100	5.3 21 lbs. (10 kg)
	240 1100 4.6 21 lbs. (10 kg)
	220 1100 5.0 21 lbs. (10 kg)
	240 1100 4.6 21 lbs. (10 kg)
	220–230 (CE) 1100–1202 5.0–5.2 21 lbs. (10 kg)
	230–240 (CE) 1010–1100 4.4–4.6 21 lbs. (10 kg)
GRAIH-54 120 1250 10.4 24 lbs. (11 kg)
	208 1250 6.0 24 lbs. (11 kg)
	240 1250 5.2 24 lbs. (11 kg)
	220 1250 5.7 24 lbs. (11 kg)
	240 1250 5.2 24 lbs. (11 kg)
	220–230 (CE) 1250–1366 5.7–5.9 24 lbs. (11 kg)
	230–240 (CE) 1148–1250 5.0–5.2 24 lbs. (11 kg)
GRAIH-60 120 1400 11.7 27 lbs. (12 kg)
	208 1400 6.7 27 lbs. (12 kg)
	240 1400 5.8 27 lbs. (12 kg)
	220 1400 6.4 27 lbs. (12 kg)
	240	1400	5.8 27 lbs. (12 kg)
	220–230 (CE) 1400–1530 6.4–6.7 27 lbs. (12 kg)
	230–240 (CE) 1286–1400	5.6–5.8	27 lbs. (12 kg)
GRAIH-66 120† 1560 13.0 30 lbs. (14 kg)
	208 1560 7.5 30 lbs. (14 kg)
	240 1560 6.5 30 lbs. (14 kg)
	220 1560 7.1 30 lbs. (14 kg)
	240 1560 6.5 30 lbs. (14 kg)
	220–230 (CE) 1560–1705 7.1–7.4 30 lbs. (14 kg)
	230–240 (CE) 1433–1560 6.2–6.5 30 lbs. (14 kg)
GRAIH-72 120† 1725 14.4 33 lbs. (15 kg)
	208 1725 8.3 33 lbs. (15 kg)
	240 1725 7.2 33 lbs. (15 kg)
	220 1725 7.8 33 lbs. (15 kg)
	240 1725 7.2 33 lbs. (15 kg)
	220–230 (CE) 1725–1885 7.8–8.2 33 lbs. (15 kg)
	230–240 (CE) 1584–1725 6.9–7.2 33 lbs. (15 kg)

† Infinite control not available.

Electrical Rating Chart — GRAIHL-XX Models

Model Voltage Watts Amps Shipping Weight
GRAIHL-18	120	470	3.9	12 lbs. (5 kg)
	120/208	470 2.7	12 lbs. (5 kg)
	120/240	470 2.5	12 lbs. (5 kg)
	220	450 2.0	12 lbs. (5 kg)
	240	470 2.0	12 lbs. (5 kg)
	220–230 (CE)	450–492	2.0–2.1	12 lbs. (5 kg)
	230–240 (CE)	432–470	1.9–2.0	12 lbs. (5 kg)
GRAIHL-24	120	620	5.2	15 lbs. (7 kg)
	120/208	620 3.4	15 lbs. (7 kg)
	120/240	620 3.1	15 lbs. (7 kg)
	220	600	2.7	15 lbs. (7 kg)
	240	620 2.6	15 lbs. (7 kg)
	220–230 (CE)	600–656	2.7–2.9	15 lbs. (7 kg)
	230–240 (CE)	569–620	2.5–2.6	15 lbs. (7 kg)
GRAIHL-30 120	780 6.5		17 lbs. (8 kg)
	120/208	780 4.2	17 lbs. (8 kg)
	120/240	780 3.8	17 lbs. (8 kg)
	220	760 3.5	17 lbs. (8 kg)
	240	780 3.3	17 lbs. (8 kg)
	220–230 (CE)	760–831	3.5–3.6	17 lbs. (8 kg)
	230–240 (CE)	716–780	3.1–3.3	17 lbs. (8 kg)
GRAIHL-36 120	980 8.2		20 lbs. (9 kg)
	120/208	980 5.3	20 lbs. (9 kg)
	120/240	980 4.8	20 lbs. (9 kg)
	220	950	4.3	20 lbs. (9 kg)
	240	980 4.1	20 lbs. (9 kg)
	220–230 (CE)	950–1038	4.3–4.5	20 lbs. (9 kg)
	230–240 (CE)	900–980	3.9–4.1	20 lbs. (9 kg)
GRAIHL-42 120	1130		9.4 23 lbs. (10 kg)
	120/208	1130	6.1 23 lbs. (10 kg)
	120/240	1130	5.5 23 lbs. (10 kg)
	220	1100	5.0 23 lbs. (10 kg)
	240	1130	4.7 23 lbs. (10 kg)
	220–230 (CE)	1100–1202 5.0–5.2 23 lbs. (10 kg)
	230–240 (CE)	1038–1130 4.5–4.7 23 lbs. (10 kg)

The shaded areas contain electrical information for International models only.

NOTE: GRAIHL-XX models that have multiple voltages listed, such as 120/208 or 120/240, have multiple internal circuits. For example a 120/208 volt unit utilizes 120 volts for light circuit and 208 volts for the heat circuit(s). Consult the Electrical Diagram supplied with the unit for specific information.

NOTE: Shipping weight does not include remote control enclosure. Add 2–8 lbs. (1–3 kg) to shipping weight depending on size of remote control enclosure.

CAUTION

Light-equipped strip heaters that require a circuit breaker 20 amps or larger must be installed with a remote control enclosure containing a fuse rated at 20 amps or less for the light circuit.

Model Voltage Watts Amps Shipping Weight
GRAIHL-48 120 1340 11.2 26 lbs. (12 kg)
	120/208 1340 7.3 26 lbs. (12 kg)
	120/240 1340 6.6 26 lbs. (12 kg)
	220	1300	5.9 26 lbs. (12 kg)
	240 1340 5.6 26 lbs. (12 kg)
	220–230 (CE) 1300–1421 5.9–6.2 26 lbs. (12 kg)
	230–240 (CE)	1231–1340	5.4–5.6 26 lbs. (12 kg)
GRAIHL-54 120 1490 12.4 29 lbs. (13 kg)
	120/208 1490 8.0 29 lbs. (13 kg)
	120/240 1490 7.2 29 lbs. (13 kg)
	220 1450 6.6 29 lbs. (13 kg)
	240	1490	6.2 29 lbs. (13 kg)
	220–230 (CE) 1450–1585 6.6–6.9 29 lbs. (13 kg)
	230–240 (CE) 1368–1490 5.9–6.2 29 lbs. (13 kg)
GRAIHL-60 120 1700 14.2 33 lbs. (15 kg)
	120/208 1700 9.2 33 lbs. (15 kg)
	120/240 1700 8.3 33 lbs. (15 kg)
	220 1650 7.5 33 lbs. (15 kg)
	240 1700 7.1 33 lbs. (15 kg)
	220–230 (CE) 1650–1803 7.5–7.8 33 lbs. (15 kg)
	230–240 (CE)	1561–1700	6.8–7.1 33 lbs. (15 kg)
GRAIHL-66 120†	1860 15.5 34 lbs. (15 kg)
	120/208 1860 10.0 34 lbs. (15 kg)
	120/240 1860 9.0 34 lbs. (15 kg)
	220 1810 8.2 34 lbs. (15 kg)
	240 1860 7.8 34 lbs. (15 kg)
	220–230 (CE) 1810–1978 8.2–8.6 34 lbs. (15 kg)
	230–240 (CE) 1708–1860 7.1–7.8 34 lbs. (15 kg)
GRAIHL-72 120*	2085 17.4 36 lbs. (16 kg)
	120/208 2085 11.3 36 lbs. (16 kg)
	120/240 2085 10.2 36 lbs. (16 kg)
	220 2025 9.2 36 lbs. (16 kg)
	240 2085 8.7 36 lbs. (16 kg)
	220–230 (CE) 2025–2213 9.2–9.6 36 lbs. (16 kg)
	230–240 (CE) 1915–2085 8.3–8.7 36 lbs. (16 kg)

† Infinite control not available.

* Only available with remote control enclosure options.

Electrical Rating Chart — GRAIH-XXD Models

Model Voltage Watts Amps Shipping Weight
GRAIH-18D	120	700	5.8	13 lbs. (6 kg)
	208	700	3.4	13 lbs. (6 kg)
	240	700	2.9	13 lbs. (6 kg)
	220	700	3.2	13 lbs. (6 kg)
	240	700	2.9	13 lbs. (6 kg)
	220–230 (CE)	700–765	3.2–3.3	13 lbs. (6 kg)
	230–240 (CE)	643–700	2.8–2.9	13 lbs. (6 kg)
GRAIH-24D	120 1000 8.3		19 lbs. (9 kg)
	208 1000 4.8		19 lbs. (9 kg)
	240 1000 4.2		19 lbs. (9 kg)
	220 1000 4.5		19 lbs. (9 kg)
	240 1000 4.2		19 lbs. (9 kg)
	220–230 (CE)	1000–1093	4.5–4.7	19 lbs. (9 kg)
	230–240 (CE)	918–1000	4.0–4.2	19 lbs. (9 kg)
GRAIH-30D	120 1320	11.0	21 lbs. (10 kg)
	208 1320 6.3	21 lbs. (10 kg)
	240 1320 5.5	21 lbs. (10 kg)
	220 1320 6.0	21 lbs. (10 kg)
	240	1320	5.5	21 lbs. (10 kg)
	220–230 (CE)	1320–1443	6.0–6.3	21 lbs. (10 kg)
	230–240 (CE)	1212–1320	5.3–5.5	21 lbs. (10 kg)
GRAIH-36D	120 1600 13.3		24 lbs. (11 kg)
	208 1600 7.7		24 lbs. (11 kg)
	240 1600 6.7		24 lbs. (11 kg)
	220 1600 7.3		24 lbs. (11 kg)
	240 1600 6.7		24 lbs. (11 kg)
	220–230 (CE)	1600–1749	7.3–7.6	24 lbs. (11 kg)
	230–240 (CE)	1469–1600	6.4–6.7	24 lbs. (11 kg)
GRAIH-42D	120 1900 15.8	27 lbs. (12 kg)
	208 1900 9.1	27 lbs. (12 kg)
	240 1900 7.9	27 lbs. (12 kg)
	220 1900 8.6	27 lbs. (12 kg)
	240 1900 7.9	27 lbs. (12 kg)
	220–230 (CE)	1900–2077	8.6–9.0	27 lbs. (12 kg)
	230–240 (CE)	1745–1900	7.6–7.9	27 lbs. (12 kg)

The shaded areas contain electrical information for International models only.

NOTE: Shipping weight does not include remote control enclosure. Add 2–8 lbs. (1–3 kg) to shipping weight depending on size of remote control enclosure.

Model Voltage Watts Amps Shipping Weight
GRAIH-48D 120* 2200 18.3 32 lbs. (15 kg)
	208 2200 10.6 32 lbs. (15 kg)
	240 2200 9.2 32 lbs. (15 kg)
	220	2200	10.0	32 lbs. (15 kg)
	240 2200 9.2 32 lbs. (15 kg)
	220–230 (CE) 2200–2405 10.0–10.5 32 lbs. (15 kg)
	230–240 (CE)	2020–2200	8.8–9.2	32 lbs. (15 kg)
GRAIH-54D	120*	2500	20.8	35 lbs. (16 kg)
	208 2500 12.0 35 lbs. (16 kg)
	240 2500 10.4 35 lbs. (16 kg)
	220	2500	11.4	35 lbs. (16 kg)
	240 2500 10.4 35 lbs. (16 kg)
	220–230 (CE) 2500–2733 11.4–11.9			35 lbs. (16 kg)
	230–240 (CE) 2296–2500 10.0–10.4 35 lbs. (16 kg)
GRAIH-60D 120* 2800 23.3 39 lbs. (18 kg)
	208 2800 13.5 39 lbs. (18 kg)
	240 2800	11.7	39 lbs. (18 kg)
	220 2800 12.7 39 lbs. (18 kg)
	240 2800	11.7	39 lbs. (18 kg)
	220–230 (CE) 2800–3060 12.7–13.3 39 lbs. (18 kg)
	230–240 (CE) 2571–2800 11.2–11.7			39 lbs. (18 kg)
GRAIH-66D 120* 3120 26.0 42 lbs. (19 kg)
	208 3120 15.0 42 lbs. (19 kg)
	240 3120 13.0 42 lbs. (19 kg)
	220	3120	14.2	42 lbs. (19 kg)
	240 3120 13.0 42 lbs. (19 kg)
	220–230 (CE) 3120–3410 14.2–14.8 42 lbs. (19 kg)
	230–240 (CE) 2865–3120 12.5–13.0 42 lbs. (19 kg)
GRAIH-72D 120* 3450 28.8 46 lbs. (21 kg)
	240 3450 14.4 46 lbs. (21 kg)
	220 3450 15.7 46 lbs. (21 kg)
	240 3450 14.4 46 lbs. (21 kg)
	220–230 (CE) 3450–3771 15.7–16.4 46 lbs. (21 kg)
	230–240 (CE) 3168–3450 13.8–14.4 46 lbs. (21 kg)

* Only available with remote control enclosure options.

Electrical Rating Chart — GRAIHL-XXD Models

Model	Voltage	Watts Amps Shipping Weight
GRAIHL-18D	120	820	6.8	18 lbs. (8 kg)
	120/208	820	4.4	18 lbs. (8 kg)
	120/240	820	3.9	18 lbs. (8 kg)
	220	800	3.6	18 lbs. (8 kg)
	240	820	3.4	18 lbs. (8 kg)
	220–230 (CE)	800–875	3.6–3.8	18 lbs. (8 kg)
	230–240 (CE)	753–820	3.3–3.4	18 lbs. (8 kg)
GRAIHL-24D	120	1120	9.3	21 lbs. (10 kg)
	120/208	1120	5.8	21 lbs. (10 kg)
	120/240	1120	5.2	21 lbs. (10 kg)
	220	1100	5.0	21 lbs. (10 kg)
	240	1120	4.7	21 lbs. (10 kg)
	220–230 (CE)	1100–1203	5.0–5.2 21 lbs. (10 kg)
	230–240 (CE)	1029–1120	4.5–4.7	21 lbs. (10 kg)
GRAIHL-30D	120	1440 12.0 23 lbs. (10 kg)
	120/208	1440	7.3	23 lbs. (10 kg)
	120/240	1440	6.5	23 lbs. (10 kg)
	220	1420	6.5	23 lbs. (10 kg)
	240	1440	6.0	23 lbs. (10 kg)
	220–230 (CE)	1420–1553	6.5–6.8 23 lbs. (10 kg)
	230–240 (CE)	1323–1440	5.8–6.0 23 lbs. (10 kg)
GRAIHL-36D	120	1780 14.8 27 lbs. (12 kg)
	120/208	1780	9.2	27 lbs. (12 kg)
	120/240	1780	8.2	27 lbs. (12 kg)
	220	1750	8.0	27 lbs. (12 kg)
	240	1780	7.4	27 lbs. (12 kg)
	220–230 (CE)	1750–1914	8.0–8.3 27 lbs. (12 kg)
	230–240 (CE)	1635–1780	7.1–7.4 27 lbs. (12 kg)
GRAIHL-42D	120	2080 17.3 30 lbs. (14 kg)
	120/208	2080 10.6 30 lbs. (14 kg)
	120/240	2080	9.4	30 lbs. (14 kg)
	220	2050	9.3	30 lbs. (14 kg)
	240	2080	8.7	30 lbs. (14 kg)
	220–230 (CE)	2050–2242	9.3–9.7 30 lbs. (14 kg)
	230–240 (CE)	1910–2080	8.3–8.7 30 lbs. (14 kg)

The shaded areas contain electrical information for International models only.

NOTE: GRAIHL-XXD models that have multiple voltages listed, such as 120/208 or 120/240, have multiple internal circuits. For example a 120/208 volt unit utilizes 120 volts for light circuit and 208 volts for the heat circuit(s). Consult the Electrical Diagram supplied with the unit for specific information.

NOTE: Shipping weight does not include remote control enclosure. Add 2–8 lbs. (1–3 kg) to shipping weight depending on size of remote control enclosure.

CAUTION

Light-equipped strip heaters that require a circuit breaker 20 amps or larger must be installed with a remote control enclosure containing a fuse rated at 20 amps or less for the light circuit.

Model Voltage Watts Amps Shipping Weight
GRAIHL-48D	120*	2440	20.3	35 lbs. (16 kg)
	120/208 2440 12.6 35 lbs. (16 kg)
	120/240 2440 11.2 35 lbs. (16 kg)
	220 2400 10.9 35 lbs. (16 kg)
	240 2440 10.2 35 lbs. (16 kg)
	220-230 (CE) 2400-2625 10.9-11.4 35 lbs. (16 kg)
	230-240 (CE) 2241-2440 9.7-10.2 35 lbs. (16 kg)
GRAIHL-54D	120*	2740	22.8	38 lbs. (17 kg)
	120/208 2740 14.0 38 lbs. (17 kg)
	120/240 2740 12.2 38 lbs. (17 kg)
	220	2700	12.3	38 lbs. (17 kg)
	240 2740 11.4 38 lbs. (17 kg)
	220-230 (CE) 2700-2953 12.3-12.8 38 lbs. (17 kg)
	230-240 (CE) 2516-2740 10.9-11.4 38 lbs. (17 kg)
GRAIHL-60D	120* 3100 25.8 42 lbs. (19 kg)
	120/208 3100 16.0 42 lbs. (19 kg)
	120/240 3100 14.2 42 lbs. (19 kg)
	220 3050 13.9 42 lbs. (19 kg)
	240 3100 12.9 42 lbs. (19 kg)
	220-230 (CE) 3050-3336 13.9-14.5 42 lbs. (19 kg)
	230-240 (CE) 2847-3100 12.4-12.9 42 lbs. (19 kg)
GRAIHL-66D	120* 3420 28.5 44 lbs. (20 kg)
	120/240 3420 15.5 44 lbs. (20 kg)
	220 3370 15.3 44 lbs. (20 kg)
	240 3420 14.3 44 lbs. (20 kg)
	220-230 (CE) 3370-3685 15.3-16.0 44 lbs. (20 kg)
	230-240 (CE) 3141-3420 13.7-14.3 44 lbs. (20 kg)
GRAIHL-72D	220 3750 17.0 48 lbs. (22 kg)
	240 3810 15.9 48 lbs. (22 kg)
	220-230 (CE) 3750-4101 17.0-17.8 48 lbs. (22 kg)
	230-240 (CE) 3498-3810 15.8-15.9 48 lbs. (22 kg)

* Only available with remote control enclosure options.

Dimensions

Model	Width (A)	Depth (B)	Depth (C)	Height (D)	Width (E)
GRAIH-XX	18"-72" (457–1829 mm)	6" (152 mm)	9" (229 mm)	2-5/8" (66 mm)	8" (203 mm)
GRAIHL-XX	18"-72" (457–1829 mm)	9" (229 mm)	12" (305 mm)	2-5/8" (66 mm)	8" (203 mm)
GRAIH-XXD ‡	18"-72" (457–1829 mm)	15" (381 mm)	18" (457 mm)	2-5/8" (66 mm)	8" (203 mm)
GRAIHL-XXD ‡	18"-72" (457–1829 mm)	15" (381 mm)	18" (457 mm)	2-5/8" (66 mm)	8" (203 mm)

‡ Add 3" (76 mm) to Depth (B) and Depth (C) if unit is configured with an optional 6" (152 mm) spacer.
NOTE: Depth (C) dimension includes TCBI box.

General

Use the information in this section to prepare for and install an Infra-Black® Strip Heater. Make sure to locate the specific information for the type of installation. Infra-Black Strip Heaters are shipped with most components pre-assembled. Dual units are supplied with a required 3" (76 mm) or 6" (152 mm) spacer pre-assembled at the factory.

WARNING

ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate the unit indoors where the ambient air temperature is a minimum of 70^ F ( 21^ C).

FIRE HAZARD: Do not install unit above or around combustible surfaces. Discoloration or combustion could occur. Unit must be installed in non-combustible surroundings only.

CAUTION

Ensure safe and proper operation. Refer to the "Minimum Clearance Requirements" listed in the Installation section of this manual.

NOTICE

Damage to countertop material such as Coriañand similar products caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact the manufacturer of the countertop material for application information.

NOTE: Contact the countertop manufacturer of the base material for application information and surface temperature limits before installing the unit.

1. Remove the unit from the shipping carton and remove all packing materials.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit.

NOTE: If the unit is configured with optional equipment, see the OPTIONS AND ACCESSORIES section in this manual.

1. Refer to the appropriate mounting procedure in this section for the desired mounting style.

Dual Mounting

When mounting units side-by-side, a space not less than 3" (76 mm) must be maintained between units. Dual units ordered from the factory are shipped with a pre-assembled 3" (76 mm) or 6" (152 mm) spacer.

NOTICE

Installation of two or more separate units with less than 3" (76 mm) between housings may result in premature failure of component parts. Failure to provide proper spacing may result in heat damage to electrical components and are not covered by warranty.

Under Shelf Mounting

When mounting a unit under a shelf, use adjustable angle brackets to assure proper spacing. Remote control enclosures are recommended to keep switches out of the heat zone and prevent premature failure.

Pass-Through

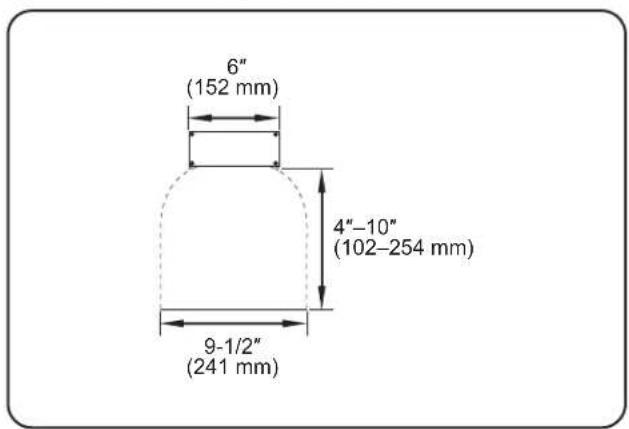

If pass-through area is under 9 1/2" (241 mm) deep, a single unit can be used. For a 10" to 19" (254 to 483 mm) deep pass-through area, a dual unit is recommended. Installation of multiple units must have a minimum spacing of 3" (76 mm) between strip heaters.

Over Steam Table

When mounting over a steam table, a remote control enclosure must be installed.

Minimum Clearance Requirements

Models ABC
GRAIH and GRAIHL 4"■ 1"with TCBI (102 mm) (25 mm)
GRAIH and GRAIHL 4" 3" 0"with RMB (102 mm) (76 mm) (0 mm)
GRAIH-XXD and 8"■ 1"GRAIHL-XXD with TCBI (203 mm) (25 mm)
GRAIH-XXD and 8" 3" 0"GRAIHL-XXD with RMB (203 mm) (76 mm) (0 mm)

Minimum Clearance Requirements

■ Must be a pass-through application, not allowed with back wall installation.

Maximum Overshelf Clearance Requirements

Units should be mounted at a maximum distance of 10" (254 mm) from the front of an oversheft.

Maximum Overshelf Clearance Requirements

Recommended Mounting Heights

Recommended Element Height for GRAIH-XX and GRAIHL-XX models

Recommended Element Height for GRAIH-XXD and GRAIHL-XXD models with a 3" (76 mm) spacer

Recommended Element Height for GRAIH-XXD and GRAIHL-XXD models with a 6" (152 mm) spacer

Tubular Stand Mounting

Mounting a unit with non-adjustable tubular stands permanently attaches the unit to a countertop or serving table.

CAUTION

Ensure safe and proper operation. Refer to the "Minimum Clearance Requirements" listed in the Installation section of this manual.

Tubular stands are available in aluminum, Designer colors, or gloss finishes in heights of 4" to 14" (102 to 356 mm) in 2" (51 mm) increments.

NOTE: Tubular stands cannot be retrofitted in the field.

1. Position the unit upside-down on a flat surface.

NOTE: Units for this application are supplied with the conduit attached to one side of the unit. Conduit should not be removed.

1. Secure the top of the tubular stand to the bottom of the angled end bracket using the screws supplied.

2. Secure the angled end bracket to the end plate of the unit with the previously removed hanger tab screws.

3. Repeat steps 2 and 3 on the opposite end of the unit.

4. Secure the stands to the mounting surface using appropriate fasteners.

NOTE: Two pairs of tubular stands will be needed for mounting dual units.

Tubular Stand Mounting

Angle Bracket Mounting

Mounting a unit with an angle bracket permanently attaches the unit to the underside of a shelf. It can be mounted to a flat shelf or a shelf with rolled/flanged edges. The adjustable angle brackets will provide the necessary gap between the unit and a combustible shelf.

If the shelf has a rolled or flanged edge, use the optional adjustable angle brackets to mount the unit below the lowest part of the rolled or flanged edge of the shelf (a minimum gap of 1" [25 mm] is required between the unit and the underside of a rolled or flanged edge of the shelf to prevent heat damage to the electrical system of the unit).

CAUTION

Ensure safe and proper operation. Refer to the "Minimum Clearance Requirements" listed in the Installation section of this manual.

NOTE: When mounting the unit under a shelf, it is recommended to use a remote control enclosure.

Flanged Edge Shelf Installation

1. Position the unit on a flat surface with the heating element facing down.
2. Remove the two hanger tab screws and hanger tabs. These items will not be needed.
3. Remove the two upper end plate screws.
4. Align the adjustable angle bracket to the end plate mounting holes of the unit. Secure angle bracket with previously removed end plate screws.

Adjustable Angle Bracket Installation

1. Fasten the angle bracket to the underside of the shelf using appropriate fasteners (not supplied by Hatco).

NOTE: Two pairs of brackets will be needed for dual units.

Dual Unit Mounting

"S" Hook Mounting

Chain Suspension Mounting

Mounting a unit with chain suspension attaches the unit to an overhead surface with the use of "S" hooks.

NOTE: Units ordered with the "S" hook option come with two "S" hooks and two 6" (152 mm) lengths of chain. Additional chain (P/N 05.03.020.00) can be ordered from Hatco for the overhead mounting system or another option can be determined by a qualified installer.

WARNING

For installation with chains, make sure the chains have sufficient strength and are securely fastened to both the unit and the mounting location. Poorly installed chains may cause the unit to loosen and fall. Do not place anything on top of units installed with chains.

Ensure safe and proper operation. Refer to the "Minimum Clearance Requirements" listed in the Installation section of this manual.

NOTE: The strength of the chain supplied by Hatco is sufficient to hold the weight of the unit securely only when mounted properly.

1. Prepare the overhead mounting system for the "S" hooks. Make sure the system is secure and is set up so the unit will be suspended at a level, safe, and proper distance from walls, counter, and food.
2. Loosen, but do not remove the screws securing the hanger tabs on each end of the unit. Rotate the tabs up, then tighten the screws securely.
3. Securely attach one of the 6" (152 mm) connecting chains between each pair of hanger tabs.
4. Attach an "S" hook to the center of each connecting chain.
5. Carefully lift the unit and attach the "S" hooks on each end of the unit to the overhead mounting system. Make sure the unit is level.

Electrical Wiring Information

Refer to the Electrical Rating Charts in the SPECIFICATIONS section for unit specific information.

WARNING

ELECTRIC SHOCK HAZARD: For hardwired units, all electrical connections must be in accordance with local electrical codes and any other applicable codes. Connections should be made by a qualified, licensed electrician.

CAUTION

Strip heaters equipped with incandescent lights that require a circuit breaker larger than 20 amps for the heat element must have a separate circuit breaker for the incandescent lights that is 20 amps or less.

NOTE: If the unit being installed is not shown or listed in this manual, refer to the wiring diagram supplied with the unit and the installation information on the unit for further instructions.

Power Supply

Install supply wire and connectors suitable for at least 194°F (90°C).

• Use a minimum of No. 14 AWG copper wire for individual circuits up to 15 amps.
• Use a minimum of No. 12 AWG copper wire for individual circuits 15 to 20 amps.
• Use a minimum of No. 10 AWG copper wire for individual circuits 20 to 25 amps.
• Use a minimum of No. 8 AWG copper wire for individual circuits 25 to 30 amps.

NOTE: Refer to the wiring diagram supplied with the unit and specifications label attached to the unit for specific electrical information.

Conduit Connection

Units supplied with a right angle fitting and flexible conduit attached have had all internal connections completed at the factory. Attach the proper power supply leads to the high temperature lead wires in the conduit.

Conduit Connections

NOTE: Refer to the wiring diagram supplied with the unit and specifications label attached to the unit for specific electrical information.

Remote Control Enclosures

Hatco remote control enclosures include switches, wire leads, and/or indicator lights and are ready for installation.

The RMB Series require one remote control enclosure per strip heater. The RMB2 Series allows multiple strip heaters to be connected to one remote control enclosure.

NOTE: Remote control enclosures are available in several configurations depending on the model. All enclosures are built in accordance with UL standards to accommodate switches, indicator lights, and wiring. See the OPTIONS AND ACCESSORIES section in this manual for more information.

IMPORTANT NOTE:

Remote mounted enclosures and control switches must be installed in a cool, dry location as far away from any heat zone as possible. Do not mount enclosures or switches directly on, under, or above unit. Do not mount enclosures or switches in direct contact with any heated surface or near any steam generating equipment.

NOTE: When two or more units are mounted where the heat from one housing tends to raise the temperature of another, the control switches should be installed in a remote control enclosure. Units in a multiple installation should use remote mounted control switches.

NOTICE

To prevent premature failure of components due to excessive heat, remote mounted control switches must be installed outside the strip heater heat zone.

Remote Mounted Enclosure Installation Locations

General

Glo-Ray ^® Infra-Black ^® Strip Heaters are designed for ease of operation. Use the following information and procedures to operate the unit.

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

BURN HAZARD: Some exterior surfaces on the unit will get hot. Avoid unnecessary contact with unit.

Controls

Infra-Black Strip Heaters are equipped with either a Thermostatic Control Box with Indicator Lights (TCBI) mounted on the unit or an optional remote control enclosure (RMB) mounted remotely. The following is a list of the available controls for either control configuration.

ON/OFF (I/O) Toggle Switch—Turns power on and off to the heating elements and/or the lights.

Thermostatic Control—Controls the temperature of the heating element(s). The thermostatic control is available only on a TCBI-equipped unit.

Infinite Control—Turns on the power and controls the output of the heating elements. The infinite control is available only on a remote control enclosure.

Indicator Light—Illuminates when power is on, shuts off when power is off.

Startup

1. Move the ON/OFF (I/O) toggle switch to the ON (I) position and/or turn the infinite control(s) to the desired setting.

- The indicator light (if equipped) will illuminate and the heating elements will energize.

1. For units with a thermostatic control, turn the control to the desired setting.

NOTE: Allow 15–20 minutes to reach operating temperature.

1. For units with display lights, move the lights ON/OFF (I/O) toggle switch to the ON (I) position to turn on the lights.

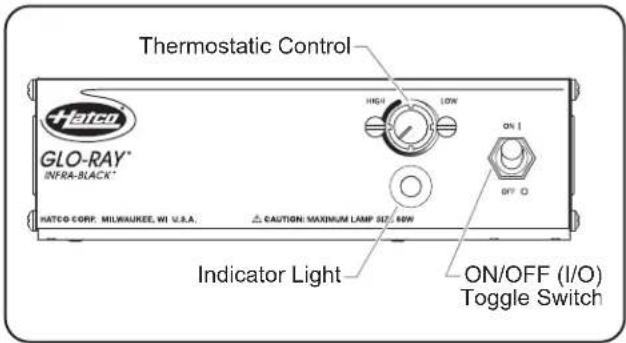

Thermostatic Control Box with Indicator Lights (TCBI)

Remote Control Enclosures

NOTE: Refer to the OPTIONS AND ACCESSORIES section for remote control enclosure information.

Shutdown

1. Move the ON/OFF (I/O) toggle switch to the OFF (O) position and/or turn the infinite control(s) to the OFF(O) position.

- The indicator light (if equipped) will shut off and the heating elements will shut down.

1. For units with display lights, move the lights ON/OFF (I/O) toggle switch to the OFF (O) position.

General

Glo-Ray ^® Infra-Black ^® Strip Heaters are designed for maximum durability and performance with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Turn power OFF at fused disconnect switch/circuit breaker and allow unit to cool before performing any maintenance, adjustments, or cleaning.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350; fax [phone].

Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

Daily Cleaning

To preserve the finish of the Glo-Ray Infra-Black Strip Heater, it is recommended that all surfaces be cleaned daily.

NOTICE

Use non-abrasive cleaners only. Abrasive cleaners could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.

1. Turn off the unit and allow the unit to cool.
2. Wipe down all metal surfaces with a clean, damp cloth. Stubborn stains may be removed with a good stainless steel or non-abrasive cleaner. Clean hard to reach areas using a small brush and mild soap.

Replacing Display Light Bulbs

WARNING

Use only light bulbs that meet or exceed National Sanitation Foundation (NSF) standards and are specifically designed for food holding areas. Breakage of light bulbs not specially coated could result in personal injury and/or food contamination.

The display light is an incandescent bulb that illuminates the warming area. This bulb has a special coating to guard against injury and food contamination in the event of breakage.

To replace a light bulb:

1. Disconnect the power supply and wait until the unit has cooled.
2. Unscrew the light bulb from the unit and replace it with a new, specially-coated incandescent light bulb.
   NOTE: Hatco shatter-resistant light bulbs meet NSF standards for food holding and display areas. For 120, 120/208, and 120/240 volt applications, use Hatco P/N 02.30.043.00. For 220–240 volt applications, use Hatco P/N 02.30.058.00.
   NOTE: Halogen bulbs are available as an option. For 120, 120/208, and 120/240 Volt applications, use Hatco P/N 02.30.081.00.

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn power OFF at fused disconnect switch/circuit breaker and allow unit to cool before performing any maintenance, adjustments, or cleaning.

Symptom Probable	Cause Corrective Action
Unit is turned ON but there is no heat.	No power to unit. Check circuit breaker and reset as necessary.
	Switch is defective. Contact Authorized Service Agent or Hatco for assistance.
	Wiring is open. Contact Authorized Service Agent or Hatco for assistance.
	Heating element defective. Contact Authorized Service Agent or Hatco for assistance.
Heat is inadequate. Unit mounted too high above target area.		Lower unit, putting effective heat closer to target.
		Excessive air movement around strip heater target area.
		Incorrect power supply (low).
		Temperature control set too low. Move temperature control to higher setting.
Heat is excessive.	Unit mounted too close to target area.	Check to see that installation is within specifications for type/model. Increase mounting height if too close.
	Voltage supply too high.	Check power supply to unit, making sure it matches rating on unit. If power supply is incorrect, change to match rating.
	Temperature control set too high.	Move temperature control to lower setting.
Control switches burn out rapidly.	Switches are mounted in the heat zone.	Check switch location per Hatco guidelines in this manual. Relocate switches to a cooler zone if installation is incorrect.
	Switches used are not Hatco supplied.	Genuine Hatco Parts are specified to operate safely and properly in the environment in which they are used. Contact Authorized Service Agent or Hatco to replace switches with Genuine Hatco Replacement Parts.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com and click on Find Service Agent, or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

Fax: [phone] or 414-671-3976

Element Wire Guard

Element Wire Guards are available as a factory-installed option. Element Wire Guards protect users from incidental contact with the heated surface. GRAIH-XXD and GRAIHL-XXD require two sets of wire guards.

GRAIHL-XXD with Element Wire Guards

Remote Control Enclosure — RMB Series

RMB Series remote control enclosures are available in various sizes and configurations for use with strip heaters. Remote control enclosures locate controls away from the constant heat of the unit, increasing the life span of the controls. All models are built in accordance with UL standards with switches, indicator lights, and wiring. Consult the factory for type and location of RMB Series controls for enclosure.

NOTE: RMB Series remote control enclosures require one remote control enclosure per strip heater.

Models	Width (A)	Depth (B)	Height (C)	Screw Width (D)	Screw Height (E)
RMB-3 Series	5-15/16" (150 mm)	3" (76 mm)	2-5/8" (67 mm)	6-5/16" (161 mm)	1-5/8" (41 mm)
RMB-7 Series	9-3/8" (239 mm)	3" (76 mm)	2-5/8" (67 mm)	9-13/16" (249 mm)	1-5/8" (41 mm)
RMB-14 Series	14-3/8" (366 mm)	3" (76 mm)	2-5/8" (67 mm)	14-13/16" (376 mm)	1-5/8" (41 mm)
RMB-16 Series	16-3/8" (417 mm)	3" (76 mm)	2-5/8" (67 mm)	16-13/16" (427 mm)	1-5/8" (41 mm)
RMB-20 Series	20-3/8" (518 mm)	3" (76 mm)	2-5/8" (67 mm)	20-13/16" (529 mm)	1-5/8" (41 mm)

Dimensions — RMB Series

Remote Control Enclosure — RMB2 Series

RMB2 Series remote control enclosures allow multiple strip heaters to be wired to and controlled by a single enclosure. The total amp draw of all connected strip heaters cannot exceed the rating of the remote control enclosure. Consult the factory for information regarding the proper RMB2 Series remote control enclosure for a specific application.

RMB2 Series Dimensions

Models	Width (A) (B)	Width (C)	Height (D)	Depth (E)	Height
RMB2-1R	10-1/8" (257 mm)	11" (279 mm)	5-1/2" (140 mm)	4-1/4" (109 mm)	4-5/8" (116 mm)
RMB2-2R	13-1/8" (333 mm)	14" (356 mm)	5-1/2" (140 mm)	4-1/4" (109 mm)	4-5/8" (116 mm)

Dimensions — RMB2 Series

RMB2 Series Cutout Dimensions

Models (A)	Opening Cutout Screw HoleDimensions Dimensions
	(B) (C) (D)	(E)
RMB2-1R 4	-3/4" 10-1/8"(121 mm)	" 1-1/8" 2-1/(257 mm) (29 mm) (64 mm) (265 mm)
RMB2-2R 4	-3/4" 13-1/8"(121 mm)	" 1-1/8" 2-1/(333 mm) (29 mm) (64 mm) (341 mm)

Cutout Dimensions — RMB2 Series

1. PRODUCT WARRANTY

Hatco warrants the products that it manufactures (the "Products") to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco's written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product's purchase date by registering the Product with Hatco or by other means satisfactory to Hatco in its sole discretion.

Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:

a) One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Drawer Rollers and Slides

Strip Heater Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements — HW and HWB Series (metal sheathed)

b) One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty:

3CS and FR Tanks

c) One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty on:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

d) Ninety (90) Day Parts-Only Warranty:

Replacement Parts

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing; or Product misuse, tampering or misapplication, improper installation, or application of improper voltage.

2. LIMITATION OF REMEDIES AND DAMAGES

Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely, at Hatco's option, to repair or replacement using new or refurbished parts or Product by Hatco or a Hatco-authorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom, or Australia, in which case Hatco's liability and Buyer's exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. In the context of this Limited Warranty, "refurbished" means a part or Product that has been returned to its original specifications by Hatco or a Hatco-authorized service agency. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer's sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.

Introduction......20

Technical line drawing of a rectangular metal bracket with no text or symbols

Technical line drawing of a rectangular metal enclosure with internal compartments and mounting holes (no text or symbols)

Modèle GRAIHL-XX

Technical line drawing of a rectangular metal enclosure or enclosure with mounting flanges (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Modèle GRAIHL-XXD

DÉSIGNATION DU MODÈLE

Modèle Tension Intensité Amps			Poids d'embarquement
GRAIH-18 120 350 2.9 6 lbs. (3 kg)
	208	350	1.7 6 lbs. (3 kg)
	240 350 1.5 6 lbs. (3 kg)
	220	350	1.6 6 lbs. (3 kg)
	240	350	1.5 6 lbs. (3 kg)
	220–230 (CE)	350–383	1.6–1.7 6 lbs. (3 kg)
	230–240 (CE)	321–350 1.4–1.5 6 lbs. (3 kg)
GRAIH-24 120 500 4.2 11 lbs. (5 kg)
	208 500 2.4 11 lbs. (5 kg)
	240 500 2.1 11 lbs. (5 kg)
	220	500	2.3 11 lbs. (5 kg)
	240	500	2.1 11 lbs. (5 kg)
	220–230 (CE)	500–546	2.3–2.4 11 lbs. (5 kg)
	230–240 (CE)	459–500 2.0–2.1 11 lbs. (5 kg)
GRAIH-30 120 660 5.5 13 lbs. (6 kg)
	208 660 3.2 13 lbs. (6 kg)
	240 660 2.8 13 lbs. (6 kg)
	220 660 3.0 13 lbs. (6 kg)
	240	660	2.8 13 lbs. (6 kg)
	220–230 (CE)	660–721	3.0–3.1 13 lbs. (6 kg)
	230–240 (CE)	606–660 2.6–2.8 13 lbs. (6 kg)
GRAIH-36 120 800 6.7 15 lbs. (7 kg)
	208 800 3.8 15 lbs. (7 kg)
	240 800 3.3 15 lbs. (7 kg)
	220 800 3.6 15 lbs. (7 kg)
	240 800 3.3 15 lbs. (7 kg)
	220–230 (CE)	800–874 3.6–3.8	15 lbs. (7 kg)
	230–240 (CE)	734–800 3.2–3.3	15 lbs. (7 kg)
GRAIH-42 120 950 7.9 17 lbs. (8 kg)
	208 950 4.6 17 lbs. (8 kg)
	240 950 4.0 17 lbs. (8 kg)
	220 950 4.3 17 lbs. (8 kg)
	240 950 4.0 17 lbs. (8 kg)
	220–230 (CE)	950–1038 4.3–4.5	17 lbs. (8 kg)
	230–240 (CE)	872–950 3.8–4.0	17 lbs. (8 kg)

Modèle Tension Intensité Amps				Poids d'embarquement
GRAIH-48	120	1100	9.2	21 lbs. (10 kg)
	208	1100	5.3	21 lbs. (10 kg)
	240	1100	4.6	21 lbs. (10 kg)
	220	1100	5.0	21 lbs. (10 kg)
	240	1100	4.6	21 lbs. (10 kg)
	220–230 (CE)	1100–1202	5.0–5.2	21 lbs. (10 kg)
	230–240 (CE)	1010–1100	4.4–4.6	21 lbs. (10 kg)
GRAIH-54 120	1250 10.4		24 lbs. (11 kg)
	208	1250	6.0	24 lbs. (11 kg)
	240	1250	5.2	24 lbs. (11 kg)
	220	1250	5.7	24 lbs. (11 kg)
	240	1250	5.2	24 lbs. (11 kg)
	220–230 (CE)	1250–1366	5.7–5.9	24 lbs. (11 kg)
	230–240 (CE)	1148–1250	5.0–5.2	24 lbs. (11 kg)
GRAIH-60 120	1400	11.7	27 lbs. (12 kg)
	208	1400	6.7	27 lbs. (12 kg)
	240	1400	5.8	27 lbs. (12 kg)
	220	1400	6.4	27 lbs. (12 kg)
	240	1400	5.8	27 lbs. (12 kg)
	220–230 (CE)	1400–1530	6.4–6.7	27 lbs. (12 kg)
	230–240 (CE)	1286–1400	5.6–5.8	27 lbs. (12 kg)
GRAIH-66 120†	1560 13.0 30 lbs. (14 kg)
	208	1560	7.5	30 lbs. (14 kg)
	240	1560	6.5	30 lbs. (14 kg)
	220	1560	7.1	30 lbs. (14 kg)
	240	1560	6.5	30 lbs. (14 kg)
	220–230 (CE)	1560–1705	7.1–7.4	30 lbs. (14 kg)
	230–240 (CE)	1433–1560	6.2–6.5	30 lbs. (14 kg)
GRAIH-72 120†	1725 14.4 33 lbs. (15 kg)
	208	1725	8.3	33 lbs. (15 kg)
	240	1725	7.2	33 lbs. (15 kg)
	220	1725	7.8	33 lbs. (15 kg)
	240	1725	7.2	33 lbs. (15 kg)
	220–230 (CE)	1725–1885	7.8–8.2	33 lbs. (15 kg)
	230–240 (CE)	1584–1725	6.9–7.2	33 lbs. (15 kg)

Modèle Tension Intensité Amps			Poids d'embarquement
GRAIHL-18 120	470 3.9	12 lbs. (5 kg)
120/208	470 2.7	12 lbs. (5 kg)
120/240	470 2.5	12 lbs. (5 kg)
220	450	2.0	12 lbs. (5 kg)
240	470 2.0	12 lbs. (5 kg)
220–230 (CE)	450–492	2.0–2.1	12 lbs. (5 kg)
230–240 (CE)	432–470	1.9–2.0	12 lbs. (5 kg)
GRAIHL-24	120	620	5.2
120/208	620 3.4	15 lbs. (7 kg)
120/240	620 3.1	15 lbs. (7 kg)
220	600 2.7	15 lbs. (7 kg)
240	620	2.6	15 lbs. (7 kg)
220–230 (CE)	600–656	2.7–2.9	15 lbs. (7 kg)
230–240 (CE)	569–620	2.5–2.6	15 lbs. (7 kg)
GRAIHL-30 120	780 6.5	17 lbs. (8 kg)
120/208	780 4.2	17 lbs. (8 kg)
120/240	780 3.8	17 lbs. (8 kg)
220	760 3.5	17 lbs. (8 kg)
240	780 3.3	17 lbs. (8 kg)
220–230 (CE)	760–831	3.5–3.6	17 lbs. (8 kg)
230–240 (CE)	716–780	3.1–3.3	17 lbs. (8 kg)
GRAIHL-36 120	980 8.2	20 lbs. (9 kg)
120/208	980 5.3	20 lbs. (9 kg)
120/240	980 4.8	20 lbs. (9 kg)
220	950 4.3	20 lbs. (9 kg)
240	980 4.1	20 lbs. (9 kg)
220–230 (CE)	950–1038 4.3–4.5	20 lbs. (9 kg)
230–240 (CE)	900–980	3.9–4.1	20 lbs. (9 kg)
GRAIHL-42 120	1130	9.4 23 lbs. (10 kg)
120/208	1130	6.1 23 lbs. (10 kg)
120/240	1130	5.5 23 lbs. (10 kg)
220	1100	5.0 23 lbs. (10 kg)
240	1130	4.7 23 lbs. (10 kg)
220–230 (CE)	1100–1202 5.0–5.2	23 lbs. (10 kg)
230–240 (CE)	1038–1130 4.5–4.7	23 lbs. (10 kg)

Modèle Tension Intensité Amps				Poids d'embarquement
GRAIHL-48	120	1340	11.2	26 lbs. (12 kg)
	120/208	1340	7.3	26 lbs. (12 kg)
	120/240	1340	6.6	26 lbs. (12 kg)
	220	1300	5.9	26 lbs. (12 kg)
	240	1340	5.6	26 lbs. (12 kg)
	220–230 (CE)	1300–1421	5.9–6.2	26 lbs. (12 kg)
	230–240 (CE)	1231–1340	5.4–5.6	26 lbs. (12 kg)
GRAIHL-54	120 1490	12.4	29 lbs. (13 kg)
	120/208	1490	8.0	29 lbs. (13 kg)
	120/240	1490	7.2	29 lbs. (13 kg)
	220	1450	6.6	29 lbs. (13 kg)
	240	1490	6.2	29 lbs. (13 kg)
	220–230 (CE)	1450–1585	6.6–6.9	29 lbs. (13 kg)
	230–240 (CE)	1368–1490	5.9–6.2	29 lbs. (13 kg)
GRAIHL-60	120 1700	14.2	33 lbs. (15 kg)
	120/208	1700	9.2	33 lbs. (15 kg)
	120/240	1700	8.3	33 lbs. (15 kg)
	220	1650	7.5	33 lbs. (15 kg)
	240	1700	7.1	33 lbs. (15 kg)
	220–230 (CE)	1650–1803	7.5–7.8	33 lbs. (15 kg)
	230–240 (CE)	1561–1700	6.8–7.1	33 lbs. (15 kg)
GRAIHL-66	120†	1860	15.5	34 lbs. (15 kg)
	120/208	1860	10.0	34 lbs. (15 kg)
	120/240	1860	9.0	34 lbs. (15 kg)
	220	1810	8.2	34 lbs. (15 kg)
	240	1860	7.8	34 lbs. (15 kg)
	220–230 (CE)	1810–1978	8.2–8.6	34 lbs. (15 kg)
	230–240 (CE)	1708–1860	7.1–7.8	34 lbs. (15 kg)
GRAIHL-72	120*	2085	17.4	36 lbs. (16 kg)
	120/208	2085	11.3	36 lbs. (16 kg)
	120/240	2085	10.2	36 lbs. (16 kg)
	220	2025	9.2	36 lbs. (16 kg)
	240	2085	8.7	36 lbs. (16 kg)
	220–230 (CE)	2025–2213	9.2–9.6	36 lbs. (16 kg)
	230–240 (CE)	1915–2085	8.3–8.7	36 lbs. (16 kg)

Ensure safe and proper operation. Refer to the "Minimum Clearance Requirements" listed in the Installation section of this manual.

1. GARANTIE DU PRODUIT

Byassee Equipment Co. Phoenix 602-252-0402

CALIFORNIA

Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100

Chapman Appl. Service San Diego 619-298-7106

P & D Appliance Commercial Parts & Service, Inc. S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair Jacksonville 904-725-7800

Whaley Foodservice Repair Orlando 407-757-0851

B.G.S.I. Pompano Beach 954-971-0456

Comm. Appliance Service Tampa 813-663-0313

GEORGIA

TWC Services Mableton 770-438-9797

Heritage Service Group Norcross 866-388-9837

Southeastern Rest. Svc. Norcross 770-446-6177

HAWAII

Burney's Comm. Service, Inc. Honolulu 808-848-1466

Food Equip Parts & Service Honolulu 808-847-4871

ILLINOIS

Parts Town Lombard 708-865-7278

Eichenauer Elec. Service Decatur 217-429-4229

Midwest Elec. Appl. Service Elmhurst 630-279-8000

Cone's Repair Service Moline 309-797-5323

INDIANA

GCS Service Indianapolis 800-727-8710

IOWA

Goodwin Tucker Group Des Moines 515-262-9308

KENTUCKY

Service Solutions Group Lexington 859-254-8854

Service Solutions Group Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service Baltimore 410-467-8080

GCS Service Silver Spring 301-585-7550

MASSACHUSETTS

Ace Service Co., Inc. Needham 781-449-4220

MICHIGAN

Bildons Appliance Service Detroit 248-478-3320

Commercial Kitchen Service Bay City 989-893-4561

Midwest Food Equip. Service Grandville 616-261-2000

MINNESOTA

GCS Service Minnetonka 800-822-2303 x20365

MISSOURI

General Parts Kansas City 816-421-5400

Commercial Kitchen Services St. Louis 314-890-0700

Kaemmerlen Parts & Service St. Louis 314-535-2222

NEBRASKA

Anderson Electric Omaha 402-341-1414

NEVADA

Burney's Commercial Las Vegas 702-736-0006

Hi. Tech Commercial Service N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair Fairfield 973-575-9145

Service Plus Flanders 973-691-6300

NEW YORK

Acme American Repairs, Inc. Brooklyn 718-456-6544

Alpro Service Co. Brooklyn 718-386-2515

Appliance Installation Buffalo 716-884-7425

Duffy's Equipment Services, Inc. Buffalo 800-836-1014

3Wire Northern Plattsburgh 800-634-5005

Duffy's Equipment Services, Inc. Sauquoit 800-836-1014

J.B. Brady, Inc. Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc. Akron 330-753-6634

Service Solutions Group Cincinnati 513-772-6600

Commercial Parts and Service Columbus 614-221-0057

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E. A. Wichman Co. Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc. Oklahoma City 405-235-2184

Krueger, Inc. Oklahoma City 405-528-8883

OREGON

Ron's Service, Inc. Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services Philadelphia 215-627-5401

FAST Comm. Appl. Service Philadelphia 215-288-4800

Appliance Installation & Service Pittsburgh 412-809-0244

K & D Service Co. Harrisburg 717-236-9039

Electric Repair Co. Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co. Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair Lexington 803-996-9900

TENNESSEE

Camp Electric Memphis 901-527-7543

TEXAS

GCS Service Fort Worth 800-433-1804

Armstrong Repair Service Houston 713-666-7100

Cooking Equipment Specialist Mesquite 972-686-6666

Commercial Kitchen Repair Co. San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service Murray 801-263-3221

VIRGINIA

Daubers Norfolk 757-855-4097

Daubers
Springfield 703-866-3600

WASHINGTON

3 Wire Restaurant Appliance Seattle 800-207-3146

WISCONSIN

A.S.C., Inc. Madison 608-246-3160

A.S.C., Inc. Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service

Vancouver 604-433-4484

Key Food Equipment Service Victoria 250-920-4888

MANITOBA

Air Rite, Inc. Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd. Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd. Toronto 416-422-5580

Choquette - CKS, Inc. Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc. Montreal 514-722-2000

Choquette - CKS, Inc. Québec City 418-681-3944

UNITED KINGDOM

Marren Group Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

Parts and Service Fax [phone]

International Fax [phone]

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION section for details.
