USER MANUAL SR2363Z PANASONIC

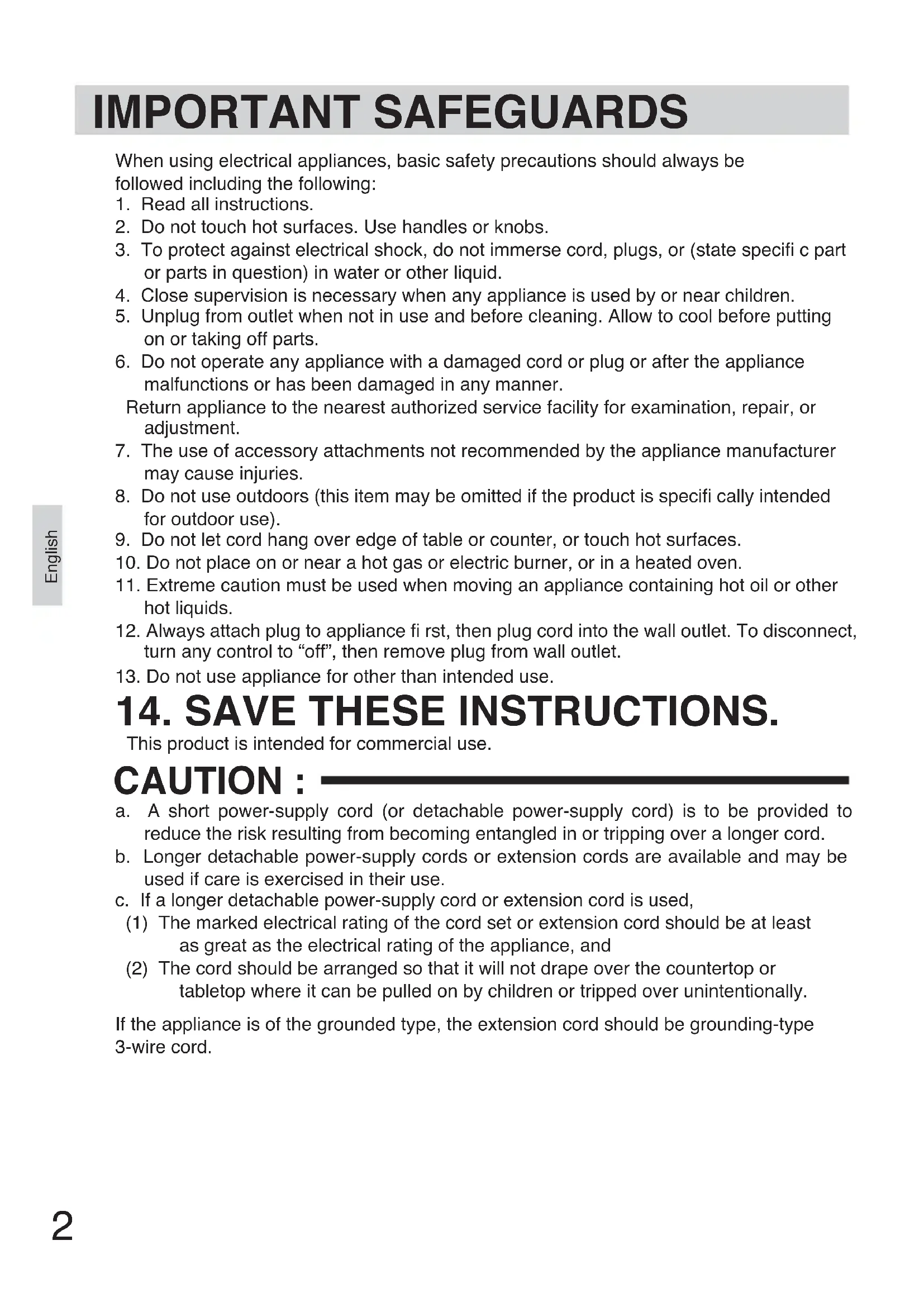

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord, plugs, or (state speci c part

or parts in question) in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting

on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer

8. Do not use outdoors (this item may be omitted if the product is speci cally intended

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other

12. Always attach plug to appliance rst, then plug cord into the wall outlet. To disconnect,

turn any control to “off”, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. SAVE THESE INSTRUCTIONS.

This product is intended for commercial use. a. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. c. If a longer detachable power-supply cord or extension cord is used, (1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and (2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. If the appliance is of the grounded type, the extension cord should be grounding-type 3-wire cord. CAUTION : SR-2363Z-EN.indd 2SR-2363Z-EN.indd 2 10/30/07 3:05:09 PM10/30/07 3:05:09 PMEnglish

This sign means prohibited action. This sign means required action.

This sign means [It may result in severe injuries or death]. Caution : This sign means [It may result in injuries or malfunction]. This instruction manual provides operating instructions and cautions for appropriate use. Warning and Caution for important safeguards Safety Precautions The samples of symbols used in this manual are described below. Plug in the AC cord to the outlet rmly.(Not doing so can result in an electrical shock or re due to generation of heat.)Do not use a damaged plugor outlet. Warning Do not damage the AC cord or plug.Do not disassemble, expose to heat or re, twist, pull, place heavy objects on or tie the AC cord in a bundle. (A damaged cord or plug can lead to electrical shock or re.)If the AC cord or plug is damaged, consult your nearest retailer or service center for repair.Do not plug or unplug therice cooker with wet hands.(Doing so can result in an electrical shock.)Do not use wet hands.Do not place your hands or face over or near the steam vent.(Exposure to steam can cause personal injury.)Do not touchDo not insert metal objectssuch as pins or needles,or any other objects in theexhaust outlets, or in anyother portion of the unit.Particularly, do not insert clips, wire or any metal objects into the unit.(Doing so can lead to an electrical shock or malfunction.)ProhibitedBe sure the household supply voltage matches the required voltage of the appliance (120V in the U.S.).(It may cause electrical shock or re.)Do not operate the appliance with damaged AC plug or cord.(It may result in an electrical shock or re.)ProhibitedDo not allow the plug to become dusty.(Dust accumulation can lead to re or a malfunction.)Unplug and wipe with a dry cloth.ProhibitedThis appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a trained person responsible for their safety.Children should not be allowed to be in the area around the unit while it is in operation. (It may result in injuries.)Prohibited SR-2363Z-EN.indd 3SR-2363Z-EN.indd 3 10/30/07 3:05:11 PM10/30/07 3:05:11 PMEnglish

To prevent personal injury, close supervision is necessary when the appliance is used near children, or persons handicapped in any manner. (It may result in burning injuries.) Do not immerse the appliance in water or other liquids. (Doing so can result in personal injury.) If water leaks inside the appliance, consult your nearest retailer or service center. Do not attempt to disassemble or repair the unit yourself. (Doing so can result to electrical shock.) There are no self-servicing parts inside. Refer servicing to quali ed personnel. Do not disassemble. Do not operate the appliance near water, near a heat source, or expose to high humidity. (Doing so can lead to an electrical shock or re.) Caution Do not substitute the inner pan with other containers. (It may overheat causing personal injury or cause the appliance not to perform correctly.) To prevent electric shock, be sure to grasp the plug itself when disconnecting it; never unplug by pulling the AC cord. (Firmly grasp the appliance while unplugging it.) (It may result in electrical shock or electrocution.) Do not place the appliance near a wall or furniture. Do not touch Do not use other than the provided cord set and do not use the cord set for other appliances. (It may result in electrical shock or re) Prohibited (Pulling the cord may cause it to become damaged, leading to an electrical shock.) Unplug The appliance becomes hot when in use, especially the lid and inner pan. This is normal. Allow to cool before touching them. Do not touch the lid and inner pan. (The steam may cause color changes or deformation of any nearby objects.) Prohibited Do not place the appliance on an unstable surface. (It may overturn causing personal injury or resulting in a re.) Allow the inner pan to cool before handling. (Handling a hot pan can lead to personal injury.) Do not press on the Lid release button when the appliance is being carried or moved. (The lid may open and the appliance may fall causing injury or damage.) Do not touch Prohibited Prohibited Unplug the appliance when not in use. Be sure to grasp the AC plug; not the cord. Prohibited Doing so can lead to personal injury. Warning w Do not use damaged inner pan with the rice cooker. Please contact authorized service agent for replacement. Safety Precautions SR-2363Z-EN.indd 4SR-2363Z-EN.indd 4 10/30/07 3:05:15 PM10/30/07 3:05:15 PMEnglish

Usage Precautions Avoiding damage to the appliance. Avoiding damage to the inner pan. Do not cover the outer lid with a cloth. The outer lid may become deformed, cracked or discolored and result in malfunction. Do not place the appliance in direct sunlight. Do not substitute the inner pan with other container. Always keep the outside bottom of the inner pan and the cast heater clean and dry. Otherwise, it may result in malfunction of the unit. Foreign matter Cast heater Sensor Do not leave the rice scoop or any other objects inside the inner pan. The inner pan should be cleaned immediately after cooking. Do not use the inner pan as mixing utility. Do not use metal utensils that can scratch or crack the inner pan. The coated surface of the inner pan will gradually wear away, so use with care. Do not tap or rub the inner surface of the inner pan. Clean only with a sponge or soft cloth. Do not use a scouring pad. SR-2363Z-EN.indd 5SR-2363Z-EN.indd 5 10/30/07 3:05:18 PM10/30/07 3:05:18 PMEnglish

• Attachment Face the magnet of the scoop holder towards the body of the rice cooker and gently attach to the surface.

• Removal Slide the scoop holder upward and pull it off.

• Do not attempt to forcibly pull the scoop holder off the rice cooker body since this could cause surface damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali ed persons in order to avoid a hazard. Before using, remove the sheet of paper placed between the cast heater and inner pan. Cast heater SR-2363Z-EN.indd 6SR-2363Z-EN.indd 6 10/30/07 3:05:19 PM10/30/07 3:05:19 PMEnglish

Approx. 180 ml.Use tap water to rinse the rice for fresher smelling rice.Rinse and wash the rice until the water becomes relatively clear.Example : To cook 12 cups of rice.Add the water to the line marked “12” on the inside of the inner pan.Inner panWall plug How to Cook Rice Measure the rice using the measuring cup provided. Rinse the rice Do not rinse the rice by using the inner pan. Rinse the rice in a separate bowl. Do not rinse the rice in the provided inner pan as non-stick coating may be damaged. Pour the washed rice into the inner pan. Pour in the desired amount of water Set the inner pan on a at surface when adding the water. Add the desired amount of water following the scale marked on the inner pan. Hot water is not recommended for cooking as it may result in soggy rice. Put the inner pan into the body. Wipe water off around the surface of the inner pan before placing into a rice cooker, otherwise it may result in strange noise during cooking. Be sure that the inner pan is directly in contact with the cast heater. Improper contact between the inner pan and the cast heater may result in uncooked rice. Close the outer lid, plug in the AC cord to the power supply outlet. Close the outer lid rmly. (If it is not securely closed, cooking will be affected.) Plug in the AC cord to the power supply outlet. SR-2363Z-EN.indd 7SR-2363Z-EN.indd 7 10/30/07 3:05:20 PM10/30/07 3:05:20 PMEnglish

Press switch. Do not open the outer lid or unplug the appliance while it is operating. Please ensure that the switch is pressed and the “RICE COOKING” lamp lights up properly. (The rice will not be cooked in warming mode.) After the rice is cooked, it is recommended to let it steam and warm for another 15 minutes. Then scoop and mix the rice well. After the rice is cooked, the appliance will automatically switch to warming mode. Let the rice steam and warm for another 15 minutes without opening of the outer lid. Scoop and mix the rice well. Unplug the appliance when it is not in use. Press the switch to start cooking.The “RICE COOKING” lamp lights up.The “KEEP WARM” lamp lights up to indicate warming mode. To Keep Cooked Rice Warm and Tasty Rinse the rice until it becomes relatively clear. After the rice has been steamed and warmed, scoop and mix the rice gently. Do not leave the rice scoop inside the inner pan. Do not warm the rice for more than 4 hours. (It may result in color change and bad smell.) Do not use the rice cooker to warm other kinds of food. It is for rice only. Do not warm cold rice. Variations in the room temperature may cause the rice to discolor and lose its fresh smell. Unplug the rice cooker when it is not be used. Clean the dew collector located on the side of the rice cooker by pouring out the water, cleaning and sanitizing it after every use. Note: How to Cook Rice SR-2363Z-EN.indd 8SR-2363Z-EN.indd 8 10/30/07 3:05:23 PM10/30/07 3:05:23 PMEnglish

Accessories Measuring cup Rice scoop Scoop holder Wash with sponge and dishwashing liquid after use. How to Clean

Be sure to unplug and carry out these operations after the unit has cooled down.

DO NOT use objects such as benzine, thinner, cleansing powder or metal scrubbers. Body / Outer lid / Protecting rim / Inner lid Wipe with a damp cloth and a non abrasive cleaner then rinse and sanitize. *Remark : Clean after every use. Inner pan Wash with a dishwashing detergent, or soft cloth. Wipe off any moisture on the outside and sanitize. Dew collector Remove, clean and sanitize after every use. Cast heater If any objects stick on the bottom of the pan or cast heater, remove them immediately. Object, such as rice or other food debris may cause a malfunction and damage. SR-2363Z-EN.indd 9SR-2363Z-EN.indd 9 10/30/07 3:05:25 PM10/30/07 3:05:25 PMEnglish

Troubleshooting Check Items Rice cooking Keep warm No reaction to any switch operationProduces a strange soundToo hardUneven cooking (The core of rice remains.)Too softViscous juice over owsBurnt rice at the bottom of the inner pan Rice produces an odor Changes in colorGets too dry

Are the volume of rice and the volume of water correct? lllll

No current supplied. Pull out the plug and check the breaker. “Pang” sound produced during cooking is the sound of bursting of water drops under the action of thermal expansion on the bottom (outside) of the inner pan. Is the rice rinsed adequately? lll

Is the bottom of the inner pan dented? ll l

Is there any foreign matter sticking to the outside of the inner pan or the sensor? lll lll

Is the rice being cooked with oil? ll l

Has the rice been well uffed after cooking?

Is the keep warm continuing for more than 12 hours? / Is the volume of rice too small during a keep warm? lll

Is the Keep Warm being used with the scoop in it?

Is the Keep Warm setting being used on cold rice?

Is the outer lid securely closed? lll

Is the inner pan clean?

AC cord unplugged or switched turned off during rice cooking?

Speci cations Model No. SR-2363Z Power supply 120V ~ 60Hz. Power consumed During cooking 1400W During keep warm 124W Capacity 1.0 - 3.6 L (5 - 20 cups dry rice) Weight (approx.) 19.2 lbs (8.7 k
