Litea C410 - Kettle Eldom - Free user manual and instructions

Brand	Eldom
Model	Litea C410
Product type	Cordless kettle
Capacity	1.2 L (min 0.4 L)
Power	1500 W
Supply voltage	230 V ~ 50 Hz
Material	Plastic (body) / Stainless steel (heating element)
Color	White / Black
Cable length	Approx. 70 cm (can be stored under the base)
Weight	Approx. 0.8 kg
Main functions	Water boiling, automatic shut-off at boiling, cordless operation, water level indicator, 360° swivel base
Safety	Automatic shut-off if no water, overheat protection, non-slip base
Filter	Removable mesh filter in spout, anti-limescale
Lid opening	Push-button, wide opening for easy filling
Maintenance and cleaning	External cleaning with damp cloth; descaling with vinegar; do not immerse
Spare parts and repairability	Original parts available from manufacturer; repair by authorized center
General information	For household use only; do not use outdoors; manufacturer's warranty
Package contents	Kettle, power base, filter, instruction manual

Frequently Asked Questions - Litea C410 Eldom

What is the capacity of the Eldom Litea C410 kettle?

The maximum capacity is 1.2 liters, with a minimum level of 0.4 liters. Never exceed the MAX mark.

How to use the kettle for the first time?

Boil 2 to 3 times with water and discard to remove manufacturing residues. Fill the kettle directly through the spout or by opening the lid.

Does the kettle turn off automatically?

Yes, it turns off automatically as soon as the water boils. You can also turn it off manually by pressing the switch.

How to clean the kettle?

Unplug it and let it cool. Clean the outside with a damp cloth and dish soap. Never immerse the kettle in water.

How to descale the kettle?

Boil 0.5 L of water, turn off and add 0.1 L of vinegar. Leave to act for several hours, rinse, then boil 1 L of clean water. Avoid aggressive descaling agents.

Is the filter removable?

Yes, the mesh filter in the spout can be removed and cleaned under water or with a soft brush to remove limescale.

Can I use the kettle without water?

No, never operate the kettle without water. This would damage the heating element and could cause a fire.

Can the kettle be used by children?

Children under 8 years old must not use the appliance. Persons with reduced capabilities must be supervised. Children must not play with the appliance.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an authorized service center to avoid any danger.

Where can I find spare parts?

Original parts are available from the manufacturer Eldom. Repairs must be carried out by an authorized service center.

USER MANUAL Litea C410 Eldom

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

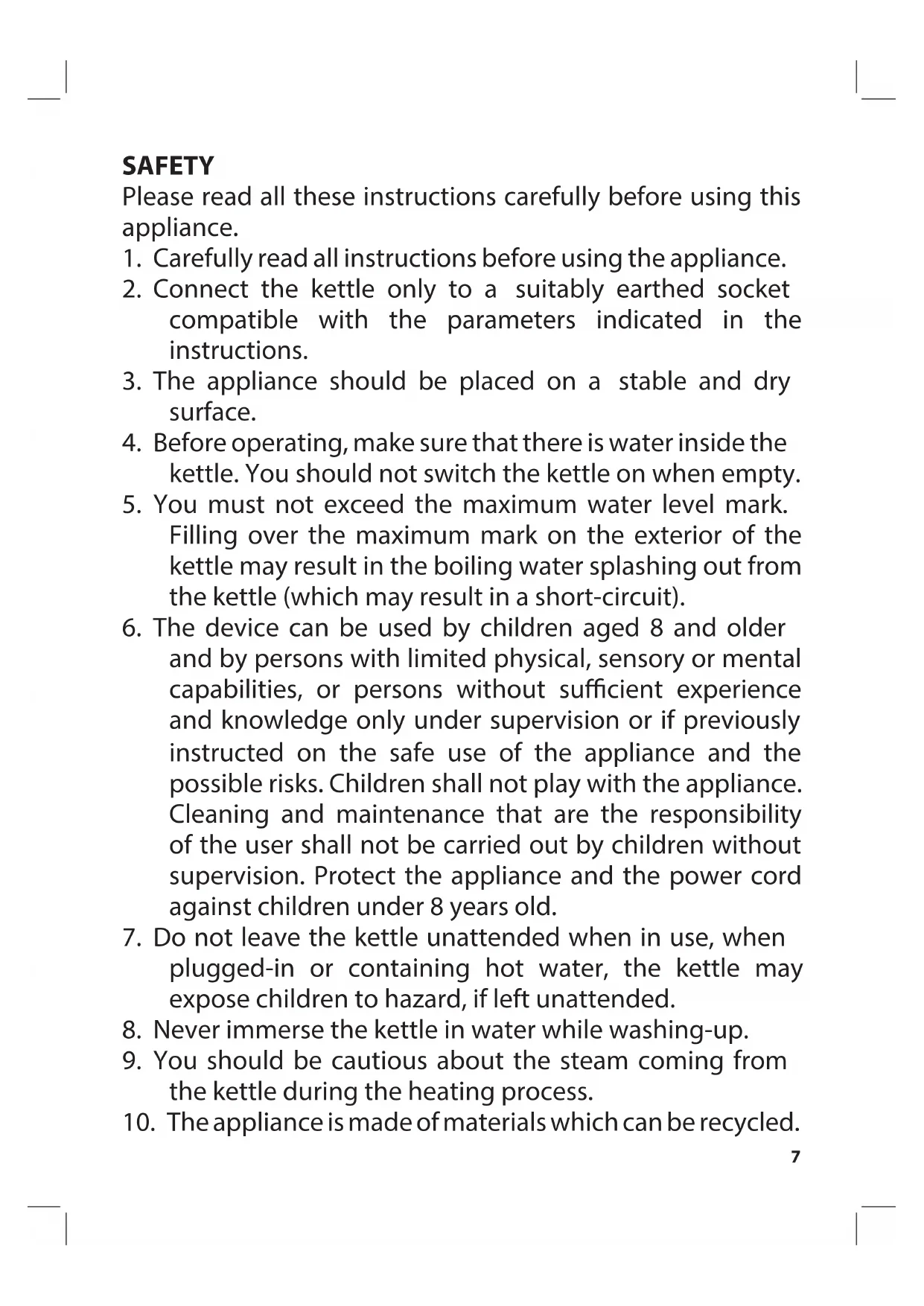

Please read all these instructions carefully before using this appliance.

1. Carefully read all instructions before using the appliance.
2. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
3. The appliance should be placed on a stable and dry surface.
4. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
5. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
6. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
7. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.
8. Never immerse the kettle in water while washing-up.
9. You should be cautious about the steam coming from the kettle during the heating process.

10. The appliance is made of materials which can be recycled.

11. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

12. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.
13. Never use the kettle if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee. Warranty details in the appendix

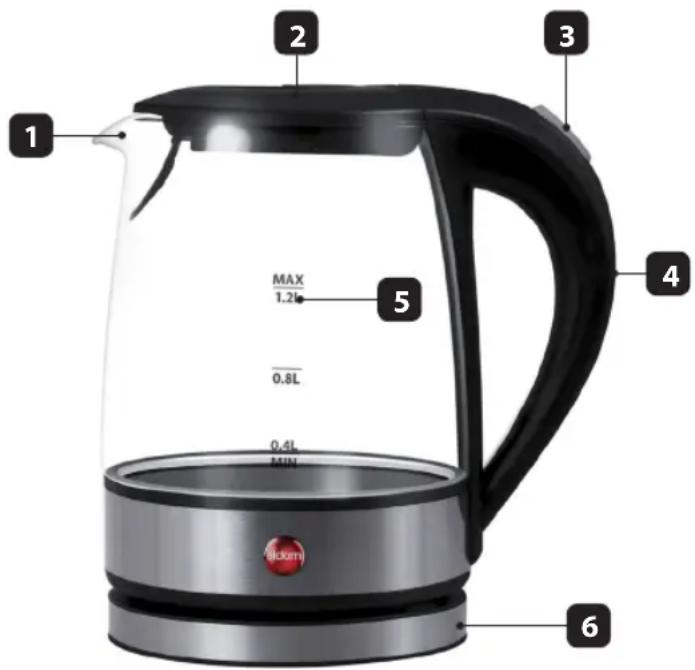

GENERAL DESCRIPTION

1. Spout + net filter
2. Opening lid
3. On/off switch + control lamp
4. Handle
5. Water level indicator
6. Rotating base

TECHNICAL DATA

• power: 1500 W
• mains voltage: 230V \~ 50Hz
• 1.2 litre capacity

1 2 3 4 5 MAX 1.2L 0.8L 0.4L MIN 6 Pickm

OPERATION

Cordless kettle C410 is for boiling water. It is possible to boil 0.4 – 1.2 litre of water in the kettle.

The kettle base (6) must be put on a flat and dry surface.

In the base there is some space for an excess cord. It is important for the cord to be led from the base (6) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and then empty the kettle.

The kettle can be filled with water directly through the spout (1) or after opening the lid (2).

The kettle must not be filled up when on the base.

The kettle starts working after putting the switch (3).

The kettle working is signalled by the control lamp (3).

The kettle switches off automatically after the water has boiled.

You can stop heating water at any time by putting the switch (3).

• CLEANING AND MAINTENANCE

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,

• limescale should be removed in the following way:

• fill the kettle with 0.75 litre of water and bring it to boil,

• switch the kettle off and disconnect the kettle from the power supply,
• pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 1 litre of water and bring to boil,

• discard the water and rinse the inside with water.

• no timely removal of the scale from the heating element results in the heating element's quicker wear,

• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

FILTER

The filter provided is made of mesh retaining scale deposits. The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in.

The filter should be cleaned regularly.

Hard water may block the filter after boiling water a couple of times.
