Product type	Electric raclette grill
Brand	Hamilton Beach
Model	31602
Power supply	120 V ~ 60 Hz, 1200 W (estimated)
Number of people	Up to 8 people (8 individual trays)
Grid material	Non-stick grid
Cooking trays	8 individual trays (dishwasher safe)
Included accessories	1 heat-resistant spatula
Temperature settings	Variable temperature control (Min to Max)
Indicator light	Power indicator light
Main functions	Grill, melt cheese, raclette cooking, heat food in trays
Usage	On table, for convivial meals and raclette
Care and cleaning	Grid, trays and spatula are dishwasher safe; base wiped with a damp cloth
Safety	Manual shut-off via temperature control; 3-prong grounded plug; do not immerse base
Warranty	2 years for Portfolio, 1 year for Hamilton Beach, 180 days for Proctor-Silex
Customer service	USA: 1-800-851-8900, Canada: 1-800-267-2876

Frequently Asked Questions - 31602 HAMILTON BEACH

How to install and use the raclette grill for the first time?

Before first use, wash the non-stick grid and individual trays in warm soapy water. Place the base on a dry, flat surface, then install the grid on the 4 supports. Plug in the appliance, the indicator light turns on. Preheat to maximum temperature for 5 to 10 minutes before grilling. Use the temperature control to adjust cooking.

What types of food can be prepared with this grill?

You can grill meat, fish, vegetables, fruits, and melt cheese. The individual trays are used to heat or melt ingredients like raclette cheese. The grid is ideal for searing foods cut into small pieces.

Can the trays and grid be put in the dishwasher?

Yes, the non-stick grid, the 8 individual trays, and the heat-resistant spatula are dishwasher safe. The base, however, must never be immersed; clean it with a damp cloth.

How to prevent cheese from burning in the trays?

To melt cheese, set the temperature to a low or medium level (around MIN). Melt gently to avoid oil separation. Never preheat empty trays and do not place them on the hot grid.

What to do if the appliance does not heat up?

Check that the cord is properly plugged into a working wall outlet. Ensure the temperature control is not set to MIN. If the indicator light does not turn on, contact customer service at 1-800-851-8900 (USA) or 1-800-267-2876 (Canada).

Can I use an extension cord with this grill?

Yes, but only a 3-conductor grounded extension cord with a capacity of at least 15 amps. Arrange it so that it does not hang over the edge of the table and does not pose a tripping hazard.

How to clean burnt residue from the grid?

Allow to cool completely, then wash the grid in warm soapy water with a nylon or plastic scouring pad. Do not use a metal pad to avoid damaging the non-stick coating. It can also go in the dishwasher.

What is the power of the appliance?

The power is not explicitly mentioned in the manual, but raclette grills of this size generally consume around 1200 W. Plug it into a standard 120 V outlet.

Can I cook meat directly on the grid?

Yes, cut the meat into small pieces (or pre-cook it) for quick cooking. Use the non-stick grid. For marinades, scrape off excess before grilling to prevent burning.

Is the appliance safe to use with children?

The appliance becomes very hot. Never leave it unattended near children. Use the handles to move it. Store it out of reach of children when hot. Follow all safety instructions in the manual.

USER MANUAL 31602 HAMILTON BEACH

Raclette Party Grill

READ BEFORE USE

Technical line drawing of a heat exchanger or cooling unit with mounting base and handle (no text or symbols)

Important Safeguards 2

Parts and Features.... 3

What is Raclette?...... 4

How to Grill - Start Up...... 4

How to Clean 5

Hosting a Raclette Party 6

Recipes 7-9

Customer Service 10

In USA: 1-800-851-8900

In Canada: 1-800-267-2876

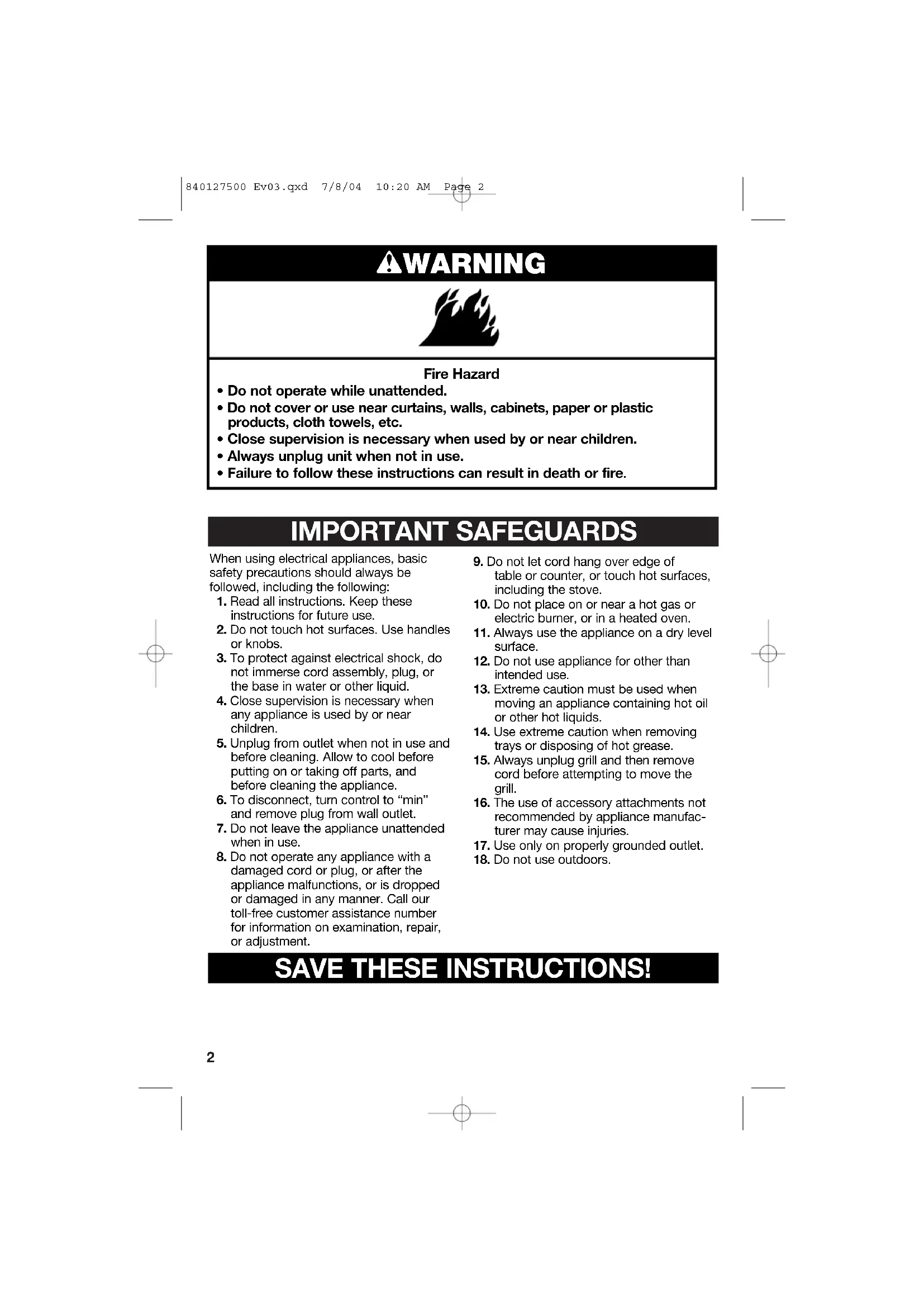

WARNING

Fire Hazard

• Do not operate while unattended.
• Do not cover or use near curtains, walls, cabinets, paper or plastic products, cloth towels, etc.
• Close supervision is necessary when used by or near children.
• Always unplug unit when not in use.
• Failure to follow these instructions can result in death or fire.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions. Keep these instructions for future use.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord assembly, plug, or the base in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. To disconnect, turn control to "min" and remove plug from wall outlet.
7. Do not leave the appliance unattended when in use.

8. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Call our toll-free customer assistance number for information on examination, repair, or adjustment.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always use the appliance on a dry level surface.
12. Do not use appliance for other than intended use.
13. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
14. Use extreme caution when removing trays or disposing of hot grease.
15. Always unplug grill and then remove cord before attempting to move the grill.
16. The use of accessory attachments not recommended by appliance manufacturer may cause injuries.
17. Use only on properly grounded outlet.
18. Do not use outdoors.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance is equipped with a grounded-type 3-wire cord (3-prong plug). This plug will only fit into an electrical outlet made for a 3-prong plug. This is a safety feature. If the plug should fail to fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the grounding pin, part of the 3-prong plug.

If a longer cord is needed, a grounded-type 3 wire extension cord may be used if the electrical rating of the extension cord is equal to or greater than the rating of the electric grill. Use only an extension cord rated 15 amperes or greater. Care must be taken to arrange the extension cord so that it will not drape over countertop or tabletop where it can be pulled on by children or tripped over.

Parts and Features

Before First Use: Wash the nonstick Grill Grid, and Personal Cooking trays in hot, soapy water. Rinse and dry thoroughly.

1. Nonstick Grill Grid

2. Personal Cooking Tray Slot

3. Base

4. Heat Resistant Spatula

5. Personal Cooking Trays (8)

6. Power On Light

7. Temperature Control

What Is Raclette?

Raclette (pronounced rah-kleht) is a centuries-old Swiss meal, and the name of the cheese used to make it. Traditionally prepared over a fire, the once-simple raclette meal has evolved to include more complex ingredients and the use of an electric raclette grill like this one.

Like the coziness of sitting around a fire together, grilling at the dining table with family and friends encourages relaxed conversation. With a raclette meal, there's no running back and forth to the kitchen – everything that's needed for the meal is put on the table within easy reach in advance.

Another benefit of raclette is that everyone can “make it their way” in their own dish with any combination of ingredients. For that reason, it’s easier to satisfy individual tastes with raclette – there’s something for everyone to enjoy!

How To Grill – Start Up

1. Set base on countertop.
2. Place nonstick grill grid on top of heating element. Make sure the non-stick grill grid is seated correctly on the 4 posts protruding from the base.
3. Plug electrical cord into wall outlet. The Power light will turn on.

4. Set temperature control to highest setting. Preheat 5 to 10 minutes at the highest level before grilling. Once heated, turn temperature to required level.

5. Grill grid is for grilling food. Personal cooking Trays are for heating foods.

6. Turn unit to MIN. Unplug grill when not in use.

NOTE: To melt cheese, lower the temperature setting and melt the cheese slowly. When the cheese is melted too quickly, the oil will separate from the cheese.

CAUTION

Burn Hazard

Never heat Personal Cooking Trays on Nonstick Grill Grid.

Never preheat empty Personal Cooking Trays. Insert on Personal Cooking Tray Slot after unit is preheated and ready for cooking.

Never fill Personal Cooking Trays beyond height of tray.

Failure to follow these instructions may result in serious personal injury.

How to Clean

1. Unplug grill and let cool.
2. Wash the nonstick grill grid, personal cooking trays, and heat-resistant spatulas in hot, soapy water. Use a nylon or plastic scouring pad and non-abrasive liquid cleanser. Do not use metal scouring pads. Grill grid, personal cooking trays and heat-resistant spatulas may be placed in the dishwasher.

3. Wash base by wiping with a damp cloth.

4. Never immerse base and power cord in water or place in the dishwasher.

Hosting a Raclette Party

Typical Ingredients

Cheese

The classic recipe for raclette consists of melted raclette cheese scraped on boiled new potatoes or bread, then served with pickled vegetables (e.g., gherkins). However, many other delicious cheeses can also be used:

Cheddar

Camembert

Emmenthaler

Feta

Fontina

Gouda

Roquefort

NOTE: Plan on using 7-8 oz of cheese per person.

Vegetables

Raw vegetables do well on the raclette grill, as long as they are cut into small pieces. For faster cooking, whole vegetables can be blanched until al dente, rinsed with cold water, then cut into pieces before grilling.

Fruit

Fruits that taste best with cheese are slightly tart fruits such as apples, pears, plums, apricots, figs, mangos, and papaya. However, any kind of fruit may be used.

Meat

Meat such as chicken, pork, or beef should be precooked or cut into very

small pieces before grilling so it cooks faster. Consider marinating meat beforehand – it tenderizes meat and adds flavor and variety to the meal.

Fish

Because it cooks quickly, fish is ideal for raclette grilling. Fattier types of fish such as mackerel, salmon, catfish, or fillets with the skin on tend to be better for grilling. Peeled or unpeeled shrimp is also delicious.

Potatoes

The traditional vegetable for raclette is new potatoes (pre-boiled in their skins). Because of their wide appeal and subtle flavor, potatoes can be combined with a large variety of foods. After boiling, wrap the potatoes in a damp cloth and place them in a bowl. You'll need about half of a pound per person if potatoes tend to be popular with your guests.

Seasonings

Remember to place salt, a pepper grinder, and other flavorings such as paprika or sauces on the table, because grilled foods should be seasoned after cooking, not before. Marinades should be scraped off prior to grilling because they tend to burn.

Preparation and Planning Tips

Timing

When it's planned and prepared in advance, a raclette meal lets the host participate in the meal and relax.

Cheese and vegetables can be pre-sliced, and meat can be marinated, pre-cooked, and cut up.

Marinating Tips

Chicken or beef can be marinated overnight, however, fish should not be marinated for more than a half hour.

Also, never use marinade as a finishing sauce on food – it can contain harmful

bacteria. Food should never be marinated in metal containers because acidic ingredients can react with metal, causing an unpleasant taste. Instead, use plastic bags, or non-metal bowls made of ceramic or glass.

Meat Safety Tips

Meat should be thawed in the refrigerator, never at room temperature. Also, meat can be sliced, marinated, and put into serving bowls in advance, but until you're ready to grill, store meat in the refrigerator.

Recipes

S'mores

4 graham cracker sheets

4 ounces milk chocolate

Break graham cracker sheets in half. Place one half graham cracker sheet in a personal cooking tray and top with four mini marshmallows. Insert personal cooking tray in personal cooking tray slot. Cook until marshmallow brown. Remove from grill. Top with one ounce milk chocolate and another half of graham cracker sheet. Makes 4 servings.

Baked Tomato Raclette

2 tablespoons breadcrumbs
12 teaspoons garlic powder
4 Swiss cheese slices
2 roma tomatoes, sliced

Combine breadcrumbs and garlic powder. Place one slice Swiss cheese in a personal cooking tray. Add tomato slices topped with breadcrumb mixture. Insert personal cooking tray in personal cooking tray slot. Cook until breadcrumbs brown. Remove from grill. Makes 4 servings.

Grilled Cheese

8 French baguette slices, 13 inch thick
4 Swiss cheese slices

Place two slices French baguette in a personal cooking tray. Top with one slice Swiss cheese. Insert personal cooking tray in personal cooking tray slot. Cook until cheese browns. Remove from grill. Makes 4 servings.

Potato Raclette

4 Swiss cheese slices

8 small cooked potatoes, quartered

Place one slice Swiss cheese and potatoes in a personal cooking tray. Insert personal cooking tray in personal cooking tray slot. Cook until cheese browns.

Remove from grill. Makes 4 servings.

Mexican Raclette

4 Cheddar cheese slices

1 / 2 cup corn, cooked

1 / 2 cup salsa

1/2 cup black beans, cooked

Place one slice cheddar cheese in a personal cooking tray. Add two tablespoons corn, salsa, and black beans. Cook until warm and brown. Remove from grill.

Makes 4 servings.

Spicy Grilled Shrimp

^1/_2 cup soy sauce

1 tablespoon olive oil

1 tablespoon sesame oil

5 tablespoons cajun seasoning mix

2 tablespoons fresh lemon juice

^1 4 teaspoon fresh grated ginger root

^1/_4 teaspoon dill weed

Combine all ingredients except shrimp. Mix well then add shrimp. Marinate 1 to 4 hours. Drain marinade and discard. Place shrimp on grill and cook 2 minutes. Turn and cook 2 minutes longer or until done.

1 tablespoon sesame oil

2 tablespoons white wine

^1/_4 cup tamari sauce or soy sauce

1 teaspoon crushed garlic

^1/_8 teaspoon ground ginger

Dash garlic salt

Dash pepper

1 pound sea scallops

Combine all ingredients and let marinate in refrigerator for 30 minutes to 1 hour.

Thread onto skewers. Place on grill and cook for 5 minutes or until done. Turn halfway through cooking time. Makes 4 servings.

Crispy Grilled Sea Trout

^1/4 cup bread crumbs
1 tablespoon dried parsley
1 teaspoon garlic salt
1 teaspoon tarragon
1 egg white
^3/4 pound sea trout

Combine bread crumbs, parsley, garlic salt, and tarragon; set aside. Beat egg white with fork or whisk until frothy. Dip fish in egg white then coat with bread crumb mixture. Place on grill and cook 5 minutes. Turn and cook 5 minutes more or until done. Makes 2 servings.

Salmon with Dill

12 pound salmon steak

1 tablespoon lime juice

1 teaspoon dill weed

Brush salmon with lime and sprinkle with dill weed. Spray grill with cooking spray. Cook salmon 4 minutes. Turn and cook 4 minutes or until done. Makes 2 servings.

Mahi Mahi with Ginger and Dill

^1/4 cup lime juice
^1/4 teaspoon black pepper
14 teaspoon fresh grated ginger root
14 teaspoon dill weed
^3/_4 pound mahi mahi (or monkfish)

Combine lime juice, pepper, ginger root, and dill weed. Marinate fish in this mixture for 2 hours. Place on grill and cook 5 minutes. Turn and cook 5 minutes more or until done. Makes 2 servings.

Customer Service

If you have a question about your appliance, call our toll-free customer service number. Before calling, please note the model, type, and series numbers and fill in that information below. This information will help us answer your question much more quickly.

MODEL: ____ TYPE: ____ SERIES: ____

This warranty applies to products purchased in the U.S. or Canada.

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of two (2) years for Hamilton Beach Portfolio products, one (1) year for Hamilton Beach products or one hundred eighty (180) days for Proctor-Silex products from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product: glass parts, glass containers, cutter/strainer, blades, and/or agitators. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.

If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

hamiltonbeach.com or proctorsilex.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!

HAMILTON BEACH ♦ PROCTOR-SILEX, INC.

263 Yadkin Road, Southern Pines, NC 28387

PROCTOR-SILEX CANADA, INC.

Picton, Ontario K0K 2T0

840127500

hamiltonbeach.com • proctorsilex.com

hamiltonbeach.com.mx • proctorsilex.com.mx

7/04
