Memory Case 2 - External hard drive INTENSO - Free user manual and instructions

Product Type	External hard drive
Brand	Intenso
Model	Memory Case 2
Form Factor	2.5 inch
Interface	USB 3.0 (compatible USB 2.0)
Maximum transfer speed	5 Gbit/s (USB 3.0)
Dimensions (L x W x H)	13 x 78 x 127 mm
Compatible operating systems	Windows XP/Vista/7, Mac OS 10.x
Power supply	Via USB port, requires powered USB hub for USB 2.0
Package contents	Hard drive, USB 3.0 cable, instructions, warranty certificate
LED indicator	Flashes during read/write
Allowable ambient humidity	8% to 90% (in operation and storage)
Main functions	External storage, backup, high-speed data transfer
Care and cleaning	Avoid shocks, drops, and electrostatic discharge; clean with a dry cloth
Safety	Do not crush or drop during operation; avoid electrostatic discharge
Spare parts and repairability	Not user-serviceable; opening the case voids warranty
Warranty	Limited warranty; does not cover normal wear, misuse, or accidental damage
Disposal	Do not dispose of with household waste; follow local recycling guidelines

Frequently Asked Questions - Memory Case 2 INTENSO

How to connect the hard drive to my computer?

Use the provided USB 3.0 cable. Connect the micro-USB plug to the hard drive and the USB connectors to your computer. The computer will automatically detect the device and install the drivers.

Why is my hard drive not recognized in USB 2.0?

Power supply via USB 2.0 may be insufficient. Use a USB hub with external power supply to ensure stable operation.

What does the flashing LED indicator mean?

The LED indicator flashes when the hard drive is reading or writing. If it is steady, the device is powered on but idle.

Is this hard drive compatible with Mac?

Yes, it is compatible with Mac OS 10.x and later versions. It may be necessary to reformat the drive for a compatible file system (e.g., exFAT).

How to format the hard drive?

On Windows, use the Disk Management tool. On Mac, use Disk Utility. Note that formatting erases all data.

Can I open the hard drive case?

No, opening the case voids the warranty. The capacity sticker on the back of the device must not be damaged.

How to protect my data in case of a drop?

Avoid shocks during operation. The hard drive is not designed to withstand drops. Perform regular backups.

What to do if the hard drive gets wet?

Immediately unplug the hard drive and do not power it on. Let it dry completely before attempting to use it. Moisture can damage components.

What is the lifespan of an external hard drive?

Lifespan depends on usage and conditions. Under normal use, a hard drive can last several years. Avoid shocks and extreme temperatures.

How to recycle this product at end of life?

Do not dispose of the device with household waste. According to the European Directive 2002/96/EC, take it to an appropriate collection point for recycling of electronic waste.

USER MANUAL Memory Case 2 INTENSO

Simple black-and-white icon of an umbrella with falling petals (no text or symbols)

Black rectangular object with diagonal line crossing through it, no text or symbols present

Abstract geometric pattern with black triangles and intersecting lines inside a square (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Temperatur:

Operating Instructions

2,5"

MEMORYCASE

Scope of Delivery

• Intenso High-Speed USB 3.0 hard drive (downwardly compatible)
• USB 3.0 cable
• Operating instructions + Guarantee certificate

Technical Data

External USB 3.0 hard disk 2,5(6,35cm)

Dimensions: 13 x 78 x 127 mm

Maximal transfer 5 GBit /sec (USB 3.0)

Capacity: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Instructions for use

Simple black-and-white icon of an umbrella with falling petals (no text or symbols)

Black rectangular object with diagonal line crossing through it, no visible text or symbols

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Temperature:

In operation: 5 °C to 55 °C

Out of service: - 40 °C to 60 °C

Relative air humidity:

In operation, out of service: 8% - 90%

Crush, fall

Protect the device in every operation condition from crush and fall. Do not move the device during operation.

Electrostatic discharge

It is an electrostatic discharge sensitive device. Protect the device from every kind of electrostatic discharge.

Disposal of WEEE (Waste Electrical and Electronic Equipment)

Devices marked with the WEEE logo are subject to the European Community Directive 2002/96/EC.

Waste Electrical and Electronic Equipment must be separated from household rubbish and disposed at sites that collect WEEE.

By orderly disposing WEEE you will avoid damage caused to the environment.

Installation Instructions

System Requirements:

This hard drive is compatible with the operating systems MS Windows XP / Vista / Windows 7 and Mac OS 10.x.

Please note:

For the USB 3.0 operation an USB 3.0 interface card is needed. The hard disk is downwardly compatible with the previous USB standards.

Your PC's hardware configuration as well as the operating system employed can influence the compatibility of the hard drive.

Power supply under USB 2.0: If your USB 3.0 hard disc is not recognized on your PC with a USB 2.0 connection, this could probably be caused by the power supply. In this case, please connect an USB hub with an external power supply.

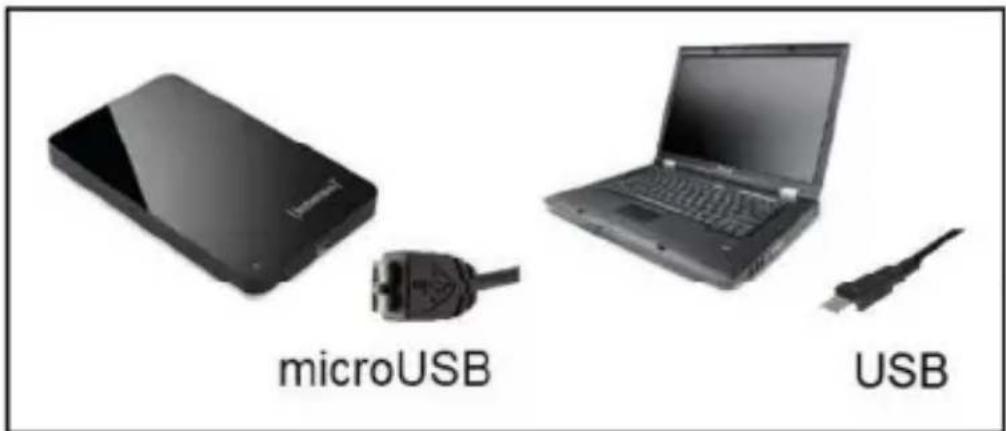

Hard Drive Connection:

microUSB USB

To connect an external hard drive to your computer, please use the USB cable provided. Connect the USB 3.0 plug with the Intenso hard drive and the plug of the USB cable ending with your computer.

The computer automatically detects the "New Device" and installs the driver. Please wait until driver installation is completed. Your computer now shows an additional drive named "Intenso".

As soon as the hard drive is connected to your computer, the LED flashes. The LED flashes, when writing or reading procedure is carried out.

Trademark: Windows XP / Vista / Windows 7 are registered trademarks of the Microsoft Corporation. Macintosh and MAC are registered trademarks of Apple Computer. All trademarks and names of third parties are property of the respective user.

Limited guarantee conditions

The guarantee only covers the use of this Intenso product. The guarantee does not cover normal wear resulting from faulty, improper use, negligence, accidents, incompatibility or poor functionality of certain computer hardware or computer software.

Claim under guarantee does not exist in the case of noncompliance with the Intenso user manual as well as in case of improper assembly, use or defects of other devices.

Claim under guarantee does not exist in the case that the device is exposed to shock, electrostatic discharge, heat or humidity beyond the product specifications.

Intenso is not liable for data loss or any other occurring indirect damages or secondary damages, for the violation of the guarantee conditions or any other damages, no matter what the reason is.

Important information:

Please note that any claim under guarantee expires, if the capacity label (= guarantee sealing) on the rear side is damaged and if the housing of the hard disk is opened.

This product is not intended for commercial use, for medical or special applications, where a failure of the product can cause injuries, fatalities or substantial property damage.

Istruzioni d'uso

2,5"

MEMORYCASE

Volume di consegna

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Black rectangular object with diagonal line crossing through it, no text or symbols present

Abstract geometric symbol with black triangles and intersecting lines, no text or symbols present

Simple line drawing of a trash bin with no text or symbols

Temperatura:

Product photo showing a microUSB device, a laptop, and a USB cable (no text or symbols on the devices themselves)

Capacité: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Température:

En service: 5 °C to 55 °C

Hors service: - 40 °C to 60 °C

Black rectangular object with diagonal line crossing through it, no visible text or symbols

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Three electronic devices: a hard drive, a laptop, and a USB, all labeled with 'microUSB' and 'USB' (no additional text or symbols visible)

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Black rectangular object with diagonal line crossing through it, no text or symbols present

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Simple line drawing of a trash bin with diagonal lines and a circular symbol at the base (no text or labels)

Temperatura:

Product photo showing a microUSB device, a laptop, and a USB cable (no text or symbols on the devices themselves)

Capacidade: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Indicações de uso:

Simple black-and-white icon of an umbrella with falling petals (no text or symbols)

Black smartphone icon with diagonal line crossing through it, no text or symbols present

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Temperatura:

Product photo showing a microUSB device, a laptop, and a USB cable (no text or symbols on devices)

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Temperatura:

Black rectangular object with diagonal line crossing through it, no text or symbols present

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Black rectangular object with diagonal line crossing through it, no text or symbols present

Abstract geometric pattern with black triangles and intersecting lines forming a cross (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Температура:

Three electronic devices: a hard drive, a laptop, and a USB cable, all labeled with 'microUSB' below (no additional text or symbols visible)

INTENSO GMBH Service Hotline:

Thank you very much for purchasing this Intenso high-quality product. All Intenso products are subject to continuous quality inspections. The statutory warranty period will certainly start with the date of purchase. Thus, please store the receipt as proof of purchase.

Warranty Conditions

Warranty claims only apply to material and manufacturing errors. Intenso GmbH is not liable for the loss of any data that are on devices sent to us. Free warranty only applies to repairs or replacements of defective parts. Please understand that we cannot render any guarantee services for e.g.:

• Improper or inappropriate treatment, installation or use
• Damages, scratches or wear
  ■ Modifications, interventions or repairs by third parties
  ■ Damages due to Acts of God or transport

Intenso GmbH

PROCESSING OF COMPLAINTS

In the case of complaints, please proceed as follows:

1. We only accept returns containing the complete accessory and receipt.
2. Additionally, an RMA number for returns is mandatory. You can request this RMA number via e-mail or service hotline.
3. Please pack the product including the entire accessory and the receipt and secure them for transport. Please affix an appropriate stamp.
4. Please apply the RMA number clearly visible on the outside of the package.

Please send your package to the following service address:

INTENSO GMBH Service Hotline:

Service Center (Your RMA-No.) [phone] -

(0,39 € / min. with calls from the

German telephone network.

D-49377 Vechta Different rates apply to calls from
