Product type	Internal CD-ROM reader/recorder
Interface	E-IDE (ATAPI)
Read speed	40x (max 6000 KB/s)
Average access time	75 ms (random)
Buffer memory	128 KB
Supported disc formats	CD-DA, CD-ROM, CD-ROM XA, Photo-CD, CD-Extra, CD-RW
Logical block formats	2048, 2336, 2340, 2352 bytes/block
Power supply	5 V DC (1.5 A max) and 12 V DC (0.9 A max)
Audio output	Front headphone (3.5 mm, 0.6 V RMS/33 Ω) and rear line (4-pin, 0.6 V RMS/47 kΩ)
Audio frequency response	20 Hz - 20 kHz ±3 dB
Signal-to-noise ratio	85 dB
Total harmonic distortion	0.05% at 1 kHz
Channel separation	80 dB at 1 kHz
Disc capacity	553 MB (type 1) / 635 MB (type 2)
Disc diameter	12 cm or 8 cm
Rotation speed	8750 RPM
Jumper configuration	Master, Slave, CSEL (cable select)
Required operating system	MS-DOS 3.1 or later, Windows 3.1+
Supplied accessories	User manual, installation floppy disk, audio cable
Operating temperature	5 °C to 45 °C
Maintenance and cleaning	Clean with a soft dry cloth. Avoid solvents. Do not disassemble.
Safety	Invisible laser radiation (class 1). Do not expose to rain or moisture. Turn off before installation.
Spare parts and repairability	Not specified by the manufacturer. Contact qualified service for any intervention.

Frequently Asked Questions - CRD8400B LG

How to install the CD-ROM drive CRD8400B?

Turn off the computer and unplug it. Open the case, slide the drive into a free bay, secure it with screws. Connect the power cable and the IDE cable (pin 1 aligned with the red wire). Connect the audio cable to the sound card. Close the case.

How to set the master/slave jumper?

On the rear of the drive, set the jumper to MA (master) or SL (slave) according to your configuration. By default, it is in slave mode. To use cable select, set it to CS.

The drive is not recognized by the system, what should I do?

Check that the jumper is correctly set (slave if the hard drive is master). Ensure the IDE cable is properly connected and pin 1 matches. Also check power and that the driver is installed.

How to install the driver under MS-DOS?

Insert the installation floppy, type INSTALL at the DOS prompt. The program copies the files GSCDROM.SYS and MSCDEX.EXE and modifies the CONFIG.SYS and AUTOEXEC.BAT files. Then restart the PC.

Can I use an 8 cm CD in vertical position?

No, using 8 cm CDs in vertical position is not supported. Only use 12 cm CDs in vertical position.

How to eject the tray in an emergency?

Insert a thin object (like an unfolded paperclip) into the emergency eject hole on the front of the drive to manually open the tray.

What audio formats are supported?

The drive supports audio CDs (CD-DA), as well as CD-ROM, CD-ROM XA, Photo-CD, CD-Extra and CD-RW.

Sound is distorted or absent, what to check?

Check the connection of the audio cable between the drive and the sound card. Make sure the headphone volume (front control) is not at minimum. Test with another headphone or speaker.

Can I connect this drive to a secondary IDE port?

Yes, set the jumper to master or slave according to other devices. The system can handle up to 4 IDE devices (2 primary, 2 secondary).

What to do if the tray does not open after pressing the button?

Check that the drive is powered. If the problem persists, use emergency eject with a rod. Also ensure the software LOCK.EXE has not locked the button.

USER MANUAL CRD8400B LG

Blurred grayscale image with no discernible text, symbols, or identifiable objects

LG

CLASS 1	LASER PRODUCT
KLASSE 1	LASER PRODUKT
LUOKAN 1	LASER LAITE
KLASS 1	LASER APPARAT

CD-ROM DRIVE

MODEL : CRD-8400B/CRD-8400C

OWNER'S MANUAL

BEDIENUNGSHANDBUCH

MODE D'EMPLOI

MANUALE D'USO

MANUAL DE USUARIO

Copyright ^® 1997 LG Electronics Inc.

Englewood Cliffs, NJ 07632

LG Electronics U. K. Ltd,

.G House

264 Bath Road,

Slough

Berks SL1 4DT

LG Goldstar France SARL

1. RUE LECH WALESA BAT.B

77322 LOGNES MARNE LA

VALLEE CEDEX 2 FRANCH

To enjoy fully all the features and functions of your CD-ROM Drive,

Please read this Owner's Manual carefully and completely.

LG Electronics Inc.

P/NO:3828HM1013E

Printed in Korea

(3.1.7)

LG Electronics Inc.

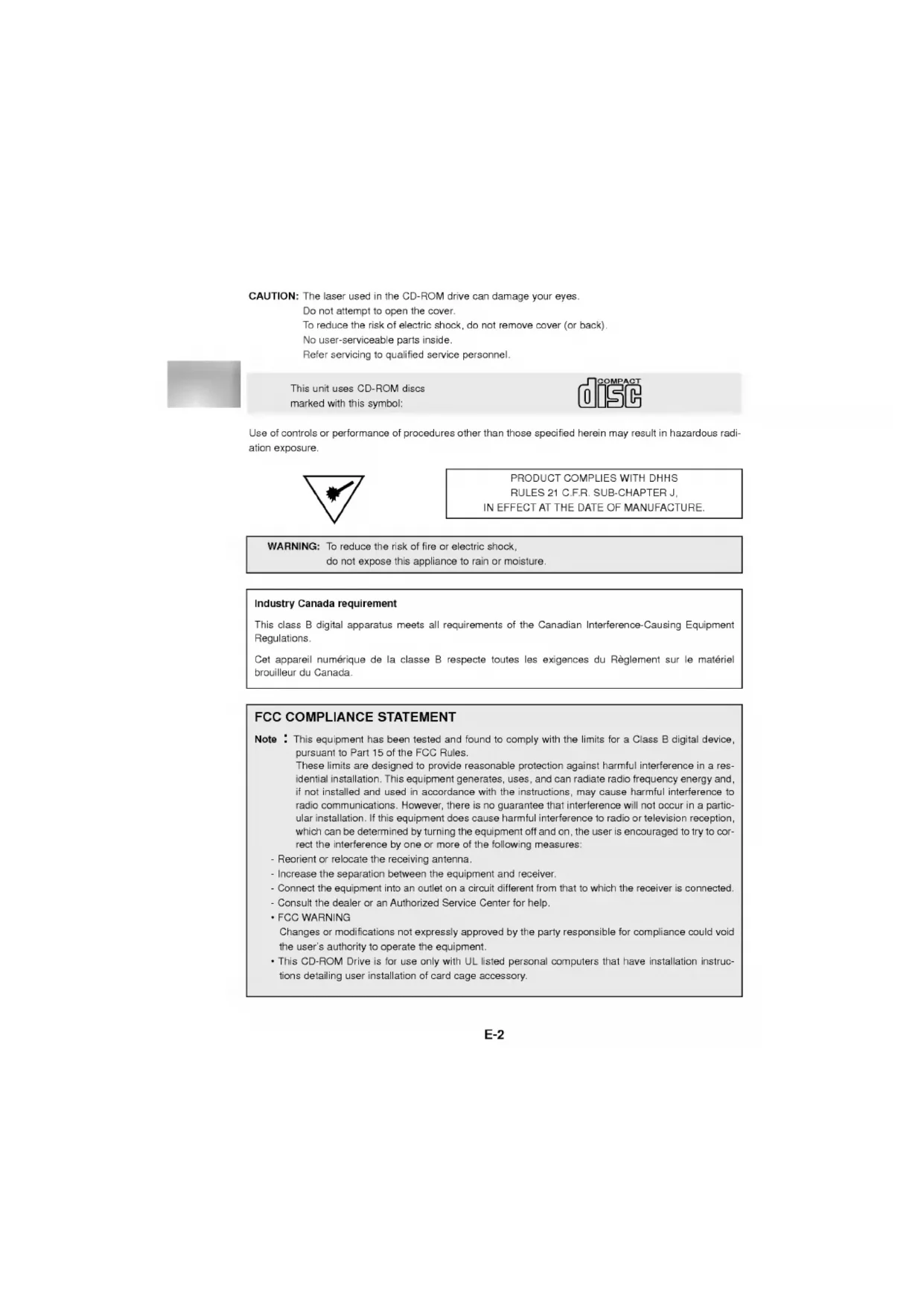

CAUTION: The laser used in the CD-ROM drive can damage your eyes.

Do not attempt to open the cover.

To reduce the risk of electric shock, do not remove cover (or back)

No user-serviceable parts inside.

Refer servicing to qualified service personnel.

This unit uses CD-ROM discs

marked with this symbol:

Use of controls or performance of procedures other than those specified herein may result in hazardous radiation exposure.

PRODUCT COMPLIES WITH DHHS

RULES 21 C.F.R. SUB-CHAPTER J,

IN EFFECT AT THE DATE OF MANUFACTURE.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Industry Canada requirement

This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an Authorized Service Center for help.
  • FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

- This CD-ROM Drive is for use only with UL listed personal computers that have installation instructions detailing user installation of card cage accessory.

FEATURES

■ E-IDE interface
■ 75ms Random access time
■ Multimedia PC compatible
■ Photo CD multisession support
■ Small CPU bandwidth (MPC spec.)
■ 40X-speed Max 6000KB/sec data transfer rate
■ Intelligent 128KB data buffering system
■ Horizontal/Vertical mounting support
■ Tray Loading system without caddy
■ Designed for internal mounting
■ Emergency Eject Support
■ Easy audio CD control button support
■ Supports Windows 95 Plug and Play ATAPI protocol

SYSTEM REQUIREMENTS

An IBM PC or compatible with the following system components:

■ IBM Compatible 486SX or above
(With PIO mode 4 support recommended)
■ A Minimum of 640K memory
■ Floppy disk drive (3 12 inch)
■ MS-DOS version 3.1 or greater
■ An open, front-facing, half-height drive bay.
An existing IDE controller in your PC with an available cable connector or a new IDE controller that you will install.

SUPPLIED ACCESSORIES

Item	Quantity
Owner's Manual	1
Setup diskette	1
Audio Cable	1

Gradient gray bar with a black square at the top left (no text or symbols)

① ② ③ ④ ⑤ ⑥ ⑦ disc

Figure 1. Front View

FRONT VIEW

① Headphone Jack
3.5mm jack for monitoring the audio signal from audio CDs.

② Headphone Volume Control

Adjusts the headphone sound level.

③ Disc Drawer

Accepts a CD-ROM disc on its tray.

④ Busy Indicator

The Busy Indicator lights during initialization and data-read operations.

⑤ Emergency Eject Hole

Insert a paper clip here to eject the drawer manually or when there is no power.

⑥ Play/Skip Button

When an Audio CD is in the Disc Drawer, pressing this button will start playing audio CDs from the first track. If an audio CD is playing, pressing this button will skip to the next track.

⑦ Open/Close/Stop Button

This button is pressed to open or close the CD tray.

If an audio CD is playing, pressing this button will stop it, and pressing it again will open the tray.

A plain gray gradient bar with no text, symbols, or identifiable features.

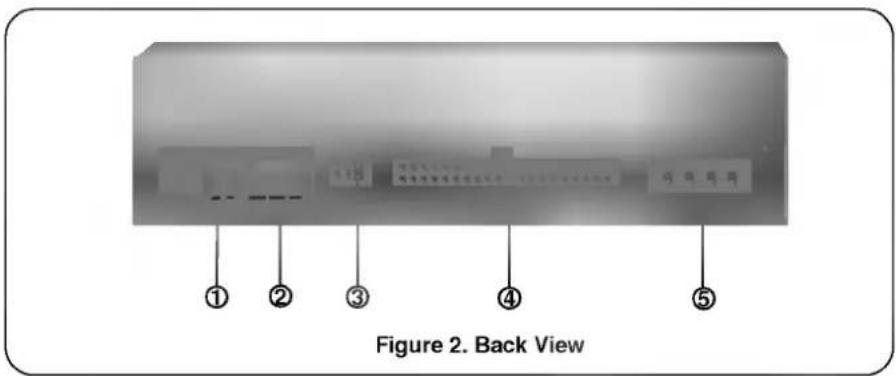

Figure 2. Back View ① ② ③ ④ ⑤

BACK VIEW

① Digital Audio Output Connector

This is a digital audio output connector or Video CD output connector.

You can connect this to the digital audio system or Video CD Board.

② Analog Audio Output Connector

The Audio Output Connector connects to a sound card.

The supplied audio cable is a SoundBlaster ^® type cable. If you have a different sound card, you will need to contact the sound card manufacturer to obtain the proper cable for that card.

③ Master / Slave / CSEL Jumper

These three jumpers are used to set the CD-ROM Drive to either a Master, Slave, or CSEL drive.

Refer to section HARDWARE INSTALLATION.

④ Interface Connector

This 40-pin connector is used to transfer and control signals between the CD-ROM Drive and your PC.

Connect the 40-pin IDE cable in your PC to this connector.

⑤ Power-in Connector

Attach a power cable from the computer to this connector.

Blank grayscale gradient image with no visible text, symbols, or identifiable objects

This section describes how to install your CD-ROM drive into your computer.

WARNING:

To protect the CD-ROM Drive, your computer, and peripheral devices from damage, turn off their power before installing the drive.

Note: If you are not comfortable about opening your PC and attempting the CD-ROM drive installation, many local computer shops can perform this service for a reasonable cost.

This installation assumes you have a PC with an available connector on an IDE interface cable. If your PC has an IDE hard drive, there is usually an available connector in the middle of the same cable that attaches from the motherboard (or controller card) IDE connector to the hard drive. If the last sentence does not describe your system, you may need to purchase an IDE controller card to install this CD-ROM drive. Inspecting and knowing your PC system will make your installation easier and less time consuming.

A final note before installation: The cable connecting to your floppy disk drive is not an IDE cable. Do not attempt to attach the CD-ROM drive to this cable.

If the CD-ROM drive is to be connected to the same cable as the hard drive, be sure that the hard drive is set as master. Hard drives can be set as single, master, or slave. Check your hard drive owner's manual or contact the hard drive manufacturer for correct jumper settings.

* You will see three pairs of pins and a jumper (cap) at the back of the CD-ROM drive. This jumper is used to set the CD-ROM Drive as a CSEL, MASTER, or SLAVE device in your PC. Examples of how the jumper can be placed are shown in Figure 3 below.

CSEL mode SLAVE mode default MASTER mode (default) (rear of CD - ROM drive)

Figure 3. Setting MASTER / SLAVE Jumper

* Move the jumper (clip on one pair of pins) from its default factory position (SLAVE), to CSEL or MASTER as needed (see the following description for the setup that matches your system), using the above diagram to place the jumper.

WHEN USING A PRIMARY IDE CONTROLLER

Most PCs provide one IDE cable to support two devices (one for hard disk, the other for a second hard disk or a CD-ROM drive). This IDE cable originates either on the motherboard or on a controller card. This controller is termed the primary IDE controller, and the hard disk attached that contains the operating system for boot-up is set up as the Primary Master. Your CD-ROM drive should be set to the Slave mode.

Figure 4. Primary Controller system Configuration

Note:

Many older 1X and 2X CD-ROM drives used a 40 pin controller card that were not IDE compatible. These were proprietary interface cards for use with a particular model CD-ROM Drive. Many older Sony, Panasonic, and Mitsumi drives used 40 pin proprietary interface cards. If you are upgrading from an older CD-ROM drive, your new CD-ROM will not work on a proprietary interface card. You will need to buy a secondary IDE controller card.

WHEN USING A SECONDARY CONTROLLER

* If your PC has an additional IDE controller on the motherboard or on a system slot, each IDE device connected to the secondary IDE controller must also be set to the Master or Slave mode. If you are connecting your CD-ROM drive to a secondary IDE card, and it is the 1st device you are connecting to it, then set the CD-ROM jumper to the Master position. If it is the 2nd device, set the CD-ROM jumper to the Slave position.
* Depending on the IDE card and whether the CD-ROM drive is a master or slave unit, the diagram below represents the different ways in which the CD-ROM may be configured in your PC. The table below the diagram shows the possible Jumper placements that would correspond to each of the different configurations shown.


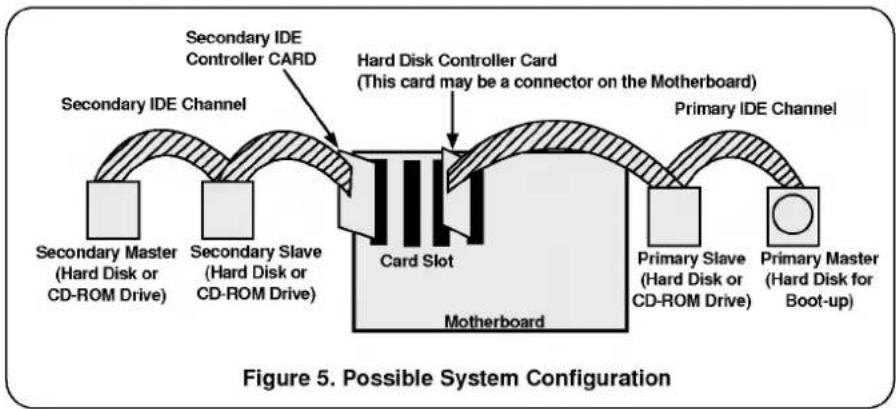

    O["Figure 5. Possible System Configuration"]

If you have the system with two IDE channels (in the case of an enhanced IDE PC), do not install an IDE controller card in your system.

IDE Controller	CD-ROM Connection	Jumper Placement
Primary (1st IDE card)	Slave(Hard disk is Master)	SLAVE (default)
Secondary (2nd IDE card)	Master(1st device on 2nd IDE Card)	MASTER
Secondary (2nd IDE card)	Slave(2nd device on 2nd IDE Card)	SLAVE (default)
PC Manual says use CSEL		CSEL

MOUNTING THE CD-ROM DRIVE

Pure mechanical assembly diagram showing internal components without any text or symbols

Figure 6. Removing the Floppy Disk Drive and the Blanking plate

Step 1. Turn off and unplug your computer and all peripheral devices attached to it.

Step 2. Remove the cover from your computer.

Step 3. Remove the front panel from an unused half-height slot.

Diagram of an internal device with a directional arrow indicating movement or flow (no text or symbols present)

Figure 7. Mounting the Drive

Step 4. Slide the CD-ROM drive into the half-height slot, and secure the drive in place with screws and brackets.

Note: If there is too much space between the sides of the drive and the drive bay, you may need to install spacer brackets, available at your local computer store.

Pin assignment The pin assignment of the power-in connector is as follows: 5V DC GND 12V DC Power supply connector (4-pin connection cable)

Figure 8. Connecting the Power Supply Cable

Step 5. Push the power supply cable connector firmly into the power in connector.

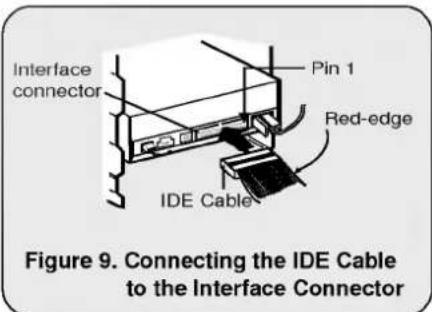

Interface connector Pin 1 Red-edge IDE Cable Figure 9. Connecting the IDE Cable to the Interface Connector

CONNECTING AN AUDIO CABLE

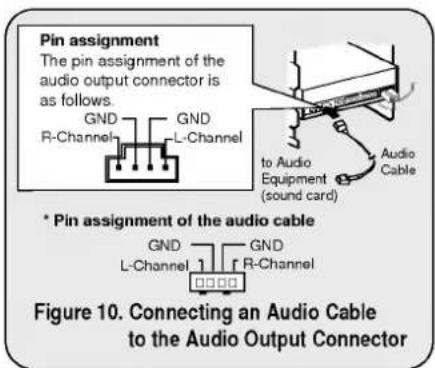

Pin assignment The pin assignment of the audio output connector is as follows. GND GND R-Channel L-Channel to Audio Equipment (sound card) Audio Cable * Pin assignment of the audio cable GND GND L-Channel R-Channel Figure 10. Connecting an Audio Cable to the Audio Output Connector

Disc Hooks

Step 6. Connect the 40-pin IDE Cable to the back of the CD-ROM Drive. Please make sure that the red edge of the IDE Cable is connected to Pin 1 on the CD-ROM Drive.

If you want to connect audio equipment or a sound card to the CD-ROM drive, use an audio cable to connect the drive to the sound device.

Note: This CD-ROM Drive can be used vertically.

• To use the drive vertically, open the drawer and put a disc on to the 3 disc hooks. Use only standard 12cm discs.
- Do not touch the unlabeled side of the disc.

Blank gray image with no visible content, text, or symbols

This section covers installation and setup for several operating systems. Read the entire section and select the part for your operating system.

THE SET UP PROCESS

The INSTALL program performs the following functions.

* Allows the user to select the target disk drive where CD-ROM device driver files will be set-up.
* Unless modified by the user, the INSTALL program searches the target disk for directory(\CDROM); if it is not found, the directory(\CDROM) is created.
* Copies the CD-ROM device driver file named GSCDROM.SYS, the Microsoft CD-ROM Extension file named MSCDEX.EXE, and the utility files to the specified directory.
* Modifies your CONFIG.SYS file to list the location and name of the device driver.
* Modifies your AUTOEXEC.BAT file to load MSCDEX.
* Terminates and returns control to the user.

LIST OF FILES TO BE INSTALLED IN YOUR PC

* MSCDEX.EXE

Microsoft MS-DOS CD-ROM Extension software, which

enables the computer to access the CD-ROM drive.

CD-ROM device driver.

* GSCDROM.SYS

* EJECT.EXE

Software eject program which can eject the CD tray.

* CLOSE.EXE

Software close program which can close the CD tray.

RUNNING THE INSTALL PROGRAM (DOS INSTALLATION)

Step 1. Insert the CD-ROM device driver install diskette into the appropriate drive.

Step 2. Go to the floppy drive by typing A: or B: at the DOS prompt, as appropriate.

Step 3. Type the word INSTALL and press [ENTER].

Step 4. The INSTALL program will begin loading. When loading is complete, the INSTALL program identification will appear on the screen.

Step.5. Follow the instructions on the screen.

Step 6. If you specify the path information during the installation, the install program will copy the CD-ROM device driver file named GSCDROM.SYS, the Microsoft CD-ROM Extension file named MSCDEX.EXE and the utility files to the specified directory, and modify your CONFIG.SYS file and AUTOEXEC.BAT file.

Step 7. When the installation is completed, remove the diskette, and reboot your PC.

CD-ROM EXTENSION PROGRAM MSCDEX. EXE OPTIONS

There are several options that are set for the Microsoft CD Extension program. Generally, these settings do not have to be changed for the CD-ROM drive to work, so these options are needed no further. However, you may decide to change the MSCDEX option settings depending on your operating environment.

These options are explained below:

PARAMETER	DESCRIPTION
/D (Device Name)	Tells MSCDEX.EXE what the device driver's name is (must be same as was used in "/D:" expression of "DEVICE=" line in CONFIG.SYS file)
/E	Tells MSCDEX.EXE to use expanded memory
/L: (Device Name)	Indicates the drive letter to be assigned to the CD-ROM drive
/M: (Value)	Tells MSCDEX.EXE how much memory to allocated for caching. Default is 10 (represents 10 kilobytes).
/V	Provides memory usage statistics, such as how much memory is used by buffers, resident data, and resident code.

ATAPI Installation (Windows 98/95 and others)

* For Windows 98/95 installation, do not use the installation diskette supplied. This CD-ROM drive is Windows 98/95, Windows NT 3.5, and OS/2 Warp compatible, generally utilizing the generic software drivers supplied with those operating systems Below is the example installing the driver for Windows 95. For other operating systems, try looking for either a LG Electronics or Goldstar IDE CD-ROM drive software driver. If none is found, try selecting one of the device drivers for Non-listed IDE CD-ROM.

* You may also look in the software library on our website at www.LGEservice.com.

(For Windows 95)

1. Install the CD-ROM drive in your PC as described in this manual.

2. Power up your PC. Upon starting Windows 95, it might automatically detect the new CD-ROM drive and load the driver software for it. If not, proceed to the next step.

3. In Windows 95, Click on the Start button. Click on the Settings button. Click on the Control Panel button. Double-Click on the Add New Hardware icon. Follow the instructions for the computer to search your system for new hardware. It will locate the CD-ROM drive and load the generic driver.

INSTALLATION, USAGE AND HANDLING PRECAUTIONS

Installation

Avoid placing the drive in a location subject to :

• high humidity
• high temperature
• mechanical vibration
• direct sunlight

Operation

• During operation, excessive vibration or a sudden jolt to the drive may cause a malfunction.
• Avoid exposing the drive to sudden changes in temperature. This may cause condensation to collect inside the drive.

■ Transportation

- Always remove the disc before moving the drive.

TROUBLESHOOTING

* When the CD-ROM drive does not work with the hard disk drive in primary IDE channel.

(SOLUTION)

1. Check the CD-ROM drive Master/Slave Jumper setting. The CD-ROM drive must be set to the Slave mode.
2. Check to be sure your hard disk Interface type is IDE type.
3. Check your hard disk Master/Slave Jumper setting. Some old-version IDE type hard disks were set to Master Only mode. In that case, contact your hard disk company and change your hard disk jumper setting to master mode.
4. If the CD-ROM drive does not work with above methods, you may need a secondary IDE card. If you use the secondary IDE card, you should set the CD-ROM drive jumper to the master mode if the CD-ROM drive is the first device you are connecting to the secondary IDE card.

* When the CD-ROM drive does not install in OS/2 warp.

(SOLUTION)

1. Select NON-LISTED IDE CD.
   * CD-ROM drive is not present in Windows 3.1 or 3.11 or DOSSHELL.

(SOLUTION)

1. When the WTN or DOSSHELL command lines are present in your AUTOEXEC.BAT, make sure that the MSCDEX.EXE command line appears before the WIN or the DOSSHELL command lines.

NOTE : For more information, consult the README.TXT file of the supplied Setup Diskette.

Blank gray gradient image with no visible text, symbols, or objects

General

Data Capacity	553 Mbytes (mode 1), 635 Mbytes (mode 2)
Disc Diameter	12 cm / 8 cm
Rotational Speed	8,750 rpm

Performance

Interface	E-IDE
Supported System	IBM PC-AT or Compatible
Transfer rate	Sustained Data Transfer Rate = Max 6000Kbytes/sec
Access Time	Random 75 ms (Typical)
MTBF	125,000 Power On Hours (Duty Cycle 10%)
Buffer size	128 Kbytes
User Data/Block	2,048 bytes/block (Mode1 & Mode2 Form1)
	2,340, 2,336 bytes/block (Mode2)
	2,324 bytes/block (Mode2 Form2)
	2,352 bytes/block (CD-DA)
Supported Disc	CD-DA, CD-ROM, CD-ROM XA-READY, Photo-CD
	CD-Plus/CD-Extra, CD-RW

Audio Specifications

Frequency Response	20 Hz - 20 KHz ±3 dB
S / N Ratio	85 dB
THD	0.05 % at 1 KHz
Channel Separation	80 dB at 1 KHz
Headphone Level	0.60 Vrms (33Ω)
Line Output Level	0.60 Vrms ± 10% (47kΩ)
Line Output Jack	4 Pin terminal (Rear)
Headphone Jack	ø 3.5 mm (Front)

Environment

Temperature

5 - 45 °C

Power Requirements

12 V ± 5%Ripple < 100m Vpp5 V ± 5%Ripple < 100m Vpp

0.9A (Maximum)1.5A (Maximum)

NOTE: Specifications are subject to change without notice for improvement.

Internet Address :

http://www.LGEservice.com

CD-ROM LIMITED WARRANTY

LG Electronics U.S.A., Inc. will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the data of original purchase. This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S. including Alaska, Hawaii, and U.S. Territories.

WARRANTY PERIOD

MODEL #	LABOR	PARTS	HOW SERVICE IS HANDLED
CRD-8400B/ CRD-8400C	1 Year	1 Year	If the unit is defective, a replacement* will be sent by 2-day air for the first year.After one year, repair or a 2-day swap at a fixed labor charge. For service, please call 1-800-243-0000 (Mon.~Fri. 7AM~7PM CST)

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS U.S.A., INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES. DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

THE ABOVE WARRANTY DOES NOT APPLY:

1. To damages or problems which result from delivery or improper installation.
2. To damages or problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.
3. To service calls which do not involve defective workmanship or material and explaining the operation of the unit.

Therefore these costs are paid by the consumer.

CUSTOMER ASSISTANCE NUMBERS:

To Prove Warranty Coverage: → Retain your Sales Receipt to prove date of purchase.
→ Copy of your Sales Receipt must be submitted at the time warranty service is provided.
To Obtain Product, Customer, or Service Assistance: Call 1-800-243-0000 24 hrs/7 days Push appropriate menu code.
For Exchange Service: → Call 1-800-243-0000 (Mon\~Fri 8am\~5pm CST) Push appropriate menu code.

* Replacement is a factory-reconditioned unit. Free replacement applies only within the initial one-year period. Factory-reconditioned units are available at a low, fixed cost after the one-year warranty expires.

CD-ROM LAUFWERK

Two horizontal gray bars with no text or symbols, one dark and one light, against a white background (no visible text or symbols)

PRODUKTMERKMALE

Gradient grayscale image with no text, symbols, or identifiable objects

① ② ③ ④ ⑤ ⑥ ⑦ disc

③ Master/Slave/CSEL Jumper

Gradient grayscale image with no visible text, symbols, or identifiable objects

Diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

Diagram of a file folder with an arrow indicating direction (no text or symbols present)

Blank gray image with no visible content, text, or symbols

DER SETUP - VORGANG

Blank gray image with no visible content, text, or symbols

ALLGEMEINES

Gradient gray bar with no text or symbols

Diagram of a device rear panel with labeled ports and connectors, showing numbered labels ① to ⑤.

Blank grayscale gradient image with no visible text, symbols, or identifiable objects

Diagram of a computer drive with a button and indicator arrow (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Blank gray image with no visible content, text, or symbols

PROCÈDURE D'INSTALLATION

Blank grayscale gradient image with no visible text, symbols, or identifiable objects

GÉNÉRALITÉS

CONDITIONS D'UNTILISATION

A grayscale gradient bar with no text, symbols, or identifiable objects.

① ② ③ ④ ⑤ ⑥ ⑦ disc

Figura 1. Pannello frontale

PANNELLO FRONTALE

Blank grayscale gradient image with no visible text, symbols, or identifiable objects

Diagram of a device rear panel with labeled pins ① to ⑤ pointing to internal components.

Figura 2. Pannello Posteriore

PANNELLO POSTERIORE

Gradient gray bar with no text or symbols

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 7. Montaggio deo Drive

Two horizontal grayscale gradient bars with no text or symbols

① ② ③ ④ ⑤ ⑥ ⑦ DISC

Figura 1. Vista frontal

VISTA FRONTAL

Diagram of a device panel with five labeled components, likely for assembly or labeling reference.

Blank grayscale gradient image with no visible text, symbols, or identifiable objects

Diagram of a computer drive or memory unit with ports and an arrow indicating a component (no text or symbols present)

Diagram of a computer drive or rack with an arrow indicating direction (no text or symbols present)
