USER MANUAL MAST30CSEX BERTAZZONI

WARNING: Cancer and Reproductive Harm –

Dear Customer, Before going any further, we want to thank you for preferring our BERTAZZONI product. We are sure that this modern, functional and practical steam oven, manufactured with top quality materials, will fully meet your expectations. We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your steam oven. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE. Always keep the instruction manual handy. If you lend the steam oven to someone else give them the manual as well! The user manual is also available for download at www.bertazzoni.com4

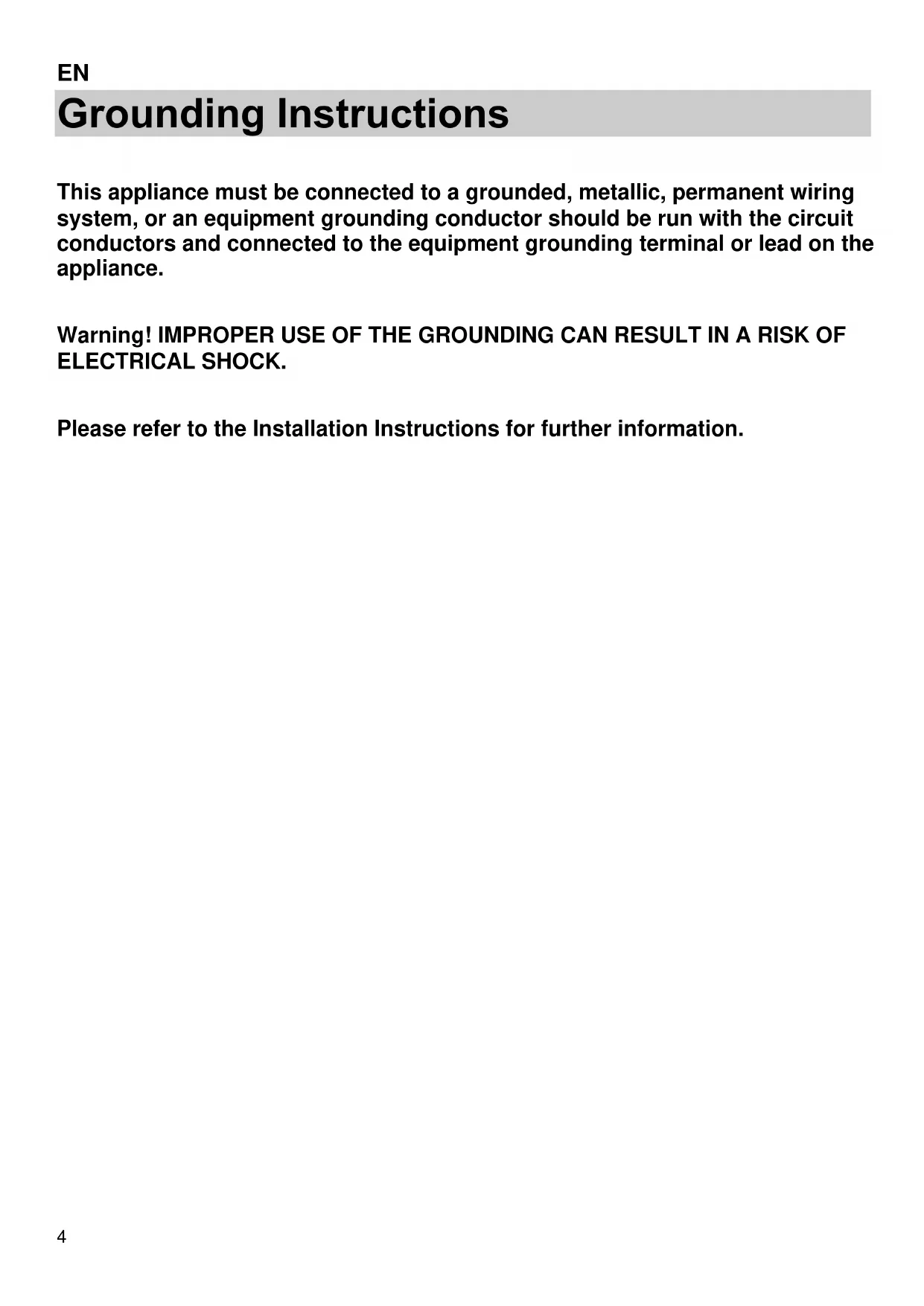

Grounding Instructions This appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance. Warning! IMPROPER USE OF THE GROUNDING CAN RESULT IN A RISK OF ELECTRICAL SHOCK. Please refer to the Installation Instructions for further information.5

Safety Information Carefully read the instructions before installing and using the equipment. The manufacturer is not liable for improper installation and use of the equipment that may cause injuries and damage. Always keep the instructions at hand, so they can be easily referred to during use. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

1. Proper Installation – Be sure your appliance is properly installed and

grounded by a qualified technician.

2. Never Use Your Appliance for Warming or Heating the Room.

3. Do Not Leave Children Alone – Children should not be left alone or

unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

4. Wear Proper Apparel – Loose-fitting or hanging garments should never be

worn while using the appliance.

5. User Servicing – Do not repair or replace any part of the appliance unless

specifically recommended in the manual. All other servicing should be referred to a qualified technician.

6. Storage in or on Appliance – Flammable materials should not be stored in

chemical or foam-type extinguisher.

8. Use Only Dry Potholders – Moist or damp potholders on hot surfaces may

result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

9. Use Care When Opening Door – Let hot air or steam escape before

removing or replacing food.

10. Do Not Heat Unopened Food Containers – Build-up of pressure may cause

container to burst and result in injury.

11. Keep Oven Vent Ducts Unobstructed.

12. Placement of Oven Racks – Always place oven racks in desired location

while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.

13. DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF

OVEN – Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool.

• This Steam Oven is for household use6

Safety Information Safety of children and vulnerable adults

• WARNING! Risk of choking, injury or permanent disability.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are given supervision or instructions concerning how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance.

• Keep packaging materials away from children. Risk of suffocation!

• Keep children away from the appliance during operation or when cooling.

• Cleaning and maintenance should not be done by children without supervision Warnings on general safety

• During installation, follow the instructions supplied separately.

• Only qualified personnel can install the appliance and replace the cable.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• WARNING: Accessible parts may become hot during use. Young children should be kept away.

• Do not use steam cleaners to clean the appliance.

• Do not use abrasive detergents or metal scrapers to clean the appliance.

• The electric connection is made via an omnipolar switch, which is suitable for the intensity to be tolerated and which has a minimum gap of 3mm between its contacts, which will ensure disconnection in case of emergency or when cleaning the crockery warmer. If a plug is used for the electric connection, then it must be accessible after installation.

• The connection should include correct earthing, in compliance with current norms.

• Disconnect the appliance from the power supply before carrying out any maintenance operation7

Safety Instructions WARNING! Before connecting the appliance compare the power data (voltage and frequency) indicated on the characteristics plate with those of the power supply in question. If these data do not match there may be problems. In case of doubt, contact an electrician. WARNING! If the electrical wire plug is removed, the appliance must be installed and connected by a technician. Contact a qualified electrician who knows and respects current safety standards. The manufacturer cannot be held responsible for damage resulting from fitting or connecting errors. WARNING! The electrical safety of the appliance can only be guaranteed if it is earthed. The manufacturer cannot be held responsible for damage resulting from the absence of or defects in the installation’s protection system (e.g. electrical shock). WARNING! Only use the appliance once it has been fitted into its built-in position. Only in this manner can it be guaranteed that users cannot access the electrical components. WARNING! Never open up the appliance’s frame. Possible contacts with electrical conducting parts or changes to electrical or mechanical components may represent a danger to users’ safety and prejudice the correct working of the appliance. WARNING! Repairs and maintenance, especially of parts carrying electrical current, must only be done by technicians authorised by the manufacturer. The manufacturer and retailers do not accept responsibility for any damaged caused to people, animals or property as a result of repairs and maintenance carried out by non-authorised personnel. WARNING! Repairs undertaken during the guarantee period must only be done by technicians authorised by the manufacturer. If this is not the case then any damage resulting from the repair in question is excluded from the guarantee WARNING! The appliance must be disconnected from the electrical current when installation and repair work is being done. To disconnect the appliance from the current, one of the following conditions must apply:

• The switchboard fuses / circuit breakers must be disconnected.

• The plug should be removed from the socket. To remove the plug from the socket do not pull on the electric cable but rather pull out the plug itself directly.8

Description of your oven

c. – “+”and “–” keys

3. – Temperature display and key

d. – Start and Stop keys

1. – Door window glass

6. – Perforated baking tray

Description of your oven Description of Functions Symbol Function Foods

Steam Cooking all sorts of vegetables, rice, cereals and meat. Extracting juice from berries. Simultaneous defrosting and cooking of vegetables.

Convection + Steam Cooking meals with hot damp circulating air. Cooking potatoes, rice. Moist garnishing.

Convection Roasting and baking.

Broil Grilling meat and fish Grilling Potatoes – deep frozen, defrosting and roasting.

Convection + Broil Grilling food, Roasting and Baking

Reheat Regenerating plate dishes and ready-made meals. Sterilising/boiling down fruit.10

Basic settings Initial Settings After your steam oven is first plugged in or after a power failure, the clock display will flash to indicate that the time shown is not correct. The oven will not operate until the clock, the water hardness parameter and the Calibration is set. To set the clock and the water hardness parameter value proceed as described in the following chapters. Setting the clock To set the clock, proceed as follows:

1. Press the Clock key a few seconds. The hour

numbers will start to flash (not necessary if your Steam oven is first plugged in or after a power failure).

2. Press the “+” and “–” to set the correct hour

3. Press again the Clock key to set the minutes.

The minute numbers will start to flash.

4. Press the “+” and “–” to set the correct minute

5. To finish, press the Clock key again.

Hiding/Displaying the Clock If the clock display disturbs you, you can hide it by pressing the Clock setting key. If you want to see the clock display again, press the Clock setting key again. Water Hardness setting The appliance features a system that automatically indicates when it is time to descale. The system can be optimised for households with very soft water (also through using a water softening appliance) and very hard water, by changing the user settings to the relevant range of water hardness (see table below). To set the water hardness parameter, proceed as follows:

1. After setting the clock the hardness number will start

to flash on the Descale display (not necessary if your Steam oven is first plugged in or after a power failure).

2. Press the “+” and “–” to set the correct water

Descale display switches off. Type Water hardness Display Ca + Mg (ppm) English deg. [°eH] French deg. [°dF] German deg. [°dH] Soft water 0 to 150 0 to 11 0 to 15 0 to 8

Medium water 151 to 350 12 to 25 16 to 35 9 to 20

Hard water 351 to 500 26 to 35 36 to 50 21 to 28

Basic settings Safety blocking The oven functioning can be blocked (for example, to stop it being used by children).

1. To block the oven, press the Stop key for 3

seconds. You will hear a sound signal and the display will show the word “SAFE”. The oven is blocked in this state and cannot be used.

2. To unblock the oven, press the Stop key again

for 3 seconds. You will hear a sound signal and the display will show the time again.

To set the Timer proceed as follows:

1. Press the Timer key. The function key lights up

and the Clock display starts blinking.

2. Press the “+” and “–” keys to set the Timer value.

3. Press the Timer key to validate. The Timer will

start counting-down. When the set time has elapsed the oven will emit three beeps that will be repeated every 30 seconds or until the Timer or Stop keys are pressed. While the Timer is running the Timer light is on. The display and lights show the following:

1. If there is no function running, the Clock display

shows the Timer counting-down.

2. If there is an active function, the displays and

lights show the normal function parameters. To check the Timer’s remaining time press the Timer key. The Clock display will briefly show the Timer and resume the function indications after 10 seconds or once the Timer key is pressed again.12

2. Press the Temperature key to set the desired

value. The respective light will start to flash. If you do not press this key, the oven operates at 100 ºC.

3. To change the Temperature, press the “+” and

4. Press the Duration key to change the operating

time. The respective light will start to flash. This setting is optional. Please jump to point 6 if you don’t want to set duration.

5. Select the operating time you want by pressing

the “+” and “–” (for example, to 20 minutes).

6. Press the Start key. The oven will start to

2. Press the Time Selection key to change the

operating time. The correspondent light will start to flash.

3. Press key “-” and “+”, to change the function

time (e.g. 15 minutes).

4. Press the Start key. The oven will start to

Basic functions Convection

1. Press the function key Convection. The

function key lights up.

2. Press the temperature key to change the

temperature. The respective light will flash. If you do not press this key, the oven operates at 160ºC.

3. To change the temperature press key “-” and

4. Press the Time Selection key to change the

operating time. The respective light will start to flash.

5. Press key “-” and “+”, to change the function

time (e.g. 12 minutes).

6. Press the Start key. The oven will start to

operate. Steam + Convection

1. Press the function key Steam + Convection.

The function key lights up.

2. Press the temperature key to change the

temperature. The respective light will flash.

3. To change the temperature press key “-” and

4. Press the Time Selection key to change the

operating time. The respective light will start to flash

5. Press key “-” and “+”, to change the function

time (e.g. 12 minutes).

6. Press the Start key. The oven will start to

Basic functions Convection + Broiler

The function key lights up.

2. Press the Time Selection key to change the

operating time. The respective light will start to flash

3. Press key “-” and “+”, to change the function

time (e.g. 12 minutes).

4. Press the Start key. The oven will start to

1. Press the Regenerating Function key. The

function key lights up.

2. Press the Clock / Duration display and key to

change the food type. The respective light will start to flash.

3. To change the Programme press the “+” and “–”

keys, e.g. “r 01” (see following table).

4. Press the Start key. The oven will start to

operate. Program Type of Food Temperature ºF Time (min) Instructions

Ready-made meals / frozen

Remove lid from container and put on rack.

Sterilising: The times and temperatures refer to 1L preserving jars.

selection key to change the food type. The respective light will flash.

3. Press “+” and “–” keys to change the

programme, e.g. “01” (see following table).

4. Press the Start key. The oven will start to

operate. Programme Type of Food Temperature ºF Time (min)

selection key to change the food type. The respective light will flash.

3. Press “+” and “–” keys to change the

programme, e.g. “01” (see following table).

4. Press the Start key. The oven will start to

operate. Programme Type of Food Temperature ºF Time (min)

Auto cooking function: MEAT

selection key to change the food type. The respective light will flash.

3. Press “+” and “–” keys to change the

programme, e.g. “01” (see following table).

4. Press the Start key. The oven will start to

operate. Programme Type of Food Temperature ºF Time (min)

Water filling Filling the water tank All functions require the water tank to be full. Fill the water tank up to the “MAX” mark with cold, fresh drinking water (approximately 4 cups/ 1L) and introduce it into the slot located above the cavity. If the indication “rES” appears, it means that the water tank was not properly inserted.

Water level indication The water tank level is indicated in four levels: “-L0-“ 0%-20% “-L1-“20%-60% “-L2-“60%-100% These indications are shown in the leftmost display. Remark: To fill up take the water tank completely off. Wait approximately > 20seconds before reinstate the full water tank. Refilling the water The contents of the water tank normally suffice for one cooking session of 50-60 minutes. If, however, the water tank needs to be refilled this is signalled by the message “- L0 -” meaning that the water tank is empty. Warning! Only fill the water tank up to a maximum of 2 cups to ensure that the water does not overflow when it is pumped back to the water tank. RISK OF OVERFLOW. Water tank message When the water tank is removed or misplaced, the Water Level display shows the message “RES”. To clear the message, correctly insert the water tank. Emptying the water tank When the appliance is switched off, the residual water is pumped back into the water tank. While the water is being pumped the display shows “PUMP”. This message stays on until the temperature of the water reaches 167º F before it can be pumped back to the water tank.

Warning: the water in the tank may be hot.

Danger of burns! After the water is pumped back to the water tank, the display will show the message “DEP” requiring the following actions:

1. Remove and empty the water tank.

2. Dry the water tank and introduce it back into

the slot located above the cavity. Clean and dry the cooking space.

3. Leave the appliance door open so that the

cooking space can cool down and dry completely. IMPORTANT NOTE: It is advisable to remove the water tank and empty it after a cooking cycle. This prevents the formation of bacteria and limestone inside the appliance. If the water tank has not been removed from the oven and a new cooking cycle is started, the oven displays the warning “DEP”. This warning can be cleared by pressing the Stop key and proceed with the new cooking cycle without removing and emptying the water tank.18

When the oven is working... Interrupting a cooking cycle You can stop the cooking process at any time by pressing the Stop key once. The oven incorporates a steam-reduction function that is activated when the Stop key is pressed to gradually release the steam from the cavity, so that there is no sudden rush of steam when the appliance door is opened. This function takes around 3 minutes and during it the display shows the word “VAP”. Warning! When opening the door during or upon completion of the cooking cycle, be careful of the flow of hot air and/or steam coming out of the cooking chamber. Step back or to the side to avoid burns. At this point:

• The steam generation is interrupted.

• The cavity walls and the water tank are still very hot. Danger of burning!

• The timer stops and the display shows the remaining operating time (if this has been set). If you wish, at this point you can:

1. Turn or stir the food to ensure it will be evenly

To restart the process, close the door and press the Start key. Altering parameters The operating parameters (time and temperature) can only be altered when the cooking process has been interrupted by proceeding as follows:

1. To alter the time, press “+” and “–” keys. The

new time defined is immediately valid.

2. To alter the temperature, press the

Temperature Selection key and the display and respective light start to flash. Alter the parameter by pressing the “+” and “–” keys and confirm by pressing the Temperature Selection key again. Cancelling a cooking cycle If you wish to cancel the cooking process, press the Stop key twice. You will then hear 3 beeps and the message “End” will appear on the display. End of a cooking cycle At the end of the set duration or when you press the Stop key to finish the cooking cycle the oven starts the steam-reduction function. This function gradually releases the steam from the cavity, so that there is no sudden rush of steam when the appliance door is opened. This function takes around 3 minutes and during it the display shows the word “VAP”. At the end of this process you will hear three beeps and the display will show the word “PUMP” (you might hear the pumps during this process, because they will be pulling the water back into the water tank). Warning! When opening the door during or upon completion of the cooking cycle, be careful of the flow of hot air and/or steam coming out of the cooking chamber. Step back or to the side to avoid burns. The beeps are repeated every 30 seconds until the door is opened or the Stop key is pressed. The cooling fan can continue to run for a certain length of time after the appliance has been switched off. This is a normal function that is meant to reduce the temperature inside the oven. When the display shows the word “DEP”, this means that the water was pumped and that the water tank can be removed. Remove the water tank and dry it thoroughly. Let the cooking space cool down for a moment and then clean and dry it with a cloth. The door should be left open for some time so that the appliance can dry completely.19

When the oven is working... Steam Flow It is normal to have an intermittent steam flow, coming out from the oven front. This is especially noticeable in winter time or in high moisture environments. Residual water in the oven To reduce the residual water in the oven, it is recommended to insert a tray in the bottom rack level. The condensation released from the food begins to drip on the tray. The remaining residual water can be easily dried with a cloth.20

Usage, tables and tips Use of accessories The perforated container is suitable for cooking fresh or deep-frozen vegetables, meat and poultry. In this case it is important that the non-perforated container is introduced into the first level. This way, dripping liquids are collected and the appliance does not get dirty. The perforated container with the food should be inserted into the second level. The non-perforated container is used to steam sensitive foods, e.g. compotes and dumplings. The rack is used when cooking with small containers, as for example, dessert bowls and to regenerate plate dishes. For more precise information refer to the tables. The suggested times and temperatures are guideline values. The actual cooking time can vary according to the type and quality of the foods.

To remove the rack, lift it upwards slightly at the front when the safety notches connect with the sides of the oven (see illustration).

We recommend using the rack together with the baking tray when cooking items on the rack which might drip.21

25-35 Perforated 1/2 King prawns

25-30 Perforated 1/2 Cod filet

175-210 10-15 Perforated

30-35 Rack, glass bowl

10-20 Rack, glass bowl

20-50 Rack, glass bowl

25-40 Rack, glass bowl

20-30 Not perforated

Sweet yeast dumpling

15-20 Not perforated

15-25 Not perforated

20-25 Not perforated

25-30 Not perforated

Cooking with Steam Steam cooking - Vegetables Vegetables Temperature

Broccoli florets with stalk

Broccoli florets without stalk

Cauliflower whole head

Potatoes with skin whole, very small

Potatoes with skin whole, very big

Potatoes without skin in pieces

Bell peppers in stripes

Mushrooms in quarters

15-25 Not perforated

25-30 Not perforated

15-20 Not perforated

White cabbage, whole

Spinach leaves portions

10-15 Not perforated

Curly kale bigger portion

25-35 Not perforated

15-25 Not perforated

15-20 Not perforated

15-20 Not perforated

Two level cooking Some suggestions: When cooking with two levels the grill always belongs to the 2nd or 3rd level of insertion from the bottom to the top. This way the usual vessels of porcelain, Jena glass or of stainless steel can be put inside the oven. The container of cooking perforated or not, will be inserted in the 1st level from the bottom. It can also be cooked with two grills. Different cooking times are controlled this way: Foods that need a longer cooking time should be placed in the upper area of the oven. Foods with a shorter cooking time should be placed on the 1

level. One example: Vegetables, potatoes and fish. Place the vegetables and potatoes in any suitable container on the rack inserted in the 2

level. Insert the fish in the 1

level. When using the perforated tray to cook fish, the non- perforated tray must be inserted in the bottom of the appliance to collect liquid dripping from the fish. This way the appliance is kept clean. Time: Vegetables and potatoes 25-35 Min. Time: Fish – depending on type – 15-25 Min. Select the longest cooking time. Because of the different levels the food is ready at the same time, without any over cooking.24

Cooking with the grill For good results with the grill, use the grid iron supplied with the oven. IMPORTANT POINTS:

1. When the grill is used for the first time there will

be some smoke and a smell coming from the oils used during oven manufacture.

2. The oven door window becomes very hot when

the grill is working. Keep children away.

3. When the grill is operating, the cavity walls and

the grid iron become very hot. You should use oven gloves.

4. If the grill is used for extended period of time it is

normal to find that the elements will switch themselves off temporarily due to the safety thermostat.

5. When the grill is used it is possible that some

splashes of fat may go onto the elements and be burnt. This is a normal situation and does not mean there is any kind of operating fault.

6. After you have finished cooking, clean the

interior and the accessories so that cooking remains do not become encrusted. Type of food Quantity Time (min.) Instructions Fish Bass Sardines/gurnard

6-8 fish. 18-24 15-20 Spread lightly with butter. After half of cooking time turn and spread with seasoning. Meat Sausages 6-8 units 22-26 Prick after half cooking time and turn. Frozen hamburgers 3 units 18-20

Spare rib (approx. 3 cm thick)

25-30 After half of cooking time, baste and turn. Others Toast 4 units 1½-3 Watch toasting. Toasted sandwiches 2 units 5-10 Watch toasting.

Heat up the grill beforehand for 2 minutes. Unless indicated otherwise, use the grid iron. Place the grid on a bowl so that the water and the fat can drop. The times shown are merely indicative and can vary as a function of the composition and quantity of the food, as well as the final condition wished for. Fish and meat taste great if, before grilling, you brush them with vegetable oil, spices and herbs and leave to marinate for a few hours. Only add salt after grilling. Sausages will not burst if you prick them with a fork before grilling. After half the grilling time has passed, check on how the cooking is going and, if necessary, turn the food over. The grill is especially suitable for cooking thin portions of meat and fish. Thin portions of meat only need to be turned once, but thicker portions should be turned several times.25

Cooking with Hot Air Roasting and baking Type Quantity (oz) Temperature ºF Time (min) Standing Time (min) Comments Beef stew

Do not put lid on container Whole chicken

Put lid on container. Breast facing upwards. Do not turn. Chicken portions

Do not put lid on container. Arrange portions with skin facing upwards. Do not turn. Duck

Advice for roasting meat Turn the pieces of meat halfway through the cooking time. When the roasted meat is ready you should let it stand for 10 minutes in the oven with this switched off and closed. This will ensure the juices in the meat are well distributed. Add 2 to 3 soup spoons of gravy or similar liquid to lean meat and 8 to 10 soup spoons to stews, depending on the amount of meat in question. The roasting temperature and time required depends on the type and amount of meat being cooked. If the weight of the meat to be roasted does not appear on the table choose the settings for the weight immediately below and extend the cooking times. Advice on ovenware Check that the ovenware fits inside the oven. Hot glass containers should be put on a dry kitchen cloth. If such containers are put on a cold or wet surface the glass may crack and break. Use oven gloves to take the ovenware out of the oven. Cooking – Cakes Type Container Level Temperature ºF Time (min) Walnut cake Spring-form type tin

300/320 35/45 Fruit cakes Cake tin with central hole

320/355 50/70 Simple cake (sponge cake) Spring-form type tin

320/340 40/45 Almond cakes Cake tray

Advice on cake baking ware The most commonly used type of baking ware is black metal tins. Advice on how to bake cakes Different amounts and types of pastry require different temperatures and baking times. Try low settings first of all and then, if necessary, use higher temperatures next time. A lower temperature will result in more uniform baking. Always put the cake tray in the centre of the turntable. Baking suggestions How to check if the cake is properly cooked Start sticking a tooth pick in the highest part of the cake 10 minutes before the end of the baking time. When no dough sticks to the tooth pick the cake is ready. If the cake is very dark on the outside Next time choose a lower temperature and let the cake bake for a longer time. If the cake is very dry Make small holes in the cake with a tooth pick after baking has finished. Then sprinkle the cake with some fruit juice or alcoholic drink. Next time increase the temperature by about 10º and reduce the baking time. If the cake does not come free when turned Let the cake cool down for 5 to 10 minutes after baking and it will come out of the tin more easily. If the cake still does not come free run a knife carefully around the edges. Next time grease the cake tin well.26

Care and maintenance Cleaning the cooking space Avoid using abrasive cleaners such as scouring pads, steel wool, etc. as they can damage the surface. Wipe the cooking space clean using a damp cloth whilst the appliance is still warm. Finish off by drying the cooking space. For ease of cleaning, the shelf guides can be removed (see the following chapter). Removing the shelf guides Unscrew and remove the knurled nuts 1 in the front of the shelf guides in an anti-clockwise direction. Unscrew and loosen the knurled nuts 2 in the back of the shelf guides in an anti-clockwise direction. Do not completely remove these nuts. Pull the shelf guides to the inside of the cavity and remove from the front. To put them back, insert the shelf guides into the knurled nuts 2 in the back and position on the screws in the front. Screw the knurled nuts 1 and 2 in a clockwise direction till tight. Removing the appliance door

1. Open the appliance door as far as it will go.

2. Insert 2 pins inside the holes in the hinges.

3. Close the appliance door just enough that it can

4. To reassemble, push the hinges into the holes

5. Open the appliance door as far as it will go and

Care and maintenance Descaling Whenever steam is produced, irrespective of the hardness of the local water supply (i.e. the limescale content of the water), limescale is deposited inside the steam generator. The time interval between descaling depends on the hardness of the water and frequency of use. If steaming 4×30 minutes per week, the appliance must be descaled (depending on water hardness) roughly as follows: Water hardness Descale after about Very soft 18 months Medium 9 months Very hard 6 months The appliance automatically detects when descaling is necessary and when this happens the Descale light stays on. If the Descaling procedure is not performed, some cooking cycles after the Descale light starts to flash. If once again the Descaling procedure is not performed, some cooking cycles after the oven functioning is blocked, the Descale light stays on and the display shows “CAL” blinking. IMPORTANT NOTE: Failure to descale the appliance will likely impair the functioning of or cause damage to the appliance. Suitable descaling solutions For descaling, use and adequate descaling solution. Warning! Do not use vinegar or vinegar-based products as they can cause damage to the oven’s internal circuit. Traditional descaling solutions are not appropriate because they can contain foaming agents.28

Care and maintenance Descaling procedure

Warning: For safety reasons, the descaling

process cannot be interrupted. The appliance has to be descaled with the appliance door closed. The appliance must be in idle state prior to starting the descaling cycle. To run a descaling cycle proceed as follows:

1. Press the Descale key during 5 seconds. The

display shows “CAL” and there is an intermittent beep. (In case you don’t want to go ahead with the descaling procedure press the Stop key, or just wait for about 5 seconds without pressing any key).

2. Press the Start key.

into the water tank and put the water tank back.

5. Press the Start key. The Descale cycle is

initiated and takes about 30 minutes.

6. When the Descale display shows “1L” flashing

and the oven emits a beep, remove and empty the water tank.

7. Fill the water tank with 1.0 litres of cold water

and put the water tank back.

8. Press the Start key. The first rinsing cycle starts.

9. When the Descale display shows again “1L”

flashing and the oven emits a new beep, remove and empty the water tank.

10. Fill the water tank with 1.0 litres of cold water

and put the water tank back.

12. Press the Start key. The second rinsing cycle

13. When the rinsing cycle has finished the display

14. Remove, empty and dry the water tank.29

Oven cleaning Warning! Cleaning should be done with the oven power switched off. Take the plug out of the socket or switch off the oven’s power circuit. If the microwave is not kept clean its surfaces may deteriorate, reducing the oven’s working life and possibly resulting in a dangerous situation. Do not use aggressive or abrasive cleaning products, scourers that scratch surfaces or sharp objects, since stains may appear. Do not use high pressure or steam jet cleaning appliances. For your safety, never turn on the oven if the back panel that covers the fan is not in place. Front surface Normally you just need to clean the oven with a damp cloth. If it is very dirty, add a few drops of dishwashing liquid to the cleaning water. Afterwards, wipe the oven with a dry cloth. In an oven with an aluminium front, use a mild glass cleaning product and a soft cloth that does not release any fibres or threads. Wipe from side to side without exerting any pressure on the surface. Immediately remove limescale, fat, starch or egg white stains. Corrosion can occur under these stains. Do not let any water get inside the oven. Oven interior After use, remove any water on the bottom of the cooking space with a soft cloth. Leave the appliance door open so that the cooking space can cool down. To remove dirt that is harder to shift, use a non- aggressive cleaning product. Do not use oven sprays or other aggressive or abrasive cleaning products. Always keep the door and the oven front very clean to ensure that the door opens and closes properly. Make sure water does not enter the oven ventilation holes. The glass lamp cover is located on the oven ceiling and can be removed easily for cleaning. For this you just need to unscrew it and clean it with water and dishwashing liquid. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Accessories Clean the accessories after each use. If they are very dirty, soak them first of all and then use a brush and sponge. The accessories can be washed in a dish washing machine.30

What should I do if the oven doesn’t work? WARNING! Any type of repair must only be done by a specialised technician. Any repair done by a person not authorised by the manufacturer is dangerous. You do not need to contact Technical Assistance to resolve the following questions:

• The display is not showing! Check if: - The time indication has been switched off (see section on Basic Settings).

• Nothing happens when I press the keys! Check if: - The Safety Block is active (see section on Basic Settings).

• The oven does not work! Check if: - The plug is correctly fitted in the socket. - The oven’s power is switched on.

• When the oven is operating I can hear some strange noises! This is not a problem. - It has to do with the operating noises that can occur during the cooking process, e.g, by the water pumps in the steam generator. - The steam inside the cavity produces a pressure build-up and sometimes the cavity walls may produce noise when they react to the pressure. - This noises are normal, there is no problem.

• The food doesn’t heat up or heats very slowly! Check if: - You have selected the correct operating times and temperature setting. - The food you have put inside the oven is a larger amount or colder than you usually put in.

• If the message “Err_” appears in the display, please contact the Customer Care.

• The appliance still makes a noise after the cooking process is finished! This is not a problem. - The cooling fan keeps on working for some time. When the temperature has dropped sufficiently, the fan will switch itself off.

• The oven switches on but the interior light does not go on! - If all the functions work properly it is probable that the lamp has blown. You can keep on using the oven. Replacing the light bulb To replace the light bulb, proceed as follows: - Disconnect the oven from the power supply. Take the plug out of the socket or switch off the oven’s power circuit. - Unscrew and remove the glass light cover (1). - Remove the light bulb (2). Warning! The bulb may be very hot. - Fit a new G9 230V/25W halogen bulb. Follow the lamp manufacturer’s instructions. - Screw the glass light cover into place (1). - Connect the oven again to the power supply.31

Appliance must be descaled. Flashing – descaling starts. 0.5L

(clock) Feed 0.6 litre descaling solution into the water tank. 1.0L

(clock) Feed 1 litre cold water into the water tank for rinsing. Water level -L0-

(Clock or time setting) Insufficient water in water tank. -L0- to –L2

(Clock or time setting) Water level indication: -L4- for a complete tank and -L1- for low tank level. Water tank

---/(Temperature or foodstuff group) (Clock or time setting) Indication that water tank is missing.

(Clock) The water tank must be removed, emptied and reinserted. Special functions (Water level) A1 to A5 (Time setting) Special functions with predefined temperatures and times.

Heating up (Water level)

(Time setting) Special functions with predefined temperatures and times. Steam reduction VAP

(Clock) Indication that steam reduction process is ongoing. PUMP

(Clock) Indication that cold water is entering the boiler and hot water is being pumped to the water tank. FULL

(Clock) The water tank must be removed, emptied and reinserted. System warnings

(Clock) Damaged lamp.

(Clock) Temperature in the PCB is too high.

Technical characteristics Specifications

Installation instructions Before installation Check that the input voltage indicated on the rating plate is the same as the voltage of the power outlet you are going to use. The rating plate is located on the front part of the cavity and it is only visible after opening the door. If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit. Installer – show the owner the location of the circuit breaker or fuse. Mark it for easy reference. Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally. Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all applicable codes. Open the oven door and take out all the accessories and remove the packing material. Warning! The front surface of the oven may be wrapped with a protective film. Before using the oven for the first time, carefully remove this film, starting on the inside. Make sure that the oven is not damaged in any way. Check that the oven door closes correctly and that the interior of the door and the front of the oven opening are not damaged. If you find any damage contact the Technical Assistance Service. DO NOT USE THE OVEN if the metal conduit is damaged, if the oven does not function correctly or if it has been damaged or dropped. Contact the Technical Assistance Service. Place the oven on a flat and stable surface. The oven must not be put close to any sources of heat, radios or televisions. Electrical supply Before installing the oven have a qualified electrician verify that your home is provided with adequate electrical service and that the addition of the oven will not overload the branch circuit on which it is to be installed. A separate three-wire or four-wire single phase, 240 Volt, 60 Hz, branch circuit is required. For hook-up of the oven you will need to have an approved junction box installed where it will be easily reached through the front of the cabinet where the oven will be located. The oven has 3 feet of conduit. Allow two to three feet of slack in the line so that the oven can be moved if servicing is ever necessary. DO NOT shorten the flexible conduit. Wiring requirements When making the wire connections, use the entire length of the conduit provided (3 feet). The conduit must not be cut. Before making connections make sure the power is off and read and observe the following:

1. A separate three-wire or four-wire, single

phase, 240 Volt, 60 Hz branch circuit is required for the oven.

2. The oven must be connected with Copper or

3. In the United States:

Wiring must conform to the National Electrical Code, ANSI/NFPA No. 7 latest edition. You can obtain a copy of the National Electrical Code by writing to: National Fire Protection Association Batterymarch Park Quincy, MA 0226934

Installation instructions In Canada: Wiring must conform to Cana dian Electrical Code C22.1- latest edition. You can obtain a copy of the Canadian Electrical Code by writing to: Canadian Standards Association 178 Rexdale Boulevard Rexdale (Toronto), Ontario, Canada M9W 1R3

4. Wire size (Copper or Aluminum wire) and

connections must be suitable for the rating of the appliance as per the National Electrical Code requirements. The flexible armoured cable extending from the oven should be connected directly to the junction box.

5. The junction box should be located so as to

allow as much slack as possible between the junction box and the oven so it can be moved if servicing is ever required.

6. A U.L. listed conduit connector must be

provided at each end of the power supply cable. Electrical connections Be sure your appliance is properly installed and grounded by a qualified technician. Ask your dealer to recommend a qualified technician or an authorized repair service. This appliance is manufactured with a green GROUND wire connected to the oven chassis. After making sure that the power has been turned off, connect the flexible conduit from the oven to the junction box using a U.L. listed conduit connector. The figures and the instructions provided below present the most common way of connecting the ovens. Your local codes and ordinances, of course, take precedence over these instructions. WARNING” Risk of Electric Shock, frame grounded to neutral of appliance through a link. Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through the neutral conductor. For installations where grounding through the neutral conductor is prohibited:

• Disconnect the ground from the neutral at free end of conduit;

• Use grounding terminal or lead to ground unit; and

• Connect neutral terminal or lead to branch circuit neutral in usual manner. 3-Wire branch circuit (for US only) Refer to the following Figure, where local codes allow the connection of GROUND wire from the oven to the branch circuit NEUTRAL wire (gray or white colored wire):

• If local codes permit, connect the green GROUND wire from the oven and the white wire from the oven to the branch circuit NEUTRAL wire (gray or white colored wire).

• Connect the red and black leads from the oven to the corresponding leads in the junction box.35

Installation instructions 4-Wire branch circuit (for US and CANADA) Refer to the following Figure:

• Disconnect ground from neutral at free end of conduit.

• Connect the green GROUND wire from the oven to the GROUND wire in the junction box (bare or green colored wire).

• Connect the red and black leads from the oven to the corresponding leads in the junction box. After installation The oven only functions when the door is closed correctly. After the first use, clean the inside of the oven and the accessories, following the cleaning instructions given in the section “Oven cleaning and maintenance”.36

• Repair and maintenance work, especially of current carrying parts, can only be carried out by technicians authorized by the manufacturer.

• Push oven completely into the cabinet and centre it.

• Open microwave door and fasten the appliance to the cabinet using the four screws provided. Insert the screws through the front holes.
