USER MANUAL KEC30BK Hestan

Plated dish featuring a golden-brown swir of duck with red sauce, garnished with parsley and a cherry tomato, served on a white plate (no text or symbols visible)

INDOOR COOKING

Radiant Cooktop

KEC

Installation Manual

WARNING

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer or service agency.

DO NOT REPAIR, REPLACE OR REMOVE ANY PART OF THE APPLIANCE UNLESS SPECIFICALLY RECOMMENDED IN THE MANUAL. IMPROPER INSTALLATION, SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER TO THIS MANUAL FOR GUIDANCE. ALL OTHER SERVICING SHOULD BE DONE BY A QUALIFIED TECHNICIAN.

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE INSTALLING OR USING YOUR APPLIANCE TO REDUCE THE RISK OF FIRE, BURN HAZARD, OR OTHER INJURY. KEEP THIS MANUAL FOR FUTURE REFERENCE.

SAFETY DEFINITIONS

THIS INDICATES THAT DEATH OR SERIOUS INJURY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING

THIS INDICATES THAT MINOR OR MODERATE INJURY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.

THIS INDICATES THAT DAMAGE TO THE APPLIANCE OR PROPERTY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.

INSTALLER: LEAVE THIS MANUAL WITH THE OWNER OF THE APPLIANCE. HOMEOWNER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

1 SAFETY PRECAUTIONS - BEFORE YOU BEGIN
2 MODEL NUMBERS
2 RATING LABEL
2 REGULATORY / CODE REQUIREMENTS
3 CUTOUT DIMENSIONS AND REQUIREMENTS
5 COOKTOP INSTALLATION
8 ELECTRICAL CONNECTIONS
10 FINAL SETUP
11 PARTS LIST
11 SERVICE

SAFETY PRECAUTIONS - BEFORE YOU BEGIN

When properly cared for, your Hestan appliance will provide safe, reliable service for many years. When using this appliance, basic safety practices must be followed as outlined below.

IMPORTANT: Save these instructions for the local Utility Inspector's use.

INSTALLER: Please leave these Installation Instructions with the owner.

OWNER: Please retain these Installation Instructions for future reference.

This appliance is NOT designed for installation in manufactured (mobile) homes or recreational park trailers. Do NOT install this appliance outdoors.

WARNING

ELECTRICAL SHOCK HAZARD

Disconnect power before installing or servicing appliance. Failure to do so can result in death or electrical shock.

Silhouette of a person in motion with a curved arrow, no text or symbols present

ELECTRICAL GROUNDING

• This appliance must be grounded. Grounding reduces the risk of electric shock in the event of a short circuit. Read the ELECTRICAL CONNECTIONS section of the Installation manual for complete instructions.
  • DO NOT ground to a gas pipe.
• DO NOT use an extension cord with this appliance.
• DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or GROUNDING circuit could result in an electrical shock.

MODEL NO. DESCRIPTION	CIRCUIT BREAKERREQ'D
KEC 30 30" Radiant Cooktop 40 Amp
KEC 30 30" Radiant Cooktop 50 Amp

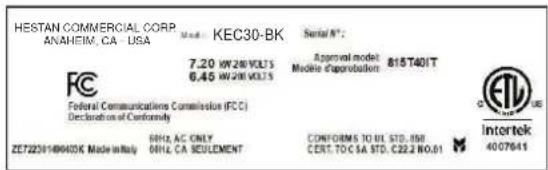

RATING LABEL

The rating label contains important information about your Hestan appliance such as the model and serial number, electrical rating and the minimum installation clearances.

The rating label is located on the bottom of the cooktop.

If service is necessary, contact Hestan Customer Care with the model and serial number information shown on the label.

HESTAN COMMERCIAL CORP. ANAHEIM, CA - USA KEC30-BK 7.20 W/240 VOLT5 6.45 W/240 VOLT5 Serial N°: Approval model Modèle d'approbation 815 T401T Federal Communications Commission (FCC) Declaration of Conformity CONFORMS TO UL STD. 898 CERT. TO C SA STD. C22.2 NO.61 ZET220149645K Made in Italy Intertek 4007641

TYPICAL RATING LABEL

RATING LABEL

REGULATORY / CODE REQUIREMENTS

Installation of this cooking appliance must be made in accordance with local codes. In the absence of local codes, this unit should be installed in accordance with the National Electrical Code and local codes.

This appliance must be electrically grounded in accordance with local codes or in the absence of local codes with the National Electrical Code ANSI/NFPA 70, or Canadian Electrical code CSA C22.1.

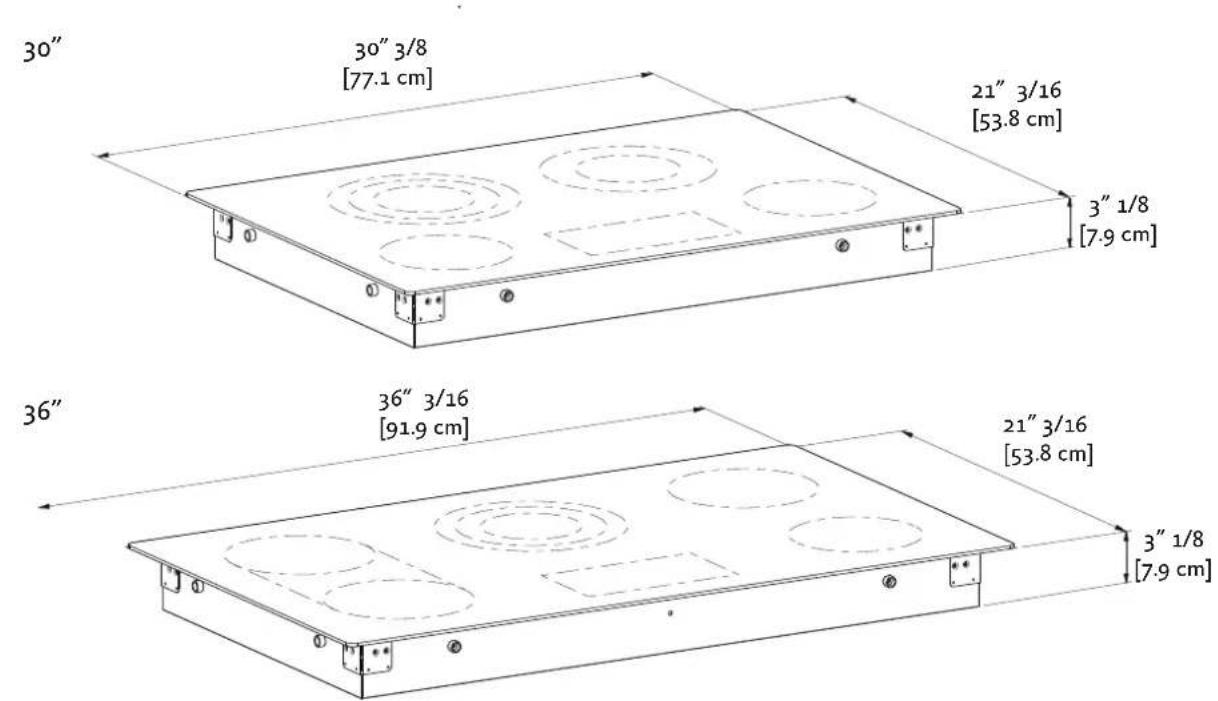

30" 30" 3/8 [77.1 cm] 21" 3/16 [53.8 cm] 3" 1/8 [7.9 cm] 36" 36" 3/16 [91.9 cm] 21" 3/16 [53.8 cm] 3" 1/8 [7.9 cm]

Figure 1.

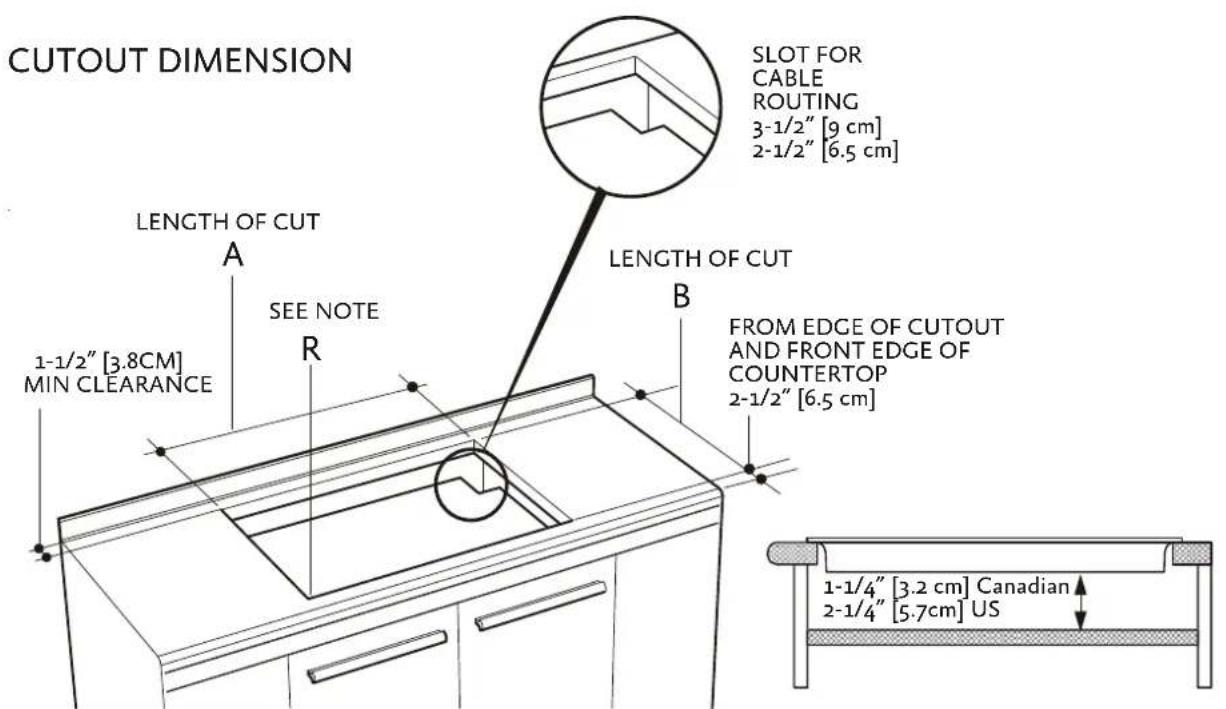

CUTOUT DIMENSION LENGTH OF CUT A SEE NOTE R 1-1/2" [3.8cm] MIN CLEARANCE LENGTH OF CUT B SLOT FOR CABLE ROUTING 3-1/2" [9 cm] 2-1/2" [6.5 cm] FROM EDGE OF CUTOUT AND FRONT EDGE OF COUNTERTOP 2-1/2" [6.5 cm] 1-1/4" [3.2 cm] Canadian 2-1/4" [5.7cm] US

Figure 2.

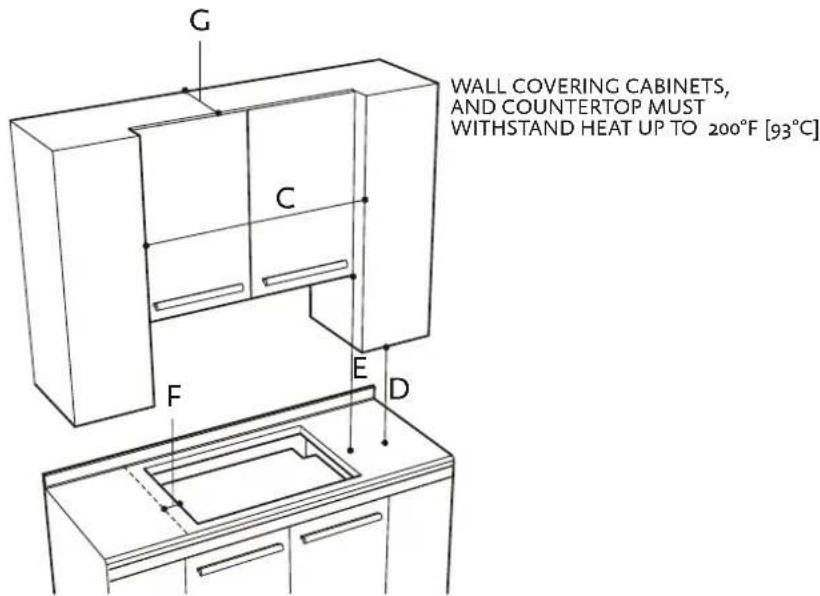

CUTOUT REQUIREMENTS

G C WALL COVERING CABINETS, AND COUNTERTOP MUST WITHSTAND HEAT UP TO 200°F [93°C] F E D

Figure 3. Cutout dimensions and requirements

CUTOUTWIDTH	A B	C	DEFG
30"[76.2cm]	28-11/16"[72.9 cm]28 15/16"[73.5 cm]	19-1/4"[49.0 cm]19-5/8"[49.8 cm]	30"[76.2 cm] min	18" [45.7 cm]minHeight fromcountertopto nearestcabinet oneither side ofunit	30" [76.2 cm]min.[see note*]Clearancefromcountertop tounprotectedoverheadsurface	2" [5 cm] minClearancefrom cutout toside wall onthe left andright of theunit	13" [33 cm]Depth ofunprotectedoverheadcabinets
36"[91.4 cm]	34-1/16"[86.5 cm]34-5/16"[87.2 cm]	19-1/4"[49.0 cm]19-5/8"[49.8 cm]	36"[91.4 cm] min
IMPORTANTUnder the cooktop it is necessary to install a partitionas shown ****				* NOTE24" [61 cm] min. clearance if bottom of wood or metalcabinets is protected by not less than 1/4" [0.6 cm] flameretardant millboard covered with no less than No. 28 MSGsheet steel 0.015" [0.04 cm] stainless steel, or 0.024" [0.06cm] aluminum or 0.020" [0.05 cm] copper.30"[76.2 cm] min. clearance between top of cooking platformand bottom of unprotected wood or metal cabinet

Important Preparation Suggestions

1. Chamfer all exposed edges of decorative laminate to prevent damage from chipping.
2. Radius corners of cutout and file to insure smooth edges and prevent corner cracking. Recommend 1/4" or 3/8" diameter drill in each corner.
3. Rough edges, inside corners which have not been rounded and forced fits can contribute to cracking of the countertop laminate.

This cooktop has been designed with wide tolerances of cut-out for when another brand is being replaced with a Hestan unit. For new installations, we recommend holding to the minimum cutout dimensions.

Dim.	Inches	cm
• 30"	28-15/16" x 19-9/16"	73.5 x 49.7
• 36"	34-5/16" x 19-9/16"	87.2 x 49.7

CAUTION

- Excessive Weight Hazard Use two or more people to move and install cooktop. Failure to do so can result in back or other injury.

- Cut Hazard Beware of sharp edges. Use the polystyrene ends when carrying the product. Failure to use caution could result in minor injury or cuts.

• Always consult the countertop manufacturer for specific instructions.
- Ensure the countertop is square and level and ensure no structural members interfere with space requirements.
• Prepare the cut-out according to the instructions (see cut-out dimensions).
- Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat up to 200°F [93°C].

Line drawings of various office supplies including a power tool, screwdriver, and eyeglasses (no text or symbols)

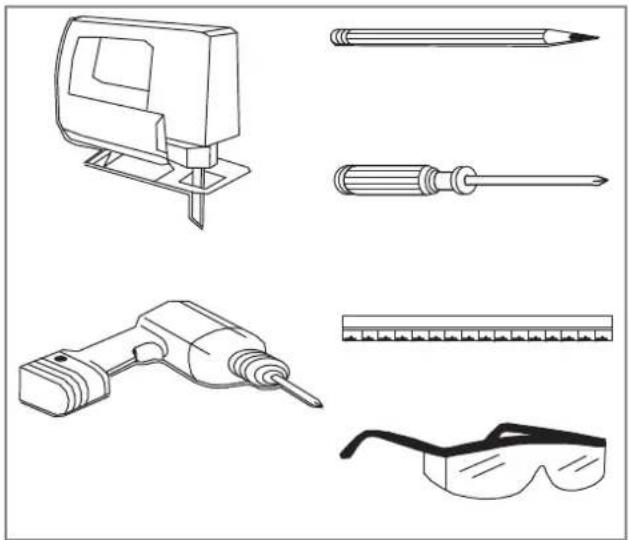

Figure 4. Tools you will need

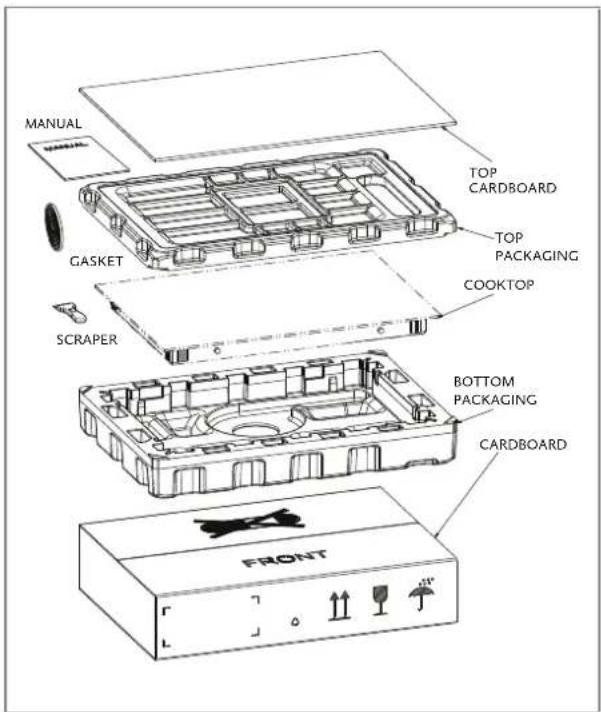

Step 1 Remove packaging materials and literature package from the cooktop before beginning installation. Remove Installation Manual from literature pack and read them carefully before you begin.

MANUAL GASKET SCRAPER TOP CARDBOARD TOP PACKAGING COOKTOP BOTTOM PACKAGING CARDBOARD FRONT

Figure 5. Packaging and contents

Step 2

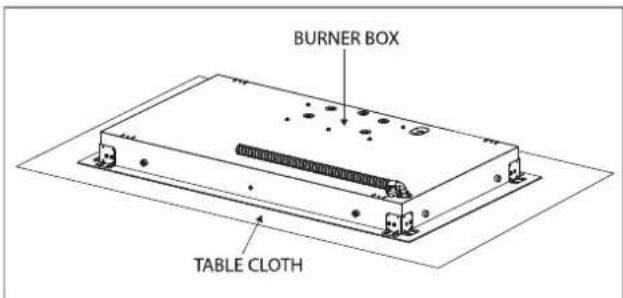

Place a towel or table cloth onto the counter top. Lay the cooktop upside down onto the protected surface.

BURNER BOX TABLE CLOTH

Figure 6

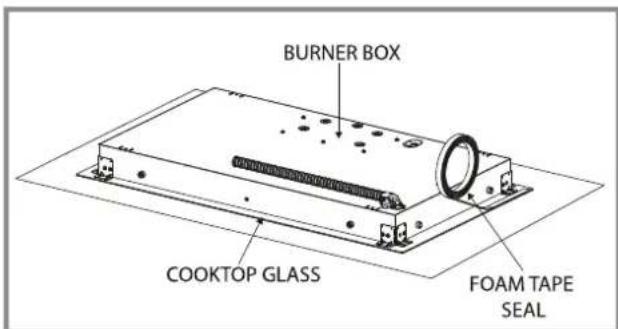

Step 3

A foam tape is provided to seal the cooktop edges to the countertop. Apply tape approximately 1/16" (1.5 mm) from the glass edge to the underside of the cooktop glass. Use tape around the entire glass perimeter. Cut off excess where tape ends meet.

BURNER BOX COOKTOP GLASS FOAM TAPE SEAL

Figure 7

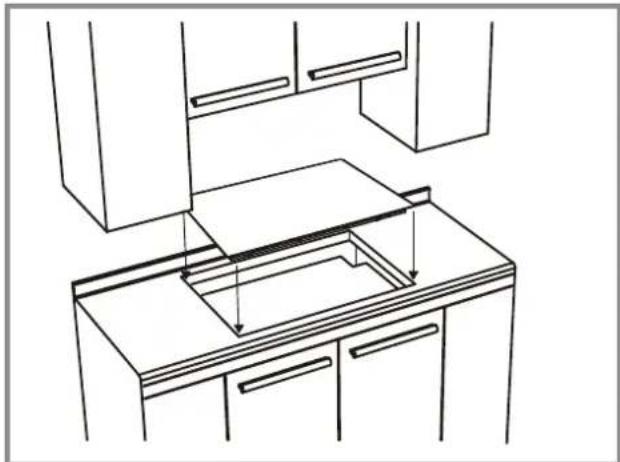

Step 4

Insert the cooktop centered into the cutout opening. Make sure the front edge of the counter top is parallel to the cooktop. Make final check that all required clearences are met.

Line drawing of a kitchen counter with an open shelf and a handle, showing structural components (no text or symbols)

Figure 8

Step 5

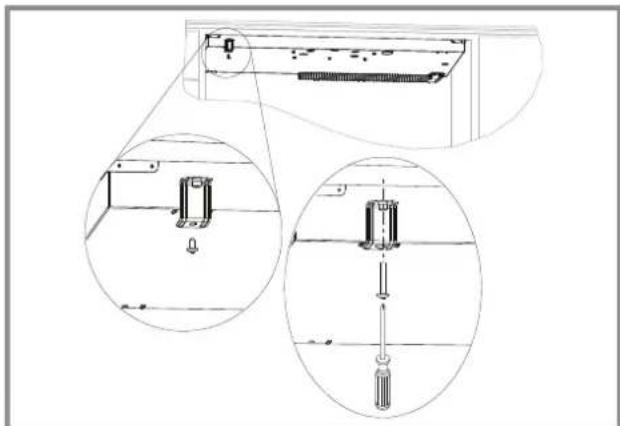

Four clamp brackets are provided to clamp the cooktop to the countertop. Tighten screws just enough to hold brackets in place when cooktop is put into cutout. Tighten screws securely.

Technical line drawing of a wall-mounted air conditioner unit with two views showing internal components (no text or symbols)

Figure 9

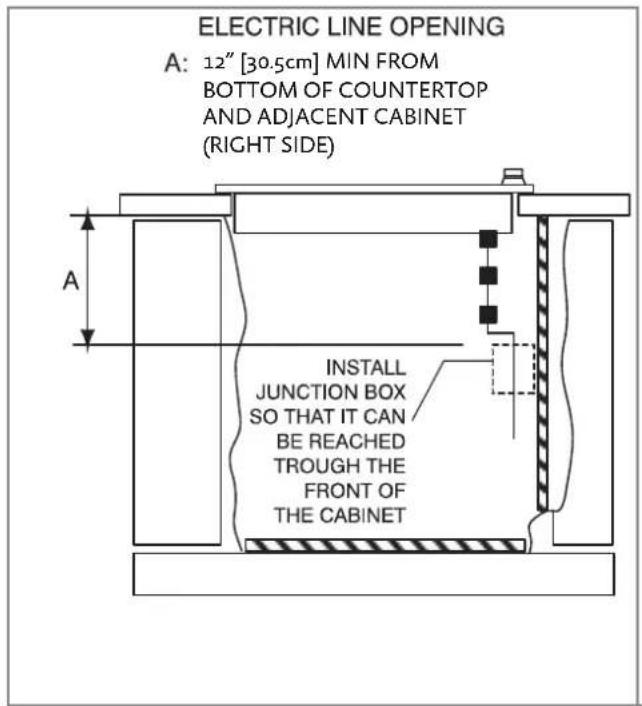

ELECTRIC LINE OPENING A: 12" [30.5cm] MIN FROM BOTTOM OF COUNTERTOP AND ADJACENT CABINET (RIGHT SIDE) INSTALL JUNCTION BOX SO THAT IT CAN BE REACHED TROUGH THE FRONT OF THE CABINET

Figure 10.

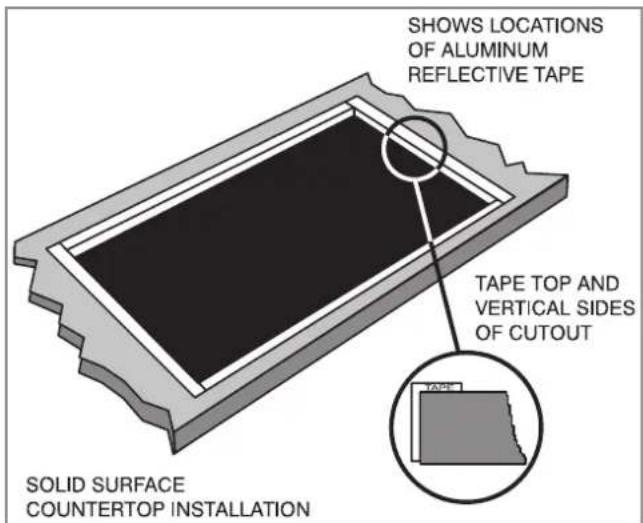

SHOWS LOCATIONS OF ALUMINUM REFLECTIVE TAPE TAPE TOP AND VERTICAL SIDES OF CUTOUT SOLID SURFACE COUNTERTOP INSTALLATION

Figure 11.

CAUTION

• For solid surface material installations such as SurelTM and Corian®, consult with solid surface manufacturer. Apply heat reflective tape such as Scotch® Aluminum Foil Tape #425 or #427 around the cutout so that it folds over on the top and sides.
• Do not wrap the tape underneath the cooktop.
• Be sure the tape extends beyond the outermost flange of the cooktop. All corners should be covered with tape.

NOTICE

THE CONDUIT IS 3 FEET LONG

The junction box must be located where it will allow sufficient slack in the conduit for serviceability.

WARNING

Disconnect power before servicing the product. Failure to do so could result in death or electrical shock.

General information

NOTICE

- The models may be powered at 240V or 208V.

This cooktop does not require a neutral connection. If the cooktop is to be completely enclosed in a cabinet, feed the cooktop cable through the opening in the cabinet. Make the electrical connection following the appropriate steps for your installation. Your cooktop must be connected to the proper electrical voltage and frequency as specified in the table on the right.

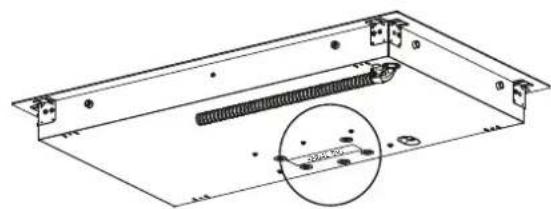

Technical line drawing of a mechanical assembly with mounting holes and a central threaded component (no text or symbols)

Figure 12. Location of serial tag

CAUTION

Improper connection of aluminum house wiring can result in a fire or shock hazard. Use only connectors designed and certified for connecting to aluminum wire, and installed by a qualified electrician.

NOTICE

This touch control works using optical light sensing technology. When first connecting electrically or after a power failure, any direct strong light over the sensor area may affect the touch control functionality. When powering on the unit make sure that no strong light is shining directly over the touch control zone, it can compromise the start-up sensor calibration resulting in an unresponsive touch control.

The flexible conduit (supplied) 3 feet long (100 cm) located at the right rear of the cooktop bottom box should be connected directly to junction box. Do not cut the conduit. A U.L - or CSA - listed conduit connector must be provided at each end of the power supply cable (at the cooktop and at the junction box.) A time delay fuse or circuit breaker is recommended. Do not ground to a gas pipe. Do not have a fuse in the grounding or neutral circuit. Fuse both supply (phase) lines.

Power Supply

Model		240 V 60 Hz		208 V 60 Hz
30"	KEC 30**	7.1kW	29.6A	5.33kW	25.6A
36"	KEC 36**				A8.53

Wk34.7A3.14Wk9.9

National Fire Protection Association Batter/march Park Quincy, Massachusetts 02269 A three-wire, single phase, 240 Volt 60 cycle electrical system (properly circuit protected to meet Local Codes of NFPA No.70) must be provided. Unit must be properly grounded in accordance with local wiring code. The chart below recommends the minimum circuit protector and wire size if the appliance is the only unit on the circuit. If smaller sizes of wire are used, the unit efficiency will be reduced and a fire hazard may be created. It is advisable that the electrical wiring and hookup be accomplished by a competent electrician.

Recommended Minimum
kW Rating on serial plate	Circuit protection in amperes	Wire size (AWG)
0-4.8 20 12
4.9-6.9 30 10
7.0-9.9 40 8
10.0-11.9 50 8
12.0-14.9 60 6

Be sure your appliance is properly installed and grounded by a qualified technician. Ask your dealer to recommend a qualified technician or an authorized repair service. This cooktop does not require a neutral connection. If the cooktop Is to be completely enclosed In a cabinet, feed the cooktop cable through the opening in the cabinet. Make the electrical connection following the appropriate steps for your installation.

This appliance is manufactured with a green ground wire connected to the cooktop chassis. After making sure that the power has been turned off, connect the flexible conduit from the cooktop to the junction box using a U.L. listed conduit connector. Figures 13 and 14 and the instructions provided below present the most common way of connecting the cooktops. Your local codes and ordinances, of course, take precedence over these instructions. Complete electrical connections according to local codes and ordinances

WARNING

Risk of Electric Shock, frame grounded to neutral of appliance through a link.

Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through the neutral conductor.

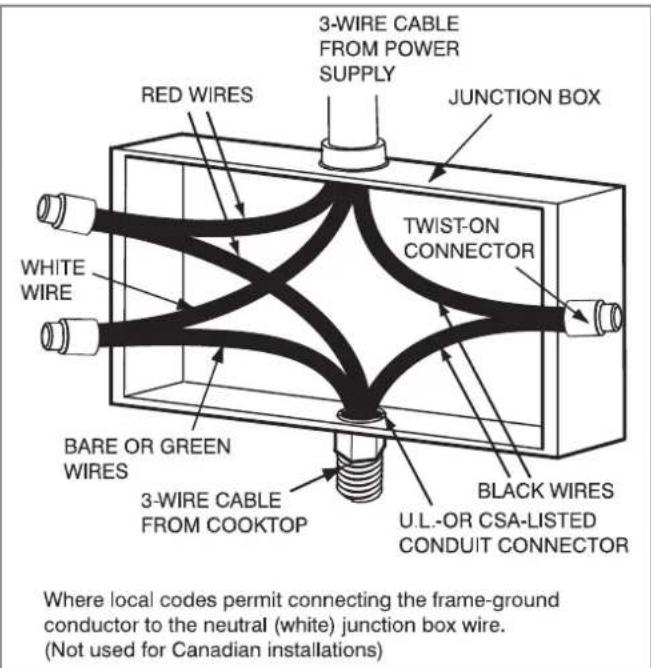

3-Wire branch circuit

Where local codes allow the connection of ground wire from the cooktop to the branch circuit neutral wire (gray or white colored wire) proceed as follows (see figure 13).

1. If local codes permit, connect the green GROUND wire from the cooktop to the branch circuit neutral wire (gray or white colored wire).

2. Connect the red and black leads from the cooktop to the corresponding leads in the junction box.

3-WIRE CABLE FROM POWER SUPPLY JUNCTION BOX RED WIRES TWIST-ON CONNECTOR WHITE WIRE BARE OR GREEN WIRES 3-WIRE CABLE FROM COOKTOP BLACK WIRES U.L.-OR CSA-LISTED CONDUIT CONNECTOR Where local codes permit connecting the frame-ground conductor to the neutral (white) junction box wire. (Not used for Canadian installations)

Figure 13.

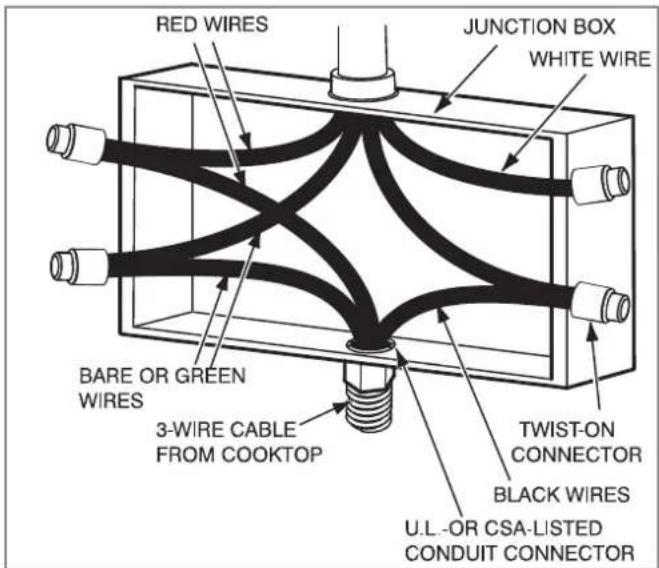

4-Wire branch circuit

Refer to figure 14:

1. Connect the green ground wire from the cooktop to the ground wire in the junction box (bare or green colored wire).
2. Connect the red and black leads from the cooktop to the corresponding leads in the junction box.
3. Terminate and insulate the neutral (gray or white colored wire) in the junction box.

RED WIRES JUNCTION BOX WHITE WIRE BARE OR GREEN WIRES 3-WIRE CABLE FROM COOKTOP TWIST-ON CONNECTOR BLACK WIRES U.L.-OR CSA-LISTED CONDUIT CONNECTOR

Figure 14.

CLEANUP, VERIFY POWER

Remove any final packaging materials and protective film from all exterior areas.

Check the electrical requirements for the correct electrical supply and that the cooktop is properly grounded.

Check power at the junction box wires using a voltmeter having a range of 0-250 VAC.

• A 240 Volt supply should read 220 to 240 Volts between the black and red wires (Line to Line).
• A 208 Volt supply should read 190 to 208 Volts between the black and red wires.

FUNCTIONAL TEST

When the cooktop is connected to the electrical voltage supply all lights and digits turn on to indicate a proper activation. This operation will be completed after few seconds, the control turns off automatically. Then the cooktop is ready for operations.

1. Switch the Control ON

- If the commands are locked, touch the [LOCK] key for a few seconds. (See that the LOCK led is on and turns off after a few seconds.)

1. Touch the main [ON/OFF] key to enable the single zones for selection.

- All the displays show power level "0". If you don't touch anything else, the control shuts down again after about 10 seconds.

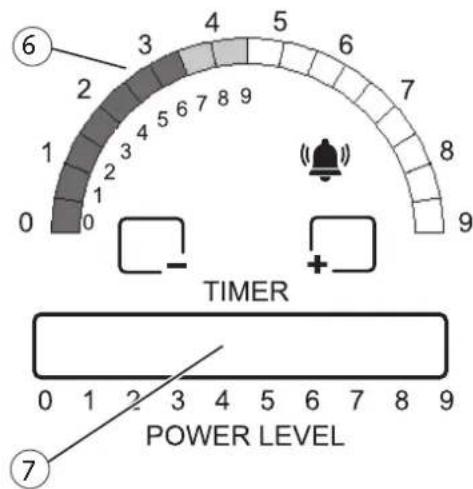

1. Select a zone and set power

- Touch the ON key (2) for the desired zone: the HOT SURFACE (3) indication starts flashing, waiting for user input.

1. Touch the slide bar (7) to set the power level (levels 0 to 9). You can slide your finger along the bar to select the desired value.

- The display (4) and the "Peacock Tail" (6) shows the power level, updated in real time.

• After a 5 seconds time-out the value is accepted and the HOT SURFACE led stops flashing.

• The "Peacock Tail" disappears after some seconds more.

1. Verify that the indications perform as above and that the selected zone begins heating up.

2. Touch the OFF key for the selected zone to turn it off.

3. Touch the main [ON/OFF] key to turn the cooktop off.

Verify that the controls respond as above.

TRIPLE DUAL TIME 4 ON OFF 2 3 1

6 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 TIMER POWER LEVEL 7

Please visit the Hestan website to access the parts list for your Hestan Indoor product: www.hestanhome.com.

SERVICE

All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized service agent in your zone, contact your Hestan dealer, local representative, or the manufacturer. Before you call, please have the model number and serial number information ready.

Hestan Commercial Corporation

3375 E. La Palma Avenue

Anaheim, CA 92806

[phone]

AVERTISSEMENT

L'INOBSERVATION DES INFORMATIONS DONNÉES DANS CE MANUEL PEUT ENTRAÎNER UN INCENDIE OU UNE EXPLOSION DE NATURE À CAUSER DES DÉGÂTS MATÉRIELS ET DES BLESSURES GRAVES, VOIRE MORTELLES.

Silhouette of a person in motion, possibly shooting or arching, with no text or symbols present.

G C F E D

LES REVETEMENTS DES MEUBLES ET LE PLAN DE TRAVAIL DOIVENT RESISTER A UNE CHALEUR DE 200°F [93°C]

Line drawings of various office supplies including a power tool, screwdriver, and eyeglasses (no text or symbols)

Line drawing of a kitchen counter with appliances and fixtures (no text or symbols)

Technical line drawing of a wall-mounted air conditioner unit with two views showing internal components (no text or symbols)

Figure 9

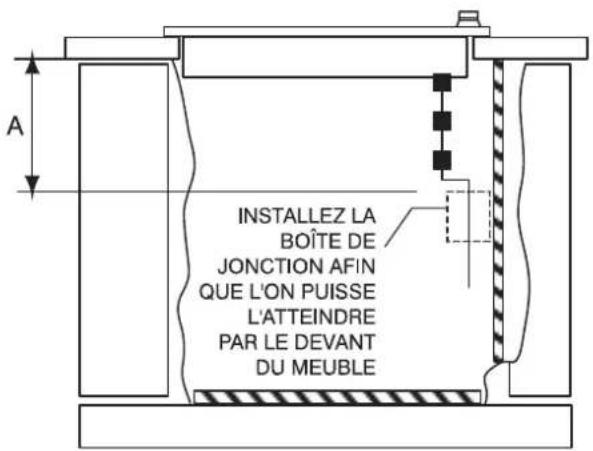

OUVERTURE DES LIGNES ÉLECTRIQUES
