USER MANUAL 11810 LANDMANN

Black metal firewood box with mesh netting and three legs, no visible text or symbols

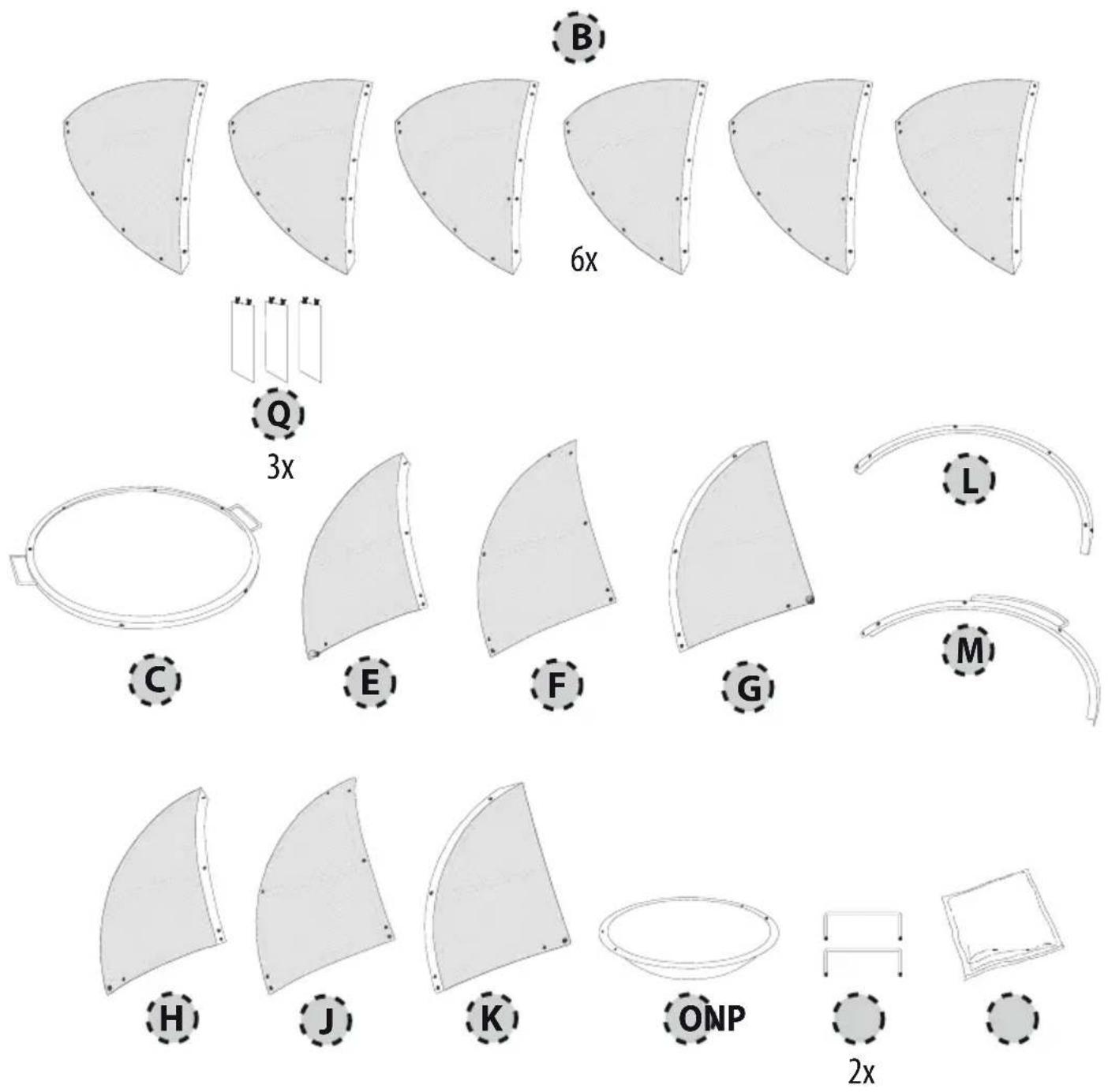

6x 3x Q L C E F G M H J K ONP 2x

R	S	T	U	V	W	X	Y	Z
M6x256x	M6x206x	M6x106x	M6x1328x	M6x402x	M652x	6x	2x	8x

Inhaltsverzeichnis / Contents / Sommaire / Indice / Tartalomjegyzék / Spis treści / Innehåll / Deleliste / Indholdsfortegnelse / Sisällysluettelo

D

General safety precautions....5

F

Simple line drawing of a wrench crossed with a screwdriver (no text or symbols)

15

WARNING! Risk of burns!

• Ensure the fire pit is located on an even and fireproof surface containing neither glass nor plastic.
• ATTENTION! This fire pit becomes very hot and must not be moved during operation!
• CAUTION! Never use spirits or petrol to ignite or re-ignite the fire!
• CAUTION! Exclusively use firelighters that comply with the European standard for firelighters (EN 1860-3)!
• Do not use water to extinguish a fire.
• Allow the fire pit to cool down completely before cleaning it.

CAUTION! Risk of carbon monoxide poisoning!

- Do not use the fire pit indoors. Always use the fire pit outdoors.

DANGER to children and pets!

- Never leave the hot barbecue unattended.

•CAUTION! Keep away from children and pets!

Preface

Please read these assembly and operating instructions carefully before starting to use the high-quality LANDMANN fire pit. You will soon realise how easy and simple its assembly and operation are.

General information for successful assembly

Please read the assembly instructions carefully and follow the safety precautions. Allow sufficient time for assembly. Before starting assembly, clear an area measuring approximately two to three square metres. Remove the set from the packaging. Lay out all parts and any necessary tools so that they are within easy reach.

Please note: only tighten all of the screw connections firmly once you have finished assembly to prevent unwanted tension.

Information for safe operation of the fire pit

The fire pit must be positioned on a stable and secure surface when it is in use.

Do not use in enclosed areas or under covered surfaces. Use safe lighting materials only (such as LANDMANN solid firelighters).

Igniting the fuel

WARNING! Risk of burns!

Using petrol or spirits to light the fire can result in uncontrollable heat due to deflagration. Therefore you must use safe fuel only, such as solid firelighters. The fire pit must be positioned on a stable and secure surface when it is in use.

1. Use quality products from LANDMANN, such as LANDMANN solid firelighters.
2. Stack some of the wood in the fire pit.
3. Light one or two solid firelighters using a match. Place these firelighters on top of the layer of wood.
4. Allow the solid firelighters to burn for 2 to 4 minutes. Then place additional wood on top.

Cleaning/care

WARNING! Risk of burns!

Allow the fire pit to cool down completely before cleaning it. Never use water to extinguish the hot fire pit. This may cause burns or scalding.

Occasional cleaning is necessary in order to preserve its clean appearance. Do not use any scouring agents.

1. A rinsing cloth, water and some washing-up liquid is sufficient for normal cleaning processes.
2. If the enamelled parts are heavily soiled, use a commercial enamel cleaning agent (oven cleaner). Observe the manufacturer's instructions for the applied cleaning agent.

Environmental information & disposal measures

Pay attention to cleanliness when using the fire pit and disposing of waste. As a general rule, exclusively dispose of waste in designated metal or non-flammable containers.

The local regulations for disposal apply.

Warranty

We grant a warranty for the fire pit for the duration of two years, starting with the date of purchase, please provide proof of purchase. The warranty includes manufacturing deficiencies and defective parts; it extends to the replacement of these parts. The warranty excludes rusting and general wear and tear'. For full terms and conditions of our warranty please visit our website www.landmann.co.uk/warranty. The warranty lapses in case of mishandling and if any kind of unauthorized use.

For great barbecue tips and ideas and barbecue accessories please visit our website www.landmann.co.uk

Line drawing of two wrench and screwdriver tools (no text or symbols)

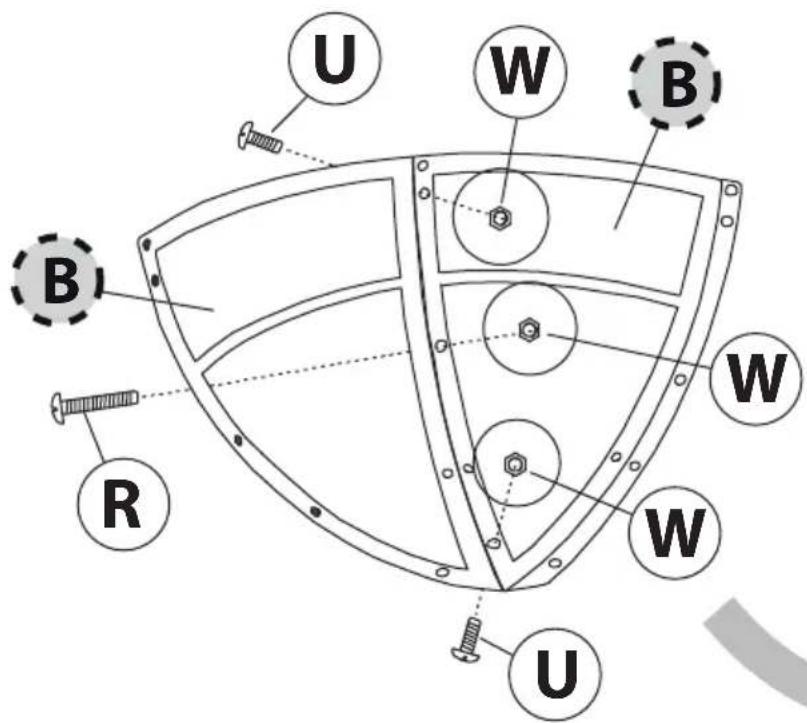

R 6x U 6x W 12x

U W B B R W W U

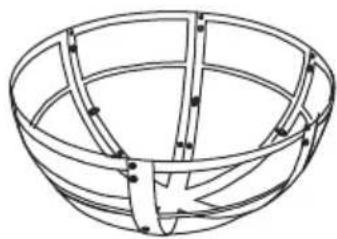

Line drawing of a wireframe basket structure with no text or symbols

1.

W

6x

6x

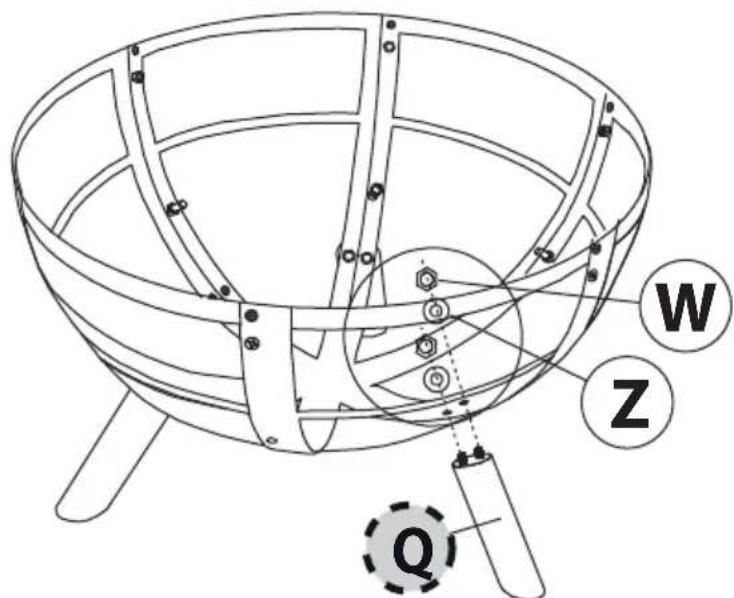

W Z Q

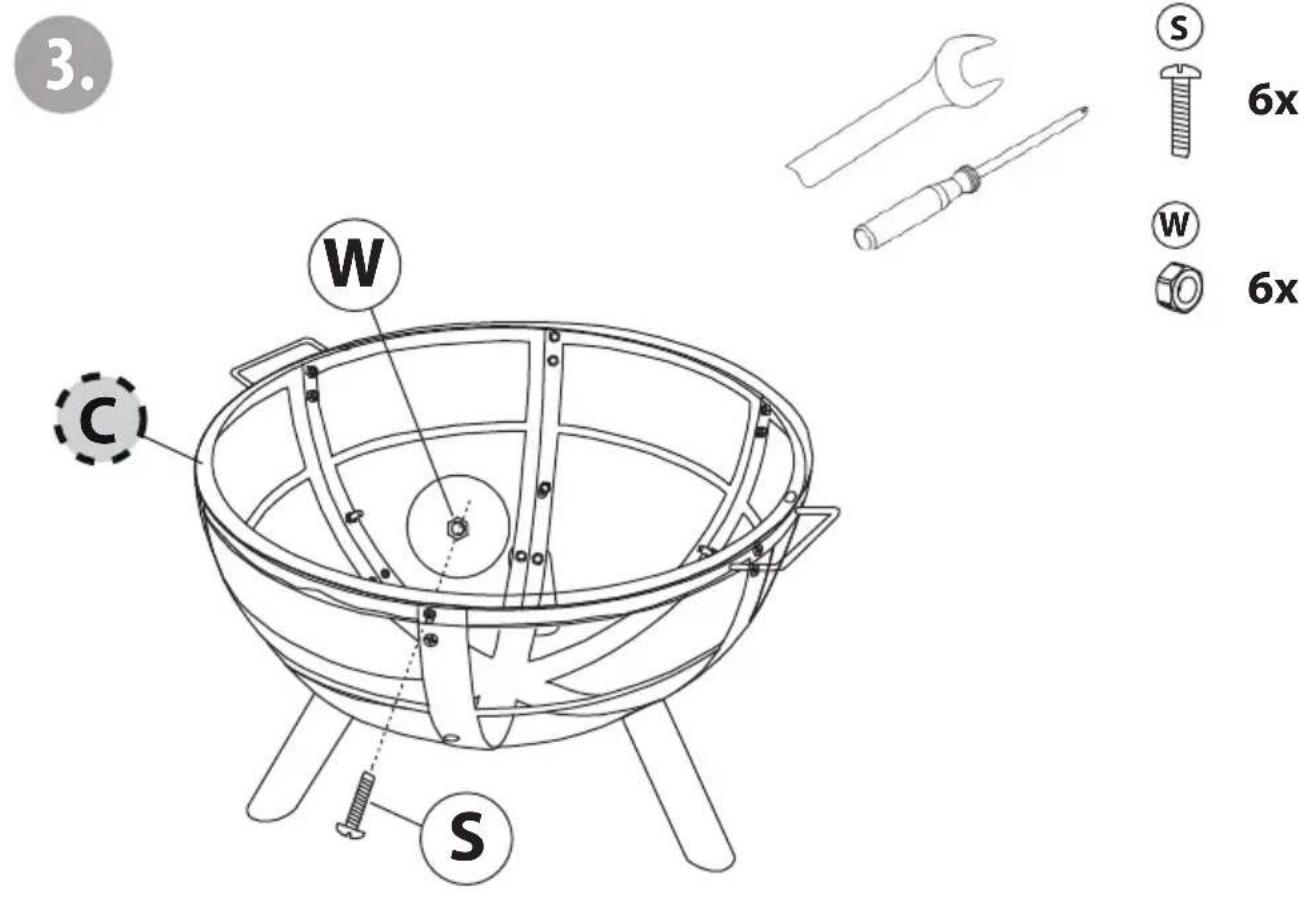

3. W C S S 6x W 6x

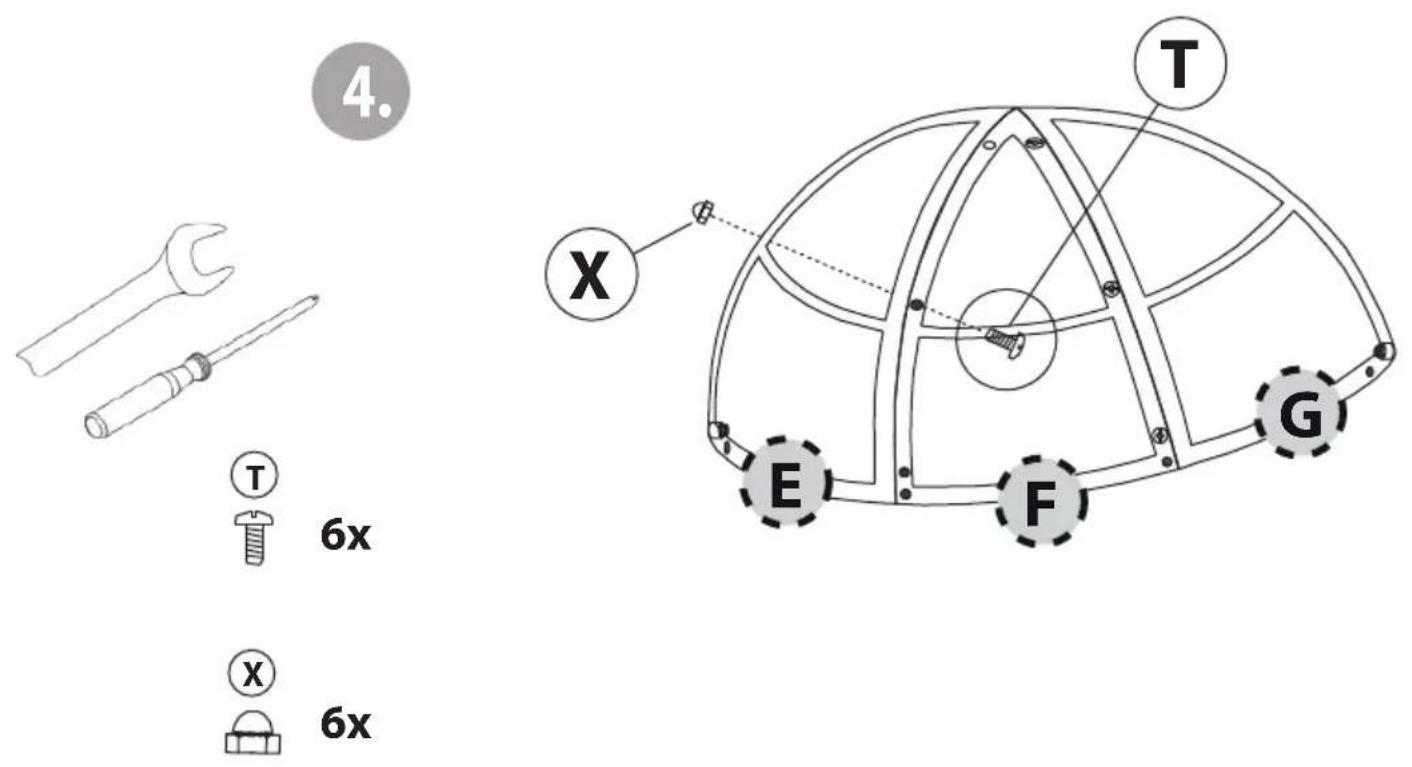

4. T 6x X E F G 6x

1.

Line drawing of two wrench and screwdriver tools (no text or symbols)

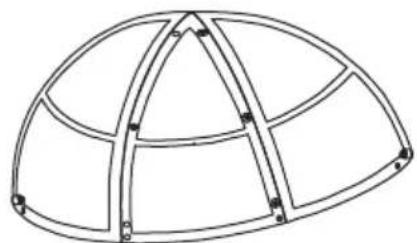

Technical line drawing of a dome-shaped structure with internal truss framework (no text or symbols)

4x

4x

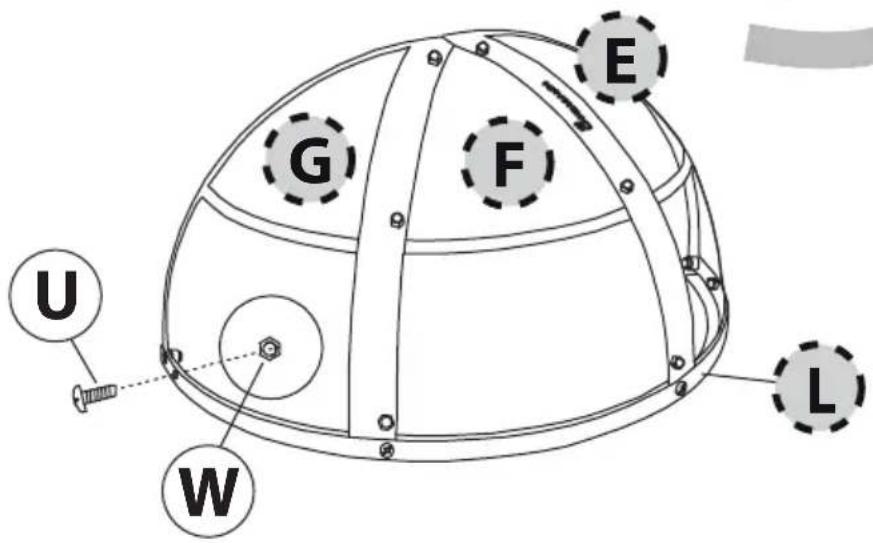

U W G F E L

1.

Line drawing of two wrench and screwdriver tools (no text or symbols)

6x

6x

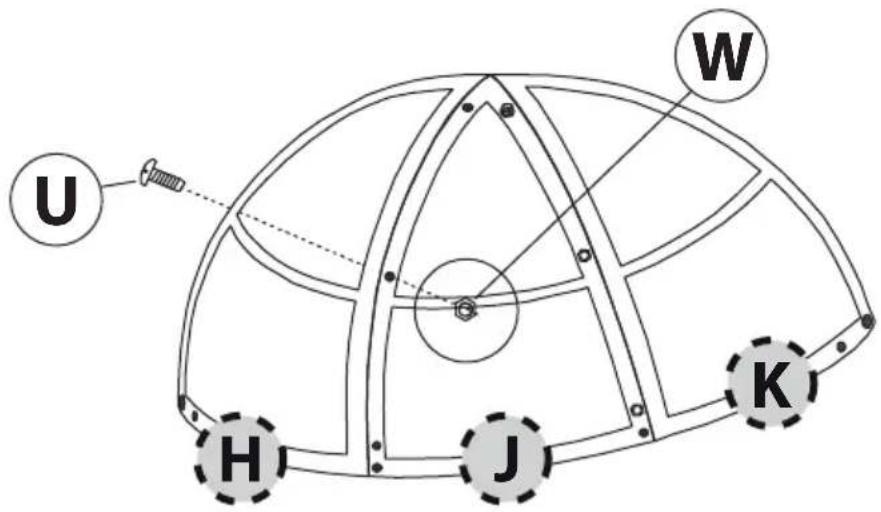

U W H J K

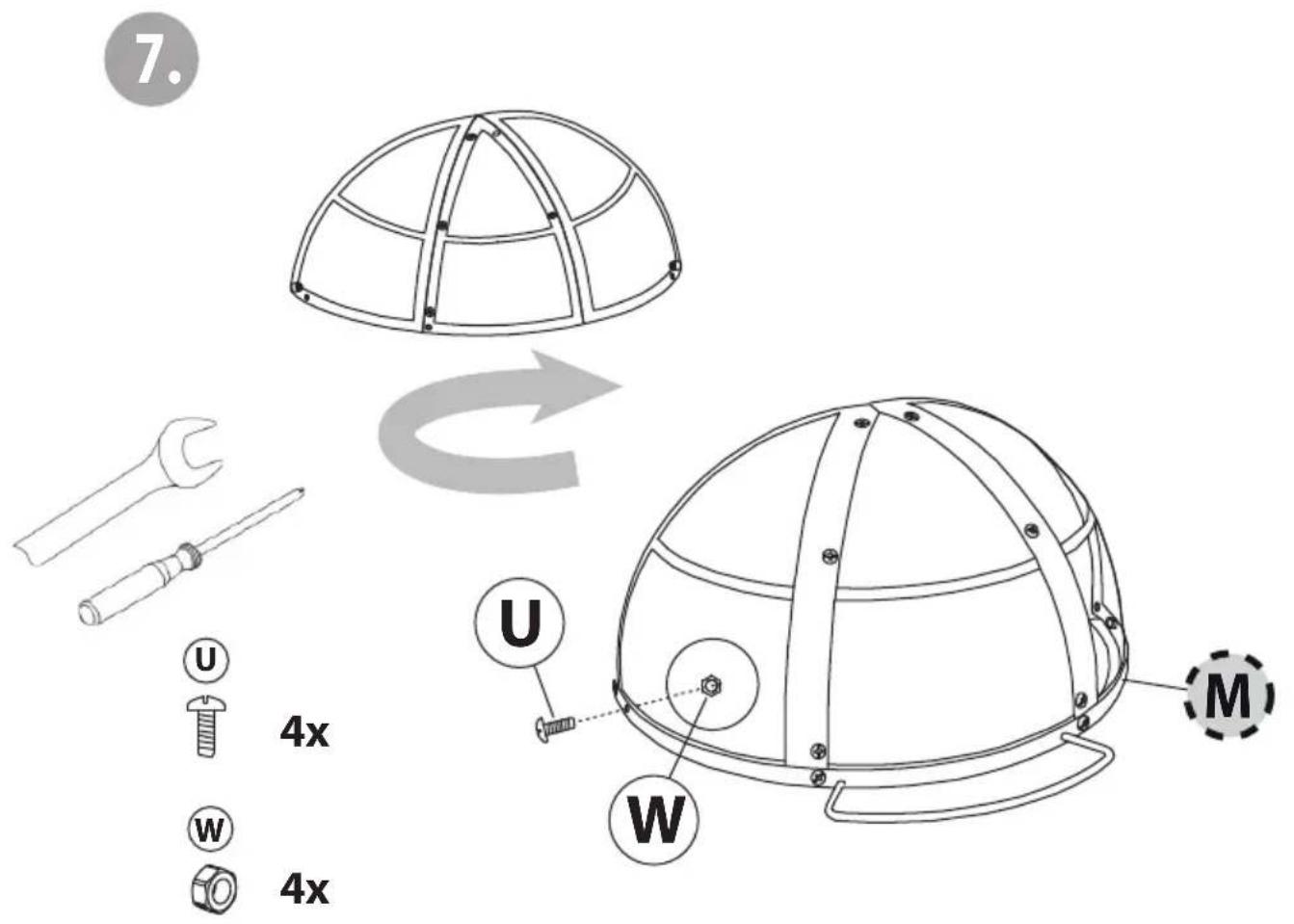

7. U 4x W 4x U W M

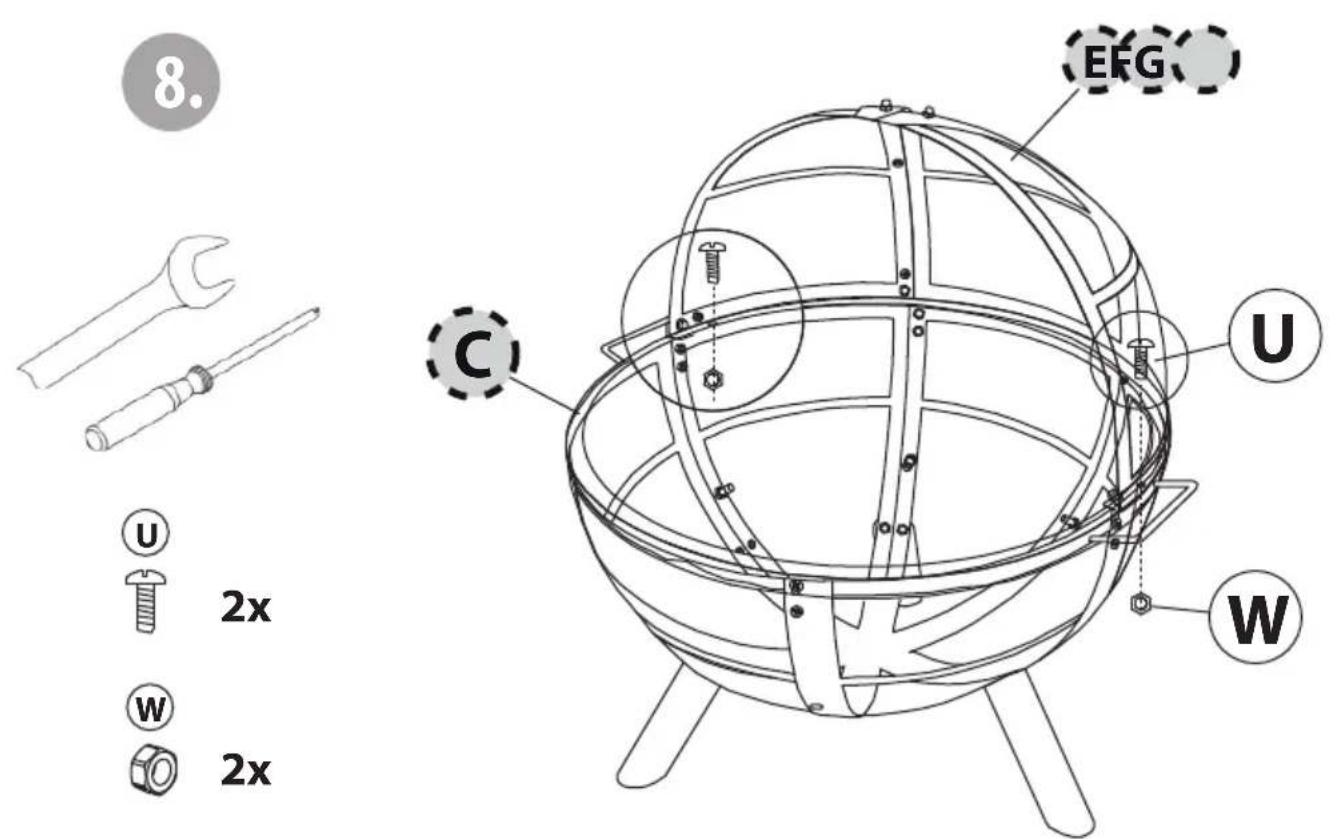

8. EFG U C W 2x 2x U 2x W

1.

Simple line drawing of a wrench and a nut with a magnified circular symbol (no text or labels)

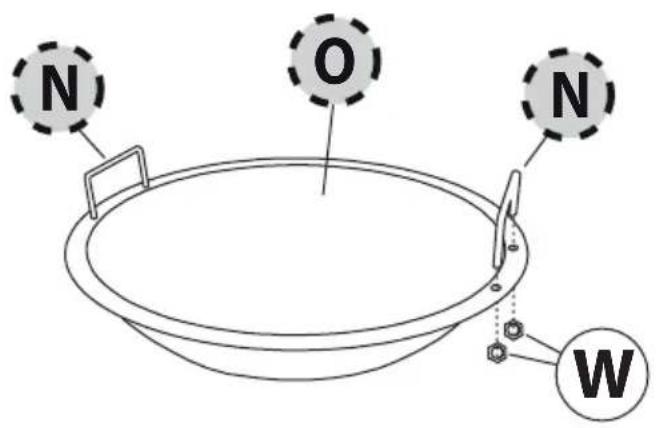

N O N W

1.

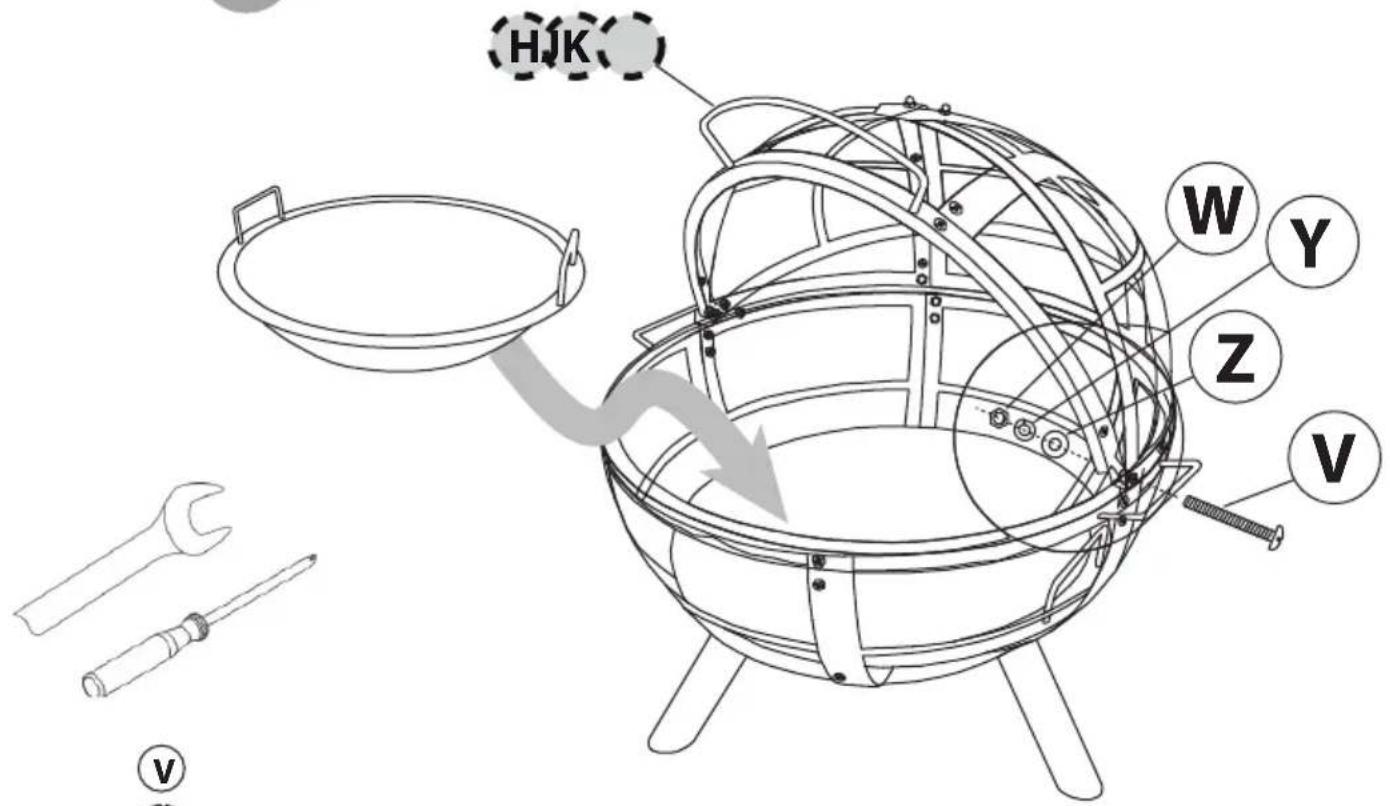

HJK W Y Z V v

2x

2x

2x

2x
