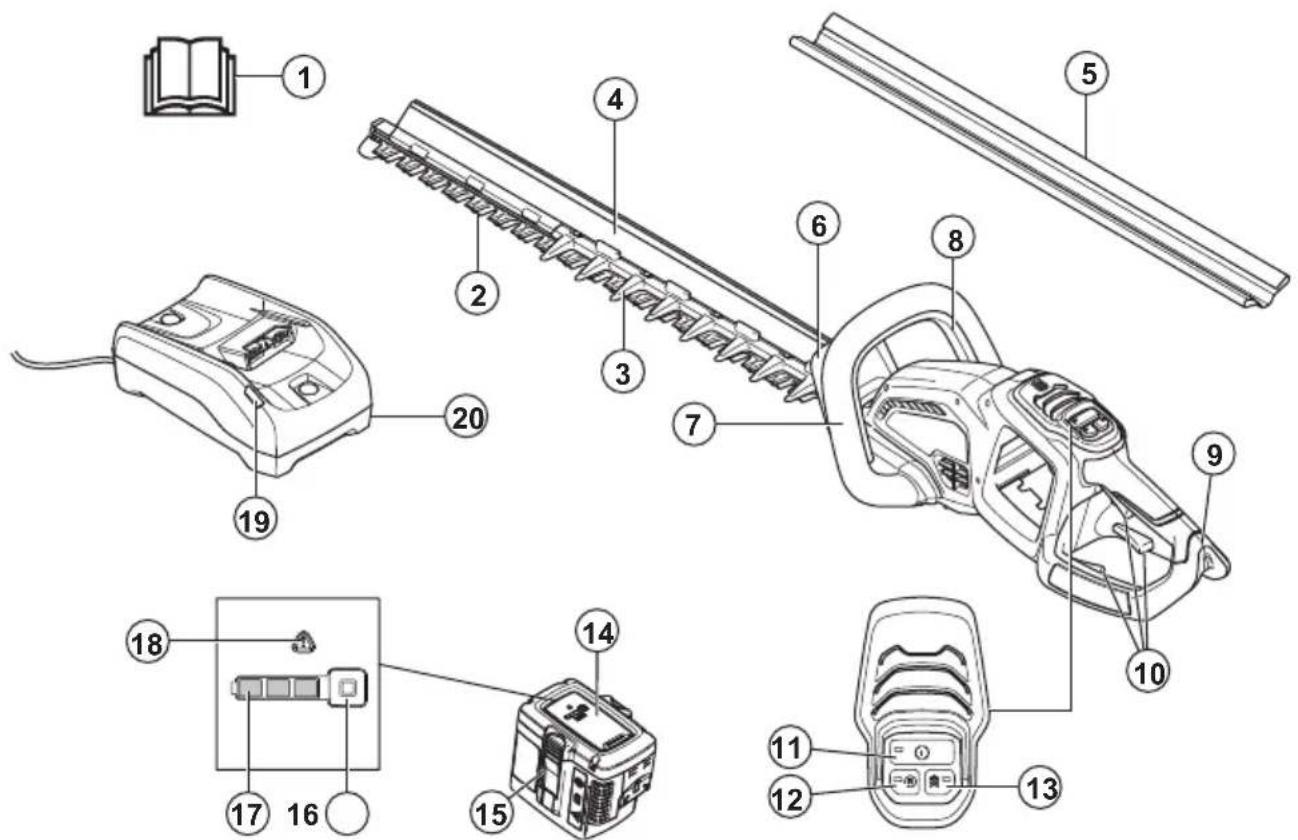

USER MANUAL 320iHD60 HUSQVARNA

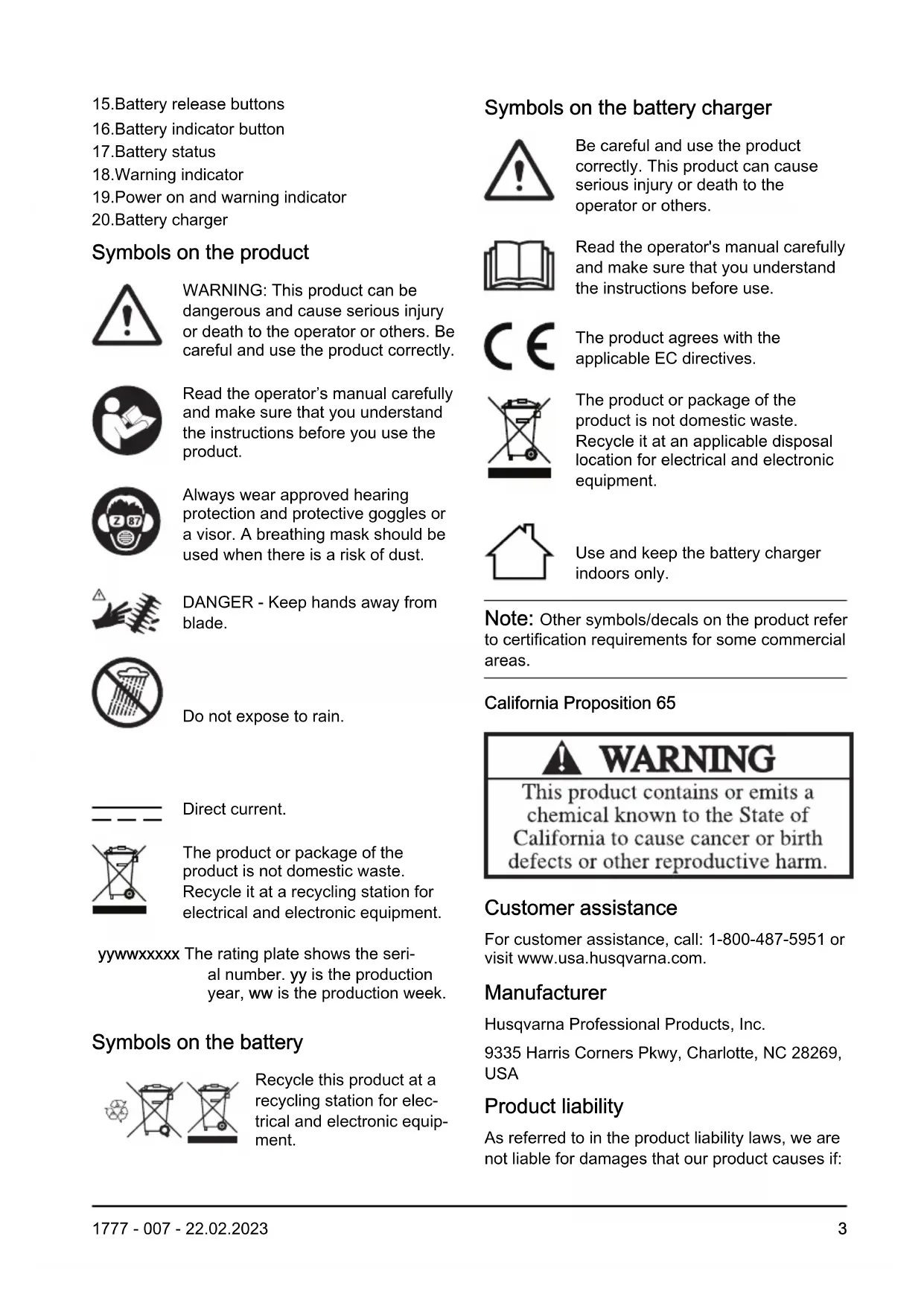

WARNING: This product can be

dangerous and cause serious injury or death to the operator or others. Be careful and use the product correctly. Read the operator’s manual carefully and make sure that you understand the instructions before you use the product. Always wear approved hearing protection and protective goggles or a visor. A breathing mask should be used when there is a risk of dust. DANGER - Keep hands away from blade. Do not expose to rain. Direct current. The product or package of the product is not domestic waste. Recycle it at a recycling station for electrical and electronic equipment. yywwxxxxx The rating plate shows the seri- al number. yy is the production year, ww is the production week. Symbols on the battery Recycle this product at a recycling station for elec- trical and electronic equip- ment. Symbols on the battery charger Be careful and use the product correctly. This product can cause serious injury or death to the operator or others. Read the operator's manual carefully and make sure that you understand the instructions before use. The product agrees with the applicable EC directives. The product or package of the product is not domestic waste. Recycle it at an applicable disposal location for electrical and electronic equipment. Use and keep the battery charger indoors only. Note: Other symbols/decals on the product refer to certification requirements for some commercial areas. California Proposition 65 Customer assistance For customer assistance, call: 1-800-487-5951 or visit www.usa.husqvarna.com. Manufacturer Husqvarna Professional Products, Inc. 9335 Harris Corners Pkwy, Charlotte, NC 28269, USA Product liability As referred to in the product liability laws, we are not liable for damages that our product causes if: 1777 - 007 - 22.02.2023 3• the product is incorrectly repaired.

• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.

• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.

• the product is not repaired at an approved service center or by an approved authority. Safety Safety definitions Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk

of injury or death for the operator or bystanders if the instructions in the manual are not obeyed. CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed. Note: Used to give more information that is necessary in a given situation. IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Read all instructions

WARNING: When using electric

gardening appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following: General power tool safety warnings

WARNING: Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Note: Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges

1777 - 007 - 22.02.2023or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. Personal safety

• Stay alert, monitor what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to a power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.A careless action can cause severe injury within a fraction of a second

• The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. Operators should identify safety measures to protect themselves that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger). Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool´s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery 1777 - 007 - 22.02.2023 5handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or tool to fire or excessive temperature.Exposure to fire or temperature above 130 ºC (265 ºF) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Hedge trimmer safety warnings - Personal safety

• Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury.

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• Carry the hedge trimmer by the handle with the cutter blade stopped. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

• When transporting or storing the hedge trimmer, always fit the blade cover.Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.

• When clearing jammed material or servicing the unit, make sure all power switches are off and the lock-off is in the locked position.Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

• Hold the power tool by insulated gripping surface only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a ”live” wire may make exposed metal parts of the power tool ” live” and could give the operator an electric shock.

• Keep all power cords and cables away from cutting area.Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

• Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning.This decreases the risk of being struck by lightning.

• DANGER -Keep hands away from blade. Contact with blade will result in serious personal injury. General safety instructions

Read the warning instructions that follow before you use the product.

1777 - 007 - 22.02.2023• Remove the battery to prevent the product from being started by accident.

• This product is a dangerous tool if you are not careful or if you use the product incorrectly. This product can cause serious injury or death to the operator or others.

• Do not use the product if it is changed from its initial specification. Do not change a part of the product without approval from the manufacturer. Only use parts that are approved by the manufacturer. Injury or death is a possible result of incorrect maintenance.

• Do a check of the product before use. See

do before you start the product on page 11

Do not use a defective product. Do the safety checks, maintenance and service instructions described in this manual.

• Children should be supervised to ensure that they do not play with the product. Never allow children or other persons not trained in the use of the product and/or the battery to use or service it. Local laws may regulate the age of the user.

• Keep the product in a locked area to prevent access for children or persons that are not approved.

• Store the product out of reach of children.

• Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

• Under no circumstances may the design of the product be modified without the permission of the manufacturer. Always use original accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator and others. Note: National or Local laws can regulate the use. Comply to given regulations. Safety instructions for operation

Read the warning instructions that follow before you use the product.

• If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.

• Never use the product if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgment.

• Working in bad weather is tiring and often brings added risk. Due to the added risk, it is not recommended to use the machine in very bad weather, for instance in dense fog, heavy rain, strong winds, intense cold, risk of lightning, etc.

• Faulty blades can increase the risk of accidents.

• Do not allow children to use or be in the vicinity of the product. Since the product is easy to start, children may be able to start it if they are not kept under full surveillance. This can mean a risk of serious personal injury. Disconnect the battery when the product is not under close supervision.

• Ensure that no people or animals come closer than 15 meters while you work. When several operators are working in the same area the safety distance should be at least 15 meters. Otherwise there is a risk of serious personal injury. Stop the product immediately if anyone approaches. Never swing the product around without first checking behind you to make sure that no one is within the safety zone.

• Ensure that people, animals or other things can not affect your control of the product or that they do not come in contact with the cutting attachment or loose objects that are thrown out by the cutting attachment. However, do not use the product unless you are able to call for help in the event of an accident.

• Always inspect the working area. Remove all loose objects such as stones, broken glass, nails, steel wire, string, etc., that could be thrown out or become wrapped around the cutting attachment.

• Make sure that you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etcetera) in case you have to move suddenly. Take great care when you work on sloping ground.

• Keep a good balance and a firm foothold at all times. Do not overreach.

• Deactivate the product before you move to another area. Attach the transport guard when the product is not in use. 1777 - 007 - 22.02.2023 7• Never put the product down unless you have deactivated it and removed the battery. Do not leave the product unsupervised when it is switched on.

• Make sure that no clothes or parts of the body come in contact with the cutting attachment when the product is activated.

• If anything jams in the blades while you operate the product, stop and deactivate the product. Make sure that the cutting attachment stops completely. Remove the battery before you clean, inspect or repair the product and/or the blades.

• Keep your hands and feet away from the cutting attachment until it has stopped completely when the product is deactivated.

• Watch out for stumps of branches that can be thrown out when you cut. Do not cut to close to the ground where stones and other objects can be thrown out.

• Watch out for thrown objects. Always wear approved eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etcetera, can be thrown up into the eyes which can cause blindness or serious injury.

• Listen out for warning signals or shouts when you wear hearing protection. Always remove your hearing protection as soon as the product stops.

• Never work from a ladder, stool or any other raised position that is not fully secured.

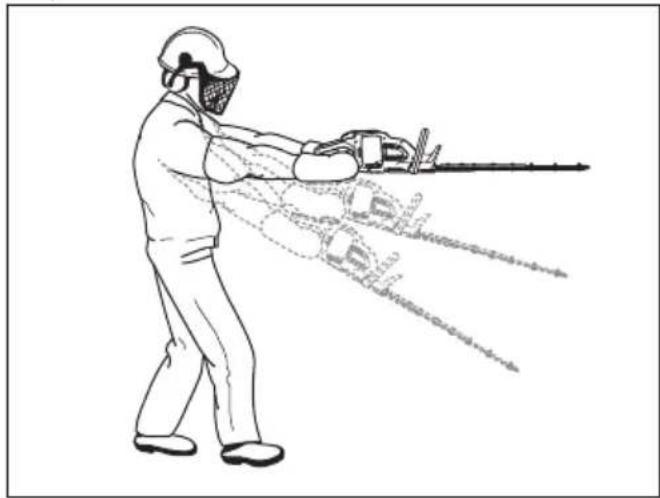

• Hold the product with your two hands. Do not cut above shoulder height. Personal protective equipment

Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

• Use a protective helmet where there is a risk of falling objects.

• Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.

• Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USA or EN 166 in EU countries.

• Use gloves when necessary, for example when you attach, examine or clean the cutting equipment.

• Use sturdy non-slip boots or shoes.

• Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do

1777 - 007 - 22.02.2023not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with bare feet. Put your hair up safely above shoulder level.

• Keep first aid equipment close at hand. Safety devices on the product

WARNING: Read the warning

instructions that follow before you use the product. In this section the product’s safety features, its purpose and how checks and maintenance should be carried out to ensure that it operates correctly. See instructions under the heading Product overview on page 2 to find where these parts are located on your product. The life span of the product can be reduced and the risk of accidents can increase if product maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

Never use a product with defective safety components. The product's safety equipment must be inspected and maintained as described in this section. If your product fails any of these checks, contact your service agent to get it repaired. CAUTION: All servicing and repair work on the machine requires special training. This is especially true of the machine′s safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent. To do a check of the keypad

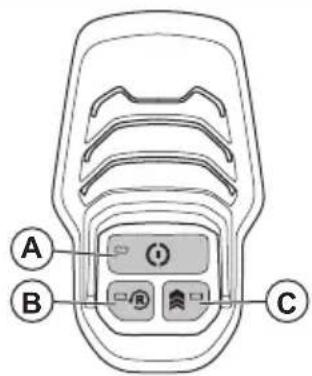

1. Press and hold the start/stop button (A). The

product is on when the LED is on.

blades operates in the opposite direction when LED is on.

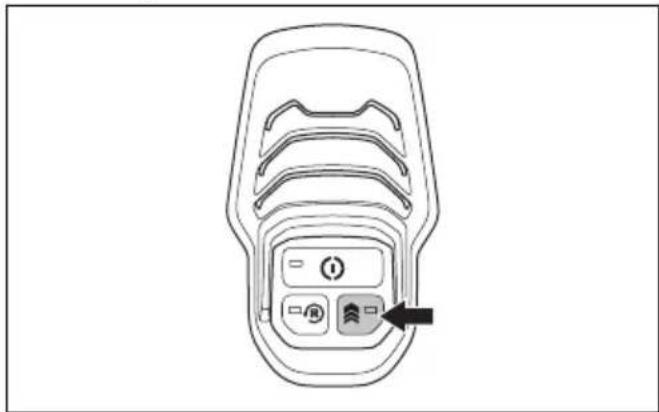

3. Press and hold the boost button (C). The

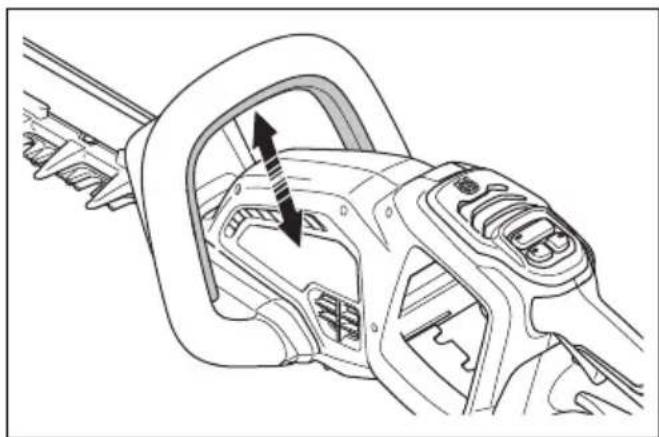

blade speed increases when the LED is on. To do a check of the power trigger lockout and power triggers The power trigger lockout prevents accidental operation. When you release the handle, the power trigger on rear handle and the power trigger lockout on the front handle both move back to their original positions.

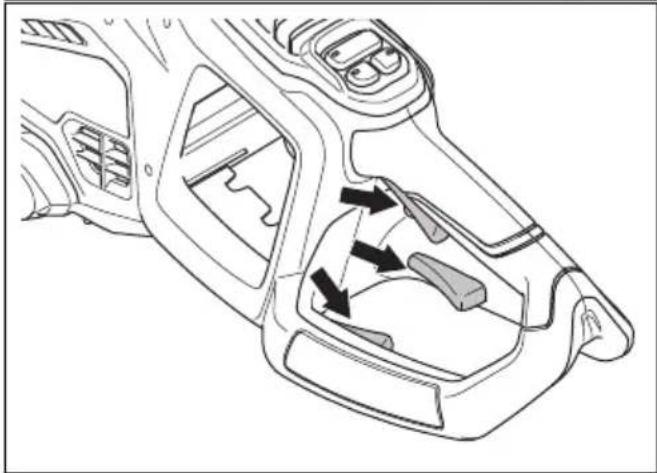

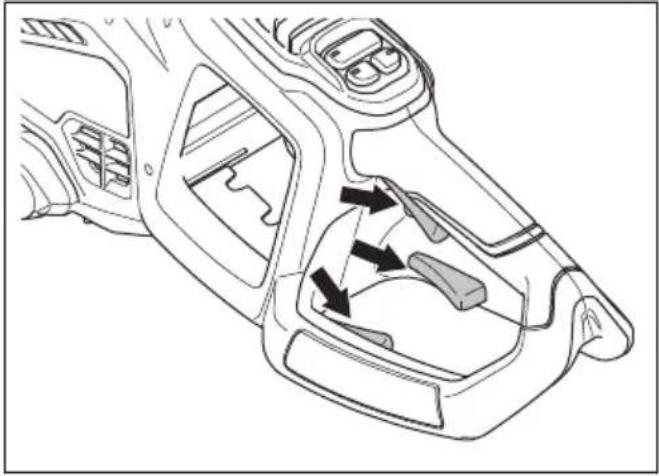

1. Start the product.

2. Press the power trigger lockout on the front

handle. 1777 - 007 - 22.02.2023

93. Press 1 of the power triggers on the rear

handle up to apply full power.

4. Release the power trigger on the rear handle

to check the free back movement of the power trigger. The blade must stop immediately.

5. Do step 3 and 4 for each of the other power

6. Stop the product.

8. Release the power trigger lockout on the front

handle. Make sure that the power trigger lockout returns to its original position. The blade must stop immediately. To do a check of the hand guard The hand guard prevents hands from accidental contact with the blades.

1. Stop the product.

2. Remove the battery.

3. Check that the hand guard is attached

4. Examine the hand guard for damages.

To do a check of the blades

1. Stop the product.

2. Remove the battery.

4. Make sure that the blades are not damaged or

bent. Replace the blades if they are damaged or bent. Battery safety

Read the warning instructions that follow before you use the product.

• Only use an approved Husqvarna rechargeable battery. Refer to Approved batteries for the product on page 18 . The battery is software encrypted.

• Use the Husqvarna battery that is rechargeable as a power supply for the related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.

• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.

• Do not use non-rechargeable batteries.

• Do not put objects into the air slots of the battery.

• Keep the battery away from sunlight, heat or open flame. The battery can cause burns and/or chemical burns.

• Keep the battery away from microwaves and high pressure.

• Do not try to disassemble or break the battery.

• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and soap, and get medical aid. If you get liquid in your eyes, do not rub but flush with water for a minimum of 15 minutes and get medical aid.

• Use the battery in temperatures between -10 °C (14 °F) and 40 °C (104 °F).

• Do not clean the battery or the battery charger with water. Refer to To clean the product, the battery and the battery charger on page 16

• Do not use a defective or damaged battery.

• Keep batteries in storage away from metal objects such as nails, screws or jewelry.

• Keep the battery away from children. Battery charger safety

Read the warning instructions that follow before you use the product.

• Risk of electrical shock or short circuit if the safety instructions are not obeyed.

• Use an approved grounded mains socket that is not damaged.

• Do not use other battery chargers than the one supplied for your product. Only use

• Do not try to disassemble the battery charger.

• Do not use a defective or damaged battery charger.

• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.

• Keep all cables and extension leads away from water, oil and sharp edges. Make sure that the cable is not caught between doors, fences or similar.

• Do not use the battery charger near flammable materials or materials that can cause corrosion. Make sure that the battery charger is not covered. Pull out the plug to the battery charger if there is smoke or fire.

• Only charge the battery indoors in a location with good airflow and away from sunlight. Do not charge the battery outdoors. Do not charge the battery in wet conditions.

• Only use the battery charger where the temperature is between 5 °C (41 °F) and 40 °C (104 °F). Use the charger in an environment which has a good airflow, dry and free from dust.

• Do not put objects into the cooling slots of the battery charger.

• Do not connect the battery charger terminals to metal objects as this can short circuit the battery charger.

• Use approved wall sockets that are not damaged.

• Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance's plug. Safety instructions for maintenance

WARNING: Read the warning

instructions that follow before you do maintenance on the product.

• Remove the battery before you do maintenance, other checks or assemble the product.

• The operator must only do the maintenance and servicing shown in this operator's manual. Turn to your servicing dealer for maintenance and servicing of a larger extension.

• Do not clean the battery or the battery charger with water. Strong detergent can cause damage to the plastic.

• If you do not do maintenance, it decreases the life cycle of the product and increases the risk of accidents.

• Special training is necessary for all servicing and repair work, especially for the safety devices on the product. If not all checks in this operator's manual are approved after you have done maintenance, turn to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.

• Only use original spare parts. SAVE THESE INSTRUCTIONS Operation Introduction

WARNING: Read and understand

the safety chapter before you use the product. To do before you start the product

1. Examine the work area. Remove objects that

2. Examine the cutting attachment. Make sure

that the blades are sharp, and have no cracks and damages.

3. Make sure that the product works correctly.

Examine that all nuts and screws are tight.

4. Make sure that the handle and safety devices

are not damaged and are attached correctly. Do not operate a product with missing parts or is changed from its initial specification. Use protective gloves when it is necessary.

5. Make sure that the covers are not damaged

and are attached correctly, before you operate the product. 1777 - 007 - 22.02.2023 11To connect the battery charger

WARNING: Only use the battery

charger in ambient temperatures between 5°C/41°F and 40°C/104°F.

1. Connect the battery charger to the voltage

and frequency that is specified on the rating plate.

2. Put the plug in a grounded power outlet. The

LED on the battery charger flashes red 1 time and green 1 time. To install the battery charger on the wall CAUTION: Do not use an electric screwdriver to install the battery charger to the wall. An electric screwdriver can cause damage to the battery charger.

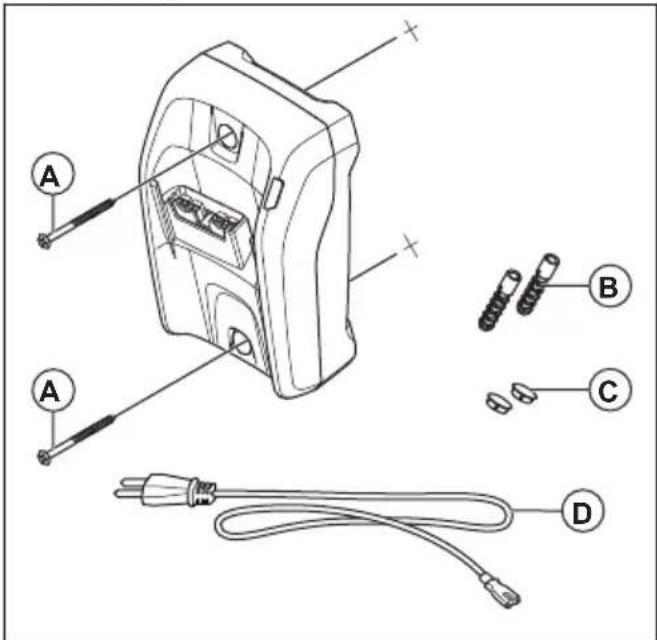

1. Install the battery charger on the wall with

the 2 screws (A). Use wall plugs (B) if it is necessary.

3. Connect the power cord (D) to the battery

charger and a mains socket. To charge the battery CAUTION: Make sure that the battery, the battery charger and the terminals on the battery are clean and dry. Do not put the battery in the battery charger if it is dirty or wet.

1. Connect the battery charger to a power outlet.

The charging LED flashes red 1 time and green 1 time. CAUTION: Only connect the battery charger to a power outlet with the voltage and frequency specified on the rating plate.

2. Connect the battery to the battery charger.

The charging LED comes on.

3. Remove the battery from the battery charger

when it is fully charged. Push the battery indicator button for battery status. When all the LED indicators come on, the battery is fully charged.

4. Pull the power plug to disconnect the battery

charger from the power outlet. Do not pull the power cord. To connect the battery to the product

WARNING: Only use Husqvarna

original batteries in the product.

1. Fully charge the battery.

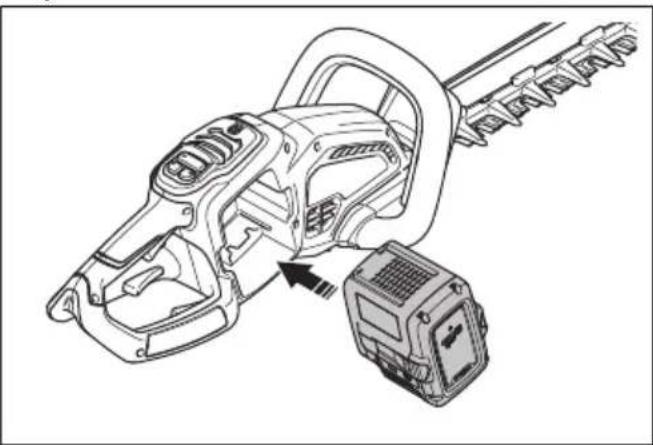

2. Push the battery into the battery holder of the

product. The battery locks into position when you hear a click. CAUTION: If the battery does not move easily into the battery holder, the battery is not installed correctly. This can cause damage to the product.

WARNING: Do not use the deflector

as a handle. Do not hold or move the hedge trimmer with the deflector. Install the deflector to make removal of cut material easier.

1. Stop the product.

2. Remove the battery.

4. Align the deflector with the grooves on the

6. Install the deflector retainer in the end of the

guide bar. To start the product

1. Push and hold the start/stop button until the

2. Push the power trigger lockout and one of

the power triggers for a standard operation position. To use the extended range position, push 2 of the power triggers. Note: The use of the power trigger lockout is only necessary if you start the product in the standard operation position. To operate the product

• Hold the product with your two hands. If you operate the product in the standard position, hold the product near your body for a stable work position. 1777 - 007 - 22.02.2023 13• If you operate the product at an extended range, make sure that you have a stable work position.

WARNING: Operation of the

product at an extended range can make you tired.

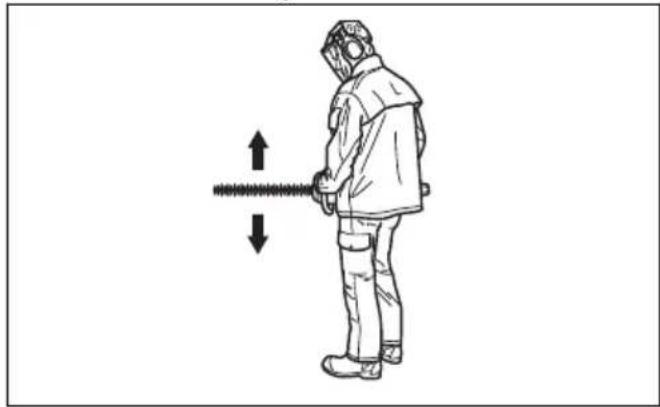

• Start near the ground and move the product up along the hedge when you cut the sides. Make sure that the body of the product does not touch the hedge.

WARNING: Make sure that the

front of the cutting equipment does not touch the ground.

• Use the 3 rear handles to operate the product at different angles.

• Be careful and operate the product slowly. To clear material from the blades

1. Press the reverse button.

2. Press 2 power triggers. The blade operates in

the opposite direction momentarily.

3. Press the power triggers again. The blade

operates in the usual direction.

4. If it is necessary, do step 1-3 again.

To temporarily increase the blade speed

1. Start the product. Refer to

To start the product on page 13

2. Press the boost button to get the maximum

blade speed. The LED comes on.

3. Release the boost button to use the product

with the initial blade speed. Automatic shutdown function The product has an automatic shutdown function that stops the product if it is not used. The green LED for start/stop indication goes off and the product stops after 45 seconds. To stop the product

1. Release the power trigger or the power trigger

2. Press the start/stop button until the green LED

1777 - 007 - 22.02.20233. Press the release buttons on the battery and remove the battery. Maintenance Introduction

WARNING: Read and understand

the safety chapter before you do maintenance work on the product.

WARNING: Remove the battery

before you do maintenance on the product. Maintenance schedule The following is a list of the maintenance steps that you must do on the product. Maintenance Before use Weekly Monthly Clean the external parts of the product. X Examine that the start and stop switch works correctly and is not damaged.

Make sure that the power trigger and the power trigger lockout func- tion correctly from a safety point of view.

Make sure that all controls work and are not damaged. X Make sure that the cutter blade and cutter guard have no cracks and that they are not damaged. Replace the cutter blade or the cutter guard if they have cracks or if they have been exposed to impact.

Replace the cutter blade if it is bent or damaged. X Make sure that the hand guard is not damaged. Replace the guard if it is damaged.

Make sure that the screws and nuts are tight. X Make sure that the battery is not damaged. X Make sure that the battery is charged. X 1777 - 007 - 22.02.2023 15Maintenance Before use Weekly Monthly Make sure that the battery charger is not damaged. X Make sure that the screws that hold the cutter blades together are correctly tightened.

Do a check of the connections between the battery and the product. Do a check of the connection between the battery and the battery charger.

To examine the battery and the battery charger

1. Examine the battery for damages, for example

2. Examine the battery charger for damages, for

3. Make sure that the connection cord of the

battery charger is not damaged and that there are no cracks in it. To clean the product, the battery and the battery charger

1. Clean the product with a dry cloth after use.

2. Clean the battery and battery charger with a

dry cloth. Keep the battery guide tracks clean.

3. Make sure that the terminals on the battery

and the battery charger are clean before the battery is put in the battery charger or the product. To examine the blade

1. Clean the blade from unwanted materials with

an anti corrosion cleaning agent before and after you use the product.

2. Examine the edges of the blade for damages

3. Use a file to remove burrs on the blade.

4. Make sure that the blades move freely.

To clean and lubricate the blades

1. Clean the blades from unwanted materials

before and after you use the product.

2. Lubricate the blades before long periods of

storage. Note: Speak to your servicing dealer for more information about recommended cleaning agents and lubricants. To lubricate the gear Apply grease to the gear housing if the gear has been disassembled by an approved servicing dealer.

• Use Husqvarna special grease. Speak to your servicing dealer for more information about recommended grease.

• Only use a small quantity of a special high quality grease. CAUTION: Do not fill the gear housing fully. Troubleshooting Battery LED display Possible faults Possible action The green LED flashes. Low battery voltage. Charge the battery. 16 1777 - 007 - 22.02.2023LED display Possible faults Possible action The error LED flashes. Temperature deviation. Use the battery in temperatures be- tween -10°C (14°F) and 40°C (104°F). Too much voltage. Make sure that the mains voltage aligns with the voltage stated on the rating plate of the product. Remove the battery from the battery charger. The error LED is on. Cell difference is too much (1V). Speak to your servicing dealer. Battery charger Problem Possible faults Possible solution Red error LED flashes. Temperature deviation. Use the battery charger in tem- peratures between 5 °C (41 °F) and 40 °C (104 °F). Red error LED comes on. Too much cell difference (1V). Speak to your servicing dealer. Transportation, storage and disposal Transportation and storage

• The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.

• Obey the special requirement on package and labels for commercial transportation, including by third parties and forwarding agents.

• Speak to a person with special training in dangerous material before you send the product. Obey all applicable national regulations.

• Use tape on open contacts when you put the battery in a package. Put the battery in the package tightly to prevent movement.

• Remove the battery for storage or transportation.

• Put the battery and the battery charger in a space that is dry and free from moisture and frost.

• Do not keep the battery in an area where static electricity can occur. Do not keep the battery in a metal box.

• Put the battery in storage where the temperature is between 5°C/41°F and 25°C/ 77°F and away from open sunlight.

• Put the battery charger in storage where the temperature is between 5 °C/41 °F and 45°C/ 113°F and away from open sunlight.

• Use the battery charger only when the surrounding temperature is between 5°C/41°F and 40°C/104°F.

• Charge the battery 30% to 50% before you put it in storage for long periods.

• Put the battery charger in storage in a space that is closed and dry.

• Keep the battery away from the battery charger during storage. Do not let children and other not approved persons to touch the equipment. Keep the equipment in a space that you can lock.

• Clean the product and do a full servicing before you put the product in storage for a long time. 1777 - 007 - 22.02.2023 17• Use the transportation guard on the product to prevent injuries or damage on the product during transportation and storage.
