683 - Fan Vornado - Free user manual and instructions

Product Type	Circulation Fan
Brand	Vornado
Model	683
Power Supply	220-240V, 50Hz, AC
Adjustable Height	Yes, with adjustment collar
Swivel Head	Yes, tilt and swivel
Removable Grill	Yes, for cleaning (models 533, 633, 683, 753)
Removable Blade	Yes, for cleaning
Grill Cleaning	Remove screws and clips, wash with soapy water, not dishwasher safe
Blade Cleaning	Remove the nut and blade, wipe with a damp cloth, no solvents
General Maintenance	Vacuum with brush for grilles and air vents
Overload Protection	Available via GFCI (Ground Fault Circuit Interrupter) on some outlets
Assembly Required	Yes, attaching base, pole, and feet
Height Adjustment	Unscrew collar, adjust, then retighten
Intended Use	Air circulation in indoor rooms only
Child Safety	Not suitable for children under 12 without supervision
Warranty	Warranty valid in destination country, subject to conditions
After-Sales Service	Contact the dealer or Vornado authorized importer
Spare Parts	Use only genuine Vornado parts
Documentation	Available in French, English, Spanish, and others upon request

Frequently Asked Questions - 683 Vornado

How to assemble the Vornado 683 fan?

Insert the power cord into the top of the base. Place the fan head onto the pole until the release shield snaps into place. Turn the locking collar counterclockwise to raise it. Attach the feet by inserting them into the grooves, then tighten the collar clockwise.

How to adjust the fan height?

Loosen the adjustment collar by turning it counterclockwise. Adjust the pole height, then retighten the collar clockwise until snug. Make sure the collar is locked before releasing.

How to clean the fan grill?

First unplug the unit. Remove the three screws at the 10, 2, and 6 o'clock positions (indicated by an arrow). Release the clips at the 2, 3, 7, and 10 o'clock positions. Wash the grill with mild soapy water, but do not put it in the dishwasher (heat could warp plastic). Reassemble in reverse order.

How to clean the fan blade?

Unplug the unit. Remove the nut from the shaft by turning clockwise. Take off the blade and wipe it with a damp cloth. For greasy kitchens, use mild soap. Do not use solvents. Reassemble by aligning the blade on the shaft and tightening the nut counterclockwise.

What to do if the fan does not turn on?

Check that the unit is plugged in and the outlet works. Make sure you have selected a speed. If the GFCI (Ground Fault Circuit Interrupter) is tripped, reset it or plug the fan into a non-GFCI outlet. If the problem persists, contact customer service.

Why is the airflow weak?

Make sure the speed is set to a higher level. Check that nothing is blocking the grill or air inlets. Direct the circulator towards the user. If the problem persists, the unit may be damaged; stop using it and contact a professional.

The GFCI trips when I use the fan. What should I do?

Some Vornado fans may cause a GFCI (Ground Fault Circuit Interrupter) to trip. Try plugging the fan into a non-GFCI protected outlet. If the problem persists, have the outlet checked by an electrician.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not expose it to weather or use it in a window. It should not be placed in a bathtub, shower, or near water.

How to obtain spare parts?

Contact the dealer or Vornado authorized importer. Use only genuine parts to avoid voiding the warranty. For repairs, contact an authorized service center.

What is the required power supply voltage?

The fan operates on a 220-240V, 50Hz, AC electrical outlet. Do not use with an external voltage converter; this will void the warranty.

USER MANUAL 683 Vornado

We expect this product to be perfect.

If it is not, we will make it right.

vornado.com.au 1800099012 [e-mail]

CONTENTS

Important Instructions 4

Stand Assembly & Adjustment 9

Cleaning. 10

Warranty 14

Fangge 0.15 Lepando 29

2 Eqs

English 3

IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING.

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. Please refer to vomado.com.au for the most current version of our owner's guide.

The following Warning messages are throughout this owners guide:

DANGER

Indicates a hazard with a HIGH level of risk which, if not avoided, will result in death or serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

WARNING

Indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Indicates additional information that will assist in the care of handling of the device.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only. This product is not intended for commercial or industrial uses. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING - When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING

Risk to Children and Other at Risk Groups of People.

This appliance can be used by children aged from 12 years and above. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
This product and its packaging material are no and should be kept out of reach of children.

WARNING

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks

to people or property.

• Do Not use this product outdoors or directly exposed to weather.
• Do Not use this device if condensation is present. If the product is brought in from the cold to a warm area (e.g., during transport), condensation can occur within the unit. Let the device reach room temperature, before using it.
• Do Not use this product on wet surfaces. Do not use this product in a bathtub, shower or locate product where it may fall into a bathtub, laundry, swimming pool or other water container.
• Do Not immerse this product in water or allow water to drip into the motor housing.
• Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
• Do Not position this product too close to draperies or other loose fabrics as they may be drawn into the product, cutting off airflow and damaging the motor.
  Do Not carry this product by the cord, or use the cord as a handle as it can damage internal wiring. Do not unplug product by pulling on cord or place the cord under strain. To unplug, grasp the plug, not the

power card.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
Do Not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. To avoid a tripping hazard, safely coil/store the power cord.
Do Not temper with or modify this product in any way.
Do Not allow the power card to come in contact with water or wet locations.
Do Not place power cord near heat sources, such as heaters or radiators.

ELECTRICAL CONNECTION: Only a proper 220-240V-50Hz AC outlet may be used to connect to public power supply.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!

• Do Not touch the product with wet or damp hands.
  Do Not operate any product with a damaged cord or plug or after the product malfunctions, has been dropped or damaged in any manner. Discard product, or return to authorized service facility for
  examination and/or repair in order to avoid a hazard. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  Do Not stretch: the power cord or put the cord under strain.
  Ensure that the fan is switched off from the supply mains before removing the guard.
  Do Not insert or allow foreign objects to enter any input or output opening as they may cause risk of electric shock or fire, or damage the product. Turn off all controls before unplugging. Unplug from wall outlet if not in use for extended periods of time.
  Do Not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center. Only original replacement parts may be used.

• For safety reasons, always unplug the unit in the event of a thunderstorm.

WARNING

Risk from Improper Installation. Please take care to follow these guidelines to avoid risks to people or property.

• Ensure that wall power outlet is easily accessible so unit can be disconnected during an emergency.
  To reduce the risk of fire or electrical shock, do not use this product with any external (solid state) speed control device.
  To reduce the risk of fire or electric shock and injury to persons, do not use in a window.

SAVE THESE INSTRUCTIONS

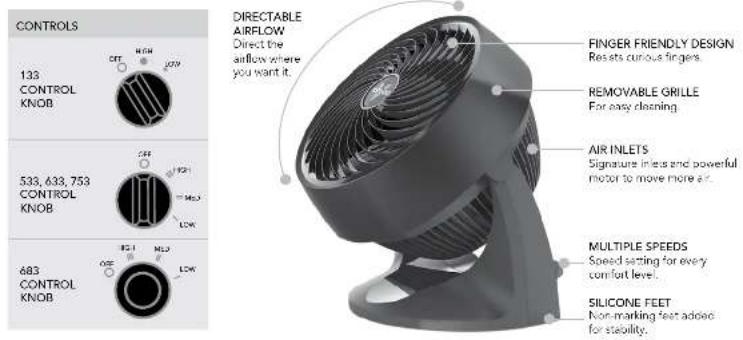

FEATURES

Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Air Circulator, you will not have to set your summertime thermostat as low or your wintertime thermostat as high.

8 E

STAND ASSEMBLY & ADJUSTMENT

(MODE683) No tools required. STAND ASSEMBLY

1. Insert power cord (A) into the box of 'Pole and pull through the bottom.
2. Push the Circulator Head into the Pole. Push until the Lock Release Button (BI) snaps through the Hole (CO).
3. Remove the Fastening Nut (D) secured on the underside of the base. Rotate Fastening Nut counter-clockwise to remove.
4. Ascouple Legs onto the base of Pole by pushing each Leg onto the grooves (E). Replace Fastening Nut (F) by rotating clockwise to secure all the Legs in place

HEIGHT ADJUSTMENT (31-38 INCHES) 1.Support the Circulator (A) with one hand. Use other hand to loosen A Adjustment Coller (B) relating a counter-slo

2.5 early side or lower the Pore to the desired height and secure into position by controlling the correct Hammer落户 locking unit. Light.

Note: Before adjusting the height or rotating the feed, check that the power cord is not angled and able to move freely.

After adjusting height, ensure that the Adjustment Column is fully tightened and engaged to ensure Circus motor head does not rotate and bind power cord.

CLEANING

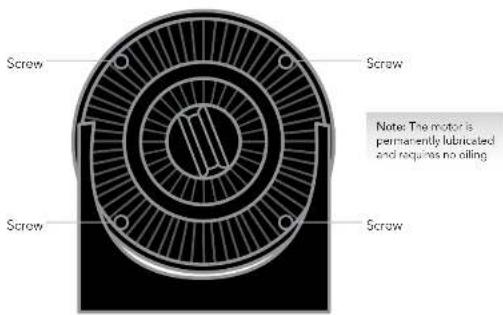

GRILLE REMOVAL (MODEL 133) Screwdriver required.

WARNING To reduce the risk of electrical shock and injury to persons, power off and unplug the circulator before removing grille.

1. Remove the 4 screws located on the back of the inlet grille, at roughly 2.5, 7 and 10 clock points, to release the Front Grille.
2. Dust or wash from Grillie with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive heat can distort the plastic.
3. To reach such position the Front Grille so the Vorradic logs in the center of the Front Grille is straight. Replace all the screws.
   Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the front grille and Air Inlets.

10E

CLEANING

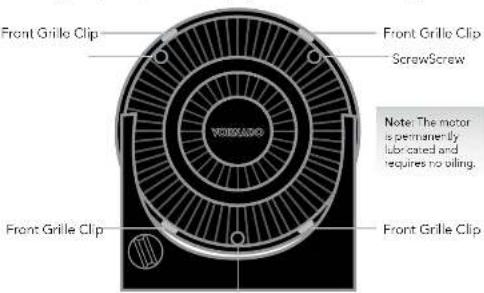

GRILLE REMOVAL (MODELS 533,633,683,753)

WARNING: To reduce the risk of electrical shock and Injury to persons, power off and unplug the circulator before removing grille.

1. Remove the 3 screws located in between the ribs of the inlet grille at roughly 10, 2, and 6 o'clock positions. Screw locations are also indicated with an arrow - on the circulator. Do Not remove the 2 screws on the pivot arms. Re-raise the front Grille Clips located at the 2, 5, 7 and 10 o'clock positions.

2. Dust or wash front grille with a mild dustwashing soap. Do not also grille in the dishwasher. The excessive heat can distort the plastic.

3. To reattach - align the 'Front Gird' Clips with the holes and firmly snap each cip back into place, Replace all the screws.

Model 03 does not have arrow indicators.

1b Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grillie and Air Inlets.

Screw

English 11

CLEANING

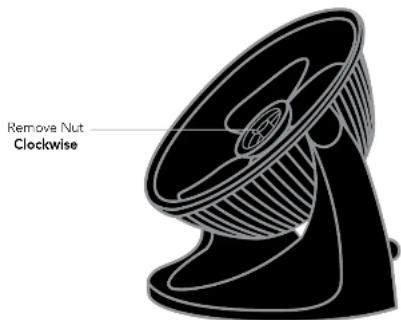

BLADE REMOVAL Piers required.

WARNING: To reduce the risk of electrical shock and injury to persons, power off and unplug the circulator before removing blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Pull the blade straight out from the shaft.
2. Wrap the blade with a damp cloth, if your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blades in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - be certain the flat side of the shaft; aligns directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottom out. Do not use a hammer as this could result in bearing damage. Reinstall nut.

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit falls to power on.

Unit is not plugged in. Pug Power Cord into electrical outlet.

Ensure unit fan speed setting is selected.

Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.

The outlet is worn or damaged. Try another outlet or contact a qualified electrician.

Unit set to a low speed setting. Adjust to a higher speed setting.

Airflow is blocked. Remove obstruction.

Adjust direction of airflow towards the user.

QFCI has tripped.

Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupted) outlet to trie when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet.

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

Warranty Terms and Conditions:

Please contact the retailer where purchased or contact the authorized importer before returning the product for a warranty claim. The producer warranty will be honored on models that are being used in the country intended. See the silver rating label on the product to confirm the safety testing marks which identify the specific country of intended use. Please provide a copy of your receipt with the defective product when returning to the authorized location. Repairs performed after the warranty period, are subject to a charge.

The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product

use or unauthorized product modification. Improper product use includes using an external device that alters or converts the voltage or frequency of electricity. Such use will invalidate the product warranty. The product will be considered modified if the rating label has been removed, thus making the warranty void.

Repair by an unauthorized service center or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties.

Shipping a Vornado product to a courtly not intended for use, will.
will all warranties.
