TE204XF1 - Barbecue BRANDT - Free user manual and instructions

Product Type	Built-in electric barbecue
Brand	BRANDT
Model	TE204XF1
Power Supply	230 V / 2400 W
Power	2400 W
Power Cable	H05RR-F (3x1.5 mm²) or H05RN-F (3x1.5 mm²)
Cooking Levels	1 to 11 (including grill position with thermostat off)
Thermostat	Built-in, can be turned off in grill position
Included Accessories	Lava rock tray (recommended) or water
Material	Steel and painted parts
Installation Type	Built-in worktop
Maintenance	Periodic cleaning with non-abrasive products, avoid chlorine and acids
Safety	Disconnect before maintenance; mandatory grounding
Recommended Preheating	10 minutes at position 1
Usage	Quick grilling, even cooking with lava rock

Frequently Asked Questions - TE204XF1 BRANDT

How to use the barbecue as a grill?

Turn the control knob to position 11. A slight click indicates that the thermostat is off, and the heating element turns red. Use intermediate positions for gentler cooking.

What is the role of the lava rock?

Lava rock absorbs oil and grease drips during cooking, accumulates heat, and allows even cooking similar to charcoal.

Can I use charcoal?

No, never use charcoal or similar fuel. This appliance is designed for electric operation only.

How to clean the appliance?

Disconnect the appliance before cleaning. Use non-abrasive, non-corrosive products. Avoid chlorine-based products (bleach) and acidic or alkaline substances (vinegar, salt, lemon juice).

What is the electrical power?

The power is 2400 W at 230 V. The cable must be type H05RR-F or H05RN-F (3x1.5 mm²).

How to install the appliance?

Installation must be carried out by a qualified professional. The appliance is built into a worktop. Comply with current standards, especially mandatory grounding. A multipolar switch with a minimum opening of 3 mm is required for direct connection to the mains.

What to do if the heating element does not heat?

Check that the appliance is properly plugged in and the circuit breaker has not tripped. Make sure the thermostat is not in the off position. If the problem persists, contact a professional.

Can I use water in the tray?

Yes, you can pour water (about 3 cm) instead of lava rock. Water eliminates unpleasant odors without compromising performance.

How to preheat the lava rock?

Set the thermostat to position 1 and preheat for at least 10 minutes. This prevents food from absorbing odors from the heating element during first use.

Which cleaning products to avoid?

Avoid chlorine-based products (bleach) and acidic or alkaline substances (vinegar, salt, lemon juice). Use only non-abrasive products suitable for steel and painted surfaces.

USER MANUAL TE204XF1 BRANDT

The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to printing or copying errors. We reserve the right to make on our own products those changes to be considered necessary or useful, without jeopardizing the essential characteristics.

Simple line drawing of a clipboard with horizontal lines and a circular button at the bottom (no text or symbols)

mng.9511175300

Fig. 1

288 510 494 270

mng.9912210800 20 30

600 55 MIN. mmg 99 122 10200 15 MIN.

mng:9912210300 200 MIN. 600 MIN. 200 MIN.

Apparecchio classe I tipo Y
Apparatus class I Type Y
Appareil de classe I type Y
Gerät der Klasse I Typ Y
Aparato clase I tipo Y
Apparaat klasse I typo Y
Aparelho classe I tipo Y

Fig. 2

BARBECUE

libretto istruzioni	1
operating instructions	5
notice d'emploi	9
Bedienungsanleitung	13
manual de instrucciones	17
instructieboekie	21
manual de instruções	25

QUESTO PRODOTTO È STATO CONCEPITO PER UN IMPIEGO DI TIPO DOMESTICO. IL COSTRUTTORE DECLINA OGNI RESPONSABILITÀ NEL CASO DI EVENTUALI DANNI A COSE O PERSONE DERIVANTI DA UNA NON CORRETTA INSTALLAZIONE O DA USO IMPROPRIO, ERRONEO OD ASSURDO.

THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE, WRONG OR ABSURD USE.

CE PRODUIT EST CONÇU EXCLUSIVEMENT POUR USAGE DOMESTIQUE. LE CONSTRUCTEUR DÉCLINE TOUTE RESPONSABILITÉ POUR DOMMAGES ET BLESSURES CAUSÉES PAR UNE INSTALLATION INCORRECTE OU PAR UN USAGE IMPROPRE, ERRONÉ OU ABSURDE.

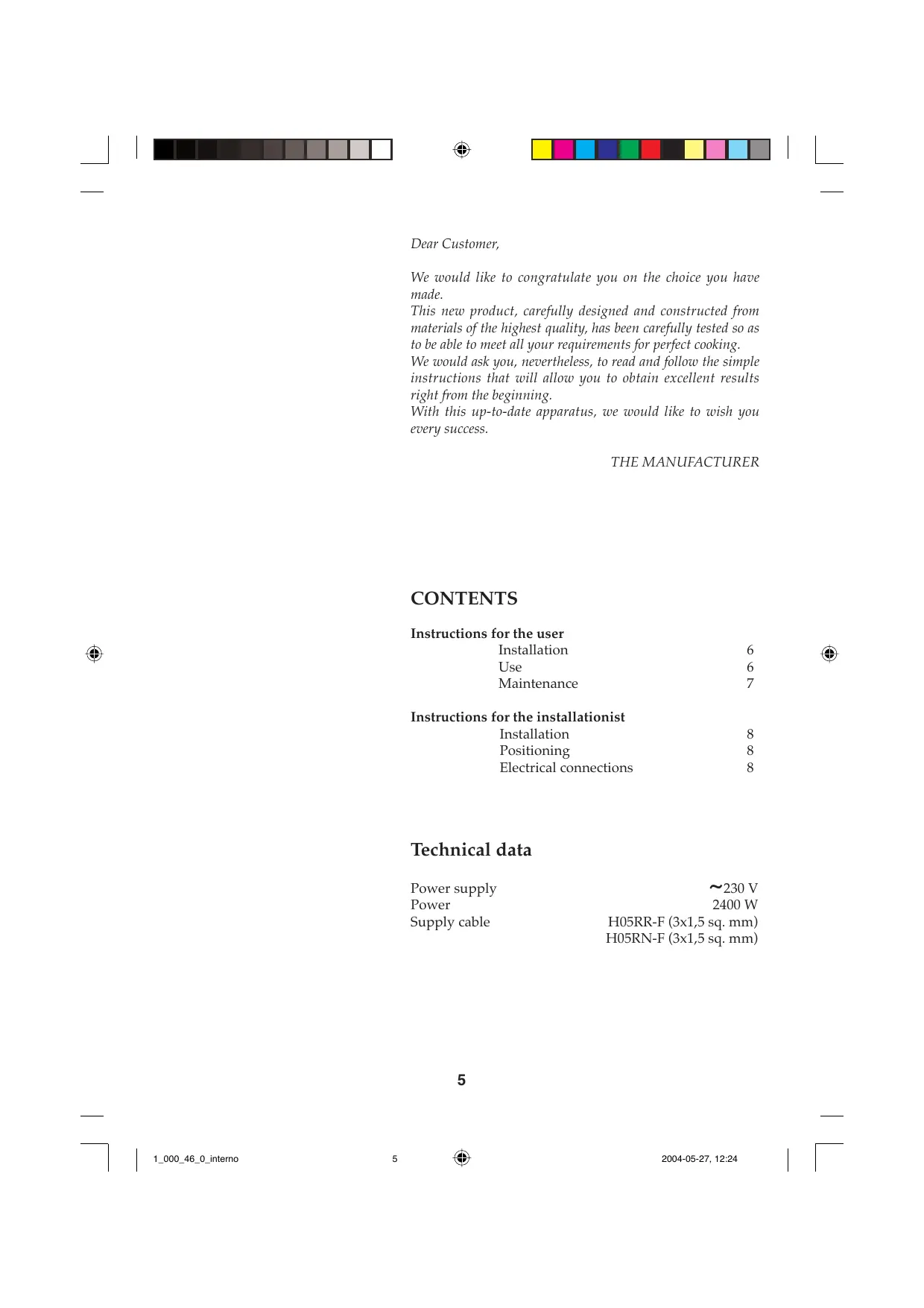

We would like to congratulate you on the choice you have made.

This new product, carefully designed and constructed from materials of the highest quality, has been carefully tested so as to be able to meet all your requirements for perfect cooking.

We would ask you, nevertheless, to read and follow the simple instructions that will allow you to obtain excellent results right from the beginning.

With this up-to-date apparatus, we would like to wish you every success.

THE MANUFACTURER

CONTENTS

Instructions for the user

Installation	6
Use	6
Maintenance	7

Instructions for the installationist

Installation	8
Positioning	8
Electrical connections	8

Technical data

Power supply 230 V

Power 2400 W

Supply cable H05RR-F (3x1,5 sq. mm)

H05RN-F (3x1,5 sq. mm)

5

Instructions for the user

Installation

All the operations relating to the installation (electrical connection) must be carried out by qualified personnel according to the regulations in force.

Use

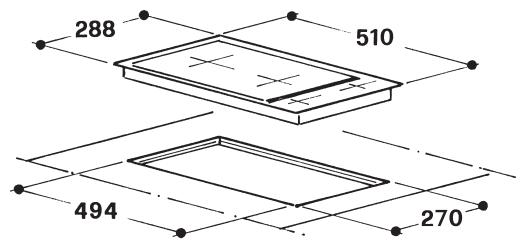

(Fig.1) The barbecue allows you to grill your food fast. Using the control knob on the front panel, you can turn on the heater that can cook faster or more slowly, according to the settings from 1 to 11. It works as a grill by turning the knob to position 11. You will notice a slight click that shows that the thermostat has been turned off, and the heating coil soon gets red hot.

This does not mean that you cannot get very good grilling results from the intermediate positions. On the contrary, these positions are recommended for cooking delicate dishes, or to cook the food evenly overall, and right into the middle as well.

The lava rock in the tray is provided to absorb the drips of oil or grease that are produced during cooking. As well, it accumulates heat during the start-up phase of the heater, and so gives you a more constant grilling performance, which is very similar to that obtained from charcoal.

Water can be put into the tray, instead of the lava rock. (We suggest a depth of about 3 cm or one inch.) The presence of water in the tray eliminates unpleasant cooking smells, without reducing the performance of the barbecue in any way.

To obtain the best results, we therefore recommend pre-heating the lava rock for at least 10 minutes at position 1. This is particularly advisable when you turn on the equipment for the first time, because it allows you to reduce the risk, during cooking, of the food absorbing smells that the heating coil produces when it is first switched on.

Maintenance

Before doing any operation, cut off the electricity from the apparatus.

In order to give your equipment a long life, it is vital to thoroughly clean it all over, remembering the following points:

• the steel and/or painted parts must be cleaned using suitable products (available on the market) which are not abrasive or corrosive. Avoid products based on chlorine (bleach, etc);
• avoid leaving acids or alkalis on the work surface (vinegar, salt, lemon-juice, etc.)

CHARCOAL OR SIMILAR COMBUSTIBLE FUEL MUST NOT BE USED WITH THIS APPLIANCE.

7

Instructions for the installationist

Installation

These instructions are intended to be used by a qualified installationist, who will be responsible for the installation, adjustment and maintenance according to the laws and regulations in force.

All operations must always be carried out with the equipment disconnected from the electricity.

Positioning

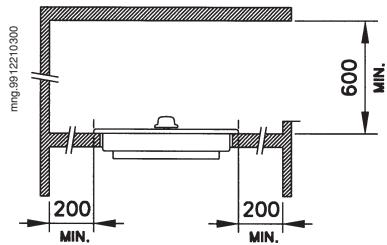

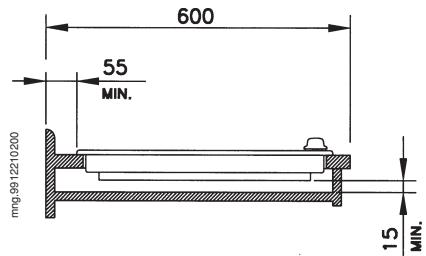

(Fig. 2) The apparatus is designed to be set into a work surface, as shown in the relevant illustration.

Fit the seal provided round the whole perimeter of the surface.

Electric connections

Before connecting up the electricity, ensure that:

• the specification of the system is such as to match that shown on the serial number plate applied to the underneath of the work surface.
• the system is supplied with an efficient earth connection to the ground, according to the regulations and the laws in force. The earth connection is obligatory by law.

In the case where the equipment is not supplied with cable and/or relevant plug, make use of materials suited to the input current shown on the serial number plate, and to the working temperature. The cable must not reach a temperature of more than 50^ C higher than the ambient temperature in any part of its length.

In order to connect directly to the mains supply, it is necessary to insert a multipolar switch with a minimum aperture between contacts of 3 mm, of a size suitable for the load marked on the plate, and conforming to the regulations in force (the yellow and green earth cable must not be turned off by the switch). The plug or multipolar switch must be easily reached with the equipment installed in position.

N.B.: The manufacturer declines any responsibility in the case where the above and the normal accident prevention regulations have not been respected.
