USER MANUAL SC300BSA SCHNEIDER

Serie/séries SC300SB powered by Android TV

SC-LED43SC300BSA

Safety and warnings ......2

Warnings and cautions....10

Introduction....11

Installation....12

Remote control....16

Operation....17

Trouble shooting....27

Cleaning instruction....28

Technical data sheet....29

SÉCURITÉ ET AVERTISSEMENTS

CONSIGNES DE SÉCURITÉ IMPORTANTES

Black triangular warning symbol with a lightning bolt and downward arrow (no text)

ATTENTION

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR !

Black triangular warning symbol with exclamation mark (no text or numbers)

ATTENTION POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU LA PARTIE ARRIÈRE DU BOÎTIER). LE TÉLÉVISEUR NE CONTIENT AUCUNE PIÈCE REMPLACABLE. CONFIEZ LES RÉPARATIONS AU PERSONNEL QUALIFIÉ.

Illustration of a computer monitor with warning symbols and a crossed-out cable, no text or labels present.

Avertissement

Simple line drawing of a monitor with a cross symbol and a hanging curtain (no text or symbols)

Avertissement

Simple line drawing of a computer monitor with a crossed X symbol and stars above (no text or symbols)

Avertissement

Simple line drawing of a computer monitor with a curved frame and a base, emitting steam (no text or symbols)

Attention

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Attention

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Attention

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Attention

Illustration of a person running away from a computer monitor with a bomb icon (no text or symbols)

Attention

Technical line drawing of a device rear panel with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a device rear panel with mounting holes and internal components (no text or symbols)

M4X14MM M4X14MM

Panneau avant

① ② ③ ≤8m

Searching for accessories... Search the following key insights: - 1. This is a search engine tool, which is used to create a new search engine tool (e.g., a web browser, a desktop browser, or a network). It is also used to create a new search engine tool (e.g., a web browser, a desktop browser, or a network). The search engine tool is currently used to create a new search engine tool (e.g., a web browser, a desktop browser, or a network).

Welcome Gett Create Create Create Create Create Create Create

Quickly set up your TV with your Android phone? You can easily transfer your Android phones with network and Google Accounts to your TV

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Trading, and the Google Play Terms of Service. Terms of Service Privacy Trading Play Terms of Service This device may also receive and install updates and sign from Google, your device's manufacture, or your operator. Some of these apps may offer up-to-date app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also converts and temporarily overlay the voice and audio history from microphone use to improve the product experience.

Google Location Let Google user device's location to improve your experience. Custom application or platform capabilities, such as streaming text content at live programming, may require your device's location to function correctly. We may choose whether to share this information with a third party app at the event that apps are installed online. You can adjust these permissions at anytime from Settings.

Google Help improve Android Automatically send diagnostic information to Google, like credit reports and usage data from your device, apps, and Chromosome built in. This information isn't used to identify you. You can adjust these preferences at any time from device settings. Learn more at your Android/Chrome help and your card/Service status.

Gates Gates: 100% of the company Proceeds Grant Purchase Filing Aircraft Company Other Licensing

Password Password not password, while masked Input Password

Input Password New Password

Confirm Password Confirm Password

Select TV mode Home "Hotel" is a game that is offered to pre-peak for home app "Hotel" is a command to show the same game with best action. local

Select Home Mode? Yes No

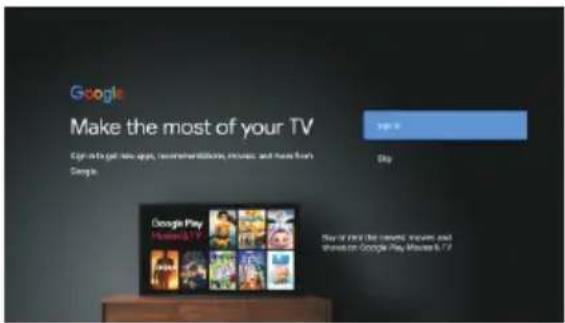

Chromecast built-in always available 64 All the devices are installed as a Google's device and also Google Internet and other services to write. This is currently prepared to Chat separately, then with property and the access of it. 65

Channel Scan First, please connect website. Next Channel Scan tool? If you do not check the channel scan and then performed or else. Scan Step Scan

Setup is completed. Enjoy! Completed Initial Setup is completed. Please choose BNTC10 to start the next.

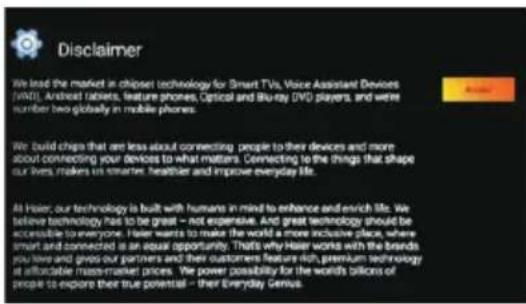

Disclaimer We lead the market in chipset technology for Smart TVs, Voice Assistant Devices (VAD), Andrest tablets, feature phones. Optical and Blu-ray DVD players, and were number two globally in mobile phones. We build chips that are less about connecting people to their devices and more about connecting your devices to what matters. Connecting to the things that shape our lives, markers on smartphones, healthier and improve everyday life. At Hisler, our technology is built with humans in mind to enhance and enrich life. We believe technology has to be great – not expensive. And great technology should be accessible to everyone. Hisler wants to make the world a more inclusive place, where smart and connected is an equal opportunity. That's why Hisler works with the brands you love and gives our partners and their customers feature rich, premium technology at affordable mass-market prices. We power possibility for the world's billions of people to explore their true potential – their Everyday Genius.

Screenshot of a mobile app interface showing navigation tabs and media thumbnails with Chinese labels

TV options Streamless Power TV Cash Master Dash Master Dash Options Settings

11:42 Settings Simula Osserua

Settings Data Settings Take Shop report General Settings Network & Internet to remote connected Channel Accounts & sign-in to persons Apps Device Preferences Remnties & accessories

Network & Internet Wi-Fi Wireless networks 3686 ChinaNet Weiji iServer-CTS See all Other options Add new network Scanning always available Let Goewis location venture and other rights cast file networks, next when Wi-Fi is 007

Network & Internet High view security Scanning always available Let People's launch server and other access with the network, and what IP 1 or IP Wow w/o on wireless network W/o/ w/o on LAN Internet Not connected Proxy settings IP settings

CHAÎNES

Channel Channels Channel Installation Mode Audio Auto Channel Update Parental Controls Audio Channel Open Source Licensee Version 2.08.0 (unit: 962192)

Channel Installation Mode Antenna Cable

Channel Channels Channel Installation Mode Access Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licenses Version 2.06.5-9:18 16321467

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan LON Inletbox Channel Scan Type 60 Channel Sture Type 60 Favorite Mechanical Discount

1.

Status: Scanning Analog Channels/0 Digital Channels/0 Antenna 3% Exit

Search for Analog Channels Scan Frequency (MHz) 47.00 Scan Up Scan Down

Scan Single RF Channel. (Digital Only) Antenna Digital Channels: 0% RF Channel Signal Level 0% Signal Quality 0%

Channel Installation Mode all things value

Channel Scan Subarray Other

Scan all channels. ON Channel Scan Type Only Digital Channels <> Frequency (kHz) Network ID Scan

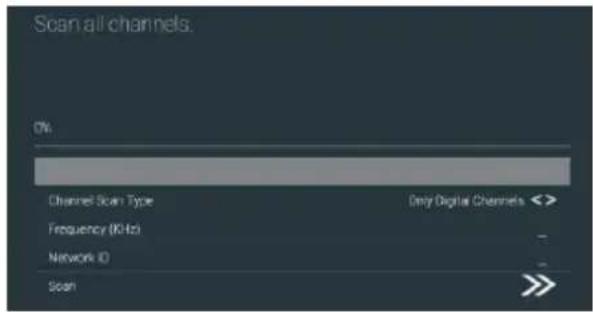

Scan all channels 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (kHz) 206,000 Network ID 599 Size >>

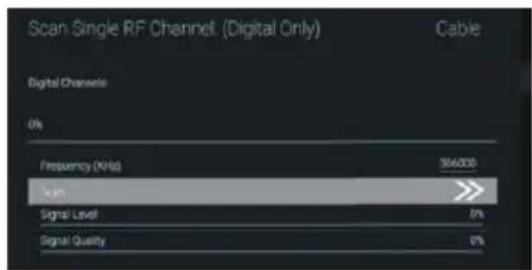

Scan Single RF Channel (Digital Only) Cable Digital Channels: 0% Frequency (MHz) 306/200 Scan Signal Level 0% Signal Quality 0%

Apps Sustainly opened apps Live TV 11 minutes ago Google Play Store 14 minutes ago Google Play Movies & TV 18 minutes ago See all apps Permissions App permissions Special app access

Date & time Automatic date & time Use network-provided time Set date August 8, 2015 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Component Component Consumer Elements Control (CEC) HDMI control Allow the TV to control HDMI devices Device auto power off Power off HDMI drivers with the TV TV auto power on Power on the TV with HDMI device HDMI FDDI Version USB 1.4 CEC Device List

Picture Picture Mode between Backlight 100 Brightness 50 Contrast 50 Saturation 50 HUE 0 Sharpness 12 Gamma middle

Picture Sharpness 12 Gamma Middle Color Temperature HDR On Advanced Video Color Tuner 11 Point White Balance Correction Reset to Default

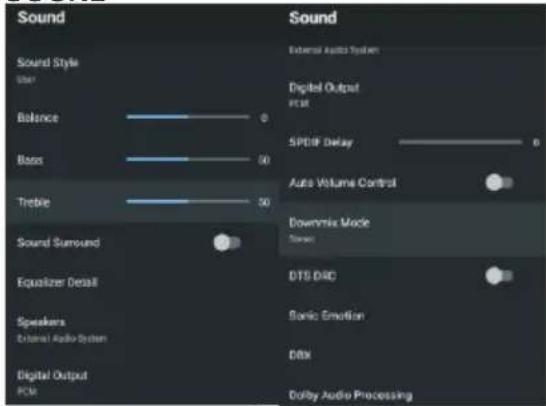

Sound Sound Style Viter Balance Bass Treble Sound Surround Equalizer Detail Speakers External Audio System Digital Output PCM Sound External Audio System Digital Output PCM SpOIP Delay Auto Volume Control Downmix Mode Name DTS DAC Binary Emotion DBX Dolby Audio Processing

Sound Downmix Mode Sense DTS DRC Sonic Emotion DBX Dolby Audio Processing DTS Virtual X DTS-StudioSound 2 Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

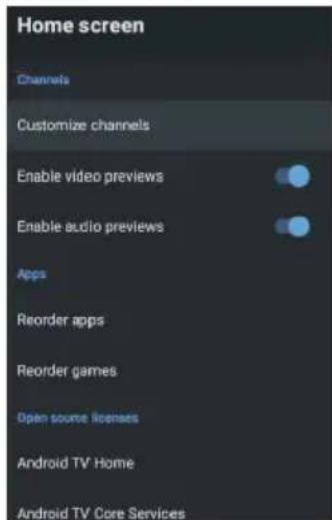

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode off

Google Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

Chromecast built-in About Open source licenses Version number 1.26.154871

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

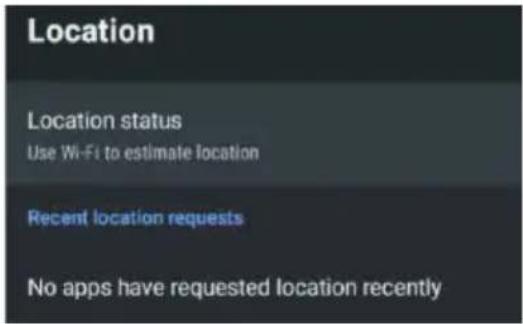

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

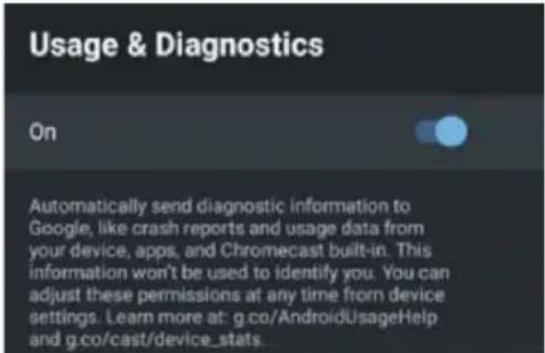

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

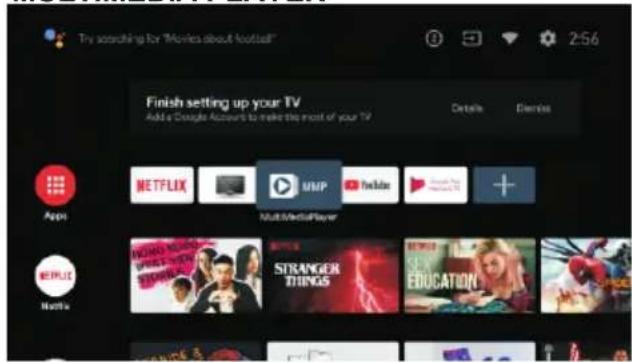

Search modules TV available Finish setting up your TV CONNECTED WITH TV MODE Audio Description Video/Video Random Audio Capture High contrast text Experimental Accessibility Audio Description Video/Video Random Audio Capture High contrast text Experimental Get into Home

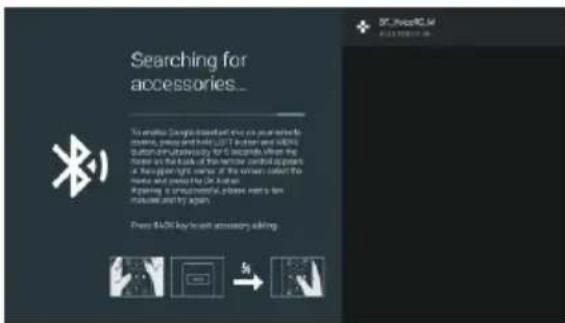

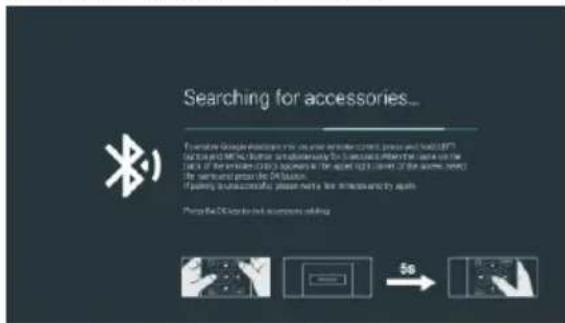

Searching for accessories... To ensure Google access to your server control, press and hold LIFT? By linking to MSCI Linux, we can also verify that the access is required to use on the data of the server control system in the upper right corner of the server, then the name and press on the server. If using instantaneous please note low intracurrency again Press the DSCs for their accessories adding 56

Searching for accessories... To enable Single sensor tool on your own device, press and drive USB touch and wireless button to maintain 40 seconds. When the touch is the body of the wireless button generates a foreign light source of the screen color. To make and press the USB touch, it opens a wireless button to press a few minutes and again. Press BLSC key to set accessory editing.

Starts outside TV and here Finish setting up your TV Add: additional subscribers to finish the video of your TV ETFLOX YouTube NUKE A CITY Remotes & accessories Mistocracy IT.Vice3.342 Download

Try searching for "Movies about football" Finish setting up your TV Add a Google Account to make the most of your TV Details Details App NETFLIX MullMediaPlayer Netflix Stranger MILKOS NATUA EDUCATION

Prohibition sign with Chinese text and pictograms of spray bottles and a window, no readable text or symbols beyond the prohibition symbol.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of

the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as :

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
• In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Black triangular warning symbol with a lightning bolt and downward arrow (no text)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN!

Black triangular warning symbol with exclamation mark (no text or numbers)

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this unit.

WARNING :

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING :

The batteries shall not be exposed to excessive heat such as sunshine, fire ro the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes

throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it re sponsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Illustration of a computer monitor with a warning symbol and a crossed-out line, no text or symbols present.

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross symbol and a hanging screen, no text or symbols present.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a crossed X symbol and stars above (no text or labels)

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with a stand and curved frame (no text or symbols)

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Caution

Do not trap the power supply cord under the television receiver.

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Illustration of a person reacting to a ringing phone with a circular device (no text or symbols)

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Minimum distances

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Thank you very much for purchasing this TV. To enjoy your product from the very beginning, read this manual carefully and keep it handy for easy reference.

CAUTION

Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual. All LED-TVs are high voltage instruments. When you clean up dust or water drops on the LED PANEL or CABINET, the power cord should be pulled out from the receptacle, then wipe the TV with a dry soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by qualified TV service personnel.

INSTALLATION

*Locate the TV in the room where light does not strike the screen directly.

*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

*Allow enough space between the TV and the wall to permit ventilation.

*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

*Do not cover the ventilation openings when using the TV.

Main features

① Used as Television, display terminal, PC display;

② High luminance, wide viewing Angle;

③ NICAM;

Viewing Picture Size (Diagonal)	43"
Resolution	3840 x 2160
Aspect Ratio	16:9
TV System	PAL-B/G, I, D/KSECAM-B/G, D/K, LDVB-T, DVB-C,DVB-T2
Input Power Voltage	AC 100-240V 50/60Hz
Power consumption	78W
Audio Output Power (THD≤7%)	2x8W
Signal Input	High-Definition Multimedia Interfac (HDMI) x 4AV IN x 1RJ45 x 1USB x 3ANT x 1CI x 1
Signal Output	Headphone x 1OPTICAL x 1
Horizontal definition (TV line)	CompositeVideoinput >=350

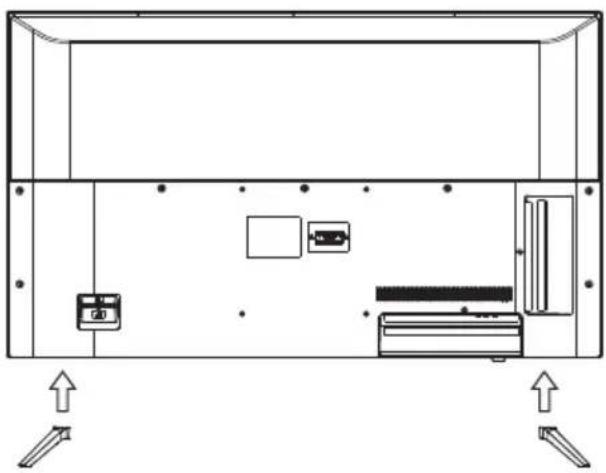

Base Stand Assembly Instruction

Prepare to place the TV with the display side down on a flat surface. Ensure the table or desk you use provides a flat, totally clean surface, and use a soft cloth between the face of the TV and the table to protect the TV's screen.

1. Put the TV on the platform with the screen facing down, insert stands in the grooves, then adjust the screw holes to match each other.

Technical line drawing of a device rear panel with internal components and directional arrows indicating movement (no text or symbols)

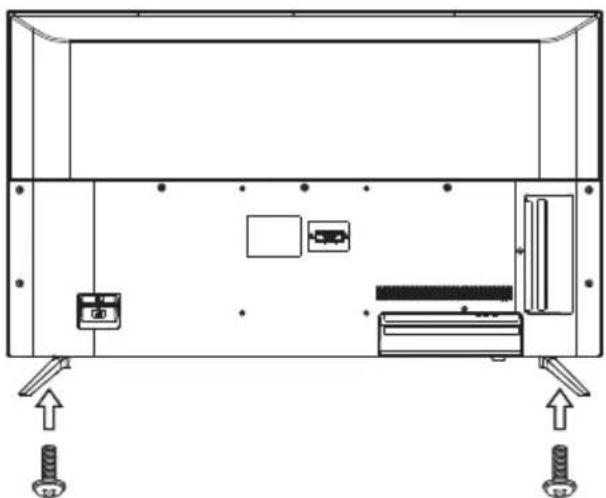

1. Fix the stands with 4 screws.

Technical line drawing of a mechanical or electrical enclosure with mounting feet and internal components (no text or symbols)

M4X14MM M4X14MM

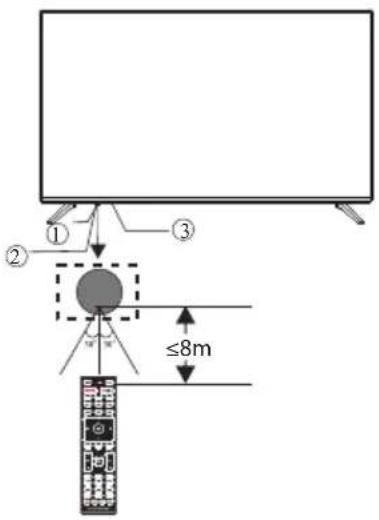

Front panel

① ② ③ ≤8m

1: Remote control sensor.
2: Indicator LED: RED ● STANDBY.
3: Key board

KEYBOARD

The keyboard is located at the bottom left near the right side of signal indicator. Rocker

Bottom

1. Middle Button: Short press to compirm or enter menu. Long press to power off.
2. Up/Down: CH+/- and move up/down.
3. Left/Righ: VOL-/+ and move left/right

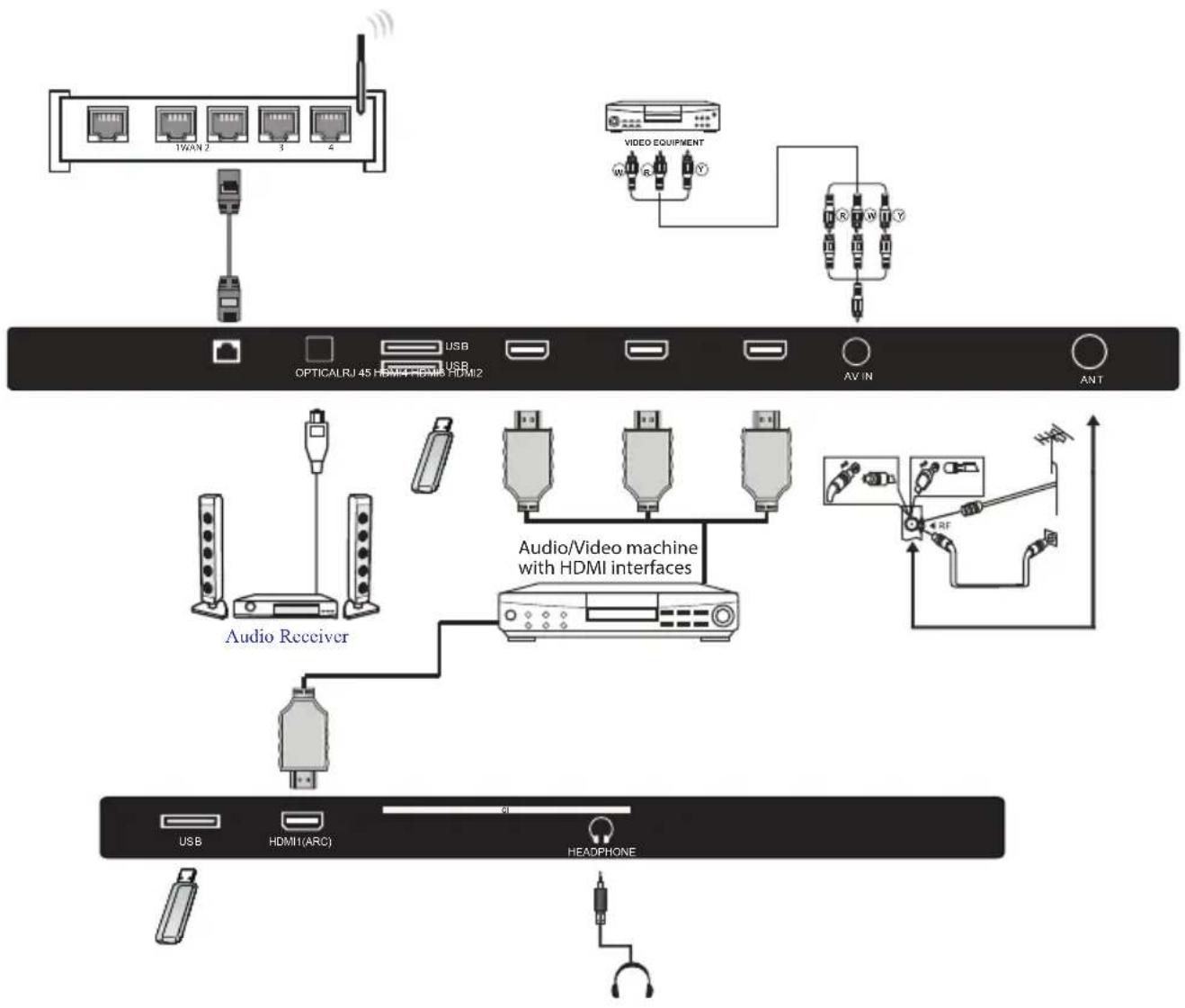

REAR AV Connections

OPTICALRJ 45 HDMI HDMI HDRI2 USB USB AV IN ANT

RJ45, OPTICAL output, USB, HDMI4, HDMI3, HDMI2, AV IN, ANT.

REAR AV Connections(SIDE)

USB HDMI(ARC) HEADPHONE

All the terminals are(from left to right): USB, HDMI1(ARC), CI, HEADPHONE.

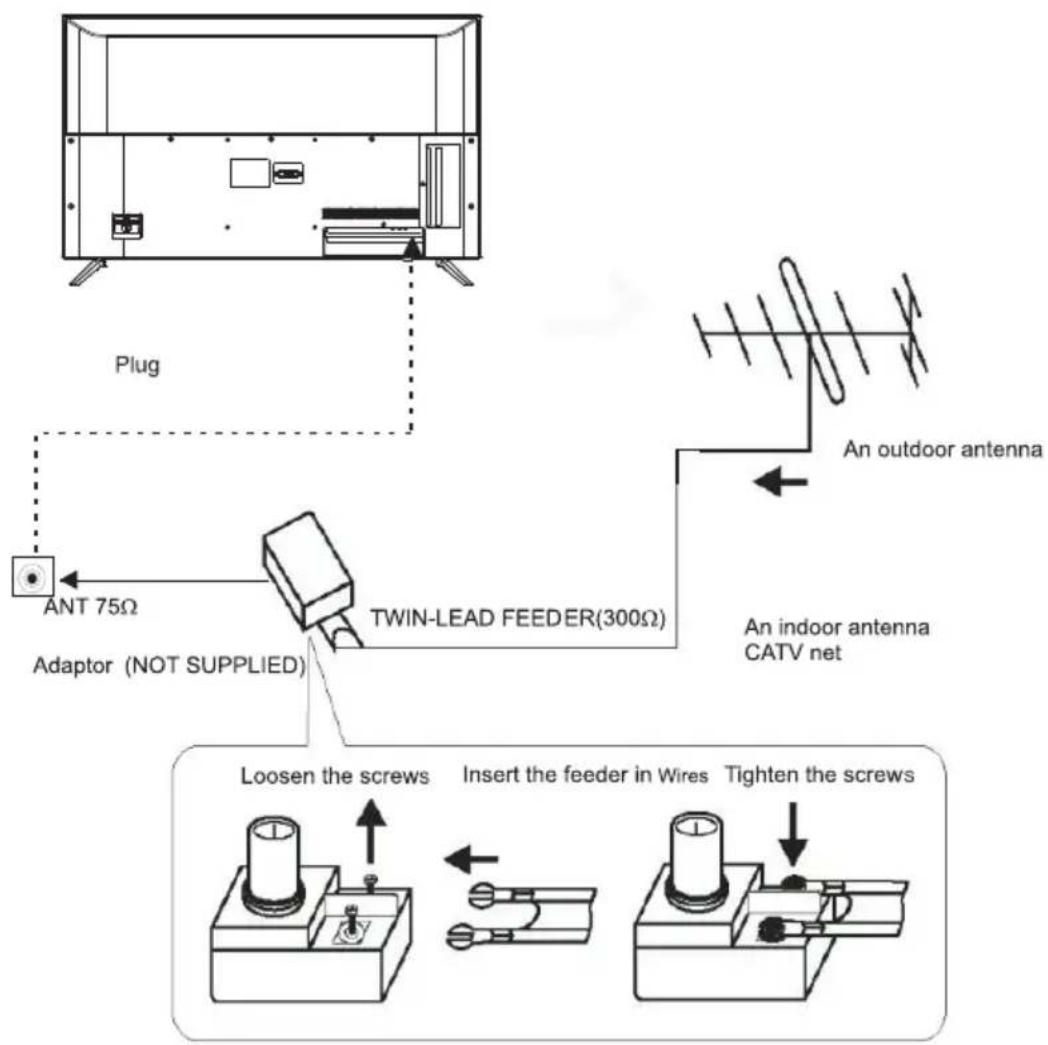

ANTENNA

Diagram illustrating wireless device components with labels for plug, antenna, and accessories like CATV net and outdoor antenna

Note:
Aerial connections: IEC(female).
Input impendance:75 Ωunbalanced.

PRESET MODE (HDMI)

	RESOLUTION	V.Freq.(Hz)
1	640*480	50/60
2	800*600	50/60
3	1024*768	50/60
4	1360*768	50/60
5	1280*768	50/60
6	1920*1080	50/60
7	3840*2160	24/25/30/60

AV EQUIPMENT

You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc...

REMOTE CONTROL

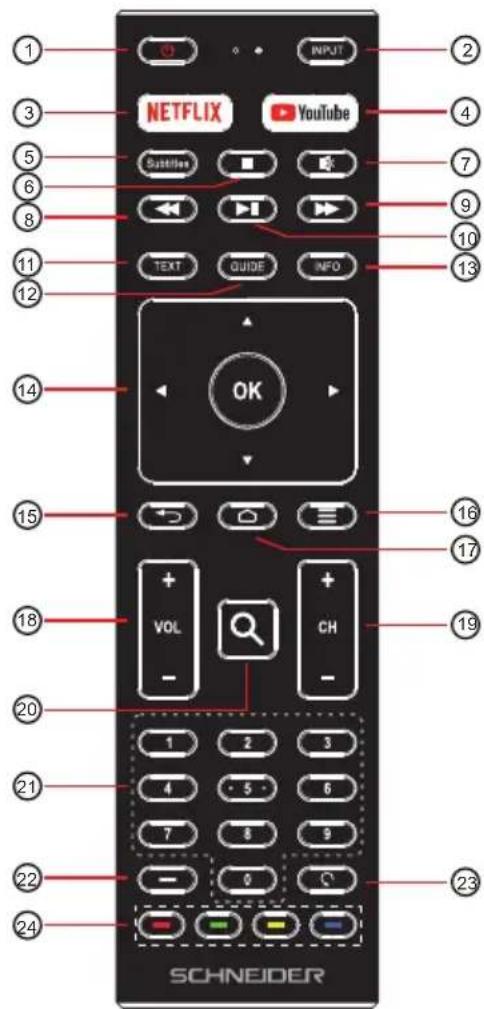

1 2 3 4 5 6 7 8 9 10 11 12 NETFLIX YouTube Text GUIDE INFO OK 13 14 15 16 17 18 19 20 VOL CH - - 1 2 3 4 5 6 7 8 9 - - 21 22 23 24 SCHNEIDER

1: POWER: To set the TV to Standby or Power On modes.

2: INPUT: Select among the different input signal sources.

3: NETFLIX: Press to open NETFLIX.

4 : YouTube : Press to open the YouTube.

5: Subtitles: To turn on subtitles in DTV mode.

6: ■ (Stop): Press to stop multimedia playback

7: MUTE: To disable or enable the speaker sound output.

8:◀(Reverse) : Reverse playback rapidly.

9 :▶(Forward): Advance playback rapidly.

10:▶(Play/Pause): Start playback. Pause playback.

11 : TEXT: Press to select the teletext mode.

12: GUIDE: Press to display electronic programme guide in TV mode.

13: INFO :Press to display the channel information.

14 : ▲▼◀▶ : Press to navigate the on-screen menu. OK: Confirms selection.

15 : ← : Return to the previous menu.

16: ≡ : Press to open or close the on-screen menu.

17 : Press to open the Home Page.

18: VOL+/-: To adjust sound level.

19:CH+/CH-: To access the next or previous channels.

20 Press to open the search interface.

21: NUMERIC KEY: For direct access to channels.

22 symbol key " . —

23: Jumps to last channel viewed.

24: Coloured buttons: Implement the relevant operations according to the prompt at the bottom of the menu in the text.

INITIAL SETUP

The first you turn your TV, the setup wizard will guide you through setting up basic settings.

Please according to the text tip to first time setup.

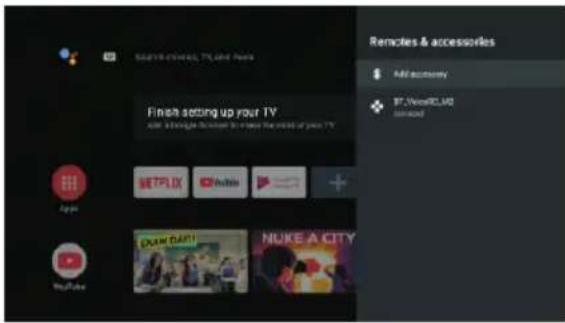

The setting below is about bluetooth synchronization of the remote control

Please note that this product is not compatible with this feature.

Please use the Back button to continue installing the product

Searching for accessories... Is available to search the items or features of the accessories, then to search the items or features of the accessories. The items are also selected in the search engine, but the search engine is designed to be used to search any specific items or features. For example, it is designed to search any specific items or features using a search engine. The search engine is designed to use a search engine with a search engine's own function.

+ VOL - + + CH -

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV. If you don't need to use the Bluetooth remote control, you can press the BACK button to skip this step.

Welcome English Canada China Europe Denmark Europe

Press▼▲ to select the system language and press OK to confirm the language.

Quickly set up your TV with your Android phone? You can really transfer your mobile phone to the network and design download on your TV

Connect your Android phone to your TV, select "Continue to continue the connection, and choose "Skip to skip this step.

Select your Wi-Fi network OK

Press▼▲ to select the the Wifi to connect, press OK and enter the password to confirm the connection is successful. You can also try use Ethernet and skip select network.

Google Terms of Service By continuing, you agree to the Google Terms of Services, the Google Privacy Policy, and the Google Play Terms of Service Google Details of Service Privacy Policy This device may also update and update prices and open from Google's devices, manufactures, or your services. Some of these apps then offer optional help purchases. You can remove when or adjust their permissions at any time from the device or links. Details also collect and temporarily always show the voice and audio history from microphone use to improve the product experience.

By accepting the Google Terms of Service to improve the product experience, select "Accept to accept this condition.

Google Location Let Google user your device's location to improve your experience. Certain application or platform capabilities, such as streaming text content at live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the event that appears installed or not. You can adjust these permissions at any time from Settings.

Agree to Google to get the location information of your device to get more features, choose YES to accept."

Google Help improve Android Automatically send diagnostic information to Google. Use code reports and usage data from your service, apps, and Commerce built in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at, q.20/Android/agent help and q.20/cash service status.

By agreeing to automatically send diagnostic information to Google to improve discriminative power, choose YES to accept.

1. Your device is powered by Android TV and press the button to select the browsing feature.
2. You can get more apps from Google Play and press the ▶ button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the browsing.

Country Country's name Country Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's name Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's名称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's简称 Country's名称

Press▼▲ to select the country of your device and press OK to confirm.

Password Player not password, 100% allowed Input Password

Used to set your device's password to ensure security and privacy.

Input Password New Password

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

Confirm Password Confirm Password

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password confirmation.

Select TV mode Home Real Retail

For selecting the mode, press▼▲key to select Home mode and press OK to confirm.

Select Home Mode? Yes No

Confirm the selected mode again, select "Ye's to confirm the selected mode, and select "No" to return to the previous step.

Chromecast built-in always available 64 Ce

Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Data: 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

To select the Tuner mode for searching, press

▼▲to select and press OK to confirm.

Channel Scan First pages connect errors start user scan tool If you're looking, the channel will put the pattern of errors Scan Step Scan

Press ⬆ to select whether to search, select can to search, select "Skip Scan to skip the search.

Setup is completed. Enjoy! Completed Used: Setup is completed. Please change 50:10 to $100.

PreOK to complete the setup.

Disclaimer We load the market in chipset technology for Smart TVs, Voice Assistant Devices (VVD), Android tablets, feature phones, Optical and Blu-ray DVD players, and were number two globally in mobile phones. We build chips that are less about connecting people to their devices and more about connecting your devices to what matters. Connecting to the things that shape our lives, markers on smartphones, healthier and improve everyday life. At Haier, our technology is built with humans in mind to enhance and enrich life. We believe technology has to be great – not expensive. And great technology should be accessible to everyone. Haier wants to make the world a more inclusive place, where smart and connected is an equal opportunity. That's why Haier works with the brands you love and gives our partners and their customers feature rich, premium technology at affordable mass-market prices. We power possibility for the world's billions of people to explore their true potential – their Everyday Genius.

Press the OK button to agree to (Disclaimer). After setting is complete, You can watch TV.

HOME SCREEN

Press the HOME button to go to the home page

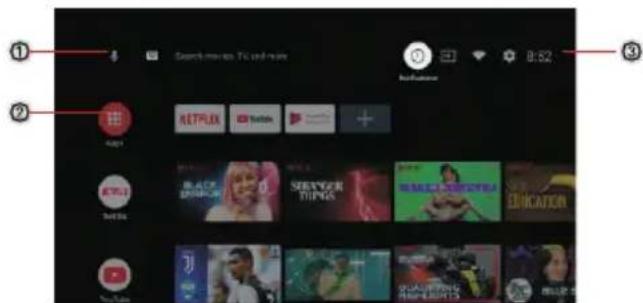

Search movies: 1st and next Backpage ① ② 407 KETRUX YouTube + 3 SINVERI TIPING 2019 MALL-SINVERI EDUCATION YouTube 2019 MALL-SINVERI HAPPLENTS 300000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

① open the google assistant start a voice search or use keyboard search

② Among the applications installed on the TV, the icons for the favourite applications are shown inside here.(Favourite applications can be added/deleted/ changed its order by users.)

Apps: Click to jump to Apps screen where all the installed applications are listed.

③ ② Notification: Display the notifications.

Inputs:Icon to select an input source.

Network&Internet:Icon to Setup Network, Such as wifi.

Settings: Various settings can be configured here. For details on the settings, see the next explanation.

INPUT SOURCE

1. In the HOME interface, press ▼▲◀▶ to select the "Inputs" icon, press OK to open the input source list, then press up to highlight an input and press OK to switch.

2 Inputs Details Disan

Inputs Channels HDMI 1 HDMI 2 HDMI 3 HDMI 4 CAFV6888

2.Under Live TV, press the SOURCE button to display the list of input sources. You can select the desired source.

1. There are two ways to enter. First, in Live TV, press the menu button to display TV options, press ▼▲

◀▶ select the settings menu and press OK to confirm. Second, in the HOME interface, press the ▶key to select the icon of the circular settings menu, press OK to confirm.

TV options Speakers Power TV Cash Master Dash Network Design Settings

11:42 Settings Defaults Dismisses

1. Press ▼▲button to select what you want set.
2. Press OK to enter setting.

Settings Grace Settings Take Bug report External Settings Network & Internet By network connected Channel Accounts & Sign-in By accounts Apps Device Preferences Remotors & accessories

Press BACK to return to the previous menu. If the main menu is displayed, pressing BACK will close the onscreen menu.

Network & Internet

1. Press ▼▲ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press OK button to save and return to the previous menu.

Network & Internet Wi-Fi Available networks 3686 Chinese-Weps iServer-CTS See all Other users Add new network Scanning always available Let Google Location service and other apps load the networks, much when Wi-Fi is off

Network & Internet PASU VIEW GROUPS Scanning always available Lot Devices location service and other ways start for networks, next when Wi-Fi is lost Wlow walls on wireless network Wid walls on L20 Internet Not connected Proxy settings IP settings

CHANNEL

Channel Channels Channel Installation Mode Activity Auto Channel Update Parental Controls Audio Channel Open Source Licensei Verification 2001/1997 18821312

Channels: Display the scan sub-menu based on different Channel installation modes.

Channel installation mode: Select on-screen display channel sources. You can select the signal type.

• Antenna: Set the signal type to antenna. When set to Antenna, the TV can receive analog and digital (DVB-T/DVB-T2) broadcasting signals.
  •Cable: Set the signal type to cable. When set to Cable, the TV can receive analog and QAM broadcasting signals.

Auto Channel Update

Parental controls: Press▼▲button to select the option then press OK button to enter the sub-menu. Audio Channel: Press▼▲button to select the option then press OK button to enter the sub-menu. Open source licenses: Press▼▲button to select the option then press OK button to enter the sub-menu.

Antenna

Channel Installation Mode Antenna Cable

Channel Channels Channel Installation Mode Avenue Auto Channel Update Channel Update Message Parental Controls Audio Channel Open Source Licenses Version 1285-6408 1027167

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan LON Default Channel Scan Type all Channel Scan Type all Ferrant Network Default

1. Menu->Settings->Channel->Channel Installation Mode enter, choose Antenna or Cable.
2. Enter Menu->Settings->Channel->Channels.

Status: Scanning Analog Channels0 Digital Channels0 Antenna 3% Exit

1. Channel Scan directly enters the ATV+DTV automatic search platform interface of Antenna. Update Scan: Re-automatically search for frequency points outside the station.

Search for Analog Channels Start Frequency (Units) at 100 Scan-Up Scan Down

Analog Manual Scan: Manual ATV search station. After input the frequency point, you can select up or down search station.

Scan Single RF Channel (Digital Only) Antenna Digital Channels: 0% RF channel 5 Signal Level 0% Signal Quality 0%

Single RF Scan: DTV manual search, left and right after selecting RF Channel, directly OK search.

Cable

Channel Installation Mode Airline Radio

Channel Scan WaterGraph Other

1. Menu->Settings->Channel->Channel Installation Mode, select Cable.
2. Enter Menu->Settings->Channel->Channels.

Scan all channels. ON: Channel Scan Type Only Digital Channels Frequency (kHz) - Network ID - Scan >

1. Enter Channel Scan, where Numericable are the local operators, and the default Scan Mode is Advance; Others have Advance, Quick and Full Scan modes.

Scan all channels 0% Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (KHz) 206.00 Network ID 999 Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (MHz) 364000 Scan Signal Level 0% Signal Quality 0%

Single RF Scan: manual search station.

ACCOUNTS&SIGN IN

Google Make the most of your TV Eye to go (all new age, recommendations, likes, and have been) Google Top 9 Day Google Play Playable TV Buy off first the latest in-store, and shows on Google Play Movies & TV

Press UP/DOWN button to select Sign in or Skip.

APPS

Apps Sustainly opened apps Live TV 11 minutes ago Google Play Store 14 minutes ago Google Play Movies & TV 15 minutes ago See all apps Permissions App permissions Special app access

In this menu, you can set the APP permissions, and read the app lists.

1. Press button to select what you want set.

2. Press OK button to adjust.

3. After finishing your adjustment, Press BACK button to return to the previous menu.

DEVICE PREFERENCES

ABOUT

About System updates Device name local#IV Reader1 Status network, serial numbers and other information Legal Information Model local#IV Version Software version

In this menu, you can read the information and settings of TV.

1. Press ▼▲button to select what you want set.

2. Press OK button to adjust.

3. After finishing your adjustment, Press BACK button to return to the previous menu.

DATE&TIME

Date & time Automatic date & time Use network-provided time Set date August 8, 2019 Set time 11:12 AM Set time zone Use broadcast-provided timezone Use 24-hour format 1:00 PM

Automatic date&time-Press▲button to select the option then press OK button to enter the sub-menu. (Optional: Use network-provided time, Off)

Set date:Press▼▲button to select the option then press OK button to enter the sub-menu.

Set time:Press▼▲button to select the option then press OK button to enter the sub-menu.

Set time zone: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Use 24-hour format: Press ▼▲button to select the option then press OK button to choose ON/OFF.

TIMER:

Timer Power On Timer Type Off Power On Timer 00:00 Power Off Timer Type Off Power Off Timer 88:00

Power On Timer Type: Press ▼▲button to select the option then press OK button to choose ON/OFF/ONCE.

Power On Timer :Press ▼▲button to select the option then press OK button to enter the sub-menu.

Power Off Timer Type: Press ▼▲button to select the option then press OK button to choose ON/OFF/ONCE.

Power Off Timer :Press▼▲button to select the option then press OK button to enter the sub-menu.

LANGUAGE:

Language Catalá Castina Dansk Deutsch English Español Fençaro Hovatski Indonesia

Language :Press button to select the option then press OK button to enter the select language.

KEYBOARD

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Current keyboard: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

Gboard Settings: Press ▼▲ button to select the option then press OK button to enter the sub-menu. Manage keyboards: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

INPUTS

Inputs HOMI 4 HOMI 5 HOMI 3 HOMI 2 HOMI 1 HOMI 1 Composite Composite Consumer Electronic Control (CC) HOMI control Allow the TV to control HOMI devices

Inputs Component Component Consumer Electronic Control (CEC) HDMI control Allow the TV to control HDMI devices Device auto power off Power off HDMI cables with the TV TV auto power on Power on the TV with HDMI devices HCA6-FOXO Vire.com com Ltd. CEC Device List

Inputs:Press ▼▲button to select the option then press OK button to enter the sub-menu.

HDMI control: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Device auto power off: Press ▼▲button to select the option then press OK button to choose ON/OFF.

TV auto power on: Press ▼▲button to select the option then press OK button to choose ON/OFF. HDMI EDID Version: show EDID version.

CEC Device List: Press ▼▲ button to select the option then press OK button to enter the sub-menu.

POWER

Power Sleep Timer Off Picture off Switch off timer Off No Signal Auto Power Off 15 Minutes

Sleep Timer:Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes).

Picture off: Press ▼▲button to select the option then press OK button to turn off the TV.

Switch off timer: Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, 210 minutes, 240 minutes).

No signal Auto Power Off:Press▼▲button to select the option then press OK button to enter sub-menu. (Optional: off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes).


Picture Sharpness 12 Gamma Mode Color Temperature HDR On Advanced Video Color Tuner 11 Point White Balance Correction Reset to Default

Picture Mode: Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: user, Standard, Vivid, Sport, Movie, Game, Energy saving).

Backlight/Brightness/Contrast/Saturation/HUE/Sharpness:Press▼▲button to select the option. Press◀to decrease the parameter. Press▶to increase the parameter.

Gamma:Press ▼▲button to select the option then press OK button to enter sub-menu.(Optional: Dark, middle, Bright).

Color Temperature: Press ▼▲button to select the option then press OK button to enter sub-menu.

HDR:Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional:on, off)

Advanced Videocer ▼▲button to select the option then press OK button to enter the sub-menu.

Reset to Default: Reset all settings to the factory defaults.

SOUND

Sound Sound Style Viter Balance Bass Treble Sound Surround Equalizer Detail Speakers External Audio System Digital Output PCM Sound External Audio System Digital Output PCM SPDIF Delay Auto Volume Control Downmix Mode Stereo DTS DAC Binary Emotion DBX Dolby Audio Processing

Sound Downmix Mode Sens DTS DRC Sonic Emotion DBX Dolby Audio Processing DTS VirtualX DTS-StudioSound 2 Reset to Default

Sound style: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional:user, Standard, Vivid, Sports, Movie, Music, News)

Balance/Bass/Treble: Press ▼▲button to select the option. press ◀to decrease the parameter. Press ▶to increase the parameter.

Sound Surround: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Equalizer Detail: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Speakers: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: TV Speaker, External Audio System)

Digital Output Press▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital)

SPDIF Delay: Press ▼▲buRoaste to select the option. ◀to decrease the parameter. Press ▶ to increase the parameter.

Auto Volume Control: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Downmix Mode: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Stereo, Surround)

Reset to Default: Reset all settings to the factory defaults.

STORAGE

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Internal shared storage: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Removeable Storage: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Note: Show external devices if available)

HOME SCREEN

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

In this menu, you can set channels, apps, open source licenses.

1. Press▼▲button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

RETAIL MODE

Retail Mode Retail Mode Off

Retail mode: Press ▼▲button to select the option then press OK button to choose ON/OFF.

GOOGLE

Google Accume View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

In this menu, you can set searchable apps, safe search filter, block offensive words, open source licenses.

1. Press ▲ button to select what you want set
2. Press ok button to adjust
3. After finishing your adjustment, Press BACK button return to the previous menu.

CHROMECAST BUILT-IN

Chromecast built-in About Open source licenses Version number 1.36.154871

In this menu, you can read the information and settings of Chromecast.

1. Press ▲ button to select what you want set.
2. Press ok button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

SCREEN SAVER

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

Screen saver: Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: Tum screen off, Backdrop, Colors).

When to Start: Press ▼▲button to select the option then press OK button to enter the sub-menu.(Optional: 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours).

Put device to sleep: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, Never).

Start now: Press ▼▲button to select the option then press OK button to enter screen saver. LOCATION

Location Location status Use Wi-Fi to estimate location Recent location requests No apps have requested location recently

Location status: Press ▼▲button to select the option then press OK button to enter the sub-menu. (Optional: Use Wi-Fi to estimate location, Off).

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Usage & diagnostics Press ▼▲button to select the option then press OK button to choose ON/OFF. ACCESSIBILITY

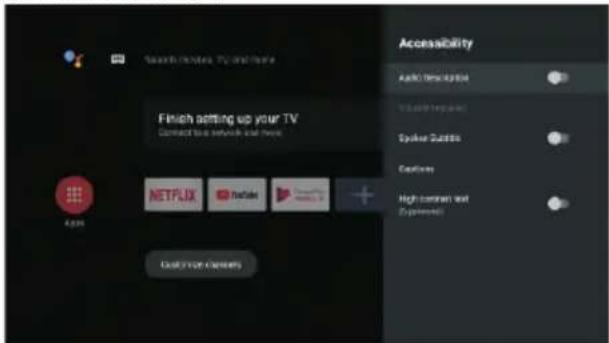

Search/Myers TV Finish setting up your TV Connect the network and more Accessibility Audio Description Speaker Success Features High content and Explanation Netflix Add Custom User Camera

Audio Description: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Visually Impaired: Press ▼▲button to select the option then press OK button to enter the sub-menu.

Spoken Subtitle: Press ▼▲button to select the option then press OK button to choose ON/OFF.

Captions: Press ▼▲button to select the option then press OK button to enter the sub-menu.

High contrast text: Press ▼▲button to select the option then press OK button to choose ON/OFF.

RESET

Press OK button to enter the sub-menu. Reset-Erase everything.

REMOTE & ACCESSORIES

Searching for accessories... To ensure Google access to the server control, press and load LIFT? By linking to MSCI Linux, we can also verify that the access is required to be used in the data of the server control system in the upper right corner of the server system. The name and press on the device will be required to use the device's data. If using an automatic please note a low transparency again. Press the DSCs to find accessories adding 56

Searching for accessories... To enable Single broadband via your own website, access to the USB router and wireless router. You can't use a USB device to access to a USB router or a network of devices. We have a network of devices to access to a USB router or a network of devices. We have a network of devices to access to a USB router or a network of devices. We have a network of devices to access to a USB router or a network of devices. We have a network of devices to access to a USB router or a network of devices. We have a network of devices to access to a USB router or a network of devices. We have a network of devices to access to a USB router or a network device.

Starts outside, TV and news Finish setting up your TV Add: additional subscribers to make the next of your TV App NETFLIX YouTube Renewables & accessories Machinery IT.VisionCLMD Download

In this menu, you can pair Bluetooth devices.

1. Press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't pair appears, the connection fails. Wait 30 seconds and then press the "MENU" and "LEFT" buttons at the bottom of the remote control for 5 seconds to repeat the previous steps.
5. Press BACK button return to the previous menu.

MULTIMEDIA PLAYER

Try searching for "Movies about football" Finish setting up your TV Add a Google Account to make the most of your TV Details Elements Netflix MultiMediaPlayer Netflix Stranger Hings EDUCATION

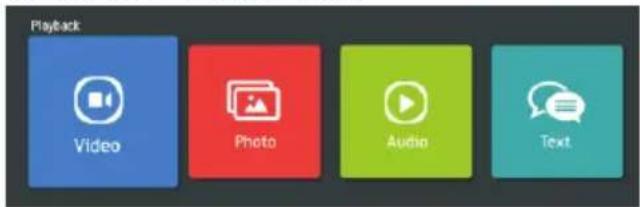

In the HOME interface, select the MMP APP to display Video, Photo, Audio, Text. After inserting the USB flash drive, you can view the corresponding files in the USB flash drive.

Playback Video Photo Audio Text

NOTE:

The menu may be different depending on when you purchased the TV.

Trouble phenomenon Symptom			Inspection Check
Picture Audio
	Snow Noise		antenna position, direction or connection
	Ghost	Normal audio	antenna position, direction or connection
	Interference	Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture	Mute	Volume(check if mute is activated or if the audio system connections are not correct)
	No picture Mute		Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
	No colour Normal a	control
	Picture breaking up	Normal audio or weak	retune channel
	No colour	Noise	TVsystem
	There is black bar on top and bottom	Normal audio	Change aspect to zoom

Prohibition sign with Chinese text and pictograms of spray bottles and a window, no readable text or symbols beyond the prohibition symbol.

- Before cleaning this product, press STANDBY button to turn it to the standby mode and wait for a few minutes to disconnect the power plug.

- Wipe this product with a dry, soft cloth. Do not spray water directly onto the TV, but apply a small amount of water on the corner of the cloth and wipe as gently as possible. Never use cleaning fluids, wax, or chemicals.

- Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

- If the surface is extremely dirty, wipe it with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

- Before you plug in the TV back, let the screen dry completely.

Technical data sheet

Sheet of household television according to EU directive 1062/2010

Trade mark SCHNEIDER
Model no. SC-LED43SC300	BSA
Energy efficiency class A
Visible screen diagonal 109cm	/ 43 inches
On mode power consumption 63W
Annual energy consumption 92kWh
Power consumption in off mode 0 W
Standby power consumption <0.5W
Screen resolution (pixel)	3840(H) x 2160 (V)

Wireless Technology & Frequency Band	Maximum Wireless Transmit Power Power (dBm)
IEEE 802.11 b/g/n (WLAN)2400-2483.5 MHz	20dBM

Note:

1. Energy efficiency class: A+++ (most efficient) to D (lease efficient).
2. Annual energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc.

Name: Edmond Ng
Position: Quality Assurance Engineer
Signature:

Date: 19 December 2019
