USER MANUAL LED40SC600K SCHNEIDER

Important Safety Instructions....27

Control Panel....30

Connecting Cables....31

Remote Control....33

Base Installation....35

Wall Mounting Instructions....36

Operations

First Time Installation....37

DTV Mode....38

1. Picture....38

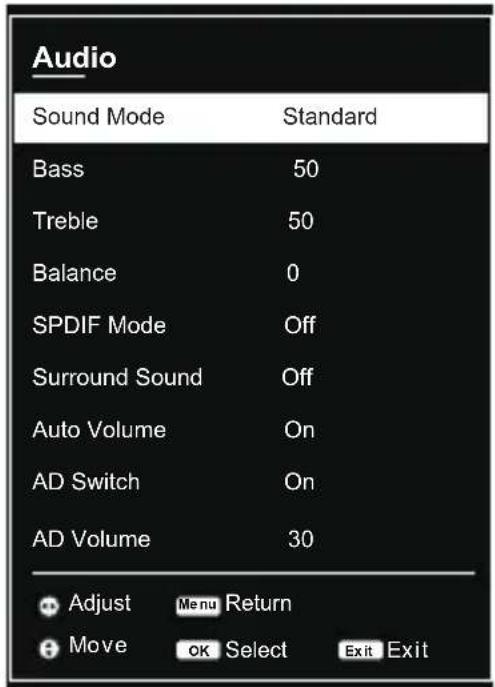

2. Audio....39

3. Channel....40

4. Setup....43

5. Time....45

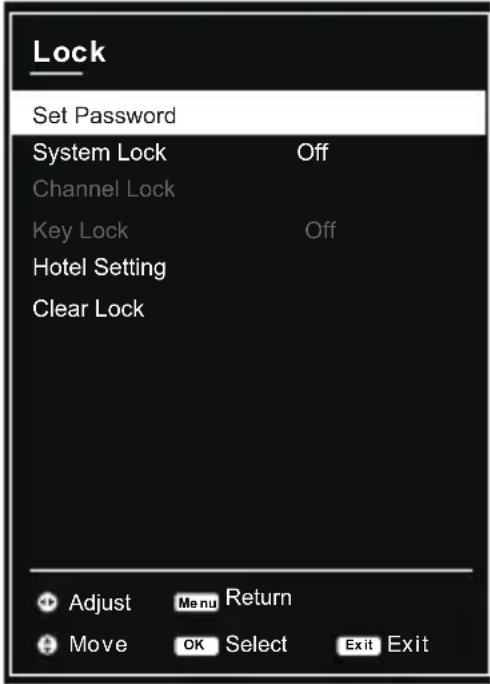

6. Lock....46

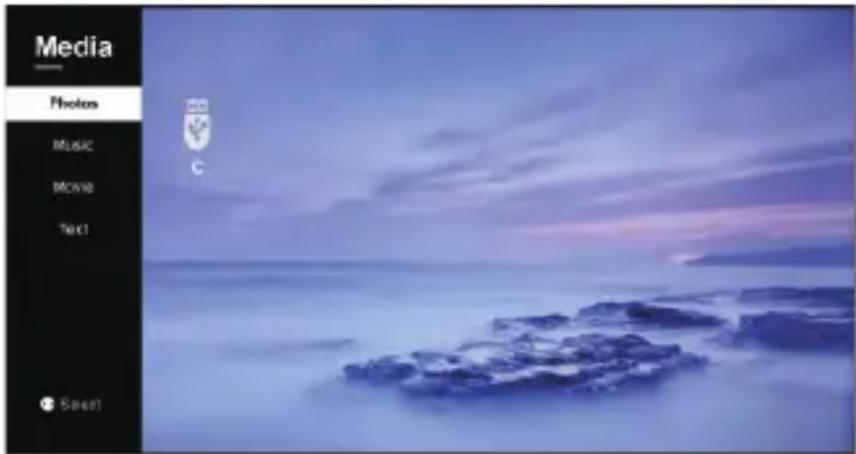

Media Player....47

For Reference

Troubleshooting....49

Diagram of a cable plugged into an open TV wall, showing wiring and connection (no text or symbols)

Illustration of a remote control with extended cable and pointer (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram of a vertical TV or screen mounted on a tripod stand, with a circular button and checkmark symbol nearby (no text or labels)

Diagram of a vertical TV with a circular button and cross symbol, no text or labels present

Illustration of a hand pressing down on a blank screen with directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with two circular insets showing internal components (no text or labels)

Front view of a flat-screen television displaying (no visible text or symbols)

Technical diagram of a mechanical assembly with two circular insets showing bolt holes (no text or labels)

Illustration of a hand pointing at a screen with a pen, no text or symbols present

Technical line drawing of a computer monitor rear panel with internal components and mounting brackets (no text or symbols)

This item is used to turn on/off dynamic luminance control.

4.13.Option PVR

With this product you can easily record your favorite programs on your USB stick. This unit has two recording modes: immediate recording and scheduled recording (for use in case of absence).

4.14. Mode Maison

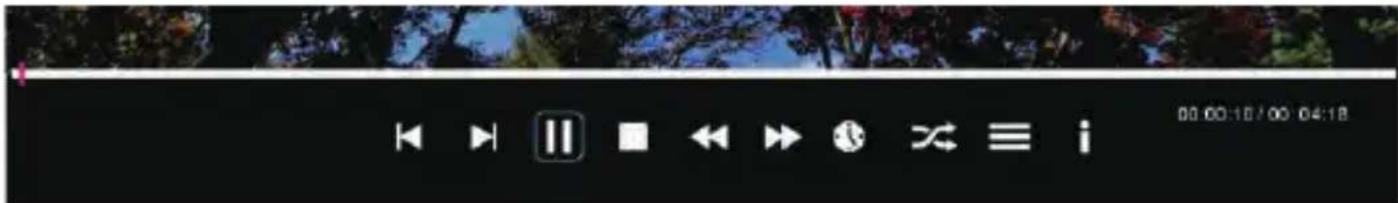

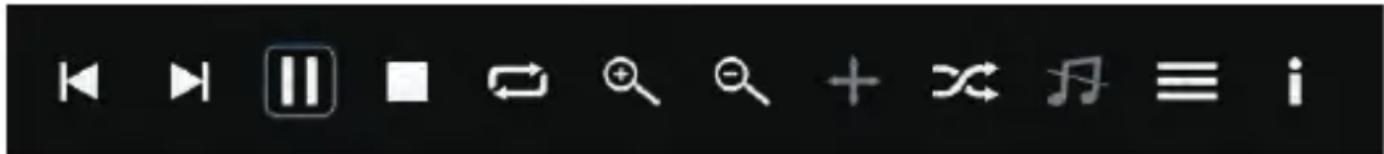

Screenshot of a software toolbar with playback, play, pause, search, add, delete, and menu items in Chinese.

2. Musique

00:00:18 / 00:04:18

Media player control bar with playback, play, audio, music note, menu, and i button icons

Blank white image with a black border (no text or symbols)

Pas de son

Cause possible :

Sketch-style drawing of a sad face with large eyes and a frowning mouth (no text or symbols)

Cause possible :

Illustration of a stylized animal figure in motion, possibly a zoster or gourd, with no visible text or symbols.

Cause possible:

Simple line drawing of three geometric shapes: cube, triangle, and sphere (no text or symbols)

Cause possible:

Black remote control with a cross symbol (no text or labels)

Cause possible :

Important safety instructions

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION !

Dangerous tension inside the product ! Do not open. Risk of electric shock ! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire).

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.
• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

- The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.

- Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.
• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
• This product must be connected to an electrical supply 230V \~ 50Hz.
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
• In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Technical Specification:

Name: Television

Product Net Weight : 6.80Kg

Operation Temperature: 0°C\~40°C

TV Reception System:DVB-T

- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4 2012, concerning the waste on electrical and electronic equipment (WEEE).

- The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.

- Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.

- As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.

- You have the obligation to use the selective waste collection systems put in place by your local authorities.

Auto Standby

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Product Introduction

Congratulations! Your have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

Accessories

User manual x1

Remote control x1

Control Panel

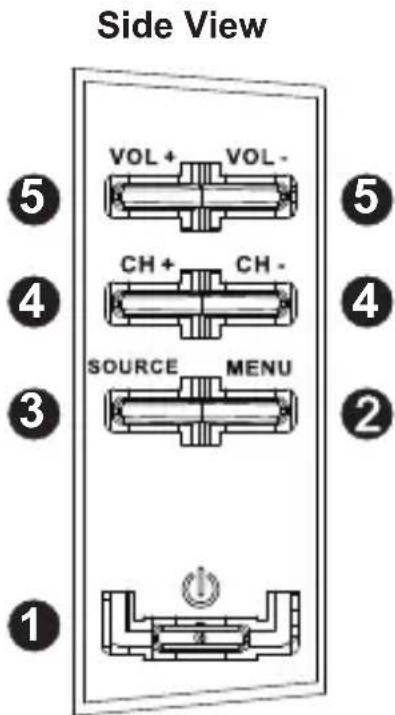

Side View ⑤ VOL + VOL - ④ CH + CH - ③ SOURCE MENU ①

1.S tandby button : To turn the TV ON/OFF.
2.M enu button : To enter menu setting page.
3.Source button: To select the input source.
4. CH+/- button : To select next/previous channel or move up/down.
5. VOL +/- button : To increase/decrease the volume level or move left/right.

Connecting Cables

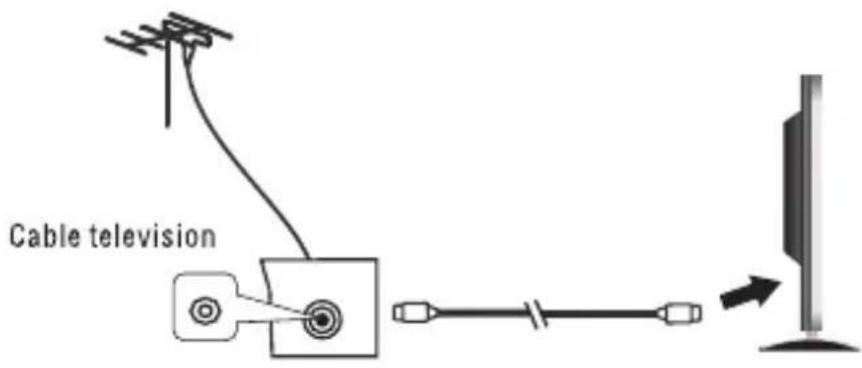

We recommend you use a 75Ω antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord.

Directly insert the 75 Ω antenna cable plug into the antenna socket when applying cable television.

Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

Cable television

Power-on/Power-off

1. The television is in standby state when no images arise and the red indicating lamp shines.
2. Press the standby button g aain on the remote control for the television the indicating lamp becomes green, and then television image is available.
3. Press the standby button on the remote controller or the television to enter into standby state.

Power -saving & protection mode

1. In video or PC state, the television will enter into lower power sleep state (standby state) to conduct power saving and protection after several minutes with no signal inputs.

Connecting to multiple external devices

This TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections to other video and audio: Headphone 100x240V-50x60Hz EARPHONE OUT COAXIAL HDMI1 IN HDMI2 IN HDMI3 IN(ARC) BCART TV USB1 USB2 YPbPr IN AV IN CI SLOT TV DVD

1. AC IN
2. EARPHONE OUTPUT
3. COAXIAL output : Digital TV sound output.
4. HDMI IN : High-definition multimedia interface (Note: compatible video signal 480P/576P/720P/1080i/1080P)
5. SCART INPUT
6. TV : Connect to external aerial.
7. USB IN : Access multi-media files stored in the USB device.

(Note: compatible format includes: *.dat, *.vob, *.ts, *.mpg, *.avi, *.mkv, and *.mp4 for video, *.jpg and *.bmp for photo, *.mp3 for music.) Note : USB port cannot be used to charge external devices.

1. YPbPr IN : Component input terminal.

2. AV INPUT : Connect to the left/right RCA video out connection of any vide resource.

3. CI SLOT : Insert a CI (common interface) card.

Remote control

STADORY NOTE 1 2 3 4 5 6 7 8 9 ASPECT 0 ASPECT SLEEP AUDIO VOC MODE S MODES OK OKT MENU SOURCE TV/RADIO + VOL DISPLAY REC TIMES/TIME REC LIST INDEX REVEAL TEXT AUTFILE HOLD SIZE SUBORE 100 99 << >

Illustration of a remote control with extended screen and pointer (no text or symbols)

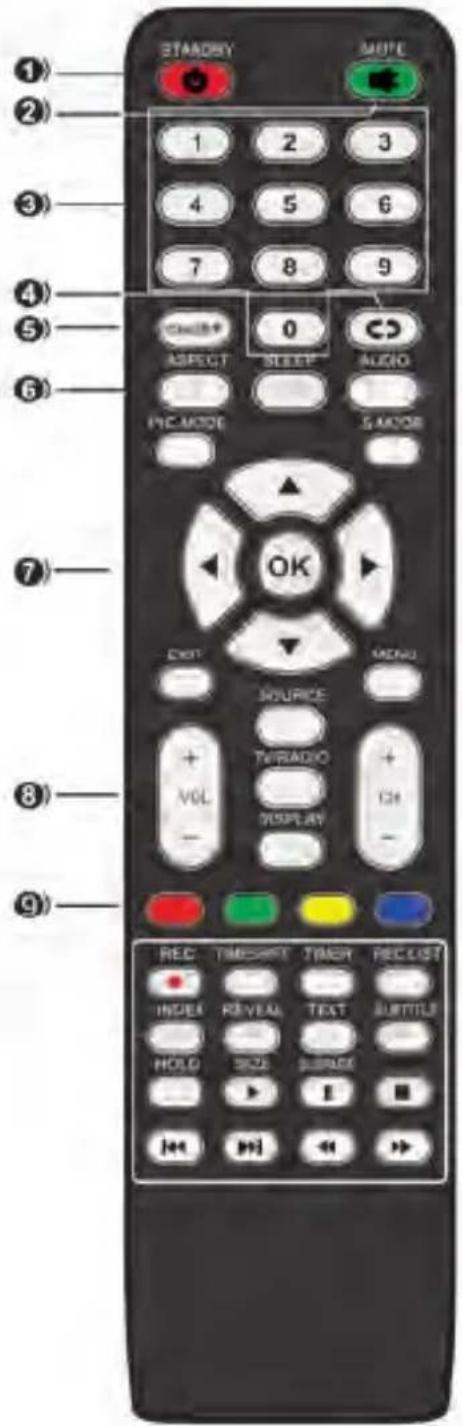

1.STANDBY: To turn the TV ON/OFF
2.MUTE: Mute the sound.
3.0\~9: Input the number information, such as channel number and so on.
4.RECALL: Recall the last program you watched.

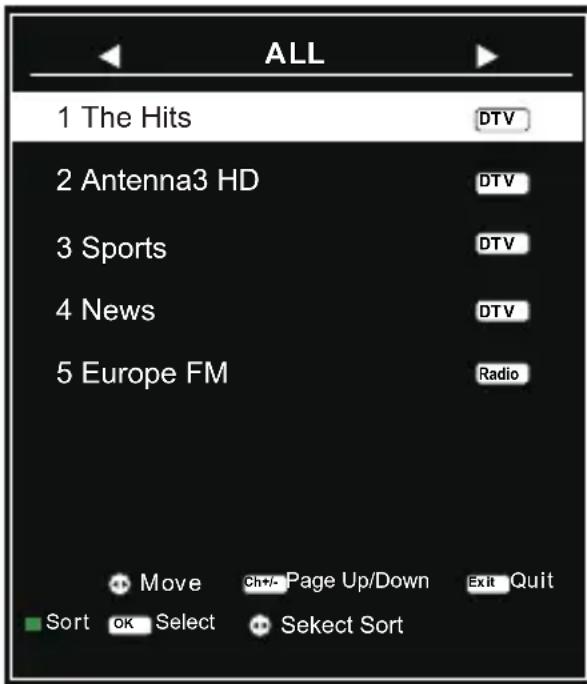

5.CH.LIST : Display a list for available channels.
6.ASPECT: Select available screen mode.
SLEEP: Set desired sleep time.
AUDIO : Select available sound-track.
PIC.MODE: Switch the picture mode.
S.MODE : Switch the sound mode.

1. ▲/▼/◄/► : Navigation buttons

OK : Confirmselection.

EXIT : Exit the menu page.

MENU : Call out the main menu or return to previous menu.

1. VOL +/- : Increase/decrease the volume level. CH +/- : Play the next/previous program.

SOURCE: Select desired input source.

TV/RADIO : Switch the unit between TV and Radio.(Digital radio is not available in countries such as France.)

DISPLAY : Display the available program information.

9.RED \GREEN \ YELLOW \BLUE :available in teletext, DVB-T and TV

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight.

Be careful to use the remote control. avoid falling off or being trampled or splashed with liquids.

Remote control

STIMOBY AUTO 1 2 3 4 5 6 7 8 9 ONOUT 0 SELECT SHEET AV/DO RECAROLI SMOYA EXIT SOURCE TWRADIO + VOL DISPLAY DH REC TIMESHOT TIMER REC LIST HOLD REVEE LET SUBTITLE HOLD FREE ACCESS + - << << >

REC (for DTV mode only): Start

RECORDING when watching available digital programs.

TIMESHIFT (for DTV mode only): Start

Time-shift when watching available digital programs.

TIMER (for DTV mode only): Enter the menu of timer recording.

REC.LIST : display the list of recorded programs.

1. INDEX : Display the Teletext index.

REVEAL: Hide or display some characters in Teletext.

TEXT: Display available teletext..

SUBTITLE : Enable/disable subtitles in digital mode.

HOLD : Hold the Teletext;

SIZE: Switch Teletext size;

SUBPAGE : Enter Teletext sub-page;

▶ : Start playback in USB\Media mode.

II : Pause playback in USB Media mode.

■ : Stop playing in USB\Media mode.

«/»: Fast backward\forward in USB\Media mode.

«/»: Play previous\next file in USB\Media mode,

Prepare the remote control Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided)

Base Installation

- Mounting of the stand

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram of a vertical screen mounted on a tripod, with a circular button and checkmark symbol (no text or labels)

Diagram of a vertical TV with a stand and a small circle containing an '×' symbol (no text or labels present)

Illustration of a hand holding a blank screen with arrows pointing to the sides (no text or symbols)

Technical diagram of a mechanical assembly with two circular insets showing internal components (no text or labels)

Front view of a modern flat-screen TV with a black screen and stand (no visible text or symbols)

1. Place the machine flat on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.)

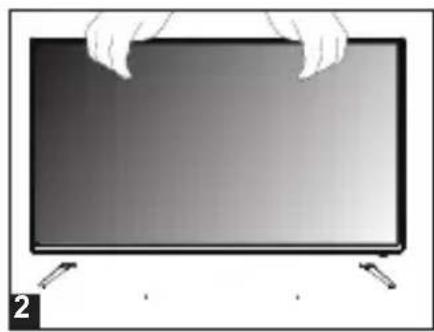

2. Align the screw holes on stand and TV bottom (Figure 2)

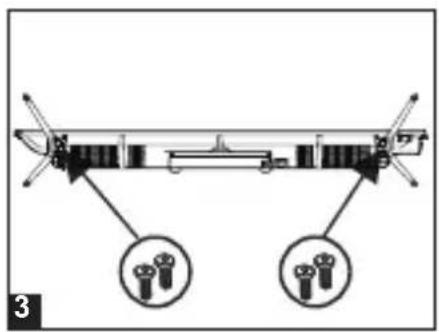

3. Fix the stand and the screen with 4 screws (Figure 3)

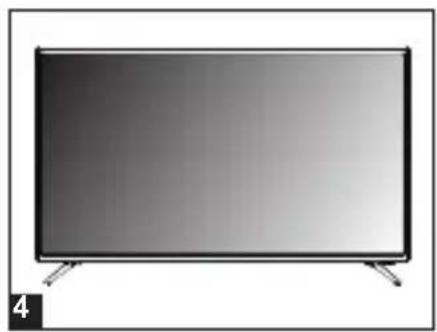

4. The rendering after installed. (Figure 4)

• Disassembly of the stand

Technical diagram of a mechanical assembly with labeled components and two circular insets showing bolt holes.

Illustration of a hand pointing at a blank screen with a pen, no text or symbols present

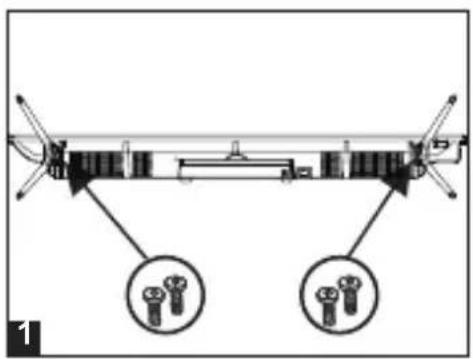

1. Loose the screws between the machine and stand (Figure 1).

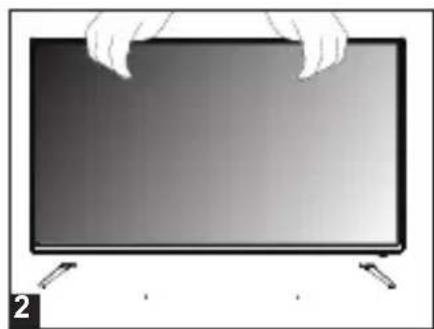

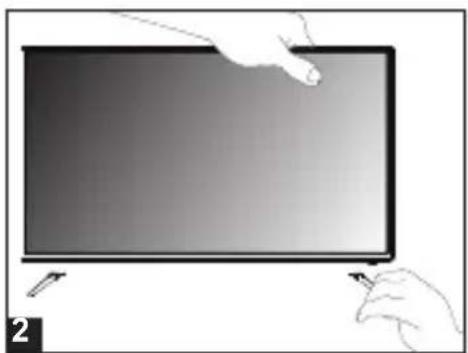

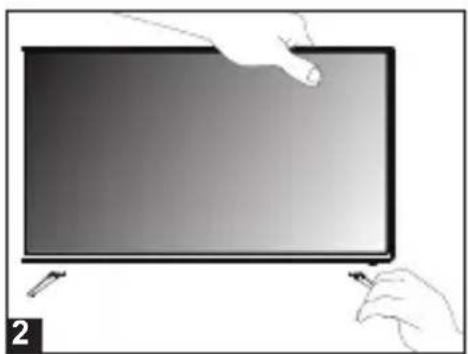

2. Remove the 2 stands from the machine (Figure 2).

Wall Mounting Instructions

- Use standard M6*10mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee.

- Contact a professional technician for assistance when wall mounting your TV.

- Do not wall mount the TV while TV is turned on.

- Refer to the instruction of your wall mounting bracket.

Technical line drawing of a computer monitor internal frame (no text or symbols)

First Time Installation

Connect to power source and turn on this TV, then below setup page will display on the screen.

• Press UP/DOWN navigation button to move the cursor.
• Press LEFT/RIGHT navigation button to select an option.

Step 1

OSD Language: select the on-screen menu language.

Conutry: select your country.

Environment: select Home or Store mode.

Mode DTV and ATV : select 'DTV+ATV' to perform an automatic search of all DTV channels then all the analogue channels of the selected country. During the DTV channel search, press "EXIT" to skip searching for analog channels. During the search of the analogue channels, press "EXIT" to exit this function.

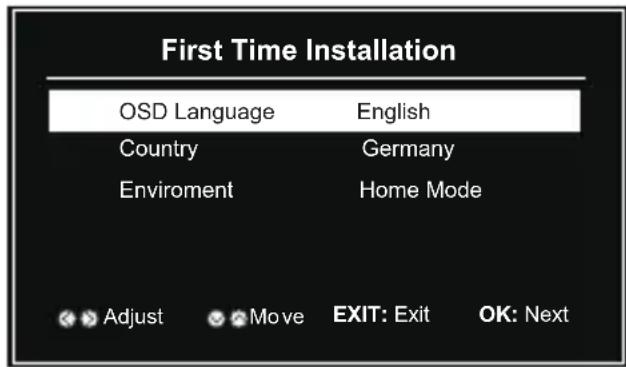

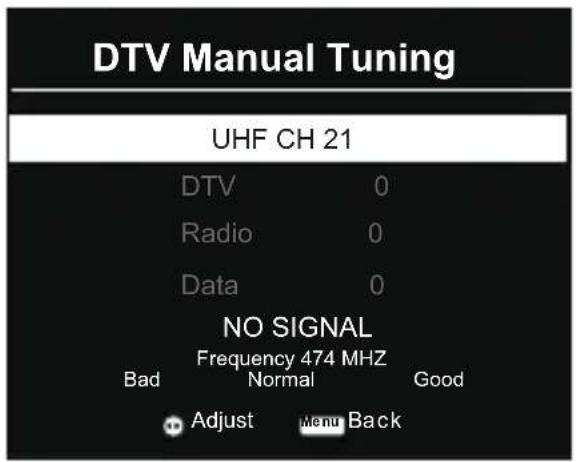

First Time Installation OSD Language English Country Germany Enviroment Home Mode Adjust Move EXIT: Exit OK: Next

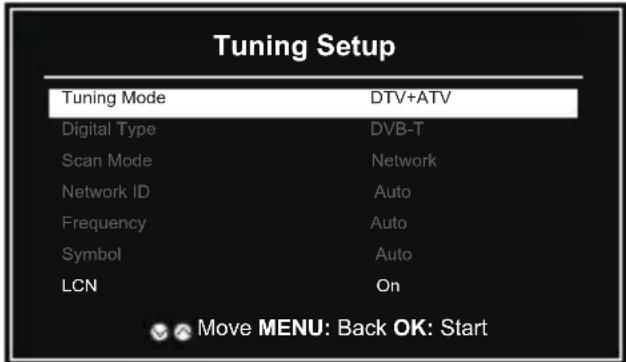

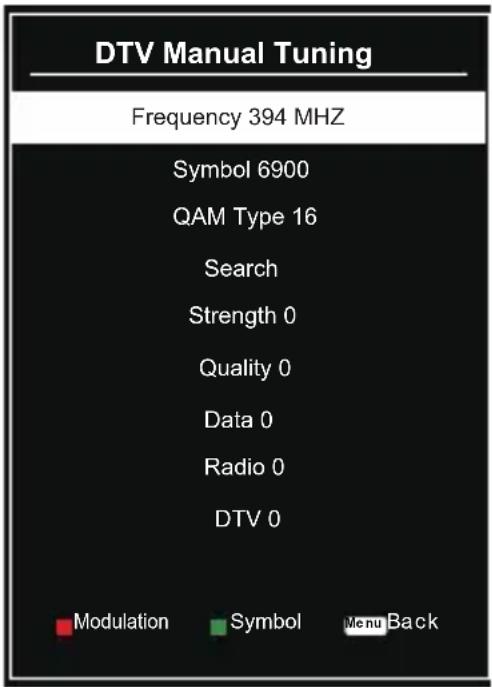

Tuning Setup Tuning Mode DTV+ATV Digital Type DVB-T Scan Mode Network Network ID Auto Frequency Auto Symbol Auto LCN On Move MENU: Back OK: Start

Digital mode : select "DTV" to search for all digital channels DTV of the selected country. You can stop the search by pressing the "EXIT" button.

Analog mode : select "ATV" to search for all the analogue channels of the selected country. You can stop the search by pressing the "EXIT" button.

DTV MODE

- Press SOURCE button on the unit or remote control to select DTV input source.

1. Picture

Picture Mode	Standard
Brightness	50
Contrast	50
Colour	50
Sharpness	50
Tint	0
Face Color	0
Colour Temp	Normal
Noise Reduction	Off
Adjust	Menu Return
Move	OK Select	Exit Exit

1.1 Picture Mode

- Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option.

Picture Mode: available options: Standard, Movie, Dynamic, User.

Brightness / Contrast / Colour / Sharpness: adjustable value: 0-100.

Note: When changed Brightness, Contrast, Colour or Sharpness, Picture

Mode will turn to "User" automatically. Tint is adjustable only for NTSC system.

1.2 Face Color

Adjust this option if face color displayed on screen looks a little abnormal.

Available value:-50,-40,-30,-20,-10,0,10,20,30,40,50.

1.3 Color Temp

This item is used to adjust the optimum color temperature for suitable viewing.

Available options: Normal, Warmal, Warm, Cool.

1.4 Noise Reduction

Available options: Off, Weak, Middle, Strong.

2. Audio

Audio Sound Mode Standard Bass 50 Treble 50 Balance 0 SPDIF Mode Off Surround Sound Off Auto Volume On AD Switch On AD Volume 30 Adjust Menu Return Move OK Select Exit Exit

2.1 Sound Mode

- Press UP / DOWN / LEFT / RIGHT navigation buttons to select an option.

Sound Mode: available options: Standard, Music, Movie, User.

Bass / Treble: adjustable value: 0-100.

Note: When changed Bass or Treble, Sound Mode will turn to "User" automatically.

2.2 Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

2.3 SPDIF Mode

Available options: Auto, PCM, Off.

2.4 Surround Sound

Turn on/off Surround Sound for better sound experience.

2.5 Auto Volume

This item is used to set Auto Volume ON or OFF.

2.6 AD Switch

This item is used to turn on/off Audio Description function. For Visually Impaired users, this function can help to know a certain scene or action through the narration, instead of see it.

Notes:

- AD Switch function works only when you are viewing programs that contain related narration information.

- The users can adjust AD Volume when AD Switch is on.

3. Channel

Channel DVB Antenna DVB-T Auto Scan DTV Manual Tuning Programme Edit Channel List CI Information Signal Information Adjust Menu Return Move OK Select Exit Exit

3.1 DVB Antenna

- Press LEFT / RIGHENavigation button to select DVB-T or DVB-C.

3.2 Auto Scan

• Press OK or RIGHT navigation button to enter it.
• Use navigation buttons to set the Country, Tuning Mode and LCN.

Note: Users can see and set Scan Mode and following items only when

"Antenna" is DVB-C.

- When finished above settings, highlight "Auto Scan" and press OK to start program tuning.

3.3 DTV Manual Tuning

• Press OK or RIGHT navigation button to enter it.
• Use LEFT / RIGHT navigation button to select the channel.
  Then press OK button to start searching.

Channel Tuning Tuning Mode DTV + ATV Country Germany LCN Off Auto Scan

DTV Manual Tuning UHF CH 21 DTV 0 Radio 0 Data 0 NO SIGNAL Frequency 474 MHz Bad Normal Good Adjust Menu Back

3.4 DTV Manual Tuning

• Press OK or RIGHT navigation button to enter it.
• Use navigation buttons to adjust the Frequency, Symbol and QAM Type.

Notes:

• Press RED button repeatedly on remote control to change QAM Type.
• Press GREEN button repeatedly on remote control or change Symbol.
• Then highlight "Search" and press OK button to start searching.

DTV Manual Tuning Frequency 394 MHZ Symbol 6900 QAM Type 16 Search Strength 0 Quality 0 Data 0 Radio 0 DTV 0 Modulation Symbol Menu Back

3.5 Programme Edit

• Press OK or RIGHT navigation button to enter it.
• Press UP / DOWN navigation button to highlight desired channel.
• Press RED button on remote control to delete highlighted channel.
• Press GREEN button on remote control to rename highlighted channel.
• Press YELLOW button on remote control to enter MOVE mode. Then use UP / DOWN navigation button to select preferred position and press YELLOW button again to move it.
• Press BLUE button on remote control to skip highlighted channel.

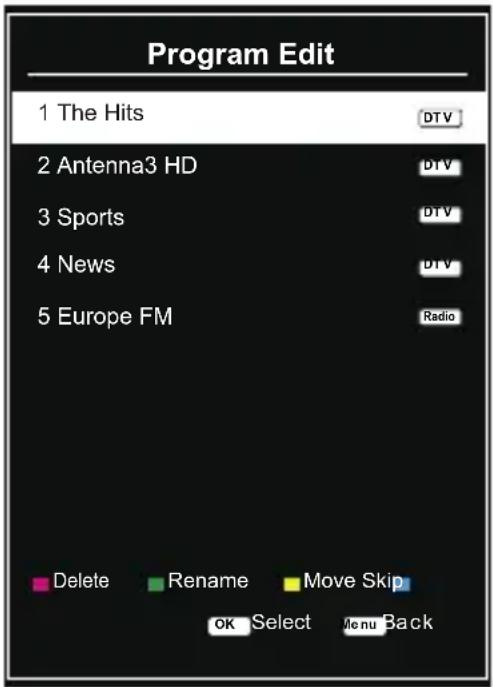

Program Edit 1 The Hits DTV 2 Antenna3 HD DTV 3 Sports DTV 4 News DTV 5 Europe FM Radio Delete Rename Move Skip OK Select Menu Back

3.6 Channel List

• Press OK or RIGHT navigation button to enter it.
• Press UP or DOWN navigation button to select preferred channel.
• Press LEFT / RIGHT navigation button to select a channel group.
• Press OK button to confirm selection.

3.7 CI information

When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.

3.8 Signal information

This item is used to display signal details, for example:signal quality and strength.

ALL 1 The Hits 2 Antenna3 HD 3 Sports 4 News 5 Europe FM Move ch+/- Page Up/Down Exit Quit Sort ok Select Select Sort

4. SETUP

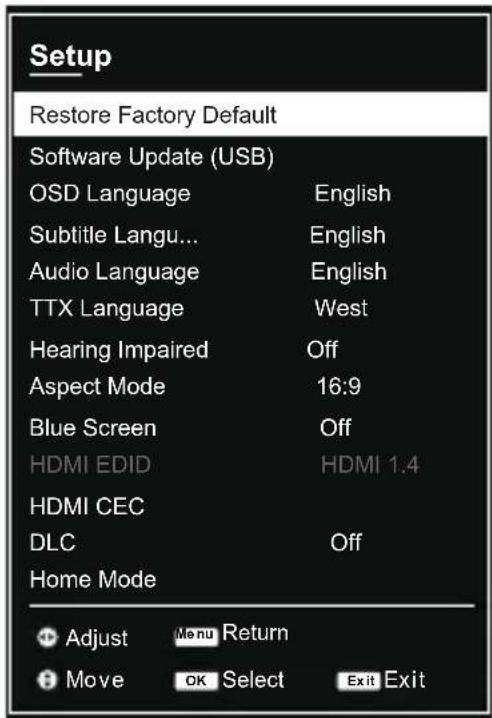

Setup Restore Factory Default Software Update (USB) OSD Language English Subtitle Langu... English Audio Language English TTX Language West Hearing Impaired Off Aspect Mode 16:9 Blue Screen Off HDMI EDID HDMI 1.4 HDMI CEC DLC Off Home Mode Adjust Menu Return Move OK Select Exit Exit

4.1 Restore Factory Default

This item is used to recall factory default settings.

4.2 Software Update (USB)

This item is used to update software through the USB memory device.

4.3 OSD Language

This item is used to select desired on-screen display language.

4.4 Subtitle Language

This item is used to select desired subtitle language.

4.5 Audio Language

This item is used to select desired audio language.

4.6 TTX Language

This item is used to select desired teletext language.

4.7 Hearing Impaired

This item is used to turn on /off Hearing Impaired function. For Hearing Impaired users, this function can assist help to know a certain scene or action through the caption, instead of hearing it.

NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.

4.8 Aspect Mode

This item is used to adjust the video size.

Available options: Auto,4:3,16:9,Zoom2.

Note: The available video size may be different for different input source.

4.9 Blue Screen

This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition, if Blue Screen is ON.

4.10 HDMI EDID (for HDMI input source only)

This item is used to select HDMI version.

Available options:HDMI 1.4,HDMI 2.0.

4.11 HDMI CEC

- Press OK or RIGHT navigation button to enter it.

To use HDMI CEC function:

• Make sure the HDMI device (Amplifier, etc.) is connected correctly.
• Press SOURCE button on the unit or remote control to select HDMI input source.

HDMI CEC: turn on/off HDMI CEC.

Device Power Off: turn on/off Device Auto Power Off.

TV Power On: turn on/off TV Auto Power On.

HDMI ARC: turn on/off ARC function (in HD-INPUT 2 port only).

Device List: display the device list.

Root Menu: display the root menu of external device connected.

HDMI CEC
HDMI CEC	On
Device Power Off	Off
TV Power On	Off
HDMI ARC	Off
Device List
Root Menu

4.12 DLC (Dynamic Luminance Control)

This item is used to turn on/off dynamic luminance control.

4.13 Home Mode

This item is used to select Home Mode or Store Mode (the brightness is higher than Home Mode).

5. TIME

Time Clock 09:35 Sleep Timer Off Auto Standby 4 hours Time Zone Berlin GMT+1 DST On OSD Active Time Off Adjust Menu Return Move OK Select Exit Exit

5.1 Clock

It displays current system time when an available channel was saved.

5.2 Sleep Timer

This item is used to set the automatic sleep time when no signals. Available options: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min.

5.3 Auto Standby

This item is used to select desired Auto Sleep (standby) duration when no operations were done through the remote control. Available options: Off,3/4/5 hours.

5.4 Time Zone

This item is used to select desired time zone.

5.5 DST (Daylight Saving Time)

This item is used to turn on/off Daylight Saving Time.

5.6 OSD Active Time

This item is used to select desired OSD menu active time. Available options: Off, 5/15/30/60/180 seconds.

6. LOCK

• When entered "Lock", input the factory default password "0000" using number buttons on remote control.
• Press UP / DOWN navigation button to select preferred item.

Note: If you forget the password, please use the universal password "8899".

Lock Set Password System Lock Off Channel Lock Key Lock Off Hotel Setting Clear Lock Adjust Menu Return Move OK Select Exit Exit

6.1 Set Password

- Input a new password twice using number buttons on remote control to set a new password.

6.2 System Lock

This item is used to turn on/off Lock System.

6.3 Channel Lock

• Press OK or RIGHT navigation button to enter it.
• Press UP / DOWN navigation button to select the channel which you want to lock.
• Press GREEN button repeatedly to lock/unlock the highlighted channel.

6.4 Key Lock

This item is used to lock/unlock TV buttons.

6.5 Hotel Setting

Hotel setting allows you to restrict access to some functions by means of password, so that end user cannot change the TV settings. In this menu, you will be able to restrict access to functions such as channel settings and volume control.

6.6 Clear Clock

This item is used to clear clock.

Media Player

• Press SOURCE button on the unit or remote control to switch the unit to USB mode.
• Insert a USB memory device into USB slot before following operations.
• Press UP / DOWN / LEFT / RIGHT navigation button to move the cursor.
• Press EXIT button to return to previous page.

Media Photos Music MOVIE Text1 ● Sweet

1. Photos

• Press UP /DOWN navigation button to select "Photos" in the main menu and press OK button to enter it.
• Use navigation buttons to select a file and press OK button to add to play list.
• Press ▶ button to start playback.
• Press DISPLAY button to show / dismiss the tool bar. Use navigation buttons to select desired option and press OK to confirm it.

Screenshot of a software playback control bar with icons for media, audio, search, navigation, and music.

2. Music

• Press UP /DOWN navigation button to select "Music" in the main menu and press OK button to enter it.
• Use navigation buttons to select a file and press OK button to add to Play list.
• Press ▶ button to start playback.

Play Repeat: None Happiness

• Use navigation buttons to select desired option and press OK to confirm it.
• Press EXIT button to return.

3. Movie

• Press UP / DOWN navigation button to select "Movie" in the main menu and press OK button to enter it.
• Use navigation button to select a file and press OK button to add to play list.
• Press ▶ button to start playback.
• Press DISPLAY button to show / dismiss the tool bar. Use navigation bottoms to select desired option and press OK to confirm it.

00:00:10/00 04:18

- Press EXIT button to return.

4. Text

• Press UP/ DOWN navigation button to select "Text" in the main menu and press OK button to enter it.
• Use navigation buttons to select a file and press OK button to add to play list.
• Press ▶ button to start playback.
• Press DIAPLAY button to show / dismiss the tool bar. Use navigation buttons to select desired option and press OK to confirm it.

Media player control bar with playback, play, audio, musical note, menu, and i button icons

- Press EXIT button to return.

Remote operations when playing multimedia files:

• Press ▶ button on remote control to play or pause playing.
• Press ■ button on remote control to stop playing.
• Press ◀ button on remote control to move fast backward.
• Press ➤ button on remote control to move fast forward.
• Press ◀ button on remote control to play previous file.
• Press ▶ button on remote control to play next file.

NOTE: To play your multimedia files, make sure you have selected correct icon in the mainmenu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item, Music files in MUSIC item and so on.

No image and voice

Blank gray rectangle with black border (no text or symbols)

Possible causes:

*Power cord, antenna or input devices are not connected;
*The TV set is not powered on.

Solutions:

*Check Power cord, antenna and input devices;

*Press Power key on the remote control;

*Press Power key on the set to power it off for 5 seconds and then re-power it on.

No voice

Simple line drawing of a sad face with closed eyes and open mouth (no text or symbols)

Possible causes:

*The volume is too low; Muted or cancelled;

*Incorrect sound system.

Solutions:

*Press Volume key to turn up the volume;

*Press Mute key to cancel Mute mode.

Well connect vonconnection to the background sound;

*Change the sound system in the menu.

Snows and noises:

Abstract black-and-white sketch of a stylized figure with curved lines and a small figure, set against a striped background (no text or symbols)

Possible causes:

*The cable is damaged or gets loose;

*Incorrect channel preset;

*Improper antenna positioning .

Solutions:

*Check whether the connection of the antenna cable, DVD and the cables is correct;

*Reset channels or fine tune the channel;

*Adjust the direction of the antenna.

Achromatic colour

Simple line drawing of a cube, a triangular prism, and a sphere (no text or symbols)

Possible causes:

*Incorrect Colour system settings; Low chroma level setting ;

*Improper antenna positioning .

Solutions:

*Change the colour system into the local system in the menu;

*Increase chroma level;

*Adjust the direction of the antenna.

Troubleshooting

Remote control has no response:

Possible causes: *Battery runs up; *Incorrect battery loading; Solutions: *Check the battery electricity or replace the battery; *Check if the poles of the battery are correct.

Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m.

Important Notice

The display of this television is made up of a large number of colour pixels. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

Note on Defective Pixels

Your product has been manufactured with great care. Nevertheless, it is possible that some pixels remain constantly on or unfit. Please refer to the table below about the tolerance level for defective pixels on this product.

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
40	3840*2160	41	20	0

Technical Data Sheet

Sheet of household television according to EU directive 1062/2010

Trade mark	SCHNEIDER
Model no.	LED40-SC600K
Energy efficiency Class	A
Visible Screen Diagonal	100 cm / 40inches
On mode Power consumption	60W
Annual energy consumption	87.6kWh per year
Power consumption in off mode	0 W
Standby power consumption	<0.5 W
Screen Resolution (pixel)	3840(H) X 2160(V)

Note:

1. Energy efficiency class: A++ (most efficient) to E (least efficient)
2. Annual energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc

SAV

ADMEA / LOGISAV
