2439056 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

Product type	Drip coffee maker
Brand	Russell Hobbs
Model	2439056
Capacity	10 large cups (125 ml) or 15 small cups (83 ml)
Filter type	Paper filter size #4 (not included)
Power	900 W (estimated)
Power supply	220-240 V, 50-60 Hz
Dimensions (approx.)	25 x 25 x 35 cm
Weight (approx.)	2.5 kg
Materials	Plastic, glass (carafe), stainless steel (hot plate)
Timer	Yes, programmable up to 24 hours in advance
Display	LED screen with clock
Keep warm function	Yes, approximately 40 minutes
Auto shut-off	Yes, after 40 minutes
Anti-drip valve	Yes, allows removing the carafe during brewing
Cleaning	Carafe and filter holder are dishwasher safe (top rack)
Energy consumption	Approximately 0.9 kWh per use (estimated)
Safety	Can be used by children over 8 years old under supervision
Repairability	Spare parts available: carafe, filter holder, water tank
Color	Black and stainless steel (estimated)

Frequently Asked Questions - 2439056 RUSSELL HOBBS

How to set the clock on the Russell Hobbs 2439056 coffee maker?

Plug in the machine. Use the hr (hour) and min (minutes) buttons to set the time in 24h format. The clock retains its settings until disconnected.

How to program the timer so that coffee is ready at a specific time?

Set the clock first. Press and hold the ⏻ button until the icon flashes, then use hr and min to set the start time. Press ⚙ to confirm. The icon ⏻ appears.

What type of filter should I use?

Use a #4 paper filter (not included). Place it in the filter holder before adding ground coffee.

How to clean the machine?

Unplug and let it cool. Wipe the exterior with a damp cloth. Wash the carafe and filter holder by hand or on the top rack of the dishwasher. Do not use abrasive products.

Can I remove the carafe during coffee brewing?

Yes, thanks to the anti-drip valve. You can remove the carafe at any time; coffee will not drip onto the hot plate. Replace it within 20 seconds to avoid overflow.

How long does the coffee stay hot?

The machine keeps coffee warm for about 40 minutes after brewing, then automatically shuts off.

How much ground coffee should I use?

For a large cup (125 ml), add 6 g of ground coffee. For a small cup (83 ml), add 4 g. Adjust to taste.

What if the coffee does not flow?

Check that the water tank has water, the filter is correctly placed, and the filter holder is properly locked (you should hear a click). Also ensure the carafe is in place.

Is the appliance safe for children?

Yes, from 8 years old under adult supervision. The appliance can get hot; keep out of reach of children under 8.

How to descale the machine?

The manual does not specify a procedure. Use a coffee machine descaler following the product instructions. Then rinse with clear water.

USER MANUAL 2439056 RUSSELL HOBBS

Exterior view of a modern white Dreddy's Hotbeaker (Russell Hobbs) with digital display and control buttons (no visible text or symbols on the device itself)

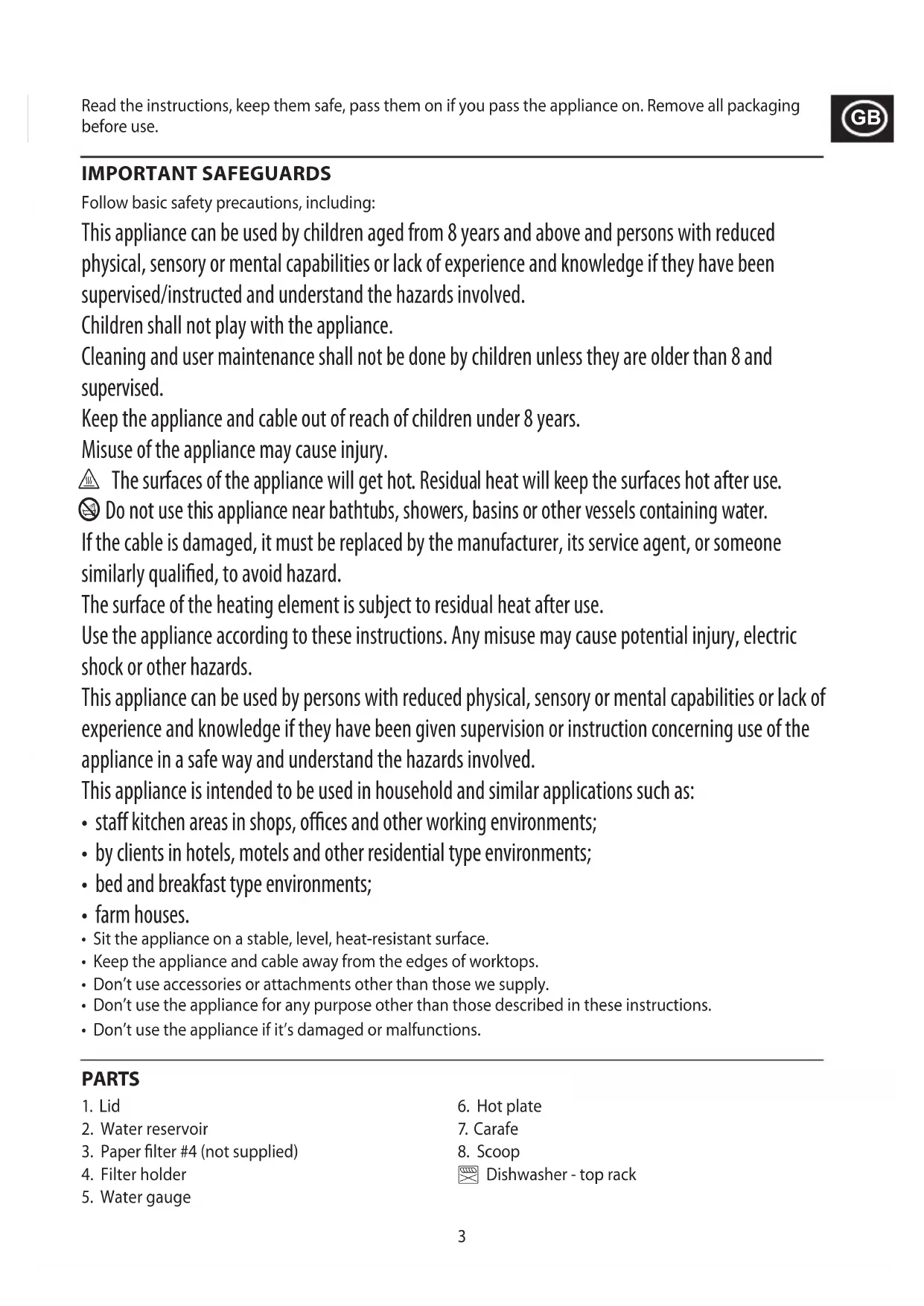

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• farm houses.
• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

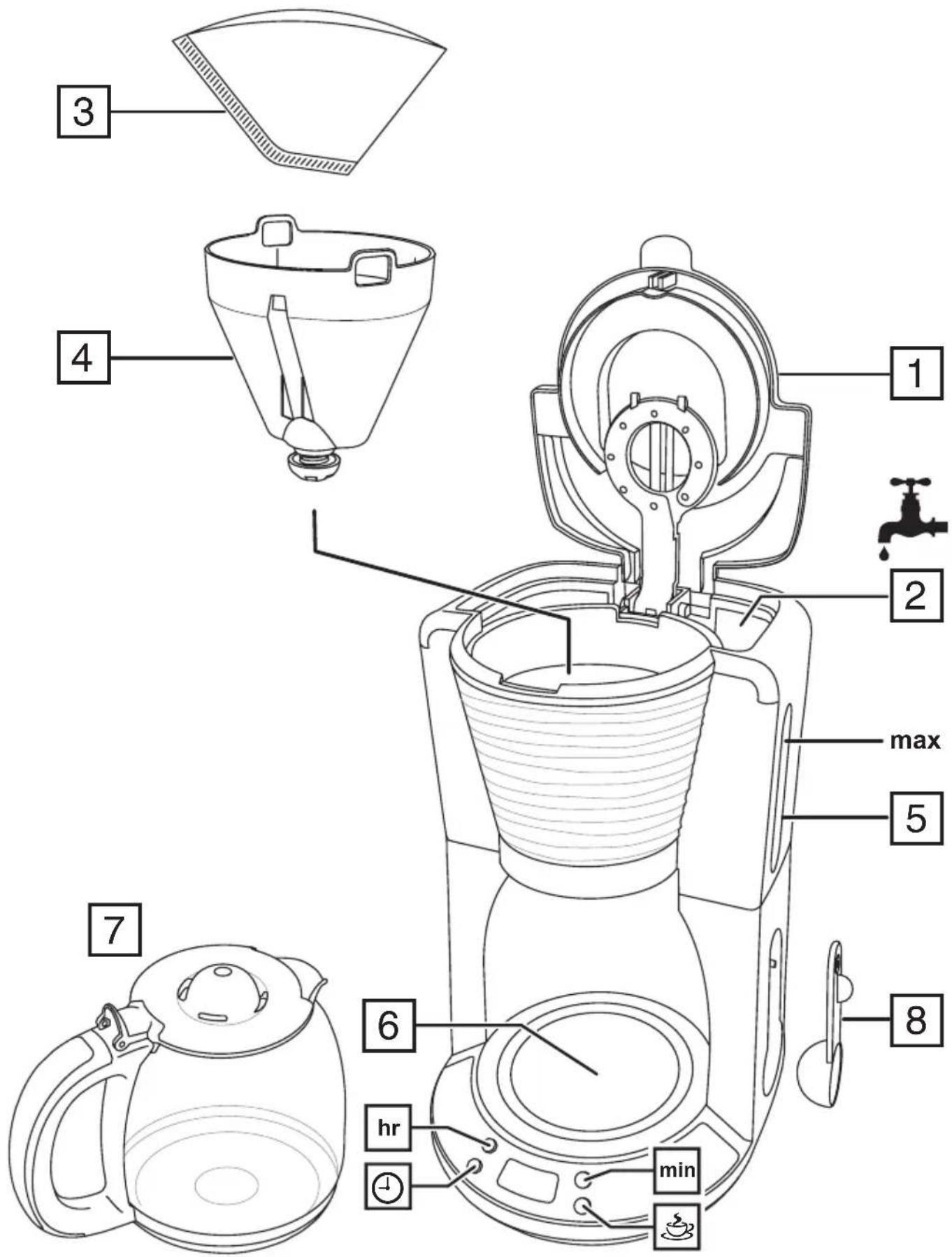

PARTS

1. Lid
2. Water reservoir
3. Paper filter #4 (not supplied)
4. Filter holder

5. Water gauge

6. Hot plate

7. Carafe
8. Scoop
   Dishwasher - top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Remove the carafe from the hotplate.
2. Open the lid.
3. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.
4. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
5. Put a #4 paper filter into the filter holder.
6. The reservoir is calibrated to give 10 large cups (at 125ml per cup) and 15 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
7. Close the lid.
8. Replace the carafe on the hotplate.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.

2. Use the hr and min buttons to set the correct time in 24 hour format.

3. The clock will retain its settings until the coffee maker is unplugged.

4. To change the time, press the ⏻ button. The time will flash. Use the hr and min buttons to set the new time. If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show.

MAKING COFFEE

1. Press the 🎨 button – the 🔊 icon will appear on the display.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the 🤔 button.
4. Once brewed, the hotplate will keep the carafe warm for up to 40 minutes.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the h and min buttons.

1. Set the timer to the time you want to start brewing.

a) Press and hold the ⏻ button until the ⏻ icon flashes on the display.
b) Use the h and min buttons to set the time you want brewing to start.
If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show. Press the ⏻ button to start again.

1. When the time is programmed, press the ⚙ button. The ⏻ icon will appear on the display. Your coffee maker is now set to make coffee at the selected time.

2. If you want to check the program time press the ⏻ button. The programmed time will show for 3 seconds and then return to the time of day.
   • If you want to cancel the timer before brewing has started, press the 🤨 button.

3. If you want to stop the coffee maker while it's brewing, press the 🤔 button.

KEEP WARM/AUTO SHUT-OFF

1. Your coffee maker will keep the coffee warm for about 40 minutes.
2. 40 minutes after brewing your coffee maker will shut down and the time of day will be displayed.
3. To wake the appliance, press the min button.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.
6. Replace the filter holder. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
7. Close the lid, and press down to lock it.

You may wash these parts in the top rack of a dishwasher.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
