2397156 - Iron RUSSELL HOBBS - Free user manual and instructions

Product Type	Iron
Brand	Russell Hobbs
Model	2397156
Power Supply	Mains (220-240 V)
Power	2400 W
Water Tank Capacity	300 ml
Power Cord Length	2 m
Soleplate	Stainless steel
Functions	Steam ironing, dry ironing, spray, steam boost, vertical steam, self-cleaning, anti-scale
Temperature Setting	Adjustable thermostat (positions ●, ●●, ●●●/max)
Safety Shut-off	Protection cut-off in case of overheating
Maintenance	Monthly self-cleaning, soleplate cleaning, empty tank
Weight	1.2 kg
Dimensions (L x W x H)	30 x 15 x 20 cm
Tank Material	Plastic
Indicator Light	Temperature indicator
Spray	Yes
Water Type	Tap water or demineralised water
Usage	Domestic only

Frequently Asked Questions - 2397156 RUSSELL HOBBS

How to fill the water tank of the iron?

Unplug the iron. Set the thermostat to • and the steam control to ✉. Open the filling hole cover. Pour water slowly up to the max mark. Do not overfill. Close the cover and wipe off any spilled water.

Why does the iron smoke during first use?

It is normal for the iron to smoke slightly at first. This will stop when the appliance dries. Iron an old piece of cotton cloth to clean the soleplate.

What to do if the iron does not heat up?

Check that the thermostat is set to an adequate temperature (above •). The indicator light turns on and then off when the temperature is reached. If the iron remains cold, there may be a protection cut-off issue. In this case, the appliance must be returned for repair.

How to use the steam boost?

Ensure the temperature is set to or higher. Remove the iron from the fabric and press the button. Wait 4 seconds between each boost to allow the steam to rebuild.

How to clean the iron with the self-cleaning function?

Set the thermostat to max and the steam control to ✉. Place the iron on its heel, plug it in and wait for the indicator light to go off. Hold the iron over a sink, soleplate down, and press and hold the button. Move the iron gently until the tank is empty. Release the button, unplug and let it cool.

Can tap water be used in the iron?

Yes, tap water is suitable. In hard water areas, use demineralised water suitable for irons. Do not use chemically demineralised water.

How to dry iron?

If you dry iron for more than 20 minutes, first empty the tank. Set the steam control to and wait for the indicator light to go off before starting.

How to use vertical steam?

Ensure adequate ventilation behind the fabric. Set the thermostat to max and the steam control to ✉. Remove the iron from the fabric, press the button and wait 4 seconds between bursts.

What to do if water leaks from the soleplate?

This may happen if the tank is overfilled or if the temperature is not high enough for steam. Check the water level and set the thermostat to a suitable temperature (at least ⚙ for steam).

How to store the iron after use?

Set the thermostat to • and the steam control to ✉. Unplug and empty the tank by tilting the iron over a sink. Close the cover, place the iron on its heel, let it cool completely. Wipe off moisture, wrap the cord around the heel and store the iron on its heel.

USER MANUAL 2397156 RUSSELL HOBBS

Black and white image of a steam iron with brand name 'SUPREME STEAM PRO' and certification marks (no additional text or symbols)

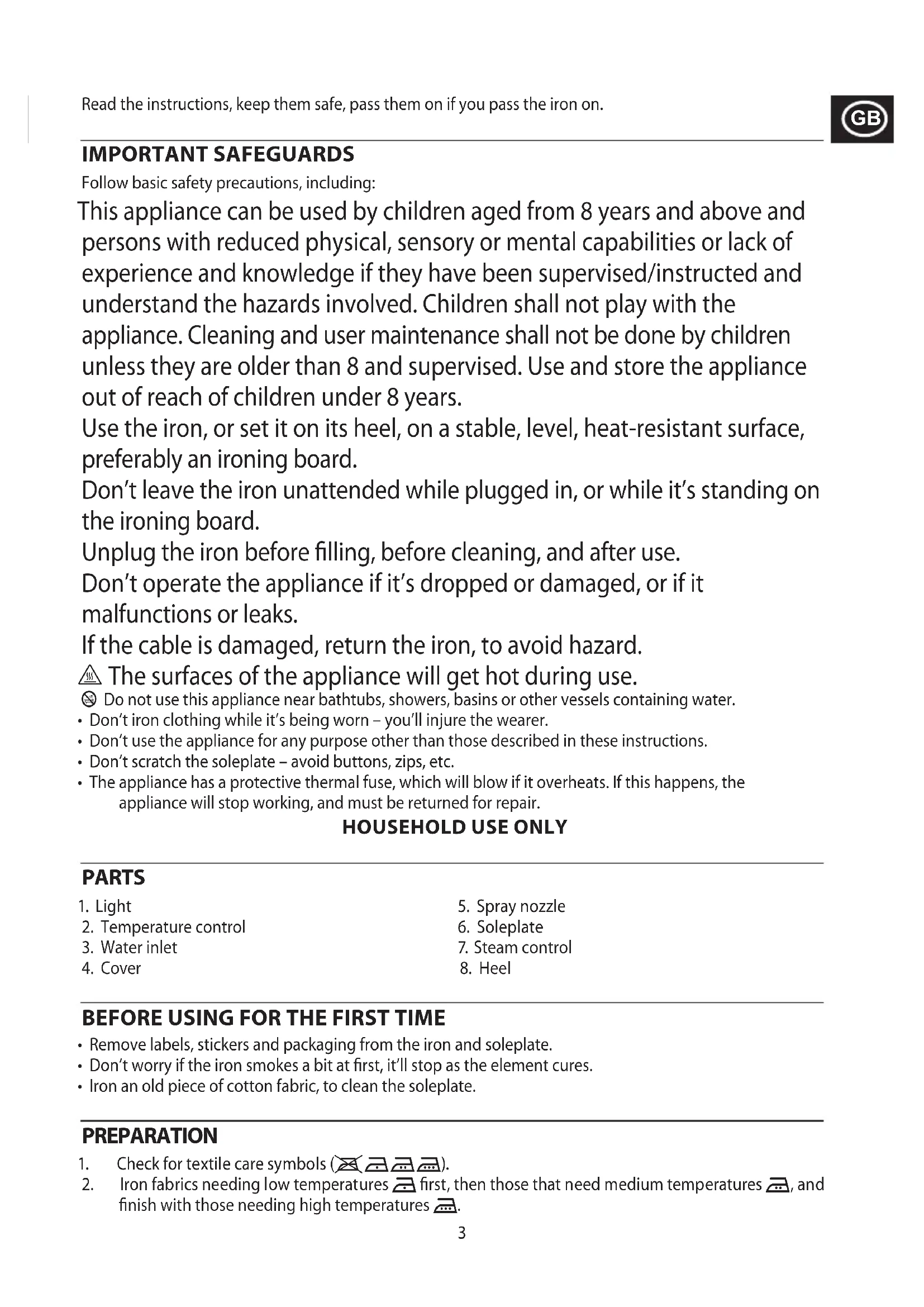

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Use and store the appliance out of reach of children under 8 years.

Use the iron, or set it on its heel, on a stable, level, heat-resistant surface, preferably an ironing board.

Don't leave the iron unattended while plugged in, or while it's standing on the ironing board.

Unplug the iron before filling, before cleaning, and after use.

Don't operate the appliance if it's dropped or damaged, or if it malfunctions or leaks.

If the cable is damaged, return the iron, to avoid hazard.

The surfaces of the appliance will get hot during use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't iron clothing while it's being worn – you'll injure the wearer.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't scratch the soleplate – avoid buttons, zips, etc.
• The appliance has a protective thermal fuse, which will blow if it overheats. If this happens, the appliance will stop working, and must be returned for repair.

HOUSEHOLD USE ONLY

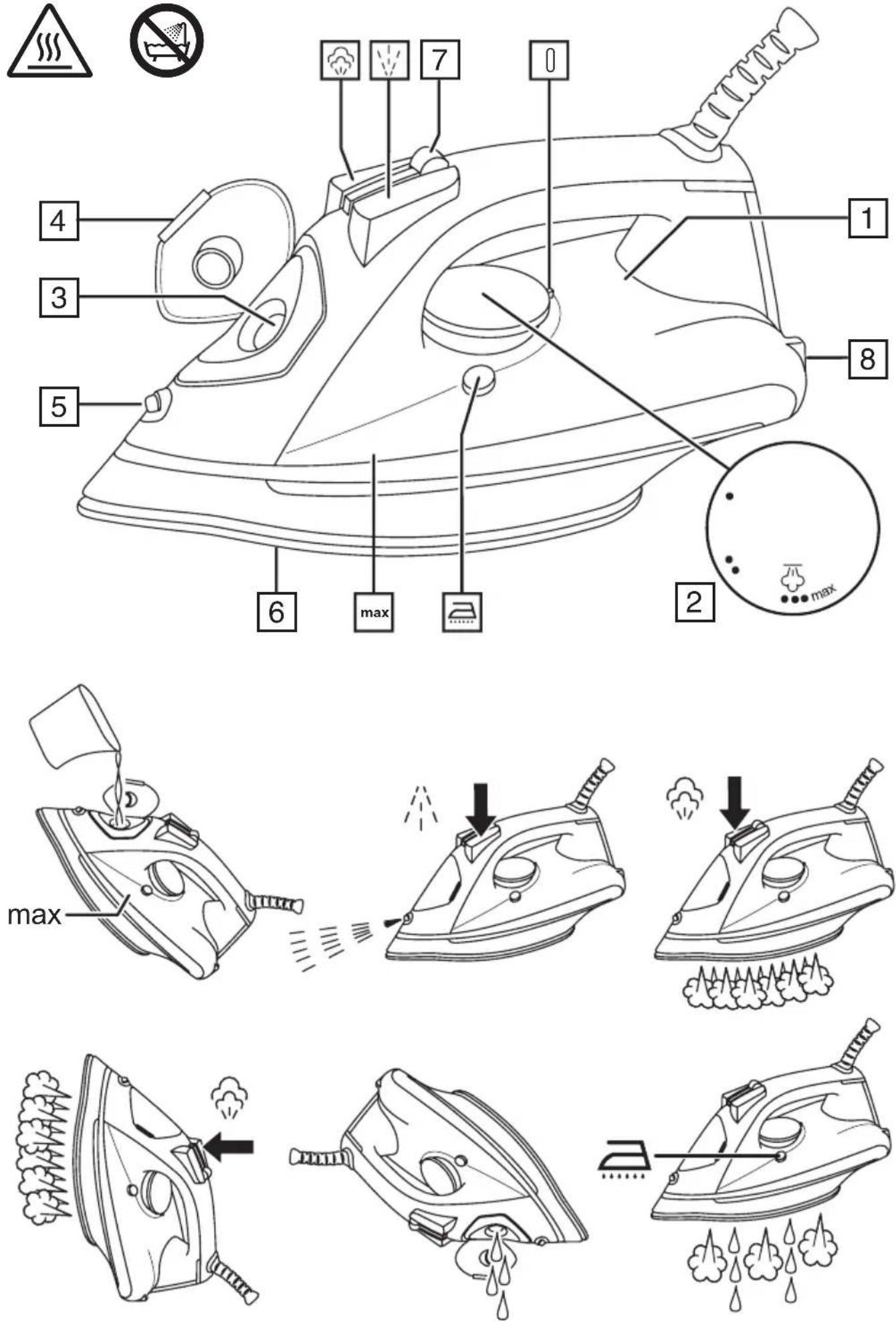

PARTS

1. Light
2. Temperature control
3. Water inlet

4. Cover

5. Spray nozzle

6. Soleplate
7. Steam control
8. Heel

BEFORE USING FOR THE FIRST TIME

• Remove labels, stickers and packaging from the iron and soleplate.
• Don't worry if the iron smokes a bit at first, it'll stop as the element cures.
• Iron an old piece of cotton fabric, to clean the soleplate.

PREPARATION

1. Check for textile care symbols (☒, ☐, ☐, ☐).
2. Iron fabrics needing low temperatures 📄 first, then those that need medium temperatures 📄, and finish with those needing high temperatures 📄.

FILLING

You may use the iron with tap-water, but if you live in a hard water area, you should use distilled water (not chemically descaled or softened water).

If you buy distilled water, check that it's suitable for use in irons.

1. Unplug the iron.
2. Set the temperature control to ●. Set the steam control to ✗.
3. Open the cover.
4. Pour slowly, to let the air in the reservoir escape, otherwise you'll cause an air lock and the water will overflow.
5. Don't fill past max, or water will escape in use.
6. Wipe up any spillage.

SWITCH ON

1. Set the temperature control to •. Set the steam control to ✗.
2. Sit the iron on its heel.
3. Put the plug into the power socket (switch the socket on, if it's switchable).
4. Turn the temperature control to bring the setting you want next to the mark. The light will come on.
5. When the iron reaches the temperature you set, the light will go off. It'll then cycle on and off as the thermostat operates to maintain the temperature.

TEMPERATURE SETTING GUIDE

Label marking Dot setting
cool – nylon, acrylics, polyester	●
warm – wool, polyester mixtures	●●
hot – cotton, linen	●●●/max
do not iron	-

If the instructions on the fabric label differ from this guide, follow the instructions on the label.

STEAM IRONING

1. If you intend to use steam, the temperature setting must be 🏠 or higher.
2. Set the steam control to the setting you want (☒ = no steam, ☑ = high).
3. Wait till the light goes off, then start ironing.

SPRAY

Water spotting affects some fabrics. Test this out on a hidden part of the fabric.

1. Lift the iron off the fabric.
2. Aim the spray nozzle at the fabric.
3. Press the 🎨 button – you may have to press it 2 or 3 times to pump water through the system.

SHOT OF STEAM

If you intend to use steam the temperature control must be at 📄 or higher.

1. Lift the iron off the fabric.
2. Press the 📄 button.
3. Leave 4 seconds between shots, to let the temperature build up.

DRY IRONING

If you're going to be dry ironing for 20 minutes or more, empty the reservoir first, to avoid spontaneous bursts of steam.

1. Set the steam control to ✗.
2. Wait till the light goes off, then start ironing.

VERTICAL STEAMING

Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

• Check that there's adequate ventilation behind the fabric, otherwise moisture may build up, causing mildew.
• Check that there's nothing behind the fabric that may be damaged by the steam.
• Check that pockets, turn-ups, and cuffs are empty.

• Check that there's water in the reservoir.

• Set the temperature control to max. Set the steam control to ✗.

• Hold the iron close to (but not touching) the fabric.
• Press the 📋 button (you're using the "shot of steam" function vertically).
• Leave 4 seconds between shots, to let the temperature build up.

AFTER USE

1. Set the temperature control to •. Set the steam control to ✗.
2. Unplug the iron.
3. Open the cover.
4. Hold it over a sink, turn it upside down, and drain the water from the reservoir, via the water inlet.
5. Close the cover.
6. Sit the iron on its heel.
7. Leave it to cool down completely.
8. When it's cold, wipe off any moisture, and wind the cable round the heel.
9. Store the iron on its heel, to avoid corrosion and damage to the soleplate.

SELF CLEAN

To avoid scale build up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

Products returned under guarantee with faults due to scale will be subject to a repair charge.

You'll need a basin or a large bowl to catch the water coming out of the soleplate.

1. Fill the reservoir to the max mark.
2. Set the temperature control to max. Set the steam control to ✗.
3. Sit the iron on its heel.
4. Put the plug into the power socket and wait till the light goes out.
5. Hold the iron over the basin or bowl with the soleplate down.
6. Press the ⚡, and hold it down.
7. Gently move the iron to and fro, over the basin or bowl.
8. Water and steam will wash scale and dust through the soleplate, and into the sink.
9. When the reservoir is empty, release the 📄 button.

ANTI-SCALE

The anti-scale agent incorporated in the iron helps prevent the build-up of scale.

Don't use a descaling solution, or you'll destroy the anti-scale.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
