Charles CVC3712 - Vacuum Cleaner Numatic - Free user manual and instructions

Product type	Wet and dry vacuum cleaner
Brand	Numatic
Model	Charles CVC3712
Rated power	1060 W
Tank capacity (dry)	15 L
Tank capacity (wet)	9 L
Dimensions (W x D x H)	360 x 370 x 510 mm
Net weight	9 kg
Noise level	73-77 dB(A)
Cable length	10 m
Protection class	II
Power supply	220-240 V ~ 50 Hz
Main functions	Dry and wet vacuuming, carpet cleaning
Maintenance and cleaning	Empty the tank regularly, clean filters, check the float
Safety	Automatic shut-off in wet mode, safety float, disconnect before maintenance
Spare parts and repairability	Original Numatic parts available, repair by qualified personnel
General information	Indoor and commercial use (hotels, schools, hospitals, etc.)

Frequently Asked Questions - Charles CVC3712 Numatic

What is the power of the Charles CVC3712 vacuum cleaner?

The vacuum cleaner has a rated power of 1060 W.

What is the tank capacity for dry and wet vacuuming?

The dry capacity is 15 liters and the wet capacity is 9 liters.

Can I use the vacuum cleaner to pick up liquids?

Yes, the Charles CVC3712 model is designed for wet materials. Make sure the safety float is working correctly and empty the tank before vacuuming liquids.

How to maintain the vacuum cleaner?

Empty the tank regularly, clean the filters, check the condition of the filter bag and filter, and inspect the power cable. Never clean the machine with steam or pressurized water.

What type of filter does the vacuum cleaner use?

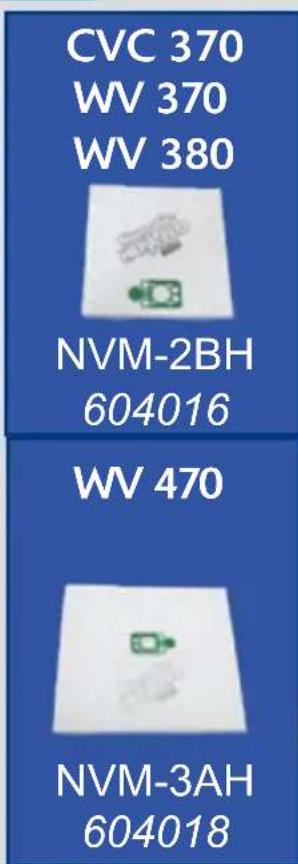

The vacuum cleaner uses a filter bag and an appropriate filter. It is important to always use a bag and filter during dry vacuuming.

What to do if the vacuum cleaner stops working in wet mode?

Stop and unplug the unit. Check if the safety float has been triggered (different noise). Remove the power brush and empty the tank. Make sure the hoses are not clogged.

Is the vacuum cleaner suitable for commercial use?

Yes, it is suitable for commercial use, for example in hotels, schools, hospitals, factories, stores and offices.

What are the dimensions and weight of the vacuum cleaner?

The dimensions are 360 x 370 x 510 mm and the weight is 9 kg.

Can I vacuum hot ashes or cigarette butts?

No, never vacuum hot ashes or lit cigarette butts as this presents a fire risk.

Where can I find spare parts?

Contact your Numatic dealer or Numatic technical support at [phone] for original parts.

USER MANUAL Charles CVC3712 Numatic

Original Instructions -

Warning! Read instructions before using the machine.

Warnhinweis:

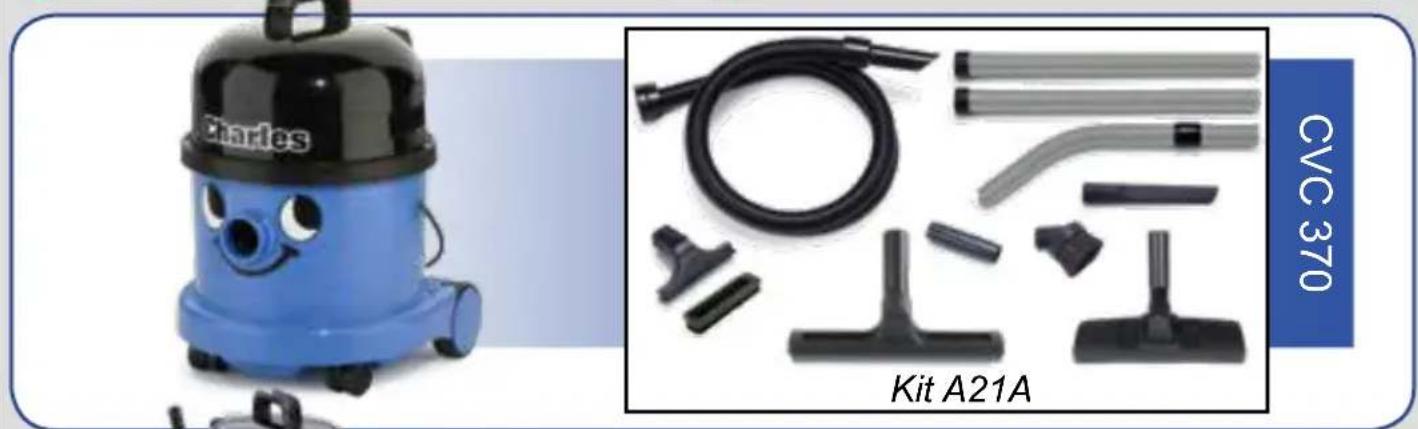

Product photo of a Charles vacuum cleaner with black cover, coiled tubing, and cleaning tools (no visible text or symbols)

Product photo of a Charles vacuum cleaner with attached components including hoses, clips, and a stand (no visible text or symbols on main objects)

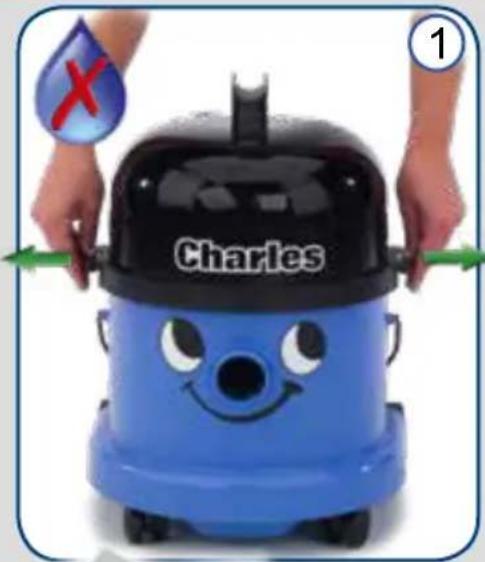

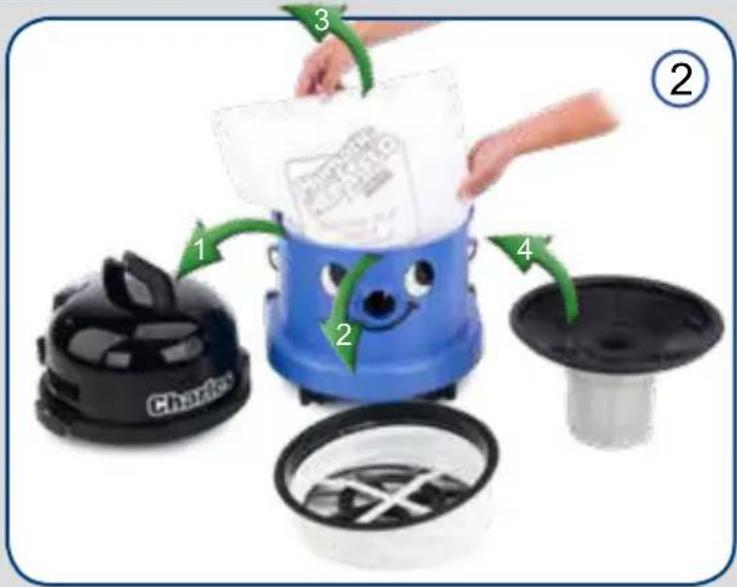

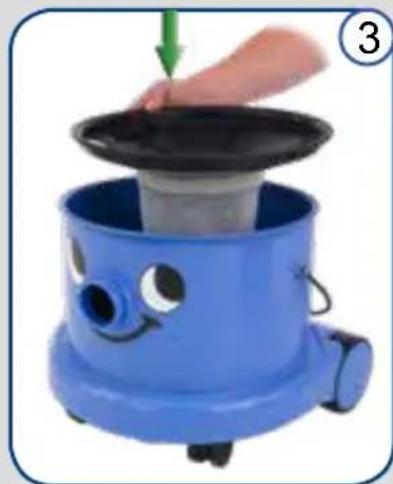

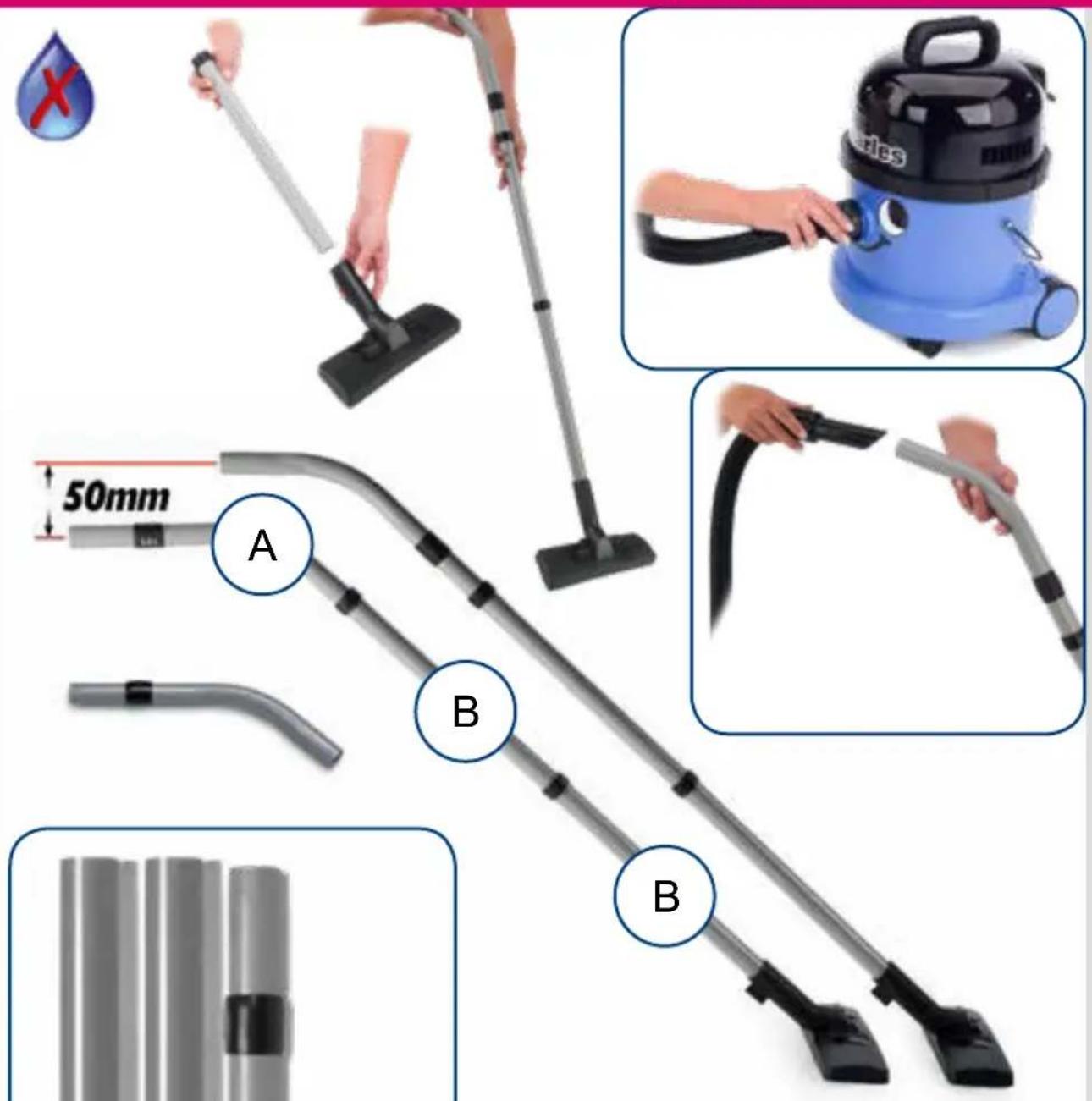

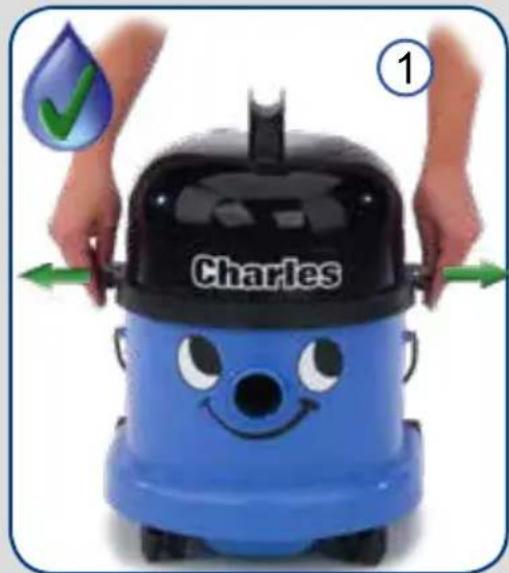

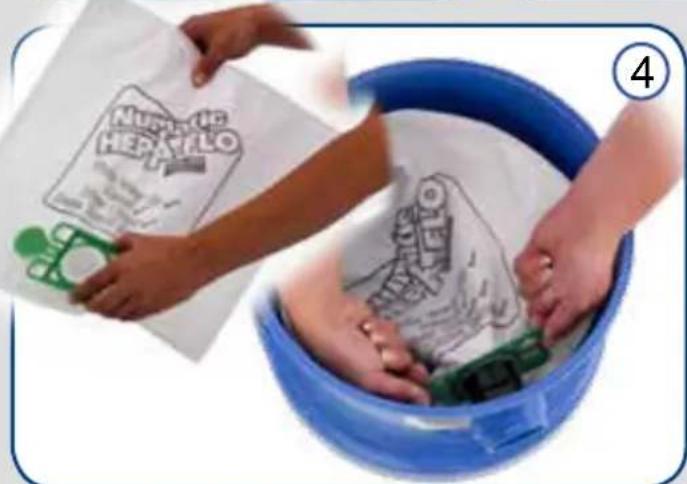

Assembly - Zusammenbau - Assemblage - Samenstelling - Conjunto - Montaggio - Ensamblaje

Blue industrial machine with cartoon eyes and a hand holding a lid, no visible text or symbols

Blue cartoon character with facial features and a black top labeled 'Charles' (no additional text or symbols)

Blue Charles vacuum cleaner with black top, hands adjusting handle (no text or symbols visible)

Close-up of a black vacuum cleaner with a close-up inset showing its handle detail (no text or symbols visible)

Two-step photo showing a blue square vacuum cleaner being handled with a black hose, labeled with parts 7 and 8 (no text or symbols on the device itself)

Person in white uniform holding a blue and black vacuum cleaner (no visible text or symbols)

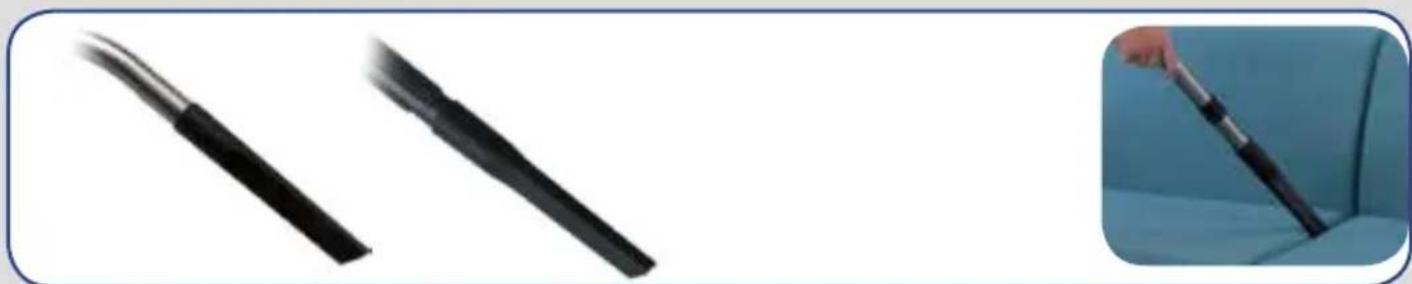

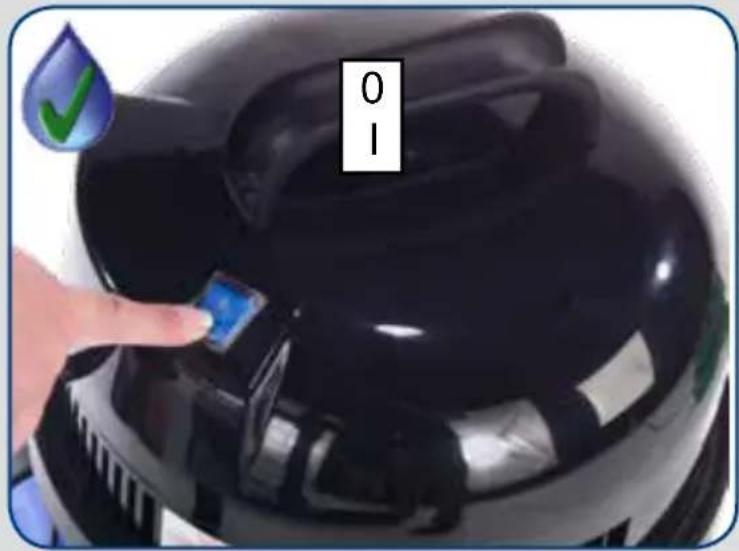

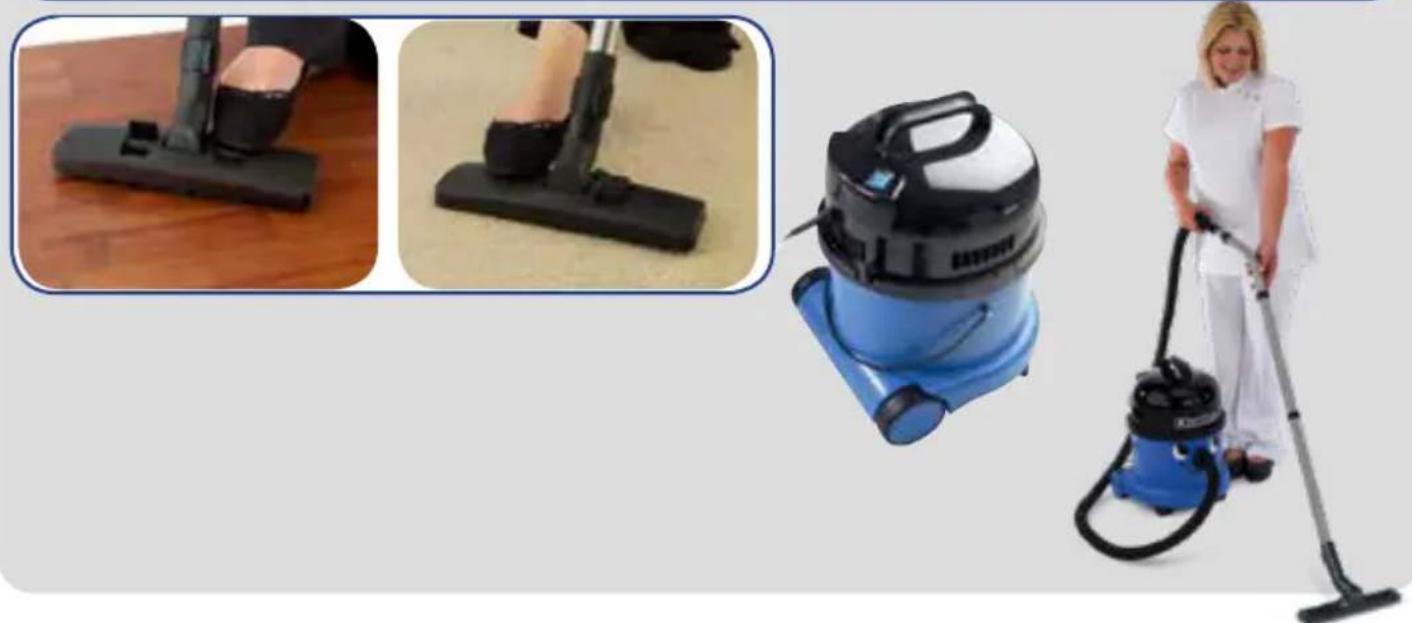

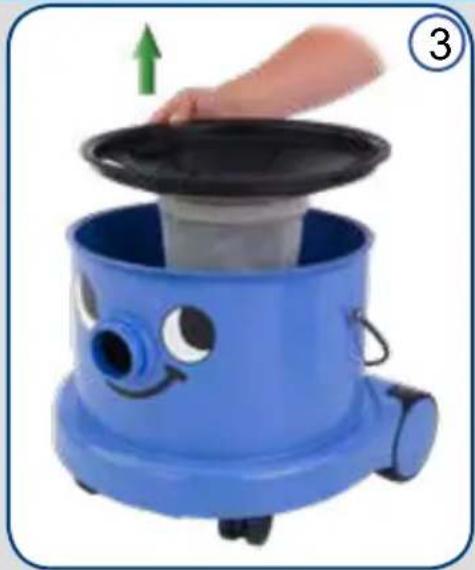

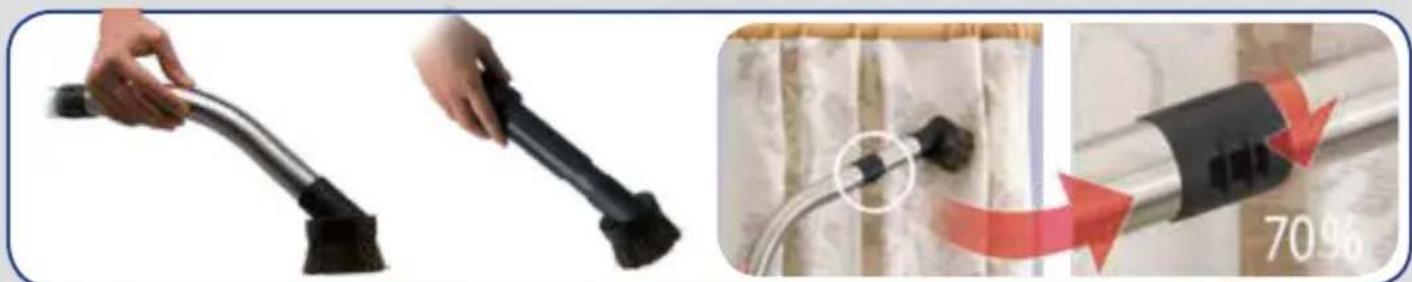

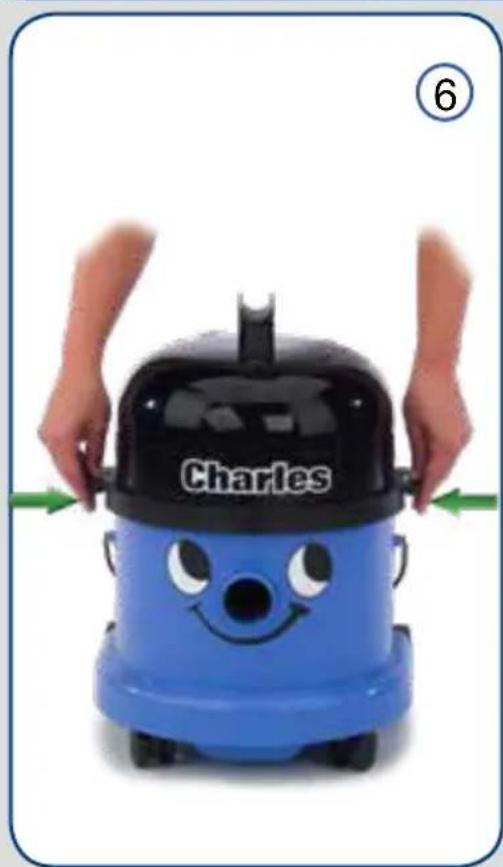

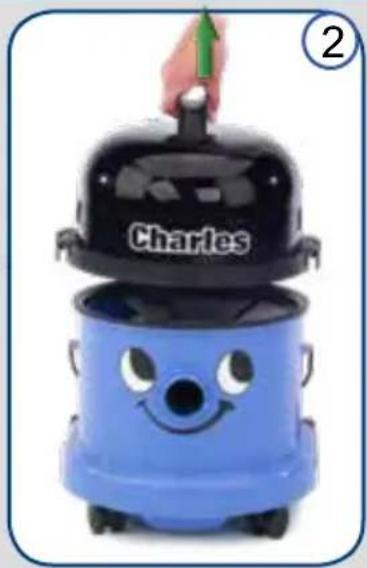

Using your machine - Arbeiten mit dem Gerät - Utilisation de la machine - De machine gebruiken - Utilização da máquina - Uso dell'apparecchio - Utilización de la máquina

Woman in white uniform cleaning a blue vacuum cleaner with a black cloth, standing on a patterned surface (no text or symbols visible)

Blue Charles vacuum cleaner with cartoon face and black hood (no text or symbols on device)

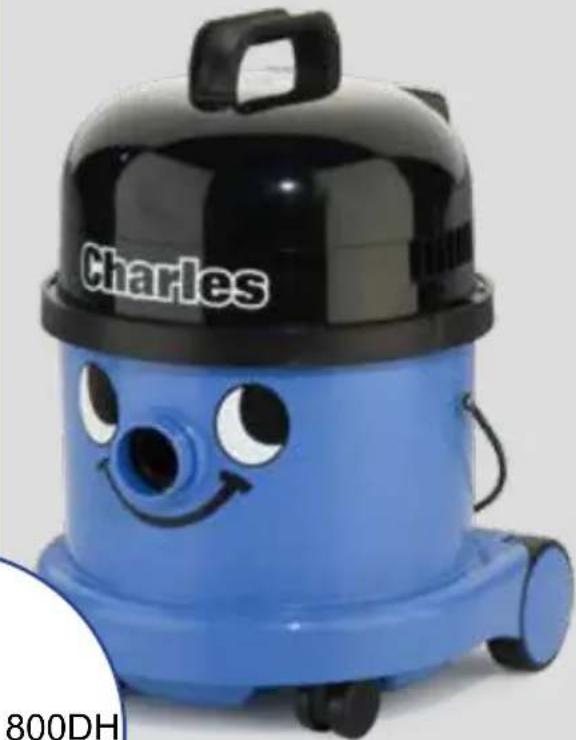

WV 800DH

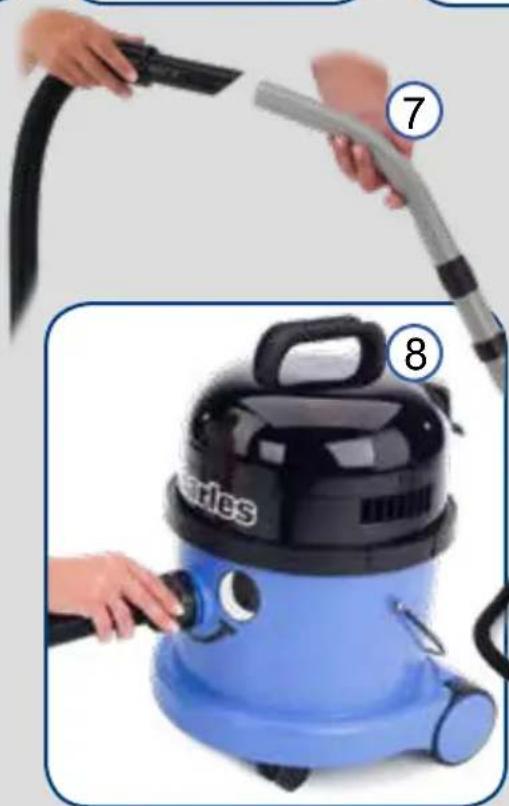

Assembly - Zusammenbau - Assemblage - Samenstelling - Conjunto - Montaggio - Ensamblaje

Blue Charles vacuum cleaner with a smiling face and black top, no visible text or symbols on the device itself.

Blue industrial machine with cartoon eyes and handle, showing a hand pressing down on top (no text or symbols visible)

Three cleaning machines: a black hard hat with 'Charles' label, a blue brush cleaner with green arrows, and a white plastic cover (no text or symbols on main objects)

Blue Charles vacuum cleaner with hands adjusting its lid, showing a smiley face and green directional arrows (no text or symbols on the device itself)

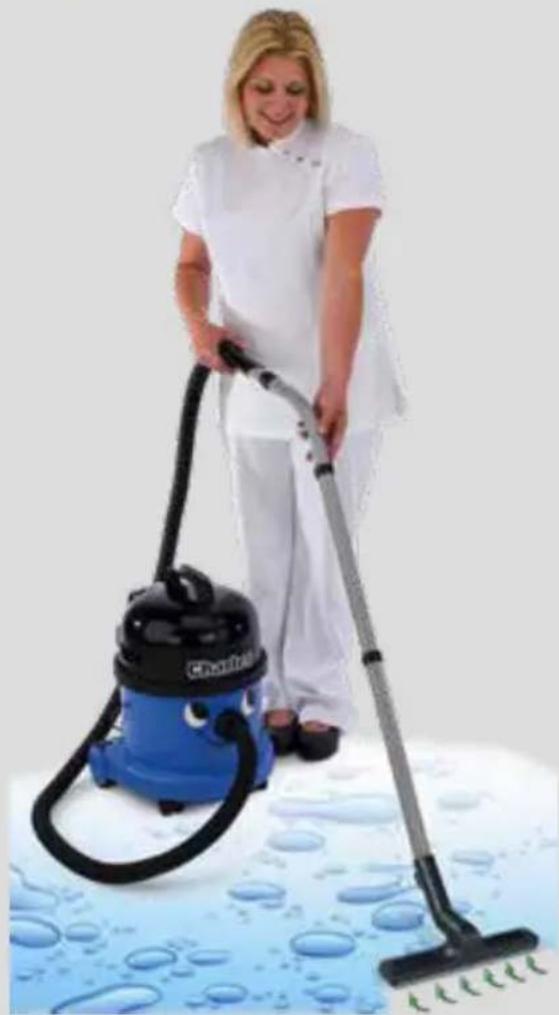

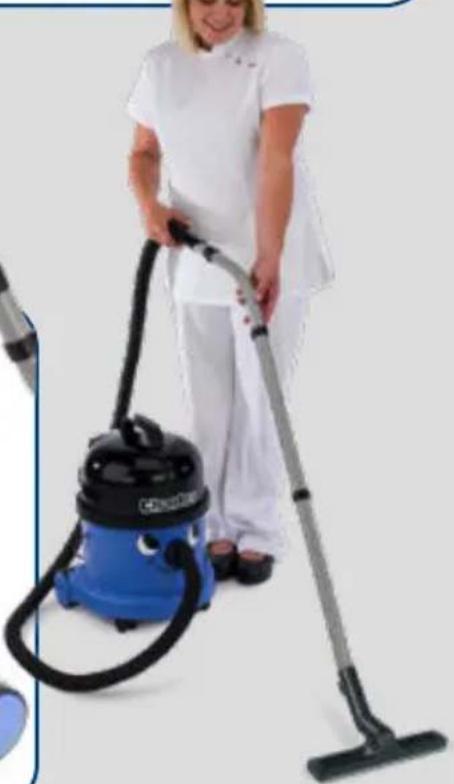

Woman in white outfit using a blue vacuum cleaner with black handle (no visible text or symbols)

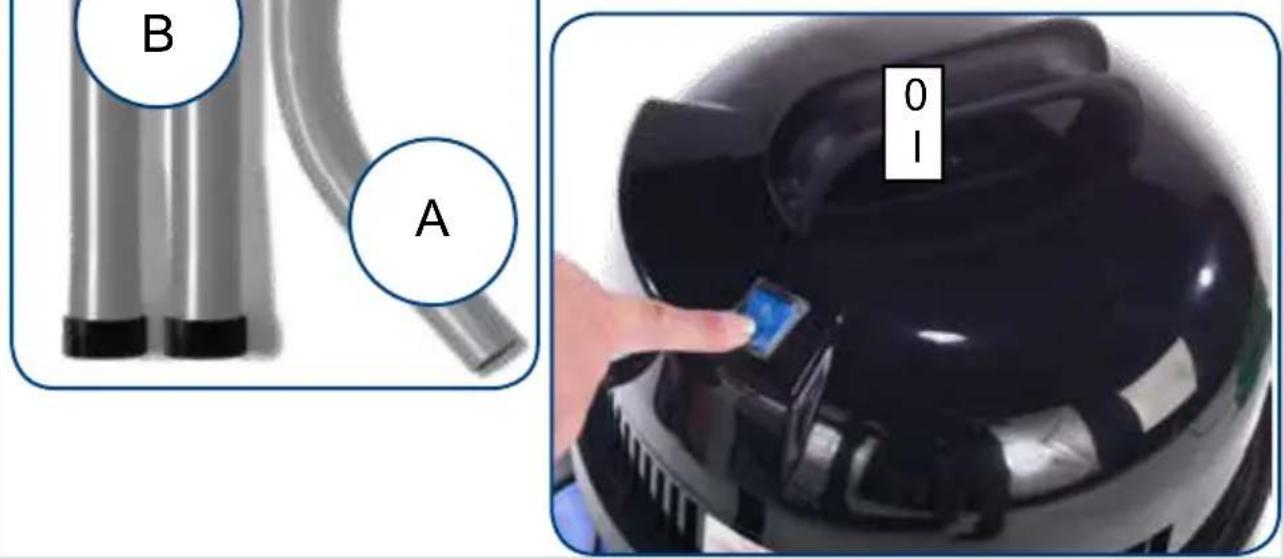

Assembly - Zusammenbau - Assemblage - Samenstelling - Conjunto - Montaggio - Ensamblaje

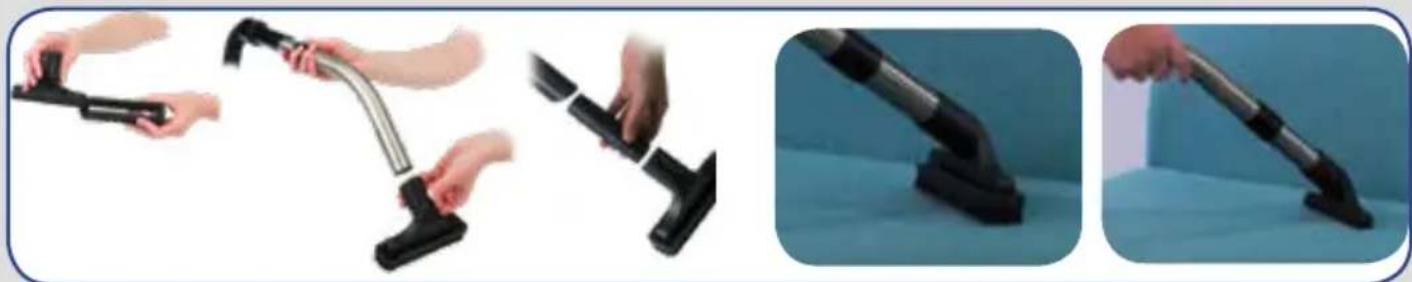

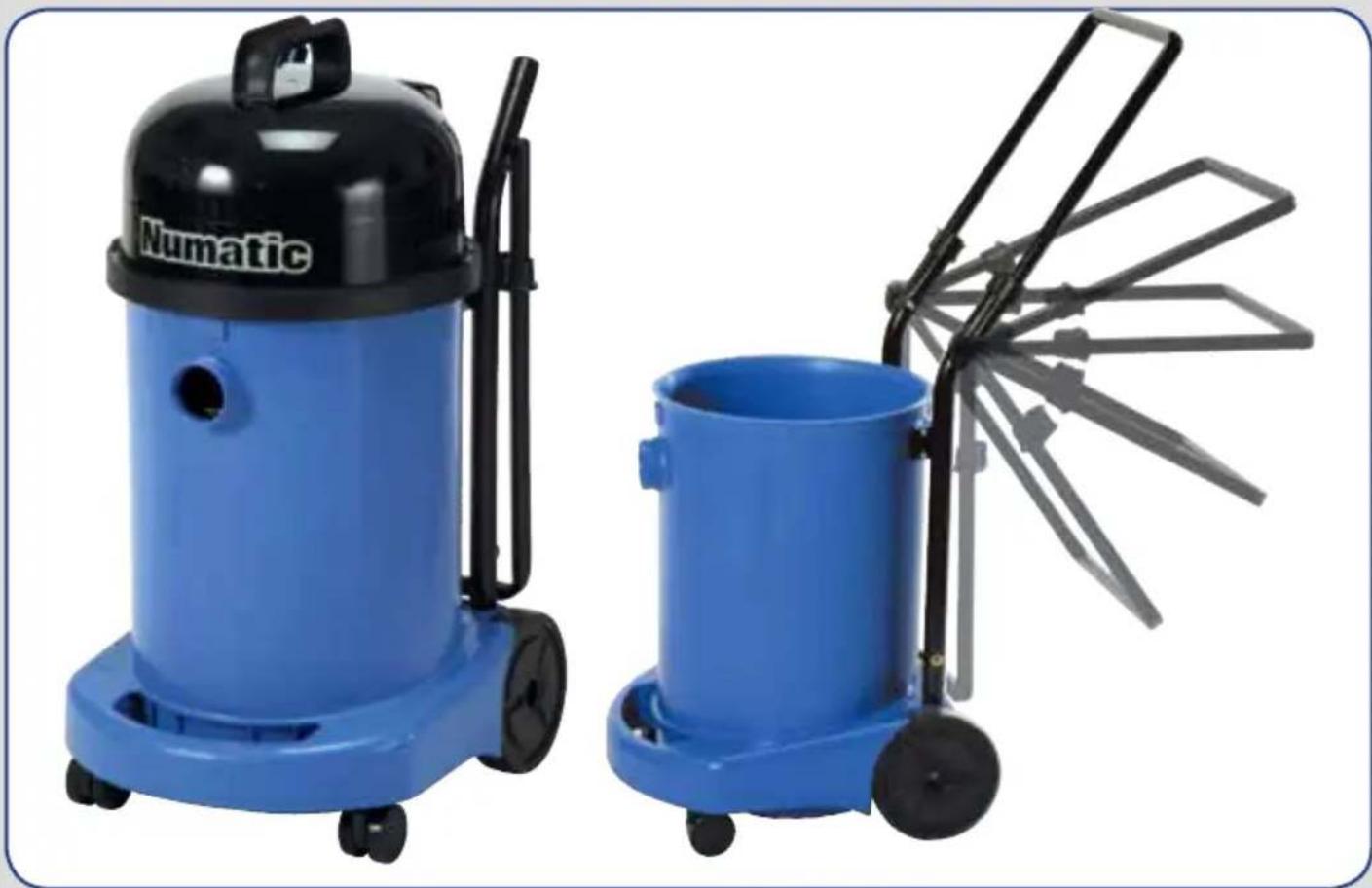

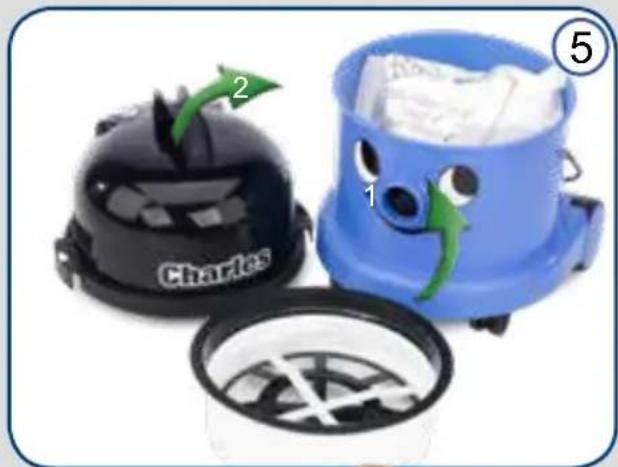

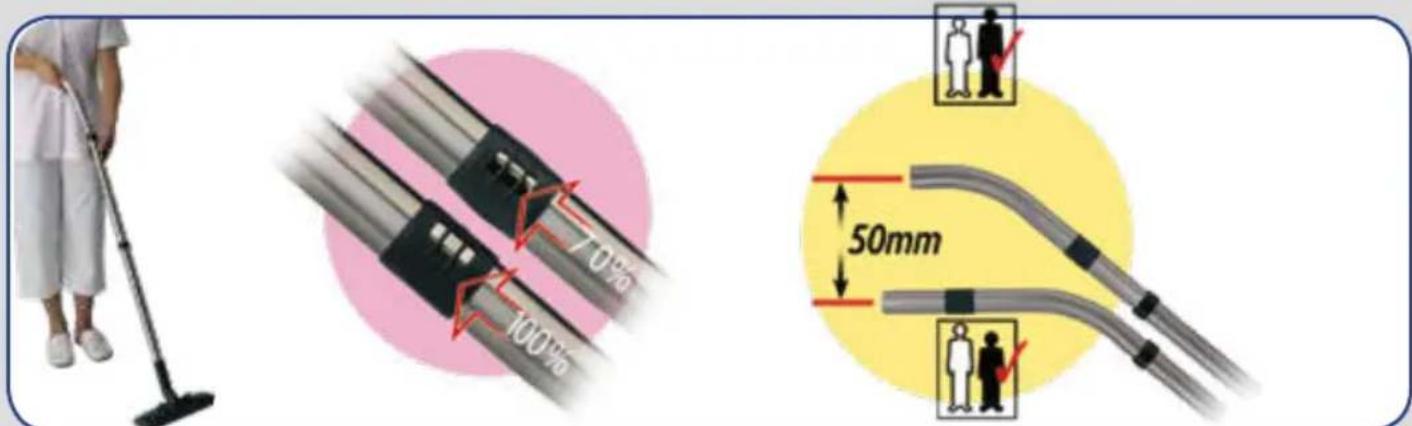

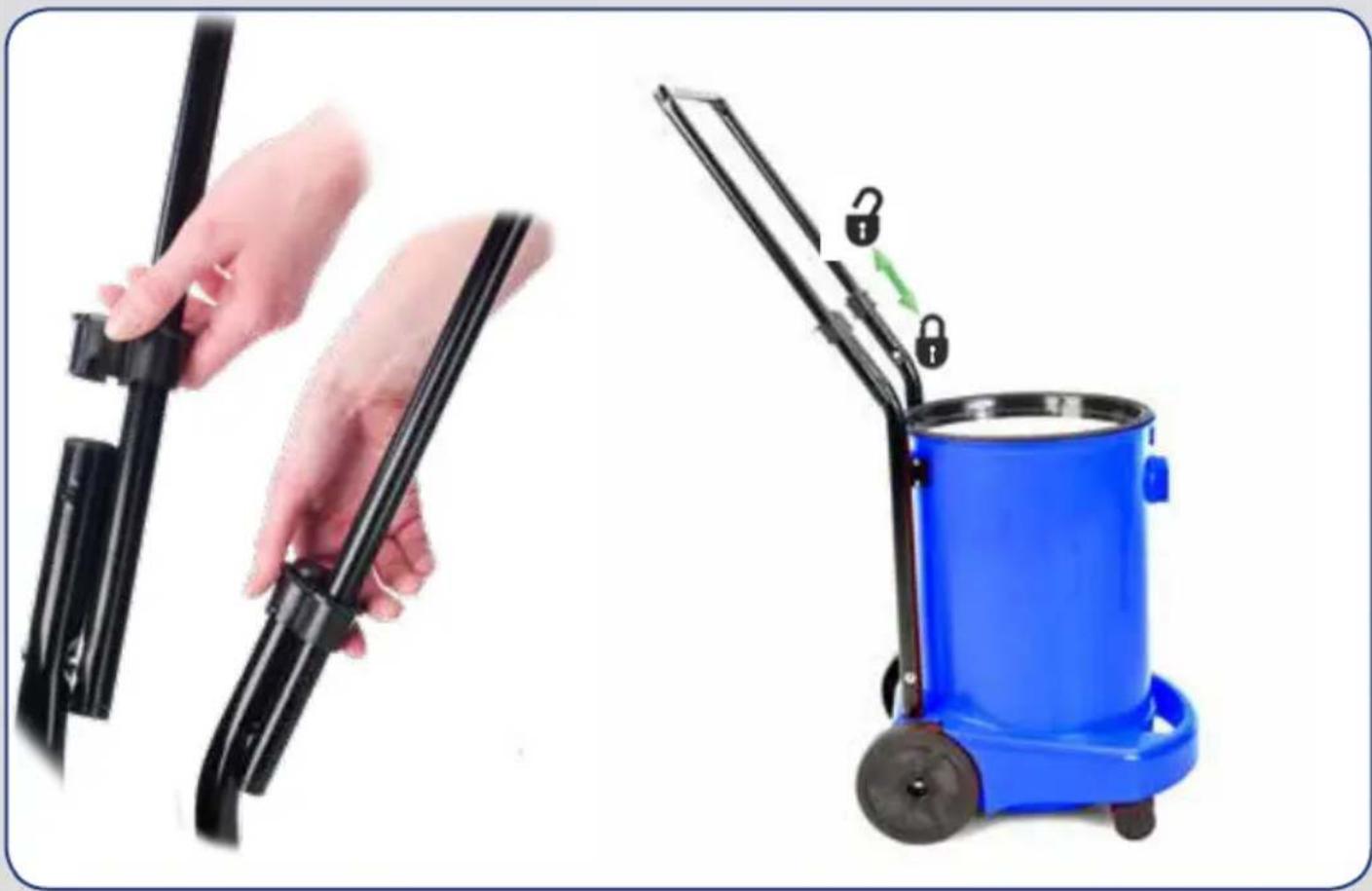

Using your machine - Arbeiten mit dem Gerät - Utilisation de la machine - De machine gebruiken - Utilização da máquina - Uso dell'apparecchio - Utilización de la máquina

Three-panel image showing a hand holding a black vacuum cleaner, with close-up views of the same device (no text or symbols visible)

Three black metal tools and a close-up of a hand holding a tool, displayed against white background (no text or symbols)

Three-panel image showing a hand holding a black cable, a close-up of a cable with a circular mark, and a 70% reduction indicator (no text or symbols on the images themselves)

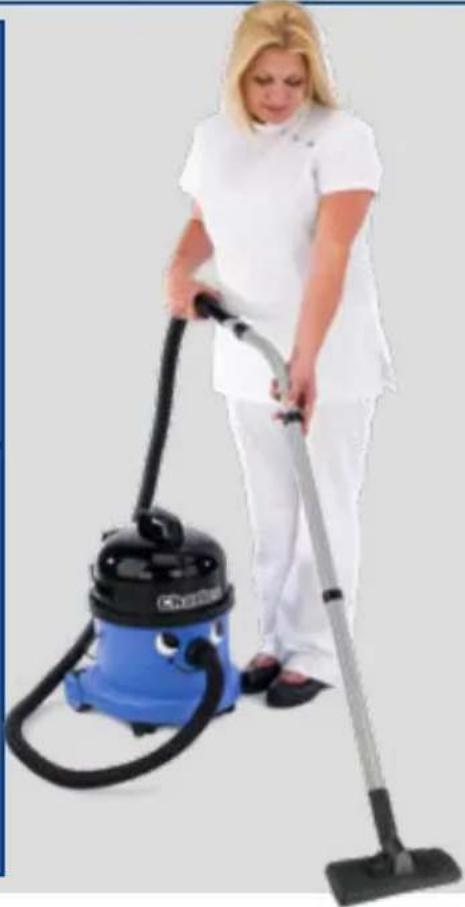

Product photo showing a person using a blue vacuum cleaner with a white top, alongside two close-up photos of a person in a black shirt (no text or symbols visible)

Two blue industrial vacuum cleaner units with black top and wheels, one emitting a fan-shaped blade (no visible text or symbols)

Two different hand tools: black plastic lifters and a blue cleaning cart with lock mechanism (no text or symbols visible)

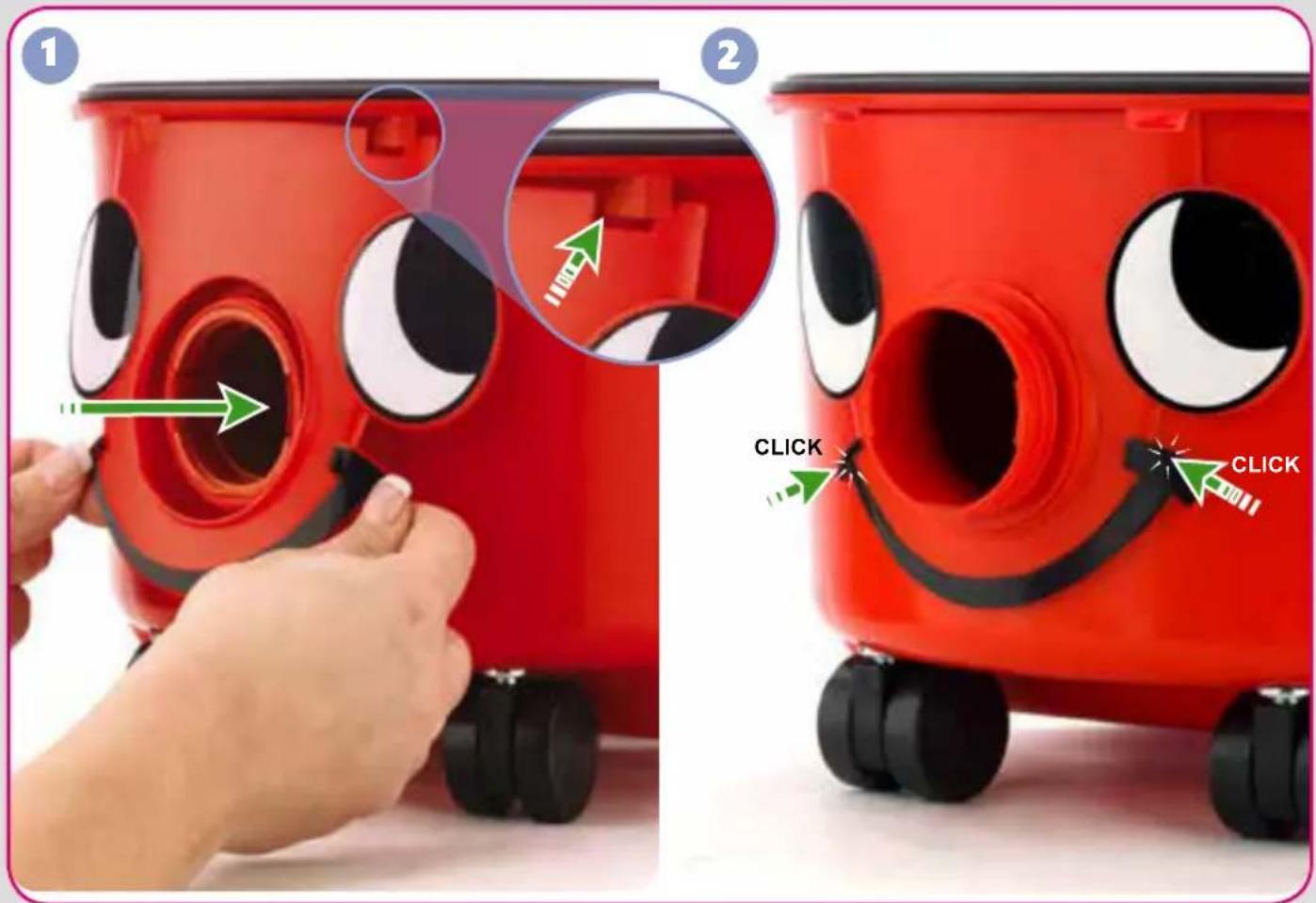

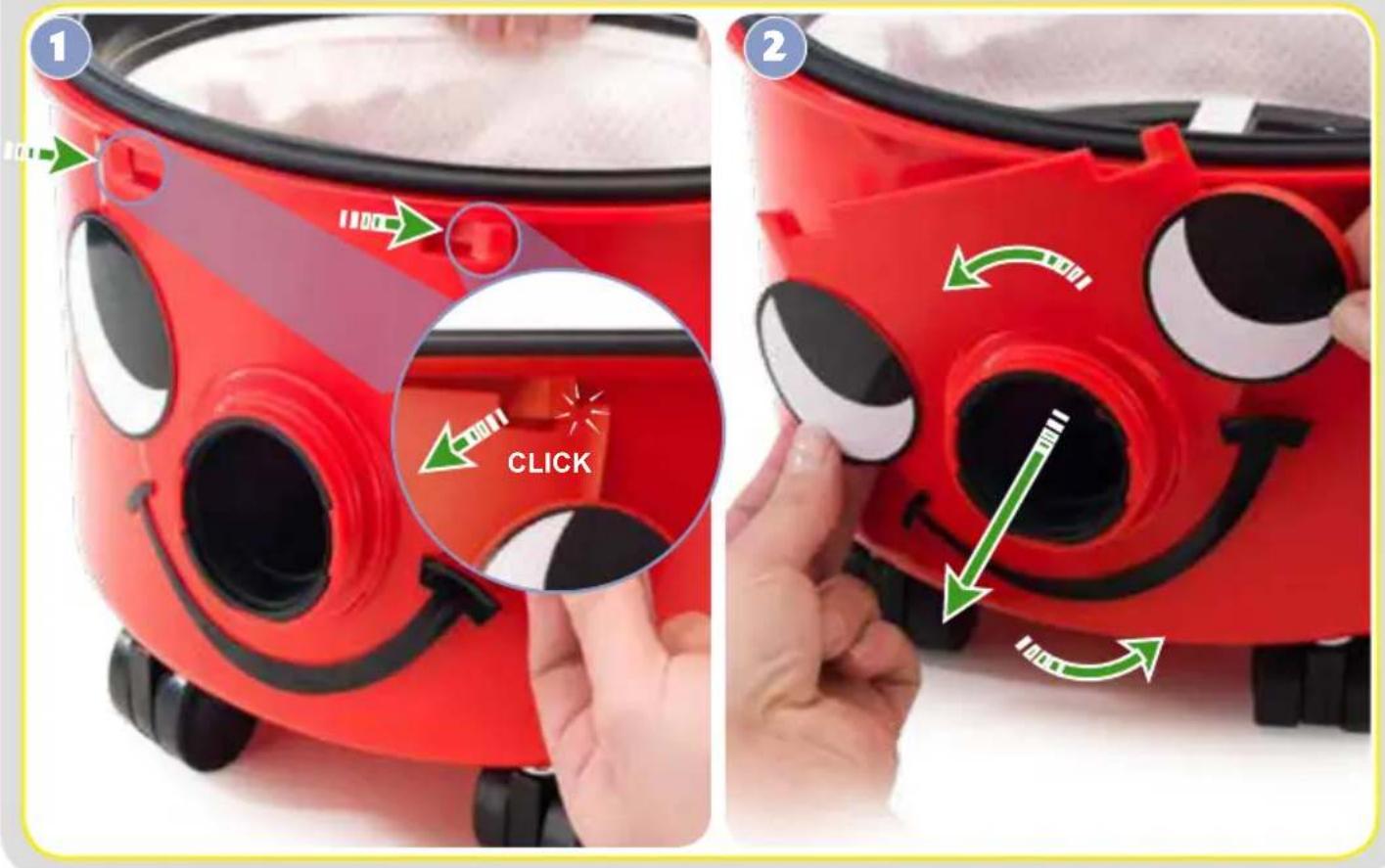

Fitting the face

Removing the face

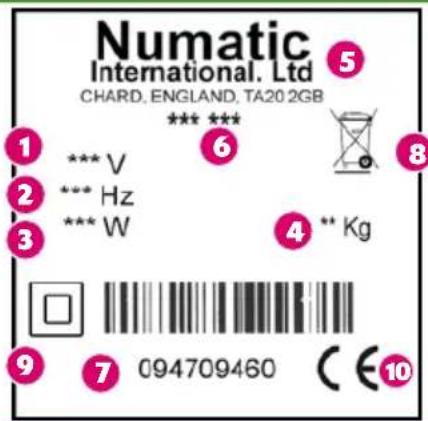

Rating Label

1 Voltage
2 Frequency
3 Rated Input Power
4 Weight (ready to work)
5 Company Name & Address
6 Model
7 Machine yr/wk Serial number
8 WEEE Logo
9 Protection Class 2 Symbol
10 CE Mark

PPE (personal protective equipment) That may be required for certain operations.

Ear Protection

Safety Footwear

Head Protection

Safety Gloves

Eye Protection

Protective Clothing

Dust / Allergens Protection

Hi Vis Jacket

Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Components

Mains leads:

HO5VV-F 2 Core x 1.00 mm

^2 x 10m

HVCTF 2 Core x 1.25 mm

^2 x 10m

WEEE Legislation

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2002 / 96 / EC on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Simple line drawing of a trash bin with no text or symbols

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and filter are fitted.

Regularly examine the power cord.

Check dust bag frequently.

Check filters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Do not steam clean or pressure wash.

GB

Information for wet and dry use vacuum cleaners

WARNING

Ensure you read the instruction manual before using the machine.

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out

periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

The machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

CAUTION

If foam/liquid comes out of machine exhaust, switch off immediately. Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head.

This will be quickly discharged after which the machine should function normally. Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dust. You should contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only

This product complies with the requirements IEC 60335-2-69.

When moving from one place to another, consider the weight of the machine.

NOTES

This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for other than normal housekeeping purposes.

DO

• Use a bag and filter at all times when using 'dry'.
• Keep your machine clean.
• Keep filters clean.
• Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
• Keep hoses and tubes clear.

• Replace any worn or damaged parts immediately.

• Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part.
  • Empty dust container frequently.

• Keep diffuser filter (where fitted) clean.

DON'T

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
• Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.

• Suck up liquid before emptying dirt from container.

• Suck up dirt before emptying liquid from container.

• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
  • Walk on clean carpets until fully dry.
• Spray onto people or animals.
• Attempt machine maintenance or cleaning unless the power supply plus has been removed from the supply outlet.

This machine can be used for wet and dry pick up.

Fault Finding

DRY MODE

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.

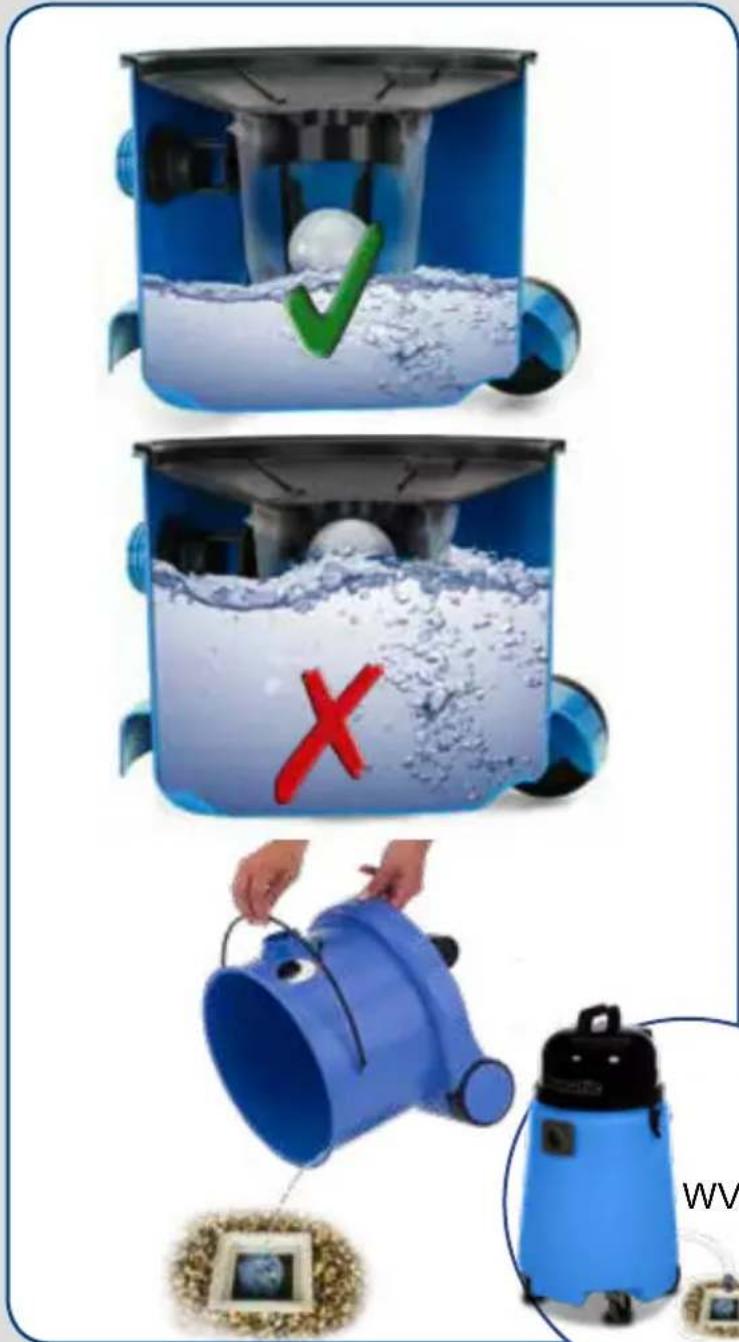

WET MODE

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change.

Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

After use always inspect the machine for damage.

Data

	Motor AirFlo Suction Cleaning			Range	Class
CVC 370WV 370WV 470WV 800	1060 W	49 L/sec 2400	mm 26.8m		II
	Capacity Dry	Capacity Wet	Size Weight Sound		Pressure
CVC 370WV 370WV 470WV 800	15 Ltrs15 Ltrs27 LtrsN/A	9 Ltrs9 Ltrs20 Ltrs44 ltrs	360x370x510 mm360x370x510 mm360x370x710 mm430x430x780 mm	9 Kg9 Kg9.6 Kg12.25 Kg	73-77 dB(IEC 60704-2-1)Uncertainty: 0.2 dB (A)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Täglich

Simple line drawing of a trash bin with no text or symbols

Quotidiennement

Simple line drawing of a trash bin with diagonal lines crossing through it (no text or symbols)

Dagelijks

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

We hereby do are under our said responsibility that the following equipment fully at the relevant provisions of the following EL Directive:

Machony Diraming 2005.947/EC

EMC Directive 2011/30/20

RoHS Directive 2011/65/FU

Machine Description • 2014

Machine Type: OC, NV, W, WT, WVP, CDC, HN1 Series.

Relevant standards are with referral to the and include

EN FORSIC: 2012 · 3C-X44+A11:2014

E. 62024-6P 384

Es 53014-:2006i-a1-7:07+A2:2017

f(x) 5:014-2:1997-422863+427009

(2)6229:3005

4 hierarchical construction: He for this equipment is retained at the manufacturer's address under the authorisation of the following signature:

[Unreadable]

61.01 87,42

Psychol

Involving (est. 14.20)

Signed

Bunain International Ltd

(48) 25H216

Wan (160)5, 24

GB

17

EU

Machinery/Directive 1984/03/2

EMC Directive 2014/59/EU

RaHS Directive 2017/5/FV

Maschler-Kozdchi.ng. Stabiauga:

Typ: C/C, 4W, MX, 2W, SW, MC 1 W. Series

Machinery Archive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/84

Type: C/C, W: W, GVT. WNP, CEC, HWDSar as

Machony Durncriva 2005/42/EC

EMC Circuline 2014/30/EJ

RoHS D'verlie 2411/65/EU

Consinjung machine Scholzern

Model CFC, WV, WV, WV, A-F. CDC FWD Sets.

Rakvanta nannanawang or canferritelt by erilgut, try redus el

04 03251 0212 + A=20.4 + A12:014

EN 0235 2-69:2012

EN 75C14-1:2005+AL:2049+AL:2021

EN 55014 2:1997 + A1 2001 + A2 2008

EN 62233 2008

DMC Directive 2014/90/HU NoHS Directive 2011/63/CU

Machinery Directive 2006/42/EC

EMC Directive 2024/30/EU

RoHS Dirachie 2011/63/EU

Modello (C.C. WV, WX, WPT, WAF, (D.C. HFD Series

Vome yio.1 a dicha is conhmina 2010

FK 60351:2012-4L2C14+411-2034

CN 60531-2-67 2012

LK 5>03+1:2026-+1:2015-+2:2011

LK 550142: 1937 - X:2001 + A2:2008

LK 62251:2003

Directive technology

Frmabx

Cala. 金川17

chand rheny##-211;

C:10000

19c 3:6

(1) 代理销售业务

IT

17

DECLARACION DE

CONFORMIDAD

DE LA UNIÓN EUROPEA

RoHS Direct've 2012/55/EU

1900 (VL, SW, W.S. 4971, W.P., WL, FWD 26785

Kurale, International and Ltd

The following table is in English.

1620 265

2023年1月1日

ES

Notes

Notes

Numatic INTERNATIONAL

Distributed by:

Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND.

Telephone [phone] Fax: [phone]

www.numatic.co.uk

Numatic International GmbH, Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND.

Tel: [phone] Fax: [phone]

www.numatic.de

Numatic International S.A.S, 13/17 rue du Valengelier, EAE la Tuilerie, 77500

Chelles, FRANCE. Tel: [phone] Fax: [phone]

www.numatic.fr

BeNeLux Distribution, Numatic International BV, Postbus 101, 2400 AC

Alphen den Rijn, NEDERLAND. Tel: [phone] Fax : [phone]

www.numatic.nl

Numatic International (Pty.) Ltd. 16th & Pharmaceutical Roads,

Midrand, Gauteng, S.A. 1685. Tel: [phone] Fax: [phone]

www.numatic.co.za

Numatic International Schweiz AG. Sihlbruggstrasse 142,

6340 Baar. SCHWEIZ. Tel: [phone] - 0.

Fax: [phone] - 9.

www.numatic.ch
