Product Type	Soundbar
Brand	Krüger&Matz
Model	Ghost KM0543
Bluetooth Version	3.0
Bluetooth Range	Up to 8 m
Audio Inputs	3.5 mm jack (AUX), optical
USB Service Port	Yes (for service only)
Output Power	2 × 25 W
Speakers	2 × 2 inches
Frequency Response	80 Hz – 20 kHz
Total Harmonic Distortion (THD)	1% (1 kHz, 1 W)
Impedance	2 × 8 ohms
Signal-to-Noise Ratio	80 dB
Power Consumption	30 W
Standby Power Consumption	< 0.5 W
Power Supply	220–240 V, 50/60 Hz
Remote Control Range	Up to 6 m
Installation	On stands, horizontal, wall mounting
Input Modes	AUX, optical, Bluetooth
Equalizer	Presets News, Movie, Music
Auto Standby	After 15 minutes without signal
Remote Control Battery	CR2025

Frequently Asked Questions - Ghost KM0543 Krüger&Matz

How to connect the soundbar via Bluetooth?

Press the SOURCE button on the soundbar or the BT button on the remote several times to switch to Bluetooth mode. The blue indicator flashes slowly. Activate Bluetooth on your external device, search for "KM0543" and connect. If necessary, enter the password "0000". Once connected, the indicator stays on and the soundbar emits a "PAIRED" sound.

Why is the remote control not working?

Check the distance (max 6 m) and point directly at the front sensor. Make sure the CR2025 battery is installed with correct polarity. If necessary, replace the battery. Remove the protective film before first use.

How to enter standby mode?

Press the STANDBY button on the remote or the power button on the soundbar (backlit in red). The soundbar enters standby mode, reducing power consumption to less than 0.5 W.

What to do if there is no sound in optical mode?

Check that the optical cable is properly connected and that the soundbar is in optical mode (orange indicator). If the indicator flashes rapidly, enable PCM modulation on your audio source (TV, DVD/Blu-ray player).

How to mount the soundbar on the wall?

Use the supplied drilling template: drill 4 parallel holes (Ø 3-8 mm) spaced 764 mm apart. Insert wall plugs if necessary, attach the wall brackets. Unscrew the wall mounting screws on the back of the soundbar (max. 3 mm) and hang it. Ensure the surface is suitable.

How to use the equalizer?

During playback, press the EQ buttons on the remote: NEWS for news, MOVIE for movies, MUSIC for music. Each mode adjusts the sound for optimal rendering according to the content.

Why does the soundbar automatically enter standby?

If no audio signal is detected for about 15 minutes, or if the signal is too low, the soundbar enters auto standby. Increase the volume of your external source or restart playback to reactivate it.

How to replace the remote control battery?

Open the battery compartment. Insert a CR2025 battery respecting polarity (+/-). Close the compartment. If the remote is not used for a long time, remove the battery to prevent leakage.

What input modes are available?

The soundbar offers three input modes: AUX (3.5 mm jack), optical (optical cable), and Bluetooth. Use the SOURCE button on the soundbar or the AUX, BT, OPT buttons on the remote to switch.

Is the soundbar compatible with all TVs?

Yes, it connects via your TV's audio output: headphone jack (AUX) or optical output. For Bluetooth compatibility, check that your TV has Bluetooth. The range is approximately 8 meters.

USER MANUAL Ghost KM0543 Krüger&Matz

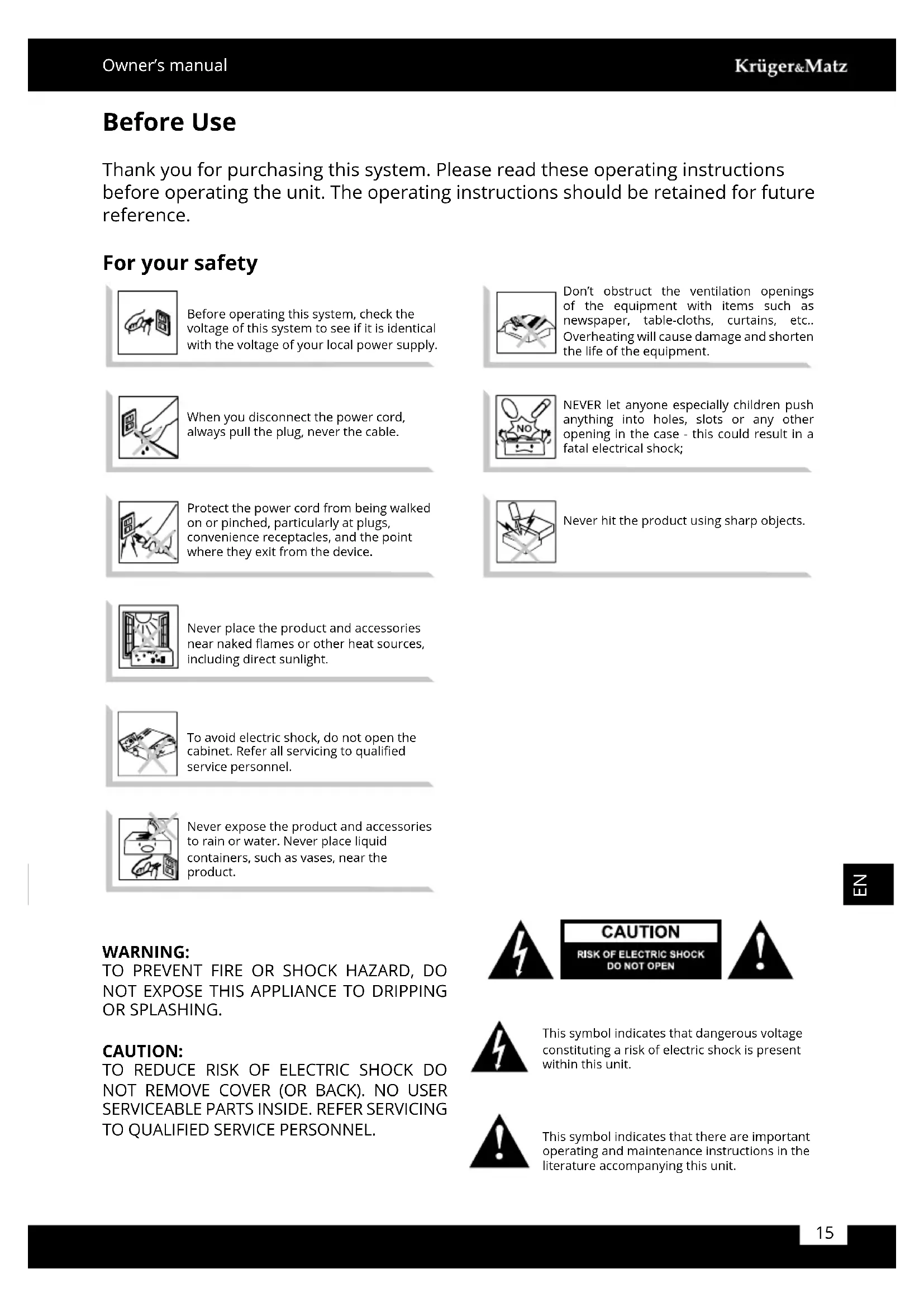

Thank you for purchasing this system. Please read these operating instructions before operating the unit. The operating instructions should be retained for future reference.

For your safety

Before operating this system, check the voltage of this system to see if it is identical with the voltage of your local power supply.

Don't obstruct the ventilation openings of the equipment with items such as newspaper, table-cloths, curtains, etc.. Overheating will cause damage and shorten the life of the equipment.

When you disconnect the power cord, always pull the plug, never the cable.

NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock;

Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.

Never hit the product using sharp objects.

Never place the product and accessories near naked flames or other heat sources, including direct sunlight.

To avoid electric shock, do not open the cabinet. Refer all servicing to qualified service personnel.

Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING.

CAUTION:

TO REDUCE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

IMPORTANT!

This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

Hearing safety

Listen at a moderate volume:

• Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

* Set your volume control at a low setting.
* Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally "safe" levels, can also cause hearing lose.
• Be sure to use your equipment reasonably and take appropriate breaks.

乙

PRODUCT DESCRIPTION

① Standby button
- When in standby, the light is red
② Source button (press to change sound source)
- when in AUX mode - the light is green
③ USB service port
Volume +
- when in BT mode - the light is blue
Volume -
- when in Optical mode - the light is orange
⑥ IR sensor
Optical input
⑧ Speakers
9 Power supply cord socket
10 AUX-in (Jack 3,5 mm)
11 Wall bracket screws

REMOTE CONTROL

① Standby button
2 Previous button (BT mode)
③ Volume+
④ Next button (BT mode)
(5) Mute
Volume
⑦ Bluetooth mode
AUX mode
9 Play/pause/pair

In BT mode:

• press to play/pause/resume playback
• press and hold to disconnect with currently connected device and activate pairing (the light will blink fast)

EQ settings buttons
Optical mode

BATTERY INSTALLATION

The unit has a pre-installed CR2025 battery. Remove the protective tab to activate the remote control battery.

To replace the remote control battery:

1. Open the battery compartment.
2. Insert CR2025 battery with correct polarity (+/-) as indicated. Close the battery compartment.

Note:

• If you are not going to use the remote control for a long time, remove the batteries.
• Batteries contain chemical substances, so they should be disposed of properly.

• Caution: Risk of explosion! Keep batteries away from heat, sunshine, or fire. Never discard batteries in fire.

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 6 meters away and within a maximum of a 60^ angle.
• Please note that the operating distance may vary depending on the brightness of the room.
• Any obstacles between remote control and the device may reduce operation range.

STANDBY FUNCTION

This unit features Standby mode. Press the Standby button on the remote control/ the unit to enter standby mode and save energy consumption.

MOUNTING

A - ON STANDS

B - HORIZONTALLY

User can stick rubber feet to the soundbar:

1. Ensure the surface is clean prior to sticking the rubber foot to the bottom of the unit.
2. Remove the backing paper from the rubber foot.
3. Stick the rubber foot to the bottom of the unit as shown in the illustration below.

Rubber feet Rubber feet

C-WALL MOUNTING

Note: Wall mounting must be carried out by qualified personnel only. Incorrect assembly may result in severe personal injury and property damage. The supplied wall brackets are only for use on vertical walls suitable for such mounting. It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall brackets. Additional tools required for the installation are not included. Do not overtighten screws.

1. Drill 4 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance between the holes should be 764 mm.
2. Firmly fix 1 dowel into each hole in the wall if necessary.
3. Tighten the wall mount brackets on the wall with screws and screwdriver (not included). Make sure the they are securely installed.
4. Loosen the screws at the back of the unit for 3mm . Lift the unit onto the wall mount brackets and slot into place.

乙

CONNECTIONS

Optical input

Note: before use remove the protective cap from the OPTICAL socket.

AUX-in

Connecting to power mains

Note:

• Before connecting the AC power cord, ensure you have completed all other connections.
• Risk of product damage! Ensure that the power mains voltage corresponds to the voltage required by this device.
• Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.
• When there is no input signal (or weak input signal) in AUX, OPTICAL and Bluetooth (Stop or Pause) for over 15 minutes, the unit will automatically switch to Standby mode.

OPERATION

While playing, press the NEWS or MOVIE or MUSIC buttons on the remote control to select preset equalisers: Movie (recommended for viewing movies), Music (recommended for listening to music), NEWS (recommended for listening to NEWS).

AUX/OPTICAL

1. Ensure that the unit is connected to the TV or audio device.
2. While in ON mode, press the SOURCE button repeatedly on the unit or press the OPTICAL / AUX buttons on the remote control to select the desired mode.
3. Operate your audio device directly for playback features.

Tip: While in OPTICAL mode, if there's no sound output from the unit and the OPTICAL lights flashes quickly, you may need to activate PCM Signal output on your source device (eg. TV, DVD or Blu-ray player).

BLUETOOTH

Pairing Bluetooth-enabled devices

Note:

• Pairing needs only to be done once. The operational range is approximately 8 meters.
• Compatibility with all Bluetooth devices is not guaranteed.

• Any obstacle can reduce the operational range.

• Press the SOURCE button repeatedly on the unit or press the BT button on the remote control to select Bluetooth mode. The Blue indicator will blink slowly, which means the unit is in pairing mode.

Note: if the previously connected mobile device has Bluetooth function on and is within operational range, this unit will connect to it automatically. To connect with a different mobile device press and hold the / PAIR button on the remote to disconnect from the currently connected device. The blue indicator will blink fast and you will hear "PAIRING" from the unit. The unit is ready to pair with another device.

1. Activate your Bluetooth device and search for external devices. Connect with the "KM0543". Enter default password „0000" if necessary. After the "Paired" voice prompt, the system is successfully connected and the blue indicator will light up solidly.
2. Play music from the connected Bluetooth device.

Note:

• The devices will disconnect when moved beyond the operation range.
• If you want to reconnect the device to the unit, place it within the operational range.
• If no other Bluetooth device pairs with this player within two minutes, the player will recover its previous connection.

CLEANING

• Before cleaning the unit, make sure it's fully unplugged from the mains supply.
• To clean the unit, wipe the case with a slightly moist, soft cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.

TROUBLESHOOTING

If you are having a problem with your system, check this list for a possible solution before calling for service. If you can not solve the problem from the hints give here, or the system has been physically damaged, call a qualified person, such as your dealer, for service.

I cannot find soundbar on my Bluetooth device

Ensure the bluetooth function is activated on your bluetooth device.

Remote control does not work

• Use the remote control near the unit.
• Point the remote control at the remote sensor on the unit.
• Replace the battery in the remote control with a new one.
• Remove any obstacles between the remote control and the unit.

No power

• Ensure the mains cable is connected securely at both ends.
  Make sure that the device is turned on.

Sometimes the unit auto turns to standby

When the unit's external input signal level is too low, the unit will be turned off automatically after 15 minutes.

Please increase the volume level of your external device

SPECIFICATIONS

GENERAL

Bluetooth:3.0
- Bluetooth range: up to 8 m
- I/O: Jack 3,5 mm, optical input, power supply cord socket, (USB service port)
Supported formats: A2DP, AVRCP
- Remote control distance: up to 6 m
- Mounting: on stands, horizontally, on a wall
Power supply: 220-240 V, 50/60 Hz

SOUNDBAR

• Speakers size: 2 × 2^
  Output power: 2 × 25 ~W
  Frequency response: 80Hz - 20kHz
• THD: 1% (1 kHz, 1 W)
  Audio input sensitivity: 700mV
  Impedance: 2x8 Ohm
  S/N: 80 dB
  Power consumption: 30 W
  Power consumption in standby: < 0.5W

LEARN MORE

For more information on this device visit: www.krugermatz.com.

Read owner's manual carefully before using your smartphone.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently Asked Questions section.

"The LECHPOL ELECTRONICS Sp. z o.o. Sp.k. company declares that product KM0543 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu"

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolinska 1, 08-400 Mietne.
