TotalPure 1000 Handy - Air purifier CECOTEC - Free user manual and instructions

Product Type	Air Purifier
Brand	Cecotec
Model	TotalPure 1000 Handy
Reference	05624
Power Consumption	25 W
Supply Voltage	220-240 V~
Frequency	50 Hz
Filter Type	High Efficiency Filter
Number of Speeds	4 (1, 2, 3, Sleep)
Sleep Mode	Yes, speed S
Timer	1, 3, 7 or 15 hours
Control	Push buttons
Use	Household only, indoor
Exterior cleaning	Soft dry or slightly damp cloth with neutral cleaner
Filter cleaning	Shake the filter, do not wash; replace if necessary
Filter maintenance	Remove the base, take out the filter, clean it
Warranty	2 years
After-sales service	Cecotec, tel. [phone]
Recycling	WEEE Directive, do not dispose with household waste

Frequently Asked Questions - TotalPure 1000 Handy CECOTEC

How to turn the air purifier on and off?

Plug the device into a power outlet. Press the On/Off button to turn it on. The device starts at speed 1. To turn off, press the same button again.

How to adjust the fan speed?

Press the speed adjustment button to cycle through the options: 1 (low), 2 (medium), 3 (high) and S (Sleep mode). Sleep mode is silent for the night.

How to set the timer?

Press the Timer button to select the duration: 1, 3, 7 or 15 hours. The device will turn off automatically after the chosen time.

How to clean the filter?

Turn off and unplug the device. Turn the base counterclockwise to remove it. Take out the filter, shake it thoroughly to remove impurities. Do not wash the filter. Put the base back by turning clockwise.

How often should I replace the filter?

Replace the filter if necessary, for example if it is very dirty or damaged. The manual does not specify a fixed interval, inspect it regularly.

Can I use the air purifier outdoors?

No, this device is designed for household indoor use. Do not use it outdoors or in humid environments.

Can the purifier replace ventilation?

No, this device cannot replace conventional ventilation or extraction systems. It is designed to purify the air in a room.

What to do if the device does not work?

Check that the power cord is plugged in and in good condition. If the problem persists, contact the Official Cecotec After-Sales Service at [phone].

How to clean the exterior of the device?

Use a soft dry cloth or slightly damp with a neutral cleaning product. Do not use abrasive detergents, gasoline, or solvents.

Is the device safe for children and pets?

The device is not suitable for children or persons with reduced capabilities without supervision. Do not let children play with it. Keep fingers and objects away from air inlets/outlets.

USER MANUAL TotalPure 1000 Handy CECOTEC

TOTALPURE 1000 HANDY

Purificador de aire/ Air purifier

White cylindrical electronic device with ventilation grilles and control buttons (no readable text or symbols)

Safety instructions 5

1. Parts and components 20

2. Before use 20

3. Operation 20

4. Cleaning and maintenance 21

5. Technical specifications 21

6. Disposal of old electrical appliances 21

7. Technical support service and warranty 22

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

This appliance is designed for household use only.

Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.

To avoid electric shocks, do not clean with or allow to get inside the product: Water, liquid or any flammable substance.

Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Switch off the device immediately in the event of defects or malfunctions.

Do not use the device if its cord or any other part is damaged. In this case, contact the official Technical Support Service of Cecotec.

Do not install the device near heat-generating appliances, flammable, dangerous materials, or in places where temperature or humidity levels are high.

This product does not replace normal ventilation or extraction products.

Make sure the product is kept and stored in well-ventilated areas.

The device must be placed so that the plug is accessible.

Do not sit or stand on the device.

Do not use outdoors.

Do not insert fingers or other objects in the air inlet or outlet to prevent injuries and product damage.

Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the surface.

Regularly clean the plug with a dry cloth to prevent dust from building up and to avoid product damage.

This appliance cannot be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. Children shall not play with the appliance.

INSTRUCTIONS DE SÉCURITÉ

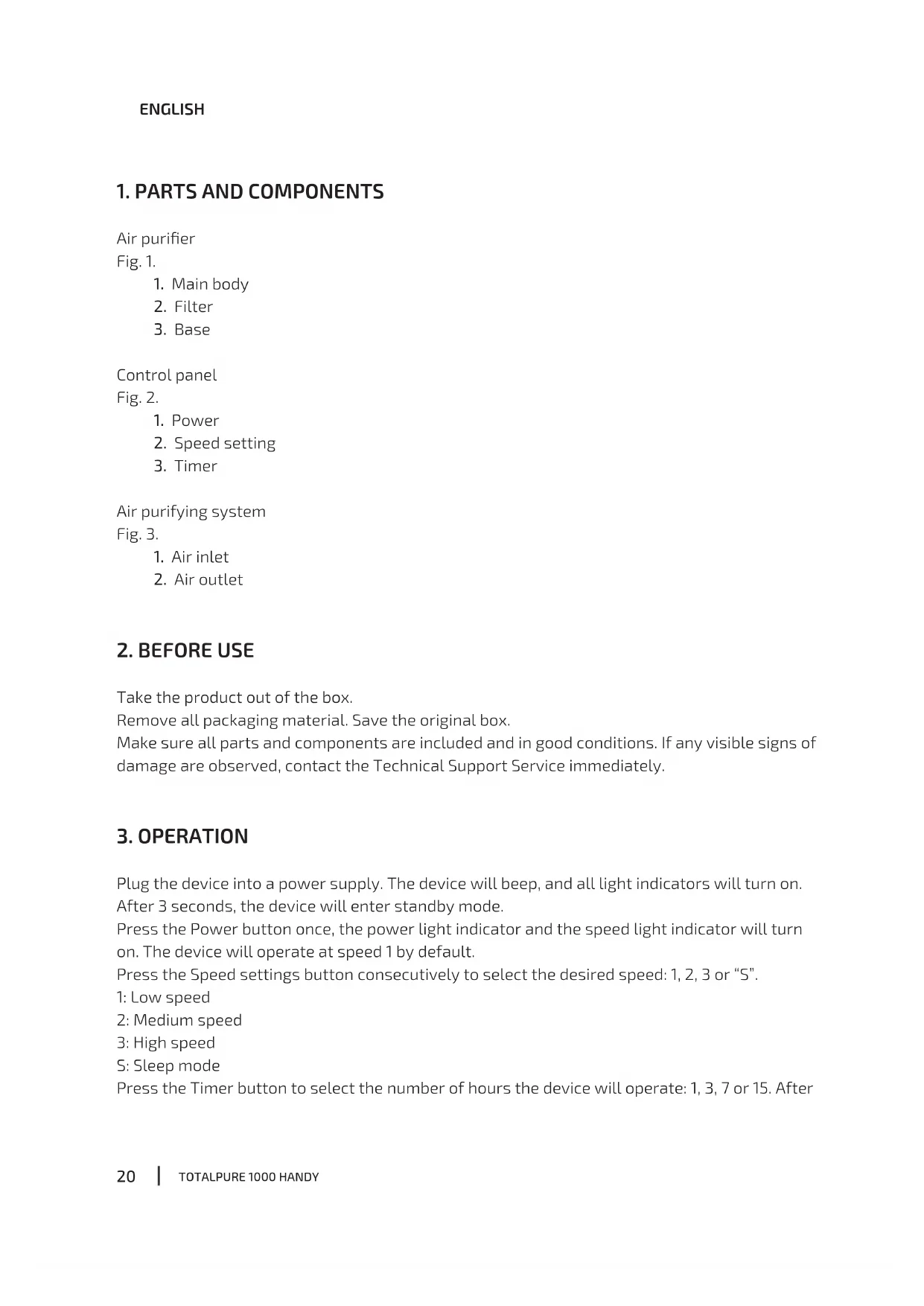

1. Main body
2. Filter
3. Base

Control panel

Fig. 2.

1. Power
2. Speed setting
3. Timer

Air purifying system

Fig. 3.

1. Air inlet
2. Air outlet

2. BEFORE USE

Take the product out of the box.

Remove all packaging material. Save the original box.

Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact the Technical Support Service immediately.

3. OPERATION

Plug the device into a power supply. The device will beep, and all light indicators will turn on.

After 3 seconds, the device will enter standby mode.

Press the Power button once, the power light indicator and the speed light indicator will turn on. The device will operate at speed 1 by default.

Press the Speed settings button consecutively to select the desired speed: 1, 2, 3 or "S".

1: Low speed
2: Medium speed
3: High speed
S: Sleep mode
Press the Timer button to select the number of hours the device will operate: 1, 3, 7 or 15. After

the device has operated for the set time, it will turn automatically off.

Press the Power button again to shut down.

4. CLEANING AND MAINTENANCE

Turn off and unplug the product from the power supply before cleaning or repairing it.

Use a soft, dry (or slightly damp) cloth with some neutral cleaning agent to clean the product's outside and prevent the accumulation of dust and dirt.

If the product is not going to be used for a long time, store it in a safe and well-ventilated place.

Do not use detergent, scouring pads, chemically-treated cloths, gasoline, benzene, alcohol, thinner, or other solvents, as these can scratch and damage the tank and cause water leakage.

Do not immerse the product in water or any other liquid.

Filters

Switch the device off to stop the air filter.

Unplug the device.

Rotate the base anticlockwise and remove it.

Take the high efficiency filter out.

Clean the filter with a cloth and shake it to remove all impurities. When necessary, replace the filter with a new on.

It is not suggested to wash the filter, as its filtering efficiency may be affected.

Replace the base by rotating it clockwise.

5. TECHNICAL SPECIFICATIONS

Product reference: 05624

Product: TotalPure 1000 Handy

25 W, 220-240 V\~, 50 Hz

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

ENGLISH

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

7. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

1. PIÈCES ET COMPOSANTS

Purificateur d'air

Img. 1.

Fig./Img./Abb/Rys./Obr.1

7

2

3
Fig./Img./Abb/Rys./Obr.2

Fig./Img./Abb/Rys./Obr. 3
