JX1095STSS - Microwave GE - Free user manual and instructions

Product Type	Microwave
Brand	GE
Model	JX1095STSS
Power Supply	120 V, 60 Hz, 12 A, 1.35 kW
Opening Dimensions (Height)	From 340 mm (13 3/4 in) to 344 mm (13 1/2 in)
Opening Dimensions (Width)	From 510 mm (20 in) to 514 mm (20 1/4 in)
Opening Dimensions (Depth)	Minimum 359 mm (14 1/4 in)
Min Depth with Outlet Outside	19 1/2 in (495 mm)
Min Depth with Outlet Inside	22 in (559 mm)
Main Functions	Microwave Cooking
Built-in Type	Requires Trim Kit (included)
Parts Included in Kit	Trim, bottom duct, top duct, 8 sheet metal screws, 8 wood screws
Tools Required for Installation	#2 Phillips screwdriver, pencil, drill with 7/64 in or #35 bit, measuring tape
Safety	Grounding required (3-prong plug), disconnect before installation, cut power
Skill Level Required	Basic mechanical and electrical skills
Operating Temperature	Not specified, standard household use
Maintenance and Cleaning	Refer to complete user manual for cleaning instructions

Frequently Asked Questions - JX1095STSS GE

What electrical outlet is required for the GE JX1095STSS microwave?

The oven must be plugged into a properly grounded 120 V 3-prong outlet on a dedicated 15 to 20 amp circuit.

Can I use an extension cord with this microwave?

No, using an extension cord is not recommended. If the cord is too short, contact a qualified electrician to install an outlet nearby.

What are the opening dimensions needed to install the microwave with the trim kit?

Height: from 340 mm to 344 mm. Width: from 510 mm to 514 mm. Depth: minimum 359 mm.

Do I need to disassemble anything before installing the trim kit?

Yes, unplug the oven before installation and cut power at the service panel. Remove all contents from inside the microwave.

How many people are recommended for installation?

It is recommended that two people install this microwave oven for ease of installation and safety.

Are the necessary screws provided with the trim kit?

Yes, the kit includes 8 Phillips pan head sheet metal screws and 8 Phillips flat head wood screws.

What type of drill bit is recommended for drilling pilot holes?

Use a 7/64 in or #35 drill bit.

Does the warranty cover damage from incorrect installation?

No, the warranty does not cover defects caused by improper installation. Installation must follow instructions.

How to ensure proper ventilation of the appliance once installed?

Leave a 1 in clearance beyond the edge of the trim frame to allow proper airflow. Do not block ventilation openings.

Can I use this microwave without the trim kit?

This model is designed to be installed with the provided trim kit. Using it without the kit may compromise safety and operation.

USER MANUAL JX1095STSS GE

Installation Built-In Trim Kits Instructions

Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com

MODELS

JX1095STBB, JX1095STSS

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and ordinances.
  Note to Installer - Be sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• For easier installation and personal safety, we recommend that two people install this microwave oven.
• Unplug the microwave oven before attempting installation of this kit.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.
  Completion time - 30 minutes - 1 hour
• Proper installation is the responsibility of the installer.
  Product failure due to improper installation is not covered under the Warranty.

FOR YOUR SAFETY

WARNING

Before beginning the installation, switch

power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING

This oven must be plugged into a properly

grounded 3-hole, 120 volt receptacle as required by the National Electric Code.

TOOLS YOU WILL NEED

2 Phillips screwdriver

Drill with %" bit or #35

Tape measure

PARTS INCLUDED

Part Image Part Name Quantity
	Trim 1
	Duct Bottom 1
	Duct Upper 1
	Phillips Pan Head Sheet Metal Screws	8
	Phillips Flat Head Wood Screws	8

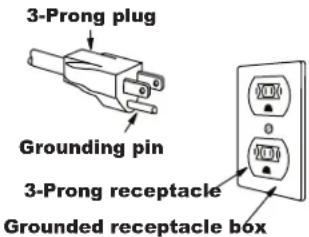

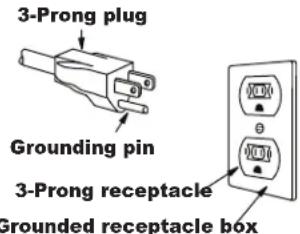

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

WARNING

Improper use of the grounding plug can result in a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

Permanent and Correct Installation

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 12 amps and 1.35 kilowatts. This product must be connected to a supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate 15 to 20 ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the oven. The outlet box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

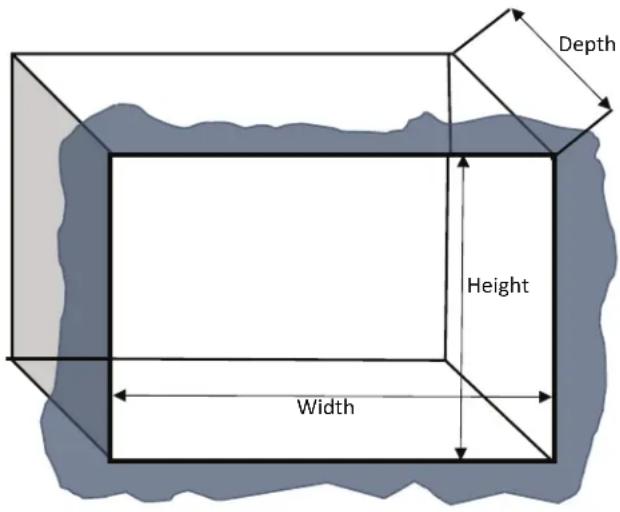

CUTOUT DIMENSIONS

	Minimum Maximum
Height	13 3/8" (340 mm) 13 1/2" (344 mm)
Width 20" (510 mm)	20 1/4" (514 mm)
Depth 14 1/8" (359 mm)	N/A

• Min. depth with receptacle outside cabinet 19 12 Min. depth with receptacle inside cabinet 22"

CAUTION

This trim kit uses air flow from the top and bottom of the trim frame. Blocking the air flow can cause the microwave to function improperly and may cause damage to the microwave.

Allow a 1" clearance beyond the edge of the Trim Frame to provide proper air flow.

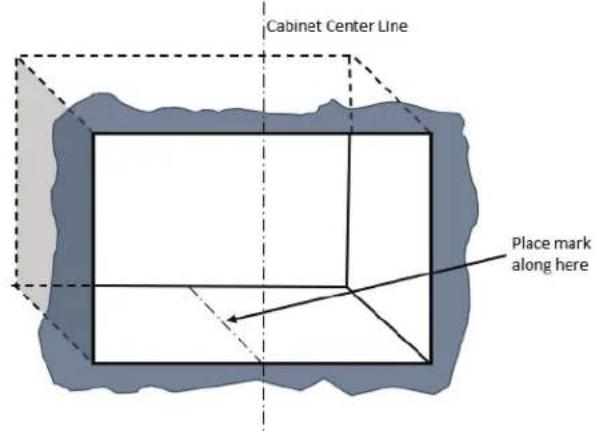

1 MARK CENTER LINE FOR DUCT BOTTOM

Locate the center line of the front of the cabinet microwave cutout and draw a corresponding center line on the bottom deck of the cabinet.

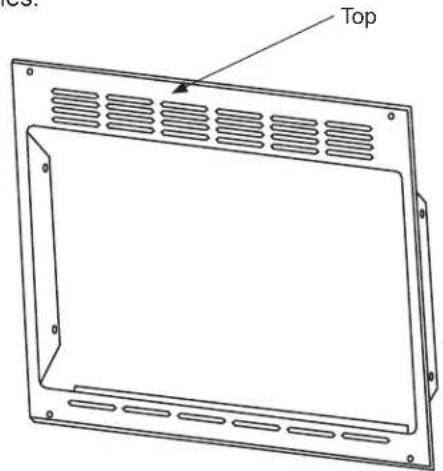

3 REVIEW THE TRIM

Take Trim and check it. The top is recognized as the wider side with 24 vent holes and the bottom has 6 vent holes.

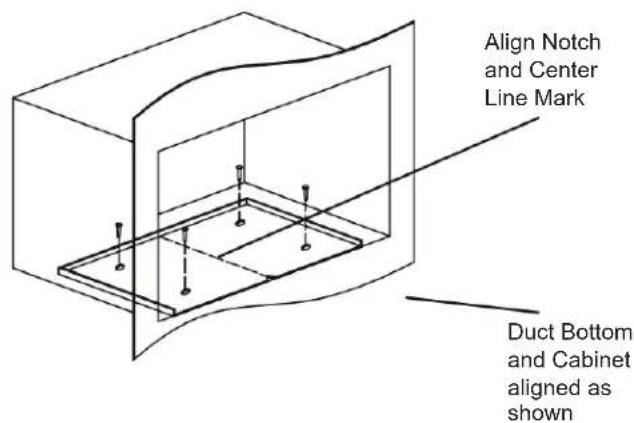

2 LOCATE AND INSTALL THE DUCT BOTTOM

Place the Duct Bottom as shown in the cabinet. The front edge of the Duct Bottom should match with the front edge of the Cabinet and the center notch is directly aligned with the center line created in Step 1. Using the Duct Bottom as a template, drill pilot holes at the 4 screw holes. Mount the Duct Bottom using 4 of the supplied Wood Screws.

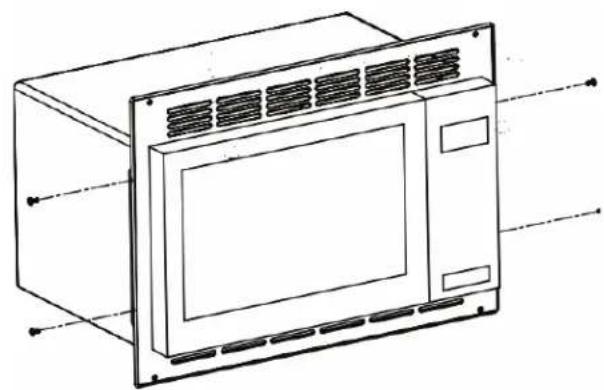

4 MOUNT THE TRIM

Mount the Trim to the Microwave as shown. Use 4 of the supplied Sheet Metal Screws to fasten the Trim at points indicated. After mounted avoid using the trim to support the weight of the microwave.

Installation Instructions

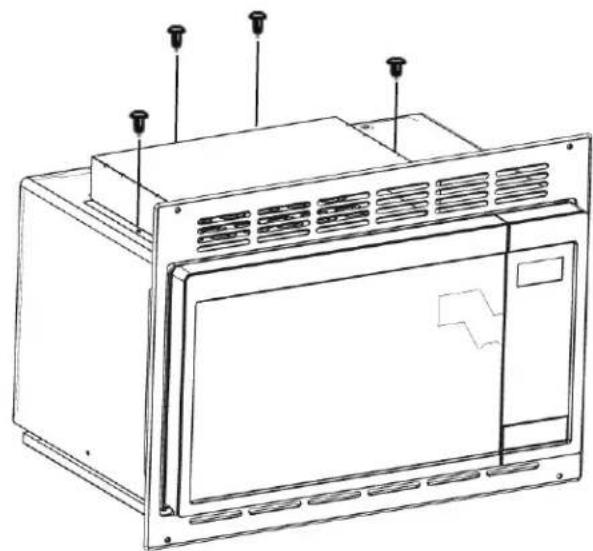

5 MOUNT THE DUCT UPPER

Mount the Duct Upper on the on top of the outer case of the Microwave cover. Use the remaining 4 Sheet Metal Screws to fasten the Duct Upper at points indicated.

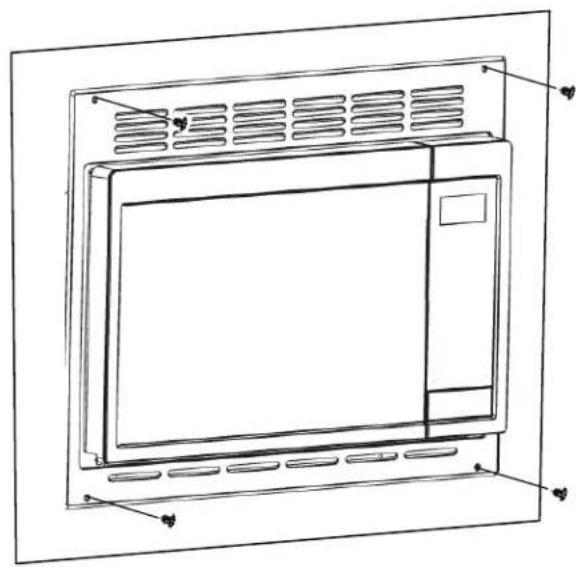

7 MOUNT THE MICROWAVE OVEN ASSEMBLY

Mount the Assembly to the Cabinet. Using the Trim as a template, drill pilot holes at the 4 screw holes. Use the remaining 4 Wood Screws to fasten the Trim at the points indicated.

6 INSTALL THE MICROWAVE OVEN ASSEMBLY

Plug the power cord in the wall receptacle. Slide the microwave oven assembly gently into the cabinet, using care not to pinch the power cord. Be sure to keep the assembly centered as it slides back.

8 REPLACE ANY LOOSE ITEMS

Your trim kit is now fully installed. Replace any loose items that were removed from the inside of the microwave oven.

Keep these installation instructions for future reference.

Replace house fuse or close circuit breaker to restore power at the service panel.
