POWX3240 - Vacuum Cleaner PowerPlus - Free user manual and instructions

Product type	Wet and dry vacuum cleaner
Brand	PowerPlus
Model	POWX3240
Supply voltage	220-240 V ~50 Hz
Rated power	1200 W
Tank capacity	30 liters
Main filter type	Advanced filter with sieve
Liquid filter	Foam filter
Included accessories	Hose, telescopic tube, handle with air valve, wet and dry floor brush, 2-in-1 brush, 3 paper dust bags, 4 wheels, additional handle, new advanced filter with sieve cover, foam filter
Functions	Suction of dry and wet waste, blowing, draining, power socket for tool with automatic start
Usage	Domestic (non-professional)
Warranty	36 months
Compliance standards	CE, EN60335-1, EN60335-2-2, EN55014-1, EN55014-2, EN IEC 61000-3-2, EN61000-3-3
Maintenance	Clean the tank after each use, shake the advanced filter, clean the ventilation slots
Safety	Use a residual current device (RCD) outdoors; do not vacuum flammable, toxic substances or water above 60 °C

Frequently Asked Questions - POWX3240 PowerPlus

How to vacuum liquids with the PowerPlus POWX3240?

First remove the advanced filter and the dust bag. Mount the foam filter (17) on the motor housing. Make sure the tank is clean and dust-free. Attach the tube and the wet and dry floor brush. The vacuum cleaner is then ready for liquids.

How to empty the vacuum tank?

Turn off the machine and unplug it. Lift the motor housing (3) by releasing the latches (5). Empty the tank (6) into a suitable receptacle. Replace the housing and lock the latches.

How to clean the advanced filter?

Shake the filter to remove dust after each use. Remove the sieve and clean it thoroughly. If the filter is very dirty, you can wash it in warm soapy water, but let it dry completely before reassembling.

What to do if the suction power is reduced?

Check possible causes: the appliance is blocked (clear the blockage), the paper filter needs to be replaced, or the water drain opening is open (close it). If the problem persists, contact customer service.

Can the vacuum be used to vacuum sharp objects?

No, it is forbidden to vacuum sharp objects as they can damage the tank, hose or motor. Only vacuum dry waste, dust and non-corrosive liquids.

How to mount the wheels on the PowerPlus POWX3240?

Remove the motor housing (3). Turn the tank (6) upside down and insert the four wheels (8) into the designated holes. Turn the tank right side up and replace the motor housing.

How to connect a power tool to the vacuum?

Connect the hose (9) to the dust exhaust of the tool. Plug the tool's plug into the power socket (2) of the vacuum. Set the switch to 'I' for immediate start, or to 'II' for delayed start (the vacuum turns on 3-4 seconds after the tool and turns off 8 seconds after). Position '0' lets the tool run alone.

What is the capacity of the vacuum tank?

The tank has a capacity of 30 liters. This allows vacuuming large quantities of dry waste or liquids before needing to empty it.

What to do if the motor does not start?

Check that the power cord plug is correctly inserted into the outlet. Make sure the outlet is not damaged. The vacuum must be powered on (switch set to 'I'). If the problem persists, contact an authorized after-sales service.

How to use the blowing function?

Remove the dust cap from the blowing opening. Insert the hose connector into this opening. The vacuum then becomes a blower. Use it to move light debris or dry surfaces.

USER MANUAL POWX3240 PowerPlus

POWERPLUS® HIGH QUALITY TOOLS

POWX3240

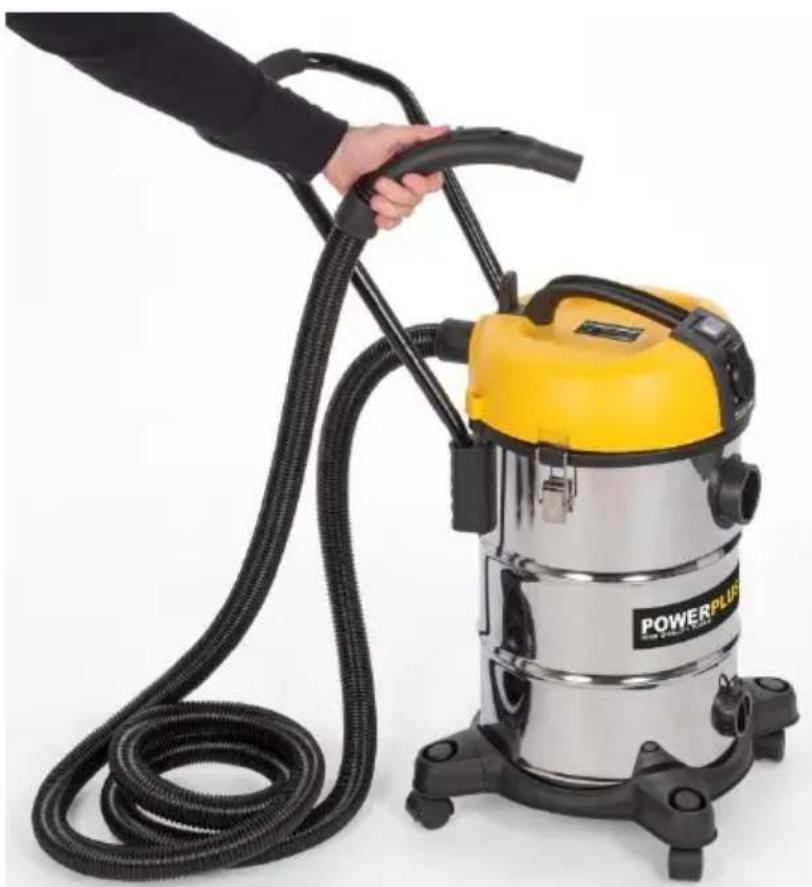

Exterior view of a power plant vacuum cleaner with black handle and yellow top (no signage)

i

NL	NEDERLANDS	VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING
FR	FRANÇAIS	TRADUCTION DU MODE D'EMPLOI D'ORIGINE
EN	ENGLISH	ORIGINAL INSTRUCTION MANUAL
DE	DEUTSCH	ÜBERSETZUNG DER ORIGINALBETRIEBSANLEITUNG
ES	ESPAÑOL	TRADUCCIÓN DEL MANUAL DE INSTRUCCIONES ORIGINAL
IT	ITALIANO	TRADUZIONE DEL MANUALE DI ISTRUZIONI ORIGINALE
PT	PORTUGUÊS	TRADUÇÃO DO MANUAL DE INSTRUÇÕES ORIGINAL
NO	NORSK	OVERSETTELSE AV ORIGINAL BRUKERVEILEDNING
DA	DANSK	OVERSÆTTELSE AF DEN ORIGINALE BRUGSVEJLEDNING
SV	SVENSKA	ÖVERSÄTTNING AV DEN URSPRUNGLIGA BRUKSANVISNINGEN
FI	SUOMI	ALKUPERÄISEN OHJEKIRJAN KÄÄNNÕS
EL	Ελληνικά	Μετάφραση του πρωτότυπου εγχειριδίου οδηγιών
HR	HRVATSKI	PRIJEVOD ORIGINALNOG PRIRUČNIKA S UPUTAMA ZA RAD
SR	SRPSKI	PREVOD ORIGINALNOG UPUTSTVA ZA UPOTREBU
CS	ČESKY	PŘEKLAD ORIGINÁLNÍHO NÁVODU K POUŽITÍ
SK	SLOVENČINA	PREKLAD NÁVODU NA POUŽÍVANIE Z ORIGINÁLU
RO	ROMÂNÃ	TRADUCEREA MANUALULUI DE INSTRUCTIUNI ORIGINALE
PL	POLSKI	TŁUMACZENIE ORYGINALNEJ INSTRUKCJI OBSŁUGI
HU	MAGYAR	AZ EREDETI KEZELÉSI UTASÍTÁS FORDÍTÁSA
RU	РУССКИЙ	ОРИГИНАЛЬНАЯ ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
BG	БЪЛГАРСКИ	ПРЕВОД НА ОРИГИНАЛНОТО РЬКОВОДСТВО

Labeled diagram of a vacuum cleaner with numbered parts for identification

Fig. A

Exterior view of a power plant vacuum cleaner with a yellow and black top device (no text or symbols visible on the main body)

Fig. 1

Close-up of a hand holding a vacuum cleaner with open lid and fabric, next to a stack of printed sheets (no text or symbols visible)

Fig. 2

Two industrial vacuum cleaner units, one with yellow lid and black base, the other with yellow blade mounted on a black stand (no visible text or symbols)

Fig. 3

Yellow handheld device with black handle and blue arrow pointing to a black cylindrical component (no text or symbols visible)

Fig. 3a

POWERPLUS® HIGH QUALITY TOOLS

POWX3240

Close-up of a hand cleaning a stainless steel vacuum cleaner's air vent (no text or symbols visible)

Fig. 4

Person operating a power plant vacuum cleaner with black hoses and yellow cover (no visible text or symbols)

Fig. 5

1 BEOOGD GEBRUIK 3

2 BESCHRIJVING (FIG. A) 3

3 INHOUD....3

4 TOELICHTING VAN DE SYMBOLEN 4

5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN ....4

5.1 Werkplaats....4

5.2 Elektrische veiligheid ....4

2 BESCHRIJVING (FIG. A)

10 PROBLEEMOPLOSSING

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

Regelgevings- en compliancemanager

21/12/2022, Lier - Belgium

1 UTILISATION PREVUE 3

2 DESCRIPTION (FIG. A) 3

3 LISTE DES PIÈCES CONTENUES DANS L'EMBALLAGE....3

4 PICTOGRAMMES 4

5 CONSIGNES DE SÉCURITÉ GÉNÉRALES ....4

6 INSTRUCTIONS DE SÉCURITÉ ADDITIONNELLES......6

7 MONTAGE....6

16 DÉCLARATION DE CONFORMITÉ

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare seulement que :

21/12/2022, Lier - Belgium

1 INTENDED USE 3

2 DESCRIPTION (FIG. A) 3

3 PACKAGE CONTENT LIST....3

4 SYMBOLS 3

5 GENERAL POWER TOOL SAFETY WARNINGS 4

5.1 Work area 4

5.2 Electrical safety....4

5.3 Personal safety 4

5.4 Power tool use and care....5

5.5 Service....5

6 SPECIFIC SAFETY WARNINGS....5

7 ASSEMBLY 6

7.1 Fitting and removing the motor housing....6

7.2 Mounting the wheels....6

7.3 Mounting the hose....6

7.4 Fitting the advanced filter (Fig. 1)....6

7.5 Fitting a dust bag (Fig. 2)....6

7.6 Mounting the tube to the hose....6

7.7 Connecting an electrical tool (Fig. 3)....6

8 OPERATION....6

8.1 Switching on and off....7

8.2 Vacuuming up coarse waste material....7

8.3 Vacuuming up small waste material and dust....7

8.4 Vacuuming up dust released from an electrical tool....7

8.5 Emptying the tub....7

8.6 Vacuuming up liquids (Fig 3a)....7

8.7 Drain function (Fig. 4)....7

8.8 Blow function (Fig. 5)....7

9 CLEANING AND MAINTENANCE....7

9.1 Cleaning....7

9.2 Cleaning the tub....8

POWERPLUS® HIGH QUALITY TOOLS

POWX3240 EN

9.3 Cleaning the advanced filter....8
10 ERROR DETECTION 8
11 TECHNICAL DATA 8
12 SERVICE DEPARTMENT 8
13 STORAGE 8
14 WARRANTY....9
15 ENVIRONMENT 9
16 DECLARATION OF CONFORMITY 10

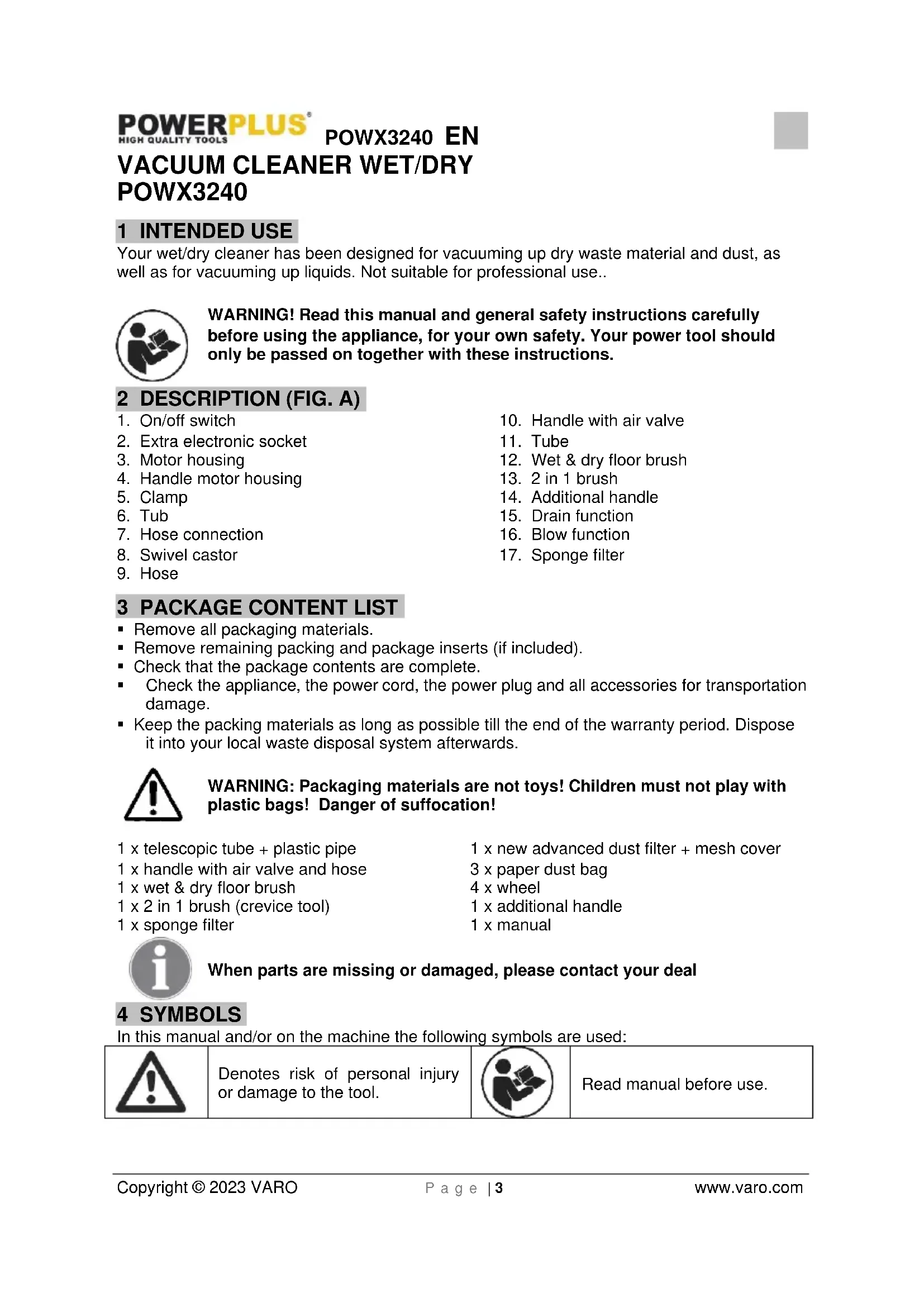

VACUUM CLEANER WET/DRY POWX3240

1 INTENDED USE

Your wet/dry cleaner has been designed for vacuuming up dry waste material and dust, as well as for vacuuming up liquids. Not suitable for professional use..

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. A)

1. On/off switch 10. Handle with air valve
2. Extra electronic socket 11. Tube
3. Motor housing 12. Wet & dry fl
4. Handle motor housing 13. 2 in 1 brush
5. Clamp 14. Additional han
6. Tub 15. Drain function
7. Hose connection 16. Blow function
8. Swivel castor 17. Sponge filter
9. Hose

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.
- Remove remaining packing and package inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packing materials as long as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1 x telescopic tube + plastic pipe 1 x new advanced dust filter + mesh cover
1 x handle with air valve and hose 3 x paper dust bag
1 x wet & dry floor brush 4 x wheel
1 x 2 in 1 brush (crevice tool) 1 x additional handle
1 x sponge filter 1 x manual

When parts are missing or damaged, please contact your deal

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

Denotes risk of personal injury or damage to the tool.

Read manual before use.

In accordance with essential requirements of the European directive(s).

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision of instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

- Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

■ The power tool should not be exposed to heat.
- Do not put any object into openings. Do not use with any opening blocked.
- Do not vacuum any flour, cement etc., in order to avoid overloads.
- Avoid the nozzle or brush touching the surface of the furniture.
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.
- Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6 SPECIFIC SAFETY WARNINGS

• Do not vacuum up highly inflammable liquids, acids or thinners.
• Do not vacuum up water at a temperature above 60 °C.
  ■ Do not vacuum up toxic substances.
  ■ Never vacuum up dry waste material or dust without filter in place.
• Check whether the dust filter has been removed when using the machine far vacuuming up liquids.
• If you use an extension cord, it must be of a watertight construction.
• Do not jam the air inlet mouth, in case temperature rises and damaging the motor
• Do not collect sharp objects.

7 ASSEMBLY

7.1 Fitting and removing the motor housing

• Note: mount the additional handle (14) first before fitting the motor housing (3) to avoid interference between components.
  ■ The motor housing has been locked to the tub with clamps.
• To remove the motor housing (3). first unlock the clamps (5) and then lift it from the tub (6).
  ■ To re-fit the motor housing, place it on the tub and tighten the clamps.

7.2 Mounting the wheels

■ Remove the motor housing (3).
- Turn the tub (6) upside down and insert the wheels (8) in the openings.
■ Turn the tub in its original position again.
■ Re-fit the motor housing.

7.3 Mounting the hose

- Insert the hose (9) in the connection (7) and turn to lock.

7.4 Fitting the advanced filter (Fig. 1)

The advanced filter is suitable for collecting small waste material and dust.

■ Remove the motor housing (3).
- Place the new advanced dust filter at the underside of the motor housing.
- Push to lock filter.
■ Re-fit the motor housing.

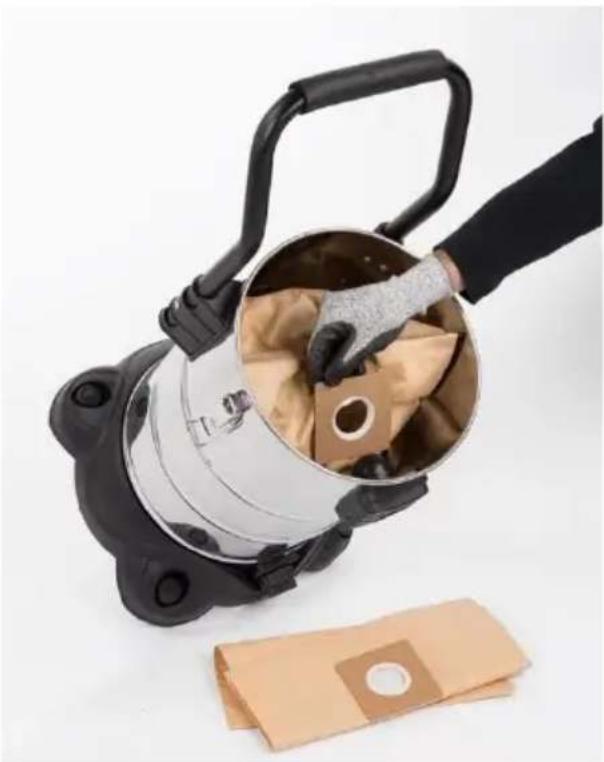

7.5 Fitting a dust bag (Fig. 2)

A dust bag is suitable for collecting small waste material and dust.

■ Remove the motor housing (3).
- Place a dust bag on the connection (7). Make sure to slide the opening past the raised edge.
■ Re-fit the motor housing.

7.6 Mounting the tube to the hose

■ Slide the tube on the handgrip.
- Place the required nozzle on the tail end of the tube.

7.7 Connecting an electrical tool (Fig. 3)

The machine has been equipped with an electronic outlet for connection of your electrical equipment. The machine is switched on automatically the moment you switch on the electrical tool.

• Connect the hose (9) directly to the dust extraction outlet of the electrical tool.
• Insert the mains plug of the electrical tool into the outlet (2).
• Press 'I': The vacuum cleaner will start immediately.
• Press 'II': Start power tool on power socket, the vacuum cleaner will start after 3-4 seconds. Stop the tool, the vacuum cleaner will stop after 8 seconds.
• Press '0': Vacuum cleaner stop, but tool can work without vacuum cleaner

8 OPERATION

Make sure the power cord has been fully unwound before you switch on the machine. The air leaving the grids must not be hindered.

If the electrical tool has been connected to the electronic outlet, directly switch on the electrical equipment.

Use the crevice nozzle for vacuuming up dust from narrow and confined spaces.

When vacuuming up liquids, make sure the nozzle is not fully submerged in the liquid to be vacuumed up.

Clean the machine after use according to instructions and wind the power cord around the shell.

8.1 Switching on and off

• To switch on the machine, set the on/off switch (1) to "I".
• To switch the machine off, set the on/off switch (1) to "O" / "="

8.2 Vacuuming up coarse waste material

• Check whether the new advanced dust filter has been fitted.
  ■ Mount the tube (11) to the hose (9).

8.3 Vacuuming up small waste material and dust

• Check whether the new advanced dust filter has been fitted.
• Fit a dust bag.
  ■ Mount the tube (11) to the hose (9).

8.4 Vacuuming up dust released from an electrical tool

• Check whether the new advanced dust filter has been fitted.
• Fit a dust bag
• Connect the hose (9) directly to the dust extraction outlet of the electrical tool.

8.5 Emptying the tub

• Switch off and unplug the machine.
  ■ Remove the motor housing (3).
  ■ Empty the tub (6).

8.6 Vacuuming up liquids (Fig 3a)

• Check whether the new advanced dust filter and dust bag has been removed.
• The sponge filter (17) must be used for vacuuming liquids.
  ■ Install the sponge filter (17)
  ■ Make sure the inside of the tub (6) is clean and free from dust.
• Mount the tube (11) to the hose (9) and fit the wet & dry floor brush.

8.7 Drain function (Fig. 4)

- When your tank is full of water, just twist the cover of the drain function to let the water out.

8.8 Blow function (Fig. 5)

- Remove dust cover and insert the hose connector into the blowing mouth to use the blowing function.

9 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

9.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Do not submerge the motor housing in water!

9.2 Cleaning the tub

■ Empty and clean the tub (6) after each use.
- Dry the tub carefully after the machine has been used for vacuuming up liquids.

9.3 Cleaning the advanced filter

• Shake out the dust from the filter after each use.
• Remove mesh and clean it carefully.

10 ERROR DETECTION

Problem	Possible reason	Advice
Motor does not start	- Power cord not firmly plugged into outlet- Outlet damaged- Cleaner not switched on	- Plug unit firmly- Check the outlet- Switch on the appliance
Suction power is weaker	- Unit clogged- Paper filter needs replacement- The water drain plug is opened	- Remove the blockage- Replace the paper filter- Close the water drain plug

11 TECHNICAL DATA

Mains Voltage	220-240 V
Frequency	50 Hz
Power input	1200 W
Tub capacity	30 l

12 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

13 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

14 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

This warranty covers all material or production flaws excluding: batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc.; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

15 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

16 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, solely declares that,

Product: Vacuumcleaner Wet/Dry

Trade mark: POWERplus

Model: POWX3240

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives / Regulations, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives / Regulations (including, if applicable, their amendments up to the date of signature):

2011/65/EU

2014/35/EU

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature):

EN60335-1 : 2012

EN60335-2-2:2010

EN55014-1:2017

EN55014-2:2015

EN IEC 61000-3-2 : 2019

EN61000-3-3:2013

Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

21/12/2022, Lier - Belgium

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 USO PREVISTO 3

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 USO PREVISTO 3

Simple line drawing of a rounded rectangular shape with a diagonal line (no text or symbols)

Philippe Vankerkhove

21/12/2022, Lier - Belgium

EXTRATOR HÚMIDO-SECO POWX3240

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 TILSIGTET BRUG....3

2 BESKRIVELSE (FIG. A) 3

3 MEDF∅LGENDE INDHOLD 3

4 SYMBOLER....4

5 GENERELLE SIKKERHEDSFORSKRIFTER 4

3 FÖRPACKNINGSINNEHÅLL 3

4 SYMBOLER....4

5 ALLMÄNNA SÄKERHETSANVISNINGAR 4

3 FÖRPACKNINGSINNEHÅLL

Simple line drawing of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 KÄYTTÖTARKOITUS 3

2 LAITTEEN OSAT (KUVA A) 3

3 PAKKAUKSEN SISÄLTÖ....3

4 SYMBOLIT 3

5 YLEISET TURVALLISUUSOHJEET 4

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

Simple line drawing of a rounded rectangular shape with a diagonal line (no text or symbols)

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 NAMJENA 3

2 OPIS (SLIKA A)....3

3 POPIS SADRŽAJA PAKETA 3

4 SIMBOLI 4

5 OPĆA UPOZORENJA O SIGURNOSTI RUKOVANJA ELEKTRIČNIM ALATIMA 4

Simple hand-drawn outline of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 NAMENJENA UPOTREBA....3

2 OPIS (SL. A) 3

3 SPISAK SADRŽAJA PAKOVANJA 3

4 SIMBOLI 4

5 OPŠTA BEZBEDNOSNA UPUTSTVA ZA ELEKTRIČNE ALATE.4

5.1 Radna oblast 4

6 DODATNA BEZBEDNOSNA UPUTSTVA....6

7 SKLAPANJE 6

7.1 Postavljanje i vađenje kućišta motora....6

7.2 Montiranje točkova 6

7.3 Postavljanje usisnog creva 6

7.4 Postavljanje unapređenog filtera (Sl. 1)......6

7.5 Postavljanje kese za prašinu (Sl. 2) 6

7.6 Sastavljanje cevi i creva....7

7.7 Priključivanje električnog alata (Sl. 3)....7

8 RUKOVANJE 7

6 DODATNA BEZBEDNOSNA UPUTSTVA

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 ZAMÝŠLENÉ POUŽITÍ ......3

2 POPIS (OBRÁZEK A) 3

3 OBSAH BALENÍ....3

4 SYMBOLY 4

5 OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ STROJE....4

2 POPIS (OBR. A)....3

3 OBSAH BALENIA....3

4 VYSVETLENIE SYMBOLOV 4

5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE....4

5.1 Pracovná plocha ....4

21/12/2022, Lier - Belgium

1 UTILIZARE PREVĂZUTĂ 3

2 DESCRIERE (FIG. A) 3

3 CONTINUTUL PACHETULUI 3

4 SIMBOLURI....4

5 AVERTISMENTE GENERALE DE SIGURANTĂ PRIVIND APARATELE ELECTRICE ....4

5.1 Zona de lucru 4

Simple line drawing of a rounded rectangular shape with a small mark on the top right corner (no text or symbols)

Philippe Vankerkhove

Divizia de reglementare – Director de conformitate

21/12/2022, Lier - Belgium

2 OPIS (RYC. A)....3

3 SPIS CZEŚCI....3

4 OZNACZENIA 4

5 OGÓLNE ZASADY BEZPIECZNEJ PRACY ELEKTRONARZĘDZIAMI 4

12 SERWIS GWARANCYJNY

21/12/2022, Lier - Belgium

1 RENDELTETÉSI CÉL 3

2 LEÍRÁS (A. ÁBRA) 3

3 CSOMAGOLÁS TARTALMA....3

4 JELZÉSEK 4

5 ÁLTALÁNOS BIZTONSÁGI SZABÁLYOK....4

21/12/2022, Lier - Belgium

Simple line drawing of a rounded rectangular shape with a small mark on the top right corner (no text or symbols)

Philippe Vankerkhove

Simple line drawing of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

21/12/2022, Lier - Belgium

1 PAREDZËTAIS LIETOJUMS....3

2 APRAKSTS (A ATT.) 3

3 IEPAKOJUMA SATURA SARAKSTS....3

4 APZIMEJUMI 4

5 VISPĀRĪGI DARBARĪKA DROŠĪBAS BRĪDINĀJUMI 4

5.1 Darba vieta 4

5.2 Elektrodrošība....4

Simple line drawing of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

08/06/2022, Lier - Belgium

Product photo of a power supply vacuum cleaner with a yellow spray cover and black handle (no visible text or symbols)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM
