Brand	Tefal
Model	Elea Duo ZN355C
Product type	Juice extractor (centrifugal juicer)
Power supply	220-240 V ~ 50/60 Hz
Body material	Plastic and stainless steel (grating filter)
Pulp container capacity	Approximately 1.5 L
Juice pitcher capacity	Approximately 1 L
Safety system	Lid lock preventing operation if incorrectly positioned
Included accessories	Pusher, lid, grating filter, juice collector, spout, pulp container, pitcher, foam separator, cleaning brush
Cleaning	Removable parts dishwasher safe; motor unit cleaned with a damp cloth
Grating filter maintenance	Use the provided brush; replace at first signs of wear
Usage	Domestic use only
Warranty	Void in case of incorrect connection or non-compliant use
Cord length	Approximately 1.2 m (adjustable via cord storage)

Frequently Asked Questions - Elea Duo ZN355C TEFAL

How to assemble the Elea Duo ZN355C juice extractor?

Place the spout (F) on the juice collector (E). Position the juice collector on the motor unit (G) by tilting slightly forward. Insert the grating filter (D) onto the drive shaft. Place the lid (C) and lock it. Add the pulp container (I) at the back and the pitcher (L) under the spout.

What to do if the appliance does not start?

Check that the plug is connected and the switch (H) is set to position '1'. Ensure that the lid (C) is properly locked, as the safety system prevents operation if the lid is not correctly positioned.

How to clean the grating filter?

Use the provided cleaning brush to remove residues. The grating filter (D) is very sharp, handle with care. It is dishwasher safe.

Can I wash the parts in the dishwasher?

Yes, all removable parts (pusher, lid, grating filter, juice collector, spout, pulp container, pitcher, foam separator) are dishwasher safe. The motor unit should only be cleaned with a damp cloth.

How to use the foam separator?

Place the separator (K) in the pitcher (L) before collecting juice. It retains the foam when pouring juice into a glass.

Which fruits and vegetables are suitable?

Suitable for apples, pears, oranges, grapes, pineapple, carrots, cucumbers, tomatoes, celery, beets. Avoid overripe, hard, or fibrous fruits (sugarcane, bananas, avocados). Peel citrus fruits and pineapple.

Why is the juice not flowing well?

Check that the juice collector (E) is correctly positioned and that the spout (F) is present and well adjusted. If the grating filter (D) is saturated, clean it.

What to do in case of odor or smoke?

Immediately stop the appliance. Check the positioning of the grating filter (D) and reduce the amount of food. Let it cool before reusing. If the problem persists, contact an Authorized Service Center.

How to prevent juice oxidation?

Consume the juice immediately after preparation. Add a few drops of lemon juice to slow down oxidation, especially for apples and pears.

Can I use non-Tefal accessories?

No, use only original accessories supplied with the appliance. Any non-compliant part may damage the appliance and void the warranty.

USER MANUAL Elea Duo ZN355C TEFAL

Technical line drawing of a mechanical device with no visible text or symbols

A B C D E F G H I J K L M

1 1 F 2

Line drawing of a mechanical device with a downward arrow indicating force or movement (no text or symbols)

Diagram of a funnel pouring liquid into a container, with no visible text or symbols

Diagram of a mechanical device with arrows indicating downward motion, no text or symbols present

Line drawing of a portable blender with a handle and side panel, showing internal components and a directional arrow (no text or symbols)

6

• Always check the grinder filter (or basket) (D) before use.
• Never use the centrifuge if the sieve is broken, if it is faulty, if you see cracks, splits in it or if the sieve is torn. In any of theses cases, contact an Approved Service Centre. Handle the sieve with care (for it may cause cuts).
• Handle the sieve (D) with care as the teeth and the centre blade have sharp cutting edges. To clean the sieve, use the brush supplied with the product.
• For your safety, this appliance is compliant with applicable standards and regulations.
• Make sure that the mains voltage shown on the ratings label under the appliance matches that of your mains power installation. Any connection error will void the guarantee.
• Never place, or use, this appliance on a hotplate or near a flame (gas cooker).
• Never immerse the motor unit in water or hold it under running water.
• If the power cable is damaged, it must be replaced by the manufacturer or their After Sales Service department or a person with similar qualifications to avoid any danger.
• Only use this product on a flat, stable, heat-resistant working surface, away from water spray. Never turn it over.
• Never dismantle the appliance. Users need to perform no maintenance other than cleaning.
• The centrifuge should be unplugged:

- If any anomaly occurs during its operation,

- Before assembly, disassembly or cleaning.

- Never unplug the appliance by pulling on the power cord.

• Never use an extension cord unless you have first ensured that it is in perfect condition.
• A domestic appliance must never be used:

- If it has fallen on the floor, - If it is damaged or incomplete.

• In these cases, and for any other repairs, ALWAYS contact an Approved Service Centre.
• This appliance is designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• This appliance is not designed for use by persons (including children) with reduced physical, sensory or mental capabilities, or by persons lacking in experience or knowledge of such appliances, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never use accessories or components other than original ones as this will negate the guarantee.
• Never insert your fingers or any other object into the feed tube while the appliance is operating. Always use the pusher provided for this purpose.
• Never open the cover (C) until the sieve (D) has come to a complete stop.
• Never remove the pulp container (I) while the appliance is operating.
  • Always unplug the appliance after use.

2. APPLIANCE DESCRIPTION

A. Pusher
B. Feed tube
C. Cover
D. Sieve
E. Juice collector
F. Pouring spout
G. Motor unit

H. Start and lock switch
I. Pulp container
J. Cord storage
K. Foam separator
L. Jug
M. Cleaning brush

3. SAFETY SYSTEM

This appliance has an exclusive safety system. To start the juice extractor, the cover (C) must be correctly positioned (fig. 4). At the end of the cycle, set the switch (H) to "0" and wait until the sieve

has come to a complete stop before removing the cover (C). Once the appliance has stopped you will be able to remove the cover(C).

4. BEFORE FIRST USE

• We recommend that you wash all removable parts (parts A, C, D, E, F, I, K, L) before using the appliance for the first time (see Section 7).
• Remove the appliance from its

packaging, then place it on a flat, stable, heat-resistant working surface, remove the cover(C) and remove the protective cardboard from the sieve.

5. STARTING THE APPLIANCE

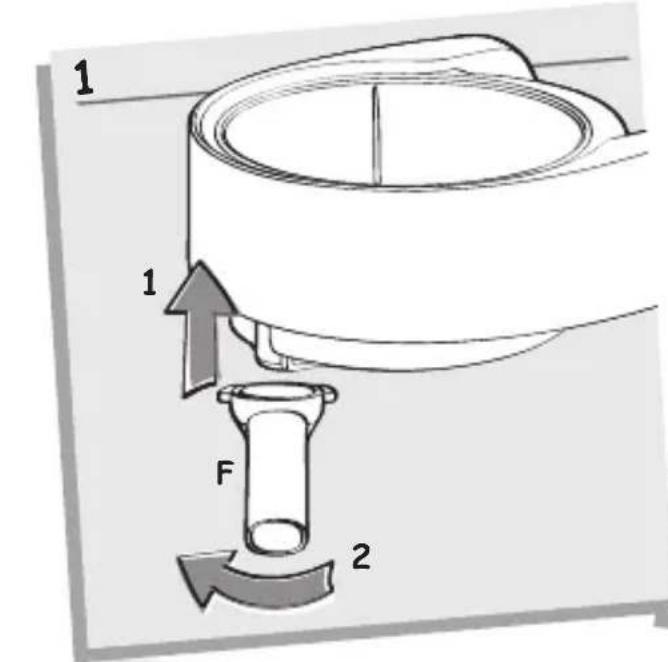

• Place the pouring spout (F) on the juice collector (E) (fig. 1).

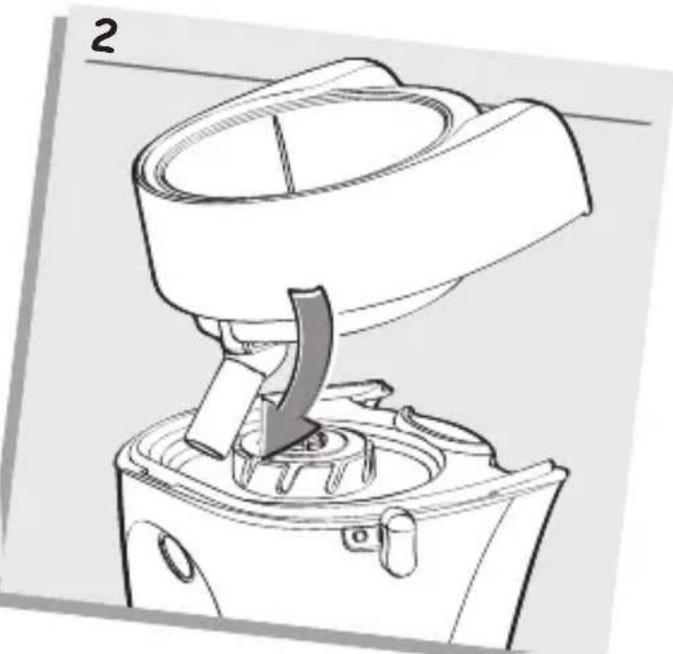

• Place the juice collector (E) on the motor unit (G) by tipping it slightly forward and inserting the pouring spout (F) into the hole provided for it (fig. 2).

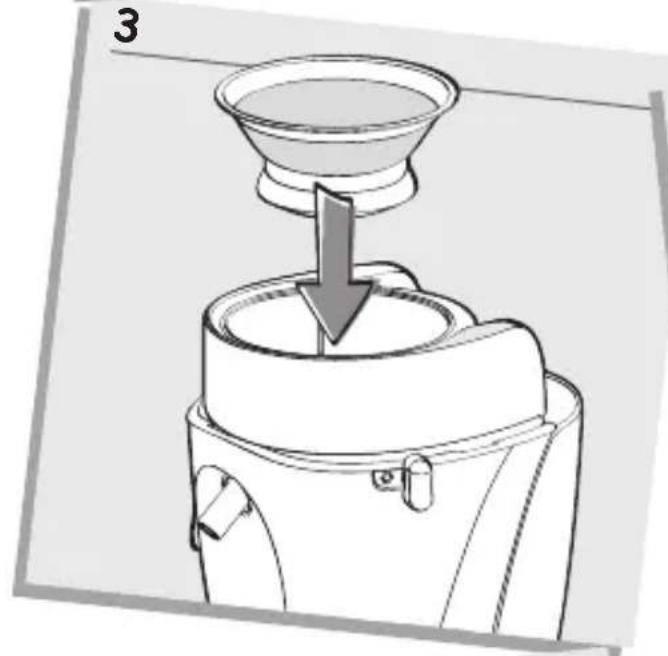

• Place the sieve (D) in the juice collector (E). Make sure that the sieve is correctly fitted onto the drive shaft (fig. 3).

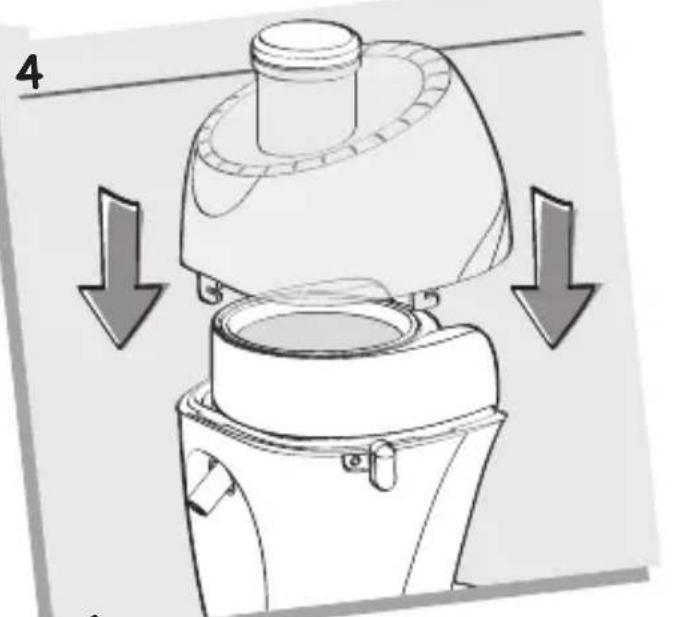

• Position the cover (C) on the motor unit (G) (fig. 4).

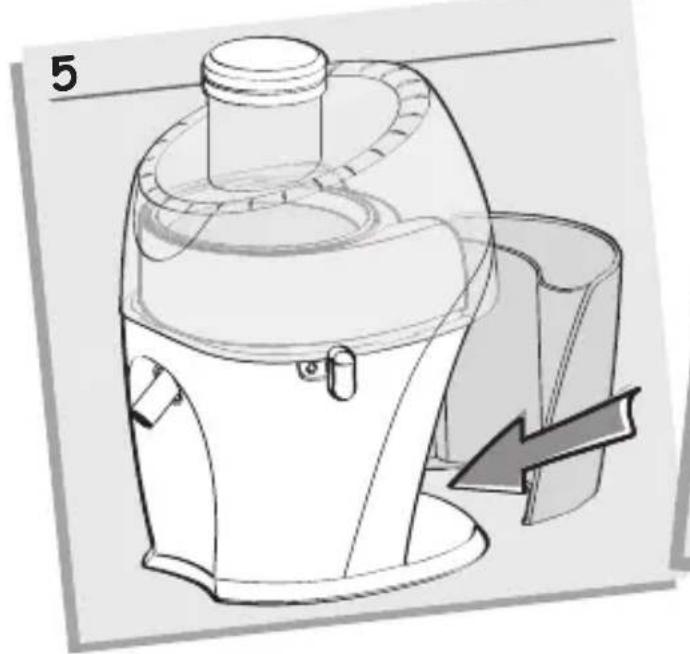

• Place the pulp container (I) on the back of the appliance (fig. 5).

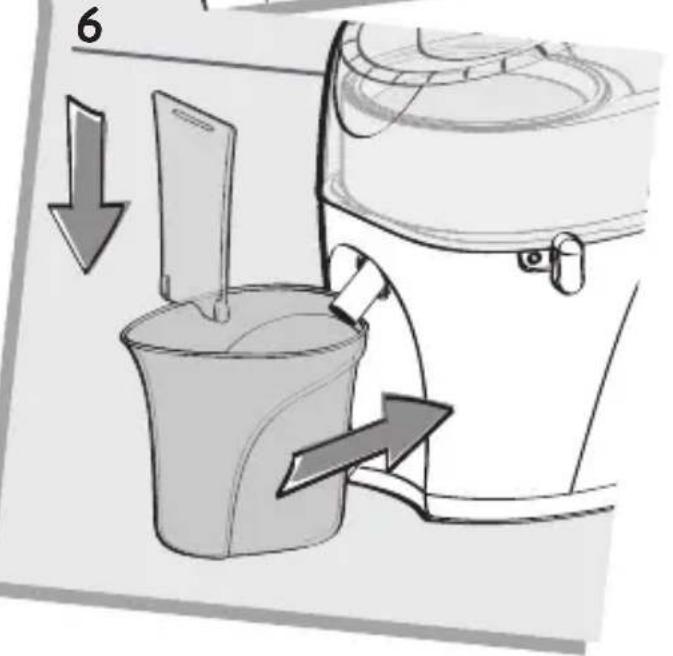

• Place the Jug (L) or a glass under the pouring spout (F) at the front of the appliance. If you wish to separate out the foam from the juice, place the foam separator (K) in the juice collector (L) (fig. 6). The juice separator will retain the foam in the juice collector when you pour the juice into a glass.

• Cut the fruit or vegetables into pieces after removing any pips if necessary.

• Plug in the appliance. The cord storage (J) compartment lets you adapt the cord length.

• Start the appliance using the start switch (H).
• Insert fruit or vegetables using the filler (B).
• Use the pusher (A), without forcing, to push the food down. Never use any other utensil.
  Fruit and vegetables must always be fed into the appliance with the motor running. Never apply excessive pressure to the pusher(A). NEVER PUSH with your fingers, always use the Pusher supplied.
• Once you have finished, stop the appliance using the switch (H) and wait until the sieve (D) has come to a complete stop.
• When the pulp container (I) is full or when the flow of juice from the appliance slows, empty the collector and clean the sieve (D).

Ingredients Approx. weight (in Kg)		Amount of juice obtained in cl (*) 1 glass = 200 ml (approx.)
Apples	1	65
Pears	1	60
Carrots	1	60
Cucumbers	1 (approx two cucumbers)	60
Pineapple	1	30
Grape	1	45
Tomatoes	1	60
Celery	1	60

(*) The quality and quantity of the juice obtained varies considerably depending on the harvest date and the variety of each fruit or vegetable. The amounts of juice shown below are therefore approximate.

6. TIPS FOR USE

• Carefully wash the fruit before removing any pips.
• You do not have to skin or peal fruit or vegetables. You should only peal thick skinned fruit (for bitterness): citrus fruits, pineapple (remove the centre part also).
• It is hard to extract juice from bananas, avacados, blackberries, figs, aubergine, raspberries...
• We do not recommend using the centrifuge for sugar cane and fruit that is too hard or fibrous.
• Choose fruit and vegetables that are ripe and fresh, for they will give you the most juice. This appliance is suited to

fruit like apples, pears, oranges, grapes, pomegranates, pineapple, etc... as well as vegetables like carrots, cucumbers, tomatoes, beetroot, celery, etc...

- If you juice fruit that is overripe, the basket may become clogged faster. Important: All juice must be consumed immediately. This is because juice, in contact with the outside air, will oxidize very quickly and this may change its taste, colour and nutrient content. Apple or pear juice will quickly change to a brown colour. Add a few drops of lemon to the juice and it will take longer to change to brown.

7. CLEANING AND MAINTENANCE

• All removable parts can be washed in the dishwasher.
• This appliance is easier to clean if it is cleaned immediately after use.
• Never use scouring pads, acetone, alcohol, etc. to clean the appliance.
  • The sieve (D) must be treated with

care. Avoid incorrect handling that could cause damage to it. Replace your sieve as soon as it shows the first signs of wear or damage.

- Clean the motor unit using a damp cloth.

PROBLEMS CAUSES	SOLUTIONS
The appliance does not work.	The plug is not plugged in, the switch is not set to "1".	Plug the appliance into a main outlet with the same voltage and activate the switch.
	The cover (C) is not locked.	Check that the cover (C) is properly positioned.
The product smells or is very hot to touch, if smoke is released or an unusual noise heard.	The sieve (D) is not properly positioned.	Check that the sieve (D) is properly positioned.
	The amount of food processed is excessive.	Let the appliance cool for a few minutes, then reduce the quantities processed.
The juice does not dispense properly.	The juice collector (E) is not properly positioned.	Check that the juice collector (E) is properly positioned.
	The pouring spout (F) is missing or incorrectly positioned on the juice collector (E).	Check that the pouring spout (F) is present and correctly positioned.
	The sieve (D) is saturated.	Clean the sieve (D).
For all other problems or anomalies, contact your nearest After Sales Service facility.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - ROI

or consult our website - www.moulinex.co.uk

9. ELECTRICAL OR ELECTRONIC PRODUCT END OF LIFE

Please help preserve the environment!

Your appliance contains many materials that can be reused or recycled.

Leave it at a local civic waste collection point.

2. BESCHRIJVING VAN HET APPARAAT

A. Vulstop
B. Vulschacht
C. Deksel
D. Zeef
E. Sapreservoir
F. Schenktuit
G. Motorblok

Ingredienser Ca. vekt (i kg)		Saftmengde i dl (*)1 glass = 2 dl
Eple	1 6,5
Pære	1 6,0
Gulrot	1 6,0
Agurk	1 (ca. 2 agurker) 6,0
Ananas	1 3,0
Drue	1 4,5
Tomat	1 6,0
Selleri	1 6,0
