USER MANUAL RSNE445E33XN BEKO

Simple line drawing of a pear and a carrot (no text or symbols)

RSNE445E33XN

EN / DE / FR / EL

Please read this manual before using the product!

Dear Customer,

We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.

Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product.
  • Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

i	Important information and useful tips.
!	Risk of life and property.
4	Risk of electric shock.
	The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

i INFORMATION
	The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label.https://eprel.ec.europa.eu/

1 Safety and environment instructions 4

General safety 4

Intended use 6

Child safety 6

Compliance with WEEE Directive and Disposing of the Waste Product ...... 6

Compliance with RoHS Directive......7

Package information 7

2 Your refrigerator 8

3 Installation 9

Appropriate Installation Location ...... 9

Adjusting the Feet 10

Electrical Connection ....10

4 Preparation 11

5 Operating the product 12

Freezing fresh food 14

Recommendations for preserving the frozen food 15

Deep-freeze information 15

Placing the food 16

Door open warning 16

Changing the door opening direction 16

6 Maintenance and cleaning 21

7 Troubleshooting 22

1 Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug the device.
  • After unplugging, wait at least 5 minutes before plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning and repair.
• If the product will not be used for a while, unplug the product and remove any food inside.
• Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

Safety and environment instructions

Simple line drawing of a rectangular frame with a numbered label '1' on the top left corner (no other text or symbols)

Simple line drawing of a mechanical component with a base and top view (no text or symbols)

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!

• Do not place liquids in bottles and cans into the freezer compartment. They may explode.

• Place liquids in upright position after tightly closing the lid.

• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug, no text or symbols present

Safety and environment instructions

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
• Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and

Safety and environment instructions

other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

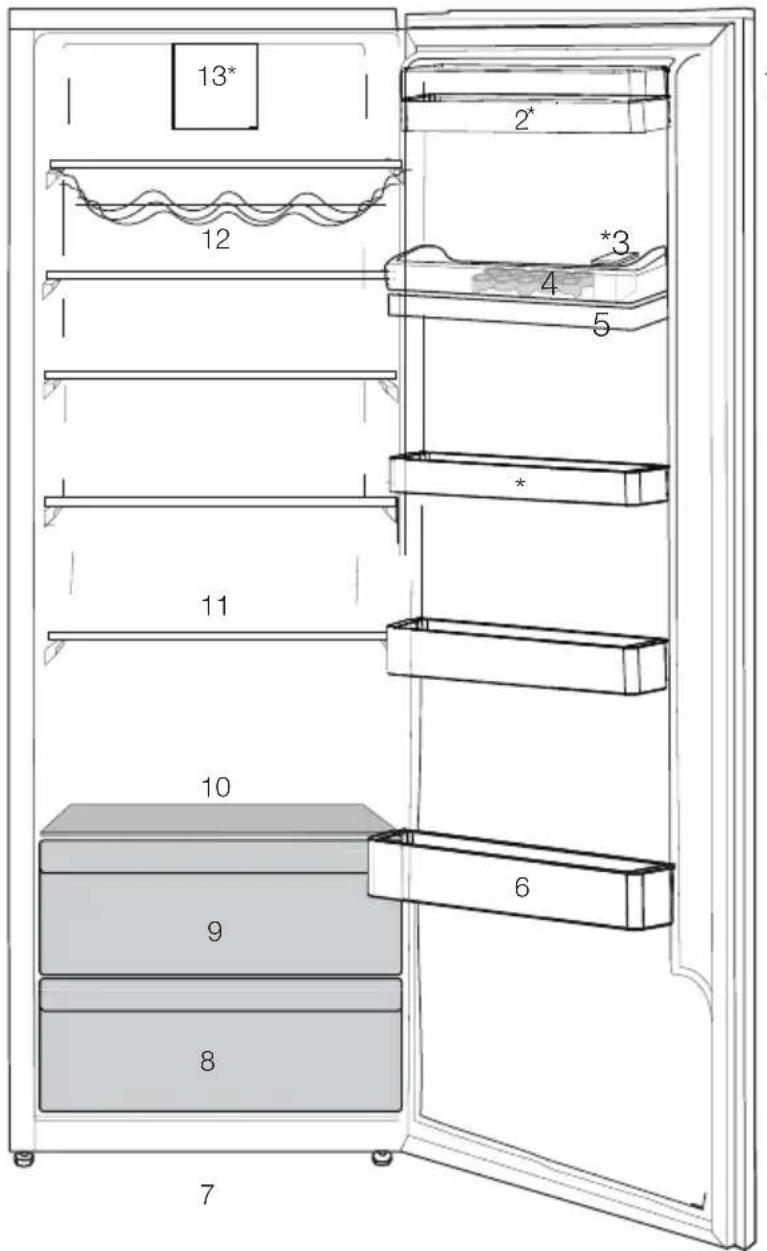

2 Your refrigerator

13* 2* 12 *3 4 5 * 11 10 6 9 8 7

1. Indicator panel
2. Butter & Cheese sections

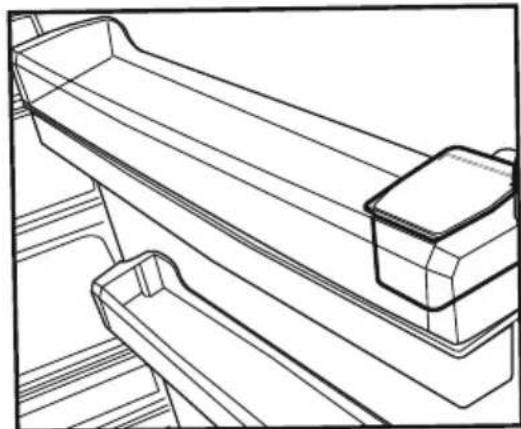

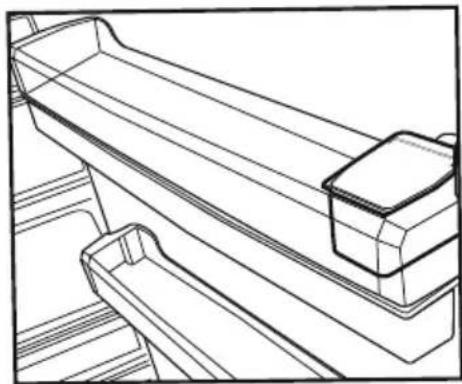

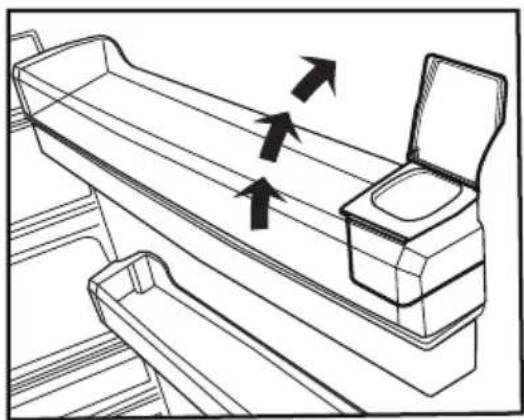

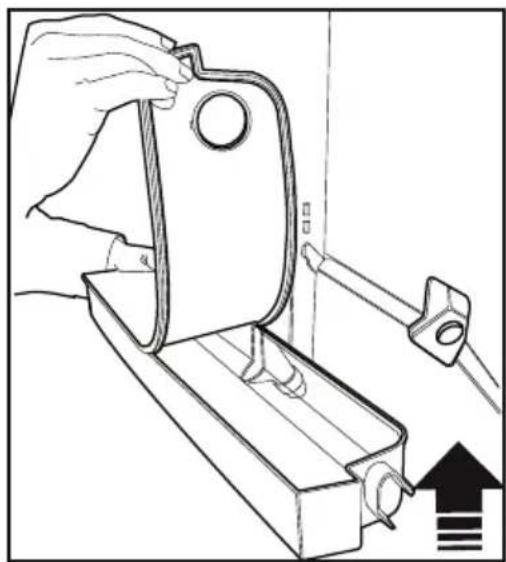

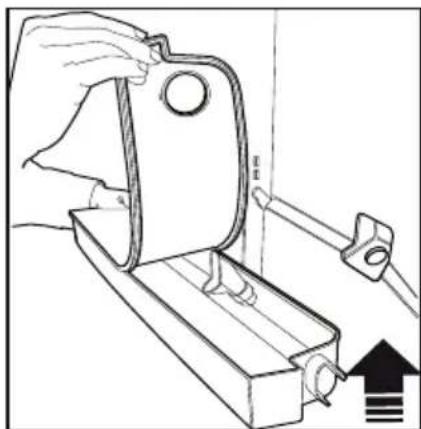

3. Water dispenser filling tank
4. Egg section

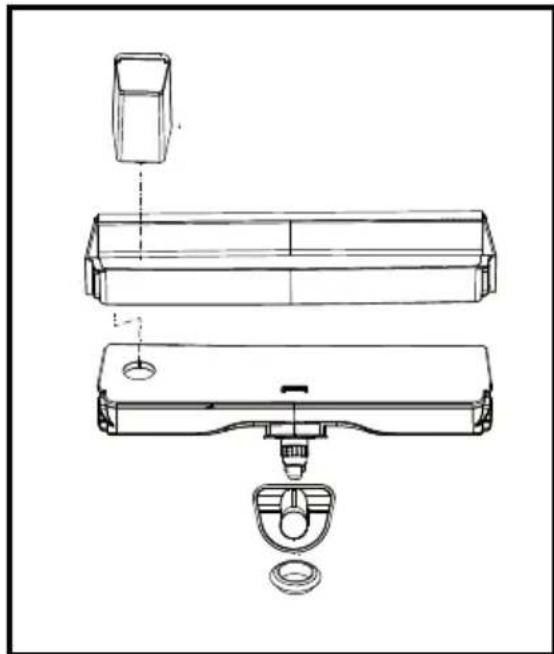

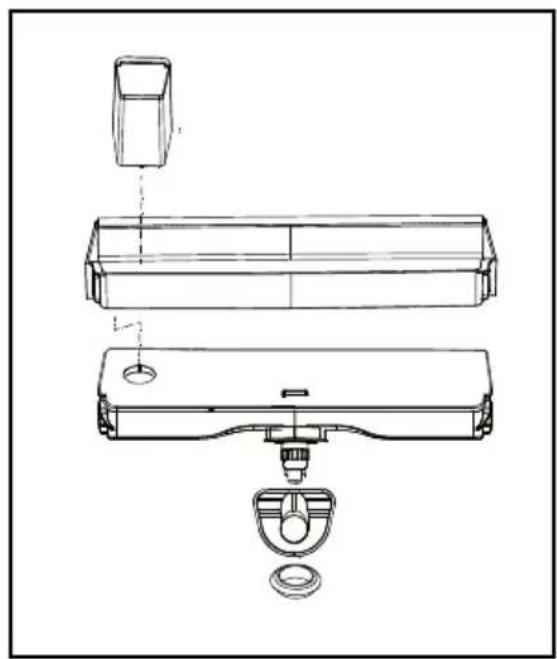

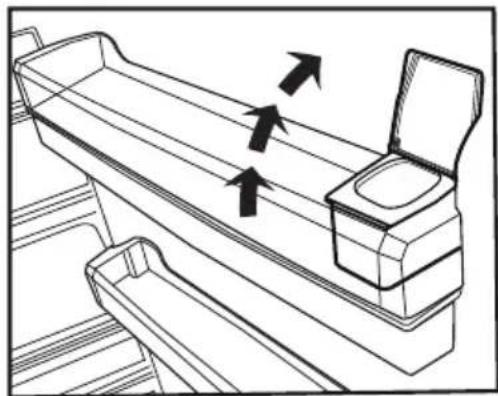

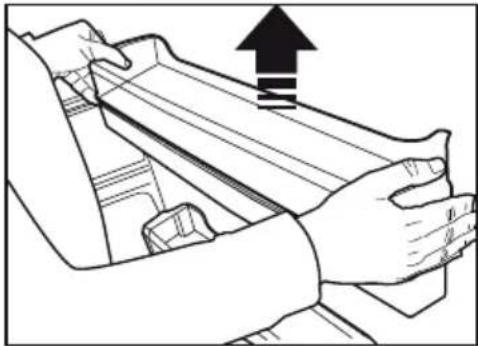

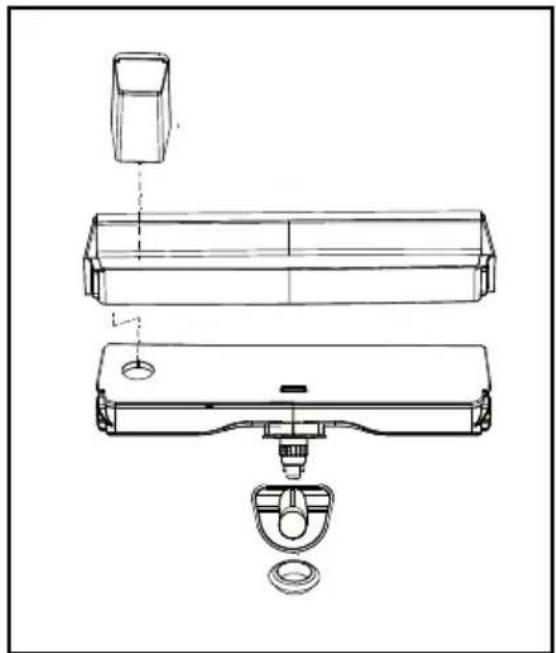

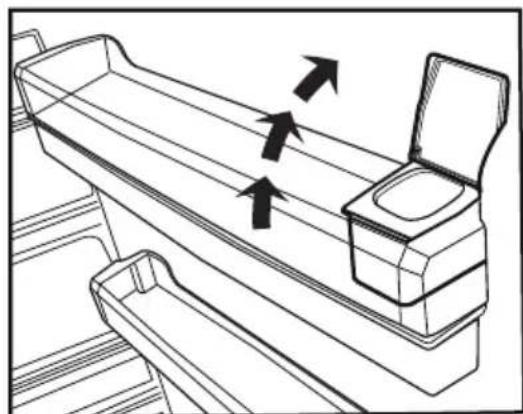

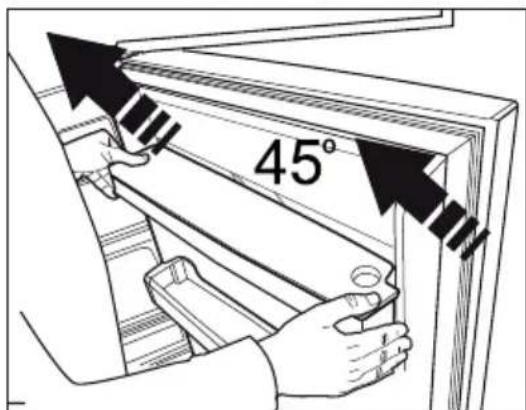

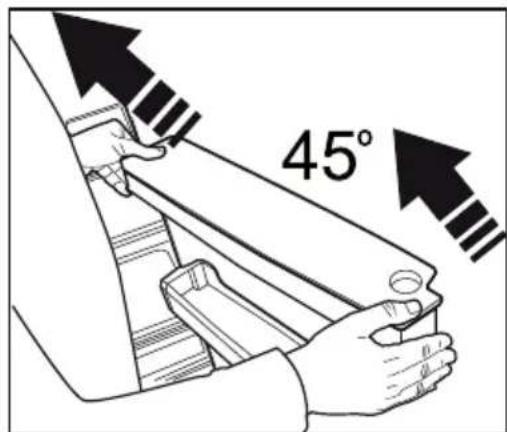

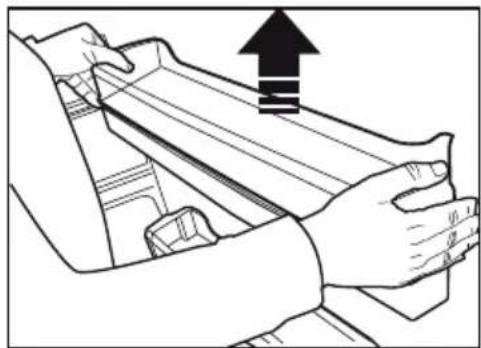

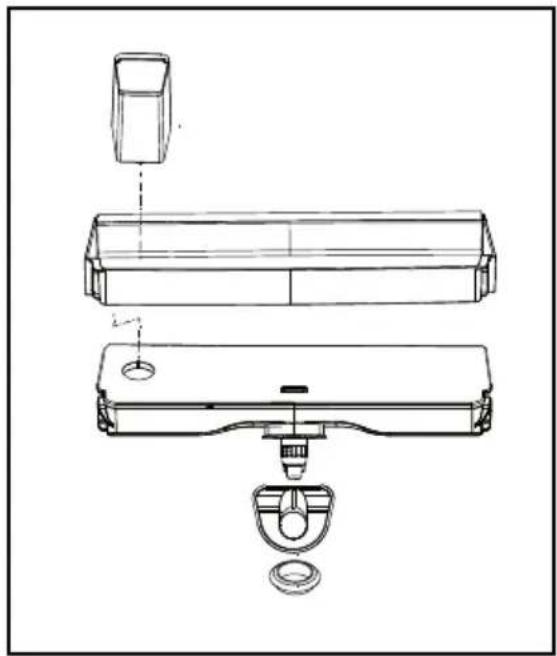

5. Water dispenser reservoir
6. Adjustable door shelves

7. Adjustable front feet

8. Crispers

9. Chiller
10. Chiller cover and glass
11. Movable shelves
12. Wine cellar
13. Fan

\*May not be available in all models

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

3 Installation

3.1. Appropriate Installation Location

Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

	WARNING: Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
	WARNING:If the door clearance of the room where the product shall be place is so tight to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

- Place the product on an even floor surface to prevent jolts.

• Install the product at least 30 cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.

- Product must not be subjected to direct sun light and kept in humid places.

- Appropriate air ventilation must be provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.

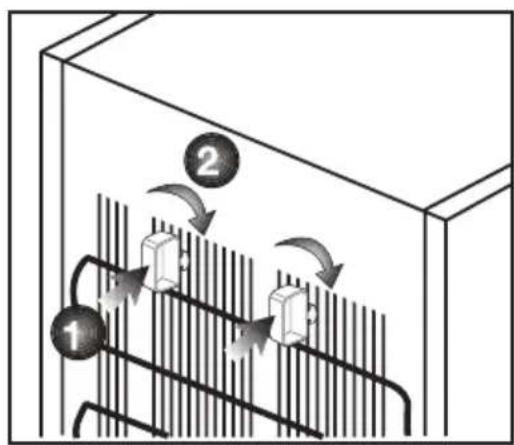

Installing the Plastic Wedges

Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.
2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

Diagram showing airflow or heat transfer between two labeled components (1 and 2), with arrows indicating direction of movement.

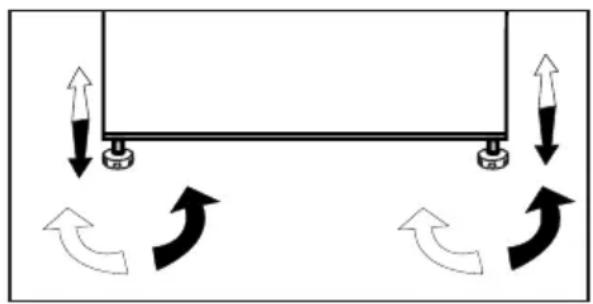

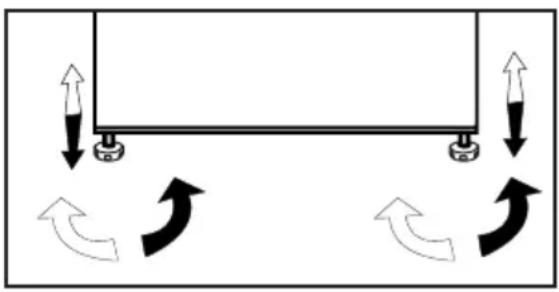

3.2. Adjusting the Feet

If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.

Diagram showing a rectangular structure with upward and downward arrows, surrounded by curved arrows indicating rotational or directional motion (no text or symbols)

3.3. Electrical Connection

	WARNING: Do not make connections via extension cables or multi-plugs.
	WARNING: Damaged power cable must be replaced by the Authorized Service Agent.
	If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

• Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.
• Power cable plug must be within easy reach after installation.
• Do not extension cords or cordless multiple outlets between your product and the wall outlet.

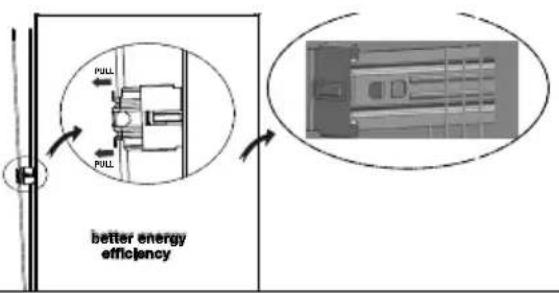

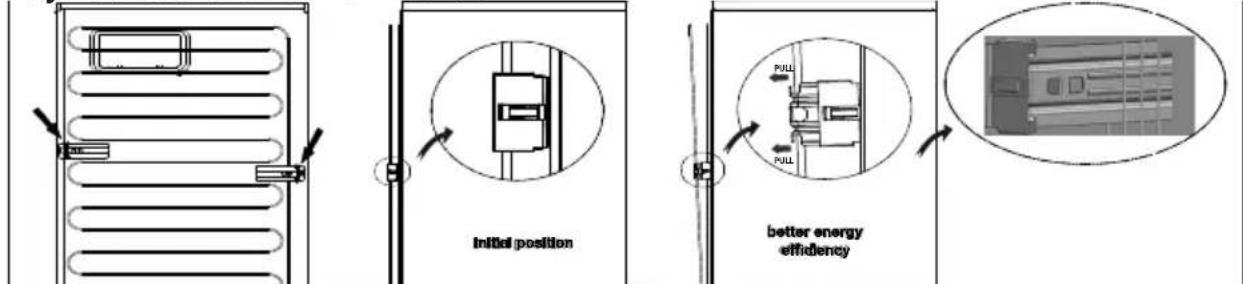

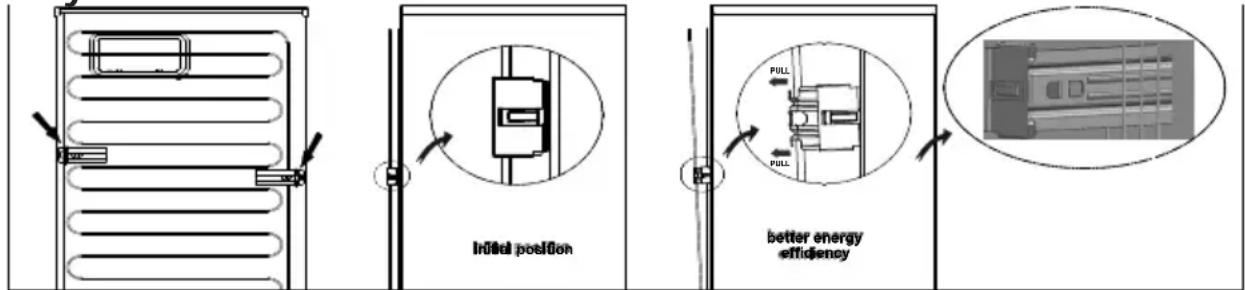

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

Initial position better energy efficiency

4 Preparation

• For a freestanding appliance; 'this refrigerating appliance is not intended to be used as a built-in appliance.
• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 5°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal
• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.

5 Operating the product

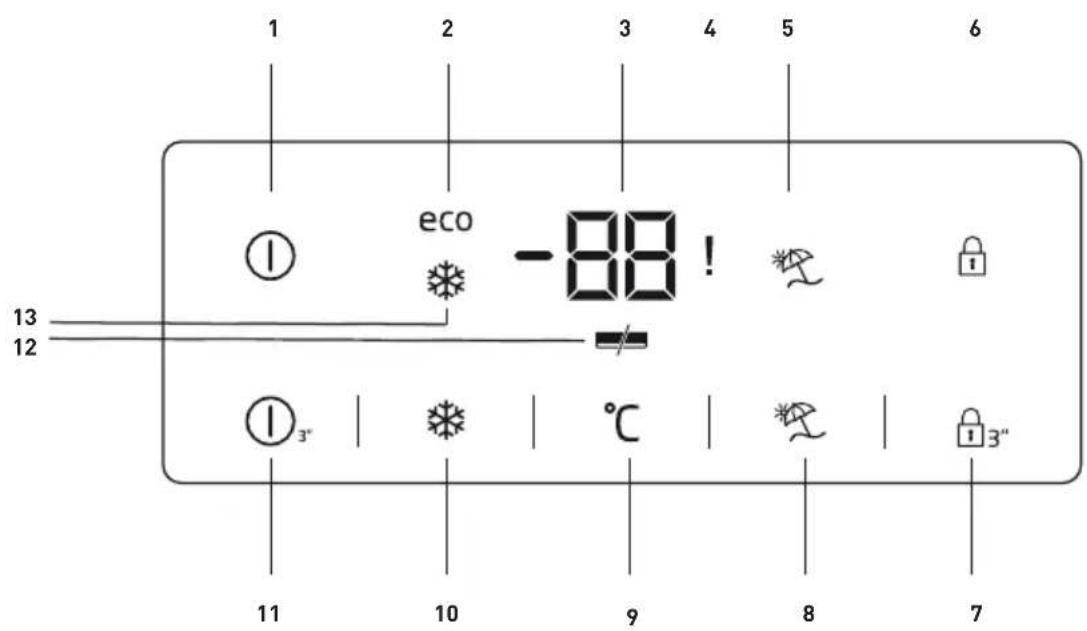

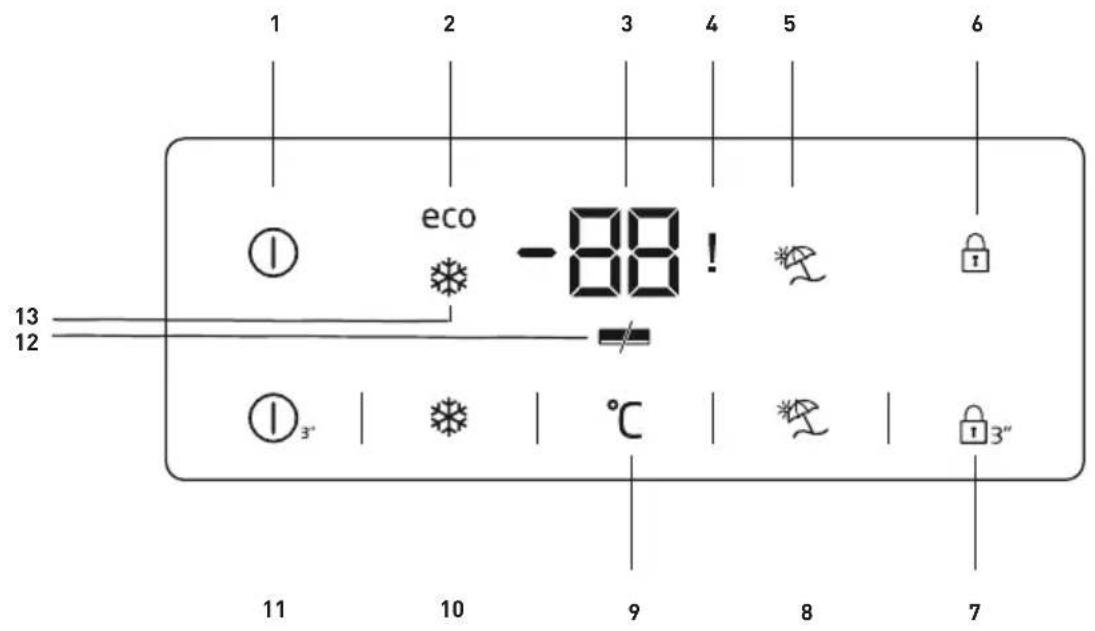

1 2 3 4 5 6 eco -88! ① 13 12 ① 3" °C 9 8 7 11 10 9 8

1. On/Off Indicator:

This icon ( ) come on when the fridge is turned off. All the other icons turn off.

2.Economic Usage Indicator:

This icon ( ) comes on when the Fridge Compartment is set to 8°C which is the most economical set value. Economic Usage Indicator turns off when the Quick Fridge or Quick Freeze function is selected.

3. Fridge Compartment Temperature Setting Indicator:

Indicates the temperature set for the Fridge Compartment.

4. Power Failure / High temperature / Error status indicator

This indicator (!) illuminates in case of power failure, high temperature and error warnings.

When the temperature of the freezer compartment is heated up to

a critical level for the frozen food, the maximum value reached by the freezer compartment temperature flashes on the digital indicator.

Check the food in the freezer compartment.

This is not a malfunction. The warning may be deleted by pressing any button or on high temperature alarm off button. (Cancelling by pressing any button is not applicable for every model.)

This indicator ( !) illuminated when a sensor failure occurs, too. When this indicator is illuminated, "E" and figures such as "1,2,3..." are displayed alternatively on the temperature indicator. These figures on the indicator inform the service personnel about the error.

6.Key Lock Indicator:

This icon (💡) lights up when the Key Lock mode is activated.

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

Operating the product

7.Key Lock Mode:

Press Key Lock (1) button continuously for 3 seconds. Key lock icon will light up and key lock mode will be activated. Buttons will not function if the Key Lock mode is active. Press Key Lock button continuously for 3 seconds again. Key lock icon will turn off and the key lock mode will be exit.

8. Vacation Function:

When you press Vacation button, vacation function ( ^* ) is activated and vacation indicator lights. You can use this function when you will not use your fridge for a long time. Note that there should be no food inside your fridge, otherwise fridge can not preserve your food at Vacation mode. If this function is activated, fridge compartment temperature is kept at 15 C° in order to prevent bad smelling. Press Vacation button again to deactivate vacation function.

9. Fridge Set Function:

This function (°) allows you to make the Fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8,7,6,5,4,3, and 1 respectively.

10. Quick Fridge Function:

Quick Fridge indicator (❄️) turns on when the Quick Fridge function is on. Press Quick Fridge button again to cancel this function. Quick Fridge indicator will turn off and normal settings will be resumed. Quick Fridge function will be cancelled automatically 1 hours later if you do not cancel it manually. If you want to cool plenty amount of fresh food, press Quick

Fridge button before you place the food into the fridge compartment.

11. On/Off Function:

This function (☐) allows you to make the Fridge turn off when pressed for 3 seconds. The fridge could be turned on by pressing On/Off button for 3 seconds again.

12. Energy Saving Indicator :

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. ()

When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled.

13. Quick Freeze Indicator :

This icon (❄️) comes on when the Quick Freeze function is on.

Operating the product

5.1. Freezing fresh food

• In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose.
• You may store the food longer in freezer compartment when you freeze them while they are fresh.
• Pack the food to be frozen and close the packing so that it would not allow entrance of air.
• Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers.
• Label each pack of food by adding the date before freezing. You may distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first.

The freezer compartment defrosts automatically.

• Frozen food must be used immediately after they are thawed and they should not be re-frozen.
• Do not freeze too large quantities of food at one time.

Operating the product

Freezer Compartment Setting	Fridge compartment Setting	Remarks
-18°C 4°C This is	the normal recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.
-18°C or colder 2°C		Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

5.2. Recommendations for preserving the frozen food

Compartment shall be set to -18^ at least.

1. Put packages in the freezer as quickly as possible after purchase without allowing the to thaw.
2. Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing it.
3. Ensure that the package of the food is not damaged.

5.3. Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-litres of freezer volume. It is possible to preserve the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially.

Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

5.4. Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Refrigerator compartment shelves	Food in pans, covered plates and closed containers, eggs (in closed container)
Door shelves of fridge compartment	Small and packaged food or beverage
Crisper Vegetables	and fruits
Fresh zone compartment	Delicatessen (breakfast food, meat products that shall be consumed in a short time)

5.5. Door open warning (This feature is optional)

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.

5.6. Changing the door opening direction

Door opening direction of your refrigerator can be changed according to the place you are using it. If this is necessary, please call your nearest Authorized Service.

Above description is a general expression. For information on changing the opening direction of the door, you must refer to the warning label located on the inner side of the door.

Operating the product

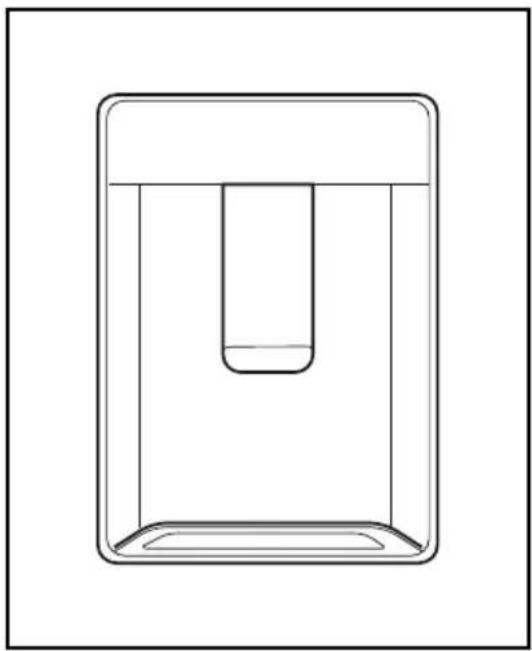

Using the water dispenser

* May not be available in all models

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Operating the product

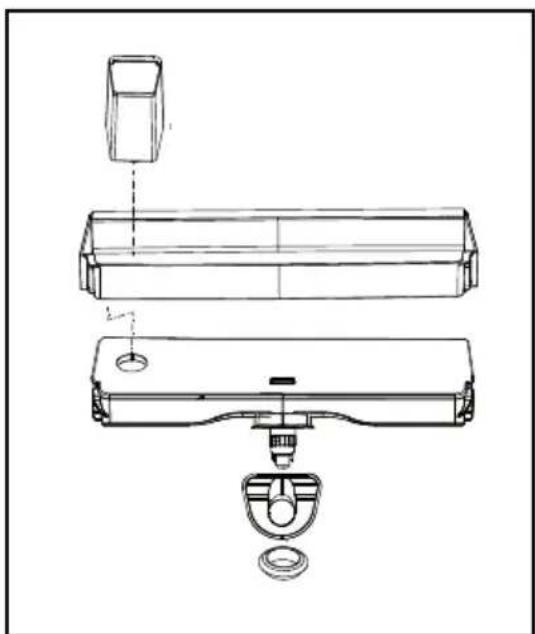

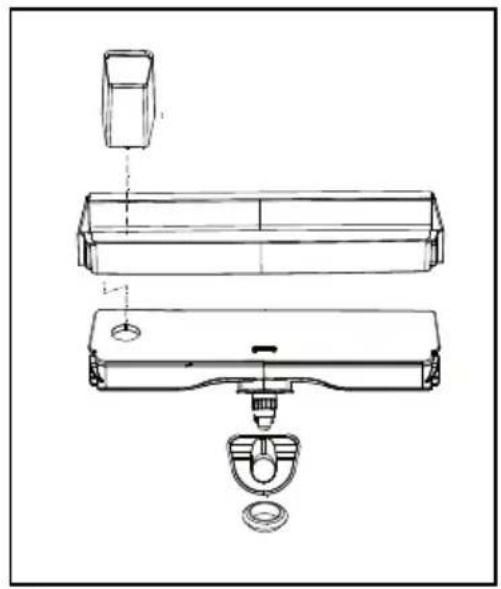

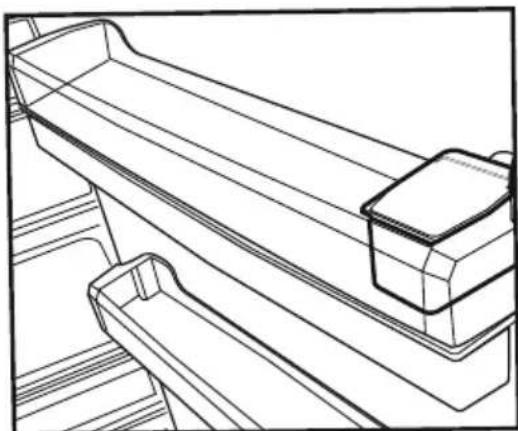

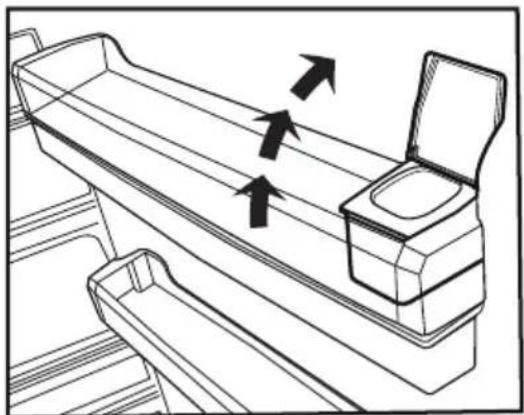

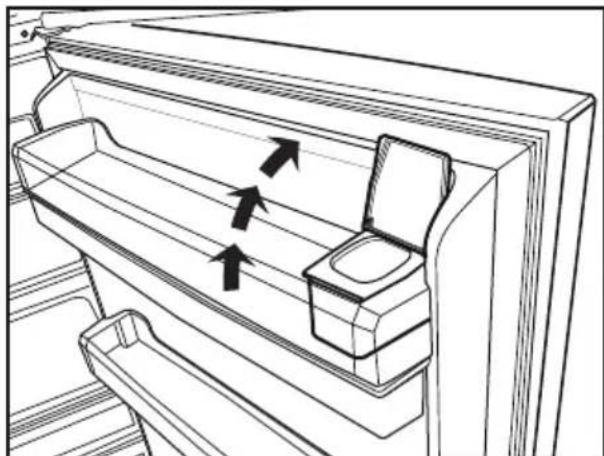

Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only.

Technical line drawing of a mechanical component or tray assembly (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Operating the product

Capacity of the water tank is 3 litres; do not overfill.

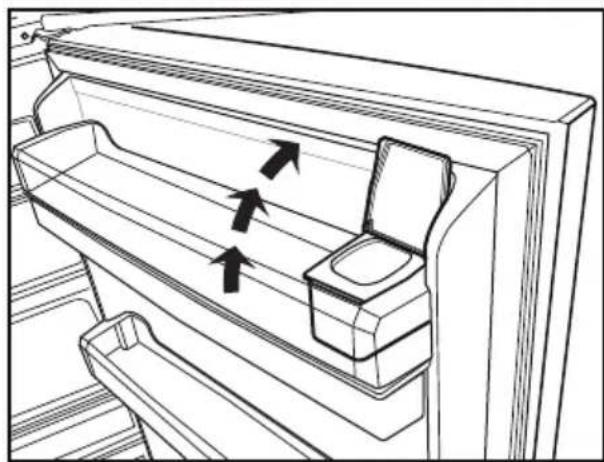

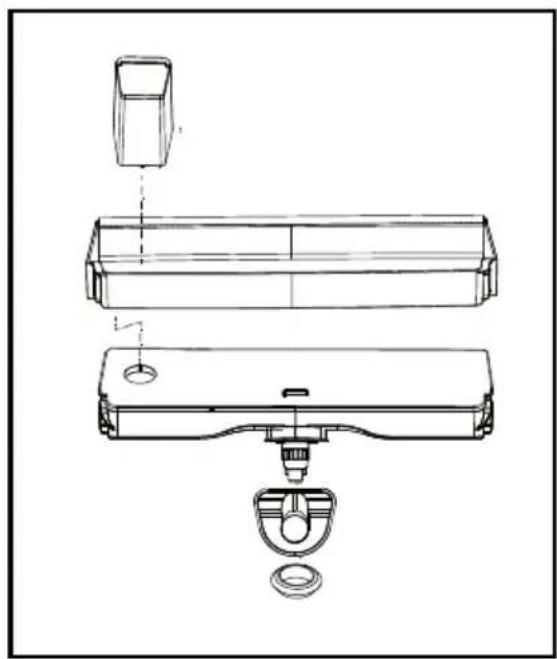

Cleaning the water tank

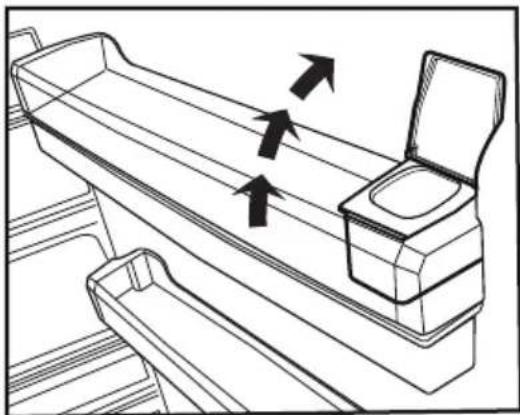

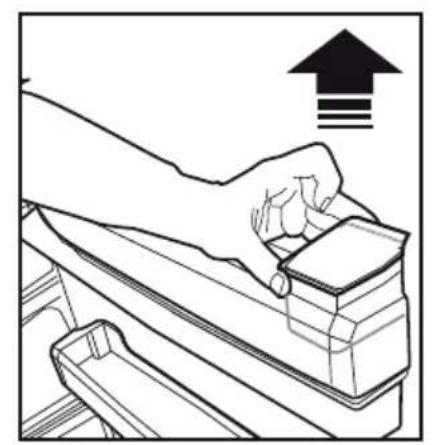

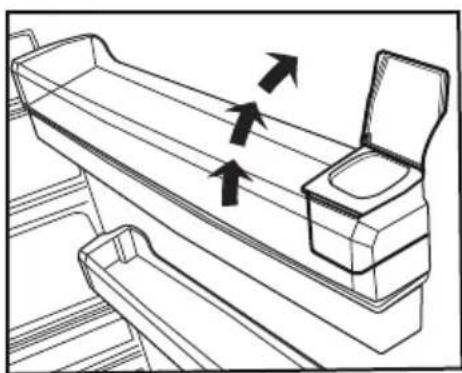

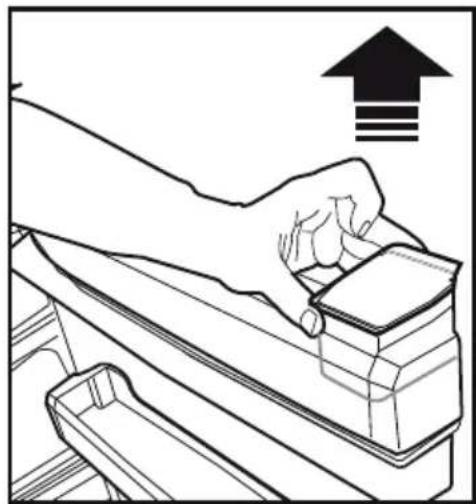

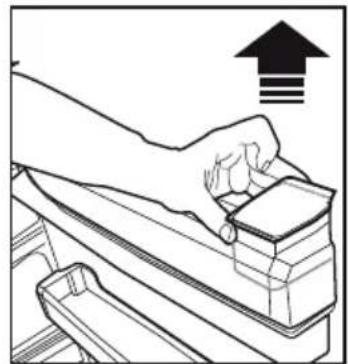

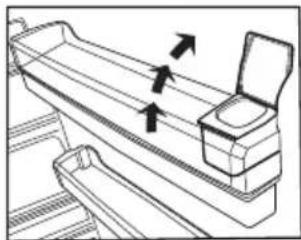

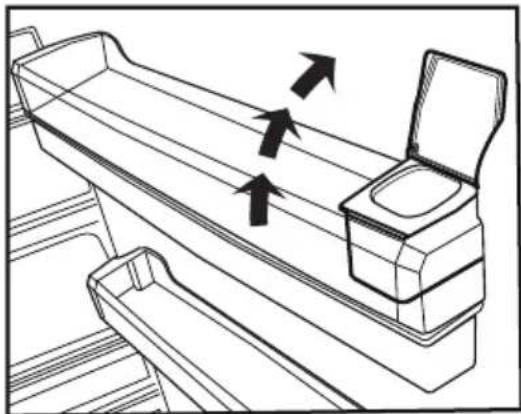

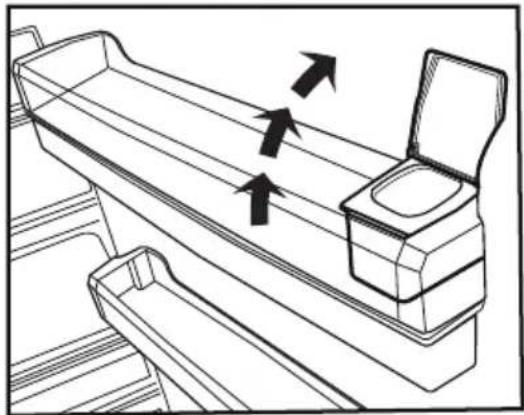

1. Remove the water filling reservoir inside the door rack.

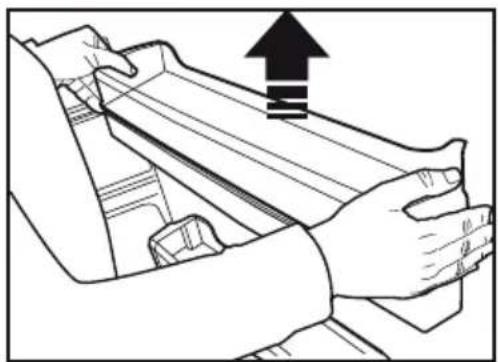

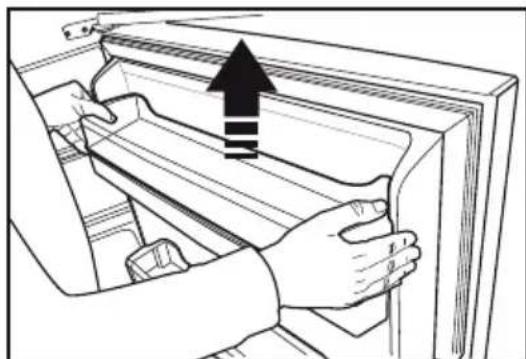

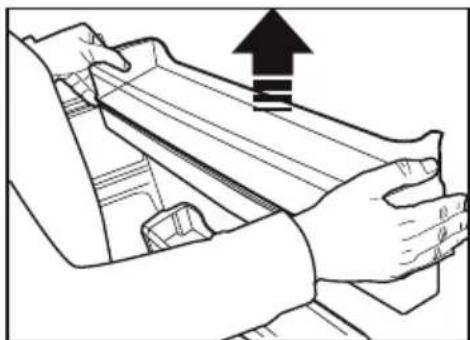

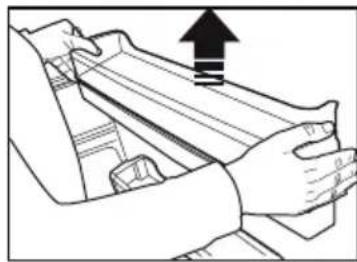

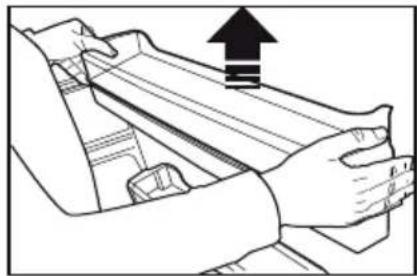

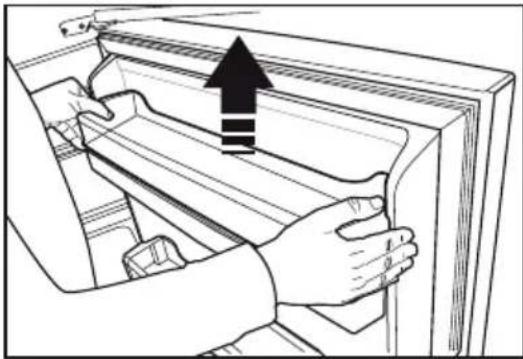

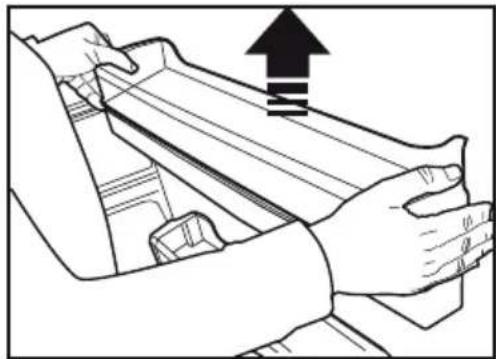

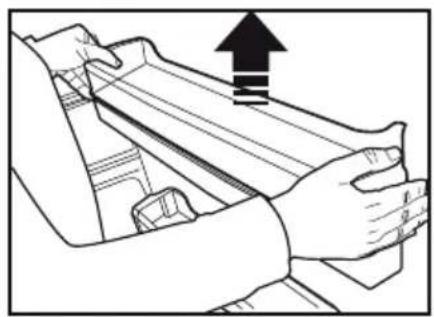

2. Remove the door rack by holding from both sides.

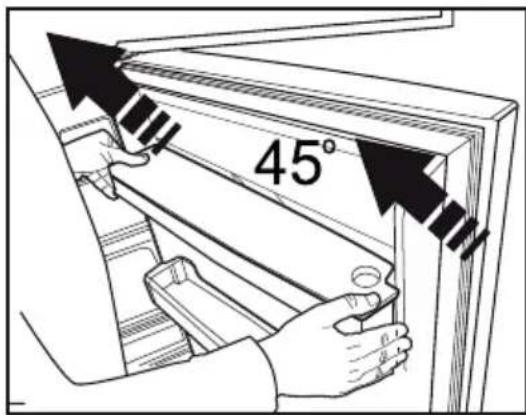

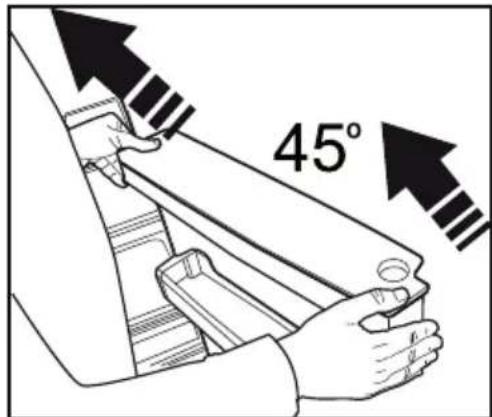

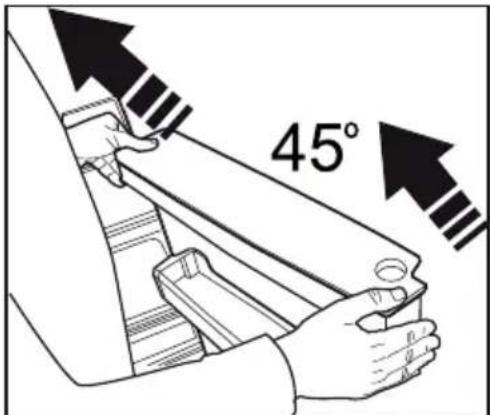

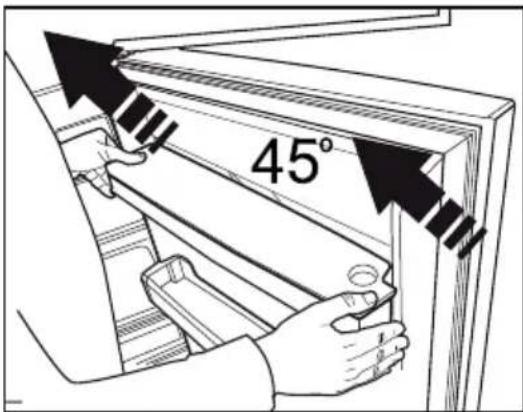

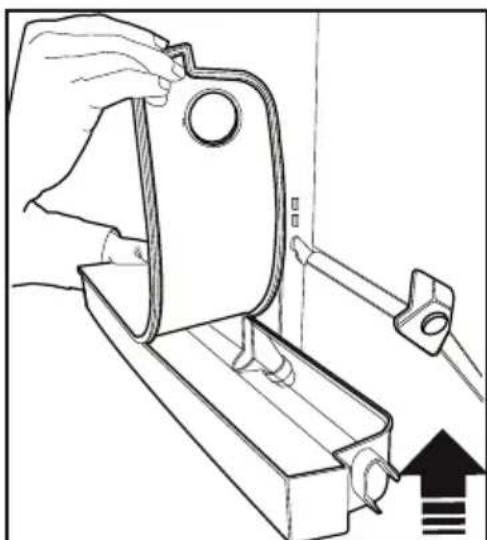

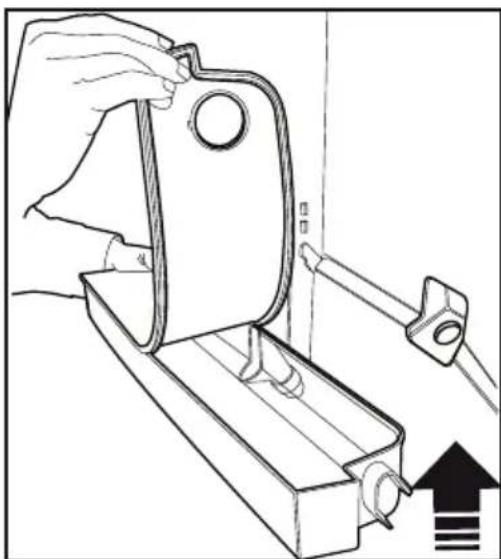

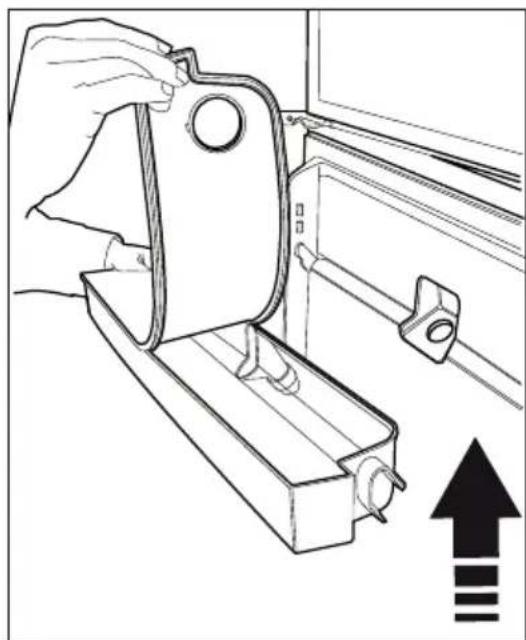

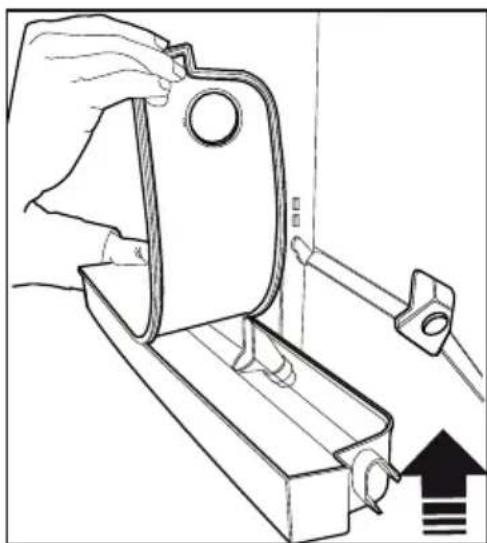

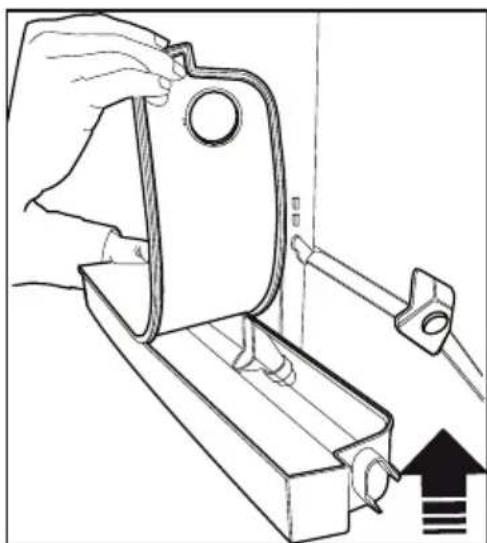

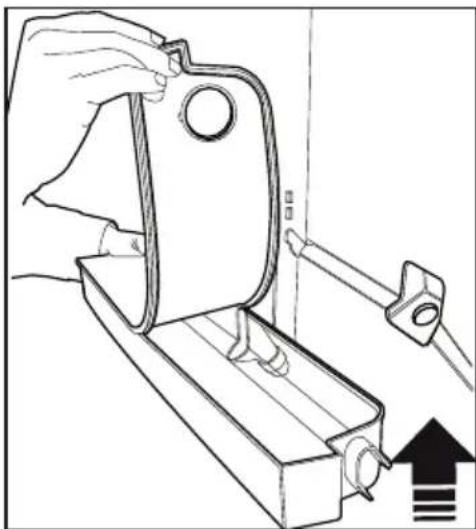

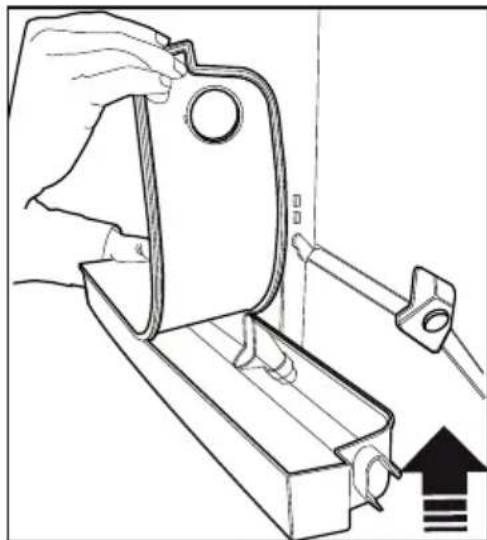

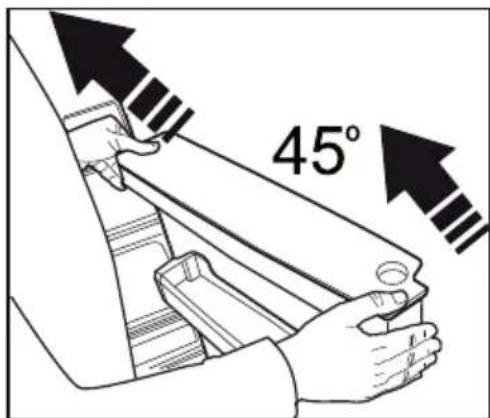

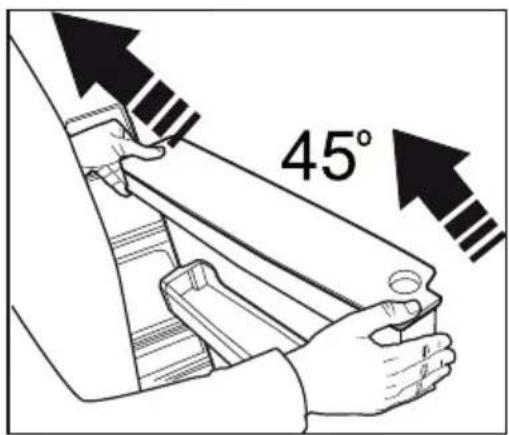

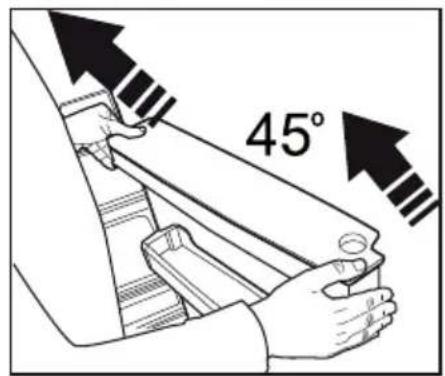

3. Grab the water tank from both sides and remove it with an angle of 45^ C.

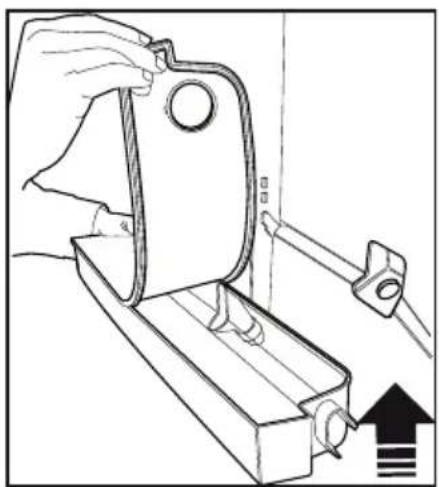

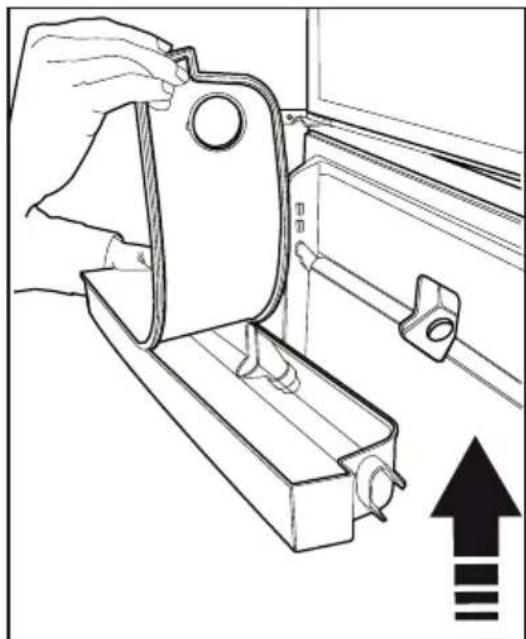

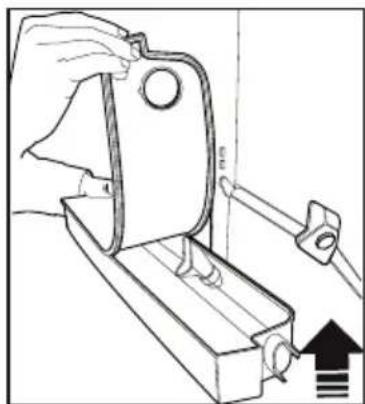

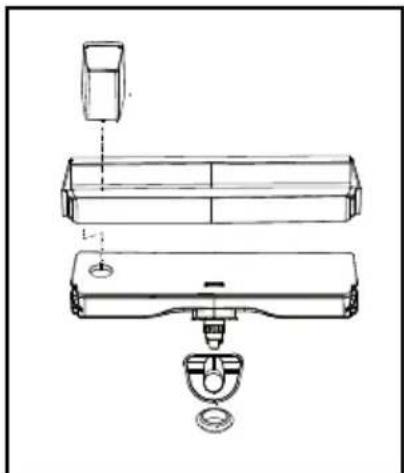

4. Remove the cover of the water tank and clean the tank.

Components of the water tank and water dispenser should not be washed in dishwasher.

Line drawing of a hand pressing down on a mechanical component with an upward arrow symbol (no text or labels)

Illustration of hands operating a mechanical device with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand operating a mechanical device with a bracket and mounting bracket (no text or symbols)

Operating the product

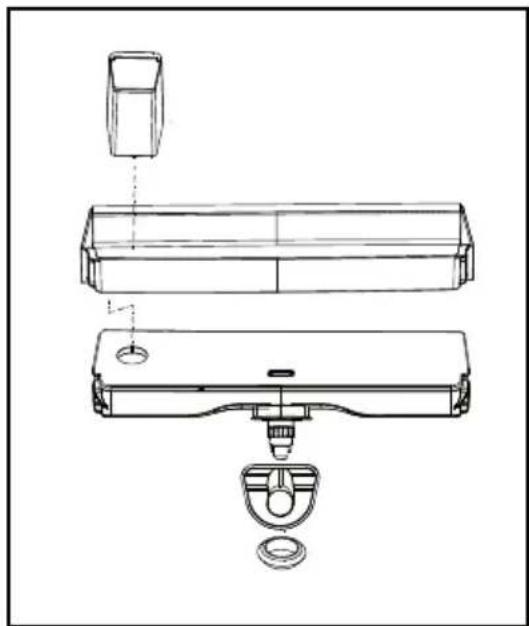

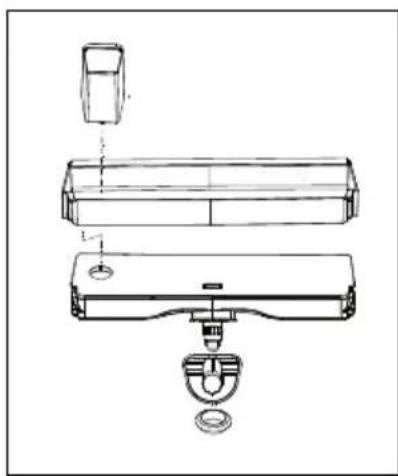

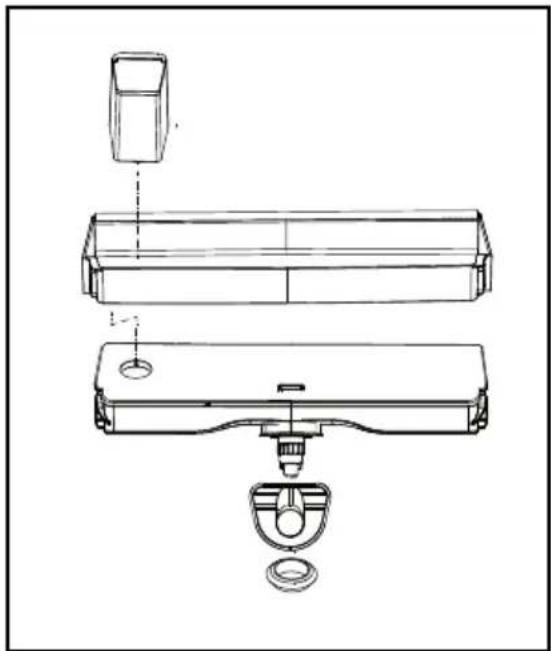

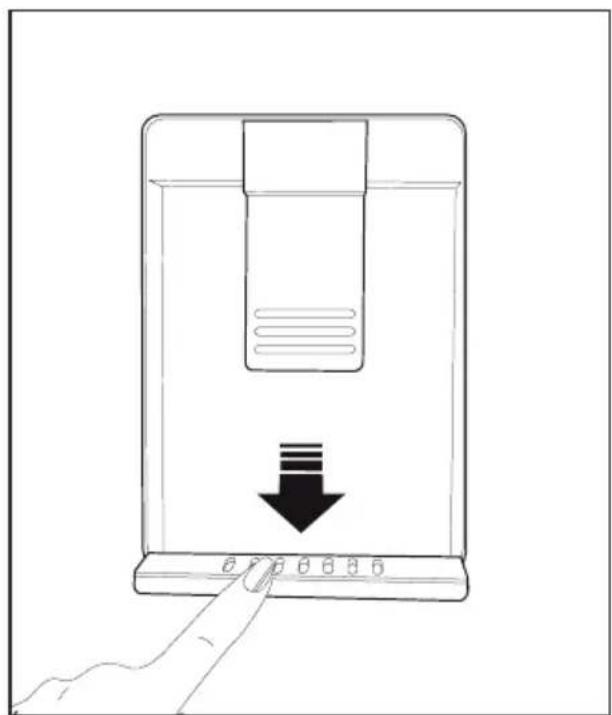

Drip tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

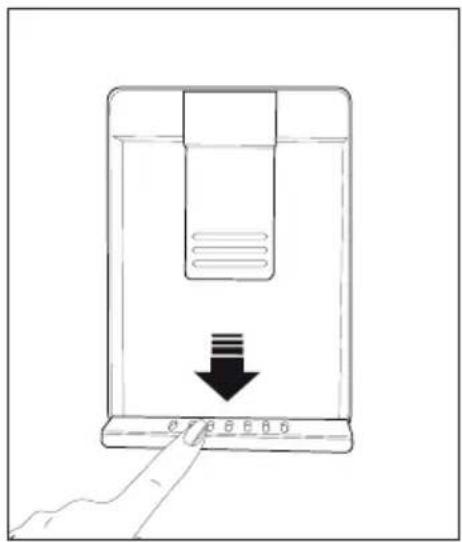

Remove the plastic filter as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

6 Maintenance and cleaning

Cleaning your fridge at regular intervals will extend the service life of the product.

WARNING:

Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.
• Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface
• Dissolve one teaspoon of bi-carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.

- Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

• Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:
• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled.

  Plug it in to settle completely into the socket.

• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

- In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect.

  Select the appropriate temperature setting.

• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

Troubleshooting

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

- The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on

the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

Troubleshooting

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.

- The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

DISCLAIMER / WARNING

Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section).

Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC.

However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee.

Self-Repair

Self-repair can be done by the end-user with regard to the following spare parts: door handles, door hinges, trays, baskets and door gaskets (an updated list is also available support.beko.com as of 1st March 2021).

Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair.

Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.

Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur.

By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board, inverter board, display board, etc.

The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.

The spare part availability of the refrigerator that you purchased is 10 years.

During this period, original spare parts will be available to operate the refrigerator properly. The minimum duration of guarantee of the refrigerator that you purchased is 24 months.

This product is equipped with a lighting source of the "G" energy class.

The lighting source in this product shall only be replaced by professional repairers.

Packaging sorting information

Please scan the QR code which places on the outer packaging of the product to find all the information relating to the packaging and how to manage the packaging waste.

https://eprel.ec.europa.eu/

Simple line drawing of a rectangular frame with a small circular symbol inside, no text or labels present.

Simple line drawing of a mechanical component with a base and top view (no text or symbols)

Diagram showing a lightning bolt striking down on a wall-mounted device (no text or symbols present)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

inseal position better onshore efficiency

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Menge Energie.

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing airflow direction arrows (no text or symbols)

Warnung!

Line drawing of a hand cleaning a refrigerator with an upward arrow (no text or symbols)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with a pull rod, next to an upward arrow symbol (no text or labels present)

Line drawing of a device with a hand pressing a button and a downward arrow indicating action (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

https://eprel.ec.europa.eu/

Table des matières

Diagram of a device with a lightning bolt and cable, no text or symbols present

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Initial position better energy efficiency

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Line drawings of a refrigerator interior showing front and side views with directional arrows indicating movement (no text or symbols)

Avertissement!

Line drawing of a hand placing a box into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with an upward arrow and three vertical lines indicating measurement or assembly (no text or symbols present)

Line drawing of a device with a finger pointing to its bottom control panel and a downward arrow indicating action (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

https://eprel.ec.europa.eu/

Simple line drawing of a rectangular structure with a central triangular element and labeled point 1 (no text or symbols beyond the label)

Simple line drawing of a rectangular frame with a numbered label '1' in the center (no other text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Initial position better energy efficiency

Diagram showing airflow or heat transfer between two labeled components, with arrows indicating direction of movement.

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing tray, door, and drawer with directional arrows indicating movement (no text or symbols)

Προειδοποίηση!

Diagram of a hand placing a component into a device with an upward arrow, no text or symbols present

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with a pull rod, next to an upward arrow (no text or symbols)

Δίσκος νερού

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

RSNE445E33XN

PT / SL / ES / HR

Caro Cliente,

https://eprel.ec.europa.eu/

Conteúdo

Technical line drawing of a mechanical component with a labeled part '1' (no text or symbols beyond the label)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

initial position better energy efficiency

Instalação

Simple line drawing of a rectangular container with a central trough and top frame (no text or symbols)

Line drawing of a wooden shelf with two compartments and a side shelf (no text or symbols)

Line drawing of a wooden tray with open lid and two arrows indicating direction (no text or symbols)

Line drawing of a device with a hand pointing to a button labeled 'Down' and a downward arrow (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Illustration of hands assembling a mechanical component with an upward arrow (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

https://eprel.ec.europa.eu/

1 Varnost in okoljska navodila 4

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Diagram showing a mechanical or electrical component with a lightning bolt and lever mechanism (no text or symbols)

Varnost in okoljska navodila

1.1.1 HC opozorilo

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Initial position better energy efficiency

V

Namestitev

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

4 Priprava

Simple line drawing of a container with a U-shaped tube inside, no text or symbols present.

Technical line drawing of a mechanical component with two rectangular parts and a base, no text or symbols present

Line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Uporaba hladilnika

Line drawing of a hand using a tool to lift a tray, with an upward arrow and three horizontal lines indicating motion (no text or symbols)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand operating a mechanical bracket with a wall-mounted clip and an upward arrow (no text or symbols)

Uporaba hladilnika

5.10. Odcejalnik

Line drawing of a hand pressing down on a water level device with a black downward arrow indicating fluid flow (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Simple line drawing of a rectangular frame with a numbered label '1' inside, no text or symbols present.

Pure electrical circuit lines without any symbols

Initial position better energy efficiency

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Line drawing of a wooden shelf with two compartments and a side shelf (no text or symbols)

Line drawing of a toilet with arrows indicating flow direction (no text or symbols)

Line drawing of a device with a downward arrow indicating a process or operation, no text or symbols present.

Illustration of a hand using a tool to lift a box, with an upward arrow and striped pattern (no text or symbols)

Line drawing of hands operating a mechanical device with an upward arrow indicating motion (no text or symbols)

45°

Illustration of a hand operating a mechanical clamp or bracket with a vertical line and an upward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

1

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

budu topla da bi se se izbjegla kondenzacija. Možete postaviti 2 plastična klina kako je prikazano na slici. Plastični klinovi će dati osigurati potrebnu udaljenost između vašeg hladnjaka i zida da bi se omogućilo cirkuliranje zraka. (Slika s ilustracijom je samo primjer i ne odgovara u potpunosti vašem proizvodu.)

1. Čut ćete buku kad kompresor počne raditi. Tekućine i plinovi zabrtvljeni u rashladnom sustavu također mogu stvarati buku, čak i kad kompresor ne radi i to je potpuno normalno.

2. Prednji krajevi hladnjaka mogu biti topli na opip. To je u normalno. Ova područja su napravljena da budu topla da bi se se izbjegla kondenzacija.

Električno spajanje

Spojite svoj proizvod u uzemljenu utičnicu koja je zaštićena osiguračem odgovarajućeg kapaciteta.

Važno:

• Spoj mora biti u skladu s nacionalnim zakonskim odredbama.
  • Kabel napajanja mora biti lako dostupan nakon postavljanja.

• Navedeni napon mora biti jednak naponu el. energije.

• Produžni kabeli i razvodnici se ne smiju koristiti za spajanje.

Oštećeni kabel napajanja mora jeniti kvalificirani električar.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.

2. Fill the tank with fresh drinking water.

3. Close the cover.

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only.

Line drawing of a wooden boat hull with two side compartments (no text or symbols)

Line drawing of a car wash tray with directional arrows indicating movement or flow (no text or symbols)

Kapacitet spremnika za vodu je 3 litre; nemojte prepuniti.

Čišćenje spremnika za vodu

1. Izvadite spremnik za vodu unutar police vrata.
2. Uklonite policu na vratima tako da je držite s obje strane.
3. Uhvatite spremnik za vodu s obje strane i uklonite ga s kutom od 45°C.
4. Otvorite poklopac spremnika za vodu i očistite spremnik.

Line drawing of a hand pressing down a mechanical component with an upward arrow symbol (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand operating a mechanical clamp or bracket with a vertical line and upward arrow (no text or symbols)

Podloška za kapanje

Line drawing of a device with a hand pointing to a button labeled 'Down' (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

RSNE445E33XN

IT / MK / SB / BS

Gentile cliente,

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Diagram showing a lightning bolt striking a component inside a device (no text or symbols)

1.1.1 Avvertenza HC

Diagram showing airflow or heat transfer between two containers with labeled components 1 and 2, indicating fluid flow direction.

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Initial position better energy efficiency

4 Preparazione

Simple line drawing of a rectangular container with a central dip (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression (no text or symbols)

Illustration of a hand using a tool to lift a box, with an upward arrow symbol above (no text or labels)

Line drawing of hands operating a mechanical device with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand operating a mechanical clamp or fixture with a vertical line and an upward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a rectangular frame with a numbered arrow and arrow, no text or symbols present.

Simple line drawing of a mechanical component with a base and top view, no text or symbols present.

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug, no text or symbols present

Image containing a black information icon inside a square, commonly used to denote information.

Diagram showing airflow or heat transfer between two air ducts with labeled components 1 and 2, indicating fluid flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

Initial position better energy efficiency

4 Подготовка

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Line drawing of a wooden boat hull with two side compartments (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand opening a box with an upward arrow symbol (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with a pull rod, showing mechanical assembly (no text or symbols)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

https://eprel.ec.europa.eu/

1 Vaš frižider 3

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

• Prilikom postavljanja uređaja, pazite da kabl za napajanje nije zarobljen ili oštećen.
• Ne postavljajte više portabl utičnica ili prijenosnih napajanja na stražnjoj strani uređaja.

• Deci uzrasta od 3 do 8 godina dozvoljeno je da pune i prazne uređaje za hlađenje.

• Da biste izbegli kontaminaciju hrane, pridržavajte se sledećih uputstava:

• Otvaranje vrata na duže vreme može izazvati značajno povećanje temperature u odeljci frižidera.
• Redovno čistite površine koje mogu doći u kontakt sa hranom i pristupačnim sistemima za odvodnjavanje.
• Očistite rezervoare za vodu ako nisu korišćeni 48 sati; isperite vodeni sistem povezan sa dovodom vode ako voda nije vučena 5 dana.
• Sirovo meso i ribu čuvajte u odgovarajućim kontejnerima u frižideru, tako da nije u kontaktu sa ili kapaju na drugu hranu.
• Odeljci sa zamrznutom hranom sa dve zvezdice su pogodni za skladištenje prethodno zamrznute hrane, skladištenje ili pripremanje sladoleda i pravljenje kockica leda.
• Odeljci sa jednim, dva i tri zvezdice nisu pogodni za zamrzavanje sveže hrane.
• Ako je rashladni uređaj ostavljen prazan duže vrijeme, isključite ga, odmrznite, očistite, osušite i ostavite vrata otvorena kako bi se sprečilo stvaranje plijesni unutar uređaja.
• Ne priključujte frižider na zidnu utičnicu ako je labava.
• Voda se ne sme prskati direktno na unutrašnje ili spoljašnje delove proizvoda radi bezbednosti.
• Ne prskajte supstance koje sadrže zapaljive gasove, kao što je propan, blizu frižidera da bi se izbegla opasnost od požara i eksplozije.
• Ne stavljajte posude napunjene

vodom na vrh frižidera je to može prouzrokovati električni udar ili požar.

• Ne prepunjavajte frižider preteranim količinama hrane. Ako se prepuni, hrana može pasti i povrediti vas i oštetiti frižider kada otvorite vrata. Ne stavljajte predmete na vrh frižidera jer mogu pasti prilikom otvaranja ili zatvaranja vrata frižidera.

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

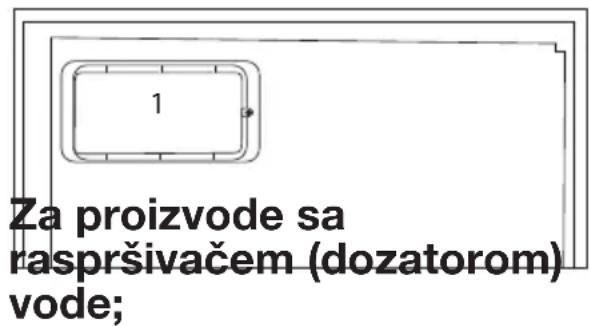

1 Za proizvode sa raspršivačem (dozatorom) vode;

- Pritisak za dovod hladne vode je maksimalno 90psi (620 kPa. Ukoliko pritisak vode premašuje 80psi (550 kPa), u glavnom vodu upotrebite ventil za ograničavanje pritiska. Ako ne znate kako se proverava pritisak vode, zatražite pomoć vodoinstalatera.

Pure electrical circuit lines without any symbols

Ovaj proizvod je usaglašen sa WEEE direktivom Evropske Unije (2012/19/EU). Ovaj proizvod nosi znak klasifikacije za električni i elektronski otpad (WEEE).

Ovaj proizvod je proizveden od visoko kvalitetnih delova i materijala koji se mogu ponovo koristiti i pogodni su za reciklažu. Nemojte odlagati proizvod u otpad sa običnim kućnim otpadom i drugim otpadima na kraju veka trajanja. Odložite ga u centar za sakupljanje i reciklažu električnog i elektronskog otpada. Konsultujte se sa svojim lokalnim vlastima da biste saznali o ovim centrima za sakupljanje otpada.

Usaglašenost sa RoHS direktivom:

Proizvod koji ste kupili u saglasnosti je sa RoHS direktivom Evropske Unije (2011/65/EU). On ne sadrži štetne i zabranjene materijale navedene u direktivi.

Informacije o pakovanju

Materijali za pakovanje ovog proizvoda proizvedeni su od materijala koji se mogu reciklirati u skladu sa nacionalnim propisima o zaštiti životne sredine. Materijale za pakovanje ne odlagati zajedno sa kućnim ili drugim otpadom. Odnesite ih na mesta za prikupljanje ambalažnog materijala određena od strane lokalne vlasti.

HC upozorenje Ako rashladni sistem proizvoda sadrži R600a:

Ovaj gas je zapaljiv. Zato vodite računa da prilikom upotrebe i transporta ne oštetite sistem hlađenja i cevi. U slučaju oštećenja, ovaj proizvod čuvajte dalje od potencijalnih izvora vatre, jer se može desiti da se proizvod zapali, i proveravajte prostoriju u kojoj se nalazi.

Ignorišite ovo upozorenje ako rashladni sistem proizvoda sadrži R134a.

Vrsta gasa koji je korišćen u proizvodu naveden je na tipskoj pločici koja se nalazi na levoj strani unutar frižidera. Nemojte nikada bacati proizvod u vatru radi odlaganja.

Za uštedu energije

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Initial position better energy efficiency

v

Podešavanje nožoca

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Upozorenje za otvorena vrata

\*opcija

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Punjenje rezervoara automata vodom

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Čišćenje rezervoara za vodu

Line drawing of a hand pressing down on a shelf with an upward arrow and three horizontal lines above (no text or symbols)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Posuda za sakupljanje vode

Voda koja kaplje tokom korišćenja aparata za vodu se sakuplja u posudi za sakupljanje vode

Skinite plastični filter na način prikazan na slici.

Nagomilanu vodu pokupite čistom suvom krpom.

Line drawing of a device with a downward arrow and finger pointing to its base (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' on the top left corner (no other text or symbols)

Simple line drawing of a rectangular object with a central cross-shaped feature and a numbered label '1' (no text or symbols on the object itself)

Diagram showing a lightning bolt striking down on a wall-mounted device, with a cable and plug inserted (no text or symbols)

1.1.1 HC upozorenje

Ako proizvod sadrži sistem za hlađenje koji koristi plin R600a, vodite računa da izbjegnete oštećenje sistema za hlađenje i njegovih cijevi dok koristite i premještate proizvod. Ovaj plin je zapaljiv. Ako je sistem za hlađenje oštećen, držite proizvod podalje od izvora vatre i odmah provjetrite prostoriju.

Pure electrical circuit lines without any symbols

Ovaj proizvod je proizveden od visokokvalitetnih dijelova i materijala koji se mogu ponovo koristi i pogodni su za reciklažu. Na kraju radnog vijeka, ne bacajte otpadni proizvod sa običnim domaćim i ostalim otpadom.

Odnesite ga u sabirni centar za recikliranje električne i elektronske opreme. Obratite vašim lokalnim vlastima kako biste saznali više o ovim sabirnim centrima.

1.5. Usklađenost sa

RoHS direktivom

Initial position better energy efficiency

• Stavite proizvod na ravnu površinu kako bi izbjegli vibracije.
• Postavite proizvoda najmanje 30 cm od grijalice, peći i sličnih izvora topline i najmanje 5 cm od električnih peći.
• Ne izlažite proizvod direktnoj sunčevoj svjetlosti ili ne držite ga u vlažnom okruženju.
• Proizvod zahtijeva adekvatnu cirkulaciju zraka da bi efikasno funkcionirao.
• Ako proizvod treba da se stavi u nišu, ne zaboravite da ostavite najmanje 5 cm udaljenosti između uređaja i plafona i zidova.

Diagram showing two labeled components (1 and 2) with directional arrows indicating flow or movement between them in a container-like structure.

PULL PULL better energy efficiency

Instalacija

3.3. Podešavanje postolja

Ako proizvod nije u uravnoteženom položaju, podesite prednja podesiva postolja okretanjem na desno ili lijevo.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

3.4. Priključak za napajanje

	UPOZORENJE: Ne koristite produžni kabel ili kabel sa više utičnica na priključku za napajanje.
	UPOZORENJE: Oštećeni kabel za napajanje mora da zamijeni ovlašteni servis.
	Prilikom postavljanja dva hladnjaka jedan pored drugog, ostavite najmanje 4 cm prostora između dvije jedinice.

• Naša firma ne preuzima odgovornost za bilo kakvu štetu zbog korištenja bez uzemljenja i bez priključka za napajanje u skladu sa nacionalnim propisima.
• Napojni kabel mora biti lako dostupan nakon instalacije.
• Povežite hladnjak na uzemljenu utičnicu sa naponom od 220-240 V/50 Hz. Utikač mora sadržati osigurač od 10-16A.
• Ne koristite utikač sa više grupa sa ili bez produžnog kabela između zidne utičnice i hladnjaka.

Upozorenje na vruću površinu! Na bočnim zidovima vašeg proizvoda ce nalaze cijevi rashladnog sredstva koje poboljšavaju rashladni sistem. Kroz ove oblasti može da teče rashladno sredstvo na visokim temperaturama, što rezultira vrućim površinama na bočnim zidovima. Ovo je normalno i nije potrebno servisiranje. Vodite računa kada dodirujete ove oblasti.

4 Priprema

i za samostojeći uređaj; „Ovaj rashladni uređaj nije predviđen da se koristi kao ugradni uređaj“;
i Vaš frižider bi trebao biti postavljen na udaljenosti od najmanje 30 cm od izvora toplote poput kamina, pećnica, centralnog grijača i peći i najmanje 5 cm od električnih štednjaka te ne bi trebao biti postavljen na sunčevu svjetlost.
i Ambijentna temperatura sobe gdje postavljate vaš frižider bi trebala biti najmanje 5°C. Zbog njegove efikasnosti, nije preporučeno da vaš frižider radi pod hladnijim uslovima od ovih.
i Molimo da provjerite da je unutrašnjost vašeg frižidera temeljno očišćena.
i Ukoliko su dva frižidera postavljena jedan do drugog, onda je potrebno da bude najmanje 2 cm udaljenosti između njih.
i Molimo da obratite pažnju na slijedeća uputstva koja se odnose na prvih šest sati rada, kada prvi put palite vaš frižider.

- Vrata frižidera se ne bi trebala prečesto otvarati.

- Frižider mora da radi prazan bez ikakve hrane u njemu.

- Ne isključujte frižider. Ukoliko dođe do nestanka struje izvan vaše kontrole, molimo pogledajte upuzorenja u dijelu "Preporučena rješenja za probleme"

i Originalno pakovanje i materijale od pjene zadržite zbog budućeg transporta ili pomjeranja.
kod nekih modela, panel instrumenata se automatski isključuje 5 minuta nakon zatvaranja vrata. On će se ponovo aktivirati kada se vrata tvore ili kada se pritisne neka tipka.
Zbog promjene u temperaturi do koje dolazi otvaranjem/zatvaranjem vrata uređaja tokom rada, normalna je pojava kondenzacije na policama vrata/kućišta i staklenim kontejnerima.

5 Rukovanje proizvodom

1 2 3 4 5 6 eco -88! 13 12 1 3" °C 9 8 7 11 10 9 8

1. Indikator On/Off (uklj./isklj.):

Ova ikonica ()se pali kada je frižider isključen. Sve druge ikonice isključene.

Simple line drawing of a rectangular container with a U-shaped slot (no text or symbols)

Korištenje proizvoda

5.8. Punjenje rezervoara automata vodom

Technical line drawing of a mechanical component with two rectangular parts and a base, no text or symbols present.

Line drawing of a mechanical device with two open compartments and directional arrows indicating motion (no text or symbols)

Korištenje proizvoda

5.9. Čišćenje rezervoara za vodu

Line drawing of a hand using a tool to lift a stack of plastic blocks, with an upward arrow symbol above (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand operating a mechanical clamp or bracket with a black arrow indicating upward motion (no text or symbols)

Korištenje proizvoda

Line drawing of a hand pressing down on a device with a downward arrow indicating compression (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Vijek trajanja proizvoda se povećava ako se on redovito čisti

Simple line drawing of a pear and a carrot (no text or symbols)

RSNE445E33XN

SQ/

Diagram showing a cable being inserted into a refrigerator with a lightning bolt indicating the electrical outlet (no text or symbols present)

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

1

Për produktet me dispenser uji;

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Lidhja elektrike

Diagram showing directional arrows and curved arrows around a rectangular object (no text or symbols)

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to lift a box, with an upward arrow symbol above (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow (no text or symbols)

45°

Line drawing of a hand operating a mechanical device with a bracket and mounting bracket (no text or symbols)

Tabakaja e derdhjes

Line drawing of a hand pressing down on a device with a downward arrow indicating compression (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)
