Product Type	Telescopic wand for pressure washer
Brand	Sun Joe
Model	SPXEPB1
Length	1.5 m to 5.5 m (adjustable)
Max Pressure	4200 psi (approx. 290 bar)
Max Flow Rate	25 L/min
Max Water Temperature	60 °C
Net Weight	4.5 kg
Main Material	Reinforced plastic and steel
Connection Type	M22 quick connect
Included Accessories	Wand sections, shoulder strap, U-pin, S4 and S5 hex keys, M22 quick connect adapter
Main Functions	Adjustable length, cleaning brush, safety switch, lockable trigger
Safety	Safety switch, trigger lock, use away from power lines
Maintenance	Clean without detergents or solvents, store frost-free
Warranty	2-year limited for residential use
Usage	Ideal for cleaning at heights, roofs, facades

Frequently Asked Questions - SPXEPB1 Sun Joe

How to assemble the SPXEPB1 telescopic wand?

To assemble the wand, connect the sections by threading the hose through. Use the clamping cams to secure each joint. Insert the hose end into the valve and lock with the U-pin. Screw the brush onto the brush mount and attach the shoulder strap.

What is the maximum length of the wand?

The telescopic wand can extend from 1.5 m to 5.5 m. Never exceed the red marks on the sections to avoid risk of breakage.

Is this wand compatible with all pressure washers?

It is compatible with most pressure washers equipped with an M22 quick connect. Use the provided adapter if necessary. Check that your washer can handle pressure up to 4200 psi.

How to adjust the length of the wand?

Open the clamping cams, adjust to the desired length by sliding the sections, then close the cams. Make sure not to exceed the red lines and always lock the safety switch before any adjustment.

How to use the included brush?

The brush screws onto the brush mount. Adjust the distance between the brush and the quick connect before tightening the cam. Use the shoulder strap to maneuver the brush on surfaces to clean. Do not change accessories under pressure.

What safety precautions should be taken?

Wear non-slip shoes, maintain a distance of at least 15 m from power lines, never direct the spray at people or animals, lock the trigger when the tool is not in use, and do not work under the influence of substances.

How to maintain the wand?

Clean the wand with a damp cloth without detergents or solvents. Regularly check the condition of parts. Store it in a dry place, frost-free and out of reach of children. In case of damage, contact customer service.

What is the weight of the wand?

The net weight of the wand is approximately 4.5 kg. Use the shoulder strap to distribute the load and maintain balance during use.

What maximum pressure can the wand withstand?

The wand is designed for a maximum pressure of 4200 psi (approx. 290 bar). Do not exceed this limit to avoid risk of damage or injury.

What to do in case of leak or damage?

Immediately stop use, turn off the water supply and depressurize by squeezing the trigger. Inspect seals and fittings. If the problem persists, contact Snow Joe + Sun Joe customer service at 1-866-SNOWJOE.

USER MANUAL SPXEPB1 Sun Joe

A Division of Snow Joe, LLC

Model SPX-EPB1

Form No. SJ-SPX-EPB1-880E-M

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

Always follow these safety guidelines. Failure to do so may result in serious injury.

General Safety

WARNING! This tool is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the tool.

Before starting up your tool, please check it carefully for any defects. If you find any, do not start up your tool. Instead, contact your authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! When using the tool, basic safety precautions should always be followed to reduce the risk of electric shock and personal injury. These include:

• Work area – Always inspect the work area for obstructions or hazards.
• Stay away from power lines – Keep at least 50 feet away from power lines. Do not touch or aim water at electrical wiring of any kind.
• Avoid adjustments while in use – Do not extend or retract the sky lance, change nozzles or accessories while the tool is in use or under pressure.
• Shut down – Prior to performing any adjustments, maintenance or when not in use, turn off the pressure washer, shut off the water supply, point the nozzle in a safe direction, and pull the trigger to release the water pressure before making any changes.
• Stay alert – Watch what you are doing. Use common sense. Do not use the tool on a ladder or scaffolding. Do not work when you are tired or under the influence of drugs, alcohol, or other medication.

• Tripping hazard – Keep the high pressure hose clear of the working area. Avoid stepping or tripping over the hose.

• Slipping hazard – Never run while operating the tool. Maintain proper footing and balance at all times to avoid slipping or falling. Wear non-slip footwear to improve your footing on slippery surfaces.

• Avoid unintentional discharge – Do not carry a connected tool with your hand on the trigger. Make sure the safety switch is engaged before connecting to the pressure washer.
• Do not exceed specifications – Do not exceed the maximum rated pressure, temperature or flow rate listed in the technical data.
• Inspect the tool – Visually inspect the tool for any loose fasteners or blocked connections.

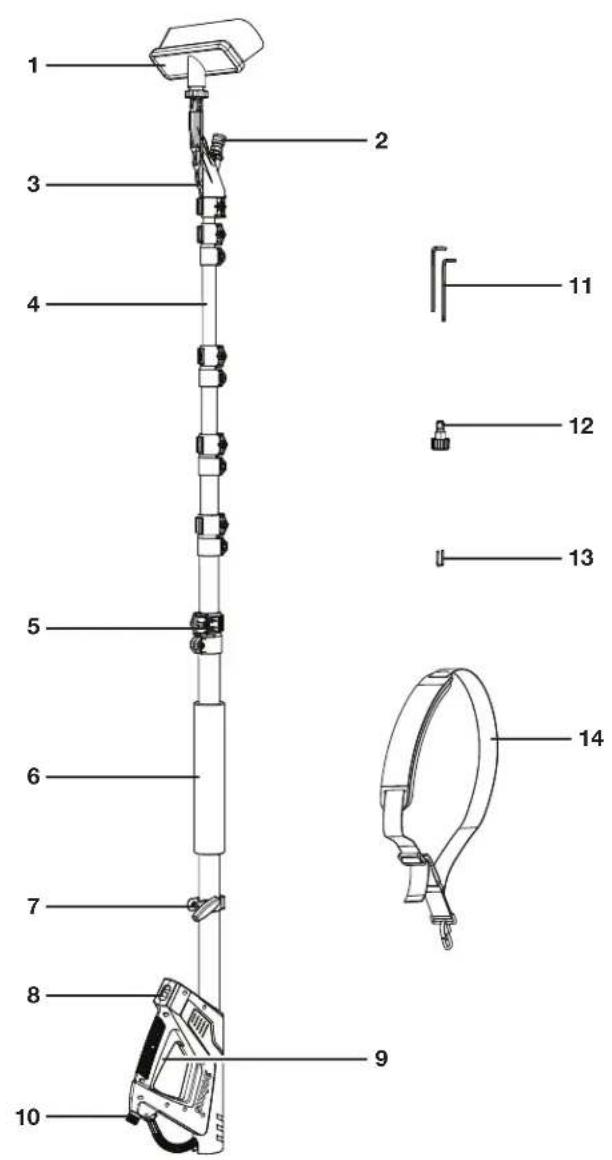

Know Your 18-ft Telescoping Pressure Washer Sky Lance

Read the owner's manual and safety instructions carefully before operating this sky lance. Compare the illustration below to the unit in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

1. Brush
2. Quick-Connect collar
3. Brush mount
4. Lance section
5. Cam-lock
6. Foam grip
7. Shoulder strap mount
8. Safety switch
9. Trigger
10. Water inlet (high-pressure hose connection)
11. S4 + S5 allen keys
12. Quick-Connect to M22 high-pressure hose adapter
13. U-pin
14. Shoulder strap

Technical Data

Length 5' - 18' (1.5m - 5.5m)

Max Pressure 4200 PSI

Max Flow 6.6 GPM (25 L/min)

Max Temperature 140°F (60°C)

Net Weight 9.9 lbs (4.5 kg)

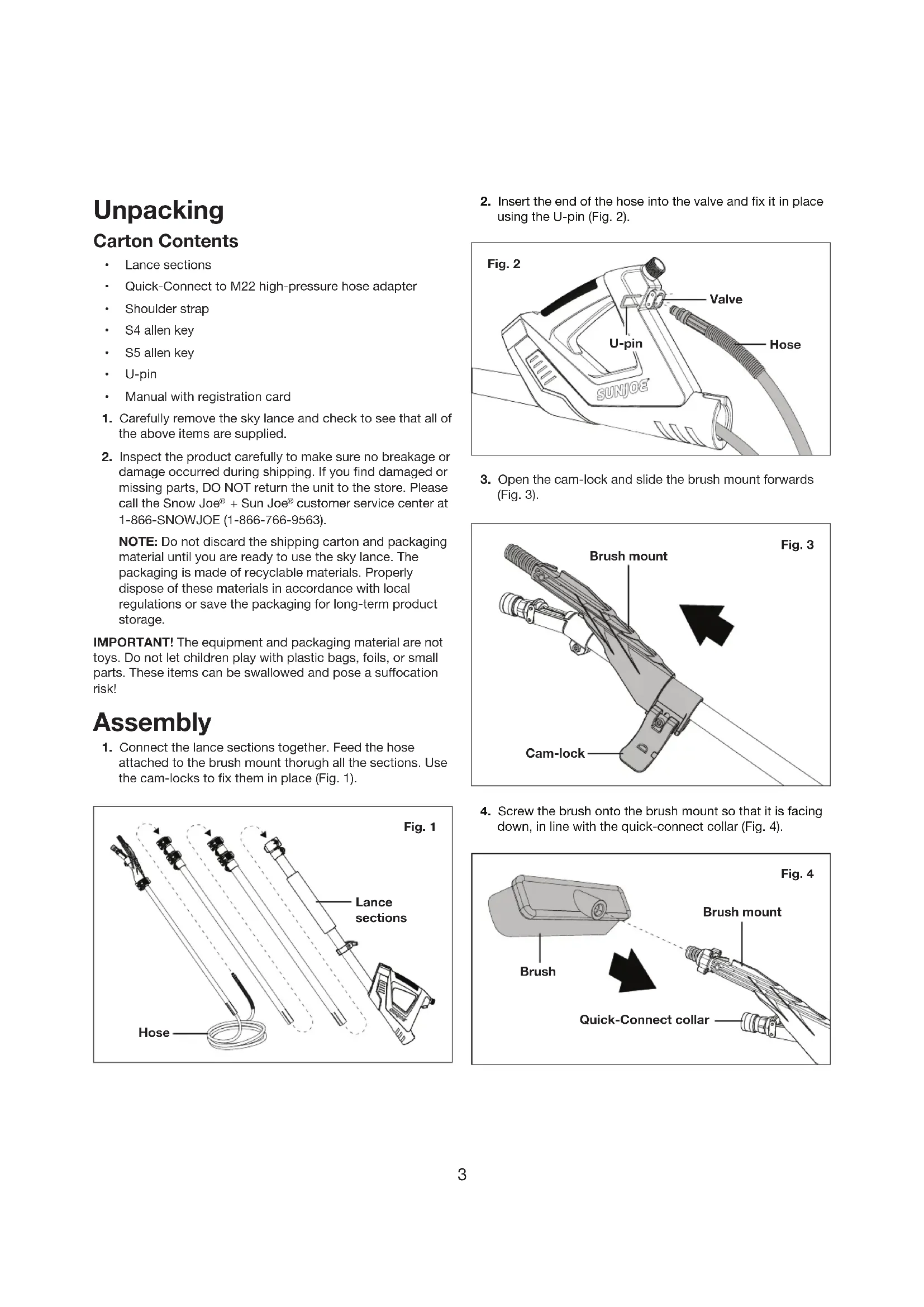

Unpacking

Carton Contents

• Lance sections
  • Quick-Connect to M22 high-pressure hose adapter

• Shoulder strap
  • S4 allen key
  • S5 allen key
  • U-pin
  • Manual with registration card

• Carefully remove the sky lance and check to see that all of the above items are supplied.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use the sky lance. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

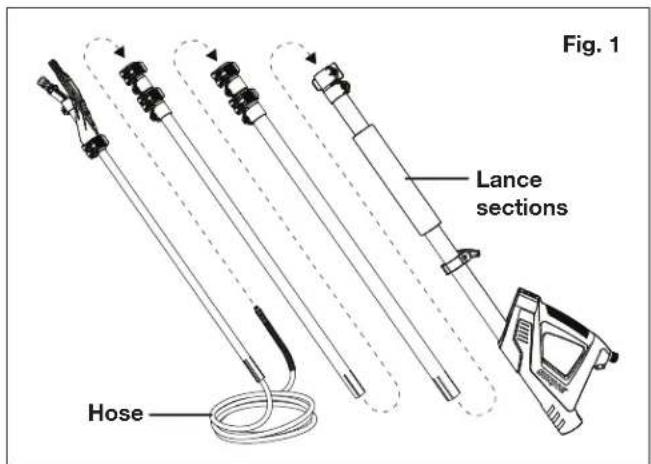

1. Connect the lance sections together. Feed the hose attached to the brush mount thorough all the sections. Use the cam-locks to fix them in place (Fig. 1).

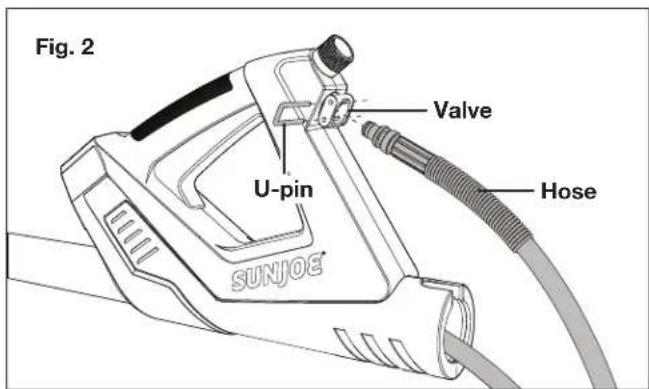

1. Insert the end of the hose into the valve and fix it in place using the U-pin (Fig. 2).

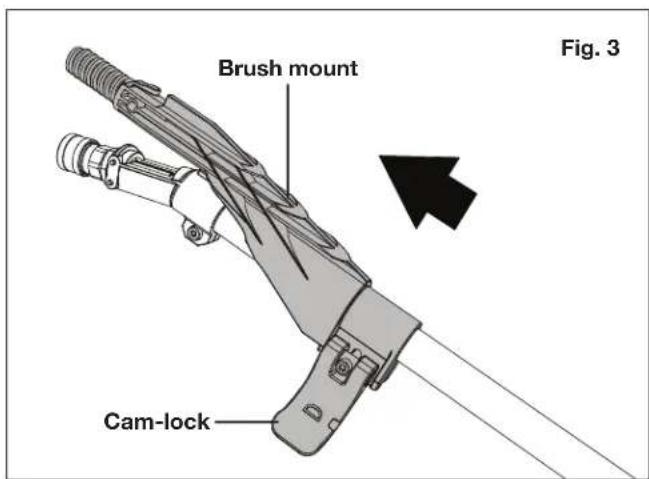

1. Open the cam-lock and slide the brush mount forwards (Fig. 3).

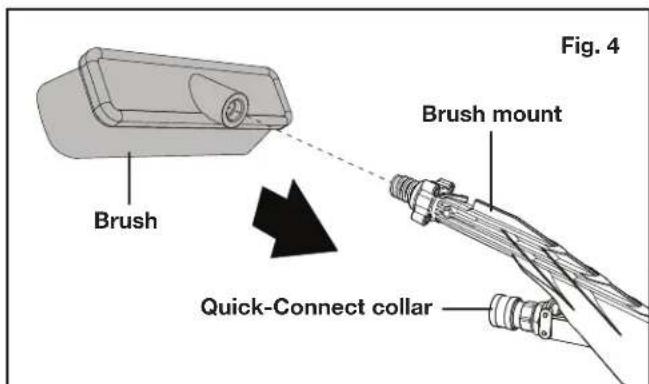

1. Screw the brush onto the brush mount so that it is facing down, in line with the quick-connect collar (Fig. 4).

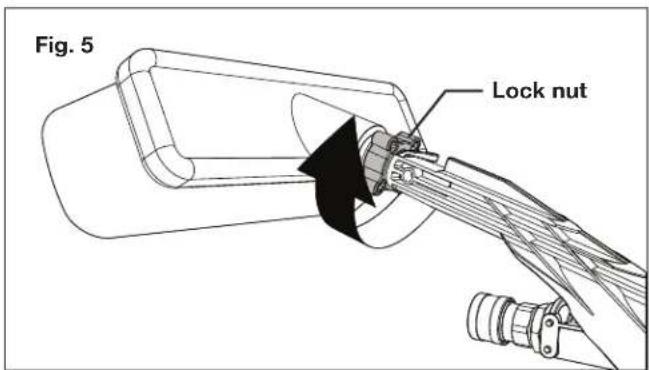

1. Turn the lock nut clockwise until tight against the base of the brush (Fig. 5).

1. Adjust the distance between the brush and the quick-connect collar before closing the cam-lock (Fig. 3).

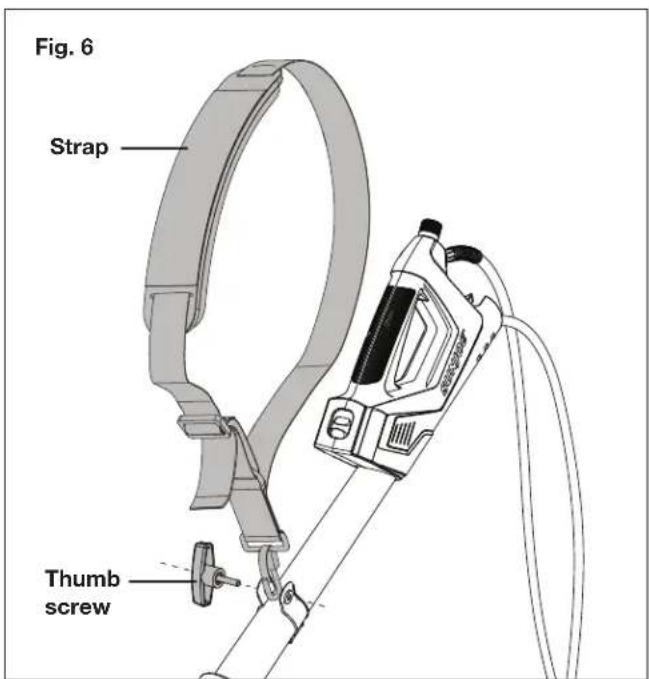

2. Attach the shoulder strap to the sky lance and secure in place using the thumb screw (Fig. 6).

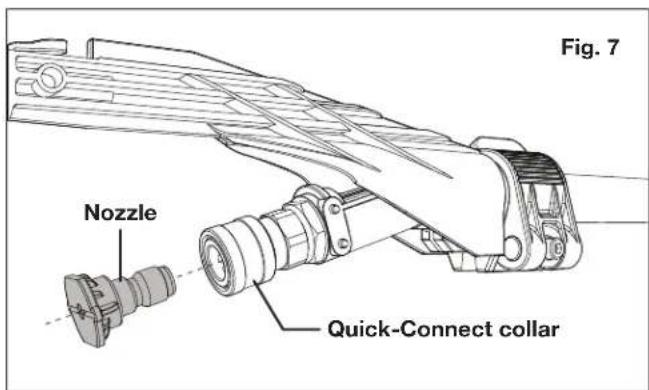

1. Snap the desired nozzle onto the Quick-Connect collar until it clicks into place (Fig. 7).

NOTE: Nozzles are not included with this tool. Visit snowjoe.com for pressure washer quick-connect nozzles.

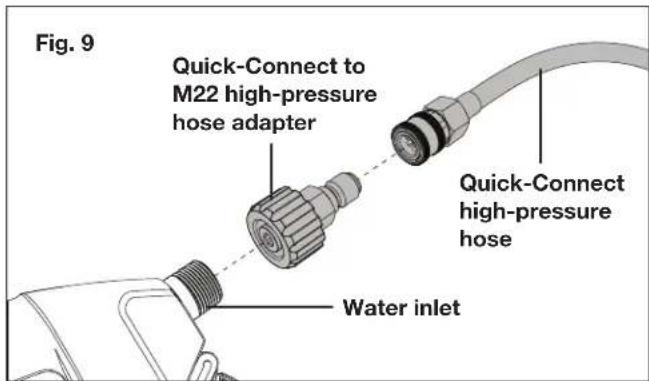

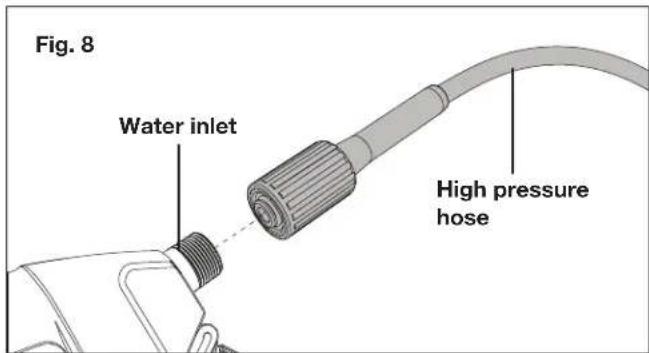

1. Connect the high-pressure hose from your pressure washer to the water inlet on the bottom of the sky lance (Fig. 8). Alternatively, use the quick-connect to M22 high-pressure hose adapter for use with a quick-connect high-pressure hose (Fig. 9).

Operation

1. Use the cam-locks to adjust the sky lance to your desired length.

NOTE: Never extend the lance sections beyond the lines marked in red.

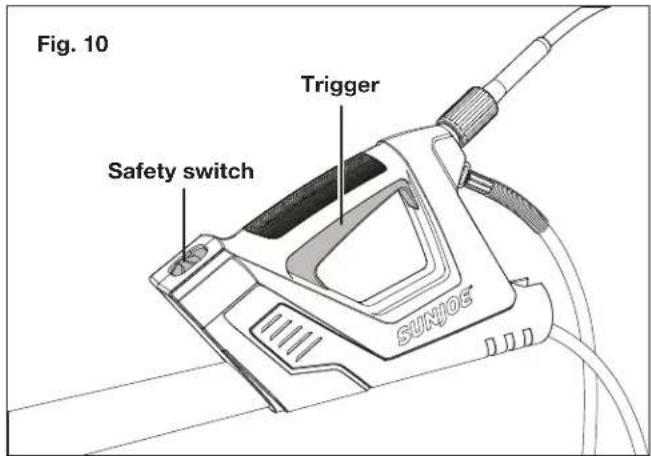

1. Slide the safety switch forward before pulling the trigger to begin spraying (Fig. 10).

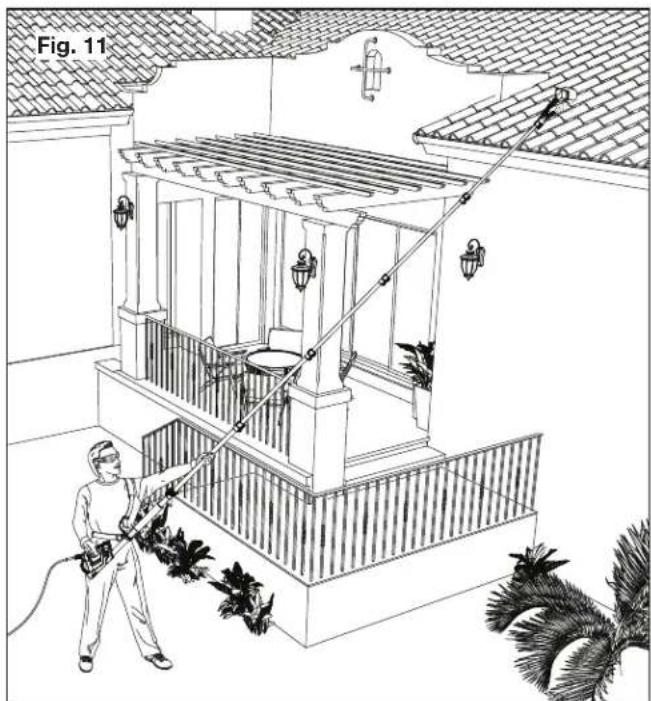

1. When extended, the sky lance can become very heavy. Keep a solid footing and use the shoulder strap to pivot the nozzle onto the cleaning area (Fig. 11).

Line drawing of a person cleaning a courtyard structure with a tool, no text or symbols present

1. When not in use, slide the safety switch backwards to lock the trigger and disconnect the sky lance from your pressure washer.

NOTE: Always engage the safety switch before moving or adjusting the sky lance.

Maintenance + Storage

WARNING! Only perform the repairs and maintenance work described in this manual. Any other work must be performed by a qualified technician.

WARNING! Do not use detergents, acids, alkaline solutions, bleaches or solvents such as acetone to clean your tool. These substances may damage the plastic housing of the tool.

• Check for worn or damaged parts. Replace worn parts as necessary or contact the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for repairs before using the product again.
• Store the tool and its accessories in a dry, frost-free, and well-ventilated place out of the reach of children.

Service + Support

If your Sun Joe® SPX-EPB1 18-ft Telescoping Pressure Washer Sky Lance requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the registration card. Copy these numbers into the space provided below.

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
