USER MANUAL SJWBS70 Sun Joe

Original instructions. © 2022 Snow Joe, LLC. All rights reserved. SAVE THESE INSTRUCTIONS A Division of Snow Joe, LLC ModelSJ-WBS70 Form No. SJ - SJ-WBS70 - 880E - M

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Always follow these safety guidelines. Failure to do so may result in injury. General Safety

WARNING! This product is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play near, stand on or climb in the spreader. Before using your spreader, please check it carefully for any defects. If you find any, do not use it. Instead, contact your authorized Snow Joe

dealer or call the SnowJoe

customer service center at 1‑866‑SNOWJOE (1‑866‑766‑9563).

WARNING! When using the spreader, basic safety precautions should always be followed to reduce the risk of personal injury. These include:

• Stay alert – Watch what you are doing. Use common sense. Do not operate the spreader when you are tired or under the influence of drugs, alcohol, or other medication.
• Usage – Do not use this product for any job except for what it is intended for. Do not carry passengers with the spreader. Never tow it with a motorized vehicle.
• Materials – The spreader is designed to spread fertilizer, grass seeds and ice melt. Do not use with powders, manure, top soil, gravel or mulch.
• Weight limit – Do not exceed the weight limit of 70lbs (32kg).
• Wind – Do not use the spreader on windy days when spreading grass seeds or herbicides.
• Load/Unload – Always use caution when loading and unloading the spreader.
• Moving parts – Keep hands and feet away from moving parts while using the product.
• Personal protective equipment – Always wear protective footwear when using the product. Work Area Safety
• Work area – Always inspect the area where the machine is to be used and operate it in a well‑lit environment.
• Incline – Be careful when using the spreader on an incline, as it may tip over.
• Avoid dangerous environments – Do not use the product close to creeks, ditches, large holes and public highways. Maintenance + Storage

WARNING! Do not use detergents, acids, alkaline solutions, bleaches or solvents such as acetone to clean your spreader. These substances may damage the plastic parts of the machine.

• Inspect before use – To ensure the spreader is in good working condition, visually inspect for any loose fasteners or worn, missing or damaged parts.
• Replacement parts – When servicing, use only identical replacement parts. Replace or repair damaged parts immediately. Contact the SnowJoe

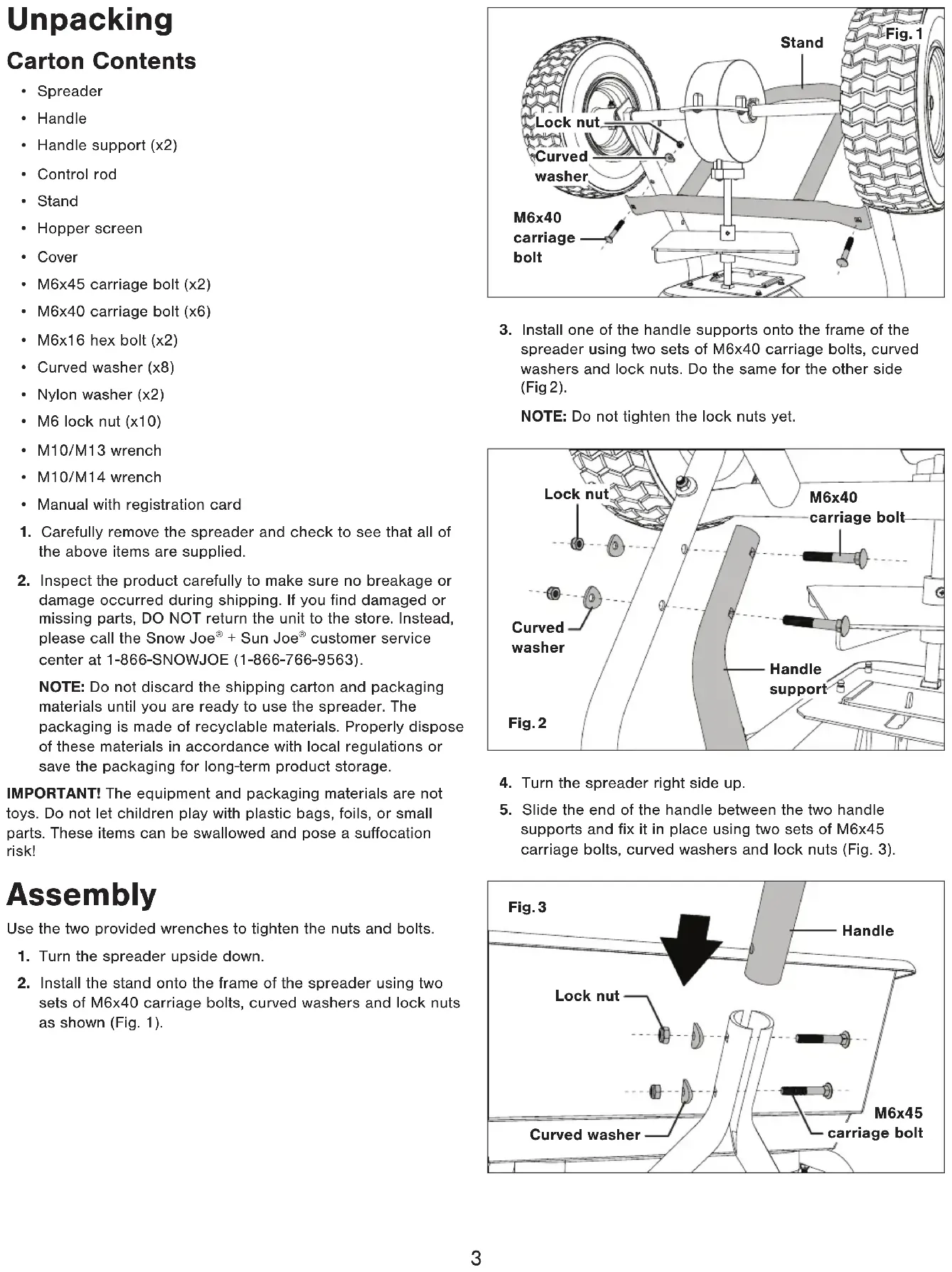

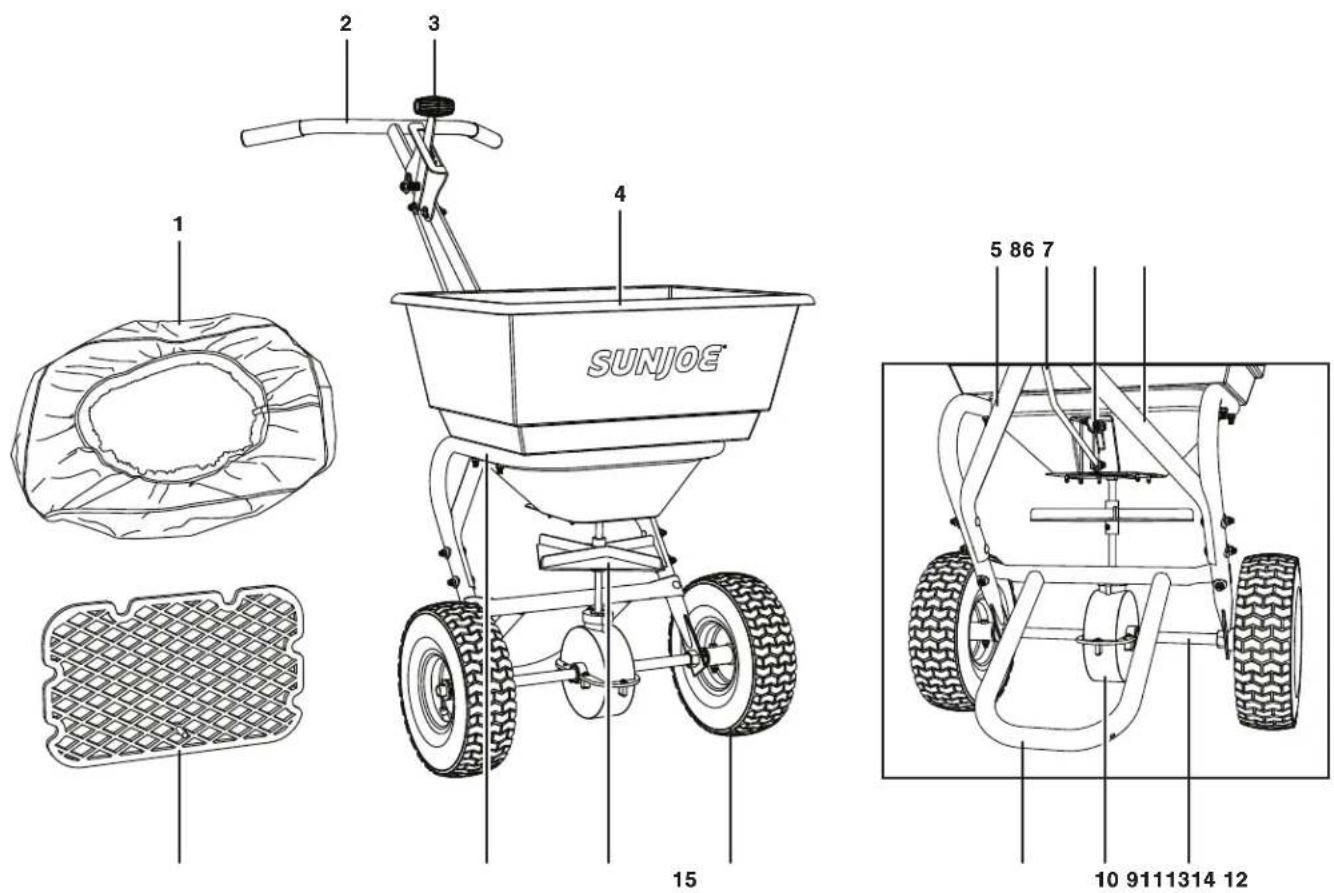

customer service center at 1‑866‑SNOWJOE (1‑866‑766‑9563) for assistance.2 Know Your 70-lb Multi-Purpose Walk-Behind Spreader Read the owner’s manual and safety instructions carefully before operating the spreader. Compare the illustration below to the product in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference. Technical Data Hopper Volume ................................................................0.92 ft

5. Left handle support

8. Right handle support

• Manual with registration card

1. Carefully remove the spreader and check to see that all of

the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Instead, please call the SnowJoe

customer service center at 1‑866‑SNOWJOE (1‑866‑766‑9563). NOTE: Do not discard the shipping carton and packaging materials until you are ready to use the spreader. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long‑term product storage. IMPORTANT! The equipment and packaging materials are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk! Assembly Use the two provided wrenches to tighten the nuts and bolts.

1. Turn the spreader upside down.

2. Install the stand onto the frame of the spreader using two

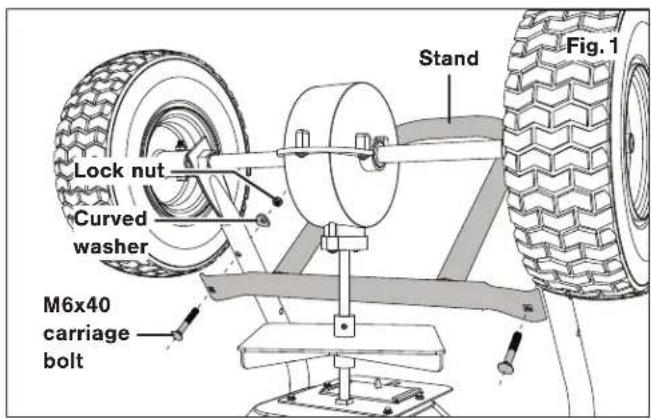

sets of M6x40 carriage bolts, curved washers and lock nuts as shown (Fig. 1).

3. Install one of the handle supports onto the frame of the

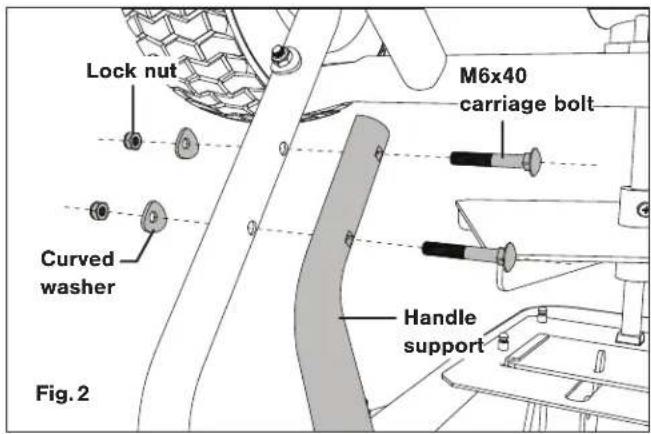

spreader using two sets of M6x40 carriage bolts, curved washers and lock nuts. Do the same for the other side (Fig 2). NOTE: Do not tighten the lock nuts yet.

4. Turn the spreader right side up.

5. Slide the end of the handle between the two handle

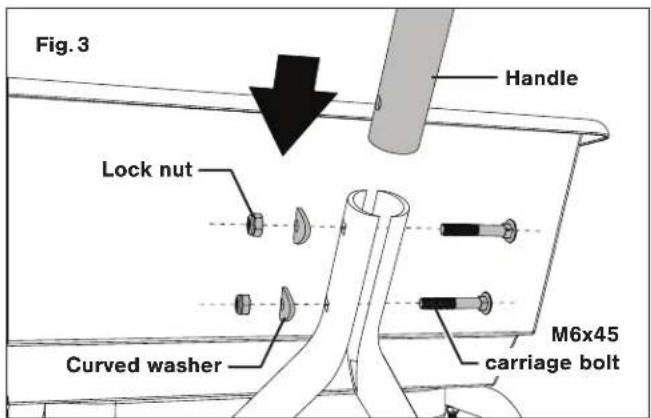

supports and fix it in place using two sets of M6x45 carriage bolts, curved washers and lock nuts (Fig. 3). Fig. 1 Stand M6x40 carriage bolt Curved washer Lock nut Fig. 2 Handle support Curved washer Lock nut M6x40 carriage bolt Fig. 3 Handle Curved washer Lock nut M6x45 carriage bolt4

6. Using the provided wrenches, tighten the four lock nuts

holding both handle supports to the frame of the spreader.

7. Attach the shorter end of the control rod to the feed plate

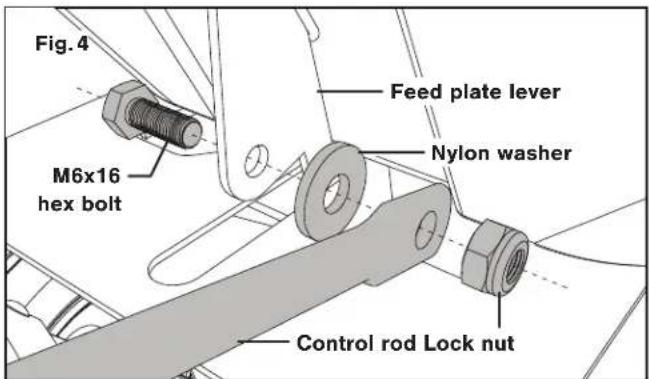

lever on the back of the spreader using a M6x16 hex bolt, nylon washer and lock nut (Fig. 4).

8. Fix the other end of the control rod to the control lever on

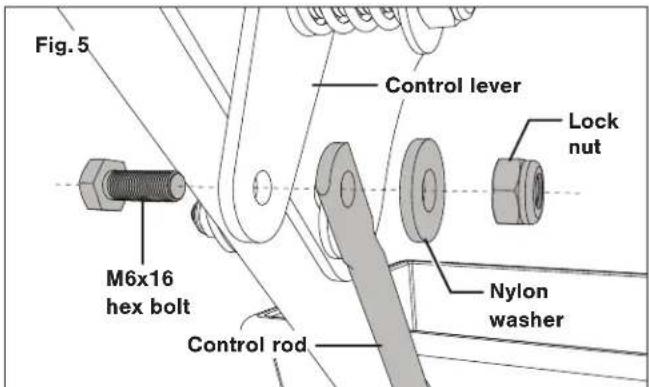

the handle using an M6x16 hex bolt, nylon washer and lock nut (Fig. 5).

9. At this point, the control lever assembly is still only loosely

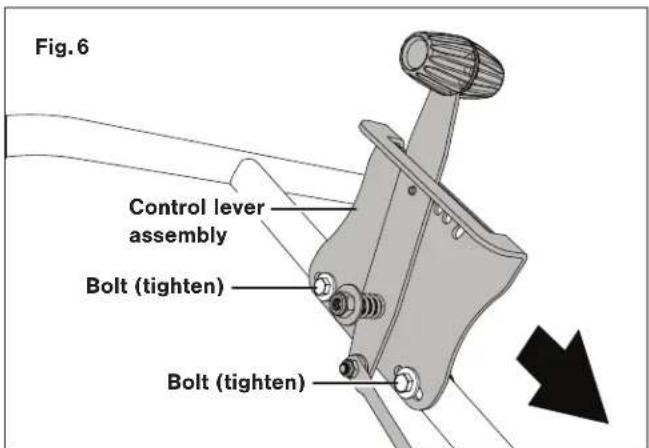

attached to the handle. With the control lever set to the closed setting (all the way back), push the entire control lever assembly down until the hole in the bottom of the hopper is completely closed by the feed plate, before tightening the two bolts (Fig. 6). Fig. 4 Feed plate lever Control rod Lock nut M6x16 hex bolt Nylon washer Fig. 5 Control lever Control rod Lock nut M6x16 hex bolt Nylon washer Fig. 6 Control lever assembly Bolt (tighten) Bolt (tighten) Operation

1. Before filling the hopper, make sure the hitch pin is

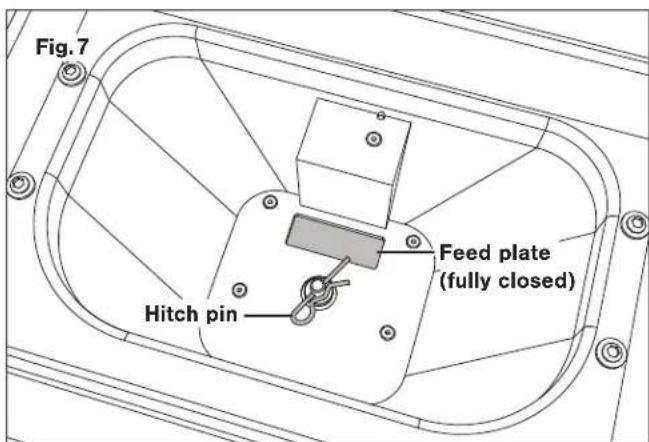

installed, and the control lever is set all the way back so that the feed plate is fully closed (Fig. 7).

2. Place the hopper screen into the hopper before filling it

with material. Estimate the size of the coverage area and follow the material manufacturer’s instructions regarding the appropriate amount. Break up any lumps as you fill the hopper.

3. If necessary, install the cover over the hopper to protect the

material from excessive wind or moisture. NOTE: Do not use it as a rain cover.

4. Always start pushing the spreader before adjusting the

control lever to open the feed plate.

5. To open the feed plate, push the control lever to the right

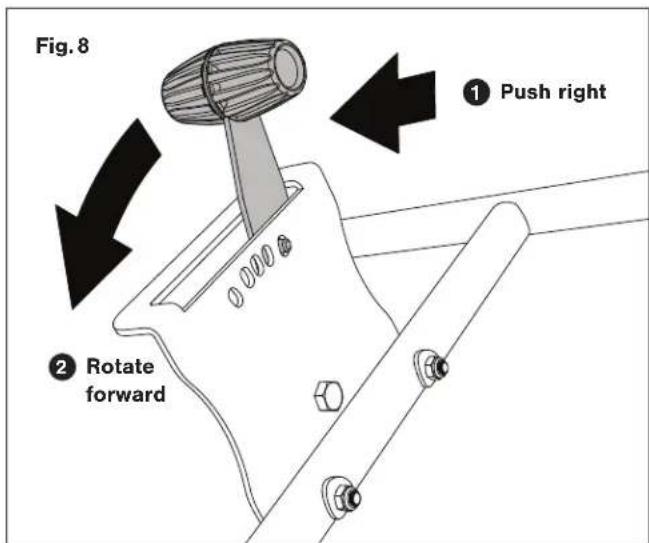

and rotate it forward until it clicks into one of the notches (Fig. 8). NOTE: The control lever has five feed control settings. Going from back to front, they are: closed, low, medium, high and fully opened. Fig. 7 Hitch pin Feed plate (fully closed) Fig. 8 Push right

6. Keep the spreader level with the ground and maintain a

steady pace while pushing it. NOTE: You may find that you need to adjust the feed control depending on your walking speed.

7. To ensure even coverage, spread the material in parallel

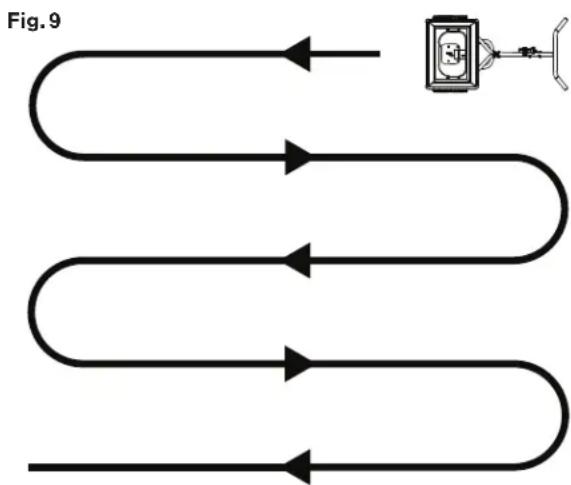

lines as shown. Slightly overlap previously covered ground so you do not miss any spots (Fig. 9).

8. Always move the control lever to the closed position before

turning, stopping or reversing. This reduces waste and avoids oversaturating and thereby damaging your lawn.

9. If material is accidentally deposited too heavily on a

particular area, soak the area thoroughly with a garden hose to prevent it from burning your lawn. Care + Maintenance

• After each use, clear out any remaining material from the hopper and the impeller. Then, rinse the spreader and leave it to dry.

• The recommended pressure for the pneumatic tires is 20 PSI.

• Periodically inspect all fasteners and tighten if necessary.

• Use a grease gun to add additional grease into the grease fittings on the wheel bearings.

• Check for worn or damaged parts. Replace worn parts as necessary or contact the SnowJoe

customer service center at 1‑866‑SNOWJOE (1‑866‑766‑9563) for repair before using the product again. Storage

• Never store the spreader with material remaining in the hopper.

SJ‑WBS70 70‑lb Multi‑Purpose Walk‑Behind Spreader requires service or maintenance, please call 1‑866‑SNOWJOE (1‑866‑766‑9563) for assistance. Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the label located on the housing of the unit. Copy these numbers into the space provided below. Record the following numbers from the housing or registration card of your new product: Model #: Serial #: S J ‑ W B S 7 0R4_01282020 SNOW JOE
