Product Type	Electric High Pressure Cleaner
Brand	Sun Joe
Model	SPXACSMAX
Maximum Pressure	2320 PSI (160 bar)
Power Supply	Electric (power cord)
Usage	Cold water only, outdoor
Included Accessories	Multi-purpose brush, rotating brush, turbo nozzle, 51 cm extension, wheel and rim brush
Included Adapters	Fittings for AR Blue Clean, Karcher, Nilfisk, Anlu, Ryobi/Greenworks, M22, metal gun transfer connector
Safety	Trigger with lock, safety goggles required
Warranty	2-year limited for residential use
Customer Service	1-866-SNOWJOE (1-866-766-9563)
Compatibility	Adapter for third-party pressure washers (AR, Karcher, etc.)
Connection	Quick connect
Nozzle Type	Turbo, brush, etc.
Recommended Use	Domestic: cars, patios, garden furniture
User Manual	24 pages, available in PDF

Frequently Asked Questions - SPXACSMAX Sun Joe

How to assemble the multi-purpose brush?

Depending on your model, detach the spray wand from the gun, align the brush with the intermediate wand (or gun) and push while twisting until locked. For SPX3000/4000 models, use the supplied transfer connector.

What adapters are included with the SPXACSMAX?

The kit includes five adapters for common pressure washer brands: AR Blue Clean, Karcher, Nilfisk, Anlu, Ryobi/Greenworks, as well as an M22 fitting and a metal gun transfer connector.

How to use the turbo nozzle?

The turbo nozzle must be used with the 51 cm extension for safety. Attach the extension to the gun (or intermediate wand), then insert the turbo nozzle by aligning and twisting until locked.

What is the warranty period?

The limited warranty of Snow Joe® + Sun Joe® covers defects in materials and workmanship for 2 years from the date of purchase for ordinary residential and household use.

Can I use the device with hot water?

No, the pressure washer is designed for cold water only. Using hot water can damage the unit.

Where to find replacement parts?

Wear parts (belts, chains, etc.) and other accessories can be ordered online at snowjoe.com or by calling customer service at 1-866-SNOWJOE.

How to lock the trigger?

On models equipped with a lock, once the trigger is released, push the safety lock on the handle to block the trigger. To unlock, pull the lock in the opposite direction.

What safety precautions should I take?

Always wear safety goggles. Never point the spray at people, animals, electrical devices, or the cleaner itself. Before changing accessories, stop the machine, release pressure by pressing the trigger, and lock the safety.

Is this kit compatible with a Karcher pressure washer?

Yes, the kit contains a specific adapter for Karcher pressure washers (max pressure 2320 PSI). Connect the Snow Joe accessory to your Karcher washer using this adapter.

How to effectively clean rims with the brush?

Assemble the wheel and rim brush as shown in the guide. Apply detergent if necessary, then brush the rims with the high-pressure spray. Rinse thoroughly.

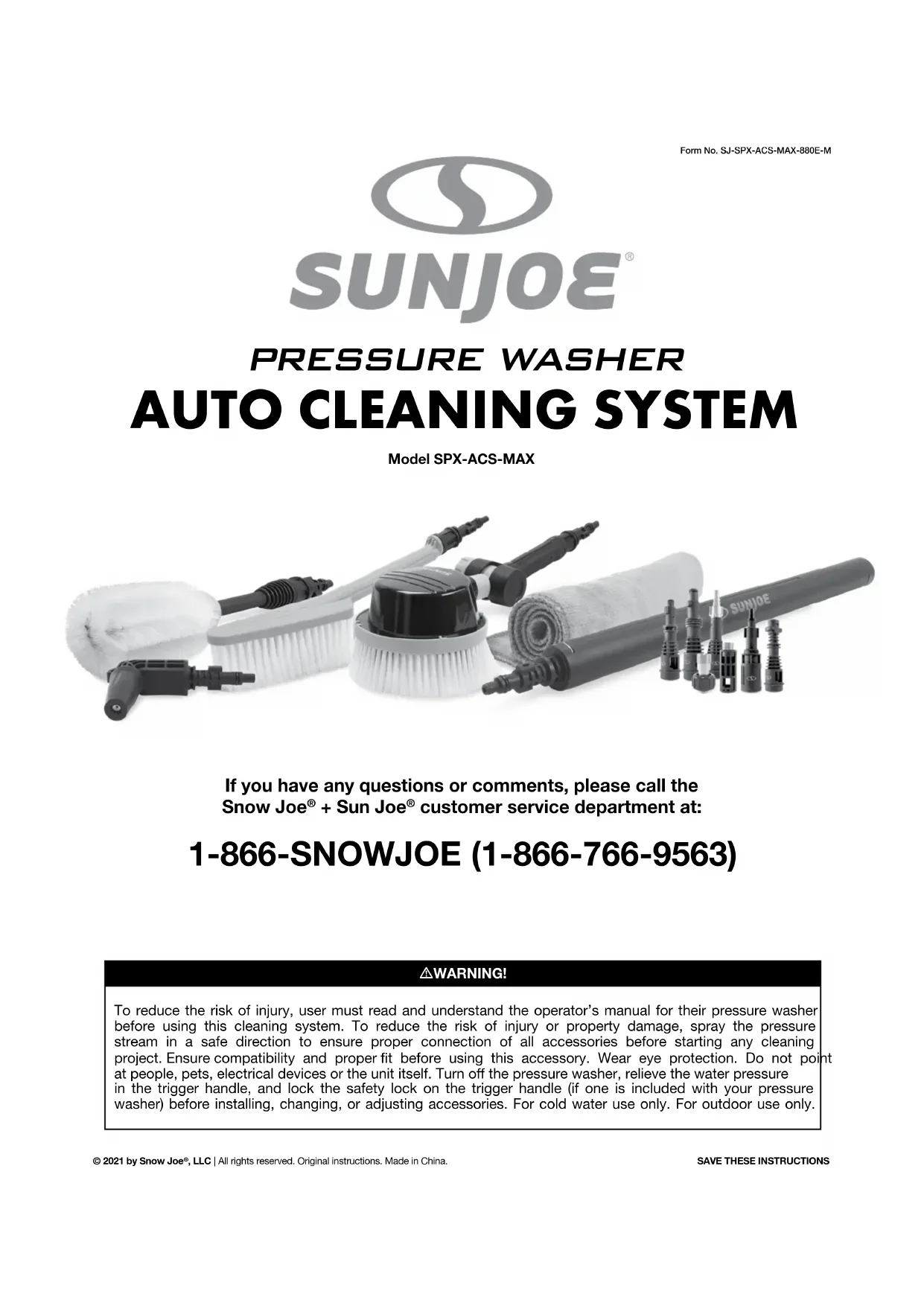

USER MANUAL SPXACSMAX Sun Joe

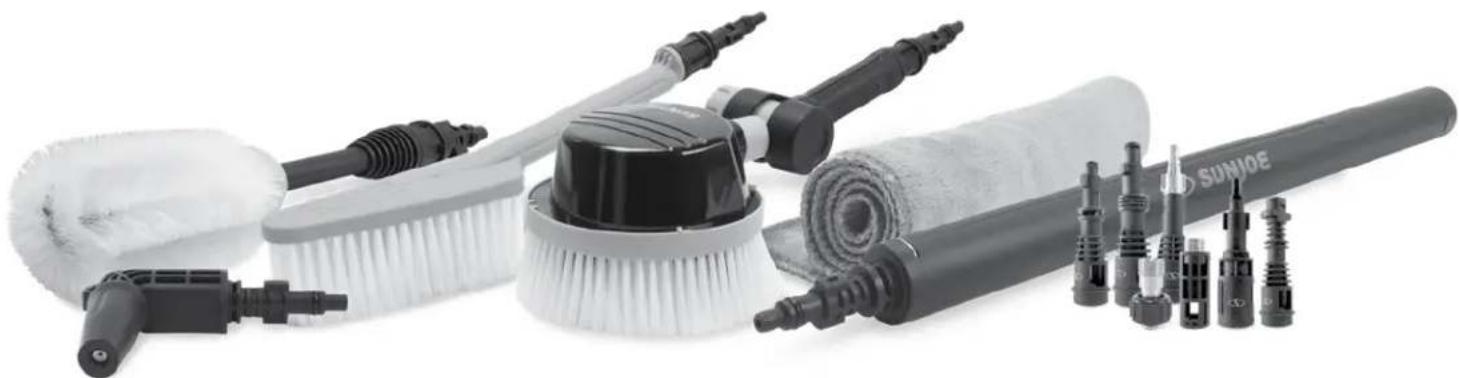

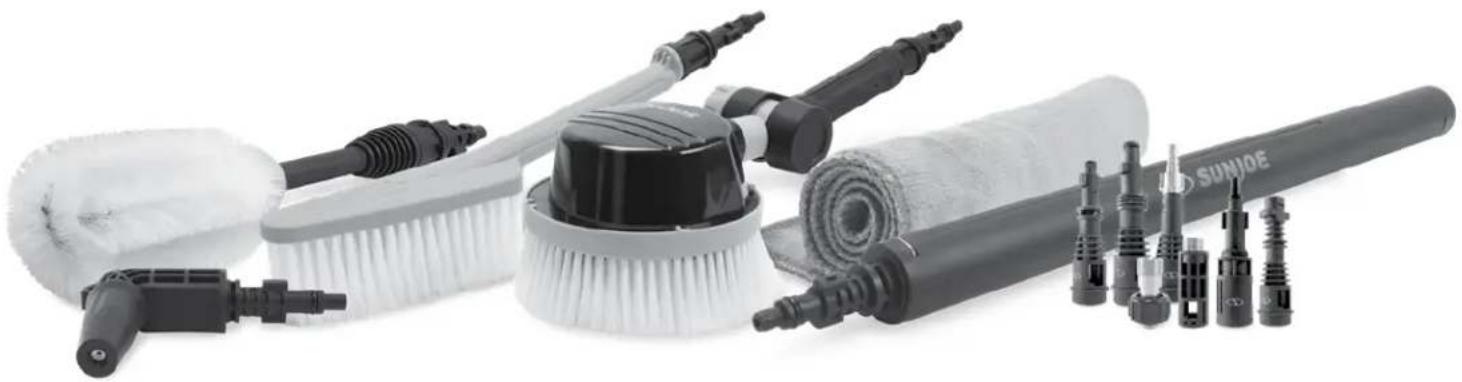

PRESSURE WASHER AUTO CLEANING SYSTEM

Model SPX-ACS-MAX

If you have any questions or comments, please call the Snow Joe ^® + Sun Joe ^® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

WARNING!

To reduce the risk of injury, user must read and understand the operator's manual for their pressure washer before using this cleaning system. To reduce the risk of injury or property damage, spray the pressure stream in a safe direction to ensure proper connection of all accessories before starting any cleaning project. Ensure compatibility and proper fit before using this accessory. Wear eye protection. Do not point at people, pets, electrical devices or the unit itself. Turn off the pressure washer, relieve the water pressure in the trigger handle, and lock the safety lock on the trigger handle (if one is included with your pressure washer) before installing, changing, or adjusting accessories. For cold water use only. For outdoor use only.

ADAPTER A

AR Blue Clean® Pressure Washer Adapter

This adapter converts Snow Joe® pressure washer accessories to fit AR Blue Clean® pressure washers up to 2320 PSI

ADAPTER B

Karcher® Pressure Washer Adapter

This adapter converts Snow Joe® pressure washer accessories to fit Kärcher® pressure washers up to 2320 PSI

ADAPTER C

Nilfisk® Pressure Washer Adapter

This adapter converts Snow Joe® pressure washer accessories to fit Nilfisk® pressure washers up to 2320 PSI

ADAPTER D

Anlu® Pressure Washer Adapter

This adapter converts Snow Joe® pressure washer accessories to fit Anlu® pressure washers up to 2320 PSI

ADAPTER E

Ryobi ^念 + Greenworks Pressure Washer Adapter

This adapter converts Snow Joe® pressure washer accessories to fit Ryobi® + Greenworks® pressure washers up to 2320 PSI

M22 ADAPTER

M22 Adapter

This adapter converts 15 mm M22 Female to 14 mm M22 Male fitting

METAL GUN ADAPTER

Metal Gun Adapter

This adapter converts M22 to bayonet fitting

NOTE: No adapter needed for Earthwise™ pressure washers up to 2320 PSI.

The enclosed products are not manufactured, distributed, or endorsed by Earthwise™, AR Blue Clean®, Karcher®, Nilfisk®, Anlu®, Ryobi®, or Greenworks®, which own their respective trademarks. Sun Joe® and its affiliates are not related to, affiliated with, or endorsed by Earthwise™, AR Blue Clean®, Karcher®, Nilfisk®, Anlu®, Ryobi®, or Greenworks®.

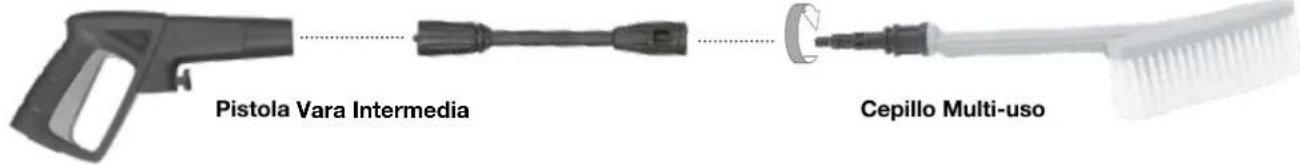

UTILITY BRISTLE BRUSH ASSEMBLY QUICK GUIDE

NOTE: Below instructions are only for connecting with SUN JOE® Pressure Washers. For connecting with other brands' pressure washers, use corresponding transfer adapter. Check page 2 for details.

SPX200/SPX1000 Series

Trigger Gun Middle Wand Utility Brush

SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT

Most SPX2000 Series + SPX4003-ELT, SPX7001E

Most SPX3000 Series + Most SPX4000 Series

Trigger Gun

Metal Gun Transfer Adapter

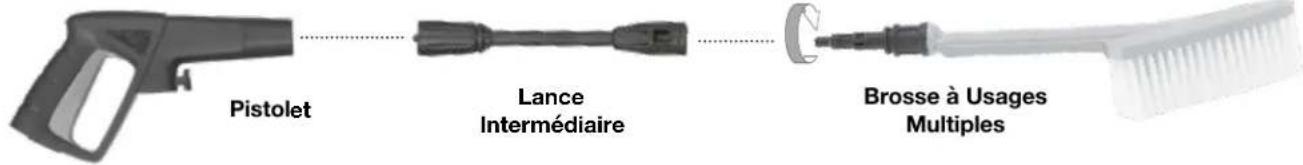

FOR USE WITH SPX200/SPX1000 SERIES:

1. Disconnect your spray wand assembly so that only the middle wand remains attached to your trigger gun.
2. Take the utility brush and align the with the middle wand.
3. Once aligned, push the utility brush into the middle wand and twist to lock into place (follow the arrow in the image).

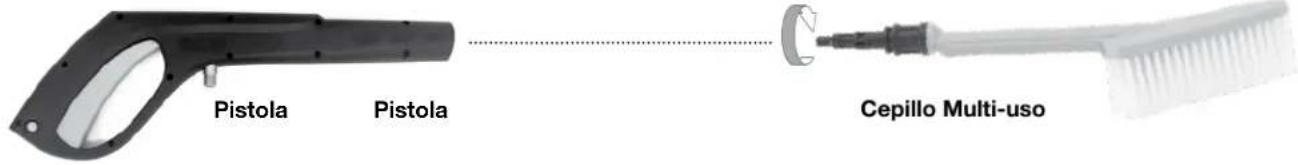

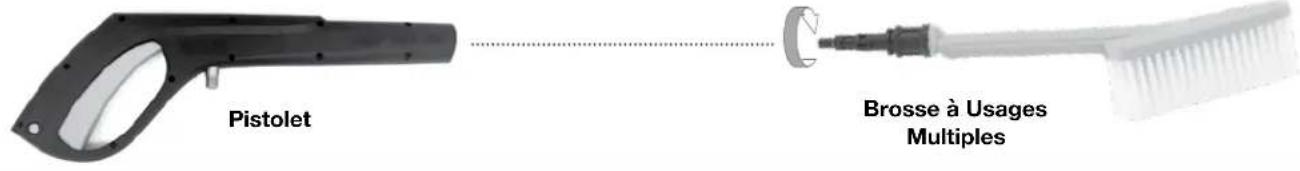

FOR USE WITH SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT

1. If not already done, detach your spray wand from your trigger gun.
2. Take the utility brush and align with the inside of the trigger gun.
3. Once aligned, push the utility brush into the trigger gun, and twist to lock into place (follow the arrow in the image).

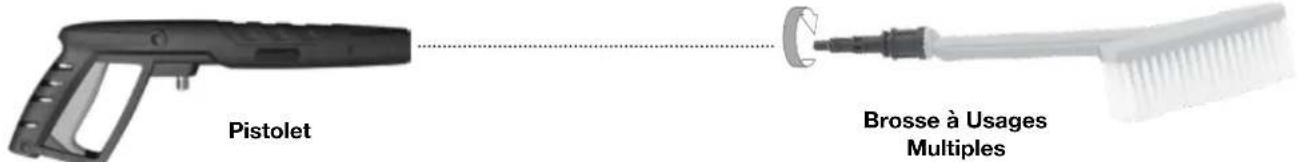

FOR USE WITH MOST SPX2000 SERIES + SPX4003-ELT, SPX7001E

1. If not already done, detach your spray wand from your trigger gun.
2. Take the utility brush and align it with the inside of the trigger gun.
3. Once aligned, push the utility brush into the trigger gun, and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX3000 Series + Most SPX4000 Series

1. If not already done, detach your spray wand from your trigger gun.
2. Attach the transfer adapter to your trigger gun.
3. Take the utility brush and align with the transfer adapter.
4. Once aligned, push the utility brush into the transfer adapter, and twist to lock into place (follow the arrow in the image).

ROTARY WASH BRUSH ASSEMBLY QUICK GUIDE

NOTE: Below instructions are only for connecting with SUN JOE® Pressure Washers. For connecting with other brands' pressure washers, use corresponding transfer adapter. Check page 2 for details.

SPX200/SPX1000 Series

Trigger Gun Middle Wand

Rotary brush

SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT

Most SPX2000 Series + SPX4003-ELT, SPX7001E

Most SPX3000 Series + Most SPX4000 Series

Metal Gun Transfer Adapter

FOR USE WITH SPX200/SPX1000 SERIES:

1. Disconnect your spray wand assembly so that only the middle wand remains attached to your trigger gun.
2. Take the rotary wash brush and align with the middle wand.
3. Once aligned, push the rotary wash brush into the middle wand and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT:

1. If not already done, detach your spray wand from your trigger gun.
2. Take the rotary wash brush and align with the inside of the trigger gun.
3. Once aligned, push the rotary brush into the trigger gun and twist to lock into place (follow the arrow in the image).

FOR USE WITH MOST SPX2000 SERIES + SPX4003-ELT, SPX7001E:

1. If not already done, detach your spray wand from your trigger gun.
2. Take the rotary wash brush and align the with the inside of the trigger gun.
3. Once aligned, push the rotary brush into the trigger gun and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX3000 SERIES+ Most SPX4000 SERIES:

1. If not already done, detach your spray wand from your trigger gun.
2. Attach the transfer adapter to your trigger gun.
3. Take the rotary wash brush and align with your trigger gun.
4. Once aligned, push the rotary brush into the transfer adapter and twist to lock into place (follow the arrow in the image).

TURBO NOZZLE + 20- INCH ROD* ASSEMBLY QUICK GUIDE

NOTE: Below instructions are only for connecting with SUN JOE® Pressure Washers. For connecting with other brands' pressure washers, use corresponding transfer adapter. Check page 2 for details.

SPX200/SPX1000 Series

Trigger Gun Middle Wand

20-Inch Rod

Turbo Nozzle

SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT

20-Inch Rod

Turbo Nozzle

Most SPX2000 Series + SPX4003-ELT, SPX7001E

20-Inch Rod Turbo Nozzle

Most SPX3000 Series + Most SPX4000 Series

Metal Gun Transfer Adapter

20-Inch Rod Turbo Nozzle

*wNNG For safety reasons, the nozzle must be used with the 20-inch rod. WnNG For domestic use only. Do not use with commercial grade pressure washers.

FOR USE WITH SPX200/SPX1000 SERIES:

1. Disconnect your spray wand assembly so that only the middle wand remains attached to your trigger gun.
2. Take the 20-inch rod and align with the middle wand.
3. Once aligned, push the 20-inch rod into the middle wand and and twist to lock into place (follow the arrow in the image).
4. Align turbo nozzle and push into the 20-inch rod and and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT:

1. If not already done, detach your spray wand from your trigger gun.
2. Take the 20-inch rod and align the with the trigger gun.
3. Once aligned, push the 20-inch rod into the trigger gun and twist to lock into place (follow the arrow in the image).
4. Align turbo nozzle and push into the 20-inch rod and and twist to lock into place (follow the arrow in the image).

FOR USE WITH MOST SPX2000 SERIES + SPX4003-ELT, SPX7001E:

1. If not already done, detach your spray wand from your trigger gun.
2. Take the 20-inch rod and align the with the trigger gun.
3. Once aligned, push the 20-inch rod into the trigger gun and and twist to lock into place (follow the arrow in the image).
4. Align turbo nozzle and push into the 20-inch rod and and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX3000 SERIES + Most SPX4000 SERIES:

1. If not already done, detach your spray wand from your trigger gun.
2. Attach the transfer adapter to your trigger gun.
3. Take the 20-inch rod and align the two tabs with the transfer adapter.
4. Once aligned, push the 20-inch rod into the metal gun transfer adapter and and twist to lock into place (follow the arrow in the image).
5. Align turbo nozzle and push into the 20-inch rod and and twist to lock into place (follow the arrow in the image).

ROTARY WASH BRUSH ASSEMBLY QUICK GUIDE

NOTE: Below instructions are only for connecting with SUN JOE® Pressure Washers. For connecting with other brands' pressure washers, use corresponding transfer adapter. Check page 2 for details.

SPX200/SPX1000 Series

Trigger Gun Middle Wand Wheel + Rim Brush

SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT

Trigger Gun Wheel + Rim Brush
Most SPX2000 Series + SPX4003-ELT, SPX7001E

Trigger Gun Wheel + Rim Brush
Most SPX3000 Series + Most SPX4000 Series

Trigger Gun Wheel + Rim BrushMetal Gun Transfer Adapter

FOR USE WITH SPX200/SPX1000 SERIES:

1. Disconnect your spray wand assembly so that only the middle wand remains attached to your trigger gun.
2. Take the wheel + rim brush and align it with the middle wand.
   3.Once aligned, push wheel + rim brush into the middle wand and and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT:

1. If not already done, detatch your spray wand from your trigger gun.
2. Take the wheel + rim brush and align with the inside of the trigger gun.
3. Once aligned, insert the wheel + rim brush into the trigger gun and twist to lock into place (follow the arrow in the image).

FOR USE WITH MOST SPX2000 SERIES + SPX4003-ELT, SPX7001E:

1. If not already done, detatch your spray wand from your trigger gun.
2. Take the wheel + rim brush and align with the inside of the trigger gun.
3. Once aligned, insert the wheel + rim brush into the trigger gun and twist to lock into place (follow the arrow in the image).

FOR USE WITH SPX3000 SERIES + Most SPX4000 SERIES:

1. If not already done, detach your spray wand from your trigger gun.
2. Attach the transfer adapter to your trigger gun.
3. Take the wheel + rim brush and align with your trigger gun.
4. Once aligned, push the wheel + rim brush into the transfer adapter and twist to lock into place (follow the arrow in the image).

SNOW JOE ^ 念 SUN JOE ^ 念 CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC ("Snow Joe") is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe®, Sun Joe®, or Aqua Joe® product ("Product") does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we have a Limited Warranty ("Warranty") for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

SUNJOE

SISTEMA DE LIMPIEZA DE AUTOMÓVIL

PARAHIDROLAVADORES

Modelo SPX-ACS-MAX

Series SPX200/1000
SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT

Sériès SPX200/1000
SPX2000, SPX2500, SPX2600, SPX4003, SPX4003-ULT
