TMS118B - Speaker Turbosound - Free user manual and instructions

Product type	Passive subwoofer
Brand	Turbosound
Model	TMS118B
Speaker driver	1 x 18" (460 mm)
Nominal impedance	8 ohms
RMS power	800 W
Peak power	1600 W
Frequency response (±3 dB)	35 Hz - 150 Hz
Maximum SPL	130 dB
Dimensions (H x W x D)	681 x 503 x 600 mm
Weight	36 kg
Enclosure material	Plywood with black paint coating
Grille material	Perforated steel
Connectors	2 x Neutrik Speakon NL4
Recommended use	Professional (sound reinforcement, concerts, fixed installations)
Care and cleaning	Clean with a dry, non-abrasive cloth. Do not expose to moisture or liquids.
Safety	Use high-quality speaker cables. Do not open the enclosure. Have repairs performed by a qualified professional.
Warranty	Limited warranty; visit music-group.com/warranty for details.
General information	Designed for use with an external amplifier matching the impedance and power.

Frequently Asked Questions - TMS118B Turbosound

What is the impedance of the Turbosound TMS118B?

The nominal impedance of the TMS118B is 8 ohms. Make sure your amplifier is compatible with this load.

What amplifier power is recommended for this subwoofer?

It is recommended to use an amplifier delivering between 800 W and 1600 W at 8 ohms to fully utilize the TMS118B's capabilities without risk of damage.

How to connect the TMS118B to an amplifier?

Use high-quality speaker cables with Neutrik Speakon NL4 connectors. Connect a cable from the amplifier to the corresponding input on the subwoofer. Observe polarity (+1/-1).

Can I use multiple TMS118B together?

Yes, you can connect multiple subwoofers in parallel or series, respecting the total impedance. For example, two 8-ohm subwoofers in parallel give 4 ohms; ensure your amplifier supports this load.

What is the frequency response of the TMS118B?

The frequency response is 35 Hz to 150 Hz (±3 dB). This subwoofer is designed to reproduce low frequencies with precision.

How to clean and maintain the TMS118B?

Clean the enclosure with a dry, non-abrasive cloth. Never use liquids or harsh cleaners. Avoid exposure to moisture and extreme temperatures.

What to do if the sound is distorted or weak?

First check the cable connections and impedance. Make sure the amplifier is not clipping. Reduce the gain and increase gradually. If the problem persists, test with another cable or amplifier.

Is the TMS118B suitable for outdoor use?

This subwoofer is designed for professional indoor use. Outdoors, protect it from rain and direct moisture. Use a protective cover if necessary.

What is the warranty on the TMS118B?

The TMS118B comes with a limited warranty by Music Group. For more details, visit music-group.com/warranty.

Can I repair the subwoofer myself?

No, the inside of the subwoofer contains no user-serviceable parts. All repairs must be performed by a qualified professional to avoid the risk of electric shock and damage.

USER MANUAL TMS118B Turbosound

Four-panel black-and-white photo collage showing a crowded cinema lobby, a crowd celebrating with raised fists, a vintage TV studio, and a cheering crowd holding up a smartphone (no visible text or symbols)

Venue/Madrid

TVX/TMS SERIES

TVX122M/TVX152/TVX118B/TMS122M/TMS152/

TMS153/TMS118B/TMS218B

Full Range Loudspeakers and Subwoofers for

Portable PA and Installation Applications

Quickstart Guide

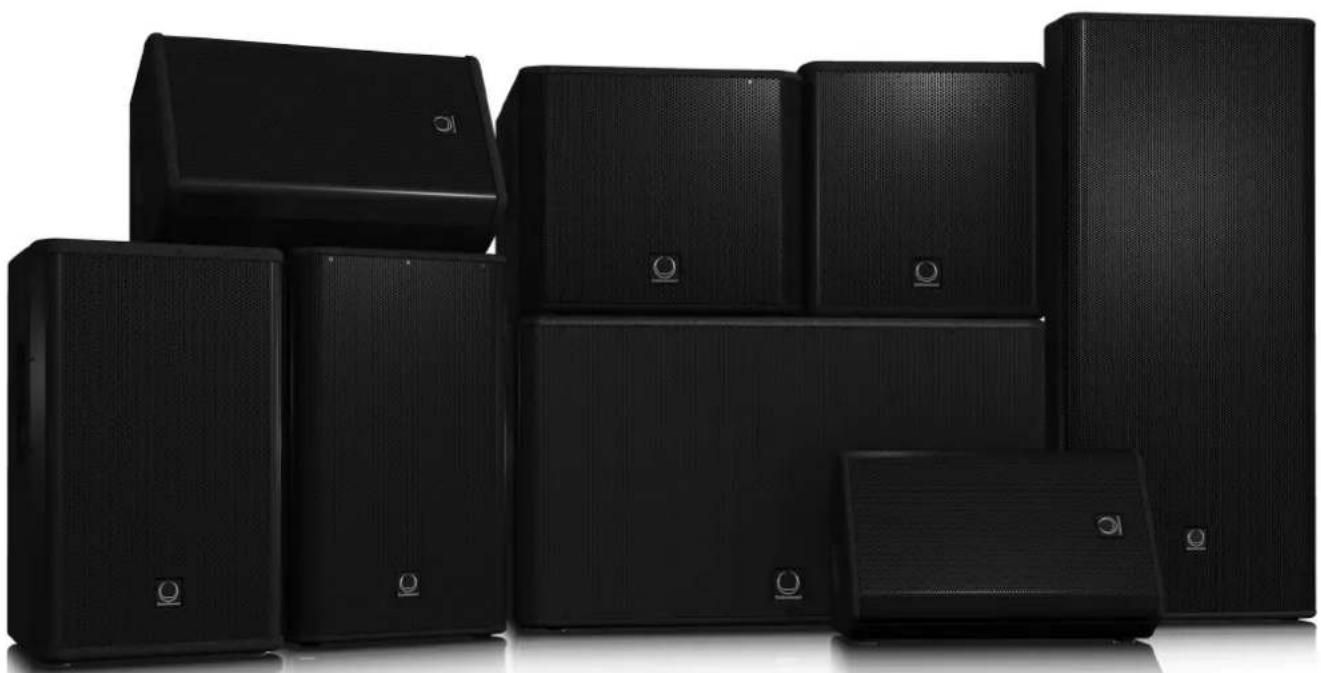

Black outdoor audio equipment with multiple speakers and a matching case (no visible text or labels)

EN Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RESUME ELECTRICATION! WE HAS QUVER? Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high quality commercially available speaker cables with plugs pre-installed. All other installation or modified cation should be performed only by qualified personnel.

1. Read these instructions. 2. Keep these instructions. 3. Head all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. Do not install near any heat sources such as radiators, heat registers, staves, or other apparatus (including amplifiers) that produce heat.

1. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

2. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

3. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,

moving the cart/appearatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

2. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.

3. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EUI) and your national law.

This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment IEEE. The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effi client use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city off cc, or your household waste collection service.

LEGAL DISCLAIMER

MUSIC Group accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Warranty, please see complete details online at music group.com/warranty.

BESCHRÄNKTE GARANTIE

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other product, please visit our website at turbosound.com.

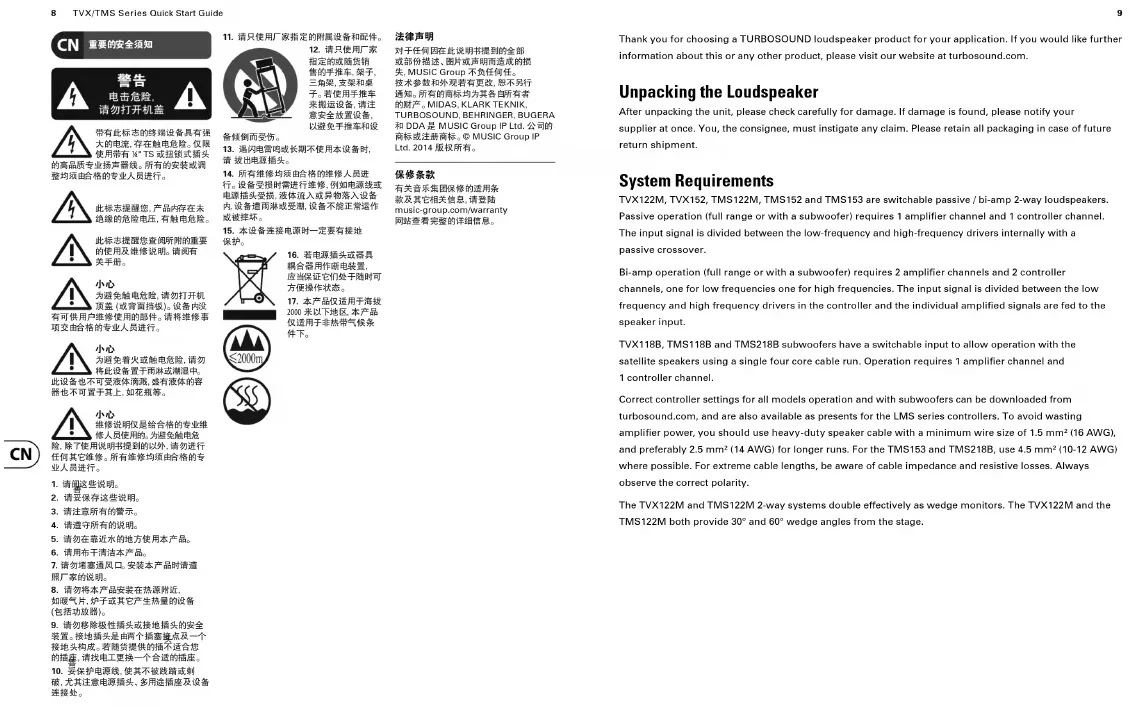

Unpacking the Loudspeaker

After unpacking the unit, please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future return shipment.

System Requirements

TVX122M, TVX152, TMS122M, TMS152 and TMS153 are switchable passive / bi-amp 2-way loudspeakers. Passive operation (full range or with a subwoofer) requires 1 amplifier channel and 1 controller channel. The input signal is divided between the low-frequency and high-frequency drivers internally with a passive crossover.

Bi-amp operation (full range or with a subwoofer) requires 2 amplifier channels and 2 controller channels, one for low frequencies one for high frequencies. The input signal is divided between the low frequency and high frequency drivers in the controller and the individual amplified signals are fed to the speaker input.

TVX118B, TMS118B and TMS218B subwoofers have a switchable input to allow operation with the satellite speakers using a single four core cable run. Operation requires 1 amplifier channel and 1 controller channel.

Correct controller settings for all models operation and with subwoofers can be downloaded from turbosound.com, and are also available as presents for the LMS series controllers. To avoid wasting amplifier power, you should use heavy-duty speaker cable with a minimum wire size of 1.5 mm² (16 AWG), and preferably 2.5 mm² (14 AWG) for longer runs. For the TMS153 and TMS218B, use 4.5 mm² (10-12 AWG) where possible. For extreme cable lengths, be aware of cable impedance and resistive losses. Always observe the correct polarity.

The TVX122M and TMS122M 2-way systems double effectively as wedge monitors. The TVX122M and the TMS122M both provide 30° and 60° wedge angles from the stage.

EN

Amplifi er Considerations

The TVX and TMS series loudspeakers are optimized for use with the TURBOSOUND T series amplifiers with the LMS series controllers. A full range of DSP settings to suit any configuration are provided for download on the TURBOSOUND website. The use of third party amplification and processing is only advised using the matrix of manual settings as well as the limiter calculator provided on the TURBOSOUND website. The TVX and TMS series loudspeaker enclosures should be driven by high quality power amplifiers designed for true professional use. Power amplifiers should be capable of delivering long term broadband power equal to half the loudspeaker's peak power rating at its stated nominal impedance. The use of underpowered amplifiers must be avoided as heavily clipped signals can cause permanent loudspeaker damage. Limiters, crossovers and equalisation points must be set in accordance with the settings provided on the TURBOSOUND website. This will ensure the optimum sound quality and long-term reliability as well as protection from damage.

Neutrik speakON* NL4 locking input connector(s) are provided, allowing options for input and link, passive, and bi-amp operation.

Model TVX122M TVX182 TVX1180
Mode Passive Swing LF Bi-amp HF Passive Swing LF Bi-amp HF Sub
Impedance		BΩ	BΩ	BΩ	BΩ	BΩ	BΩ
Minimum Amplifier	Continuous RMS	500 W	600 W	400 W	500 W	600 W	400 W
Power	Peak	2000 W	2000 W	2000 W	2000 W	2000 W	2400 W

Model		TMS112M			TMS152
Mode		Passive Diamp LT Di amp		Hi Passive Di amp LT Di amp		Hi
Impedance		B (i)	B (i)	B (i)	B (i)	B (i)	B (i)
MinimumAmplifierPower	ContinuousHMIS	800 W	300 W	75 W	900 W	800 W	75 W
	Peak	3200 W	3200 W	750 W	3200 W	3200 W	750 W

Model		TMS 153			TMS118B	TMS218B
Mode		Passive	Bi amp LF	Bi amp HF	Sub	Sub
Impedance		4 Ω	4 Ω	6 Ω	8 Ω	4 Ω
Minimum Amplifier Power	Continuous RMS	1200 W	1200 W	75 W	800 W	1600 W
	Peak	4800 W	4800 W	750 W	3200 W	6400 W

Connections

Models: TVX122M, TVX152, TMS122M, TMS152, TMS153

Mode	Connector	Internal Schematic
Passive
Bi-Amp

Models: TVX118B, TMS118B, TMS218B

Mode	Back Panel	Connector	Internal Schematic
Normal Operation1+/1-		speakON® NL4
4-Vire Single Cable Run Operation 2+/2-		speakON® NL4

Mounting and Fixing

TVX and TMS full-range series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations.

Suspending with Eyebolts

TVX and TMS cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel.

Remove the appropriate countersunk screws and replace them with shoulder eyebolts, which must have a thread length of at least 18 mm. Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required.

IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualified personnel with the required experience and certification to perform the necessary tasks.

Walls, floors or ceilings must be capable of safely and securely supporting the actual load. The mounting accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling.

When mounting rigging components on walls, floors or ceilings, ensure that all fixings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fixing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fixings, if required, must be of an appropriate type, and must be fitted and used in accordance with the maker's instructions.

The operation of your speaker cabinet as part of a flown system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualified and certified (by local state or national authorities) personnel prior to any installation or II ying.

Make sure that speaker cabinets are set up and flown by qualified and certified personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your dealer before attempting to set up the system.

Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed "Service Information Shoot", assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualified personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is flown, the area underneath the speaker is free of human traffic. Do not fly the speaker in areas that can be entered or used by members of the public.

Speakers create a magnetic field, even if not in operation. Therefore, please keep all materials that can be affected by such fields (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres.

14 TVX/TMS Series Quick Start Guide

EN Technical Specifications

TVX122M TVX152 TMS122M TMS152 TMS153
System
Frequency response	85 Hz - 20 kHz +3 dB20 Hz - 20 kHz -10 dB	85 Hz - 20 kHz -3 dB20 Hz - 20 kHz -10 dB	85 Hz - 18 kHz -3 dB20 Hz - 20 kHz -10 dB	55 Hz - 20 kHz -3 dB40 Hz - 20 kHz -10 dB	58 Hz - 20 kHz -3 dB27 Hz - 20 kHz -10 dB
Nominal dispersion	70°F H = 70°F @-6 dB points	70°F H = 70°F @-6 dB points	70°F H = 70°F @-6 dB points	70°F H = 70°F @-6 dB points	75°F H = 70°F @-6 dB points
Directivity factor (IQ)	9.4/9.4 10.4 12.8 12.8
Directivity index (DI)	9.7/9.7 10.2 11.1 11.1
Power handling (IEC)
Passive	500 W continuous,2,000 W peakLF: 500 Wcontinuous,2,000 W peakHF: 60 Wcontinuous,160 W peak	500 W continuous,2,000 W peakLF: 500 Wcontinuous,2,000 W peakHF: 60 Wcontinuous,160 W peak	800 W continuous,3,200 W peakLF: 000 Wcontinuous,3,200 W peakHF: 75 Wcontinuous,300 W peak	800 W continuous,3,200 W peakLF: 000 Wcontinuous,3,200 W peakHF: 75 Wcontinuous,300 W peak	1,200 W continuous,4,800 W peakLF: 1,200 Wcontinuous,4,800 W peakHF: 75 Wcontinuous,300 W peak
Sensitivity	97 dB (1 W @ 1 m) 97 dB	(1 W @ 1 m) 95 dB (1 W @ 1 m)	(1 W @ 1 m) 97 dB (1 W @ 1 m)	99 dB (1 W @ 1 m)
Maximum SPL
Passive	124 dB continuous,130 dB peakLF: 124 dBcontinuous,130 dB peakHF: 122 dBcontinuous,128 dB peak	124 dB continuous,130 dB peakLF: 124 dBcontinuous,130 dB peakHF: 122 dBcontinuous,128 dB peak	125 dB continuous,131 dB peakLF: 125 dBcontinuous,131 dB peakHF: 120 dBcontinuous,134 dB peak	126 dB continuous,132 dB peakLF: 126 dBcontinuous,132 dB peakHF: 128 dBcontinuous,134 dB peak	130 dB continuous,136 dB peakLF: 136 dBcontinuous,136 dB peakHF: 128 dBcontinuous,134 dB peak
Ri-amp
Impedance
Passive	8 Ω	8 Ω	8 Ω	8 Ω	4 Ω
Ri-smp	LF: 0 ΩHF: 5 Ω	LF: 0 ΩHF: 6 Ω	LF: 0 ΩHF: 6 Ω	LF: 0 ΩHF: 6 Ω	LF: 4 ΩHF: 6 Ω
Crossover type	Passive / Ris-amp,switchable	Passive / Ris-amp,switchable	Passive / Ris-amp,switchable	Passive / Ris-amp,switchable	Passive / Ris-amp,switchable
Components	1 x 12" (316 mm)LF driver1 x 12" (25 mm) HFcompressive driver	1 x 12" (284 mm)LF driver1 x 12" (25 mm) HFcompressive driver	1 x 12" (316 mm)LF driver1 x 12" (26 mm) HFcompressive driver	1 x 12" (284 mm)LF driver1 x 12" (36 mm) HFcompressive driver	2 x 12" (394 mm)LF driver1 x 12" (36 mm) HFcompressive driver
Enclosure
Connectors	2 x NeuriskpeakON® NLR	2 x NeuriskpeakON® NLR	2 x NeuriskpeakON® NLR	2 x NeuriskpeakON® NLR	2 x NeuriskpeakON® NLR
Wiring
Passive	Pins 1+/- 1 input,Pins 2+/- 2 link	Pins 1-/- 1 input,pins 2+/- 2 link	Pins 1-/- 1 input,pins 2+/- 2 link	Pins 1+/- 1 input,pins 2-/- 2 link	Pins 1+/- 1 input,pins 2-/- 2 link
Ri-smp	Pins 1+/- 1-LF,Pins 2+/- 2-HF	Pins 1-/- 1-LF,pins 2+/- 2-HF	Pins 1-/- 1-LF,pins 2+/- 2-HF	Pins 1+/- 1-LF,pins 2-/- 2-HF	Pins 1+/- 1-LF,pins 2-/- 2-HF
Dimensions (IHWD)	634 x 281 x 370 mm(25.0 x 15.0 x 34.0")	701 x 432 x 470 mm(27.0 x 17.0 x 35.0")	566 x 540 x 293 mm(22.9 x 13.7 x 11.1")	718 x 452 x 406 mm(28.2 x 17.0 x 15.0")	1219 x 533 x 508 mm(48.0 x 21.0 x 20.0")
Net weight	21.1 kg (45.5 lbs) 26.4 kg	(58.1 lbs) 35.2 kg (40.0 lbs)	27.7 kg (61.0 lbs) 46.9 kg (102.5 lbs)
Construction	15 mm ( 12 ") birchplywood	15 mm ( 12 ") birchplywood	15 mm ( 12 ") birchplywood	15 mm ( 12 ") birchplywood	15 mm ( 12 ") birchplywood
Finish	Semi-matt blackpoint	Semi-matt blackpoint	Semi-matt blackpoint	Semi-matt blackpoint	Semi-matt blackpoint
Grille	Powder-coatedperformed steel	Powder-coatedperformed steel	Powder-coatedperformed steel	Powder-coatedperformed steel	Powder-coatedperformed steel
Flying hardware	M10 x 12 M10 x 12 M10 x 2 M10 x 12

15

System
Frequency response	40 Hz - 200 Hz =3 dB32 Hz 200 Hz: 10 dB	38 Hz - 200 Hz =3 dB32 Hz 200 Hz: 10 dB	33 Hz - 200 Hz =3 dB27 Hz 200 Hz: 10 dB
Nominal dispersion	Hall space	Hall space	Hall space
Power handling (IECI)	800 W continuous, 2/600 W peak	800 W continuous, 3,200 W peak	1,680 W continuous, 6,480 W peak
Sensitivity	97 dB	97 dB	100 dB
Maximum SPL	125 dB continuous, 131 dB peak	126 dB continuous, 132 dB peak	132 dB continuous, 138 dB peak
Impedance	4 Ω	6 Ω	4 Ω
Components	1 x 18" (460 mm) L.F. driver	1 x 18" (460 mm) L.F. driver	2 x 18" (460 mm) L.F. driver
Enclosure
Connectors	2 x Neutrik speakON® NL4	2 x Neutrik speakON® NL4	2 x Neutrik speakON® NL4
Wiring
Switch position 1+/-	Pins 1+/1 - input, pins 2-/2 - link	Pins 1+/1 - input, pins 2+/2 - link	Pins 1+/1 - input, pins 2+/2 - link
Switch position 2+/-	Pins 1+/1 - link, pins 2+/2 - input	Pins 1+/1 - link, pins 2+/2 - input	Pins 1+/1 - link, pins 2+/2 - input
Dimensions (HWD)	553 x 533 x 740 mm(21.8 x 21.0 x 27.6")	513 x 567 x 750 mm(20.2 x 23.5 x 29.5")	1067 x 602 x 838 mm(42.6 x 23.7 x 33.6")
Net weight	34.9 kg (78.6 lbs)	30.8 kg (87.6 lbs)	82.3 kg (181.4 lbs)
Construction	18 mm (-)/2" birch plywood	18 mm (-)/2" birch plywood	18 mm (-)/2" birch plywood
Finish	Semi-matt black paint Semi-matt black paint Semi-matt black paint
Grille	Fenckel-coated perfurated steel Fenckel-coated perfurated steel Fenckel-coated perfurated steel
Flying hardware
Accessories
		TPOL168-20, 66 cm pole with≥20 mm threadTPOL-F58-20, 50 cm pole with≥20 mm threadTPOL120-20, 120 cm pole with≥20 mm thread

EN

16 TVX/TMS Series Quick Start Guide
