Prague TPA15264 - Speaker Turbosound - Free user manual and instructions

Product type	Passive professional PA speaker
Brand	Turbosound
Model	Prague TPA15264
Power handling (RMS)	400 W
Peak power	1600 W
Nominal impedance	8 Ω
Frequency response	55 Hz - 20 kHz
Low frequency	1 x 15" (381 mm)
High frequency	1 x 1.4" (35.6 mm) compression driver
Dispersion angle	90° x 60° (H x V)
Input connectors	2 x Neutrik SpeakON NL4
Enclosure material	Painted birch plywood
Protection grille	Perforated steel with acoustic lining
Dimensions (H x W x D)	700 mm x 440 mm x 400 mm
Net weight	25 kg
Power requirement	None (passive speaker, requires external amplifier)
Maintenance and cleaning	Clean with a damp cloth; do not use solvents
Safety	Do not open the enclosure; repair by qualified personnel only; avoid exposure to moisture
Spare parts and repairability	Contact an authorized service center; do not attempt repair yourself
General information	Limited warranty available at music-group.com/warranty; disposal via WEEE collection point

Frequently Asked Questions - Prague TPA15264 Turbosound

What type of cable should I use to connect the Prague TPA15264 speaker?

Use only high-quality speaker cables with pre-installed 6.35mm mono jack connectors or SpeakON cables for a secure connection.

Can I open the speaker to repair it myself?

No, the interior contains no user-serviceable parts. Opening it exposes you to dangerous voltages. Any repair must be carried out by a qualified technician.

How do I clean the speaker?

Clean the device with a damp cloth. Never use solvents or abrasive products. Make sure the cloth is only damp, not wet, to prevent water ingress.

Can I use the speaker outdoors?

No, this device must not be exposed to rain, moisture, or splashes. For outdoor use, provide adequate shelter protected from the elements.

How do I install the speaker on a stand or support?

Use a stand suitable for the speaker's weight (25 kg). Ensure the stand is stable and the speaker is properly secured to prevent any risk of falling.

What amplifier power is recommended for the Prague TPA15264?

An amplifier delivering between 400 W and 800 W RMS at 8 Ω is recommended. Be careful not to exceed the peak power of 1600 W to avoid damaging the speaker.

What should I do if the speaker produces no sound?

First check the cable connections and the amplifier. Make sure the amplifier is turned on and the audio signal is present. If the problem persists, test with another cable or source.

How can I avoid overheating during prolonged use?

Ensure the ventilation grilles are not obstructed. Place the speaker in a well-ventilated area, away from heat sources (other amplifiers, radiators). Avoid driving the speaker to extreme saturation levels for long periods.

Can I repair a damaged speaker cable?

It is not recommended to repair a speaker cable yourself. Replace it with a new cable of equivalent quality to ensure safety and performance.

How do I dispose of the speaker at end of life?

In accordance with the WEEE directive (2012/19/EU), do not dispose of the device with household waste. Take it to an approved collection point for recycling of electrical and electronic equipment.

USER MANUAL Prague TPA15264 Turbosound

Prague TPA/TPZ SERIES

TPA122/64/95/00 / TPA122/64/95/00-WH
TPA152/64/95 / TPA152/64/95-WH
TPZ122/64
TPZ152/64
TPZ153/64

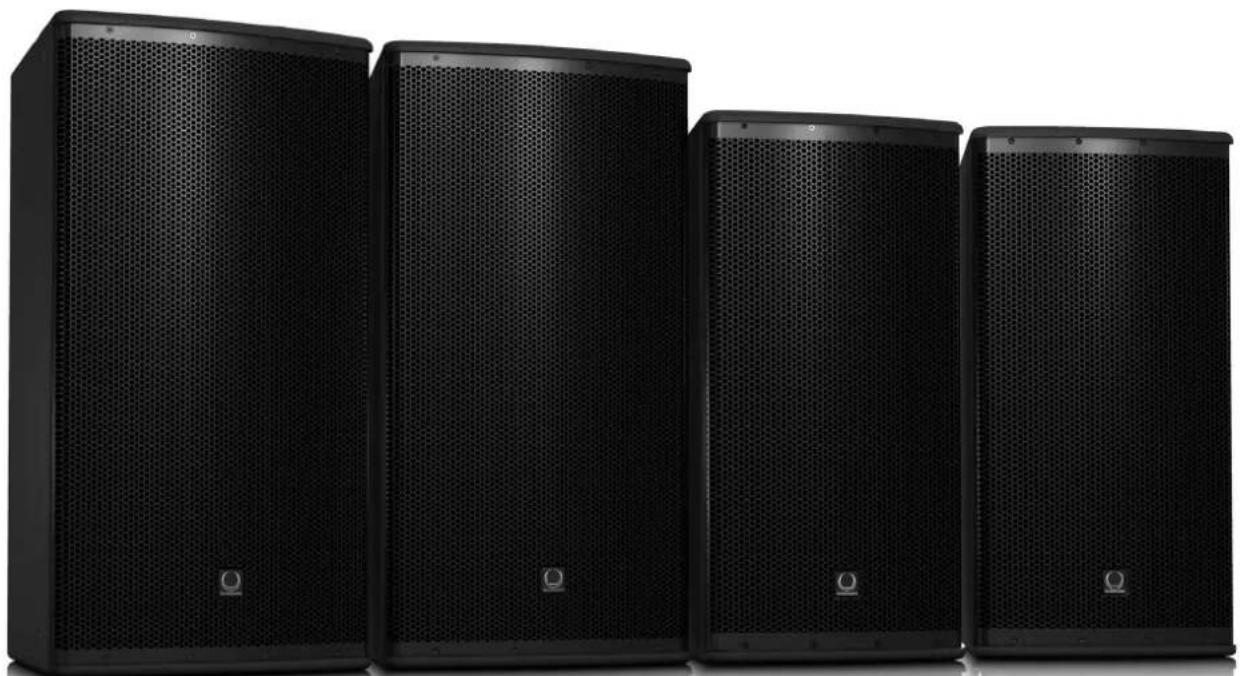

Arrayable 2-Way/3-Way 12/15" Full Range Loudspeaker for Installation Applications Quickstart Guide

TPATPZ series Quick Start Guide

Important Safety

Instructions

Terminals marked with this symbol carry electrical or electromagnetic guidance to constitute risk of electric shock. Use only high quality commercially available spacer cables with plugs pre-installed. All other installation or modified cation should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the possibility of an unsatisfied, dangerous voltage inside the enclosure voltage that may be sufficient to constitute a risk of shock.

This symbol,whichever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover for the rear section. No user serviceable parts inside. Refer servicing to qualified personnel.

Caution To reduce the risk of fire or electric shock, do not expose this appliance to dust and moisture. The apparatus shall not be exposed to dropping or splashing liquids and no objects fit filled with liquids, such as vases, shall be placed on the apparatus.

Caution These service instructions are for use by qualified ed service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified ed service personnel.

1. Read these instructions.

2. Keep these instructions.

3. Head all warnings.

4. Follow all instructions

5. Do not use this apparatus near water.

6. Do not only carry loans

openings. Install in accordance with the manufacturer's instructions.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

2. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

3. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

4. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,

moving the cartilage process combination to avoid injury from lip-over.

1. Unplig this apparatus during lightning or when unsealed for long periods of time.

2. Refer all servicing to quality of service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a M4NS socket outlet with a protective port.

4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/9/EU) and your national law.

This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of your waste will facilitate the efficient collection of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

LEGAL DISCLAIMER

MUSIC Group accepts no liability for any loss which may be suffered by any person who relies on either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLRK TECHNIK, TURBOSOUND, BRHINSER, RUIGERA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd. & MUSIC Group IP Ltd. 2014 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Liability Insurance, please visit our website online at music group.com/warranty.

BESCHRANKTE GARANTIE

TPA/TPZ series Quick Start Guide

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other product, please visit our website at turbosound.com.

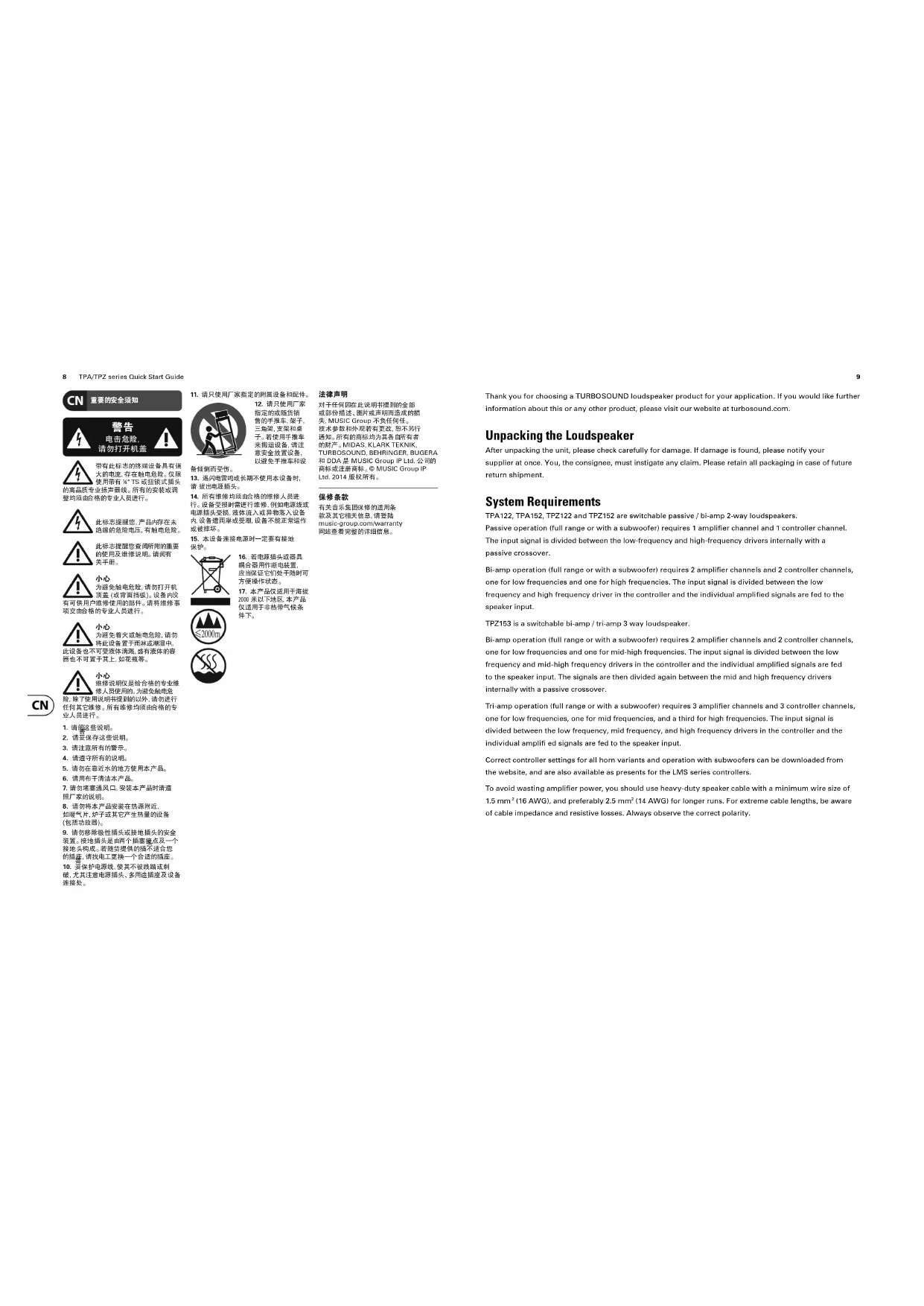

Unpacking the Loudspeaker

After unpacking the unit, please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future return shipment.

System Requirements

TPA122, TPA152, TPZ122 and TPZ152 are switchable passive / bi-amp 2-way loudspeakers. Passive operation (full range or with a subwoofer) requires 1 amplifier channel and 1 controller channel. The input signal is divided between the low-frequency and high-frequency drivers internally with a passive crossover.

Bi-amp operation (full range or with a subwoofer) requires 2 amplifier channels and 2 controller channels, one for low frequencies and one for high frequencies. The input signal is divided between the low frequency and high frequency driver in the controller and the individual amplified signals are fed to the speaker input.

TPZ153 is a switchable bi-amp/tri-amp 3 way loudspeaker.

Bi-amp operation (full range or with a subwoofer) requires 2 amplifier channels and 2 controller channels, one for low frequencies and one for mid-high frequencies. The input signal is divided between the low frequency and mid-high frequency drivers in the controller and the individual amplified signals are fed to the speaker input. The signals are then divided again between the mid and high frequency drivers internally with a passive crossover.

Tri-amp operation (full range or with a subwoofer) requires 3 amplifier channels and 3 controller channels, one for low frequencies, one for mid frequencies, and a third for high frequencies. The input signal is divided between the low frequency, mid frequency, and high frequency drivers in the controller and the individual amplified signals are fed to the speaker input.

Correct controller settings for all horn variants and operation with subwoofoers can be downloaded from the website, and are also available as presents for the LMS series controllers.

To avoid wasting amplifier power, you should use heavy-duty speaker cable with a minimum wire size of 1.5mm^2 (16 AWG), and preferably 2.5mm^2 (14 AWG) for longer runs. For extreme cable lengths, be aware of cable impedance and resistive losses. Always observe the correct polarity.

10 TPA/TPZ series Quick Start Guide

Amplifier Considerations

The TPA and TPZ series loudspeakers are optimized for use with the TURBOSOUND T series amplifiers with the LMS series controllers. A full range of DSP settings to suit any configuration are provided for download on the TURBOSOUND website. The use of third party amplification and processing is only advised using the matrix of manual settings as well as the limiter calculator provided on the TURBOSOUND website. The TPA and TPZ series loudspeaker enclosures should be driven by high quality power amplifiers designed for true professional use. Power amplifiers should be capable of delivering long term broadband power equal to half the loudspeaker's peak power rating at its stated nominal impedance. The use of underpowered amplifiers must be avoided as heavily clipped signals can cause permanent loudspeaker damage. Limiters, crossovers and equalisation points must be set in accordance with the settings provided on the TURBOSOUND website. This will ensure the optimum sound quality and long-term reliability as well as protection from damage.

Neutrik speakON^a NL4 locking input connector(s) and 4-way barrier strip(s) are provided, allowing options for input and link, passive, bi-amp and tri-amp operation.

Motor RPM12 TP12A1 TP12B TP12C

Motor Power 31mpf TP12

31mpf TP12

Power 31mpf TP12

31mpf TP12

Power 31mpf TP12

31mpf TP12

Power 31mpf TP12

31mpf TP12

Power 31mpf TP12

31mpf TP12

Power 31mpf TP12

31mpf TP12

31mpf TP12

31mpf TP12

Impedance

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

R/Ω

Minimum Amplifier Polarizer

Continuous PAS

500 W

500 W

40 W

500 W

500 W

40 W

800 W

600 W

75 W

650 W

500 W

750 W

Peak

2000 W

2000 W

400 W

2000 W

2000 W

400 W

2400 W

2400 W

750 W

3600 W

2600 W

750 W

Model		TF2103
Model		Diaphragm LT2	Diaphragm MHTH LT	Triangram LT	Triangram MT	Tri-trangram MT
Impedance		8Ω	8Ω	8Ω	8Ω	8Ω
Minimum Amplitude Power	Continuous RMS	900 W	200 W	900 W	200 W	75 W
	Peak	2600 W	800 W	2600 W	800 W	590 W

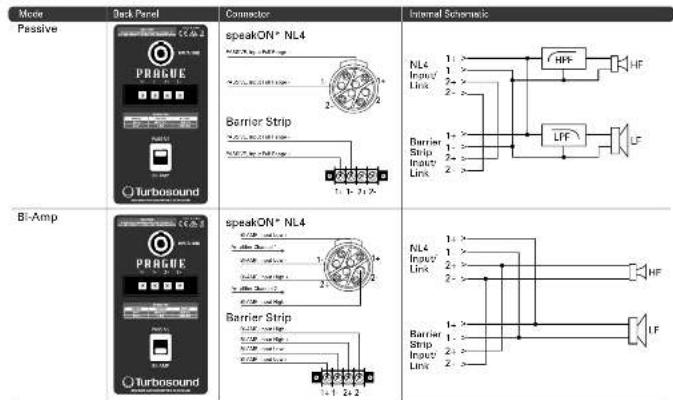

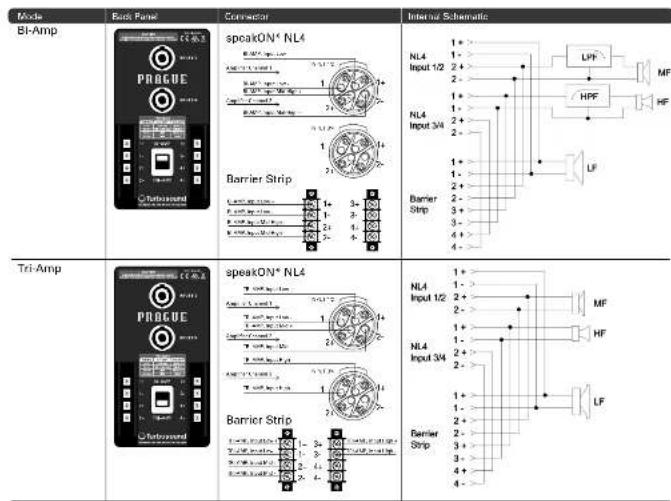

Connections

Models:TPA122,TPA152,TPZ122,TPZ152

Model TPZ153

11

12 TPA/TPZ series Quick Start Guide

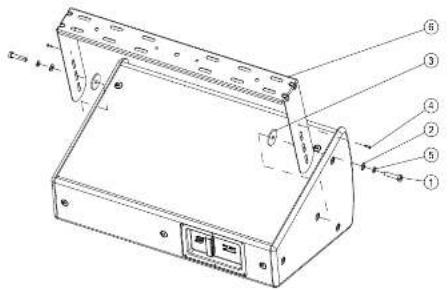

Mounting and Fixing

TPA and TPZ series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations. The graphic below shows the assembly of the optional mounting bracket (TPA122-WB and TPA152-WBI).

ITEM O'TY COMPONENT
1 2 MILx 45 seconds
2	2	F
3 2 Friction washer
4 2 Month Lock seconds
5	2	S
8	1	W

Wall Brackets

1. Remove the M10 blanking bolts from the speaker. The bracket will be mounted to these points.
2. Install the wall plate in the venue using the appropriate fi xings (not supplied).
3. Lift the speaker to the bracket and attach with the supplied M10 bolts and friction washers.
4. Set the desired speaker angle and insert the 2 locking screws.
5. For added precaution and where required by local standards, install an M10 threaded eye bolt in the back of

the speaker, then connect a properly-rated safety cable from the eyebolt to the mounting structure.

The TPZ153-FK fly kit is also available for suspension of 3 TPZ153 models. Array angles from 50 degrees to 90 degrees can be chosen in 5 degree increments. The fly kit comprises an upper and lower fly plate,

4 eyebolts and M10 fixings required for installation. See turbosound.com for more information.

Suspending with Eyebolts

TPA and TPZ cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel.

Remove the appropriate countersunk screws and replace them with shoulder eyebolts, which must have a thread length of at least 18mm . Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required.

IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualified personnel with the required experience and certification to perform the necessary tasks. Walls, floors or ceilings must be capable of safety and securely supporting the actual load. The mounting accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling.

When mounting rigging components on walls, floors or ceilings, ensure that all fixings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fixing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fixings, if required, must be of an appropriate type, and must be fitted and used in accordance with the maker's instructions.

The operation of your speaker cabinet as part of a flow system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualified and certified (by local state or national authorities) personnel prior to any installation or fitting.

Make sure that speaker cabinets are set up and flown by qualified and certified personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your dealer before attempting to set up the system.

Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed "Service Information Sheet", assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualified personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is flown, the area underneath the speaker is free of human traffic. Do not fly the speaker in areas that can be entered or used by members of the public.

Speakers create a magnetic field, even if not in operation. Therefore, please keep all materials that can be affected by such fields (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres.

TPA/TPZ series Quick Start Guide

Technical Specifications

15

TPA152/64 (WH) TPA152/95 (WH) TPA122/64 (WH) TPA122/95 (WH) TPA122/00 (WH) TPZ153/64 TPZ152/64 TPZ122/64

System
Frequency response	43 Hz - 18 kHz - 3 dB37 Hz - 20 kHz - 10 dB	43 Hz - 18 kHz + 3 dB37 Hz - 20 kHz - 10 dB	45 Hz - 18 kHz - 3 dB49 Hz - 20 kHz - 10 dB	45 Hz - 18 kHz + 3 dB49 Hz - 20 kHz - 10 dB
Nominal dispersion	\( {80}^{ \circ } \) Hx \( {40}^{ \circ } \) V & 6 dB points, rotable	\( {60}^{ \circ } \) Hx \( {50}^{ \circ } \) V & 6 dB points, rotable	\( {60}^{ \circ } \) Hx \( {40}^{ \circ } \) V & 6 dB points, rotable	\( {90}^{ \circ } \) Hx \( {50}^{ \circ } \) V & 6 dB points, rotable
Directivity factor (Ω)	18.3 to 18.3 to 18.5	18.3	18.3	18.3
Directivity index IDI	12.6 to 12.6 to 12.7	12.6	12.6	12.6
Power handling IECI
Passive	500 W continuous, 2,600 W peak	600 W continuous, 2,600 W peak	500 W continuous, 2,600 W peak	500 W continuous, 2,600 W peak
GI amp	LF: 500 W continuous, 2,600 W peakHF: 40 W continuous, 100 W peak	LF: 500 W continuous, 2,600 W peakHF: 40 W continuous, 100 W peak	LF: 500 W continuous, 2,600 W peakHF: 40 W continuous, 100 W peak	LF: 500 W continuous, 2,600 W peakHF: 40 W continuous, 100 W peak
Td amp	—	—	—	—
Sensitivity	97 dB (1 W @ 1 mJ)	97 dB (1 W @ 1 mJ)	97 dB (1 W @ 1 mJ)	97 dB (1 W @ 1 mJ)
Maximum SPL
Passive	124 dB continuous, 130 dB peak	124 dB continuous, 130 dB peak	124 dB continuous, 130 dB peak	124 dB continuous, 130 dB peak
Biamp	LF: 124 dB continuous, 130 dB peakHF: 122 dB continuous, 128 dB peak	LF: 124 dB continuous, 130 dB peakHF: 122 dB continuous, 128 dB peak	LF: 124 dB continuous, 130 dB peakHF: 122 dB continuous, 128 dB peak	LF: 124 dB continuous, 130 dB peakHF: 122 dB continuous, 128 dB peak
Td amp	—	—	—	—
Impedance
Passive	8 Ω	8 Ω	8 Ω	8 Ω
Biamp	LF: 8 ΩHF: 6 Ω	LF: 8 ΩHF: 6 Ω	LF: 8 ΩHF: 6 Ω	LF: 8 ΩHF: 6 Ω
Td amp	—	—	—	—
Crossover type	Passive / Bi amp, switchable	Passive / Bi amp, switchable	Passive / Bi amp, switchable	Passive / Bi amp, switchable
Components	1 x 15' 1394 mm LF driver1 x 1' 125 mm HF compression driver	1 x 15' 264 mm LF driver1 x 1' 125 mm HF compression driver	1 x 12" 016 mm LF driver1 x 12" 25 mm HF compression driver	1 x 12" 016 mm LF driver1 x 1' 25 mm HF compression driver

Endorse
Connectors	1 x Neutrik speckON® NLA, 1 x barrier strip terminals	1 x Neutrik speckON® NLA, 1 x barrier strip terminals	1 x Neutrik speckON® NLA, 1 x barrier strip terminals	1 x Neutrik speckON® NLA, 1 x barrier strip terminals
Wiring
Passive	Pins 1/1 input, pins 2/1-2 link	Pins 1/1 input, pins 2/1-2 link	Pins 1/1 input, pins 2/1-2 link	Pins 1/1 input, pins 2/1-2 link
Biamp	Pins 1/1-1 LF, pins 2/1-2 HF	Pins 1/1-1 LF, pins 2/1-2 HF	Pins 1/1-1 LF, pins 2/1-2 HF	Pins 1/1-1 LF, pins 2/1-2 HF
Tiltmp	—	—	—	—
Dimensions (HWD)	781 x 419 x 503 mm(30.7 x 16.5 x 10.8")	781 x 419 x 503 mm(30.7 x 16.5 x 10.8")	711 x 368 x 458 mm(28.0 x 14.5 x 18.6")	711 x 368 x 458 mm(28.0 x 14.5 x 18.6")
Net weight	20.8 kg 69 lb	27.0 kg 69.4 lb	23.8 kg 52.4 lb	23.8 kg 52.4 lb
Construction	15 mm [N°] birch plywood	15 mm [N°] birch plywood	15 mm [N°] birch plywood	15 mm [N°] birch plywood
Finish	Semi-matt black paint(white optional)	Semi-matt black paint(white optional)	Semi-matt black paint(white optional)	Semi-matt black paint(white optional)
Grille	Powder coated perforated steel	Powder coated perforated steel	Powder coated perforated steel	Powder coated perforated steel
Flying hardware	M10 x 15 pins	M10 x 15 pins	M10 x 15 pins	M10 x 15 pins

10

TRA152 W/B wall bracket PRAGU 15

TRA152 W/B wof bracket PRAGU 15

TPA152 W/B wof bracket PRAGU 15

TPA152 W/B wall bracket PRAGU 15

45 H2-18 H2-3 dB40 H2-20 H2-10 dB	45 H2-20 H2-13 dB38 H2-20 H2-10 dB	41 H2-18 H2-13 dB35 H2-20 H2-10 dB	43 H2-18 H2-3 dB37 H2-20 H2-10 dB
100° X 100° V @ 6 dB points, rotatable	60° X 40° V @ 6 dB points, rotatable	60° X 40° V @ 6 dB points, rotatable	60° X 40° V @ 6 dB points, rotatable
500 W continuous, 2,000 W peak	—	650 W continuous, 2,800 W peak	600 W continuous, 2,400 W peak
LF: 500 W continuous, 2,000 W peakHF: 40 W continuous, 180 W peak	LF: 650 W continuous, 2,800 W peakMF: 200 W continuous, 600 W peak	LF: 650 W continuous, 2,800 W peakHF: 75 W continuous, 300 W peak	LF: 800 W continuous, 2,400 W peakHF: 75 W continuous, 300 W peak
—	LF: 650 W continuous, 2,600 W peakHF: 200 W continuous, 800 W peakHF: 75 W continuous, 300 W peak	—	—
97 dB (1 W @ 1 m)	LF: 97 dB (1 W @ 1 m)HF: 107 dB (1 W @ 1 m)HF: 109 dB (1 W @ 1 m)	97 dB (1 W @ 1 m)	98 dB (1 W @ 1 m)
124 dB continuous, 130 dB peak	—	125 dB continuous, 131 dB peak	124 dB continuous, 130 dB peak
LF: 124 dB continuous, 130 dB peakHF: 122 dB continuous, 128 dB peak	LF: 125 dB continuous, 131 dB peakHF: 126 dB continuous, 134 dB peak	LF: 125 dB continuous, 131 dB peakHF: 128 dB continuous, 134 dB peak	LF: 124 dB continuous, 133 dB peakHF: 128 dB continuous, 134 dB peak
—	LF: 125 dB continuous, 131 dB peakHF: 130 dB continuous, 136 dB peakHF: 125 dB continuous, 134 dB peak	—	—
9.0LF: 8.0HF: 6.0	LF: 8.0MF: 8.0LF: 8.0HF: 8.0	8.0LF: 8.0HF: 8.0	8.0LF: 8.0HF: 8.0
—	HF: 8.0HF: 6.0	—	—
Passive / Bi amp. switchable	Bi amp. / tri amp. switchable	Passive / Bi amp. switchable	Passive / Bi amp. switchable
1 x 12" (316 mm) LF driver1 x 12" (25 mm) HF compression driver	1 x 15" (354 mm) LF driver1 x 15" (200 mm) HF driver1 x 14" (66 mm) HF compression driver	1 x 15" (354 mm) LF driver1 x 14" (66 mm) HF compression driver	1 x 12" (316 mm) LF driver1 x 14" (36 mm) HF compression driver

1 x Neutrisk speckON* NLD 1 x barrier strip terminals	2 x Neutrisk speckON* NLD 2 x barrier strip terminals	1 x Neutrisk speckON* NLD. 1 x barrier strip terminals	1 x Neutrisk speckON* NLD. 1 x barrier strip terminals
Pins 1+/-1-input, pins 2+/-2-link	-	Pins 1+/-1-input, pins 2+/-2-link	Pins 1+/-1-input, pins 2+/-2-link
Pins 1+/-1-LF, pins 2+/-2-HF	Pins 1a/1-LF, pins 2+/-2-MHF, pins 2i/3-and pins 4i/4-link	Pins 1+/-1-LF, pins 2+/-2-HF	Pins 1+/-1-LF, pins 2+/-2-HF
-	Pins 1a/1-LF, pins 2+/-2-MHF, pins 2i/3-and pins 4i/4-link	-	-
711 x 368 x 458 mm 1280 x 14.5 x 16.0"	587 x 559 x 658 mm (38.9 x 22.0 x 25.6")	781 x 410 x 583 mm (30.7 x 16.5 x 18.8")	711 x 368 x 458 mm (28.6 x 16.5 x 18.8")
23.2 kg (51.1 lbs)	433 kg (95 lbs)	20.8 kg (99.0 lbs)	23.4 kg (51.5 lbs)
15 mm (1/1) black plywood	15 mm (1/1) black plywood	15 mm (1/1) birch plywood	15 mm (1/1) birch plywood
Semi-matt black paint Viola optional	Semi-matt black paint	Semi-matt black paint	Semi-matt black paint
Powder coated perforated steel	Powder coated perforated steel	Powder coated perforated steel	Powder coated perforated steel
M10 x 15 points	M10 x 15 points	M10 x 15 points	M10 x 15 points
TPA122-WB wall bracket PRAGUE 12"	TP2H5 FK	TPA152-WB wall bracket PRAGUE 15"	TPA122-WB wall bracket PRAGUE 12"

16TPA/TPZ series Quick Start Guide

EN

Other important information

Important information

1. Register online. Please register your new MUSIC Group equipment right after you purchase it by visiting turbansand.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.

2. Malfunction. Should your MUSIC Group Authorized Reseller not be located in your vicinity, you may contact the MUSIC Group Authorized Fulfller for your country listed under "Support" at turbosound.com. Should your country not be listed, please check if your problem can be dealt with by our "Online Support" which may also be found under "Support" at turbosound.com. Alternatively, please submit an online warranty claim at Turbustund.com BEFORE returning the product.

3. Power Connections. Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.

17

EN
