USER MANUAL TCS15294AN Turbosound

Important Safety Instructions LEGAL DISCLAIMER LIMITED WARRANTY Terminals marked with this symbol carry electrical current of sucient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. Allother installation or modication should be performed only by qualiedpersonnel. This symbol, wherever it appears, alertsyou to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sucient to constitute a risk ofshock. This symbol, wherever it appears, alertsyou to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, donot remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualied personnel. Caution To reduce the risk of re or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects lled with liquids, suchas vases, shall be placed on the apparatus. Caution These service instructions are for use by qualied service personnel only. Toreduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualied servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. Ifthe provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories specied by

12. Use only with the

cart, stand, tripod, bracket, or table specied by the manufacturer, orsold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has beendropped.

15. The apparatus shall be connected to a MAINS socket

outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance coupler is

used as the disconnect device, the disconnect device shall remain readily operable.

17. Correct disposal of this

product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the ecient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city oce, or your household waste collection service.

18. Do not install in a conned space, such as a book

case or similar unit.

19. Do not place naked ame sources, such as lighted

candles, on the apparatus.

20. Please keep the environmental aspects of battery

disposal in mind. Batteries must be disposed-of at a battery collection point.

BESCHRÄNKTE GARANTIE

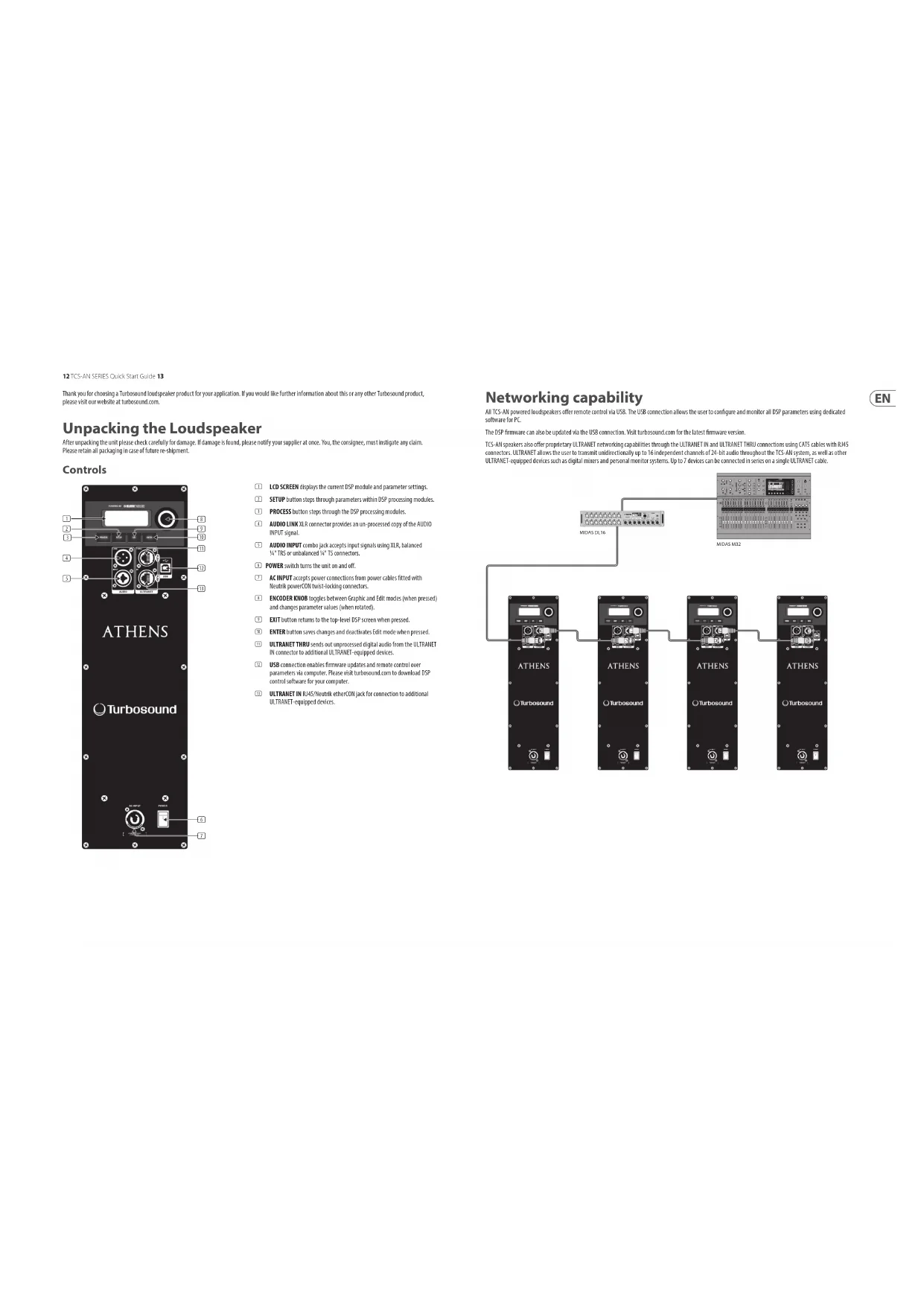

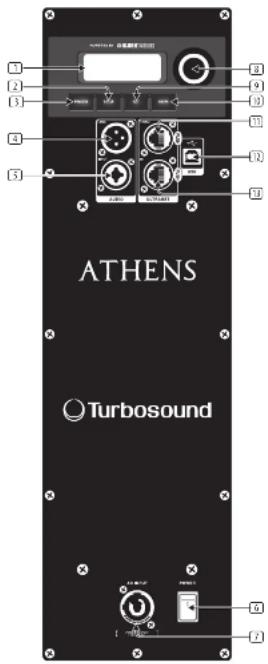

OGRANICZONA GWARANCJA12 TCS-AN SERIES Quick Start Guide 13 Thank you for choosing a Turbosound loudspeaker product for your application. If you would like further information about this or any other Turbosound product, please visit our website at turbosound.com. Unpacking the Loudspeaker After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of futurere-shipment. Controls (1) LCD SCREEN displays the current DSP module and parameter settings. (2) SETUP button steps through parameters within DSP processing modules. (3) PROCESS button steps through the DSP processing modules. (4) AUDIO LINK XLR connector provides an un-processed copy of the AUDIO INPUT signal. (5) AUDIO INPUT combo jack accepts input signals using XLR, balanced ¼" TRS or unbalanced ¼"TSconnectors. (6) POWER switch turns the unit on and o. (7) AC INPUT accepts power connections from power cables tted with Neutrik powerCON twist-lockingconnectors. (8) ENCODER KNOB toggles between Graphic and Edit modes (when pressed) and changes parameter values (when rotated). (9) EXIT button returns to the top-level DSP screen when pressed. (10) ENTER button saves changes and deactivates Edit mode when pressed. (11) ULTRANET THRU sends out unprocessed digital audio from the ULTRANET IN connector to additional ULTRANET-equipped devices. (12) USB connection enables rmware updates and remote control over parameters via computer. Pleasevisit turbosound.com to download DSP control software for your computer. (13) ULTRANET IN RJ45/Neutrik etherCON jack for connection to additional ULTRANET-equipped devices. (6) (7) (9) (10) (11) (13) (8) (1) (2) (3) (4) (5) (12) Networking capability All TCS-AN powered loudspeakers oer remote control via USB. The USB connection allows the user to congure and monitor all DSP parameters using dedicated software for PC. The DSP rmware can also be updated via the USB connection. Visitturbosound.com for the latest rmware version. TCS-AN speakers also oer proprietary ULTRANET networking capabilities through the ULTRANET IN and ULTRANET THRU connections using CAT5 cables with RJ45 connectors. ULTRANET allows the user to transmit unidirectionally up to 16 independent channels of 24-bit audio throughout the TCS-AN system, aswell as other ULTRANET-equipped devices such as digital mixers and personal monitor systems. Upto7devices can be connected in series on a single ULTRANET cable. MIDAS M32MIDAS DL1614 TCS-AN SERIES Quick Start Guide 15 TCS-AN DSP Menu Structure Fullrange Subwoofer Function PROCESS EQ None None Sets the frequency response to the default setting. Array2 – Sets a corrected frequency response for 2 cabinets arrayed together. Array3 – Sets a corrected frequency response for 3 or more cabinets arrayedtogether. User User Lets you dene your own frequency response setting by entering the corresponding sub-menu. Sub menu Low/ High Shelving Low/ High Shelving Lets you dene a low and high shelving lter. Parametric 1 & 2 Parametric 1 & 2 Lets you dene a parametric bell-type EQ (Frequency, Qual. and Gain). XOVER None – Unit is set for default full-range reproduction. HP 100 Hz LP 100 Hz Preset with 100 Hz, 24 dB/octave lter for crossover between subwoofer and full-range speakers. HP 120 Hz LP 120 Hz Preset with 120 Hz, 24 dB/octave lter for crossover between subwoofer and full-range speakers. User User User crossover sub menu for combination with other full-range or subwoofer speaker systems Sub Menu Freq Freq Select the desired crossover frequency:

• Fullrange Systems: 75 Hz to 400 Hz.

• Subwoofer Systems: 50 Hz to 150Hz. Phase Phase Adjust the absolute phase (0° or 180°). FBQ Auto Auto Automatically sets as many lters as required. Whenever a new feedback frequency is discovered, the rst lter will be released to attenuate the new frequency, and so forth. Single Single Activates the FBQ (feedback detection) functionality, up to 8 feedback lters. Learn Learn Automatic procedure which searches for feedback frequencies and locks settings after all 8 lters have been set. WARNING! Please use ear protection during this procedure. The feedback signal may approach the system's maximum level, which may cause hearing damage! Reset Reset Resets all lters. SETUP (page 1) INPUT Input Input Lets you choose the audio input source. Choose between Local (analogue Input) or ULTRANET (e.g.,P16 monitoring system or M32 audio via ULTRANET). Volume Volume Adjusts the input gain. WithULTRANET digital inputs over a range from + 10 dB to - 30 dB. With analogue input from 0 dB to - ∞ dB. Sensitivity Sensitivity Adjusts input sensitivity for maxium output when using an analogue source +4 dBu for normal opperation, +14dBu for high level input. Fullrange Subwoofer Function POSITION Free – For positioning the speaker in free suspension or ground stacked away from walls. Wall Floor For positioning the speaker on or next to a wall, or on the oor (subwoofer) Ceiling Wall For positioning the speaker near the ceiling and wall, or oor and wall (subwoofer) Corner Corner For positioning the speaker in a corner next to the ceiling (xed install) or in a corner on the oor (subwoofer) Screenshot update DELAY Delay Delay Adjusts the amount of delay (max300msec = 103 m or 338 feet). Unit Unit Selects between msec, metersandfeet. LIMITER Limit Limit Adjust the limiter threshold for the input signal (from OFF up to -30 dB). This threshold adjustment allows you to set a max output power which is below the loudspeaker system’s rated maxoutput. SETUP (page 2) Version Version Displays the installed rmwareversion. LOAD

To save a preset choose the respective preset slot and press ENTER or theencoder. Sub Menu Save Preset Save Preset Name the preset by choosing the characters with the encoder and pressing to conrm each character. When nished, press the ENTER button to save the preset. SETUP Contrast Contrast Adjust LCD panel contrast. The default contrast value is 15. Screen Screen ON: LCD screen saver (default) turns on automatically after approx.2minutes. OFF : LCD turns o automatically after approx. 5 minutes. Sub Menu Lock Lock Lock the device and create a password by choosing the password characters with the encoder and pressing to conrm each character. When nished press the ENTER button. Unlock the device by entering the password or connecting the unit via USB to a PCrunning proprietary remote software. The software does not require apassword. Warning Warning In case of overheating, an alert appears on the LCD screen, and the amplier will shut down until the unit cools16 TCS-AN SERIES Quick Start Guide 17 LCD Graphic Indicators To help the user immediately recognize that a parameter has been selected and changed from the initial default setting, the parameter’s related text on the top-level screen will invert and change to black text on a white background. As an example, the following screenshots show how the text for the EQ function changes when the TCS-AN default EQ setting has been changed: This indicator function occurs only on the main DSP menu level and works for all DSP-related functions, except for the LOAD, SAVE and SETUP sub-sections on the second page of the top-level SETUP menu. Mounting and Fixing The table below summarises the rigging parts or kits required for various applications, and some examples of the possible rigging options are illustrated. TCS-AN series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations. All cabinets can be simply suspended using optional M8 or M10 shoulder eyebolts coupled to the internal rigging points provided. Remove the appropriate countersunk screws and replace them with eyebolts, which must have a thread length of at least 18mm. Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required. Turbosound WB-55 and CB-55 wall and ceiling brackets are optionally available for TCS-AN series cabinets, and these are also compatible with industry standard wall and ceiling brackets which use 60 mm x 60 mm hole spacing. Model Wall Ceiling Downll Array Kit Eyebolts

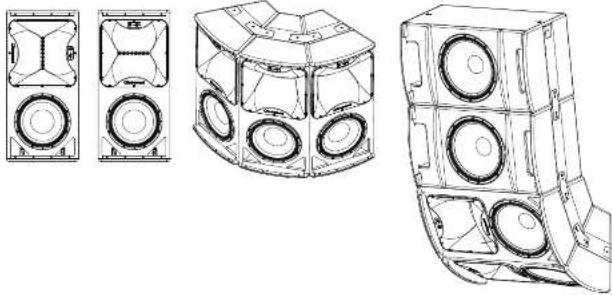

TCS152-FP TCS-FK1 TCS-FK2 EB-10-40 TCS115B TCS115-FP TCS-FK3 EB-10-40 TCS Subwoofers EB-10-40 Some typical examples of the possible rigging options are shown here: TCS-AN Series Flying Components Wall and Ceiling Brackets To install a loudspeaker using Turbosound wall and ceiling brackets, rst separate the brackets into their wall/ceiling plate and speaker plate component parts. Remove the countersunk bolts on the rear panel of the cabinet. Attach the speaker plate to the cabinet with the bolts supplied. Fix the wall/ceiling plate in the venue using appropriate xings (not supplied). Lift the loudspeaker on to the wall plate and re-assemble the bracket parts, adjust the vertical angle and tighten all bolts. Loudspeaker Arrays and Clusters An array of two or more cabinets requires the use of kits of yplates and inter-cabinet couplers, which are xed to the cabinet sides through the M10 rigging points and assembled together in a ‘daisy chain’ fashion to build up the required array. For all loudspeaker arrays consisting of two or more cabinets: The number of inter cabinet coupler kits required = the number of boxes – 1, The number of yplate kits required = the number of boxes. Illustrated here are the components parts available for TCS cabinets: TCS122-FP (WH)Fly Plate Kit for TCS122TCS115-FP (WH)Fly Plate Kit for TCS115BTCS152-FP (WH)Fly Plate Kit for TCS152Contents:Contents: Contents:4 x M10 Bolts4 x M10 Spring Washers4 x M10 Flat Washers2 x Fly Plates4 x M10 Bolts4 x M10 Spring Washers4 x M10 Flat Washers2 x Fly Plates4 x M10 Bolts4 x M10 Spring Washers4 x M10 Flat Washers2 x Fly PlatesTCS-FK3 (WH)Inter-Cabinet Coupler Kit for TCS115BTCS-FK2 (WH)Inter-Cabinet Coupler Kit for TCS122 or TCS152TCS-FK1 (WH)Inter-Cabinet Coupler Kit for TCS122 or TCS1522 x ICCEB-10-40Eyebolt M10 x 40mmContents: 2 x ICCContents:Contents:2 x ICCContents: 1 x Eyebolt18 TCS-AN SERIES Quick Start Guide 19 Suspending with Eyebolts TCS-AN cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel. Remove the appropriate countersunk screws and replace them withshoulder eyebolts, which must have a thread length of at least 18 mm. Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required. IMPORTANT NOTE FOR ALL INSTALLATION METHODS: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualied personnel with the required experience and certication to perform the necessary tasks. Walls, oors or ceilings must be capable of safely and securely supporting the actual load. Themounting accessory used must be safely and securely xed both to the loudspeaker and to the wall, oor or ceiling. When mounting rigging components on walls, oors or ceilings, ensure that all xings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular xing arrangement can be safely employed for a particular load. Cavity plugs or other specialist xings, if required, must be of an appropriate type, and must be tted and used in accordance with the maker’sinstructions. The operation of your speaker cabinet as part of a own system, if installed incorrectly and improperly, canpotentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualied and certied (by local state or national authorities) personnel prior to any installation or ying. Make sure that speaker cabinets are set up and own by qualied and certied personnel only, usingdedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your Dealer before attempting to set up the system. Be sure to observe the local, state and other safety regulations applicable in your country. Music Tribe, including the Music Tribe companies listed on the enclosed “Service Information Sheet”, assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualied personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is own, the area underneath the speaker is free of human trac. Do not y the speaker in areas that can be entered or used by members of the public. Speakers create a magnetic eld, even if not in operation. Therefore, please keep all materials that can be aected by such elds (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres. Rotating the HF horn pattern The high frequency horn in all TCS122 and TCS152 models can be rotated through 90° in order to swap the horizontal and vertical dispersion patterns, particularly useful when assembling clusters or for example to retain the original dispersion when the cabinet is installed in a horizontal orientation.

1. Place the cabinet on its back on a suitable work surface.

2. Remove the 10 posi-drive screws that hold the grille in place and set the grille aside (g 1).

3. Remove and disconnect the bass driver (g 2) to access the compression driver retaining brace, making a note of the bass driver polarity for later reconnection. 4. Reach in through the bass driver cavity and loosen the two wing nuts securing the compression driver retaining brace (g 3). 5. Remove the horn xing screws that secure the horn to the enclosure and lift out the horn and compression driver assembly (g 4). (If required for servicing or replacement, disconnect the cables from the compression driver, making a note of the polarity for later reconnection.)

6. Rotate the horn to achieve the desired coverage pattern (g 5).

7. Re-assemble the cabinet and drivers by reversing steps 1-5.

8. If the compression driver cables have been disconnected, reconnect the cables while observing the correct polarity (white cable to the +ve terminal, black cable to the –ve terminal). 9. Place the horn and compression driver back into the cabinet, making sure that the driver cables pass underneath the compression driver retainer and that the compression driver ts squarely back into the retaining brace.

10. Tighten the wing nuts back onto the compression driver retaining brace (g 3).

11. Replace the horn xing screws and tighten to secure the horn back into the enclosure (g 4).

12. Reconnect the bass driver cables, observing the correct polarity (red cable to the +ve terminal, blue cable to the –ve terminal).

13. Check all components and conrm the horn orientation is correct (g 6).

14. Replace the grille (g 1) and phase check the cabinet before use.

BEFORE AFTER Fig. 1 Fig. 4 Fig. 5 Fig. 6 Fig. 2 Fig. 3Quick Start Guide 85 TCS122/64-AN (-WH) TCS122/94-AN (-WH) TCS122/96-AN (-WH) TCS152/64-AN (-WH) System Frequency response 50 Hz – 18 kHz ±3 dB 45 Hz – 20 kHz -10 dB 50 Hz – 18 kHz ±3 dB 45 Hz – 20 kHz -10 dB 50 Hz – 18 kHz ±3 dB 45 Hz – 20 kHz -10 dB 41 Hz – 18 kHz ±3 dB 35 Hz – 20 kHz -10 dB Nominal dispersion 60° H x 40° V @ -6 dB points, rotatable 90° H x 40° V @ -6 dB points, rotatable 90° H x 60° V @ -6 dB points, rotatable 60° H x 40° V @ -6 dB points, rotatable Maximum SPL 131 dB peak 131 dB peak 131 dB peak 133 dB peak Crossover type Active Active Active Active Transducers 1 x 12" (312 mm) LF Driver 1 x 1.4" (36 mm) HF compression driver 1 x 12" (312 mm) LF Driver 1 x 1.4" (36 mm) HF compression driver 1 x 12" (312 mm) LF Driver 1 x 1.4" (36 mm) HF compression driver 1 x 15" (394 mm) LFDriver 1 x 1.4" (36 mm) HF compression driver Limiter Independent HF, LF, peak and rms Independent HF, LF, peak and rms Independent HF, LF, peak and rms Independent HF, LF, peak and rms Amplier Maximum output power* 2500 W 2500 W 2500 W 2500 W Type Class-D Class-D Class-D Class-D Protection Short circuit, thermal Short circuit, thermal Short circuit, thermal Short circuit, thermal Connectors Input/link 1 x Combo Jack/XLR, 1x XLR 1 x Combo Jack/XLR, 1x XLR 1 x Combo Jack/XLR, 1x XLR 1 x Combo Jack/XLR 1x XLR Sensitivity +4 dBu or +14 dBu software switchable +4 dBu or +14 dBu software switchable +4 dBu or +14 dBu software switchable +4 dBu or +14 dBu software switchable Input impedance 40 k balanced 40 k balanced 40 k balanced 40 k balanced Maximum input level +22 dBu +22 dBu +22 dBu +22 dBu Ultranet input/link 2 x RJ45 2 x RJ45 2 x RJ45 2 x RJ45 Mains Supply Neutrik powerCON 20A Neutrik powerCON 20A Neutrik powerCON 20A Neutrik powerCON 20A Controls DSP Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter User DSP Functions Factory EQ Presets Positioning, Sound mode, FBQ Positioning, Sound mode, FBQ Positioning, Sound mode, FBQ Positioning, Sound mode, FBQ Display LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlit Delay 0 - 300 ms 0 - 300 ms 0 - 300 ms 0 - 300 ms Equalisation High and low shelvingEQ 2 x parametric EQ High and low shelvingEQ 2 x parametric EQ High and low shelvingEQ 2 x parametric EQ High and low shelvingEQ 2 x parametric EQ Limiter Zero attack input limiter Zero attack input limiter Zero attack input limiter Zero attack input limiter Presets 20 total presets, 19 user-denable 20 total presets, 19 user-denable 20 total presets, 19 user-denable 20 total presets, 19 user-denable Crossover High Pass L-R 24 dB/oct High Pass L-R 24 dB/oct High Pass L-R 24 dB/oct High Pass L-R 24 dB/oct Protection Lock-out function for all settings Lock-out function for all settings Lock-out function for all settings Lock-out function for all settings TCS122/64-AN (-WH) TCS122/94-AN (-WH) TCS122/96-AN (-WH) TCS152/64-AN (-WH) Ultranet Digital Network Digital processing A/D conversion 24-bit,44.1/48 kHz sample rate 24-bit,44.1/48 kHz sample rate 24-bit,44.1/48 kHz sample rate 24-bit,44.1/48 kHz sample rate Converter type 24-bit,delta-sigma 24-bit,delta-sigma 24-bit,delta-sigma 24-bit,delta-sigma System Signal 16 channels 16 channels 16 channels 16 channels Latency < 0.9 ms < 0.9 ms < 0.9 ms < 0.9 ms Frequency response 20 Hz to 20 kHz (+0 / -3 dB) 20 Hz to 20 kHz (+0 / -3 dB) 20 Hz to 20 kHz (+0 / -3 dB) 20 Hz to 20 kHz (+0 / -3 dB) Dynamic range typical 92 dB typical 92 dB typical 92 dB typical 92 dB Cabling Cables Shielded CAT5 Shielded CAT5 Shielded CAT5 Shielded CAT5 Cable length max. 246 ft / 75 m recommended max. 246 ft / 75 m recommended max. 246 ft / 75 m recommended max. 246 ft / 75 m recommended Power Supply Power consumption 90 W @

Limiter Independent HF, LF, peak and rms Independent HF, LF, peak and rms Peak and rms Peak and rms Amplier Maximum output power* 2500 W 2500 W 3000 W 6000 W Type Class-D Class-D Class-D Class-D Protection Short circuit, thermal Short circuit, thermal Short circuit, thermal Short circuit, thermal Connectors Input/link 1 x Combo Jack/XLR 1x XLR 1 x Combo Jack/XLR 1x XLR 1 x Combo Jack/XLR 1x XLR 1 x Combo Jack/XLR 1x XLR Sensitivity +4dBu or +14 dBu software switchable +4dBu or +14 dBu software switchable +4dBu or +14 dBu software switchable +4dBu or +14 dBu software switchable Input impedance 40 k balanced 40 k balanced 40 k balanced 40 k balanced Maximum input level +22 dBu +22 dBu +22 dBu +22 dBu Ultranet input/link 2 x RJ45 2 x RJ45 2 x RJ45 2 x RJ45 Mains Supply Neutrik powerCON 20A Neutrik powerCON 20A Neutrik powerCON 20A Neutrik powerCON 20A Controls DSP Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter User DSP Functions Factory EQ Presets Positioning, Sound mode, FBQ Positioning, Sound mode, FBQ Positioning, Sound mode Positioning, Sound mode Display LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlit Delay 0 - 300 ms 0 - 300 ms 0 - 300 ms 0 - 300 ms Equalisation High and low shelvingEQ 2 x parametric EQ High and low shelvingEQ 2 x parametric EQ High and low shelvingEQ 2 x parametric EQ High and low shelvingEQ 2 x parametric EQ Limiter Zero attack input limiter Zero attack input limiter Zero attack input limiter Zero attack input limiter Presets 20 total presets, 19 user-denable 20 total presets, 19 user-denable 20 total presets, 19 user-denable 20 total presets, 19 user-denable Crossover High Pass L-R 24 dB/oct High Pass L-R 24 dB/oct Low Pass L-R 24 dB/oct Low Pass L-R 24 dB/oct Protection Lock-out function for all settings Lock-out function for all settings Lock-out function for all settings Lock-out function for all settings TCS152/94-AN (-WH) TCS152/96-AN (-WH) TCS115B-AN (WH) TCS218B-AN (WH) Ultranet Digital Network Digital processing A/D conversion 24-bit,44.1/48 kHz sample rate 24-bit,44.1/48 kHz sample rate 24-bit,44.1/48k Hz sample rate 24-bit,44.1/48 kHz sample rate Converter type 24-bit,delta-sigma 24-bit,delta-sigma 24-bit,delta-sigma 24-bit,delta-sigma System Signal 16 channels 16 channels 16 channels 16 channels Latency < 0.9 ms < 0.9 ms < 0.9 ms < 0.9 ms Frequency response 20 Hz to 20 kHz (+0 / -3 dB) 20 Hz to 20 kHz (+0 / -3 dB) 20 Hz to 20 kHz (+0 / -3 dB) 20 Hz to 20 kHz (+0 / -3 dB) Dynamic range typical 92 dB typical 92 dB typical 92 dB typical 92 dB Cabling Cables Shielded CAT5 Shielded CAT5 Shielded CAT5 Shielded CAT5 Cable length max. 246 ft / 75 m recommended max. 246 ft / 75 m recommended max. 246 ft / 75 m recommended max. 246 ft / 75 m recommended Power Supply Power consumption 90 W @

") Birchplywood Finish Semi matt black paint (white optional) Semi matt black paint (white optional) Semi matt black paint (white optional) Semi matt black paint (white optional) Grille Powder coated perforated steel Powder coated perforated steel Powder coated perforated steel Powder coated perforated steel Flying hardware M10 x 9, M8 X 8 points M10 x 9, M8 X 8 points M10 x 8 M10 x 8 Accessories TCS152-FP (-WH) Fly plate kit for TCS152 TCS152-FP (-WH) Fly plate kit for TCS152 TCS115-FP (-WH) Fly plate kit for TCS115B TCS-FK1 (-WH) Inter-cabinet coupler kit for TCS122 or TCS152 TCS-FK1 (-WH) Inter-cabinet coupler kit for TCS122 or TCS152 TCS-FK2 (-WH) Inter-cabinet coupler kit for TCS115B with TCS122 or TCS152 TCS-FK2 (-WH) Inter-cabinet coupler kit for TCS115B with TCS122 or TCS152 TCS-FK2 (-WH) Inter-cabinet coupler kit for TCS115B with TCS122 or TCS152 TCS-FK3 (-WH) Inter-cabinet coupler kit for TCS115B

• independent of limiters and driver protection circuits † Only qualied personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.88 TCS-AN SERIES Quick Start Guide 89

1. Register online. Please register your new

Music Tribe equipment right after you purchase it by visiting musictribe.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and eciently. Also, read the terms and conditions of our warranty, if applicable.

2. Malfunction. Should your Music Tribe

Authorized Reseller not be located in your vicinity, you may contact the Music Tribe Authorized Fulller for your country listed under “Support” at musictribe.com. Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at musictribe.com. Alternatively, please submit an online warranty claim at musictribe.com BEFORE returning the product.

3. Power Connections. Before plugging the

unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.

Prima di collegare l'unità a una presa di corrente, assicuratevi di utilizzare la tensione di rete corretta per il modello specico. I fusibili guasti devono essere sostituiti, senza eccezioni, con fusibili dello stesso tipo e valore nominale. Important information Aspectos importantes Informations importantes Weitere wichtige Informationen Outras Informações Importantes Informazioni importanti90 TCS-AN SERIES Quick Start Guide 91 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible Party Name: Music Tribe Commercial NV Inc. Address: 5270 Procyon Street, Las Vegas NV 89118, United States Phone Number: [phone] TCS-AN SERIES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Operation of this equipment in a residential environment could cause

radio interference. Important information: Changes or modications to the equipment not expressly approved by Music Tribe can void the user’s authority to use the equipment. Hereby, MUSIC Tribe declares that this product is in compliance with Directive 2014/35/ EU, Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC. Full text of EU DoC is available at https://community.musictribe.com/ EU Representative: Music Tribe Brands DK A/S Address: Ib Spang Olsens Gade 17, DK - 8200 Aarhus N, Denmark Turbosound TCS-AN SERIES
