Product type	Passive subwoofer
Brand	Turbosound
Model	TVX118B
Category	Loudspeaker / Subwoofer
Approx. dimensions (H x W x D)	600 x 700 x 700 mm
Approx. weight	35 kg
Power supply	Passive (requires external amplifier)
Power handling (program)	1200 W
Nominal impedance	8 Ω
Frequency response	40 Hz - 200 Hz
Transducer	18" (457 mm) loudspeaker
Input connectors	1 x Neutrik speakON
Main functions	Low-frequency reproduction, bass reinforcement
Maintenance and cleaning	Clean with a dry cloth; do not use liquid products
Safety instructions	Do not open the device, use quality cables, avoid moisture
Spare parts and repairability	Contact a qualified professional
General information	Passive subwoofer for sound reinforcement applications
Warranty	See music-group.com/warranty
Disposal	Do not dispose of with household waste, recycle according to WEEE directive

Frequently Asked Questions - TVX118B Turbosound

How to connect the TVX118B to an amplifier?

Use a high-quality speakON cable. Connect the amplifier's connector to the subwoofer's input. Ensure the amplifier is turned off during connection.

What is the impedance of the TVX118B?

The nominal impedance is 8 Ω. Check that your amplifier supports this impedance.

Can I use the TVX118B outdoors?

It is not designed for outdoor use. Avoid exposure to moisture and rain.

How to clean the subwoofer?

Use a dry, lint-free cloth. Never use liquid or abrasive products.

What is the recommended amplifier power?

An amplifier delivering between 600 and 1200 W at 8 Ω is recommended to fully utilize the subwoofer.

Does the TVX118B come with cables?

No, speakON cables are sold separately. Use quality cables to avoid losses.

Can I stack multiple TVX118B?

Yes, the subwoofer can be stacked. Ensure the surface is stable and the enclosures are properly aligned.

What to do in case of distorted sound?

Check the connections, reduce the amplifier volume, and ensure you are not exceeding the power handling. If the problem persists, consult a professional.

How to transport the TVX118B?

Use a hand truck or suitable cart. Move carefully to avoid falls and damage.

Where to find the full manual?

The manual is available for download on notice-facile.com or via the official Turbosound website.

USER MANUAL TVX118B Turbosound

Four-panel black-and-white photo collage showing a crowded cinema lobby, a crowd celebrating with raised fists, a vintage TV studio, and a cheering crowd holding up a smartphone (no visible text or symbols)

Venue/Madrid

TVX/TMS SERIES

TVX122M/TVX152/TVX118B/TMS122M/TMS152/

TMS153/TMS118B/TMS218B

Full Range Loudspeakers and Subwoofers for

Portable PA and Installation Applications

Quickstart Guide

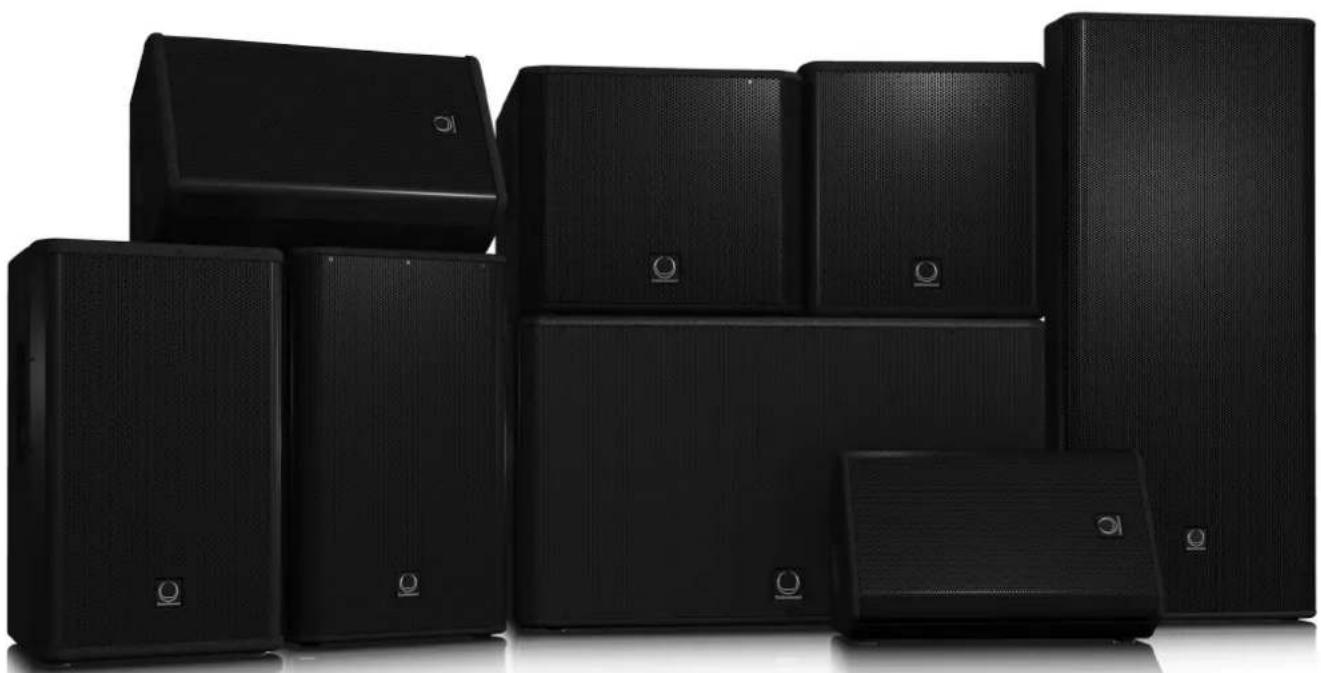

Black outdoor audio/video equipment with multiple speakers and a matching case (no visible text or labels)

Terminals marked with this symbol carry electrical current of suffi client magnitude to constitute risk of electric shock. Use only high quality commercially available speaker cables with plugs pre-installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover for the rear section. No user serviceable parts inside. Refer servicing to qualified personnel.

Caution To reduce the risk of fi re or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dropping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions, Repairs have to be performed by qualified service personnel.

1. Read these instructions.
2. Keep these Instructions.
3. Head all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,

moving the cart/asperatus combination to avoid injury from tip over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

2. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.

3. Where the MAIN5 plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law.

This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment IEEE. The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the stiff client use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city off co, or your household waste collection service.

LEGAL DISCLAIMER

MUSIC Group accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, RUGERA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Warranty, please see complete details online at music group.com/warranty.

BESCHRÄNKTE GARANTIE

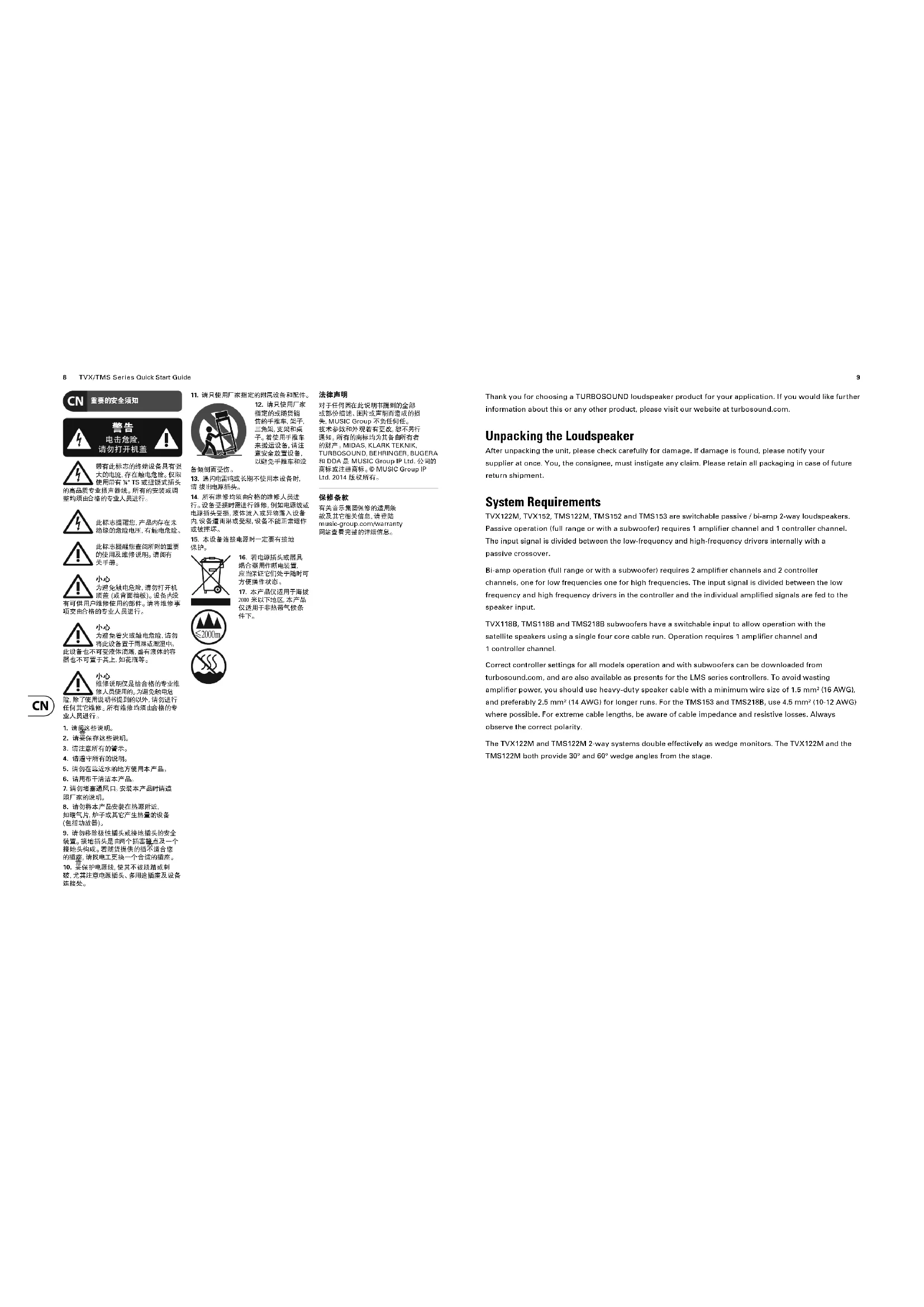

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other product, please visit our website at turbosound.com.

Unpacking the Loudspeaker

After unpacking the unit, please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future return shipment.

System Requirements

TVX122M, TVX152, TMS122M, TMS152 and TMS153 are switchable passive / bi-amp 2-way loudspeakers. Passive operation (full range or with a subwoofer) requires 1 amplifier channel and 1 controller channel. The input signal is divided between the low-frequency and high-frequency drivers internally with a passive crossover.

Bi-amp operation (full range or with a subwoofer) requires 2 amplifier channels and 2 controller channels, one for low frequencies one for high frequencies. The input signal is divided between the low frequency and high frequency drivers in the controller and the individual amplified signals are fed to the speaker input.

TVX118B, TMS118B and TMS218B subwoofers have a switchable input to allow operation with the satellite speakers using a single four core cable run. Operation requires 1 amplifier channel and 1 controller channel.

Correct controller settings for all models operation and with subwoofers can be downloaded from turbosound.com, and are also available as presents for the LMS series controllers. To avoid wasting amplifier power, you should use heavy-duty speaker cable with a minimum wire size of 1.5 mm² (16 AWG), and preferably 2.5 mm² (14 AWG) for longer runs. For the TMS153 and TMS218B, use 4.5 mm² (10-12 AWG) where possible. For extreme cable lengths, be aware of cable impedance and resistive losses. Always observe the correct polarity.

The TVX122M and TMS122M 2-way systems double effectively as wedge monitors. The TVX122M and the TMS122M both provide 30° and 60° wedge angles from the stage.

EN

Amplifi er Considerations

The TVX and TMS series loudspeakers are optimized for use with the TURBOSOUND T series amplifiers with the LMS series controllers. A full range of DSP settings to suit any configuration are provided for download on the TURBOSOUND website. The use of third party amplification and processing is only advised using the matrix of manual settings as well as the limiter calculator provided on the TURBOSOUND website. The TVX and TMS series loudspeaker enclosures should be driven by high quality power amplifiers designed for true professional use. Power amplifiers should be capable of delivering long term broadband power equal to half the loudspeaker's peak power rating at its stated nominal impedance. The use of underpowered amplifiers must be avoided as heavily clipped signals can cause permanent loudspeaker damage. Limiters, crossovers and equalisation points must be set in accordance with the settings provided on the TURBOSOUND website. This will ensure the optimum sound quality and long-term reliability as well as protection from damage.

Neutrik speakON* NL4 locking input connector(s) are provided, allowing options for input and link, passive, and bi-amp operation.

Model TVX122M TVX182 TVX1180
Mode Passive Swing LF Bi-amp HF Passive Swing LF Bi-amp HF Sub
Impedance		BΩ	BΩ	BΩ	BΩ	BΩ	BΩ
Minimum Amplifier	Continuous RMS	500 W	500 W	500 W	500 W	500 W	400 W
Power	Peak	2000 W	2000 W	2000 W	2000 W	2000 W	2400 W

Model		TMS112M			TMS152
Mode		Passive Diamp LT Di amp		Hi Passive Di amp LT Di amp		Hi
Impedance		B (i)	B (i)	B (i)	B (i)	B (i)	B (i)
MinimumAmplifierPower	ContinuousHMIS	800 W	300 W	75 W	900 W	800 W	75 W
	Peak	3200 W	3200 W	750 W	3200 W	3200 W	750 W

Model		TMS 153			TMS118B	TMS218B
Mode		Passive	Bi amp LF	Bi amp HF	Sub	Sub
Impedance		4 Ω	4 Ω	6 Ω	8 Ω	4 Ω
Minimum Amplifier Power	Continuous RMS	1200 W	1200 W	75 W	800 W	1600 W
	Peak	4800 W	4800 W	750 W	3200 W	6400 W

Connections

Models: TVX122M, TVX152, TMS122M, TMS152, TMS153

Mode	Connector	Internal Schematic
Passive	speakON® NL4
Bi-Amp	speakON® NL4

Models: TVX118B, TMS118B, TMS218B

Mode	Back Panel	Connector	Internal Schematic
NormalOperation1+/1-		speakON® NL4[188]
4-WireSingle CableRunOperation2+/2-		speakON® NL4

Mounting and Fixing

TVX and TMS full-range series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations.

Suspending with Eyebolts

TVX and TMS cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel.

Remove the appropriate countersunk screws and replace them with shoulder eyebolts, which must have a thread length of at least 18 mm. Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required.

IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualified personnel with the required experience and certification to perform the necessary tasks.

Walls, floors or ceilings must be capable of safely and securely supporting the actual load. The mounting accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling.

When mounting rigging components on walls, floors or ceilings, ensure that all fixings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fixing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fixings, if required, must be of an appropriate type, and must be fitted and used in accordance with the maker's instructions.

The operation of your speaker cabinet as part of a flown system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualified and certified (by local state or national authorities) personnel prior to any installation or II ying.

Make sure that speaker cabinets are set up and flown by qualified and certified personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your dealer before attempting to set up the system.

Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed "Service Information Shoot", assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualified personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is flown, the area underneath the speaker is free of human traffic. Do not fly the speaker in areas that can be entered or used by members of the public.

Speakers create a magnetic field, even if not in operation. Therefore, please keep all materials that can be affected by such fields (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres.

14 TVX/TMS Series Quick Start Guide

EN Technical Specifications

TVX122M TVX152 TMS122M TMS152 TMS153
System
Frequency response	85 Hr - 20 kHz +3 dB55 Hr - 20 kHz - 10 dB	80 Hr - 20 dBr +3 dB50 Hr - 20 dBr - 10 dB	85 Hr - 18 dBr -3 dB50 Hr - 20 dBr - 10 dB	55 Hz - 20 kHz -3 dB45 Hz - 20 kHz - 10 dB	50 Hz - 20 kHz +3 dB37 Hz - 20 kHz - 10 dB
Nominal dispersion	70° H x 70° V @-6 dB points	70° H x 70° V @-6 dB points	90° H x 50° V @-6 dB points	70° H x 50° V @-6 dB points	75° H x 50° V @-6 dB points
Directivity factor (IQ)	9.4 3.4 10.4 12.8 12.8
Directivity index (DI)	9.7 8.7 10.2 11.1 11.1
Power handling (IEC)
Passive	500 W continuous,2,000 W peakLF: 500 Wcontinuous,2,000 W peakHF: 40 WWincontinuous,160 W peak	500 W continuous,2,000 W peakLF: 500 Wcontinuous,2,000 W peakHF: 40 WWincontinuous,160 W peak	800 W continuous,3,200 W peakLF: 800 Wcontinuous,3,200 W peakHF: 75 Wcontinuous,300 W peak	800 W continuous,3,200 W peakLF: 800 Wcontinuous,3,200 W peakHF: 75 Wcontinuous,300 W peak	1,200 W continuous,4,800 W peakLF: 1,200 Wcontinuous,4,800 W peakHF: 75 WWincontinuous,300 W peak
Sensitivity	97 dB (1 W @ 1 m): 97 dB (1 W @ 1 m): 97 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1 W @ 1 m): 99 dB (1W)
Maximum SPL
Passive	124 dB continuous,130 dB peakLF: 124 dBcontinuous,130 dB peakHF: 122 dBcontinuous,128 dB peak	124 dB continuous,130 dB peakLF: 124 dBcontinuous,130 dB peakHF: 122 dBcontinuous,128 dB peak	125 dB continuous,131 dB peakLF: 125 dBcontinuous,131 dB peakHF: 128 dBcontinuous,134 dB peak	125 dB continuous,132 dB peakLF: 126 dBcontinuous,132 dB peakHF: 128 dBcontinuous,134 dB peak	130 dB continuous,136 dB peakLF: 130 dBcontinuous,136 dB peakHF: 128 dBcontinuous,134 dB peak
Impadance
Passive	8 Ω	8 Ω	8 Ω	8 Ω	4 Ω
BIamp	LF: 8 ΩHF: 6 Ω	LF: 8 ΩHF: 6 Ω	LF: 8 ΩHF: 6 Ω	LF: 8 ΩHF: 6 Ω	LF: 4 ΩHF: 8 Ω
Crossover type	Passive / BIamp,switchable	Passive / BIamp,switchable	Passive / BIamp,switchable	Passive / BIamp,switchable	Passive / BIamp,switchable
Components	1 x 12" (136 mm)LF driver1 x 1" (25 mm) HFcompression driver	1 x 15" (134 mm)LF driver1 x 1" (25 mm) HFcompression driver	1 x 12" (136 mm)LF driver1 x 1.4" (36 mm) HFcompression driver	1 x 15" (394 mm)LF driver1 x 1.4" (36 mm) HFcompression driver	2 x 15" (394 mm)LF driver1 x 1.4" (36 mm) HFcompression driver
Enclosure
Connectors	2 x NeutrikspeakON* NL4	2 x NeutrikspeakON* NL4	2 x NeutrikspeakON* NL4	2 x NeutrikspeakON* NL4	2 x NeutrikspeakON* NL4
Wiring
Passive	Pins 1+/- 1- Input,Pins 2+/- 2- link	Pins 1+/- 1- Input,pins 2+/- 2- link	Pins 1+/- 1- Input,pins 2+/- 2- link	Pins 1+/- 1- Input,pins 2+/- 2- link	Pins 1+/- 1- Input,pins 2+/- 2- link
BIamp	Pins 1+/- 1-LF,Pins 2+/- 2-HF	Pins 1+/- 1-LF,pins 2+/- 2-HF	Pins 1+/- 1-LF,pins 2+/- 2-HF	Pins 1+/- 1-LF,pins 2+/- 2-HF	Pins 1+/- 1-LF,pins 2+/- 2-HF
Dimensions (HWD)	634 x 381 x 370 mm(25.0 x 15.0 x 14.6")	701 x 432 x 470 mm(27.6 x 17.0 x 18.5")	566 x 349 x 283 mm(22.3 x 13.7 x 11.1")	716 x 432 x 406 mm(28.2 x 17.0 x 16.0")	1219 x 533 x 508mm(48.8 x 21.8 x 20.0")
Net weight	21.1 kg (46.5 lbs): 26.4 kg (58.1 lbs): 18.2 kg (40.0 lbs): 27.7 kg (61.0 lbs): 48.9 kg (103.5 lbs):
Construction	15 mm (4/4" birchplywood	15 mm (4/4" birchplywood	15 mm (4/4" birchplywood	15 mm (4/4" birchplywood	15 mm (4/4" birchplywood
Finish	Semi matt blackpaint	Semi matt blackpaint	Semi matt blackpaint	Semi matt blackpaint	Semi matt blackpaint
Grille	Powder-coatedperforated steel	Powder-coatedperforated steel	Powder-coatedperforated steel	Powder-coatedperforated steel	Powder-coatedperforated steel
Flying hardware	M10 x 12 M10 x 12 M10 x 2 M10 x 12

15

	TVX118B	TMS118B	TMS218B
System
Frequency response	40 Hz - 200 Hz +3 dB32 Hz - 200 Hz - 10 dB	38 Hz - 200 Hz +3 dB32 Hz - 200 Hz - 10 dB	33 Hz - 200 Hz +3 dB27 Hz - 200 Hz - 10 dB
Nominal dispersion	Half space	Half space	Half space
Power handling (IECI)	600 W continuous, 2,400 W peak	800 W continuous, 3,200 W peak	1,600 W continuous, 6,400 W peak
Sensitivity	97 dB	97 dB	100 dB
Maximum SPL	125 dB continuous, 131 dB peak	126 dB continuous, 132 dB peak	132 dB continuous, 138 dB peak
Impedance	4 Ω	8 Ω	4 Ω
Components	1 x 18" 1460 mm LF driver	1 x 18" 1460 mm LF driver	2 x 18" 1460 mm LF drivers
Encluence
Connectors	2 x Neutrik speakON® NL4	2 x Neutrik speakON® NL4	2 x Neutrik speakON® NL4
Wiring
Switch position 1x1/1-Switch position 2x2-	Pins 1+ / 1-input, pins 2+ / 2-linkPins 1+ / 1-link, pins 2+ / 2-Input	Pins 1+ / 1-input, pins 2+ / 2-linkPins 1+ / 1-link, pins 2+ / 2-Input	Pins 1+ / 1-input, pins 2+ / 2-linkPins 1+ / 1-link, pins 2+ / 2-Input
Dimensions (HWD)	553 x 533 x 700 mm(21.8 x 21.0 x 27.6")	513 x 597 x 750 mm(120.2 x 235.5 x 29.5")	1067 x 602 x 938 mm(142.0 x 23.7 x 33.0")
Net weight	34.8 kg (76.8 lbs)	39.8 kg (87.8 lbs)	82.3 kg (181.4 lbs)
Construction	18 mm (1/2") birch plywood	18 mm (1/2") birch plywood	18 mm (1/2") birch plywood
Finish	Semi-mast black paint Semi-mast black paint	Semi-matt black paint
Grille	Powder-coated perforated steel	Powder-coated perforated steel	Powder-coated perforated steel
Flying hardware	—	—	—
Accessories
		TPOLE80-20, 60 cm pole witha 20 mm threadTPOLE30-20, 90 cm pole witha 20 mm threadTPOLE120-20, 120 cm pole witha 20 mm thread
