Product type	Air fryer with grill function
Brand	TEFAL
Model	Easy Fry & Grill EY705D
Power supply	220-240 V, 50/60 Hz (estimated)
Basket capacity	Up to 1200 g of fries
Temperature range	80 to 200 °C / 180 to 400 °F
Timer	0 to 60 minutes
Automatic cooking modes	Fries, pizza, chops, fish, shrimp, grill, cake, chicken
Features	Preheating, manual temperature/time setting, half-time alarm, digital touch screen
Maintenance and cleaning	Clean with non-abrasive sponge and detergent; parts not dishwasher safe; do not immerse
Safety	Automatic shut-off, insulated handle, hot surface, polarized plug
Spare parts and repairability	Contact T-Fal after-sales service or an approved center; see www.t-fal.com
Included accessories	Basket, removable grill
General information	Household use only; do not use with external timer; max altitude 4000 m

Frequently Asked Questions - Easy Fry & Grill EY705D TEFAL

How to preheat the appliance?

After plugging in the appliance, press the blinking start button. The default temperature is 370°F (190°C). You can adjust it using the ▲ and ▼ buttons. The appliance emits a beep when the temperature is reached.

Can I use oil in the basket?

No, the appliance works with hot air. Never fill the basket with oil or frying fat. For homemade fries, add a tablespoon of oil to the potatoes before cooking.

How to clean the basket and grill?

Let the appliance cool down. Clean the basket and grill with hot water and dish soap using a non-abrasive sponge. These parts are not dishwasher safe. Do not use abrasive products or metal sponges.

What automatic cooking modes are available?

The appliance offers 8 automatic modes: Fries, Pizza, Chops, Fish, Shrimp, Grill, Cake, Chicken. You can also manually set the temperature and time.

How to make homemade fries with this appliance?

Peel and cut the potatoes into sticks. Soak them for 30 minutes in water, then dry them. Mix with 1 tablespoon of olive oil, remove excess. Cook according to the table (e.g., 1000g at 180°C for 23-25 min). Shake halfway through cooking.

What is the maximum quantity I can put in the basket?

Do not exceed the quantity indicated in the settings table (e.g., 1200 g of fries). Never fill beyond the MAX mark to ensure even cooking.

How to use the grill function?

Place the grill in the basket (do not use a grill for fries). Select the Grill mode or manually set to 200°C for 13 min preheat then 3 min cooking for meat. Turn halfway through.

What to do if the appliance does not work?

Check the outlet and cord. Refer to the Troubleshooting section at www.t-fal.com or contact T-Fal customer service in your country. Do not attempt to repair yourself.

Where to find suitable recipes?

Recipes are available on the website www.t-fal.com. Follow the quantities and cooking times indicated to avoid damaging the appliance.

Can I order spare parts?

Use only accessories and spare parts designed for this appliance. Contact T-Fal after-sales service or an approved center. See the worldwide warranty booklet for contact details.

USER MANUAL Easy Fry & Grill EY705D TEFAL

Black and silver air fryer with digital display showing 400°C, no visible text or symbols on the device itself.

EASY FRY™ & GRILL XXL

www.t-fal.com

www.t-fal.ca

www.t-falusa.com

www.t-fal.com.mx

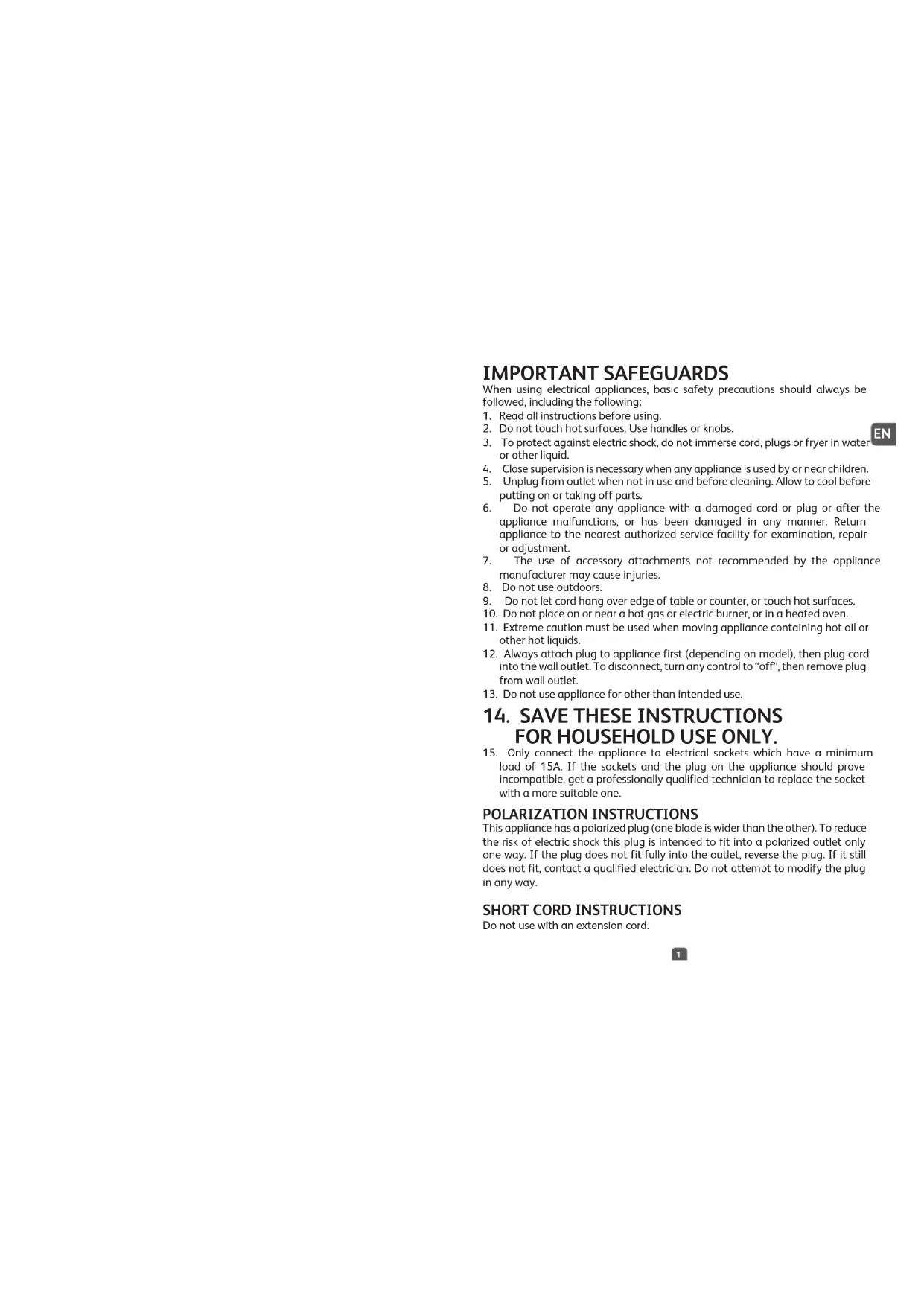

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs or fryer in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first (depending on model), then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
13. Do not use appliance for other than intended use.

14. SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY.

1. Only connect the appliance to electrical sockets which have a minimum load of 15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualified technician to replace the socket with a more suitable one.

POLARIZATION INSTRUCTIONS

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

Do not use with an extension cord.

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

SAFETY INSTRUCTION

• This appliance is intended to be used in household only. It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• This appliance is not intended to be operated by means of an external timer or a separate remotecontrol system.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
  • The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance.
• Clean removable parts with a non abrasive sponge and dishwashing liquid. Do not clean them in a dishwasher.
• Clean the inside and the outside of the appliance with a damp sponge or cloth. Please refer to the «Cleaning» section of the instructions for use.
• The appliance can be used up to an altitude of 4000 m.

Do

• Read and follow the instructions for use. Keep them safe.
• Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on model).
• Check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance (alternative current).
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Centre.
• Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.
  • Always unplug your appliance: after use, to move it, or to clean it.
• In the event of fire, unplug the appliance and smother the flames using a

damp tea towel.

- To avoid damaging your appliance, please ensure that you follow recipes in the instructions and at www.t-fal.com; make sure that you use the right amount of ingredients.

Do not

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Centre.
• Do not use an extension lead. If you nevertheless decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.
• Do not let the power cord dangle.
• Do not unplug the appliance by pulling on the power cord.
• Never move the appliance when it still contains hot food.
• Never operate your appliance when empty.
• Do not switch on the appliance near to flammable materials (blinds, curtains...). or close to an external heat source (gas stove, hot plate etc.).
• Do not store any inflamamable products close to or underneath the furniture unit where the appliance is located.
• Never take the appliance apart yourself
• Do not immerse the product in water.
• Do not use any powerful cleaning products (notably soda based strippers), nor brillo pads, nor scourers.
• Do not store your appliance outside. Store it in a dry and well ventilated area.

Advice/information

• When using the product for the first time, it may release a non-toxic odour. This will not affect use and will disappear rapidly.
• For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).
• This appliance is designed for domestic use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.
• For your safety, only use the accessories and spare parts designed for your appliance

Environnement

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

A B C D E 888°

4

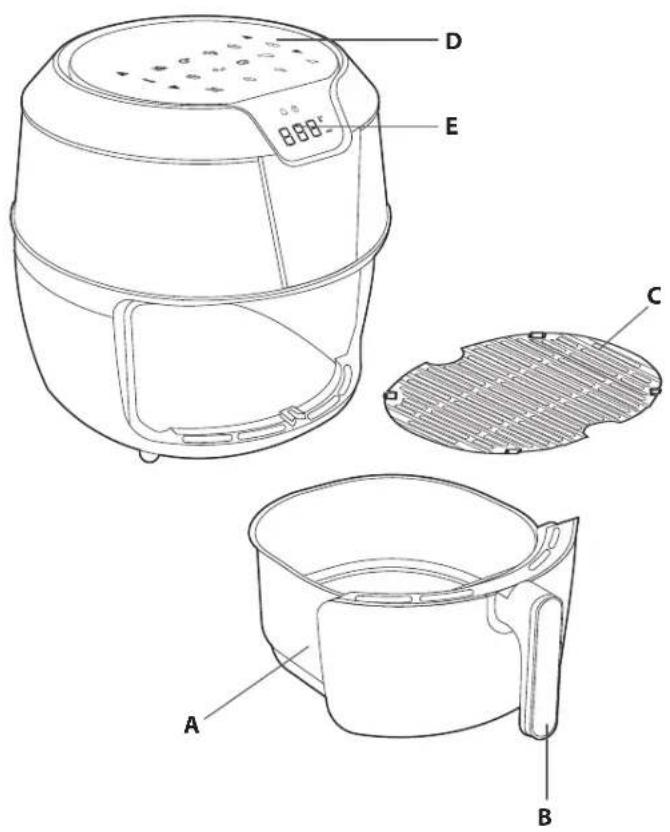

DESCRIPTION

A. Bowl

B. Bowl handle

C. Grill plate

D. Digital touchscreen panel

E. Time/temperature display

AUTOMATIC COOKING MODES

1. Fries

2. Cutlet

3. Shrimp

4. Cake

5. Pizza

6. Fish

7. Grill

8. Roast

BEFORE FIRST USE

1. Remove all packaging material.

2. Remove any stickers or labels from the appliance.

3. Thoroughly clean the bowl and the removable grill grid with hot water, some washing-up liquid and a non-abrasive sponge.

Warning: the bowl and the grid are not dishwasher safe.

1. Wipe the inside and outside of the appliance with a damp cloth. The appliance works by producing hot air. Do not fill the bowl (A) with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a flat, stable, heat-resistant work surface away from water splashes.

2. Do not fill the bowl with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

USING THE APPLIANCE

Easy Fry can cook a large range of recipes. Cooking times for the main foods are given in the section 'Cooking Guide'. Online recipes at www.t-fal.com help you get to know the appliance.

1. Connect the power supply cord to an electrical socket.

2. Start the preheating phase if you wish. To do this, press the Start button that begins flashing as soon as the appliance is plugged in. The temperature displayed on the first use is 370°F.

- Adjust to the desired temperature with the ▲ and ▼ buttons on the digital screen.

- Press the Start button again to start preheating.

• The appliance will beep when the temperature has been reached.

• The preheating phase is now completed.

1. Place the food in the bowl.

5

Note: Never fill the bowl beyond the MAX level mark or exceed the maximum amount indicated in the table (see into section 'Cooking Guide'), as this could affect the quality of the end result.

1. Slide the bowl back into the appliance.

Caution: Do not touch the bowl during use and for some time after use, as it gets very hot. Only hold the bowl by the handle.

1. To begin cooking, you can select between the automatic cooking mode and the manual settings.

a. If choosing manual settings:

- Adjust the temperature ⏻ with the ▲ and ▼ buttons on the digital screen. The thermostat varies from 80-200°C / 180-400°F.

- Then set the desired cooking time by pressing the ⏻ button and adjusting the time with the ▲ and ▼ buttons. The timer can be set for between 0 and 60 minutes.

- Press the Start button to begin cooking with the selected temperature and time settings. Cooking starts. The selected temperature and remaining cooking time will alternate on the screen display.

b. If choosing automatic cooking mode:

- Press 📊 button to display the cooking mode.

- Then press 📋 button on the screen to select the desired cooking mode (these modes are described in detail in the "Cooking guide" section).

- Confirm the cooking mode by pressing the Start button. This will launch the cooking process.

- Cooking starts. The selected temperature and remaining cooking time will alternate on the on-screen display.

1. Excess oil from the food is collected in the bottom of the bowl.

2. Some foods require shaking halfway through the cooking time (see section 'Cooking Guide'). You can use 📄 to set an alert every 5, 10 or 15 minutes. To shake the food, pull the bowl out of the appliance by the handle and shake it. Then slide the bowl back into the appliance and press the Start button 📄 again to restart cooking.

3. When you hear the timer sound, the cooking time set has finished. Pull the bowl out of the appliance and place it on a heat-resistant surface.

4. Check if the food is ready.

If the food is not ready yet, simply slide the bowl back into the appliance and set the timer for a few extra minutes.

1. When the food is cooked, take out the bowl. To remove food, use a pair of tongs to lift the food out of the bowl.

Caution: The bowl should never be turn up side down with the grid.

After hot air frying, the bowl, the grid and the food are very hot. Depending on the type of food cooked in the appliance, be careful as steam may escape from the bowl.

1. When a batch of food is ready, the appliance is instantly ready for preparing another batch of food. Caution: Never cook French fries with the grid. The grill grid is only to be used to cook meat.

COOKING GUIDE

The table below helps you to select the basic settings for the food you want to prepare. Note: The cooking times below are only a guide and may vary according to the variety and batch of potatoes used. For other foods the size, shape and brand may affect results. Therefore, you may need to adjust the cooking time slightly.

	Quantity	Approx Time (min)	Temperature (°C /°F)	Cooking mode	Shake*	Extra information
Potatoes & fries
Frozen chips (10 mm x 10 mm standard thickness)	1000g1200g	23-25 min28-30 min	180°C / 350°F		x3	Use the bowl without the grill plate inside
Homemade French Fries (8 x 8 mm)	1000g1200g	23-25 min28-30 min	180°C / 350°F		x3	Use the bowl without the grill plate inside Add 1 tbsp of oil
Frozen potato wedges	1000g1200g	17-21 min21-25 min	200°C / 400°F		x3	Use the bowl without the grill plate inside Add 1 tbsp of oil
Meat & Poultry
Frozen steak 5 pcs	15-17 min		180°C / 350°F
Frozen meatballs 600 g	11-13 min		180°C / 350°F
Chicken breast fillets (boneless)	5 pcs 20-22 min		180°C / 350°F
Chicken (whole)	1600 g 60 min		200°C / 400°F			Use the bowl without the grill plate inside
Fish
Salmon fillet 4 pcs	14-17 min		140°C / 300°F
Shrimps 12 pcs	4 min		170°C / 350°F
Snacks
Frozen chicken nuggets	1500 g 15-17 min		200°C / 400°F		Yes	Use the bowl without the grill plate inside
Frozen chicken wings	1200 g 15-17 min		200°C / 400°F		Yes
Frozen cheese sticks	500 g 13-15 min		180°C / 350°F
Frozen onion rings	500 g 9-11 min		200°C / 400°F		Yes
Pizza	150-300 g	7-10 min	190°C / 375°F
Grill
			200°C / 400°F
Meat 250-300 g		Pereeking: 13 min Cooking: 3 min	200°C / 400°F			You can odd oil, aromatic herbs and salt for better taste. At mid-cooking you can return the food.
Chicken	250-300 g	Pereeking: 13 min Cooking: 7 min	200°C / 400°F			You can odd oil, aromatic herbs and salt for better taste. At mid-cooking you can return the food.
Baking
Muffins	8 pcs 18-22 min		180°C / 350°F			Use a baking tin/oven dish**
Chocolate cakes	8 pcs 9-11 min		160°C / 325°F

* Shake halfway through cooking.

IMPORTANT: To avoid damaging your appliance, never exceed the maximum quantities of ingredients and liquids indicated in the instruction manual and in the recipes.

**place the cake tin/oven dish in the bowl.

When you use mixtures that rise (such as with cake, quiche or muffins) the oven dish should not be filled more than halfway.

Visit www.t-fal.com for online recipes.

TIPS

• Smaller foods usually require a slightly shorter cooking time than larger size foods.
• A larger amount of food only requires a slightly longer cooking time, a smaller amount of food only requires a slightly shorter cooking time.
• Shaking smaller size foods halfway through the cooking time improves the end result and can help prevent uneven cooking.
• Add some oil to fresh potatoes for a crispy result. After adding a spoon of oil, fry the potatoes within a few minutes.
• Do not cook extremely greasy foods in the appliance.
  • Snacks that can be cooked in an oven can also be cooked in the appliance.
• The optimal recommended quantity for cooking fries is 1000 grams.
• Use ready made puff and shortcrust pastry to make filled snacks quickly and easily.
• Place an oven dish in the appliance's bowl if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients. You can use an oven dish in silicon, stainless steel, aluminium, terracotta.
• You can also use the appliance to reheat food. To reheat food, set the temperature to 160^ C/320°F for up to 10 minutes.

MAKING HOME-MADE CHIPS

For the best results, we advise to use frozen chips. If you want to make home-made chips, follow the steps below.

1. Choose a variety of potato recommended for making chips. Peel the potatoes and cut them into equal thickness chips.
2. Soak the potato chips in a bowl of cold water for at least 30 minutes, drain them and dry them with a clean, highly absorbent tea towel. Then pat with paper kitchen towel. The chips must be thoroughly dry before cooking.
3. Pour 1 tablespoon of oil (vegetable, sunflower or olive) in a dry bowl, put the chips on top and mix until they are coated with oil.
4. Remove the chips from the bowl with your fingers or a kitchen utensil so that any excess oil stays behind in the bowl. Place the chips in the bowl.
   Note: Do not tip the container of oil coated chips directly into the bowl in one go, otherwise excess oil will end up at the bottom of the bowl.
5. Fry the chips according to the instructions in the section Cooking guide.

CLEANING

Clean the appliance after every use.

The bowl and the grid have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the nonstick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down. Note: Remove the bowl to let the appliance cool down more quickly.

2. Wipe the outside of the appliance with a damp cloth.

3. Clean the bowl and grid with hot water, some washing-up liquid and a non-abrasive sponge. You can use a degreasing liquid to remove any remaining dirt.

Warning: the bowl and the grid are not dishwasher safe.

Tip: If dirt is stuck at the bottom of the bowl and the grid, fill them with hot water and some washing-up liquid. Let the bowl and the grid soak for approximately 10 minutes. Then rinse clean and dry.

1. Wipe inside of the appliance with hot water and a damp cloth.
2. Clean the heating element with a dry, cleaning brush to remove any food residues.
3. Do not immerse the appliance in water or any other liquid.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit the T-fal website at www.t-fal.com or contact the T-fal Consumer Care Centre in your country. You can find the phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local T-fal dealer.

TROUBLESHOOTING

If you encounter problems with the appliance, visit www.t-fal.com for a list of frequently asked questions or contact the Consumer Care Centre in your country.

8

9

PRÉCAUTIONS IMPORTANTES

CONSIGNES RELATIVES AU CORDON COURT

A B C D E 888

26

DESCRIPCIÓN

A. Sartén

B. Asa de la sartén
