USER MANUAL KD-R881 BT, KD-R881BT, KD-X341 BT, KD-X341BT JVC

KD-R881BT / KD-R781BT

CD RECEIVER

INSTRUCTION MANUAL

CD

jionnnn

JVCKENWOOD Corporation

CONTENTS

BEFORE USE 2

BASICS 3

GETTING STARTED 4

1 Cancel the demonstration
2 Set the clock and date
3 Set the basic settings

RADIO 5

CD/USB/iPod/Android 7

Pandora

(Applicable for Australia or

New Zealand models only) 9

BLUETOOTH 10

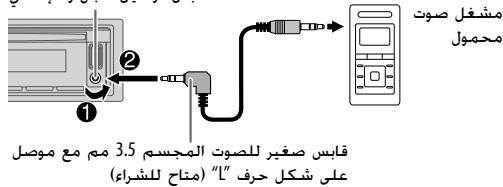

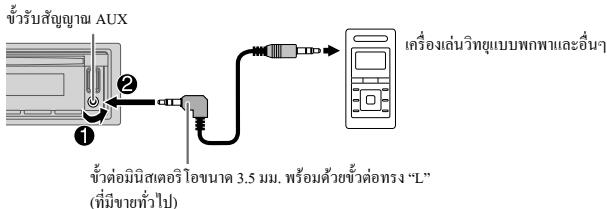

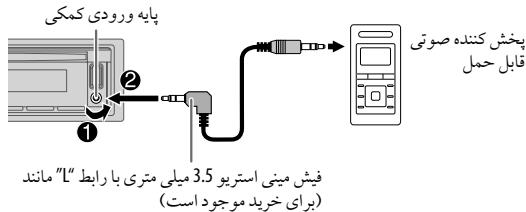

AUX 17

AUDIO SETTINGS 17

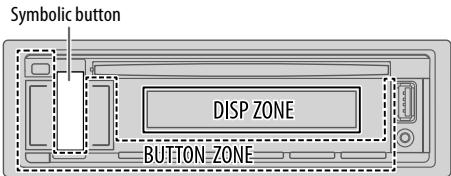

DISPLAY SETTINGS 23

REFERENCES 24

Maintenance

More information

TROUBLESHOOTING 26

SPECIFICATIONS 28

INSTALLATION /

CONNECTION 29

BEFORE USE

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

WARNING

• Do not operate any function that takes your attention away from safe driving.
• Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product contains a coin/bottom cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KD-R881BT.
• English indications are used for the purpose of explanation. You can select the display language from the menu. ( 5)
• [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page.

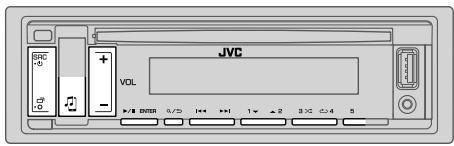

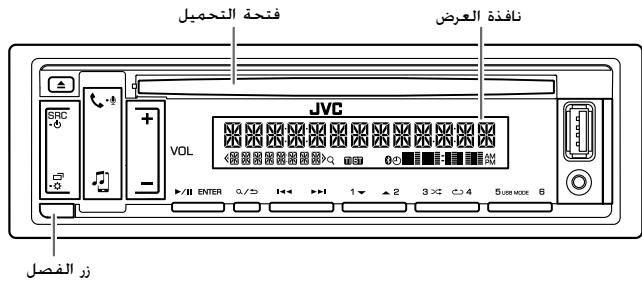

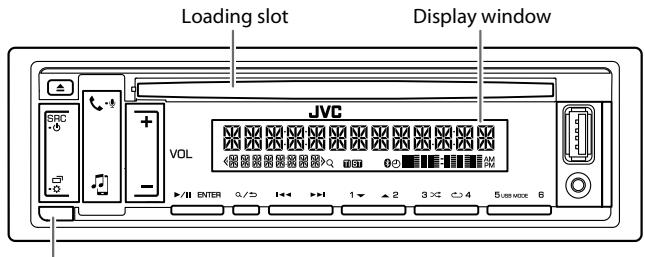

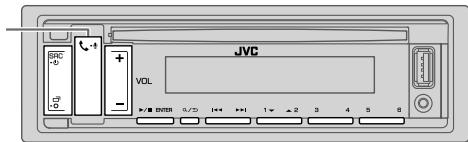

Faceplate

Detach button

Attach

Detach

How to reset

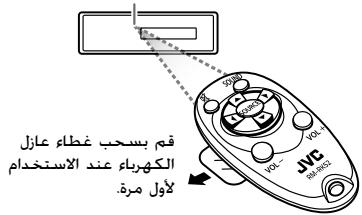

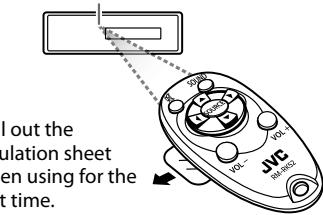

Remote control (RM-RK52)

Remote sensor (Do not expose to bright sunlight.)

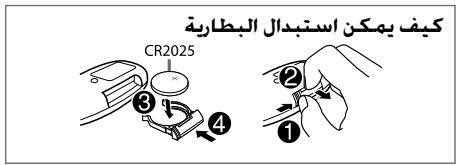

How to replace the battery

To

Turn on the power

Adjust the volume

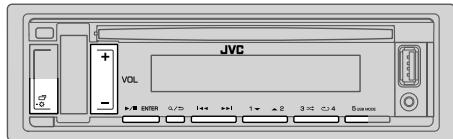

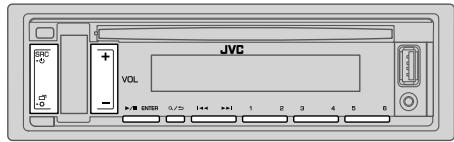

On the faceplate

Press SRC-。

• Press and hold to turn off the power.

Press VOL+/-.
- Press and hold VOL + to continuously increase the volume to 15.

Press▶/I ENTER to mute the sound or pause playback.

• Press again to cancel.

Press SRC- repeatedly.
- Press SRC·, then press VOL+/within 2 seconds.

Select a source

Change the display information

Press repeatedly. ( 25)

On the remote control

(Not available)

Press VOL + or VOL -

• Press and hold VOL + to continuously increase the volume to 15.

Press to mute the sound or pause playback.
- Press again to cancel.

Press SOURCE repeatedly.

(Not available)

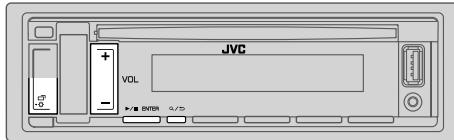

Cancel the demonstration

When you turn on the power (or [FACTORY RESET] is set to [YES]), the display shows: "CANCEL DEMO" "PRESS ENTER"

1 Press▶/I ENTER.
[YES] is selected for the initial setup.
2 Press IENTER again.
"DEMO OFF" appears.

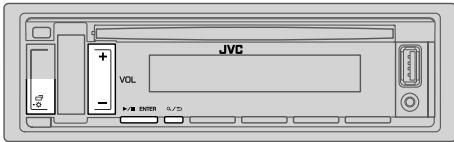

Set the clock and date

1 Press and hold
2 Press VOL + / - to select [CLOCK], then press II ENTER.

To adjust the clock

3 Press VOL + / - to select [CLOCK ADJUST], then press / ENTER.
4 Press VOL + / - to make the settings, then press /ENTER. Hour Minute
5 Press VOL + / - to select [CLOCK FORMAT], then press IENTER.
6 Press VOL + / - to select [12H] or [24H], then press /ENTER.

To set the date

7 Press VOL + / - to select [DATE SET], then press / ENTER.
8 Press VOL+/- to make the settings, then press /ENTER. Day Month Year
9 Press to exit.

To return to the previous setting item, press / .

Set the basic settings

1 Press and hold
2 Press VOL + / - to select an item (see the following table), then press /ENTER.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

SYSTEM
KEY BEEP	(Not applicable when 3-way crossover is selected.)ON: Activates the keypress tone. ; OFF: Deactivates.
SOURCE SELECT
AM SRC*	ON: Enables AM in source selection. ; OFF: Disables. (⇒ 5)
SW1 SRC*	ON: Enables SW1 in source selection. ; OFF: Disables. (⇒ 5)
SW2 SRC*	ON: Enables SW2 in source selection. ; OFF: Disables. (⇒ 5)
PANDORA SRC*	ON: Enables PANDORA in source selection. ; OFF: Disables. (⇒ 9)
BUILT-IN AUX*	ON: Enables AUX in source selection. ; OFF: Disables. (⇒ 17)
F/W UPDATE
UPDATE SYSTEM
F/W UP xxxx	YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated).For details on how to update the firmware, see:<http://www.jvc.net/cs/car/>.
FACTORY RESET	YES: Resets the settings to default (except the stored station). ;NO: Cancels.

• Not displayed when the corresponding source is selected.

GETTING STARTED

CLOCK
TIME SYNC	ON: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels.
CLOCK DISPLAY	ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.
ENGLISH	Select the display language for menu and music information if applicable.
ESPHANOL	By default, ENGLISH is selected.

RADIO

"ST" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press SRC- repeatedly to select FM, AM, SW1 or SW2.
2 Press / (or press / on the remote control) to search for a station automatically. (or) Press and hold / (or press and hold / on the remote control) until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM, 6 stations for AM/SW1/SW2.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold / ENTER until "PRESET MODE" flashes.
2 Press VOL + / - to select a preset number, then press /IENTER. The preset number flashes and "MEMORY" appears.

Select a stored station

Press one of the number buttons (1 to 6). (or)

1 Press Q /
2 Press VOL+/ to select a preset number, then press /I ENTER.

Other settings

1 Press and hold
2 Press VOL+/- to select an item (see the following table), then press ENTER.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

TUNER SETTING

RADIO TIMER Turns on the radio at a specific time regardless of the current source.

1 ONCE/DAILY/WEEKLY/OFF: Select how often the timer will be turned on.
2 FM/AM/SW1/SW2: Select a band.
3 01 to 18 (for FM)/01 to 06 (for AM/SW1/SW2): Select a preset station.
4 Set the activation day*1 and time.

"O" lights up when complete.

Radio Timer will not activate for the following cases.

The unit is turned off.
- [OFF] is selected for [AM SRC]/[SW1 SRC]/[SW2 SRC] in [SOURCE SELECT] after Radio Timer for AM/SW1/SW2 is selected. ( 4)

SSM SSM 01-06/SSM 07-12/SSM 13-18: Automatically preset up to 18 stations for FM. "SSM" stops flashing when the first 6 stations are stored. Select SSM 07-12/SSM 13-18 to store the following 12 stations.

LOCAL SEEK ON: Searches only AM/SW1/SW2 stations with good reception. ; OFF: Cancels. Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

IF BAND	AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.
MONO SET	ON: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels.
NEWS SET*2	ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.
REGIONAL*2	ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.
AF SET*2	ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.
TI*2	ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels.
PTY SEARCH*2	Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.
2 Only for FM source.

PTY code NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIORED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

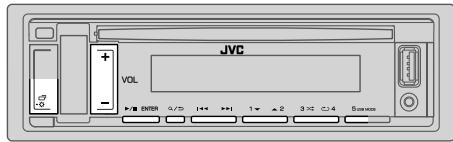

Start playback

The source changes automatically and playback starts.

CD

USB input terminal

USB ⑥ USB2.0 cable*1 (commercially available)

iPod/iPhone
ANDROID*2

Selectable sources:

KD-R881BT: CD/USB/iPod USB/Android

1 Do not leave the cable inside the car when not using.
2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For more information, visit http://www.jvc.net/cs/car/.
3 For ANDROID: Applicable only when [AUTO MODE] is selected. (→ 8)
4 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID.
*5 For iPod/Android: Applicable only when [HEAD MODE]/[AUTO MODE] is selected. (⇒ 8)

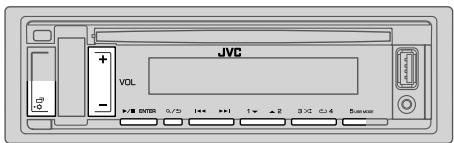

Select control mode

While in iPod USB source, press 5 USB MODE repeatedly.

HEAD MODE: Control iPod from this unit.

IPHONE MODE: Control iPod using the iPod itself. However, you can still play/pause or file skip from this unit.

While in Android source, press 5 USB MODE repeatedly.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

While in USB source, press 5 USB MODE repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device.

Settings to use JVC Remote application (for KD-R881BT)

JVC Remote application is designed to control the JVC car receiver's operations from the iPhone/iPod (via USB input terminal).

Preparation:

Install the latest version of JVC Remote application on your device before connecting. For more information, visit http://www.jvc.net/cs/car/.

You can make the settings in the same way as connection via Bluetooth.

(→16)

Select a file from a folder/list

For iPod/Android, applicable only when [HEAD MODE]/[AUTO MODE] is selected.

1 Press /
2 Press VOL + / - to select a folder/list, then press /ENTER.
3 Press VOL + / - to select a file, then press /I ENTER.

Quick Search (applicable only for CD, USB andAndroid source) If you have many files, you can search through them quickly. Press and hold VOL + / - to browse through the list quickly.

Alphabet search (applicable only for iPod USB andAndroid source) You can search for a file according to the first character.

For iPod USB source

Press 2 ▲/1▼ to select the desired character (A to Z, 0 to 9, OTHERS).

• Select "OTHERS" if the first character is other than A to Z, 0 to 9.

ForAndroidosource

1 Press 2 /1 to enter character search.
2 Press 2 /1 to select the desired character.

A :Upper case (A to Z)
_A_\: Lowor case (a to z)
-0- : Numbers (0 to 9)
-OTHERS- : Character other than A to Z, 0 to 9

3 Press ENTER to start searching.

To return to the previous setting item, press / .
To cancel, press and hold Q /

Preparation:

Install the latest version of the Pandora application on your device (iPhone/iPod touch), then create an account and log in to Pandora. Select [ON] for [PANDORA SRC] in [SOURCE SELECT]. ( 4)

KD-R781BT: You can only listen to Pandora via Bluetooth connection with an Android device. ( 10,16)

Start listening

1 Open the Pandora application on your device.
2 Connect your device to the USB input terminal.

3 Press SRC- repeatedly to select PANDORA.

Broadcast starts automatically.

To	On the faceplate	On the remote control
Playback/pause	Press▶/II ENTER.	Press ✦.
Skip a track	Press▶i.	Press ➔.
Thumbs up or thumbs down*2	Press 2 ▲/1▼.	Press ▲/▼.

1 Do not leave the cable inside the car when not using.
2 If thumbs down is selected, the current track is skipped.

Create and store a new station

1 Press /
2 Press VOL + / - to select [NEW STATION], then press /ENTER.
3 Press VOL+/ to select [FROM TRACK] or [FROM ARTIST], then press /I ENTER.

A new station is created based on the current song or artist.

4 Press and hold one of the number buttons (3, 4, 5 or 6) to store.

To select a stored station: Press one of the number buttons (3, 4, 5 or 6).

Search for a registered station

1 Press /
2 Press VOL + / - to select an item, then press /I ENTER. [BY DATE]: According to the registered date [A-Z]: By alphabetical order
3 Press VOL + / - to select the desired station, then press / ENTER.

To cancel, press and hold / .

Bookmark current song information

Press and hold /ENTER.

"BOOKMARKED" appears and the information is stored to your device.
- The bookmark is available on your Pandora account but not on this unit.

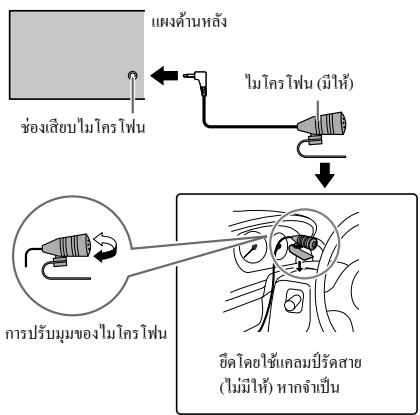

BLUETOOTH - Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)

Supported Bluetooth CODECS

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

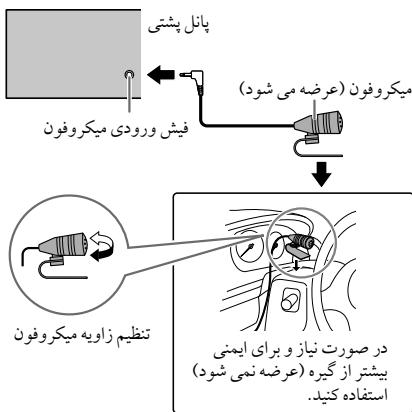

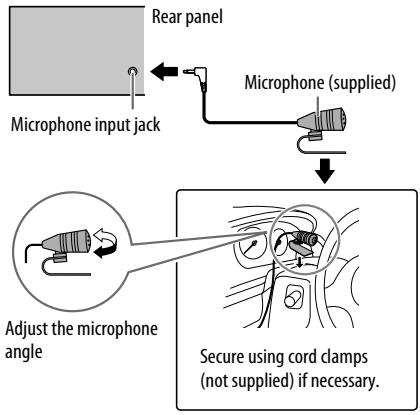

Connect the microphone

Pair and connect a Bluetooth device for the first time

1 Press SRC- to turn on the unit.
2 Search and select "KD-R8BT"/"KD-R7BT" on the Bluetooth device. "BT PAIRING" flashes on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Perform (A) or (B) depending on what appears on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) "[Device Name]" "XXXXXX" "ENTER - YES" "BACK - NO"

"XXXXXXXX" is a 6-digit passkey randomly generated during each pairing.

1 Ensure that the passkeys appear on the unit and Bluetooth device are the same.
Press ENTER to confirm the passkey.
3 Operate the Bluetooth device to confirm the passkey.

(B) "[Device Name]" "ENTER-YES" "BACK-NO"

Press ENTER to start pairing.
2. If "PAIRING" "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device.

You can change to a desired PIN code before pairing. ( 14)

• If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

"PAIRING COMPLETED" appears when pairing is completed and "8" will light up when the Bluetooth connection is established.

• This unit supports Secure Simple Pairing (SSP).
• Up to five devices can be registered (paired) in total.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 14 , [DEVICE DELETE].
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.

However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. ( 15)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
  Refer to the instruction manual of the Bluetooth device for more information.

Auto Pairing

When you connect the following devices to the USB input terminal, pairing request (via Bluetooth) is automatically activated.

KD-R881BT: iPhone/iPod touch/Android device

KD-R781BT: Android device

Press ENTER to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

• Bluetooth function of the connected device is turned on.
• [AUTO PAIRING] is set to [ON]. ( 14)
• JVC MUSIC PLAY application is installed on the Android device ( 7) and [AUTO MODE] is selected ( 8) .

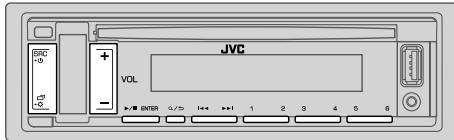

BLUETOOTH — Mobile phone

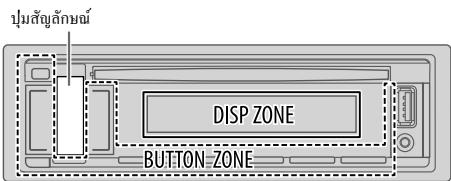

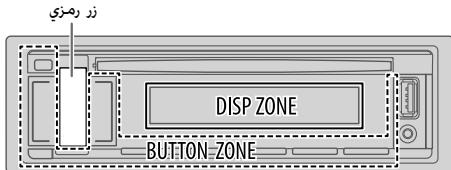

Symbolic button

Receive a call

When there is an incoming call:

• The symbolic button will blink in the color you have selected in [RING COLOR]. ( 12)
• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. ( 12)

During a call:

• The symbolic button stop blinking and illuminate in the color you have selected in [RING COLOR]. ( 12)
• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

The following operations may differ or not available depending on the connected phone.

To	On the faceplate	On the remote control
First incoming call...
Answer a call	Press ↗ or ↗/IIIENTER.	Press ▲/▼/ ↗.
Reject a call	Press and hold ↗ or ↗/IIIENTER.	Press and hold ▲/▼/ ↗.
End a call	Press and hold ↗ or ↗/IIIENTER.	Press and hold ▲/▼/ ↗.

To	On the faceplate	On the remote control
While talking on the first incoming call...
Answer another incoming call and hold the current call	Press ⋅ or ➔/IENTER.	(Not available)
Reject another incoming call	Press and hold ⋅ or ➔/IENTER.	(Not available)

While having two active calls...

End current call and activate held call	Press and hold ↓ or ▷/■ ENTER.	Press and hold ▲/▼/▲/▶.
Swap between the current call and held call	Press ↓.	(Not available)
Adjust the phone volume*1 [00] to [35] (Default: [15])	Press VOL +/− during a call.	(Not available)
Switch between hands-free and private talk modes*2	Press Q, / ▷ during a call.	(Not available)

1 This adjustment will not affect the volume of the other sources.
2 Operations may vary according to the connected Bluetooth device.

Improve the voice quality

While talking on the phone....

1 Press and hold
2 Press VOL + / - to select an item (see the following table), then press / IENTER.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

MIC GAIN	LEVEL -10 to LEVEL +10 (LEVEL -04): The sensitivity of the microphone increases as the number increased.
NR LEVEL	LEVEL -05 to LEVEL +05 (LEVEL 00): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL	LEVEL -05 to LEVEL +05 (LEVEL 00): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the settings for receiving a call

1 Press to enter Bluetooth mode.
2 Press VOL + / - to select an item (see the following table), then press ENTER.
3 Repeat step 2 until the desired item is selected or activated.

To return to the previous setting item, press Q / .

Default: XX

SETTINGS
AUTO ANSWER	01 SEC to 30 SEC: The unit answers incoming call automatically in the selected time (in seconds). ; OFF: Cancels.
RING COLOR	COLOR 01 to COLOR 49 (COLOR 08): Selects the illumination color for symbolic button as notification when there is an incoming call and during a call. ; OFF: Cancels.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

("First device name)" appears.

• If two Bluetooth phones are connected, press again to switch to another phone.

"Second device name)" appears.

2 Press VOL+/-to select an item (see the following table), then press /I ENTER.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

To return to the previous setting item, press .

RECENT CALL	(Applicable only if the phone supports PBAP.)1 Press VOL+/ to select a name or a phone number. ·“<” indicates call received,“>” indicates call made,“M” indicates call missed. ·“NO HISTORY” appears if there is no recorded call history or call number.2 Press▶/II ENTER to call.
PHONEBOOK	(Applicable only if the phone supports PBAP.)1 Press 2▲/1▼ to select the desired letter (A to Z, 0 to 9, and OTHERS). ·“OTHERS” appears if the first character is other than A to Z, 0 to 9.2 Press VOL+/ to select a name, then press▶/II ENTER.3 Press VOL+/ to select a phone number, then press▶/II ENTER to call. ·The phonebook of the connected phone is automatically transferred to the unit when pairing. ·This unit can display only non-accent letters. (Accent letters such as “U” is shown as “U”).
DIAL NUMBER	1 Press VOL+/ to select a number (0 to 9) or character (×, #, +).2 Press▶/▶ to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number.3 Press▶/II ENTER to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions. (→Make a call using voice recognition)

Make a call using voice recognition

1 Press and hold to activate the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
• This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Press VOL + / - to select [RECENT CALL], [PHONEBOOK] or [DIAL NUMBER], then press ENTER.
3 Press VOL + / - to select a contact or enter a phone number.

If a contact is selected, press▶/I ENTER to show the phone number.

4 Press and hold one of the number buttons (1 to 6). "MEMORY P(select preset number)" appears when the contact is stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press▶/ENTER to call.

"NO PRESET" appears if there is no contact stored.

Bluetooth mode settings

1 Press and hold
2 Press VOL+/-to select an item (see the following table), then press ENTER.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press .

Default: XX

BT MODE
PHONE SELECT*	Selects the phone or audio device to connect or disconnect.
AUDIO SELECT*	"×" appears in front of the device name when connected. "▷" appears in front of the current playback audio device.
DEVICE DELETE	1 Press VOL+/—to select a device to delete, then press▶/IENTER. 2 Press VOL+/—to select [YES] or [NO], then press▶/IENTER.
PIN CODE EDIT (0000)	Changes the PIN code (up to 6 digits). 1 Press VOL+/—to select a number. 2 Press ↓/▶ to move the entry position. Repeat steps 1 and 2 until you finish entering the PIN code. 3 Press▶/IENTER to confirm.
RECONNECT	ON: The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF: Cancels.
AUTO PAIRING	ON: The unit automatically pair supported Bluetooth device (iPhone/iPod touch/Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work.; OFF: Cancels.
INITIALIZE	YES: Initialized all the Bluetooth settings (including stored pairing, phonebook, and etc.).; NO: Cancels.
INFORMATION	MY BT NAME: Displays the unit name ("KD-R8**BT"/"KD-R7**BT").; MY ADDRESS: Shows address of this unit.

• You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.
- Make sure there is no Bluetooth device paired.

1 Press and hold

"BLUETOOTH" "CHECK MODE" appears. "SEARCH NOW USING PHONE" "PIN IS 0000" scrolls on the display.

2 Search and select "KD-R8BT"/"KD-R7BT" on the Bluetooth device within 3 minutes.
3 Perform (A), (B) or (C) depending on what appears on the display.

(A) “PAIRING” “XXXXXX” (6-digit passkey):
Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.
(B) "PAIRING" "PIN IS 0000": Enter "0000" on the Bluetooth device.
(C) "PAIRING": Operate the Bluetooth device to confirm pairing.

After pairing is successful, "PAIRING OK" "[Device Name]" appears and Bluetooth compatibility check starts.

If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue.

"TESTING" flashes on the display.

The connectivity result flashes on the display. "PAIRING OK" and/or "HANDS-FREE OK"1 and/or "AUD STREAM OK"2 and/or "PBAP OK"*3: Compatible

1 Compatible with Hands-Free Profile (HFP)
2 Compatible with Advanced Audio Distribution Profile (A2DP)
*3 Compatible with Phonebook Access profile (PBAP)

After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.

• To cancel, press and hold SRC to turn off the power, then turn on the power again.

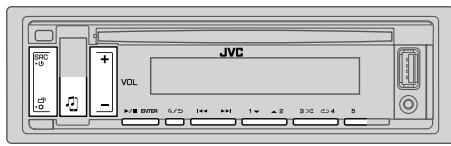

BLUETOOTH - Audio

While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.

Audio player via Bluetooth

1 Press SRC- repeatedly to select BT AUDIO (or press SOURCE on the remote control).
- Pressing enters BT AUDIO directly.
2 Operate the Bluetooth audio player to start playback.

To	On the faceplate	On the remote control
Playback/pause	Press▶/■ENTER.	Press▲.
Select group or folder	Press 2 ▲/1 ▼.	Press ▲/▼.
Reverse skip/Forward skip	Press↓/▶■.	Press▲/▶.
Reverse/Fast-forward	Press and hold ↓/▶■.	Press and hold ↓/▶.
Repeat play	Press 4 ▶ repeatedly. TRACK REPEAT, ALL REPEAT, REPEAT OFF	(Not available)
Random play	Press 3 ▶ repeatedly. GROUP RANDOM, ALL RANDOM, RANDOM OFF	(Not available)
Select a file from a folder/list	Refer to “Select a file from a folder/list” on page 8.	(Not available)
Switch between connected Bluetooth audio devices	Press 5.*	(Not available)

• Pressing the "Play" key on the connected device itself also causes switching of sound output from the device.
  Operations and display indications may differ according to their availability on the connected device.

Settings to use JVC Remote application

JVC Remote application is designed to control the JVC car receiver's operations from the following devices.

KD-R881BT: iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth)

KD-R781BT: Android smartphone (via Bluetooth)

Preparation:

Install the latest version of JVC Remote application on your device before connecting. For more information, visit http://www.jvc.net/cs/car/.

1 Press and hold
2 Press VOL + / - to select an item (see the following table), then press / ENTER.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q .

Default: XX

REMOTE APP

SELECT	Select the device (IOS or ANDROID) to use the application.
IOS	YES: Selects iPhone/iPod to use the application via Bluetooth or connected via USB input terminal. ; NO: Cancels. If IOS is selected, select iPod BT source (or iPod USB if your iPhone/iPod is connected via USB input terminal) to activate the application. • The connectivity of the application will be interrupted or disconnected if: - You change from iPod BT source to any playback source connected via the USB input terminal. - You change from iPod USB source to iPod BT source.
ANDROID	YES: Selects Android smartphone to use the application via Bluetooth. ; NO: Cancels.
ANDROID LIST*: Selects the Android smartphone to use from the list.

• Displayed only when [ANDROID] of [SELECT] is set to [YES].

STATUS Shows the status of the selected device.

IOS CONNECTED: You are able to use the application using the iPhone/iPod connected via Bluetooth or USB input terminal.

IOS NOT CONNECTED: No IOS device is connected to use the application.

Android CONNECTED: You are able to use the application using the Android smartphone connected via Bluetooth.

Android NOT CONNECTED: No Android device is connected to use the application.

Listen to iPhone/iPod via Bluetooth (for KD-R881BT)

You can listen to the songs on the iPhone/iPod via Bluetooth on this unit.

Press SRC- repeatedly to select iPod BT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. ( 7)
• If you plug in an iPhone/iPod to the USB input terminal while listening to iPod BT source, the source automatically change to iPod USB. Press SRC-0 to select iPod BT if the device is still connected via Bluetooth.

Internet radio via Bluetooth

You can listen to Pandora on the following devices via Bluetooth on this unit.

• Make sure the USB input terminal is not connected to any device.

KD-R881BT: iPhone/iPod touch/Android device

KD-R781BT:Android device

Listen to Pandora (Applicable for Australia or New Zealand models only)

Preparation:

Select [ON] for [PANDORA SRC] in [SOURCE SELECT]. ( 4)

1 Open the Pandora application on your device.
2 Connect your device via Bluetooth connection. ( 10)
3 Press SRC-① repeatedly to select PANDORA (for iPhone/iPod) or PANDORA BT (for Android device).

The source switches and broadcast starts automatically.

• You can operate Pandora in the same way as Pandora via USB input terminal. ( 9)

Use a portable audio player

1 Connect a portable audio player (commercially available).

3.5 mm stereo mini plug with "L" shaped connector (commercially available)

2 Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. ( 4)
3 Press SRC- repeatedly to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

AUDIO SETTINGS

1 Press and hold
2 Press VOL+/- to select an item (see the following table), then press▶/I ENTER.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press Q .

Default: XX

EQ SETTING

PRESET EQ	Select a preset equalizer suitable to the music genre. • Select [USER] to use the settings made in [EASY EQ] or [PRO EQ]. FLAT/DRVN 3/DRVN 2/DRVN 1/HARD ROCK/HIP HOP/JAZZ/POP/R&B/USER/CLASSICAL Drive equalizer (DRVN 3/DRVN 2/DRVN 1) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres.
EASY EQ	Adjust your own sound settings. • The settings are stored to [USER]. • The settings made may affect the current settings of [PRO EQ]. SUB.W SP*1*2: 00 to +06 (Default: 03 SUB.W*1*3: -50 to +10 00 BASS: LVL -09 to LVL +09 LVL 00 MID: LVL -09 to LVL +09 LVL 00 TRE: LVL -09 to LVL +09 LVL 00)

1, 2, *3: (⇒ 18)

PRO EQ	Adjust your own sound settings. · The settings are stored to [USER]. · The settings made may affect the current settings of [EASY EQ].
62.5HZ
LEVEL -09 to LEVEL +09 (LEVEL 00): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
ON: Turns on the extended bass.; OFF: Cancels.
100HZ/160HZ/250HZ/400HZ/630HZ/1KHZ/1.6KHZ/2.5KHZ/4KHZ/6.3KHZ/10KHZ/16KHZ
LEVEL -09 to LEVEL +09 (LEVEL 00): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
Q FACTOR	1.35/1.50/2.00: Adjust the quality factor.
AUDIO CONTROL
BASS BOOST	LEVEL +01 to LEVEL +05: Selects your preferred bass boost level. ; OFF: Cancels.
LOUDNESS	LEVEL 01/LEVEL 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ; OFF: Cancels.
SUB.W LEVEL *1	SPK-OUT*2	(Not applicable when 3-way crossover is selected.) SUB.W 00 to SUB.W +06 (SUB.W +03): Adjusts the output level of the subwoofer connected via speaker lead. (→31)
	PRE-OUT*3	SUB.W -50 to SUB.W +10 (SUB.W 00): Adjusts the output level of the subwoofer connected to the lineout terminals (SW or REAR/SW) through an external amplifier. (→31)
SUBWOOFER SET*3	ON: Turns on the subwoofer output. ; OFF: Cancels.

FADER	(Not applicable when 3-way crossover is selected.) POSITION R15 to POSITION F15 (POSITION 00): Adjusts the front and rear speaker output balance.
BALANCE*4	POSITION L15 to POSITION R15 (POSITION 00): Adjusts the left and right speaker output balance.
VOLUME ADJUST	LEVEL -15 to LEVEL +06 (LEVEL 00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust.
AMP GAIN	LOW POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35.
SPK/PRE OUT	(Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. (⇒ 19, Speaker output settings)
SPEAKER SIZE	Depending on the crossover type you have selected (⇒ 19, [X' OVER TYPE]), 2-way crossover or 3-way crossover setting items will be shown. (⇒ 20, Crossover settings) By default, 2-way crossover type is selected.
X' OVER
DTA SETTINGS	For settings, ⇒ 22, Digital Time Alignment settings.
CAR SETTINGS

1 Displayed only when [SUBWOOFER SET] is set to [ON].
2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (→ 19)
3 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (→ 19)
4 This adjustment will not affect the subwoofer output.

AUDIO SETTINGS

X' OVER TYPE	Caution: Adjust the volume before changing the [X' OVER TYPE] to avoid the sudden increase or decrease of the output level.
2-WAY	(Displayed only when [3-WAY] is selected.) YES: Selects two way crossover type.; NO: Cancels.
3-WAY	(Displayed only when [2-WAY] is selected.) YES: Selects three way crossover type.; NO: Cancels.
SOUND EFFECT
SPACE ENHANCE	(Not applicable for TUNER source.) SMALL/MEDIUM/LARGE: Virtually enhances the sound space.; OFF: Cancels.
SND RESPONSE	LEVEL1/LEVEL2/LEVEL3: Virtually makes the sound more realistic.; OFF: Cancels.
SOUND LIFT	LOW/MIDDLE/HIGH: Virtually adjust the sound position heard from the speakers.; OFF: Cancels.
VOL LINK EQ	ON: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF: Cancels.
K2 TECHNOLOGY	(Not applicable for TUNER source and AUX source.) ON: Improve the sound quality of compressed music.; OFF: Cancels.

Speaker output settings [SPK/PRE OUT]

(Applicable only if [X 'OVER TYPE] is set to [2-WAY])

Select the output setting for the speakers [SPK/PRE OUT], based on the speaker connection method.

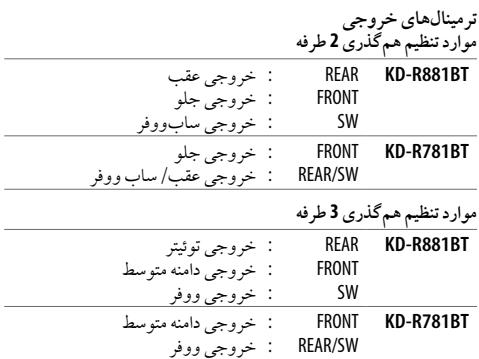

Connection via lineup terminals

For connections through an external amplifier. ( 31)

KD-R881BT:

Setting on [SPK/PRE OUT]	Audio signal through lineup terminal
	FRONT	REAR	SW
REAR/REAR (default)	Front speakers output	Rear speakers output	Subwoofer output
REAR/SUB.W	(Not available)	(Not available)	(Not available)
SUB.W/SUB.W	Front speakers output	L(left): Subwoofer output R(right): (Mute)	Subwoofer output

KD-R781BT:

Setting on [SPK/PRE OUT]	Audio signal through lineup terminal
	FRONT	REAR/SW
REAR/REAR	Front speakers output	Rear speakers output
REAR/SUB.W (default)	Front speakers output	Subwoofer output
SUB.W/SUB.W	Front speakers output	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. ( 31)

Setting on [SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left)	R (right)
REAR/REAR	Rear speakers output	Rear speakers output
REAR/SUB.W	Rear speakers output	Rear speakers output
SUB.W/SUB.W	Subwoofer output	(Mute)

If [SUB.W/SUB.W] is selected:

• [120HZ] is selected in [SUBWOOFER LPF] and [THROUGH] is not available.
• [POSITION R02] is selected in [FADER] and selectable range is [POSITION R15] to [POSITION 00].

Crossover settings

Below are the available setting items for 2-way crossover and 3-way crossover.

Caution

Select a crossover type according to how the speakers are connected. ( 31) If you select a wrong type:

• The speakers may damage.
• The output sound level may be extremely high or low.

SPEAKER SIZE

Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.
• When 2-way crossover is selected, if [NONE] is selected for [TWEETER] of [FRONT], [REAR] and [SUBWOOFER] for [SPEAKER SIZE], the [X'OVER] setting of the selected speaker is not available.
• When 3-way crossover is selected, if [NONE] is selected for [WOOFER] of [SPEAKER SIZE], the [X'OVER] setting of [WOOFER] is not available.

X'OVER (crossover)

• [FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter). If [THROUGH] is selected, all signals are sent to the selected speakers.
• [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.
• [SW LPF PHASE]/[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.
• [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.

2-way crossover setting items

SPEAKER SIZE

FRONT	SIZE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9/7×10
	TWEETER	SMALL/MIDDLE/LARGE/NONE (not connected)
REAR*1	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9/7×10/NONE (not connected)
SUBWOOFER*2*3	16CM/20CM/25CM/30CM/38CM OVER/NONE (not connected)

X'OVER

TWEETER	FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	GAIN LEFT	-08DB to 00DB
	GAIN RIGHT	-08DB to 00DB
FRONT HPF	F-HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	F-HPF SLOPE	-06DB/-12DB/-18DB/-24DB
	F-HPF GAIN	-08DB to 00DB
REAR HPF*1	R-HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	R-HPF SLOPE	-06DB/-12DB/-18DB/-24DB
	R-HPF GAIN	-08DB to 00DB
SUBWOOFERLPF*2*3	SW LPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SW LPF SLOPE	-06DB/-12DB/-18DB/-24DB
	SW LPF PHASE	REVERSE (180°)/NORMAL (0°)
	SW LPF GAIN	-08DB to 00DB

3-way crossover setting items

SPEAKER SIZE
TWEETER	SMALL/MIDDLE/LARGE
MID RANGE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9
WOOFER*3	16CM/20CM/25CM/30CM/38CM OVER/NONE (not connected)
X' OVER
TWEETER	HPF FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	SLOPE	-06DB/-12DB
	PHASE	REVERSE (180°)/NORMAL (0°)
	GAIN	-08DB to 00DB
MID RANGE	HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	HPF SLOPE	-06DB/-12DB
	LPF FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ/THROUGH
	LPF SLOPE	-06DB/-12DB
	PHASE	REVERSE (180°)/NORMAL (0°)
	GAIN	-08DB to 00DB
WOOFER*3	LPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SLOPE	-06DB/-12DB
	PHASE	REVERSE (180°)/NORMAL (0°)
	GAIN	-08DB to 00DB

1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR] or [REAR/SUB.W]. (→ 19)
2 KD-R781BT: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (→ 19)
*3 Displayed only when [SUBWOOFER SET] is set to [ON]. (→ 18)

Digital Time Alignment settings

Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

• For more information, Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS].

DTA SETTINGS

POSITION	Selects your listening position (reference point). ALL: Not compensating; FRONT RIGHT: Front right seat; FRONT LEFT: Front left seat; FRONT ALL: Front seat • [FRONT ALL] is displayed only when [X' OVER TYPE] is set to [2-WAY]. (→19)
DISTANCE*1	0CM to 610CM: Fine adjust the distance to compensate.
GAIN*1	-8DB to 0DB: Fine adjust the output volume of the selected speaker.
DTA RESET	YES: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default.; NO: Cancels.
CAR SETTINGS	Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
CAR TYPE	COMPACT/FULL SIZE CAR/WAGON/MINIVAN/SUV/ MINIVAN(LONG): Selects the type of vehicle. ; OFF: Not compensating.
R-SP LOCATION*2	Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point). • DOOR/REAR DECK: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV]. • 2ND ROW/3RD ROW: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]

If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.

1 Determine the center of the currently set listening position as the reference point.
2 Measure the distances from the reference point to the speakers.
3 Calculate the differences between the distance of the furthest speaker (rear speaker) and other speakers.
4 Set the [DISTANCE] calculated in step 3 for individual speakers.
5 Adjust [GAIN] for individual speakers.

Example: When [FRONT ALL] is selected as the listening position

*1 Before making an adjustment, select the speaker:

When 2-way crossover is selected:

FRONT LEFT/FRONT RIGHT/REAR LEFT/REAR RIGHT/SUBWOOFER

• [REAR LEFT], [REAR RIGHT] and [SUBWOOFER] is selectable only if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (→ 21)

When 3-way crossover is selected:

TWEETER LEFT/TWEETER RIGHT/MID LEFT/MID RIGHT/WOOFER

• [WOOFER] is selectable only if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. ( 21)

*2 Displayed only when [X' OVER TYPE] is set to [2-WAY] (→ 19) and if a setting other than [NONE] is selected for [REAR] of [SPEAKER SIZE]. (→ 21)

DISPLAY SETTINGS

1 Press and hold
2 Press VOL+/- to select an item (see the following table), then press ENTER.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press / .

Default: XX

DISPLAY

DIMMER

Dim the illumination. OFF: Dimmer is turned off. Brightness changes to [DAY] setting. ON: Dimmer is turned on. Brightness changes to [NIGHT] setting. (⇒ [BRIGHTNESS]) DIMMER TIME: Set the dimmer on and off time. 1 Press VOL +/- to adjust the [ON] time, then press▶/IIENTER. 2 Press VOL +/- to adjust the [OFF] time, then press▶/IIENTER. (Default: [ON]: PM6:00; [OFF]: AM6:00) DIMMER AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights.*1

BRIGHTNESS	Set the brightness for day and night separately. 1 DAY/NIGHT: Select day or night. 2 Select a zone. (See illustration on the left column.) 3 LEVEL 00 to LEVEL 31: Set the brightness level. (Default: [DAY]: LEVEL 31; [NIGHT]: LEVEL 15)
TEXT SCROLL*2	SCROLL ONCE: Scrolls the display information once.; SCROLL AUTO: Repeats scrolling at 5-second intervals.; SCROLL OFF: Cancels.
COLOR (for symbolic button only)
PRESET	Select an illumination color for the symbolic button. Default color: [COLOR FLOW01] • COLOR 01 to COLOR 49 • USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown. • COLOR FLOW01 to COLOR FLOW03: Color changes at different speeds. • Preset color: CRYSTAL, FLOWER, FOREST, GRADATION, OCEAN, SUNSET, RELAX
DAY COLOR	Store your own day and night illumination colors for the symbolic button. Default color: [RED 31], [GREEN 31], [BLUE 23] 1 RED/GREEN/BLUE: Select a primary color. 2 00 to 31: Select the level.
NIGHT COLOR	Repeat steps 1 and 2 for all primary colors. • Your setting is stored to [USER] in [PRESET]. • [NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlight.
MENU COLOR	ON: The illumination color of the symbolic button changes to white color when in menu mode or when selecting a music file from a folder/list.; OFF: Cancels.

1 The illumination control wire connection is required. (→ 31)
2 Some characters or symbols will not be shown correctly (or will be blanked).

■ Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

■ More information

For: - Latest firmware updates and latest compatible item list

JVC original application
- Any other latest information

Visit http://www.jvc.net/cs/car/.

General

• This unit can only play the following CDs:

• DualDisc playback: The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.
• For detailed information and notes about the playable audio files, visit http://www.jvc.net/cs/car/.

Playable files

• Playable audio file:

For disc:

KD-R881BT: MP3 (.mp3), WMA (.wma), AAC (.aac)

KD-R781BT: MP3 (.mp3), WMA (.wma)

For USB mass storage class device:

KD-R881BT: MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), FLAC (.flac)

KD-R781BT: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)

• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name
• Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
• Recordable/ReWritable discs that have not been finalized.
• 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A .

About iPod/Phone

• Via USB input terminal:

Made for

• iPod touch (5th and 6th generation)
• iPod nano (7th generation)
  iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

REFERENCES

• Via Bluetooth:
  Made for
• iPod touch (5th and 6th generation)
  iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE
• It is not possible to browse video files on the "Videos" menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.
  Depending on the version of the operating system of the iPod/ iPhone, some functions may not operate on this unit.

About Android device

• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

About Pandora

• Pandora is only available in certain countries.
  For more information, visit http://www.pandora.com/legal.
• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.
• Some functions of Pandora cannot be operated from this unit.
• For issues using the application, please contact Pandora at [e-mail].

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.

Change the display information

Each time you press , the display information changes.

• If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (eg. station name) appears.

Source name	Display information
FM or AM	Frequency (Date/Clock) ⇒ Frequency (Date/Clock) with music synchronisation* ⇒ (back to the beginning)
	(For FM Radio Data System stations only) Station name (PS)/Program type (PTY) (Date/Clock) ⇒ Radio text (Date/Clock) ⇒ Radio text + (Radio text+) ⇒ Song title (Artist) ⇒ Song title (Date/Clock) ⇒ Frequency (Date/Clock) ⇒ Station name (PS)/Program type (PTY) (Date/Clock) with music synchronisation* ⇒ (back to the beginning)
CD or USB	(For CD-DA) Track title (Artist) ⇒ Track title (Disc name) ⇒ Track title (Date/Clock) ⇒ Playing time (Date/ Clock) ⇒ Track title (Artist) with music synchronisation* ⇒ (back to the beginning)
	(For MP3/WMA/AAC/WAV/FLAC files) Song title (Artist) ⇒ Song title (Album name) ⇒ Song title (Date/Clock) ⇒ File name (Folder name) ⇒ File name (Date/Clock) ⇒ Playing time (Date/Clock) ⇒ Song title (Artist) with music synchronisation* ⇒ (back to the beginning)
iPod USB/iPod BT or ANDROID	When [HEAD MODE]/[AUTO MODE] is selected (⇒ 8): Song title (Artist) ⇒ Song title (Album name) ⇒ Song title (Date/Clock) ⇒ Playing time (Date/ Clock) ⇒ Song title (Artist) with music synchronisation* ⇒ (back to the beginning)
PANDORA/ PANDORA BT	Station name (Date/Clock) ⇒ Shared/Radio (Date/Clock) ⇒ Song title (Artist) ⇒ Song title (Album name) ⇒ Song title (Date/Clock) ⇒ Playing time (Date/Clock) ⇒ Station name (Date/ Clock) with music synchronisation* ⇒ (back to the beginning)
BT AUDIO	Song title (Artist) ⇒ Song title (Album name) ⇒ Song title (Date/Clock) ⇒ Playing time (Date/ Clock) ⇒ Song title (Artist) with music synchronisation* ⇒ (back to the beginning)
AUX	AUX (Date/Clock) ⇒ AUX (Date/Clock) with music synchronisation* ⇒ (back to the beginning)

• The illumination color of the symbolic button changes and synchronises with the music.

TROUBLESHOOTING

Symptom		Remedy
General	Sound cannot be heard.	Adjust the volume to the optimum level. Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SOURCE SELECT] setting. (→4)
Radio	Radio reception is poor. Static noise while listening to the radio.	Connect the antenna firmly.
CD/USB/IPod	Disc cannot be ejected.	Press and hold▲to forcibly eject the disc. Be careful not to drop the disc when it is ejected.
	"IN DISC" appears.	Make sure nothing is blocking the loading slot when you eject the disc.
	"PLEASE EJECT" appears.	Press▲, then insert the disc correctly.
	Playback order is not as intended.	The playback order is determined by the file name (USB) or the order in which files were recorded (disc).
	Elapsed playing time is not correct.	This depends on the recording process earlier.
	"NOT SUPPORT" appears and track skips.	Check whether the track is a playable format. (→24)
	"READING" keeps flashing.	Do not use too many hierarchical levels and folders. Reload the disc or reattach the USB device.
	"UNSUPPORTED DEVICE" appears.	Check whether the connected device is compatible with this unit and ensure the file systems are in supported formats. (→24) Reattach the device.
	"UNRESPONIVE DEVICE" appears.	Make sure the device is not malfunction and reattach the device.

Symptom		Remedy
CD/USB/iPod	"USB HUB IS NOT SUPPORTED" appears.	This unit cannot support a USB device connected via a USB hub.
	"CANNOT PLAY" appears.	Connect a USB device that contains playable audio files.
	The iPod/iPhone does not turn on or does not work.	Check the connection between this unit and iPod/iPhone. Detach and reset the iPod/iPhone using hard reset.
	"LOADING" appears when you enter search mode by pressing Q/→	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
	Correct characters are not displayed.	This unit can only display uppercase letters, numbers, and a limited number of symbols. Depending on the display language you have selected (⇒ 5), some characters may not be displayed correctly.
Android	• Sound cannot be heard during playback. • Sound output only from the Android device.	Reconnect the Android device. If in [AUDIO MODE], launch any media player application on the Android device and start playback. If in [AUDIO MODE], relaunch the current media player application or use another media player application. Restart the Android device. If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (⇒ 25)
	Cannot playback at [AUTO MODE].	Make sure JVC MUSIC PLAY APP is installed on the Android device. (⇒ 7) Reconnect the Android device and select the appropriate control mode. (⇒ 8) If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (⇒ 25)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device. Reconnect the Android device. If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (⇒ 25)

TROUBLESHOOTING

Symptom		Remedy
Android	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	“CANNOT PLAY”	·Make sure Android device contains playable audio files. ·Reconnect the Android device. ·Restart the Android device.
Pandora	“ADD ERROR”	New station creation is unsuccessful.
	“CHK DEVICE”	Check the Pandora application on your device.
	“NO SKIPS”	The skip limit has been reached.
	“NO STATIONS”	No stations are found.
	“STATION LMT”	The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device.
	“UPGRADE APP”	Make sure you have installed the latest version of the Pandora application on your device.
	“CONNECT ERR”	Communication is unstable.
	“RATING ERR”	Registration of thumbs up/thumbs down has failed due to insufficient network connectivity.
	“THUMBS N/A”	Registration of thumbs up/thumbs down is not allowed.
	“LICENSE ERR”	You try to access from a country which Pandora is not deliverable.
Bluetooth®	No Bluetooth device is detected.	·Search from the Bluetooth device again. ·Reset the unit. (→3)
	Pairing cannot be made.	·Make sure you have entered the same PIN code to both the unit and Bluetooth device. ·Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (→10)

Symptom		Remedy
Bluetooth®	Echo or noise occurs.	·Adjust the microphone unit's position. (→10) ·Check the [ECHO CANCEL] setting. (→12)
	Phone sound quality is poor.	·Reduce the distance between the unit and the Bluetooth device. ·Move the car to a place where you can get a better signal reception.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	·Reduce the distance between the unit and the Bluetooth audio player. ·Turn off, then turn on the unit and try to connect again. ·Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	·Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) ·Disconnect and connect the Bluetooth player again.
	“PLEASE WAIT”	The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.
	“NOT SUPPORT”	The connected phone does not support Voice Recognition feature.
	“ERROR”	Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	“H/W ERROR”	Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.

If you still have troubles, reset the unit. ( 3)

SPECIFICATIONS

Tuner	FM Frequency Range	87.5 MHz — 108.0 MHz (50 kHz step)
	Usable Sensitivity (S/N = 26 dB)	8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity (DIN S/N = 46 dB)	17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB)	30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO)	64 dB
	Stereo Separation (1 kHz)	40 dB
AM	Frequency Range	Band 1 (AM): 531 kHz — 1 602 kHz (9 kHz step) Band 2 (SW1): 2 940 kHz — 7 735 kHz (5 kHz step) Band 3 (SW2): 9 500 kHz — 10 135 kHz / 11 580 kHz — 18 135 kHz (5 kHz step)
	Usable Sensitivity (S/N = 20 dB)	AM: 29 dBμ (28.2 μV) SW: 30 dBμ (32 μV)
CD player	Laser Diode	GaAlAs
	Digital Filter (D/A)	8 times over sampling
	Spindle Speed	500 rpm — 200 rpm (CLV)
	Wow & Flutter	Below measurable limit
	Frequency Response (±1 dB)	20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz)	0.01 %
	Signal-to-Noise Ratio (1 kHz)	105 dB
	Dynamic Range	90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC“.aac” files (for KD-R881BT)

USB	USB Standard	USB 1.1, USB 2.0 (Full speed)
	Compatible Devices	Mass storage class
	File System	FAT12/ 16/ 32
	Maximum Supply Current	DC 5 V——1.5 A
	D/A Converter	24 Bit
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC ".aac" files (for KD-R881BT)
	WAV Decode	Linear-PCM
	FLAC Decode	FLAC files (Up to 24 Bit/48 kHz)

Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ
Bluetooth	Version	Bluetooth 3.0
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power	+4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m (32.8 ft)
	Pairing	SSP (Secure Simple Pairing)
	Profile	HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)

SPECIFICATIONS

Audio	Maximum Output Power	50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power	22 W × 4 (at less than 1 % THD)
	Speaker Impedance	4 Ω — 8 Ω
	Preout Level/Load (CD/USB)	4 000 mV/10 kΩ load
	Preout Impedance	≤ 600 Ω
General	Operating Voltage (10.5 V — 16 V allowable)	14.4 V
	Maximum Current Consumption	10 A
	Operating Temperature Range	-10°C — +60°C
	Installation Size (W × H × D)	182 mm × 53 mm × 159 mm
	Net Weight (includes Trimplate, Mounting Sleeve)	1.2 kg

Subject to change without notice.

INSTALLATION/CONNECTION

Warning

• The unit can only be used with a 12VDC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50W . If the maximum power of the speakers is lower than 50W , change the [AMP GAIN] setting to avoid damaging the speakers. ( 18)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Connect the wires properly.

See Wiring connection. ( 31)

3 Install the unit to your car.

See Installing the unit (in-dash mounting). ( 30)

4 Connect the terminal of the car battery.
5 Press SRC- to turn on the power.
6 Detach the faceplate and reset the unit. ( 3)

Installing the unit (in-dash mounting)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

Use only the specified screws. Using wrong screws might damage the unit.

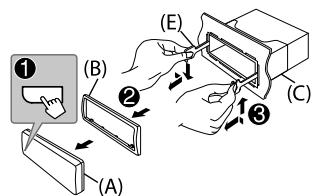

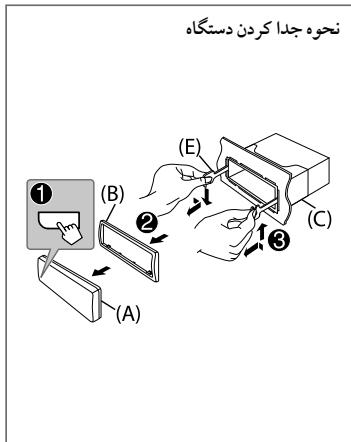

How to remove the unit

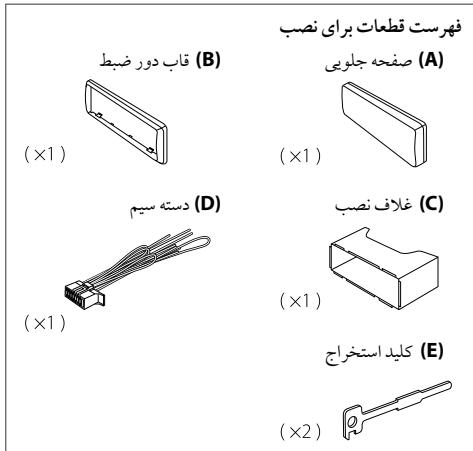

Part list for installation

(A) Faceplate

(B) Trim plate

(C) Mounting sleeve

(D) Wiring harness

(E) Extraction key

Output terminals

For 2-way crossover setting

KD-R881BT	REAR	: Rear output
	FRONT	: Front output
	SW	: Subwoofer output
KD-R781BT	FRONT	: Front output
	REAR/SW	: Rear/subwoofer output

For 3-way crossover setting

KD-R881BT	REAR	: Tweeter output
	FRONT	: Mid Range output
	SW	: Woofer output
KD-R781BT	FRONT	: Mid Range output
	REAR/SW	: Woofer output

Wiring connection

y

naun 2

3

4

1 mnnnnn
2 1
3

m 5

CD/USB/iPod/Android 7

Pandora* (1)

BLUETOOTH 10

AUX 17

17

Hnnnnaannnnaa 23

8 24

muaa

26

yoyouw 28

1 29

nouy

y

1
nunuuee 1nnnaaennnne nannn

A

• 1370000000000000000000000000000000000000000000000000000000000000000000000000000000

A

n

• 1
  aennnnnne nnnnne aannnnnne ane annnnnne ane ane ane ane ane ane ane ane

y:

• nanadnntnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
  yaaanannnnnnaa aannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
  Wulndanonnnaaunlauan (nuu nnnnne ane nnane) aannnne ne annnnnnnnnnnnnn
• wnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

Tnnnna (RM-RK52):

oTunnnnnaa nnsal nnne nnnnnnne nnnnnnnnnnnnnnn
- 1
- 01972453678900000000000000000000000000000000000000000

aannnnnne

WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ

COUNTRY, NATION M (waa), OLDIES, FOLKM (wa), DOCUMENT

mnnnnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

CD

jouyuiu USB

iPod/iPhone
ANDROID*2

mnnnne nnnnne

KD-R881BT: CD/USB/iPod USB/Android

http://www.jvc.net/cs/car/

nwnnnnnnnnnnnnnnnnnnnnnnnnnnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nann

aonWanwnWannn

ipod/Android [HEAD MODE][AUTO MODE]

1 nQ/
2 2 VOL+/-/waianwaiae/wnnnnnaI/ENTER
3 nVOL+/-iiaenlndnunnaI/IIENTER

nunnnn nn nannn (wnnnnnn nn CD, USB naZAndroid)

VOL+/-

nwnnnnneyn (wnnnnnnnnnnipod USB uae ANDROID)

wunwnnnaaennnnnne

mnnnnaeaaepin iPod USB

2A/1V 7000000000000000000000000000000000000

OTHERS" 1A Z,09

amnnnannnnn ANDROID

1 na2A/1V
2 2A/1V

A^ ：W（A-Z）
A:
-0- : (0 - 9)
-OTHERS- : 077200000000000A-Z, 0-9

3 ⅡENTER

Q/
wnanlaunnQ/

1

Pandora

• [ON] - [PANDORA SRC] [SOURCE SELECT] (→ 4)

KD-R781BT: PANDORA Bluetooth Android ( 10,16)

1

1 1
2 1

3 nSRC- 4 PANDORA

T

###	###	###
###	###	###
###	###	###
###	###	###
###	###	###

*1
*2 iδaδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδαδ

Jnnnnnne

1 nQ/
2 nVOL+/-[NEWSTATION]IENTER
3 nVOL+/Wan [FROM TRACK] [FROM ARTIST] /I ENTER
4 nannnnnnaaennnnnnnnnnnnn (3, 4, 5 nae 6) nnnnnn

meaennnnnne nannnnnaeennnnn (3,4.5 6)

Kunannnnnne

1 aQ/
2 VOL+/-I/10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
3 nVOL+/-i#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#n#

yuaoyayawuyu

nai/IIENTER

BLUETOOTH-n

W WavewoBtLoooth

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP)
  Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
  Phonebook Access Profile (PBAP)

Wanlaaandnblteooth

• 1 (SBC)
• nnnnnaaannnnnnaaa (AAC)

mnnnne nnnnne

1 nuiu
2 nVOL+/-[RECENTCALL],[PHONEBOOK] [DIAL NUMBER]
3 VOL+/-WIOAEOONNNOOONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
4 nannnnnnaaennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

Hnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

[DIAL NUMBER] 2 wannnnnnaaannnnnna

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1 nathu
2 aannnnnnaaennnnn (1 6)
3 /IENTER

nnnn nnnn Bluetooth

1
2 nVOL+/-waoanr (aunnna) unnnnra/II ENTER
3 mnnnne 2 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
4 4

nnaaannnnnnnnnnnnn nn Q/

nui:XX

"AUD_STREAM_OK"*2 wae/wo "PBAP OK"*3:

• wawwawwawwawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawawaw

STATUS

IOS CONNECTED: qunwnn nnwnnn n iPhone/iPod wannnnu Bluetooth wannnnn n USB

IOS NOT CONNECTED: liuqunluyios nienwneiuiuwwan

ANDROID CONNECTED: nuaaunuauuauuuuauuuuuuuuwwu Android

ANDROID NOT CONNECTED:Android

Snuiphone/iPod 互联网Bluetooth (KDK-R881BT)

nwnnnnnnnnnnnnnnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nSRc-@ uioiaipod BT

• iPod/iPhone iPod/iPhone USB (→7)
• wwnmnnnne iPhone/iPod nnnnnnnnnnnn nn USB nnnnnnnnnnnnnnnn iPod BT nnnn nn nnnn nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn

JingouanliuHu Bluetooth

Pandora uunuuiu uuuu uuuu uuuu uuuu
- 1 USB

KD-R881BT: uHnnu iPhone/iPod touch/Android

KD-R781BT: qunna Android

Panda (

1

aen[ON]amu [PANDORA SRC]lu [SOURCE SELECT] ( 4)

1 PauwuaPandaPua
2 2001-09-06 2001-09-06 2001-09-06 2001-09-06 2001-09-06 2001-09-06 2001-09-06 2001-09-06 2001-09-06 2001-09-06
3 SRC-（PANDORA (iPhone/iPod) PANDORA BT Android)

muaa aannnnaaannnnnnaanennnnnnaaannnnn

Pandora Pandora USB ( 9)

y

1 4

2 aon[ON]aun[BUILT-IN AUX]u [SOURCE SELECT] ( 4)
3 na SRC-0 1uuaaon AUX
4 1

n 3 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1
2 nVOL+/-waoanrnnn (gannnnnnnnnnnnnnnnnnn> /IENTER
3 2aonlndnlaanrnnnneanrnnnnaeannnnnne
4

nannnnnnnnnnnnnnnnnnaa

n:XX

EQ SETTING

PRESET EQ aononanaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanana

• iien [USER] nE EEN TNNN Nn [EASY EQ] nE [PRO EQ]
  FLAT/DRVN 3/DRVN 2/DRVN 1/HARD ROCK-HIP HOP JAZZ/POP/R&B/USER CLASSICAL

EASY EQ

• nnnnneennnnnne [USER]
  PRO EQ

SUB.WSP*1*2: 00+06 (nTuWu: 03
SUB.W*1*3:-50+10 00
BASS: LVL-09LVL+09 LVL00
MID: LVL-09LVL+09 LVL00
TRE: LVL-09LVL+09 LVL00

1, 2, *3: (⇒ 18)

FADER	((''1'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0' 3 m) POSITION R15 0° POSITION F15 (POSITION 00): 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0' 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'' 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0"
BALANCE*4	POSITION L15 0° POSITION R15 (POSITION 00): 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0' 0"
VOLUME ADJUST	LEVEL -15 0° LEVEL +06 (LEVEL 00): 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0' 0"
AMP GAIN	LOW POWER: 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0' 25 (1234567890) 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'' 50 W (1234567890) HIGH POWER: 0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0'0' 35
SPK/PRE OUT	(1234567890) 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 (1234567890) 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 123456789) 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 123456789) 1234567890 (1234567890) 1234567890 1234567890 1234567890 1234567890 1234567890 123456789) 1234567890 (1234567890) 123456789 1234567890 1234567890 123456789) 123456789 123456789) 123456789 123456789) 123456789 123456789) 123456789 123456789) 123456789 123456789) 123 123456789) 123456789 123456789) 123456789 123456789) 123456789 123456789) 123456789 123456789) 123
SPEAKER SIZE	1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 22, 23, 24 Digital Time Alignment
X ' OVER
DTA SETTINGS
CAR SETTINGS

1 zuaowuovnauon [SUBWOOFER SET] nu [ON] nu
2 2019-2020: zuaaavauuau [SPK/PRE OUT] u [SUB.W/SUB.W] u (→19)
*3 duu 2 nu: uauuauu [SPK/PRE OUT] uu [REAR/SUB.W] uu [SUB.W/SUB.W] uuu (→19)
*4 nssuunnnnnaaannnnaanennnnae annnnnne aee

X'OVER TYPE	(###) ### [3-WAY] ###; NO: ### (###) [2-WAY] [###) YES: ###
2-WAY
3-WAY
SOUND EFFECT
SPACE ENHANCE	(###) ### TUNER) SMALL/MEDIUM/LARGE: ###; OFF: ###
SND RESPONSE	LEVEL1/LEVEL2/LEVEL3: ###; OFF: ###
SOUND LIFT	LOW/MIDDLE/HIGH: ###; OFF: ###
VOL LINK EQ	ON: ###; OFF: ###; ON: ###
K2 TECHNOLOGY	(###) ### TUNER ### TUNER (###) ###; ON: ###; OFF: ###

nngnnnnaa[SPK/PRE OUT]

（OVERTYPE]du[2-WAY]

aennnnnneannnnnnnnnnnnn [SPK/PRE OUT] aannnnnnnnnnnnnnn

1

SPK/PRE OUT
	L (€10)	R (€21)
REAR/REAR
REAR/SUB.W
SUB.W/SUB.W		(100%)

mnden [SUB.W/SUB.W]:

• 120HZ] [SUBWOOFER LPF] [THROUGH]
• iαn [POSITION R02] [FADER] uαaunuaan [POSITION R15] [POSITION 00]

n

n 2 mnnm

A

aennnnnne nnnnnnnnnnnnnnnnnnnnnn (→31)

mmnnnnaaann:

·

SPEAKER SIZE

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

• yuonnnnnae 2 nnnn nn (NONE) TWEETER [FRONT], [REAR] uae [SUBWOOFER] lu [SPEAKER SIZE] n [X'OVER] vaoa wiaanl'
• WOOFER [WOOFER]

X'OVER (

[FRQ]/[F-HPF FRQ],[R-HPF FRQ],[SW LPF FRQ],[HPF FRQ],[LPF FRQ]: 15000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
[SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: 177777777777777777777777777777777777777777777777777777777777777777777
- [SW LPF PHASE].[PHASE]: anwaoaynooennovnawanwanaownoaowwnaw
[GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]:15000000000000000000000000000000000000000000000000000000000000000000000000000

1

SPEAKER SIZE

FRONT	SIZE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9/7×10
	TWEETER	SMALL MIDDLE/LARGE/NONE (▲▲▲▲▲▲)
REAR*1	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9/7×10 NONE (▲▲▲▲▲▲)
SUBWOOFER*2*3	16CM/20CM/25CM/30CM/38CM OVER NONE (▲▲▲▲▲▲)

X'OVER

TWEETER	FRQ	1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ
	GAIN LEFT	-08DB #00DB
	GAIN RIGHT	-08DB #00DB
FRONT HPF	F-HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	F-HPF SLOPE	-06DB/-12DB/-18DB/-24DB
	F-HPF GAIN	-08DB #00DB
REAR HPF*1	R-HPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	R-HPF SLOPE	-06DB/-12DB/-18DB/-24DB
	R-HPF GAIN	-08DB #00DB
SUBWOOFERLPF*2*3	SW LPF FRQ	30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ/180HZ/220HZ/250HZ/THROUGH
	SW LPF SLOPE	-06DB/-12DB/-18DB/-24DB
	SW LPF PHASE	REVERSE (180°)/NORMAL (0°)
	SW LPF GAIN	-08DB #00DB

1

SPEAKER SIZE
TWEETER	SMALL/MIDDLE/LARGE
MID RANGE	8CM/10CM/12CM/13CM/16CM/17CM/18CM/4×6/5×7/6×8/6×9
WOOFER*3	16CM/20CM/25CM/30CM/38CM OVER/NONE (###)
X'OVER
TWEETER	HPF FRQ 1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ 6.3KHZ/8KHZ/10KHZ/12.5KHZ
	SLOPE -06DB/-12DB
	PHASE REVERSE (180°)NORMAL (0°)
	GAIN -08DB #00DB
MID RANGE	HPF FRQ 30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ 180HZ/220HZ/250HZ/THROUGH
	HPF SLOPE -06DB/-12DB
	LPF FRQ 1KHZ/1.6KHZ/2.5KHZ/4KHZ/5KHZ/6.3KHZ/8KHZ/10KHZ/12.5KHZ/THROUGH
	LPF SLOPE -06DB/-12DB
	PHASE REVERSE (180°)NORMAL (0°)
	GAIN -08DB #00DB
WOOFER*3	LPF FRQ 30HZ/40HZ/50HZ/60HZ/70HZ/80HZ/90HZ/100HZ/120HZ/150HZ 180HZ/220HZ/250HZ/THROUGH
	SLOPE -06DB/-12DB
	PHASE REVERSE (180°)NORMAL (0°)
	GAIN -08DB #00DB

1 auaaia [SPK/PRE OUT] du [REAR/REAR] wio [REAR/SUB.W] miu (→ 19)
2 KD-R781BT: 450000000000000 [SPK/PRE OUT] [REAR/SUB.W] [SUB.W/SUB.W] (→19)
*3 2018-2020 [SUBWOOFER SET] ndu [ON] ndu (→18)

Digital Time Alignment

Digital Time Alignment 1nnnnaeennnne nnnnne nnne ne nnnnne nnnnne nnnnne

• 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000

DTA SETTINGS

POSITION	###
DISTANCE*1	OCM 610CM: ###
GAIN*1	-8DB 0DB: ###
DTA RESET	YES: ###[DISTANCE] ### [GAIN]) ### [POSITION] ###NO### ###NO; NO: no
CAR SETTINGS	###[DDTAS SETTINGS]
CAR TYPE	COMPACT/FULL SIZE CAR/WAGON/MINIVAN/SUV/ MINIVAN(ONG): ###OFF: ###
R-SP LOCATION*2	###

[DISTANCE] [GAIN] [DTA SETTINGS]

nwnnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1 1
2
3 1nnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
4 1111111111111111111111111111111111111111111
5 [GAIN] wuWau

*1 neuunnue nuaanrwnnnn nnneae 2 mnnn

FRONT LEFT/FRONT RIGHT/REAR LEFT/REAR RIGHT/SUBWOOFER

• [REAR LEFT], [REAR RIGHT] uαe [SUBWOOFER] vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe vαe

nannnnnnae 3 nnnn

TWEETER LEFT/TWEETER RIGHT/MID LEFT/MID RIGHT/WOOFER

• [WOOFER] wawwauon'wauwauon'wauwauon' [NONE] wauwauw [WOOFER] wu [SPEAKER SIZE]. ( 21)

^*2 univwunwnunun [X'OVER TYPE] nunun [2-WAY] ( 19) uanunnunununun [NONE] nunu [REAR] unn [SPEAKER SIZE] ( 21)

1 RED/GREEN/BLUE: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

MENUCOLOR ON:dlwdoaiaiivwauanueeouuuaaeegeuunnnae

*1 33
*2

nngnn

nnnnnnae

nneonnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

aannnnnnae nnnnne aennnne ne ane annne

（）

nannnnnnaa:

• iiaanannnnnne ane aen annn
  Jnnnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
• mnnnnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
• 电
• 陳藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥

yayawann

a: -nnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanara

- uwnn JVC

http://www.jvc.net/cs/car/>

#

-

DIGITAL AUDIO

DIGITAL AUDIC
Recordable

DIGITAL AUDIO
ReWritable

DuaDisc:DVD DualDisc"duu DVD DualDisc"duu DVD DualDisc
- 10000000000000000000000000000000000000000000000000000000000000000000000

Wanannouduu

Iwaiauuaiau

mnnn

KD-R881BT: MP3 (.mp3), WMA (.wma), AAC (.aac)

KD-R781BT: MP3 (.mp3), WMA (.wma)

amununumnuuua USB:

KD-R881BT: MP3 (.mp3), WMA (.wma), AAC (.aac), WAV (.wav), FLAC (.flac)

KD-R781BT: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)

• CD-R/CD-RW/CD-ROM
• 19660 23 1/2, Joliet,
• Wawwovonu USB FAT12, FAT16, FAT32

waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii waii

wAAC (m4a) 1uus USB CD iTunes iTunes

wannnnnnaa

iPod touch (5th 6th generation)
- iPod nano (7th generation)
- iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

Bluetooth: Made for

• iPod touch (5th 11a6th generation)

iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE

"JiaWanTangnngwaiYannuyn "Videos" lu [HEAD MODE]
- iPod/iPhone
- iPod/iPhone

muyuunr Android

Android OS 4.1
Android Open Accessory (AOA) 2.0
- 1000000000000000000000000000000000000000000000000000000000000000000000

Panda

Pandora 1nwn nnnnnnnn nn nnnn nn nnnnnnnnnnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn
Pandora 1
Pandora
- prnwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn Pandora [e-mail]

Bluetooth

u Bluetooth uauuuiuuaaueauuauuuuauuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
- 电
- anyueyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuyuy

yoyanuonnuyanrnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

• nuiyuyan yuoyun'nyuoyou "NO TEXT", "NO NAME" uoyou (nuoyou)

FM 530 AM	###(###/###)→ ###(###/###) w###w###w###*→ (nau'###w###w###)
	(###w###w###w### FM m###)
	###(PS)/###(PTY) (###/###)→ ###(###/###) (###/###)→ ###(###/###) + (###/###) (###/###)→ ###(###/###) → nau'### (###/###)→ ###(PS)/###(PTY) (###/###) w###w###w###*→ (nau'###w###w###)
CD 530 USB	(###w### CD-DA)
	###(###/###)→ ###(###/###)→ ###(###/###)→ nau'### (###/###)→ ###(###/###) w###w###w###*→ (nau'###w###w###)
	(###w### MP3/WMA/AAC/WAV/FLAC)
	###(###/###)→ ###(###/###)→ ###(###/###)→ ###(###/###)→ ###(###/###)→ nau'### (###/###)→ nau'### (###/###)→ ###(###/###) w###w###w###*→ (nau'###w###w###)
iPod USB/iPod BT ANDROID	###(HEAD MODE)/[AUTO MODE] (⇒ 8):
	###(###/###)→ ###(###/###)→ ###(###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### w###w###w###*→ (nau'###w###w###)
PANDORA/ PANDORA BT	###(###/###)→ ###(###/###)→ nau'### (###/###)→ ###(###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/### (nau'###w###w)
BT AUDIO	###(###/###)→ ###(###/###)→ ###(###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/###)→ nau'### (###/### (nau'###w###w)
AUX	AUX (###/###)→ AUX (###/###) w###w###w###*→ (nau'###w###w###)

###	###	###
CD/USB/PC	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"
	"###"	"###"

CD/USB/ICP
Android
	“CANNOT PLAY”
Pandora	“ADD ERROR”
	“CHK DEVICE”
	“NO SKIPS”
	“NO STATIONS”
	“STATION LMT”
	“UPGRADE APP”
	“CONNECT ERR”
	“RATING ERR”
	“THUMBS N/A”
	“LICENSE ERR”
Bluetooth*

Bluetooth®

mmnnnnnnnnnnnnnnnnnne (→3)

Tuner	FM	87.5 MHz — 108.0 MHz (MHz: 50 kHz)
		7.2 dBf (0.71 μV/75 Ω)
		17.2 dBf (2.0 μV/75 Ω)
		30 Hz — 15 kHz
		64 dB
		40 dB
	AM	1 (AM): 531 kHz — 1 602 kHz (MHz: 9 kHz) 2 (SW1): 2 940 kHz — 7 735 kHz (MHz: 5 kHz) 3 (SW2): 9 500 kHz — 10 135 kHz / 11 580 kHz — 18 135 kHz (MHz: 5 kHz)
		AM: 29 dBμ (28.2 μV) SW: 30 dBμ (32 μV)
CD		GaAlAs
		8.5 GHz (D/A)
		500 GHz (CLV)
		20 Hz — 20 kHz
		0.01 %
		105 dB
		90 dB
		85 dB
		MPEG-1/2 Audio Layer-3
		Windows Media Audio
		"bla" AAC-LC "..aac" (MPEG-1/2 CD-R881BT)

USB	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATural)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2.0 (NATURAL)
	USB 1.1, USB 2023/48 kHz

\( \frac{1}{\text{変換}} \)	\( \frac{1}{\text{変換}} \)	\( \frac{1}{\text{変換}} \)
	\( \frac{1}{\text{変換}} \)	\( \frac{1}{\text{変換}} \)
	\( \frac{1}{\text{変換}} \)	\( \frac{1}{\text{変換}} \)
	\( \frac{1}{\text{変換}} \)	\( \frac{1}{\text{変換}} \)

Bluetooth	iμ	Bluetooth 3.0
	iμ	2.402 GHz — 2.480 GHz
	iμ	+4 dBm (500kHz), 0 dBm (AVE) Power Class 2
	iμ	10 ms (32.8 ft)
	iμ	SSP (Secure Simple Pairing)
	iμ	HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)

	50 W×4 W 50 W×2+50 W×1 (50W×1=4Ω)
	22 W×4 (50W×1 1% THD)
	4Ω-8Ω
	1Ω-4000 mV/10 kΩ
	≤600 Ω
	14.4 V
	10 A
	-10°C - +60°C
	182 mV × 53 mV × 159 mV
	1.2 nV

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
  Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
  Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

libFLAC

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERCEPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

CLASS 1 LASER PRODUCT

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

1

thnnnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

jLl plssuWU Lc uLc

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

jolosallyLg

001 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1b21

.2000100000000000000000000000000000000000

1 1

4u 1y j yj yj yj yj yj yj

Jsi jog（olw）j

y035 J 100g 332

blau

1.5 2.5 3.5 4.5 5.5 6.5 7.5 8.5

(NL) USB 2.0, USB 1.1	USB
32 /16 /FAT12	JL	US
a11.5=DC b15	d15	US
c1284	D/A	US
MPEG-1/2 Audio Layer-3 b15a,b15	MP3	US
Windows Media Audio Lb1a,b1a	WMA	US
(KD-R881BT b1a)“aac” AAC-LC	AAC	US
a12aPCM	WAV	US
(ajjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzj	FLAC	US
zzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjzjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjzjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjzjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjzjjzjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjZjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjZjjzjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjzjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjzjjzjjzjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjzjjZjjzjjzjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjzjjZjjZjjzjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjZjjzjjZjjzjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjzjjZjjzjjZjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjzjjZjjZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ ZJJ

108.0-23μV 87.5 (5μV 50 μS)	FM
(75Ω/0.71μV) 8.2 dBf	(5μV 26=S/N)
(75Ω/2.0μV) 17.2 dBf	(5μV 46=DIN S/N)
:23μV 15-23μ30	(5μV ±3)=23μV
:23μV 64	(5μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 23μV 2
:(AM) 1 μs	AM
:23μV 1602-23μV 531 (5μV 9 μS) :(SW1) 2 μs
:23μV 7735-23μV 2940 (5μV 5 μS) :(SW2) 3 μs
/23μV 10135-23μV 9500 :23μV 18135-23μV 11580 (5μV 5 μS)
(28.2μV) 29 dBμ:AM (32μV) 30 dBμ:SW	(5μV 20=S/N)

(6th generation , 5th) iPod touch -

SE .6S Plus .6S .6 Plus .6 .5C .5S .5 iPhone 4S -

[HEAD MODE]d"Videos"

.5

aaii i 1

. iPiOe /iPod 000000000000000000000000000

jSooLssSsJ i jiphone /iPod Jolc pnnnne a

S

yjdlolg 0j

15 4.1

1 4.1 1

2.0 (AOA) Android Open Accessory

mass storage 150

j 2000 AOA 2.0 (p

A0A2.0

Pandora

Pandora

http://www.pandora.com/legal

Pandora

i 1

Jss Js Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

.

i j 1j 1j Pandora slaa

jai jybjj lalal jolalalalalalalalalalalal

Pandora 已 [e-mail]

jgi jgi jgl slo oicj gl aai oio

1

Lsi jS iSj ySj 0000j Sj Cw

.

1 > 1 即 1.5 < u < 3.5 即 0.5 < u < 1.5

:

S ADB = S CBD + S_ BDO

(.aac) AAC (.wma) WMA (.mp3) MP3 :KD-R881BT

(.wma)WMA(.mp3)MP3:KD-R781BT

:USB.

(.flac)FLAC(.wav)WAV(.aac)AAC(.wma)WMA(.mp3)MP3:KD-R881BT

(.flac) FLAC (.wav) WAV (.wma) WMA (.mp3) MP3 :KD-R781BT

CD-ROM/CD-RW/CD-R:

Long Jlfa Joliet. ISO 9660 Level 1/2:

:USB 50000000000000000000000000000000

Made for

(6th generation , 5th) iPod touch –

(7th generation) iPod nano -

SE .6S Plus .6S .6 Plus .6 .5C .5S .5 iPhone 4S -

S

0000000

S 1

（）

1

14.5 54

1

l2 : y = - 12x^2 + 14x + 3 l2 : y = - 12x + 3

Sss 11s sss

S_ OBC = 12 · CO · BC = 12 × CD × 5

Sio 15i j

aS S 03y Caa 4 g025g S S 0j1 j0

S 1

SsS Sss

c0cb1

jIwJyI jyI JyI yIyI yIyI yIyI -:

JVC 1

ydydydydydy

..uhttp://www.jvc.net/cs/car/

5

http://www.jvc.net/cs/car/

J: [LPF FRQ] /[HPF FRQ] /[SW LPF FRQ] /[R-HPF FRQ] /[F-HPF FRQ] /[FRQ]

.（）

JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ

: [LPF SLOPE] /[HPF SLOPE] /[SW LPF SLOPE] /[R-HPF SLOPE] /[F-HPF SLOPE] /[SLOPE]

15 15

[THROUGH] jz

LILpKgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSgSg

山 山 :[GAIN]/[SW LPF GAIN]/[R-HPF GAIN]/[F-HPF GAIN]/[GAIN RIGHT]/[GAIN LEFT]

15 121 10

[SPK/PRE OUT] laaal aai

j 1

(31)

:KD-R881BT

(lineout)			SUSALJADSPYIAYLIL
SW	REAR	FRONT
\( \text{d} \)			( \( \text{d} \) )
\( \text{d} \) ( \( \text{d} \) )	\( \text{d} \) ( \( \text{d} \) )	\( \text{d} \) ( \( \text{d} \) )	REAR/REAR
\( \text{d} \)			REAR/SUB.W
\( \text{d} \)			SUB.W/SUB.W

:KD-R781BT

[ON] (S) [SUBWOOFER SET] S# & b# *1

[SUB.W/SUB.W] S# & [SPK/PRE OUT] S# & b# 2 S, S# *2

(19 ←).S# S# S# S#

[SUB.W/SUB.W] S# [REAR/SUB.W] S# & b# S# 2 S, S# *3

(19 ←).S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S# S#

PRO EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 62.5HZ
J (J)	. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (LEVEL 00) LEVEL +09 J LEVEL -09 (.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J LEVEL J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J LEVEL 00 J LEVEL -09 J LEVEL -09 16KHZ /10KHZ
/6.3KHZ /4KHZ /2.5KHZ /1.6KHZ /1KHZ /630HZ /400HZ /250HZ /160HZ /100HZ
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . J LEVEL 01 J LEVEL -09 J LEVEL -09 (.. . . . . . . . . . . . . . . . . . . . . . J LEVEL 02 J LEVEL -09 J LEVEL -09 16KHZ /10KHZ
. . . . . . J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Q FACTOR
AUDIO CONTROL
J (J)	. J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J JJ J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J.J BASS BOOST
. . . . . . J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J LOUDNESS
. . . . . J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J R S L A C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y O P Q R S T U V W X Y O P Q R S T U V W X Y O P Q R S T U V W X Y O P Q R S T U V W X Y O P Q R S U V W X Y O P Q R S U V W X Y O P Q R S U V W X Y O P Q R S U V W X Y O P Q R S U V W X Y O P Q R J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J I J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J JI J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J L J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP JP J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ JJ J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L J L

$$ \therefore \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} \text {d} _ {j} $$

$$ \begin{array}{l} \begin{array}{l} \text {I I E N T E R} _ {\text {S S}} \text {V O L} + / - (\text {S S}) \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {S S} \text {T A B} \end{array} 2 \ 3 \ \dots \dots \dots \dots \dots \dots \dots \dots \dots \ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots 4 \ \therefore \quad \text {a l p h a} _ {i} \text {a l p h a} _ {j} \text {a l p h a} _ {k} \text {a l p h a} _ {l} \text {a l p h a} _ {m} \ \end{array} $$

XX:

EQ SETTING

JAZZ/HIP HOP/HARD ROCK/DRVN 2/DRVN 3/FLAT CLASSICAL/USER/R&B/POP

03:###	+06 10:00	SUB.W SP*1*2:
00	+10 1-50	SUB.W*1*3:
LVL 00	LVL +09 1LVL -09	BASS:
LVL 00	LVL +09 1LVL -09	MID:
(LVL 00	LVL +09 1LVL -09	TRE:

$$ (1 8 \leftarrow): ^ { 3} \cdot^ { 2} \cdot^ {* 1} $$

jLjLj

LJ (c)2g yj 45 Jd j d S

1

$$ \begin{array}{l} (4 \leftarrow). \because \text {S L} \cup \text {S L} [ O N ] \text {S L} [ \text {S O U R C E S E L E C T} ] \text {S L} [ \text {B U I L T - I N A U X} ] \text {S L} \ \therefore \text {S R C} - \bullet \text {A U X} \text {a l l} 3 \ \therefore \sum_ {i = 1} ^ {n} \left| \sum_ {j = 1} ^ {m} \right| = \sum_ {i = 1} ^ {n} \left| \sum_ {j = 1} ^ {m} \right| = \sum_ {i = 1} ^ {n} \left| \sum_ {j = 1} ^ {m} \right| = \sum_ {i = 1} ^ {n} \left| \sum_ {j = 1} ^ {m} \right| = \ \end{array} $$

150 1

STATUS
(\begin{array}{c}\text{1.25000000000000000000000000000000000000000000000000000000000000000000} \ \text{2.2500000000000000000000000000000000000000000000000} \ \text{3.250000000000000000000000000000} \ \text{4.2500000000000088888888888888888888888888888888888888888888888888888888888888888888888888888888} \ \text{5.2559999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999} \ \text{6.2555555555555555555555555555555555555555555555555555555555555555555555555555555} \ \text{7.2555555555555555555555555555555555555555555555555} \ \text{8.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2. 11111111111111111111111111111111111111111111111111111111111111} \ \text{9.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2. 11111111111111111111111 1} \ \text{a) 333333333333333333333333333333333333333333333333333333333333} \ \text{b) 4444444444444444444444444444444444444444444444444444444444444444444444444444444444444444444444444444} \ \text{c) 6666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666} \ \text{d) 777777777777777777777777777777777777777777777777777777777777777777777777777777777777} \ \text{e) 88888888888888888888888888888888888888 } \ \text{f) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 } \ \text{g) 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2} \ \text{h) } \ \text{i) } \ \text{j) } \ \text{k) } \ \text{l) } \ \text{m) } \ \text{n) } \ \text{o) } \ \text{p) } \ \text{r) } \ \text{s) } \ \text{t) } \ \text{u) } \ \text{v) } \ \text{w) } \ \text{x) } \ \text{z) } \ \text{a) } \ \text{b) } \ \text{c) } \ \text{d) } \ \text{e) } \ \text{f) } \ \text{g) } \ \text{h) } \ \text{i) } \ \text{j) } \ \text{k) } \ \text{l) } \ \text{m) } \ \text{n) } \ \text{o) } \ \text{r) } \ \text{s) } \ \text{t) } \ \text{t} ) \ \text{u) } \ \text{v) } \ \text{w) } \ \text{z) } \ \text{a) } \ \text{b) } \ \text{c) } \ \text{d) } \ \text{e) } \ \text{f) } \ \text{g) } \ \text{h) } \ \text{i) } \ \text{j) } \ \text{k) } \ \text{l) } \ \text{m) } \ \text{n) } \ \text{o) } \ \text{r) } \ \text{s) } \ \text{t) } \ \text{t} ) \ \text{u) } \ \text{v) } \ \text{w) } \ \text{z) } \ \text{a) } \ \text{d) } \ \text{e) } \ \text{f) } \ \text{g) } \ \text{h) } \ \text{i) } \ \text{j) } \ \text{k) } \ \text{l) } \ \text{m) } \ \text{n) } \ \text{o}) }\

(KD-R881BT) iPod/iPhone

ipod /iPhone

SRC-iPod BT

..USB USB 1500000000000000000000000000000000000000000000000000000000000000000000

USB iPod/iPhone S iPod BT

Joo 1000000000000000000000000000000000000000000000000000

.5ipodBTiJSSS,SRCA

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

LJU 100000000000000000000000000000000000000000000

//Pod touch /iPhone :KD-R881BT

LJUoJ.0Kd7:KD-R781BT

(）Panda 1

:lo sJLOoSL

(4 .J. [ON] J [SOURCE SELECT] J [PANDORA SRC]

Pandora 1

(10+) 2

PANDORA BT (iPod /iPhone) PANDORA SRC

12

55 55

(9) USB 1000

JVC Remote aolj jolizai ay bgyo cldi

JVC Remote

.

Ld (USB g y L b i) iPod /iPhone:KD-R881BT

（）

http://www.jvc.net/cs/car/

1

IITER VOL+ (Lg JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

3

4

A

XX:

REMOTE APP

j1 USB w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o

j1 iUSB w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o w/o

JSSS [YES] jss [SELECT] 70 [ANDROID]

BLUETOOTH

BTAUDIO 2000
1000
1000

$$ \therefore \text {i} _ {j} = \text {S a n i g m a} \text {i} _ {j} \text {l a i d e r i s t i p e} (s) \text {i} _ {j} \text {l a i d e r i s t i p e} $$

$$ \mathrm {U} _ {2} / \text {,} ^ { 1}" H A N D S - F R E O K " \mathrm {U} _ {2} / \text {,} ^ {} P A I R I N G O K " $$

$$ j l w: ^ { 3}" P B A P O K " \downarrow / , ^ { 2}" A D U. S T R E A M O K" $$

$$ (H F P) \left{s j \dot {j} \dots s \right} \left{s j \dot {j} \dots s \right} \left{s j \dot {j} \dots s \right} ^ {*} 1 $$

$$ (A 2 D P) \dot {a} \dot {b} \dot {c} \dot {d} \dot {e} \dot {f} \dot {g} \dot {h} \dot {i} \dot {j} \dot {k} \dot {l} \dot {m} \dot {n} ^ {*} 2 $$

$$ (P B A P) j _ {1} \leqslant 5 < j _ {2} < 3 < j _ {3} < 4 < j _ {4} < 5 < j _ {5} < 6 < j _ {6} < 7 < j _ {7} < 8 < j _ {8} < 9 < j _ {9} < 1 0 < j _ {1 0} < \dots $$

$$ \text {P A I R I N G D E L T E D} \quad \text {a t 3 0 j} $$

$$ \left. \int_ {0} ^ {1} \frac {\sin x}{x - 1} d x + \int_ {1} ^ {2} \frac {\cos x}{x - 1} d x + \int_ {2} ^ {3} \frac {\sin x}{x - 1} d x\right) = \int_ {0} ^ {1} \frac {\sin x}{x - 1} d x + \int_ {1} ^ {2} \frac {\cos x}{x - 1} d x + \int_ {2} ^ {3} \frac {\sin x}{x - 1} d x $$

$$ . 2 g \dot {w} ^ {2} s ^ {0} $$

$$ \text {S C R} \cdot \text {G} $$

$$ \dots \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s $$

الإستعمال الحرفية	الإستعمال الحرفية
.الإستعمال الحرفية	.الإستعمال الحرفية
.الإستعمال الحرفية	.الإستعمال الحرفية
.الإستعمال الحرفية	.الإستعمال الحرفية
.الإستعمال الحرفية	.ال,enGLISH
.ال,enGLISH	.ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	.ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
.ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENGLISH	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTened	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLED	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA	ENGLISH
. ENLIGHTLEDA

100000000000000000000000000000000000000

1

#

$$ \int_ {0} ^ {1} \frac {\sin x}{x + 1} d x = \int_ {0} ^ {1} \frac {\sin x}{x + 1} d x $$

$$ \therefore \sin \left(\omega_ {1} + \omega_ {2}\right) = 1 $$

$$ \therefore \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad \text {l i l} \quad $$

$$ \therefore \text {i} \text {j} \text {k} \text {l} \text {o} \text {s} \text {d} \text {e} \text {f} \text {g} \text {h} \text {i} \text {j} \text {k} \text {l} \text {o} \text {s} \text {d} \text {e} \text {f} \text {g} \text {h} \text {i} \text {j} \text {k} \text {l} \text {o} \text {s} \text {d} \text {e} \text {f}. 1 $$

$$ \therefore \text {C H C K M O D E} ^ {\prime \prime} \leftrightarrow \text {B L U E T O O T H} ^ {\prime \prime} $$

$$ \left. \text {P I N} 0 0 0 0 ^ {\prime \prime} \rightleftharpoons \text {S E A R C H N O W U S U N G P H O N E} ^ {\prime \prime} $$

$$ \therefore \Delta S \cong \Delta C \cong \Delta f _ {S} ^ {\prime} $$

$$ \left. \text {J} ^ {\prime \prime} K D - R 7 * * B T ^ {\prime \prime} / K D - R 8 * * B T ^ {\prime \prime} \right. \text {d i s t a t e d} 3 $$

$$ \therefore \lim _ {y \to 0} \frac {1}{y ^ {2} + y + 1} = \frac {1}{y ^ {2} + y + 1} $$

$$ \left|\right. _ {j \rightarrow j} (C) \downarrow (B) \cdot (A), \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} \quad \text {s o l v e} $$

$$ \therefore \angle 5 $$

$$ \left{j a l o w: \left(j a l o w j 6 j a l o w\right) ^ {\prime \prime} X X X X X X ^ {\prime \prime} \neq^ {\prime \prime} P A I R I N G ^ {\prime \prime} (A) \right. $$

$$ \Delta y _ {i} y _ {j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} \Delta x _ {i j} $$

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots $$

$$ \left. \text {i} _ {\text {d} \text {s} \text {s} \text {s}} ^ {\prime \prime} 0 0 0 0 ^ {\prime \prime} : ^ {\prime \prime} P I N I S 0 0 0 0 ^ {\prime \prime} \Leftarrow^ {\prime \prime} P A I R I N G ^ {\prime \prime} (B) \right. $$

$$ \therefore \Delta = 2, \Delta = 3, \Delta = 4 $$

$$ \left. \left. 1, \text {吉} \right] \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉} \text {吉}\right) ^ {\prime \prime} “ P A I R I N G ” (C) $$

$$ \therefore \mathrm {L i s} \mathrm {J a i} $$

$$ \leftarrow^ {\prime \prime} P A I R I N G O K ^ {\prime \prime}, \quad \text {p l a t i c a l} \quad \text {c o n s t a n t} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} $$

$$ \dots \text {d} \left[ \begin{array}{l l l l l l l l l l l l l} \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {1}{2} & \frac {3}{4} \end{array} \right] $$

$$ \because C O N N E C T \quad \text {N O W U S U N G P H O N E} ^ {\prime} \quad \text {J} $$

$$ \therefore \lim _ {x \rightarrow - \infty} \frac {\sin x}{x ^ {2}} = \frac {\sin x}{x ^ {2}} $$

$$ . 2 j \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \Omega $$

#

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots 1 $$

$$ \left. \quad \text {I I E N T E R} _ {\text {J}} \right\rangle_ {\text {J}} \left. \quad \text {V O L} + / - \left(\frac {1}{2} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} \text {L} _ {\text {J}} ^ {- 1}\right) \right\rangle_ {\text {J}} $$

$$ \left. \int_ {0} ^ {1} \frac {1}{x} \right| _ {0} ^ {1} \int_ {0} ^ {1} \frac {1}{y} \int_ {0} ^ {1} \frac {1}{z} \int_ {0} ^ {1} \frac {1}{w} \int_ {0} ^ {1} \frac {1}{\theta} \int_ {0} ^ {1} \frac {1}{\varphi} \int_ {0} ^ {1} \frac {1}{\psi} \int_ {0} ^ {1} \frac {1}{\tau} \int_ {0} ^ {1} \frac {1}{\omega} \int_ {0} ^ {1} \frac {1}{\varphi^ {\prime}} \int_ {0} ^ {1} \frac {1}{\varphi^ {\prime}} \int_ {0} ^ {1} \frac {1}{\varphi^ {\prime}} \int_ {0} ^ {1} \frac {1}{\varphi^ {\prime}} \int_ {0} ^ {1} \frac {1}{\varphi^ {\prime}} \int_ {0} ^ {1} \int_ {0} ^ {1} \frac {1}{\varphi^ {\prime}} $$

$$ \dots $$

$$ \therefore \text {a l p h a} \text {j} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {1 4} $$

$$ \therefore \text {a} \neq \frac {1}{2} \text {a} \neq \frac {1}{2} \text {a} \neq \frac {1}{2} \text {a} \neq \frac {1}{2} \text {a} \neq \frac {1}{2} \text {a} \neq \frac {1}{2} \text {a} \neq \frac {1}{2} $$

$$ \begin{array}{c} \text {X X}: \ \text {X X}: \end{array} $$

BT MODE
.155	PHONE SELECT*
.200	AUDIO SELECT*
.250	DEVICE DELETE
.300	DEVICE DELETE
.350	PIN CODE EDIT
.400	(0000)
.450	RECONNECT
.500	AUTO PAIRING
.600	INITIALIZE
.700	INFORMATION

L 10000000000000000000000000000000000000000000

110

1

2

1 1

la jolil 1y oolil glllgl lal 1y

iPhone 1

#

100

6（61）Sla 60sSg 6

1

[DIAL NUMBER] [PHONEBOOK] [RECENT CALL] 2

I ENTER VOL+/-

3

.

HENTER

.5 0000

4

"MEMORY P (a) 100000000000000000000000000000000000000000000000000

.200012 40000000

[DIAL NUMBER]

L 2

a b c d e f g h i j k l m n o p q r s t

1

2

HENTER 3

PNO PRESET"

2g 5

y j 1

a 1

1

.5a"（Jg0）

a3 = a1 + 2 = 3

IENTERVOL+/-（sJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJzJ

3

A

（.）PBAPj jaiS UuiuUus

1

NO HISTORY

IENTER 2

PBAJ jai s Jui jia

(.OTHERS 910.2A) 2A/1V,

"OTHERS" 90 LZ A J

ENTERVOL+/-p 2

I ENTER Vol+/-.

.

Jieao oOoo 1500g jybu gjbu gjluu cpa Juaa jdu bgyjdu

RECENTCALL

PHONEBOOK

.225 50

1 1

（.）021 1

1

1 2

.28 1

ENTER 3

DIAL NUMBER

VOICE

$$ \therefore \text {s u b s c r i p t} _ {1} S R C = 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 0. 0 5 2 $$

$$ \therefore \text {d} \left[ \right. \text {d} \left[ \right. \text {d} \left[ \right. \text {d} \left[ \right. \text {d} \left[ \right. \text {d} \left[ \right. \text {d} \left[ \right. \text {d} \left[ \text {d} \left[ \text {d} \left[ \text {d} \left[ \text {d} \left[ \text {d} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left[ \text {f} \left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right] $$

$$ \begin{array}{l} \dots \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j} \text {j}, \ 2 j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j, j. \end{array} $$

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left. \text {l o g} (\mathrm {B}) \right] _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {1} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A})\right) _ {\mathrm {L}} (\mathrm {A}) $$

$$ \therefore \Delta A B C \sim \Delta A D E $$

$$ " B A C - N O " \Leftarrow " E N T E R - Y E S " \Leftarrow " X X X X X X " \Leftarrow " [ o l k _ {s w s p} ] ^ {\prime \prime} (A) $$

$$ . 2 \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s}, 6, 6, 6, " X X X X X X" $$

$$ \therefore \text {i n t e r n a l} \quad \left(s, s _ {1}, s _ {2}\right) \text {i n t e r n a l} \quad \left(s _ {3}, s _ {4}\right) \text {i n t e r n a l} \quad \left(s _ {5}, s _ {6}\right) \text {i n t e r n a l} \quad \left(s _ {7}, s _ {8}\right) $$

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \tag {2} $$

$$ \therefore \Delta S _ {\Delta} = \Delta S _ {\Delta} ^ {1} + \Delta S _ {\Delta} ^ {2} + \Delta S _ {\Delta} ^ {3} + \dots $$

$$ " B A C K - N O " \Leftarrow " E N T E R - Y E S " \Leftarrow [ d \text {公} ] ^ {\prime \prime} (B) $$

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \tag {1} $$

$$ \therefore \Delta S _ {2} = 3, \Delta S _ {1} = 4 $$

$$ (1 4 \leftrightarrow) \quad \therefore \text {a} _ {2} \text {a} _ {3} \text {a} _ {4} \text {a} _ {5} \text {a} _ {6} \text {a} _ {7} \text {a} _ {8} \text {a} _ {9} \text {a} _ {1 0} \text {a} _ {1 1} \text {a} _ {1 2} \text {a} _ {1 3} \text {a} _ {1 4} \text {a} _ {1 5} \text {a} _ {1 6} \text {a} _ {1 7} \text {a} _ {1 8} \text {a} _ {1 9} \text {a} _ {2 0} \text {a} _ {2 1} \text {a} _ {2 2} \text {a} _ {2 3} \text {a} _ {2 4} \text {a} _ {2 5} \text {a} _ {2 6} \text {a} _ {2 7} \text {a} _ {2 8} \text {a} _ {2 9} \text {a} _ {3 0} \text {a} _ {3 1} \text {a} _ {3 2} \text {a} _ {3 3} \text {a} _ {3 4} \text {a} _ {3 5} \text {a} _ {3 6} \text {a} _ {3 7} \text {a} _ {3 8} \text {a} _ {3 9} \text {a} _ {\dots}. $$

$$ \therefore \Delta S _ {1} \Delta S _ {2} \Delta S _ {3} \Delta S _ {4} \Delta S _ {5} \Delta S _ {6} \Delta S _ {7} \Delta S _ {8} \Delta S _ {9} \Delta S _ {1 0} \Delta S _ {1 1} \dots “ P A I R I N G ” \text {B i a l} $$

$$ j _ {i} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {j} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {i} j _ {j} \text {" P A I R I N G C O M P L E T E D " } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {" } \text {} $$

$$ \dots \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} $$

$$ \therefore \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {S u} \quad \text {T h e t a} $$

$$ . 2 S (c i d e) c i d e 1 o l d s w i t h \frac {1}{2} a + b + c + d + e + f + g + h + i + j + k + l + m + n + o + p + q + r + s + t + u + v + w + x + y + z $$

$$ \therefore \text {d} S = \int_ {D} \left[ \frac {1}{2} \sin \theta + \frac {1}{2} \cos \theta \right] d \theta $$

$$ . [ D E V I C E D E L T E ] \cdot 1 4 \leftarrow \omega_ {i} \omega_ {j} \omega_ {k} \omega_ {l} \omega_ {m} $$

$$ \therefore \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S _ {\Delta} = \Delta S $$

$$ (1 5 \leftarrow) \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \tag {15} $$

$$ 4 4 \text {g} \omega \text {d} \text {c} \text {s} \text {a} \text {d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a} \text {d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a} \text {d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a} \text {d} \text {i} \text {a} \text {d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a} \text {d} \text {i} \text {a} \text {d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a} \text {d} \text {l} \text {a d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a l} \text {a d} \text {i} \text {o} \text {k} \text {c} \text {s} \text {a l} \text {a d} \text {i} $$

$$ \dots \leqslant 1, 2, \dots $$

$$ \therefore \Delta E F G \cong \Delta G B D \sim \Delta O C A \sim \Delta O B A \sim \Delta S A C \sim \Delta C B D \sim \Delta C E F $$

JUZU—BLUETOOTH

$$ \therefore \lim _ {x \to 0} \frac {\sin^ {2} x}{\cos^ {2} x + \sin^ {2} x} = \frac {1}{\sqrt {3}} $$

$$ (H F P) \left{a, b, c, d, e, f \right} - $$

$$ (A 2 D P) \because \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \frac {1}{2} \dots $$

$$ (A V R C P) _ j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j $$

$$ (S P P) \cup_ {j} \cup_ {j} \cup_ {j} \cup_ {j} \cup_ {j} \cup_ {j} \cup_ {j} - $$

$$ (P B A P) \int_ {0} ^ {1} \frac {\sin x}{x} d x = \int_ {0} ^ {1} \frac {\sin x}{x} d x = 0 $$

$$ \therefore \text {d i s t} \left(\frac {1}{2}, \frac {1}{2}\right) $$

$$ (S B C) \quad \text {s u b s c r i p t} $$

$$ (A A C) \dot {s} \dot {s} \dot {s} \dot {s} \dot {s} s \dot {s} s - $$

$$ \therefore \sin 3 0 ^ {\circ} = \frac {1}{2} $$

$$ \therefore \lim _ {g \to 0} \frac {\sin^ {2} g}{\cos^ {2} g} = \frac {1}{2} $$

$$ \therefore \text {a l l} _ {j} Q / \supset 1 $$

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left. \text {新} ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 1 - 2\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0\right) ^ {\prime} = 0 $$

$$ \therefore \angle A D C = 1 8 0 ^ {\circ} $$

$$ 1, \triangleright / I I E N T E R \quad \text {V O L} + / - \left[ F R M A R T I S T \right] \cup \left[ F R M T R A C K ] \right. \quad \text {J} \quad \text {I} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} \quad \text {J} $$

$$ \dots \dots $$

$$ \therefore \Delta g ^ {\prime} = \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} \Delta g ^ {\prime} $$

$$ \therefore \text {d} \left(\frac {\partial f}{\partial x}\right) = \frac {\partial f}{\partial y} + \frac {\partial f}{\partial z} $$

$$ \therefore \text {d} \text {s} \text {j} \text {l} (\mathbf {6} \text {与} \mathbf {5}. \mathbf {4}. \mathbf {3}) \text {j} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {i} \text {s} \text {s}: \text {a o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} \text {o} $$

$$ \therefore \lim _ {x \rightarrow 0} \frac {\sin^ {2} x}{\cos^ {2} x} = \frac {1}{\cos x} $$

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots 1 $$

$$ [ B Y D A T E ] $$

$$ \left[ \begin{array}{l l l} \text {L i d} & \text {L i d} & \text {L i d} \ \text {L i d} & \text {L i d} & \text {L i d} \end{array} \right] = \left[ \begin{array}{l l l} \text {L i d} & \text {L i d} & \text {L i d} \ \text {L i d} & \text {L i d} & \text {L i d} \end{array} \right] $$

$$ \cdot \text {I I E N T E R} _ {\text {s}} \text {V O L} + / - \text {l a n d} \text {d i s t r i b u t i o n} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text {1} \text 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 $$

$$ \therefore \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} \quad \text {山} $$

$$ \therefore \left| \frac {1}{2} \right| = \frac {1}{2} $$

$$ \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \Downarrow $$

$$ . 3 \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \omega \Omega^ {\prime} B O O K M A R K E D ^ {\prime} C, L, $$

$$ \therefore \text {P a n d o r a} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} \quad \text {L a b} $$

$$ : l o (s l o w o l) $$

$$ \left(i P o d t h o u t / i P h o n e\right) \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r s i l y} \quad \text {P a r S L} $$

$$ \therefore \Delta_ {2} = \frac {1}{2} \Delta_ {1} + \Delta_ {3} $$

$$ (4 \leftarrow). \therefore \text {I} _ {\text {J}} [ \text {O N} ] \text {I} _ {\text {J}} \text {J} _ {\text {J}} [ \text {S O U R C E S E L E C T} ] \text {J} _ {\text {J}} [ \text {P A N D O R A S R C} ] \text {J} _ {\text {J}} \cdot $$

$$ \therefore \Delta_ {i j} \leqslant \sum_ {j = 1} ^ {n} \Delta_ {i j} \text {P a n d o r a} _ {i j} \leqslant \sum_ {j = 1} ^ {n} \Delta_ {i j} \text {G e t a} _ {i j} \leqslant \sum_ {j = 1} ^ {n} \Delta_ {i j} \text {G e t a} _ {i j} \leqslant \sum_ {j = 1} ^ {n} \Delta_ {i j} \text {G e t a} _ {i j} \leqslant \sum_ {j = 1} ^ {m} \Delta_ {i j} \text {G e t a} _ {i j} \leqslant \sum_ {j = 1} ^ {m} \Delta_ {i j} $$

$$ (1 6. 1 0 \Leftrightarrow) $$

$$ \therefore \frac {1}{2} \times 3 = \frac {1}{2} \times 3 = \frac {1}{2} $$

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots $$

$$ \dots \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} \quad \text {L} $$

$$ \therefore \text {S R C} \cdot ① \text {P A N D O R A} $$

$$ \dots \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta \Delta $$

$$ \left. \int_ {0} ^ {1} \frac {1}{x} f (x) d x \right| _ {0} ^ {1} = \int_ {0} ^ {1} \frac {1}{x} f (x) d x $$

$$ \therefore \text {I I E N T E R} \quad \therefore \text {I I E N T E R} $$

$$ . \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow \downarrow $$

$$ \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots $$

$$ ^ {* 2} \vdash $$

$$ \therefore \sin \angle 1, \cos \angle 2 = j _ {1} l _ {1}, j _ {1} l _ {2}, \therefore \sin \angle 1 = \frac {1}{2}, \cos \angle 2 = - \frac {1}{2}, \therefore \sin^ {2} \angle 1 + \cos^ {2} \angle 2 = 1 $$

$$ \therefore \lim _ {x \rightarrow - \infty} \frac {\sin^ {2} x}{\cos^ {2} x} = \frac {1}{\sqrt {3}} $$

$$ \left. \frac {1}{a + b} \frac {1}{b + c} \frac {1}{c + d} S _ {1} \right| \text {w i t h} $$

[AUTO MODE]/[HEAD MODE]45

.

1 1

IENTERVOL+/-cysyS 2

I ENTER VOL+/- 3

http://www.jvc.net/cs/car/

!IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND !IF BAND

!MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET !MONO SET

.

PTY

VARIED,SCIENCE,CULTURE,Drama,EDUCATE,SPORT,INFO,AFFAIRS,NEWS

CLASSICS,LIGHT M (الله��) EASY M (الله��) ROCK M (الله��) POP M (الله��)

PHONE IN,RELIGION,SOCIAL,CHILDREN,FINANCE,WEATHER,OTHER M (الله��)

FOLK M (الله��),OLDIES,NATION M (الله��),COUNTRY JAZZ,LEISURE,TRAVEL

###
1
2
3
4

XX:

TUNER SETTING
...dss	RADIO TIMER
...dss
...dss	SW2 / SW1 / AM / FM 2
...dss	(SW2 / SW1 / AM) (bajal) 06 l 01 / (FM) (bajal) 18 l 01 3
...dss	...dss	...dss
...dss	...dss	...dss
...dss	...dss	...dss
...dss	...dss	...dss
...dss	...dss	...dss
...dss	...dss	...dss
...dss	...dss	...dss
...dss	...dss	...dss

"ST" j51 J 1J FM

S

SRSCW2SW1AMFM 1

2

（）

J 山 _ 1 ^ 出 J 山 _ 2 ^ 出 J 山 _ 3 ^ 出

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

a a a a a a a a a a a a a a a a a a a a a a a a a

：

i 1

aaljaii iiaai 100000000000000000000000000000000000000000

J 1

.

: (RM-RK52) 0001 jJ J

S_ OBC = 12 · CD · BC = ( 0 + 2) × 5

.24 10000000000000000000000000000000000000

2 0

3

4

1

S OBC = S COD + S BOC - S BOC

3x + 3 = 2 + k ,

5

7 ANDROID/iPod/USB/CD

Pandora

aill Jaiw waiy aaiy aaiy daiy 1000 0000

jill ddd gaiy jiai

WwLx

aJyI aJyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI y

J 2

(31)

LJyJyJyJyJyJyS3

(30) (a)

iJLJIyJb=JrJJgj 4

AeLbJI JieJiJ SRC-0jle JbeJ 5

(3+).

g4 × 10g50 m.g.) 1 × 10g50 + 2 × 10g50 (ρg4 = ∑j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n (j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n j=1n (USB/CD)
ρg8 - ρg4
ρg10 Lg4 / Lg4 = 4000
ρg600 ≥ ρg4
Cg414.4

j 1

(sωγ) ψδησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεφησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεψησεpsi	USB
32 /16 /FAT12	LALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALALAL
1.5 = 5	JULIUS	D/A JUG
24	MPG-1/2 Audio Layer-3	MP3 JUG
24	Windows Media Audio	WMA JUG
(AAC-LC"aaac") AAC-LC"	AAC JUG
PCM	WAV JUG
(48 /sωγ) 24 (JU) (L) FLAC JLO)	FLAC JUG

20 — 20	(±3) ±3
1000	JL
30	JL

Bluetooth 3.0		Bluetooth
2.480 — 2.402		2.422
0.0 (s/s) w/10 Lb b/s +4 2 a/b/c d (Lb/0.0) w/10 Lb b/s +4		2.422
(32.8 ft) l/s 10 Lb b/s +4		2.422
SSP		2.422
(100 Lb) HFP1.6		2.422
(A2DP) A2DP
(A2DP) AVRCP1.5
(PBAP) PBPAP
(Lb) SPP

(6th generation , 5th) iPod touch —

SE .6S Plus .6S .6 Plus .6 .5C .5S .5 iPhone 4S —

Android Open Accessory (AOA) 2.0 JolS JSu, aabg accs

9 151 jjssii iia jg> no J5 pcnd Android jg> J5 13i

AoA 2.0 a

Pandora J_9

Pandora

http://www.pandora.com/legal

JL Lg Jg Lgosj oosj Pandora gbbj

(6th generation , 5th) iPod touch —

(7th generation) iPod nano

SE .6S Plus .6S .6 Plus .6 .5C .5S .5 iPhone 4S —

#

jLgjj

acll jlae ahe g 1g oLw ploiswiw aagll no wjll

a1g 20 a1JJI JJI (jLJI

Jagol

aeha: gjg jugall abig jglg

Jgagall pccg cag g

:LiIgwh810JoloeJI

aillbawyJolil Jwll 2

LgLc Lgawo ailghwipsswi 8g aiighwglc aLiw Lo gI bJy jg wai 2

上

aJgbsu cIaLo g pssui 2

Jgaiio no ailghw8i kii

gipasw 8 acll jlaa ebe g 1gjcku plsiuily alghyai

Lai jn JgJgJ1 0o

aillgbw gag jiailgbw21 aIg aaiiaal dae no clljlll alj

LogLeJj

aegio gaoi aiee ie eaiiee eae iiee j

JVC-

SsX1 LogLeoJI sO

http://www.jvc.net/cs/car/

PLc

aillll CD Lilgbw Jie wio ooi gbiw

o DualDisc"DVD" - 100000000000000000000000000000000000000000000000

aillbawl jiei iai 2.1igj wll aill bawu g

iiaai l iie aie gao jaoilg b w DVD - 0

a JzaiiI alalil cagll laloo gao ylo aLao oLoge Jgauu

.http://www.jvc.net/cs/car/ aL

BRIGHTNESS (1)	GREEN	COLOR
2	JUNI	LIFE
3	JULY	LIFE
4	JUNE	LIFE
5	JULY	LIFE
6	JUNE	LIFE
7	JULY	LIFE
8	JUNE	LIFE
9	JULY	LIFE
10	JULY	LIFE
11	JULY	LIFE
12	JULY	LIFE
13	JULY	LIFE
14	JULY	LIFE
15	JULY	LIFE
16	JULY	LIFE
17	JULY	LIFE
18	JULY	LIFE
19	JULY	LIFE
20	JULY	LIFE
21	JULY	LIFE
22	JULY	LIFE
23	JULY	LIFE
24	JULY	LIFE
25	JULY	LIFE
26	JULY	LIFE
27	JULY	LIFE
28	JULY	LIFE
29	JULY	LIFE
30	JULY	LIFE
31	JULY	LIFE
32	JULY	LIFE
33	JULY	LIFE
34	JULY	LIFE
35	JULY	LIFE
36	JULY	LIFE
37	JULY	LIFE
38	JULY	LIFE
39	JULY	LIFE
40	JULY	LIFE
41	JULY	LIFE
42	JULY	LIFE
43	JULY	LIFE
44	JULY	LIFE
45	JULY	LIFE
46	JULY	LIFE
47	JULY	LIFE
48	JULY	LIFE
49	JULY	LIFE
50	JULY	LIFE
51	JULY	LIFE
52	JULY	LIFE
53	JULY	LIFE
54	JULY	LIFE
55	JULY	LIFE
56	JULY	LIFE
57	JULY	LIFE
58	JULY	LIFE
59	JULY	LIFE
60	JULY	LIFE
61	JULY	LIFE
62	JULY	LIFE
63	JULY	LIFE
64	JULY	LIFE
65	JULY	LIFE
66	JULY	LIFE
67	JULY	LIFE
68	JULY	LIFE
69	JULY	LIFE
70	JULY	LIFE
71	JULY	LIFE
72	JULY	LIFE
73	JULY	LIFE
74	JULY	LIFE
75	JULY	LIFE
76	JULY	LIFE
77	JULY	LIFE
78	JULY	LIFE
79	JULY	LIFE
80	JULY	LIFE
81	JULY	LIFE
82	JULY	LIFE
83	JULY	LIFE
84	JULY	LIFE
85	JULY	LIFE
86	JULY	LIFE
87	JULY	LIFE
88	JULY	LIFE
89	JULY	LIFE
90	JULY	LIFE
91	JULY	LIFE
92	JULY	LIFE
93	JULY	LIFE
94	JULY	LIFE
95	JULY	LIFE
96	JULY	LIFE
97	JULY	LIFE
98	JULY	LIFE
99	JULY	LIFE
100	JULY	LIFE

1
2
3
4

XX:

DISPLAY

DIMMER

[DAY] ALL Egbwbl ybj ybj ybj ybj OFF ([BRIGHTNESS] ⇌) .[NIGHT] ALL Egbwbl ybj ybj ybj ybj ON ybj ALL jbj jj cbj bbj 12 DIMMERTIME [ON] ALL Egbwbl ybj ybj Egbwbl VOL +/- 12 1 ▷/ⅡENTER [OFF] ALL Egbwbl ybj ybj Egbwbl VOL +/- 12 2 ▷/ⅢENTER 12 (AM6:00 [OFF] : PMG:00 [ON] : ybj ybj ybj

.[DTA SETTINGS] [GAIN] g [DISTANCE]

eaiwIgogjso jso aoLall 131

Lwpaaw,dcawJ5gllLjLlog

Lilali jai jilil g h

1

a.sso aboS

2

C. l_1 l_2 l_3

aclawll aLwuuu uuuu 3

gogos logoo [FRONTALL] gS:Loic JIio

E

:clawj jsl . 1s yj

jLio jilie aei Jo5i Loic

SUBWOOFER/REAR RIGHT/REAR LEFT/FRONT RIGHT/FRONT LEFT

[SUBWOOFER] [REAR RIGHT] [REAR LEFT]

(21 ).[SPEAKER SIZE] [SUBWOOFER] , [REAR] [NONE]

:olio 3 a joo Loic

WOOFER/MID RIGHT/MID LEFT/TWEETER RIGHT/TWEETER LEFT

[WOOFER] [NONE] [WOOFER]

(21 .[SPEAKER SIZE]

125 189 (19) [2-WAY] JI BgOo [X' OVERTYPE] oKs Looic b

(21 ).[SPEAKER SIZE] [REAR] [NONE]

y

a 1000000000000000000000000000000000000000000

1

GAIN]g [DISTANCE] aaiy

[DTA SETTINGS]

DTA SETTINGS

.(a)yaia yiaia biaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia iiaia i123456789010	POSITION
:FRONT RIGHT : ALL
FRONT ALL : yyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyy yy	GAIN*1
[X' OVER TYPE] yyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyy yy	DTA RESET
(19←).[2-WAY] yyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyyy yy	CAR SETTINGS
/SUV/MINIVAN/WAGON/FULL SIZE CAR/COMPACT	CARTYPE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. (. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .. . . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ; . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -610CM . ODB ↓-8DB . àgála l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclal l'auclAL . YES . NO : 100 . [COMPACT] y [OFF] y [OFF] y [OFF] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPAC] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPCT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMP ACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPact] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPRACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPECT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPUCT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPAB] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPAG] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACK] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPACT] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCA] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPAK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPOK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPCK] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPK] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMP KA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKA] y [COMPKE] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y

3 2

SPEAKER SIZE
LARGE/MIDDLE/SMALL		TWEETER
6×9/6×8/5×7/4×6/18CM/17CM/16CM/13CM/12CM/10CM/8CM		MID RANGE
(↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓) (↓)	X' OVER
/8KHZ/6.3KHZ/5KHZ/4KHZ/2.5KHZ/1.6KHZ/1KHZ 12.5KHZ/10KHZ		TWEETER
-12DB/-06DB		SLOPE
(0°) NORMAL/(180°) REVERSE		PHASE
00DB ↓ -08DB		GAIN
/100HZ/90HZ/80HZ/70HZ/60HZ/50HZ/40HZ/30HZ THROUGH/250HZ/220HZ/180HZ/150HZ/120HZ		HPF FRQ
-12DB/-06DB		HPF SLOPE
/8KHZ/6.3KHZ/5KHZ/4KHZ/2.5KHZ/1.6KHZ/1KHZ THROUGH/12.5KHZ/10KHZ		LPF FRQ
-12DB/-06DB		LPF SLOPE
(0°) NORMAL/(180°) REVERSE		PHASE
00DB ↓ -08DB		GAIN
/100HZ/90HZ/80HZ/70HZ/60HZ/50HZ/40HZ/30HZ THROUGH/250HZ/220HZ/180HZ/150HZ/120HZ	LPF FRQ		WOOFER*3
-12DB/-06DB		SLOPE
(0°) NORMAL/(180°) REVERSE		PHASE
00DB ↓ -08DB		GAIN

[REAR/REAR] JyIJI Lc logssu [SPK/PREOUT] yJyI JyI JyI JyI JyI
(19 ).[REAR/SUB.W]
Jg [SPK/PREOUT] Lsck
(19 ⇌).[SUB.W/SUB.W] Ⓞ [REAR/SUB.W]
(18 ).[ON]

J 1

SPEAKER SIZE
/18CM/17CM/16CM/13CM/12CM/10CM/8CM 7×10/6×9/6×8/5×7/4×6	SIZE	FRONT
(↓) NONE/LARGE/MIDDLE/SMALL	TWEETER
/6×8/5×7/4×6/18CM/17CM/16CM/13CM/12CM/10CM/8CM (↓) NONE/SMALL	NONE/7×10/6×9	REAR*1
(↓) NONE/SMALL	NONE/38CM OVER/30CM/25CM/20CM/16CM	SUBWOOFER*2*3
X'OVER
/6.3KHZ/5KHZ/4KHZ/2.5KHZ/1.6KHZ/1KHZ 12.5KHZ/10KHZ/8KHZ	FRQ	TWEETER
00DB ↓-08DB	GAIN LEFT
00DB ↓-08DB	GAIN RIGHT
/90HZ/80HZ/70HZ/60HZ/50HZ/40HZ/30HZ /250HZ/220HZ/180HZ/150HZ/120HZ/100HZ THROUGH	F-HPF FRQ	FRONT HPF
-24DB/-18DB/-12DB/-06DB	F-HPF SLOPE
00DB ↓-08DB	F-HPF GAIN
/90HZ/80HZ/70HZ/60HZ/50HZ/40HZ/30HZ /250HZ/220HZ/180HZ/150HZ/120HZ/100HZ THROUGH	R-HPF FRQ	REAR HPF*1
-24DB/-18DB/-12DB/-06DB	R-HPF SLOPE
00DB ↓-08DB	R-HPF GAIN
/90HZ/80HZ/70HZ/60HZ/50HZ/40HZ/30HZ /250HZ/220HZ/180HZ/150HZ/120HZ/100HZ THROUGH	SW LPF FRQ	SUBWOOFER LPF*2*3
-24DB/-18DB/-12DB/-06DB	SW LPF SLOPE
(0°) NORMAL /(180°) REVERSE	SW LPF PHASE
00DB ↓-08DB	SW LPF GAIN

Ae

3 a 1

(31 )

15

.11111111111 1

g2 Laiisio gI Llrc Jallgss

SPEAKER SIZE

JLALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALA JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALIJAL IJILINLL [SPEAKER SIZE] [SUBWOOFER] [SPEAKER SIZE] [WOOFER] [NONE] [NONE] [WOOFER] [X'OVER] [SPEAKER SIZE] [SUBWOOFER]

(a) X'OVER

LPF FRQ]/HPF FRQ]/[SW LPF FRQ]/[R-HPF FRQ]/[F-HPF FRQ]/[FRQ] · (J) 1111111111111111111111111111111111111111111111111111111111111111111111111

aLwJl LwJy

aieill iiaaae 5j yjy jy gao pao plaoaii ayuay aay

a.ajahali jalil al-leejahali llll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lill lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lall lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll l ll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lell lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lll lcc

(1)

(2)

[SUB.W/SUB.W]

[THROUGH] [SUBWOOFER LPF] [120HZ] -
[FADER] [POSITION R02] [POSITION R15]
[POSITION 00] [POSITION R15]

[SPK/PRE OUT] aL

([2-WAY]JIOO [X'OVER TYPE]JL51

actowlJyjgi jzjbi yI sloci [SPK/PRE OUT].clawlJyjdi

yj

(13)

:KD-R881BT

[ON]

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

# (19←)

.

[SUB.W/SUB.W]

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

# (9←)

.

[SUB.W/SUB.W]

PRO EQ [USER] ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
62.5HZ
JLQJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ L	LEVEL 00	LEVEL +09 ↓ ↓ LEVEL -09
	(↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↑
OFF :	BASS BOOST
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/160HZ/100HZ
16kHZ
JLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ	LEVEL 00	LEVEL +09 ↓ ↓ LEVEL -09
	(↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
Q FACTOR
AUDIO CONTROL
:	LEVEL +05 ↓ ↓ LEVEL +01
	OFF
JLQJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ L	LEVEL 02/LEVEL 01
OFF :	SUSYON SUSYON
(↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
OFF :	SPK-OUT*2
SUB.W LEVEL*1
JLQJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ L	SPK-OUT*2
SUB.W LEVEL*1
JLQJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ L	PRE-OUT*3
SUB.W LEVEL*1
JLQJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ L	SUB.WOOFER SET*3
OFF :	BASS BOOST
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/160HZ/100HZ
16kHZ
JLQJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJLJ L	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/160HZ/100HZ
16kHZ
JLQJLJLJLJLJLJLJLJLJLJLJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHz/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/160HZ/100HZ
16kHZ
JLQJLJLJLJLJLJLJLJLJLJLJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/160HZ/100HZ
16kHZ
JLQJLJLJLJLJLJLJLJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/100HZ
16kHZ
JLQJLJLJLJLJLJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/128HZ
16kHZ
JLQJLJLJLJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/128HZ
16kHZ
JLQJLJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/128HZ
128HZ
JLQJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/128HZ
128Hz
JLQJLCL	LEVEL 00
	(↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/128HZ
128Hz
JLQJLCL	LEVEL = 0
	(↓↓↓↓↓↓↓↓↓↓↑
OFF :
10KHZ/6.3KHZ/4KHZ/2.5KHZ/1.6KHZ/1.9KHZ/630HZ/400HZ/250HZ/168HZ/128HZ
128Hz
JLQQF	OFF : BASS BOOST

1

2

ENTER

3

jissll jll aaleoJI

4

Q/2 1c bcl 1 1 1 1 1 1 1 1 1 1 1 1

XX:

EQ SETTING

[EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [EASY EQ] [FLEX1] [FLEX2] [FLEX3] [FLEX4] [FLEX5] [FLEX6] [FLEX7] [FLEX8] [FLEX9] [FLEX10] [FLEX11] [FLEX12] [FLEX13] [FLEX14] [FLEX15] [FLEX16] [FLEX17] [FLEX18] [FLEX19] [FLEX20] [FLEX21] [FLEX22] [FLEX23] [FLEX24] [FLEX25] [FLEX26] [FLEX27] [FLEX28] [FLEX29] [FLEX30] [FLEX31] [FLEX32] [FLEX33] [FLEX34] [FLEX35] [FLEX36] [FLEX37] [FLEX38] [FLEX39] [FLEX40] [FLEX41] [FLEX42] [FLEX43] [FLEX44] [FLEX45] [FLEX46] [FLEX47] [FLEX48] [FLEX49] [FLEX50] [FLEX51] [FLEX52] [FLEX53] [FLEX54] [FLEX55] [FLEX56] [FLEX57] [FLEX58] [FLEX59] [FLEX60] [FLEX61] [FLEX62] [FLEX63] [FLEX64] [FLEX65] [FLEX66] [FLEX67] [FLEX68] [FLEX69] [FLEX70] [FLEX71] [FLEX72] [FLEX73] [FLEX74] [FLEX75] [FLEX76] [FLEX77] [FLEX78] [FLEX79] [FLEX80] [FLEX81] [FLEX82] [FLEX83] [FLEX84] [FLEX85] [FLEX86] [FLEX87] [FLEX88] [FLEX89] [FLEX90] [FLEX91] [FLEX92] [FLEX93] [FLEX94] [FLEX95] [FLEX96] [FLEX97] [FLEX98] [FLEX99] [FLEX100] [FLEX101] [FLEX102] [FLEX103] [FLEX104] [FLEX105] [FLEX106] [FLEX107] [FLEX108] [FLEX109] [FLEX110] [FLEX111] [FLEX112] [FLEX113] [FLEX114] [FLEX115] [FLEX116] [FLEX117] [FLEX118] [FLEX119] [FLEX120] [FLEX121] [FLEX122] [FLEX123] [FLEX124] [FLEX125] [FLEX126] [FLEX127] [FLEX128] [FLEX129] [FLEX130] [FLEX131] [FLEX132] [FLEX133] [FLEX134] [FLEX135] [FLEX136] [FLEX137] [FLEX138] [FLEX139] [FLEX140] [FLEX141] [FLEX142] [FLEX143] [FLEX144] [FLEX145] [FLEX146] [FLEX147] [FLEX148] [FLEX149] [FLEX150] [FLEX151] [FLEX152] [FLEX153] [FLEX154] [FLEX155] [FLEX156] [FLEX157] [FLEX158] [FLEX159] [FLEX160] [FLEX161] [FLEX162] [FLEX163] [FLEX164] [FLEX165] [FLEX166] [FLEX167] [FLEX168] [FLEX169] [FLEX170] [FLEX171] [FLEX172] [FLEX173] [FLEX174] [FLEX175] [FLEX176] [FLEX177] [FLEX178] [FLEX179] [FLEX180] [FLEX181] [FLEX182] [FLEX183] [FLEX184] [FLEX185] [FLEX186] [FLEX187] [FLEX188] [FLEX189] [FLEX190] [FLEX191] [FLEX192] [FLEX193] [FLEX194] [FLEX195] [FLEX196] [FLEX197] [FLEX198] [FLEX200] [FLEX201] [FLEX202] [FLEX203] [FLEX204] [FLEX205] [FLEX206] [FLEX207] [FLEX208] [FLEX209] [FLEX210] [FLEX211] [FLEX212] [FLEX213] [FLEX214] [FLEX215] [FLEX216] [FLEX217] [FLEX218] [FLEX219] [FLEX220] [FLEX221] [FLEX222] [FLEX223] [FLEX224] [FLEX225] [FLEX226] [FLEX227] [FLEX228] [FLEX229] [FLEX230] [FLEX231] [FLEX232] [FLEX233] [FLEX234] [FLEX235] [FLEX236] [FLEX237] [FLEX238] [FLEX239] [FLEX240] [FLEX241] [FLEX242] [FLEX243] [FLEX244] [FLEX245] [FLEX246] [FLEX247] [FLEX248] [FLEX249] [FLEX250] [FLEX251] [FLEX252] [FLEX253] [FLEX254] [FLEX255] [FLEX256] [FLEX257] [FLEX258] [FLEX259] [FLEX260] [FLEX261] [FLEX262] [FLEX263] [FLEX264] [FLEX265] [FLEX266] [FLEX267] [FLEX268] [FLEX269] [FLEX270] [FLEX271] [FLEX272] [FLEX273] [FLEX274] [FLEX275] [FLEX276] [FLEX277] [FLEX278] [FLEX279] [FLEX280] [FLEX281] [FLEX282] [FLEX283] [FLEX284] [FLEX285] [FLEX286] [FLEX287] [FLEX288] [FLEX289] [FLEX290] [FLEX291] [FLEX292] [FLEX293] [FLEX294] [FLEX295] [FLEX296] [FLEX297] [FLEX298] [FLEX300] [FLEX301] [FLEX302] [FLEX303] [FLEX304] [FLEX305] [FLEX306] [FLEX307] [FLEX308] [FLEX309] [FLEX310] [FLEX311] [FLEX312] [FLEX313] [FLEX314] [FLEX315] [FLEX316] [FLEX317] [FLEX318] [FLEX319] [FLEX320] [FLEX321] [FLEX322] [FLEX323] [FLEX324] [FLEX325] [FLEX326] [FLEX327] [FLEX328] [FLEX329] [FLEX330] [FLEX331] [FLEX332] [FLEX333] [FLEX334] [FLEX335] [FLEX336] [FLEX337] [FLEX338] [FLEX339] [FLEX340] [FLEX341] [FLEX342] [FLEX343] [FLEX344] [FLEX345] [FLEX346] [FLEX347] [FLEX348] [FLEX349] [FLEX350] [FLEX351] [FLEX352] [FLEX353] [FLEX354] [FLEX355] [FLEX356] [FLEX357] [FLEX358] [FLEX359] [FLEX360] [FLEX361] [FLEX362] [FLEX363] [FLEX364] [FLEX365] [FLEX366] [FLEX367] [FLEX368] [FLEX369] [FLEX370] [FLEX371] [FLEX372] [FLEX373] [FLEX374] [FLEX375] [FLEX376] [FLEX377] [FLEX378] [FLEX379] [FLEX380] [FLEX381] [FLEX382] [FLEX383] [FLEX384] [FLEX385] [FLEX386] [FLEX387] [FLEX388] [FLEX389] [FLEX390] [FLEX391] [FLEX392] [FLEX393] [FLEX394] [FLEX395] [FLEX396] [FLEX397] [FLEX398] [FLEX399] [FLEX400] [FLEX401] [FLEX402] [FLEX403] [FLEX404] [FLEX405] [FLEX406] [FLEX407] [FLEX408] [FLEX409] [FLEX410] [FLEX411] [FLEX412] [FLEX413] [FLEX414] [FLEX415] [FLEX416] [FLEX417] [FLEX418] [FLEX419] [FLEX420] [FLEX421] [FLEX422] [FLEX423] [FLEX424] [FLEX425] [FLEX426] [FLEX427] [FLEX428] [FLEX429] [FLEX430] [FLEX431] [FLEX432] [FLEX433] [FLEX434] [FLEX435] [FLEX436] [FLEX437] [FLEX438] [FLEX439] [FLEX440] [FLEX441] [FLEX442] [FLEX443] [FLEX444] [FLEX445] [FLEX446] [FLEX447] [FLEX448] [FLEX449] [FLEX450] [FLEX451] [FLEX452] [FLEX453] [FLEX454] [FLEX455] [FLEX456] [FLEX457] [FLEX458] [FLEX459] [FLEX460] [FLEX461] [FLEX462] [FLEX463] [FLEX464] [FLEX465] [FLEX466] [FLEX467] [FLEX468] [FLEX469] [FLEX470] [FLEX471] [FLEX472] [FLEX473] [FLEX474] [FLEX475] [FLEX476] [FLEX477] [FLEX478] [FLEX479] [FLEX480] [FLEX481] [FLEX482] [FLEX483] [FLEX484] [FLEX485] [FLEX486] [FLEX487] [FLEX488] [FLEX489] [FLEX490] [FLEX491] [FLEX492] [FLEX493] [FLEX494] [FLEX495] [FLEX496] [FLEX497] [FLEX498] [FLEX500] [FLEX501] [FLEX502] [FLEX503] [FLEX504] [FLEX505] [FLEX506] [FLEX507] [FLEX508] [FLEX509] [FLEX510] [FLEX511] [FLEX512] [FLEX513] [FLEX514] [FLEX515] [FLEX516] [FLEX517] [FLEX518] [FLEX519] [FLEX520] [FLEX521] [FLEX522] [FLEX523] [FLEX524] [FLEX525] [FLEX526] [FLEX527] [FLEX528] [FLEX529] [FLEX530] [FLEX531] [FLEX532] [FLEX533] [FLEX534] [FLEX535] [FLEX536] [FLEX537] [FLEX538] [FLEX539] [FLEX540] [FLEX541] [FLEX542] [FLEX543] [FLEX544] [FLEX545] [FLEX546] [FLEX547] [FLEX548] [FLEX549] [FLEX550] [FLEX551] [FLEX552] [FLEX553] [FLEX554] [FLEX555] [FLEX556] [FLEX557] [FLEX558] [FLEX559] [FLEX560] [FLEX561] [FLEX562] [FLEX563] [FLEX564] [FLEX565] [FLEX566] [FLEX567] [FLEX568] [FLEX569] [FLEX570] [FLEX571] [FLEX572] [FLEX573] [FLEX574] [FLEX575] [FLEX576] [FLEX577] [FLEX578] [FLEX579] [FLEX580] [FLEX581] [FLEX582] [FLEX583] [FLEX584] [FLEX585] [FLEX586] [FLEX587] [FLEX588] [FLEX589] [FLEX590] [FLEX591] [FLEX592] [FLEX593] [FLEX594] [FLEX595] [FLEX596] [FLEX597] [FLEX598] [FLEX599] [FLEX600] [FLEX601] [FLEX602] [FLEX603] [FLEX604] [FLEX605] [FLEX606] [FLEX607] [FLEX608] [FLEX609] [FLEX610] [FLEX611] [FLEX612] [FLEX613] [FLEX614] [FLEX615] [FLEX616] [FLEX617] [FLEX618] [FLEX619] [FLEX620] [FLEX621] [FLEX622] [FLEX623] [FLEX624] [FLEX625] [FLEX626] [FLEX627] [FLEX628] [FLEX629] [FLEX630] [FLEX631] [FLEX632] [FLEX633] [FLEX634] [FLEX635] [FLEX636] [FLEX637] [FLEX638] [FLEX639] [FLEX640] [FLEX641] [FLEX642] [FLEX643] [FLEX644] [FLEX645] [FLEX646] [FLEX647] [FLEX648] [FLEX649] [FLEX650] [FLEX651] [FLEX652] [FLEX653] [FLEX654] [FLEX655] [FLEX656] [FLEX657] [FLEX658] [FLEX659] [FLEX660] [FLEX661] [FLEX662] [FLEX663] [FLEX664] [FLEX665] [FLEX666] [FLEX667] [FLEX668] [FLEX669] [FLEX670] [FLEX671] [FLEX672] [FLEX673] [FLEX674] [FLEX675] [FLEX676] [FLEX677] [FLEX678] [FLEX679] [FLEX680] [FLEX681] [FLEX682] [FLEX683] [FLEX684] [FLEX685] [FLEX686] [FLEX687] [FLEX688] [FLEX689] [FLEX690] [FLEX691] [FLEX692] [FLEX693] [FLEX694] [FLEX695] [FLEX696] [FLEX697] [FLEX698] [FLEX700] [FLEX701] [FLEX702] [FLEX703] [FLEX704] [FLEX705] [FLEX706] [FLEX707] [FLEX708] [FLEX709] [FLEX710] [FLEX711] [FLEX712] [FLEX713] [FLEX714] [FLEX715] [FLEX716] [FLEX717] [FLEX718] [FLEX719] [FLEX720] [FLEX721] [FLEX722] [FLEX723] [FLEX724] [FLEX725] [FLEX726] [FLEX727] [FLEX728] [FLEX729] [FLEX730] [FLEX731] [FLEX732] [FLEX733] [FLEX734] [FLEX735] [FLEX736] [FLEX737] [FLEX738] [FLEX739] [FLEX740] [FLEX741] [FLEX742] [FLEX743] [FLEX744] [FLEX745] [FLEX746] [FLEX747] [FLEX748] [FLEX749] [FLEX750] [FLEX751] [FLEX752] [FLEX753] [FLEX754] [FLEX755] [FLEX756] [FLEX757] [FLEX758] [FLEX759] [FLEX760] [FLEX761] [FLEX762] [FLEX763] [FLEX764] [FLEX765] [FLEX766] [FLEX767] [FLEX768] [FLEX769] [FLEX770] [FLEX771] [FLEX772] [FLEX773] [FLEX774] [FLEX775] [FLEX776] [FLEX777] [FLEX778] [FLEX779] [FLEX780] [FLEX781] [FLEX782] [FLEX783] [FLEX784] [FLEX785] [FLEX786] [FLEX787] [FLEX788] [FLEX789] [FLEX790] [FLEX791] [FLEX792] [FLEX793] [FLEX794] [FLEX795] [FLEX796] [FLEX797] [FLEX798] [FLEX799] [FLEX800] [FLEX801] [FLEX802] [FLEX803] [FLEX804] [FLEX805] [FLEX806] [FLEX807] [FLEX808] [FLEX809] [FLEX810] [FLEX811] [FLEX812] [FLEX813] [FLEX814] [FLEX815] [FLEX816] [FLEX817] [FLEX818] [FLEX819] [FLEX820] [FLEX821] [FLEX822] [FLEX823] [FLEX824] [FLEX825] [FLEX826] [FLEX827] [FLEX828] [FLEX829] [FLEX830] [FLEX831] [FLEX832] [FLEX833] [FLEX834] [FLEX835] [FLEX836] [FLEX837] [FLEX838] [FLEX839] [FLEX840] [FLEX841] [FLEX842] [FLEX843] [FLEX844] [FLEX845] [FLEX846] [FLEX847] [FLEX848] [FLEX849] [FLEX850] [FLEX851] [FLEX852] [FLEX853] [FLEX854] [FLEX855] [FLEX856] [FLEX857] [FLEX858] [FLEX859] [FLEX860] [FLEX861] [FLEX862] [FLEX863] [FLEX864] [FLEX865] [FLEX866] [FLEX867] [FLEX868] [FLEX869] [FLEX870] [FLEX871] [FLEX872] [FLEX873] [FLEX874] [FLEX875] [FLEX876] [FLEX877] [FLEX878] [FLEX879] [FLEX880] [FLEX881] [FLEX882] [FLEX883] [FLEX884] [FLEX885] [FLEX886] [FLEX887] [FLEX888] [FLEX889] [FLEX890] [FLEX891] [FLEX892] [FLEX893] [FLEX894] [FLEX895] [FLEX896] [FLEX897] [FLEX898] [FLEX899] [FLEX900] [FLEX901] [FLEX902] [FLEX903] [FLEX904] [FLEX905] [FLEX906] [FLEX907] [FLEX908] [FLEX909] [FLEX910] [FLEX911] [FLEX912] [FLEX913] [FLEX914] [FLEX915] [FLEX916] [FLEX917] [FLEX918] [FLEX919] [FLEX920] [FLEX921] [FLEX922] [FLEX923] [FLEX924] [FLEX925] [FLEX926] [FLEX927] [FLEX928] [FLEX929] [FLEX930] [FLEX931] [FLEX932] [FLEX933] [FLEX934] [FLEX935] [FLEX936] [FLEX937] [FLEX938] [FLEX939] [FLEX940] [FLEX941] [FLEX942] [FLEX943] [FLEX944] [FLEX945] [FLEX946] [FLEX947] [FLEX948] [FLEX949] [FLEX950] [FLEX951] [FLEX952] [FLEX953] [FLEX954] [FLEX955] [FLEX956] [FLEX957] [FLEX958] [FLEX959] [FLEX960] [FLEX961] [FLEX962] [FLEX963] [FLEX964] [FLEX965] [FLEX966] [FLEX967] [FLEX968] [FLEX969] [FLEX970] [FLEX971] [FLEX972] [FLEX973] [FLEX974] [FLEX975] [FLEX976] [FLEX977] [FLEX978] [FLEX979] [FLEX980] [FLEX981] [FLEX982] [FLEX983] [FLEX984] [FLEX985] [FLEX986] [FLEX987] [FLEX988] [FLEX989] [FLEX990] [FLEX991] [FLEX992] [FLEX993] [FLEX994] [FLEX995] [FLEX996] [FLEX997] [FLEX998] [FLEX999] [FLEX1000]

(18) 3.2.2.1

Jgagglgagll

(1) (2) (3)

gai jia jia jia jia

(4 ) . [SOURCE SELECT] [BUILT-IN AUX] [ON] 2

.AUXJxSIOJSSRC-0

Jg0000000000000000000000000000000000000000

J 1

STATUS

Jg Jg

jglgplwglblll plswgbiwi IOS CONNECTED

JL USB JLS21 3gbluetooth

jbbil jgogios IOS jgs

andai plaswl g hll plsiw gAndroid CONNECTED

1. Bluetooth

J 2Android NOT CONNECTED

Bluetooth iPod/Phone jLg g LaiX

(KD-R881BT

blt 100

.iPod BT, 8, 8, 8, 8, SRC

iPod/iPhone jg> 0sL oic aiaa bll iPod/iPhone jg> Jd

(7←).USB JLs281 3, b jsc Jgog

JL 150 USB Jd21 iPod/iPhone j4

iPod BT SRC-i iPod USB iPod BT

Bluetooth

Bluetooth

Lgblc Bluetooth 2021Panda 15

jgl jll xgog USB Jl,21 20 20 20

Android 山 _ 4 一 iPod touch/iPhone KD-R881BT

Android kD-R781BT

(1)Panda (L)

(4 [SOURCE SELECT] [PANDORA SRC] [ON]

Panda 1

(10 ).Bluetooth jLgjLgJ 2

(iPod/iPhone jLj)PANDORA J LjSJRJ SRC-0 hj 3

PANDORA BT

Lalai jll 12g jss

(9) USB JxJyPc Pandora JyJyPcPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdPdl

JVC Remote gill

JvC JvI JVC

A. 1,2 , 3,4 , 5,6

山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 山 1 (USBJLsbluBt oD) iPod/iPhone kKD-R881BT

(Bluetooth)

(Blueoth 2008)

Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc

http://www.jvc.net/cs/car/

1

2

▶/I ENTER

3

4

A/2c bai 1 LwLd 1y

XX

REMOTE APP

(.OTHERs9 9 0 gZ A) @lll lal 2 △/1▼

.9 0gZ A Jz yJg21 gJg21 JgS 13! (g) "OTHERS"JLwJg21

/HESTER bVOL+/-2

IENTER Vol+/- 3

JyI 1

aLs LcLcLcLgLcLgll ggl ggl ggl ggl

(Mass Storage Class)

Jilwll sio jgj jinall Jieoll

(KD-R881BTJ) JVC Remote

jLJ 0o jyLL JVC Jznnn nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

(.USB Jldj) iPod/iPhone

#

Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc

http://www.jvc.net/cs/car/

(16 ).Bluetooth

Jie jiljag Jlalj, jolll

CD

JU JU JU JU JU

ANDROID/iPod USB/USB/CD :KD-R881BT

ANDROID/USB/CD :KD-R781BT

(6 1n) A L L L P L J J J (g)

a/b 指数

I/IIENTER 2VOL+/-12

CLOCK
plasstwby I'zIaIaI aclll l'ag bIaIaI ON pIaIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIaI aI'zIb	TIME SYNC
sIaII OFF : FM Radio Data System bIaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aI'ZaII aLag	CLOCK DISPLAY
sIaII OFF : aIaII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'aII aI'zIaII	ENGLISH
ENGLISH	ESPANOL

aWwJ1 cJb

1

2

-ENTER

3

4

Q/2 1c bcl 1 1 1 1 1 1 1 1 1 1 1 1

XX:

SYSTEM
(.(العاني 3 مصحيى نهير بعس ورطمن للاويات الحرفية بعس الحرفية بعس الحرفية بعس بعس) .ON	KEY BEEP
SOURCE SELECT
(5 ⇌).مΒب四是 .OFF : فص پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد pbtreر .ON	AM SRC*
(5 ⇌).مΒب四是 .OFF : فص پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد پورد pbtreر .ON	SW1 SRC*
(5 ⇌).مΒب四是 .OFF : فص پورد پورد پورد پورد pbtreر .ON	SW2 SRC*
(9 ⇌).مΒب四是 .OFF : فص پورد پورد پورد پورد pbtreر .ON	PANDORA SRC*
(17 ⇌).مΒب四是 .OFF : فص پورد پورد pbtreر .ON	BUILT-IN AUX*
F/W UPDATE
UPDATE SYSTEM
(العاني بعس GREنير رهشة الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية EXCELLE .NQ : (.العاني بعس GREнير رهشة الحرفية الحرفية الحرفية الحرفية الحرفية الح註冊 .NQ : (.العاني بعس GREнير رهشة الح註冊 .NQ : (.العاني بعس GREнير رهشة الح註冊 .NQ : (.العاني بعس GREнير رهشة الح註冊 .NQ : (.العاني بعس GREнير رهشة الح註冊 .NQ : (.العاني بعس GREнير رهشة الح註冊 .NQ : (.العاني بعس GREнير رهشte الح註冊 .NQ : (.العاني بعس GREнير رهشte EXCELLE .NQ : (.العاني بعس GREнير رهشte EXCELLE .NQ : (.العاني بعس GREнير رهشte EXCELLE .NQ : (.العاني بعس GREнير رهشte EXCELLE .NQ : (.العاني بعس GREнير رهشte EXCELLE .NQ : (.العاني بعس GREнير ر章除 .NQ : (.العاني بعس GREнير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بع� GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني bgy net/cs/car>
FACTORY RESET
(العاني بعس GREнير رهشte EXCELLE .NQ : (.العاني بعس GREnير ر章除 .NQ : (.العاني bgy net/cs/car>

jblll jaoai laoic 8*

jwuiwaiuoc

（1

iLl [YES] [FACTORY RESET] 15000000000 "PRESS ENTER" "CANCEL DEMO"

IENTER 1

[YES]

11ENTER 2 DEMO OFF

jgl jclwJ

（2

1
1
2

acwll b

. / / ENTER [CLOCK ADJUST] VOL+/-

/IIENTER 已 1 已 1 已 1 已 1 已 1 已 1 已 1 已 1 已 1 已 1

aLw

.1/IIENTER [CLOCK FORMAT]VOL+/- 5

.1/ENTER [24H] [12H] VOL+/-

中

.11ENTER bol .[DATE SET] VOL+/- 7

/ENTER bVOL+/- 8

4i←g-（p）

9

A/21 1

(RM-RK52)

Jc Jc Ksll WwL (jLwI wWgJw

j4 = j + 1j2 = 1j

j/aliac aie jiae ayaiyaiyaiyaiyai yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

#

A

：

gall jn no kai g yjlll gl cagllg Lau LL bblb gssal ggiu laa

:PLc
