USER MANUAL Avante 8749 TEFAL

Illustration of hands operating a toaster with two shades and a cup, placed on a tray (no text or symbols)

Remove toaster from packaging.

Line drawing of a hand holding a T-Net advertisement device (no text or symbols on the device itself)

Clean the toaster with a damp cloth.

Diagram showing a hand holding an electrical outlet with an arrow indicating clockwise rotation or adjustment.

Plug the toaster into the wall outlet.

Turn dial to maximum browning setting without inserting any bread.

Press lever for 3 sequential toasting sessions to remove "new" smell.

Illustration of a hand placing food into a toaster with a hand holding the cup (no text or symbols)

Insert bread.

Mettez le pain.

3 4 2 5 6

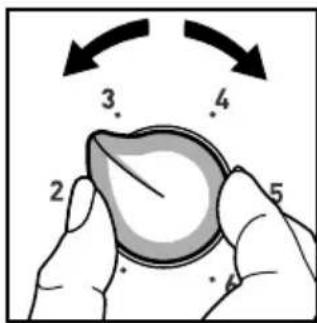

Select browning level using dial control.

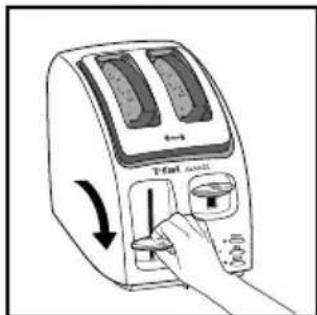

Press down the left lever to start toasting.

Line drawing of a two-tan tower with steam rising (no text or symbols)

The toasting begins.

Le grillage commence.

F-fat A##

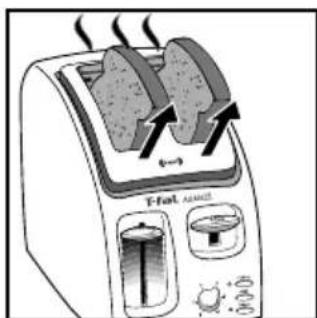

Toasting chamber automatically lifts toast and lever once toasting cycle is complete.

To remove smaller-sized breads after the toasting cycle.

Illustration of a toaster with steam rising from the front panel, showing cooling process and fan control

Push down the hi-lift lever (right lever).

T-Fuel Blend

Remove toast.

Retirez les rôties.

STOP/ARRÊT

reheat stop bag

Press the stop button at any time to stop the toasting cycle.

Illustration of a toaster with steam rising from the front, showing food being heated and cooling.

Toasting chamber automatically lifts toast and lever.

Illustration of a toaster with hands holding a food item, no text or symbols present

Insert toast.

Mettez le pain.

Illustration of a hand using a T-Cell tower to switch a doorbell (no text or symbols present)

Press down the left lever to start toasting.

The toaster will come on for just a short time to heat up the bread that has already been toasted.

Toasting chamber automatically lifts toast and lever once toasting cycle is complete.

Insert the bagel as shown, with the cut sides facing in.

Illustration of a hand using a T-Cell water heater to switch a door (no text or symbols present)

Press down the left lever to start toasting.

stop bags

Press the BAGEL button.

Illustration of a simple 3D stander with two shades and two side handles (no text or symbols)

The heating elements will turn on.

Your bagel will toast on the cut sides and will be warm on the outside.

Toasting chamber automatically lifts bagel and lever once toasting cycle is complete.

Diagram showing a hand holding an electrical socket with a double button, indicating a change or adjustment in the power outlet.

Unplug the toaster from the wall outlet.

Diagram of a portable toaster with temperature gauge and pressure gauge, showing front panel, side dish, and power outlet.

Allow the toaster to cool completely, approximately 10 minutes.

Line drawing of a hand holding a T-shirt and a double boiler (no text or symbols)

Clean the toaster with a damp cloth.

Illustration of hands inserting a device into a device casing (no text or symbols visible)

To clean the toaster, unclip, open the crumb tray and wipe it dean.

Line drawing of hands using a tool to cut a curved object, no text or symbols present

Also turn the appliance upside down and shake out any pieces of bread that may be stuck between the grills.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Never wrap the cord around the outside of the appliance during or after use. A cord storage is located under the appliance.

Line drawing of a hand holding a curved object, possibly a container or container (no text or symbols)

To move the toaster, a carrying handle is located at the back of the appliance.

Diagram showing a device with cross-sectional lines and labeled components, possibly indicating a safety or diagnostic concept.

Do not immerse toaster in water or run water into the toaster.

Line drawing of a toaster with a crossed black cross symbol (no text or labels)

Do not operate toaster under or around any flammable materials.

Line drawing of a toaster with a hand using a tool to clean or prepare it (no text or symbols)

Do not insert objects into the toaster.

Diagram of a building interior with two crossed black lines indicating boundaries (no text or symbols)

Do not place the toaster in the dishwasher.

Diagram showing a device with crossed-out black lines and 'Tetrol' label, indicating a cross-sectional view.

Do not cover toast chambers when in use.

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use the handle. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs, or this appliance in water or other liquid.
4. Not intended for use by children. Close supervision is necessary for any appliance being used near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.
14. A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
15. Do not attempt to dislodge food when toaster is plugged in.

SAVE THESE INSTRUCTIONS

DO

• The toaster must always be used in the upright position (not on its side or tilted forward or back).
• Before each use, make sure that the crumb tray is in its proper location.
• Regularly remove crumbs from crumb tray.
• The control lever must be in the "Up" position before attaching or disconnecting the plug from wall outlet.
• If bread jams in the slots after toasting, the unit will automatically shut off. Disconnect the plug immediately from the wall outlet and wait for the appliance to cool before attempting to remove the bread.
• Disconnect the appliance if it shows any working abnormalities.

DO NOT

• Never leave the toaster unattended during operation, particularly when toasting for the first time or when changing settings.
• Do not touch the metal parts or hot surfaces of the appliance when it is working.
• Do not try to toast bread that may melt (with icing) or drip in the toaster and do not toast crusts as this may damage the appliance or cause a fire.
• Do not try to toast very thick slices of bread that could block the toasting mechanism.
• Bread can burn; do not cover this appliance while in use and do not use this appliance near any flammable materials such as curtains, under shelving or wall cupboards, etc. It should be attended when in use.
• Do not put paper towels, cardboard or plastic in, on or under the toaster.
• If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.
• Do not use this appliance as source of heating or drying.
• Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products.
• Do not unplug appliance by pulling on cord. Instead grasp plug and pull to disconnect.
• Never wrap cord around toaster. Use cord storage on the underside of unit.

This product has been designed for household use only. Any professional use, inappropriate use or failure to comply with the instructions will void the warranty.

SAFETY INSTRUCTIONS

• For your safety, this appliance complies with applicable technical rules and norms.
• Check that the main voltage corresponds to the voltage indicated on the appliance (alternating voltage only)
• Use a stable work surface, away from any contact with water and never in a built-in kitchen alcove.
• Do not move the appliance when working.

POLARIZATION INSTRUCTIONS

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fitfully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD

a A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance, and

2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

The packaging of your product is made of recyclable materials. Do not throw it out with your usual garbage; take advantage of your local recycling program.

WARRANTY

ONE-YEAR LIMITED WARRANTY:

Groupe SEB (T-Fal) warrants this product to be defect free in material and workmanship for a period of one year from the date of purchase. This warranty extends to the original purchaser and any subsequent owner within the warranty period. If a defect is found to exist, T-fal will, at its option, either repair or replace the product or the defective component, including labor.

Replacement will be made with new or rebuilt product or components.

Proof of purchase is required to obtain warranty service, so keep the register receipt. If a product or component is returned without proof of purchase it will be reviewed based on the manufacturing production week and year to determine if there is warranty coverage.

This warranty does not apply to any unit that has been tampered with, nor to damages incurred through improper use and care, faulty packaging by you or mishandling by any common carrier.

T-fal's sole obligation and your exclusive remedy under this warranty is limited to such repair or replacement.

THE DURATION OF ANY IMPLIED WARRANTY WHATSOEVER, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

T-FAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from State to State.

To obtain warranty service:

1. Do not return the product to the retailer from which it was purchased.

2. Please contact our consumer service department for assistance and to ensure the fastest possible resolution to the problem. Please have the model or type number of your product on hand. If it is determined that you should return your product or a component of the product for warranty service, you will be given a return authorization number.

3. Send the product or component, postage-paid, together with proof of purchase, a description of the problem, and the return authorization number you were given, to the closest authorized T-fal return facility.

4. Be sure to include your name, address and home telephone number with your shipment. Another contact number is suggested in case you need to be contacted.

5. We suggest that you carefully wrap your package for shipping and send by insured and/or traceable means.

For USA: 1-800-395-8325 For Canada: 1-800-418-3325

Monday-Thursday 8:30am-5pm EST Monday-Thursday 8:30am-4:30pm EST

Friday: 8:30am-4pm EST Friday 8:30-1:30 EST

www.T-falusa.com www.T-fal.ca

345 Passmore Ave.

Toronto Ontario

Canada M1V 3N8

PRÉCAUTIONS IMPORTANTES

Division of Groupe Seb Canada Inc.
