FN123103 - Fan Emerio - Free user manual and instructions
Find the device manual for free FN123103 Emerio in PDF.
| Brand | Emerio |
| Model | FN123103 |
| Product type | Table fan |
| Supply voltage | 220-240 V ~ 50/60 Hz |
| Power consumption | 35 W (max) / 33,80 W (ERP) |
| Number of speeds | 3 (I, II, III) |
| Oscillation | Yes, push button |
| Adjustable tilt | Yes, by pressing on the head |
| Protective grille | Front and back, with clips |
| Maximum airflow | 47,42 m³/min |
| Sound power level | 59,49 dB(A) |
| Service value | 1,40 (m³/min)/W |
| Warranty | 2 years |
| Customer service | Emerio Deutschland GmbH, Tel. +49 (0) 3222 1097 600 |
| Recycling | WEEE Directive 2012/19/EU |
| Maintenance | Clean with a damp cloth, do not immerse |
| Safety | Do not insert objects in the grilles, do not use without grille |
Frequently Asked Questions - FN123103 Emerio
User questions about FN123103 Emerio
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual FN123103 - Emerio and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FN123103 by Emerio.
USER MANUAL FN123103 Emerio


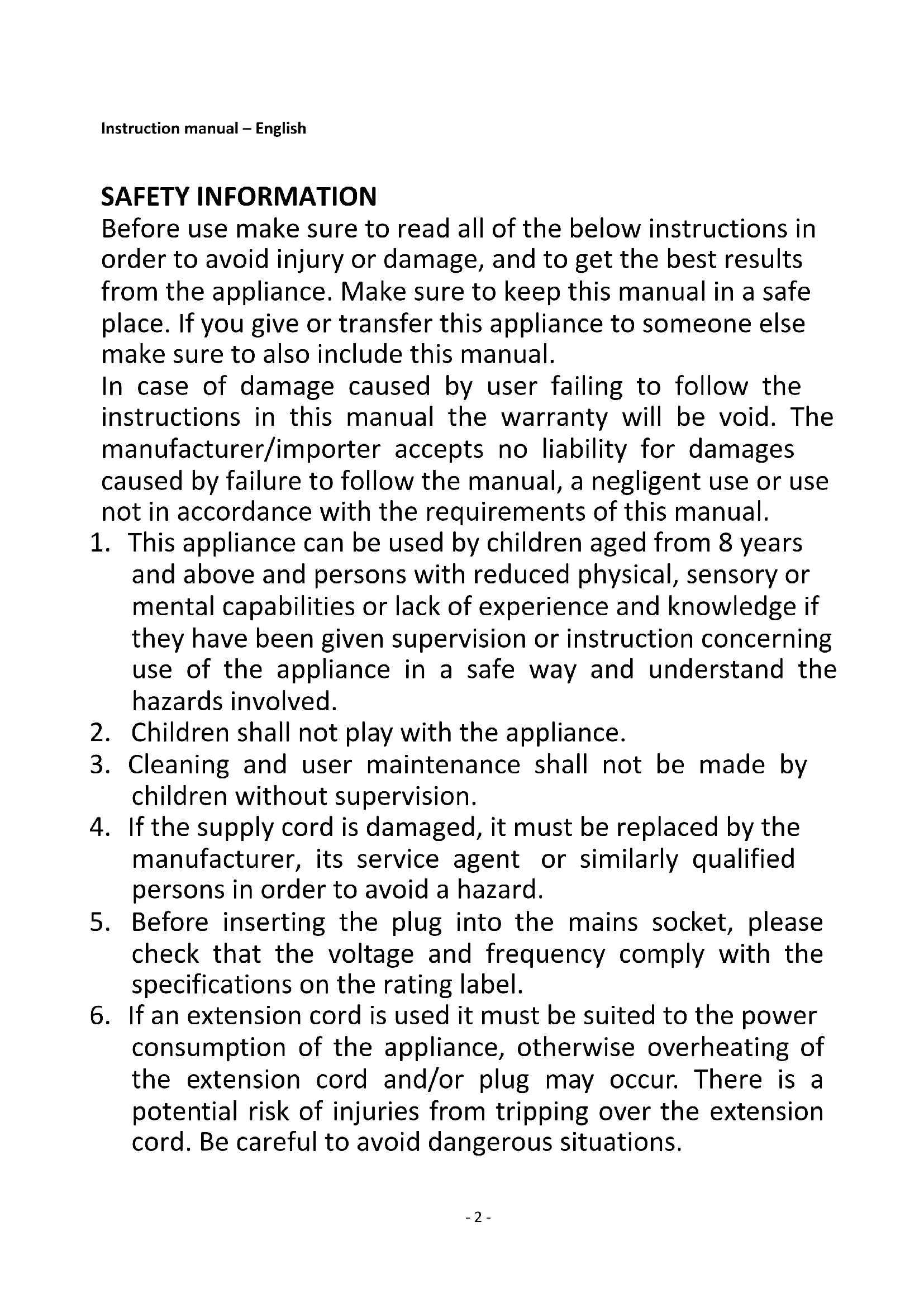

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.
In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Children shall not play with the appliance.
-
Cleaning and user maintenance shall not be made by children without supervision.
-
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
-
If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
-
Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
-
Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
-
Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
-
Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
-
Keep the appliance away from damp, and protect from splashes.
-
Keep the appliance away from hot objects (e.g. hotplates) and open flames.
-
Keep the appliance and its cord out of reach of children less than 8 years.
-
Use the appliance on a flat, dry and heat resistance surface.
-
Never leave the device unattended during use.
-
Do not store or operate the appliance in the open air.
-
Never put fingers or any other objects through the fan guards when the fan is running.
-
Never operate the product without the fan guards in place, as serious personal injury may result.
-
The appliance must be assembled completely before use.
-
Watch out for long hair! It can be caught in the fan owing to the air turbulence.
-
Do not point the air flow to the people for a long time.
-
Ensure that the fan is switched off from the supply mains before removing the guard.
PARTS DESCRIPTION
- Fan blade
- Fixation screws for rear guard (x4)
- Rear guard
- Base locking screw and washer
- Grill locking screw and nut
- Blade fastening screw
- Motor shaft
- Motor unit
- Oscillation knob
- Speed control switch
- Connecting screw
- Standing shaft
- Standing base
- Clip
- Handle
ASSEMBLY INSTRUCTIONS
- Loosen the base locking screw and washer (5) from the standing shaft (13).
- Insert the standing shaft with the motor unit (9) into the center hole of the standing base (14). Fix with the base locking screw and washer (5).
- Loosen the four fixation screws (3) from the front side of the motor unit. Attach the rear guard (4) onto the motor unit by aligning the screw holes on the rear guard and the front side of the motor unit. Tighten back the four fixation screws to fix the rear guard. Make sure the handle (16) on the rear guard is on the top.
- Loosen the blade fastening screw (7) from the fan blade (2). Attach the fan blade onto the motor shaft (8). Tighten back the blade fastening screw to fix the fan blade. Make sure it fixes at the flat part of the motor shaft.
- Hook the front guard (1) onto the rear guard. Close the guard clips (15) and use the grill locking screw and nut (6) to secure the two grilles together.
OPERATING INSTRUCTIONS
- Plug the power cord into a suitable socket.
- Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull up the oscillation knob.
- Tilting angles: Adjust the air supply angle by pushing the fan head up and down. Fix the angle by tightening the connecting screw.
- The fan is switched on by turning the speed control switch on the motor unit, i.e. 0 = OFF, I = low speed, II = medium speed, III = high speed.
CLEANING
-
Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
-
Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
-
Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.
TECHNICAL DATA
Supply voltage: 220-240V \~ 50/60Hz
Power consumption: 35W
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.
Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
ENVIRONMENT FRIENDLY DISPOSAL
Recycling – European Directive 2012/19/EU
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Emerio Deutschland GmbH (no service address)
Lerchenweg 3
40789 Monheim am Rhein
Deutschland
Customer service:
T: +49 (0) 3222 1097 600
E: info.de@emerio.eu
ERP information (EN)
Declare that the product detailed below:
Information requirements
| Information to identify the FN-123103 to which the information relates to [Desk Fan] | |||
| Description | Symbol | Value | Unit |
| Maximum fan flow rate | F | 47,42 | m3/min |
| Fan power input | P | 33,80 | W |
| Service value | SV | 1,40 | (m3/min)/W |
| Standby power consumption | PSB | - | W |
| Fan sound power level | LWA | 59,49 | dB(A) |
| Maximum air velocity | c | 3,36 | meters/sec |
| Measurement standard for service value | IEC 60879:1986 (corr.1992) | ||
| Contact details for obtaining more information | Emerio Deutschland GmbHLerchenweg 340789 Monheim am RheinDeutschland | ||
Satisfies the requirement of the Council Directives:
COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans
Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
